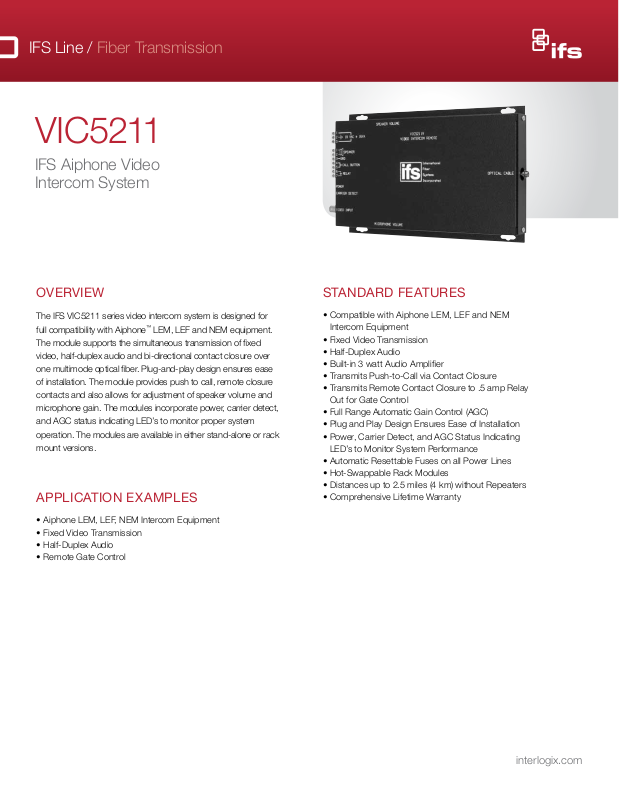

Interlogix VIC5211M Specsheet

IFS Line / Fiber Transmission
V I C 5211
IFS Aiphone Video Intercom System
OVERVIEW
The IFS VIC5211 series video intercom system is designed for full compatibility with Aiphone The module supports the simultaneous transmission of fixed video, half-duplex audio and bi-directional contact closure over one multimode optical fiber. Plug-and-play design ensures ease of installation. The module provides push to call, remote closure contacts and also allows for adjustment of speaker volume and microphone gain. The modules incorporate power, carrier detect, and AGC status indicating LED’s to monitor proper system operation. The modules are available in either stand-alone or rack mount versions.
APPLICATION EXAMPLES
• Aiphone LEM, LEF, NEM Intercom Equipment
• Fixed Video Transmission
• Half-Duplex Audio
• Remote Gate Control
STANDA RD FE AT U RES
• Compatible with Aiphone LEM, LEF and NEM Intercom Equipment
• Fixed Video Transmission
• Half-Duplex Audio
• Built-in 3 watt Audio Amplier
• Transmits Push-to-Call via Contact Closure
• Transmits Remote Contact Closure to .5 amp Relay Out for Gate Control
• Full Range Automatic Gain Control (AGC)
• Plug and Play Design Ensures Ease of Installation
• Power, Carrier Detect, and AGC Status Indicating LED’s to Monitor System Performance
• Automatic Resettable Fuses on all Power Lines
• Hot-Swappable Rack Modules
• Distances up to 2.5 miles (4 km) without Repeaters
• Comprehensive Lifetime Warranty
interlogix.com
North America
Video
(Coax)
Audio
Video
(Coax)
1 Fiber
62.5/125μm MM
VIC5211M
Audio
VIC5211R
up to 2.5 miles
(4 km)
ifs
International
Fiber
Systems
Incorporated
ifs
International
Fiber
Systems
Incorporated
Contact Input
Contact Output
V I C 5211
T 855-286-8889
IFS Aiphone Video Intercom System
Specifications
Station Description
Intercom remote station Push to call; Audio In/Out - 3W (8-20 ohms); 0.5A relay contact (N.O.) Master station Audio In/Out; Contact Closure (to Remote)
Audio
Bandwidth 300 Hz - 5 kHz
Video
Video Input 1 volt pk-pk (75 ohms) Bandwidth 5 Hz - 6 MHz Differential Gain <5% Differential Phase <5° Tilt <1% Signal-to-Noise Ratio (SNR)
Wavelength 850/1310 nm, Multimode
Number of fibers 1
Connectors
Optical ST Power, Audio and Contact Terminal Block with Screw Clamps Video BNC
Electrical & Mechanical Power
Surface Mount Remote 24VACCT Surface Mount Master 12VDC Rack From Rack Number of Rack Slots 2 (Master Only) Current Protection Automatic Resettable Solid-State Current Limiters Circuit Board Meets IPC Standard Size (in./cm.) (LxWxH) Remote 10.8 x 5.7 x 1.0 in. (27.5 x 14.5 x 2.5 cm) Master Surface Mount 7.0 x 4.9 x 2.0 in. (17.8 x 12.5 x 5.1 cm) Master Rack Mount 7.7 x 5.0 x 2.0 in. (19.6 x 12.7 x 5.1 cm) Shipping Weight < 2 lbs./0.9 kg
Environmental
MTBF > 100,000 hours Operating Temperature -40°C to +74°C Storage Temperature -40°C to +85°C Relative Humidity 0% to 95% (non-condensing)†
†May be extended to condensation conditions by adding suffix ‘–C’ to model number for conformal coating.
60 dB (minimum)
Asia
T 852-2907-8108
Australia
T 61-3-9239-1200
Agency Compliances
• FCC
• CE
Europe
T 32-2-725-11-20
Latin America
T 561-998-6114
Ordering Information
Part Number Description Fibers Required Optical Pwr. Budget Mx. Distance*
Multimode
62.5/125µm**
Accessories***
Options
*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels. Distance can also be limited by fiber bandwidth.
**For 50/125 Fiber, subtract 4 dB from Optical Power Budget.
***2-year warranty on power supplies.
VIC5211M VIC5211R
Video Receiver / Intercom Master (1310/850 nm) Video Transmitter / Intercom Remote (850/1310 nm)
1 14 dB 2.5 miles (4 km)
PS-24VACCT 24Volt AC Center Tap Transformer (Included with VIC5211R) PS12VDC1.5A-U 12Volt DC AC Plug-in Power Supply (Included with VIC5211M)
Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately) Add ‘-C’ for Conformally Coated Printed Circuit Boards (Extra charge, consult factory)
System Design
Specications subject to change without notice.
210-3600 2012/10 (71654L)
