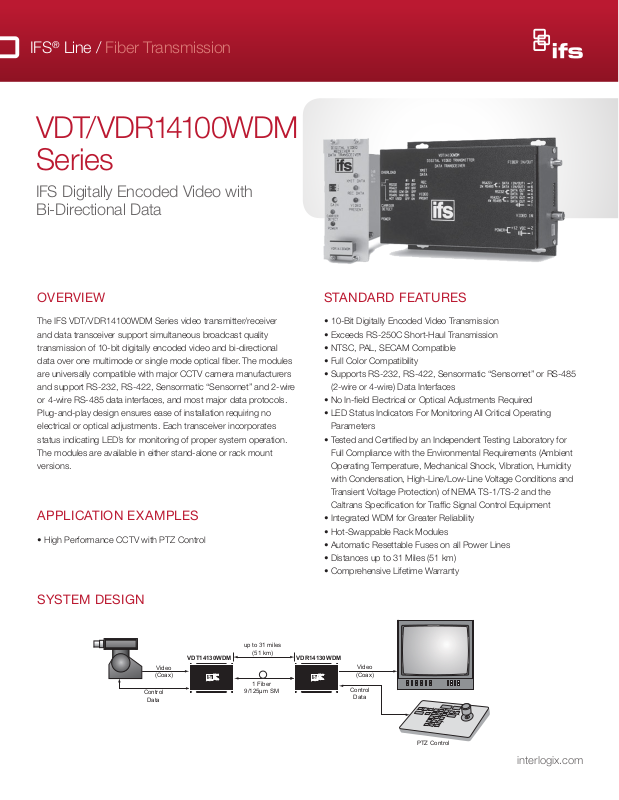

Interlogix VDT14130WDM-R3 Specsheet

®

(specify at time of order)

Optical Pwr. Budget

Max. Distance∗

1.9 miles (3 km)

31 miles (51 km)

43 miles (69 km)

1

1

Fibers Required

7 dB

17 dB

23 dB

System Design

IFS

Line / Fiber Transmission

VDT/ VDR1410 0WDM
Series

IFS Digitally Encoded Video with
Bi-Directional Data

OVERVIEW

T

he IFS VDT/VDR14100WDM Series video transmitter/receiver
and data transceiver support simultaneous broadcast quality
transmission of 10-bit digitally encoded video and bi-directional
data over one multimode or single mode optical fiber. The modules
are universally compatible with major CCTV camera manufacturers
and support RS-232, RS-422, Sensormatic “Sensornet” and 2-wire
or 4-wire RS-485 data interfaces, and most major data protocols.
Plug-and-play design ensures ease of installation requiring no
electrical or optical adjustments. Each transceiver incorporates
status indicating LED’s for monitoring of proper system operation.
The modules are available in either stand-alone or rack mount
versions.

APPLICATION EXAMPLES

• High Performance CCTV with PTZ Control

STANDARD FEATURES

• 10-Bit Digitally Encoded Video Transmission

• Exceeds RS-250C Short-Haul Transmission

• NTSC, PAL, SECAM Compatible

• Full Color Compatibility

• Supports RS-232, RS-422, Sensormatic “Sensornet” or RS-485
(2-wire or 4-wire) Data Interfaces

• No In-field Electrical or Optical Adjustments Required

• LED Status Indicators For Monitoring All Critical Operating
Parameters

• Tested and Certified by an Independent Testing Laboratory for

Full Compliance with the Environmental Requirements (Ambient

Operating Temperature, Mechanical Shock, Vibration, Humidity
with Condensation, High-Line/Low-Line Voltage Conditions and
Transient Voltage Protection) of NEMA TS-1/TS-2 and the
Caltrans Specification for Traffic Signal Control Equipment

• Integrated WDM for Greater Reliability

• Hot-Swappable Rack Modules

• Automatic Resettable Fuses on all Power Lines

• Distances up to 31 Miles (51 km)

• Comprehensive Lifetime Warranty

SYSTEM DESIGN

(Coax)

Control

Data

Video

up to 31 miles

VDT14130WDM VDR14130WDM

International

Fiber

Systems

ifs

Incorporated

203.426.1180

(51 km)

1 Fiber

9/125µm SM

International

Fiber

Systems

ifs

Incorporated

203.426.1180

Video

(Coax)

Control

Data

PTZ Control

interlogix.com

Specifications

Data

Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚

Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM

D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM

Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2

D1030: 2 D1030WDMA: 1 D1030WDMB: 1

Connectors

Optical: ST
Data and Power: Terminal Block with Screw Clamps

Electrical & Mechanical

Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†

†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.

GE

Security

North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E [e-mail]

Asia
T 852-2907-8108
F 852-2142-5063

Australia and New Zealand
T 613-9239-1200
F 613-9239-1299

Europe
T 44-113-238-1668
F 44-113-253-8121

Latin America
T 305-593-4301
F 305-593-4300

gesecurity.com/ifs

Specifications subject to
change without notice

© 2008 General Electric Company
All Rights Reserved

VDT/ VDR14100WDM Series

IFS Digitally Encoded Video with Bi-Directional Data

Ordering Information

Multimode 62.5/125µm** VDT14120WDM Video Transmitter/Data Transceiver (1310/1550 nm) 1 7 dB 1.9 miles (3 km)

Single-Mode 9/125µm VDT14130WDM Video Transmitter/Data Transceiver (1310/1550 nm) 1 17 dB 31 miles (51 km)

Accessories ♦

Options Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately)

*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.

♦ All accessories are third party manufactured.

Specifications

Video

Video Input: 1 volt pk-pk (75 ohms)

Bandwidth: 5 Hz - 10 MHz

Differential Gain: <2%

Differential Phase: <0.7°

Tilt: <1%

Signal-to-Noise Ratio (SNR): >67 dB @ Maximum Optical Loss Budget

Data

Data Interface: RS-232, RS-422, Sensormatic “Sensornet”, 2 and 4-wire RS-485 w/Tri-State

Data Format: NRZ, NRZI, Manchester, Bi-phase

Data Rate: DC-512 Kbps

Bit Error Rate (BER): <1 in 10° @ Maximum Optical Loss Budget

Operating Mode: Simplex of Full Duplex

Wavelength

Optical Emitter

Number Of Fibers

Connectors

Optical: ST

Power: Terminal Block with Screw Clamps

Video: BNC (Gold Plated Center-Pin)

Data: Terminal Block with Screw Clamps (optional type DB-25 connector)

Electrical & Mechanical

Power:

Surface Mount: 12 VDC @ 500 mA

Rack: From Rack

Number of Rack Slots: 2

Current Protection: Automatic Resettable Solid-State Current Limiters

Circuit Board: Meets IPC Standard

Size (in./cm.) (LxWxH)

Surface Mount: 7.0 x 4.0 x 2.0 in., 17.8 x 10.2 x 5.1 cm

Rack Mount: 7.7 x 5.0 x 2.0 in., 19.6 x 12.7 x 5.1 cm

Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours

Operating Temp: -40° C to +74° C

Storage Temp: -40° C to +85° C

Relative Humidity: 0% to 95% (non-condensing)

North America

T 855-286-8889

Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*

VDR14120WDM Video Receiver/Data Transceiver (1550/1310 nm) 1 7 dB 1.9 miles (3 km)

VDR14130WDM Video Receiver/Data Transceiver (1550/1310 nm) 1 17 dB 31 miles (51 km)

PS12VDC1.5A-U 12VDC, 1.5A Plug-in Power supply (110/220VAC) with Universal power plug adapter kit (Included)

Add ‘-25’ to Model Number for Type DB-25S Data Channel Connector

1310/1550 nm, Multimode or Single Mode

Latin America

T 561-998-6114

Laser Diode

1

Interlogix is part of UTC Building & Industrial Systems,

Code of Federal Regulations, Subchapter J

Specifications subject to change without notice.

© 2013 United Technologies Corporation

a unit of United Technologies Corporation.

Agency Compliance

Complies with FDA Performance

Standard for Laser Products, Title 21,

VDT/VDR14100WDM Series
