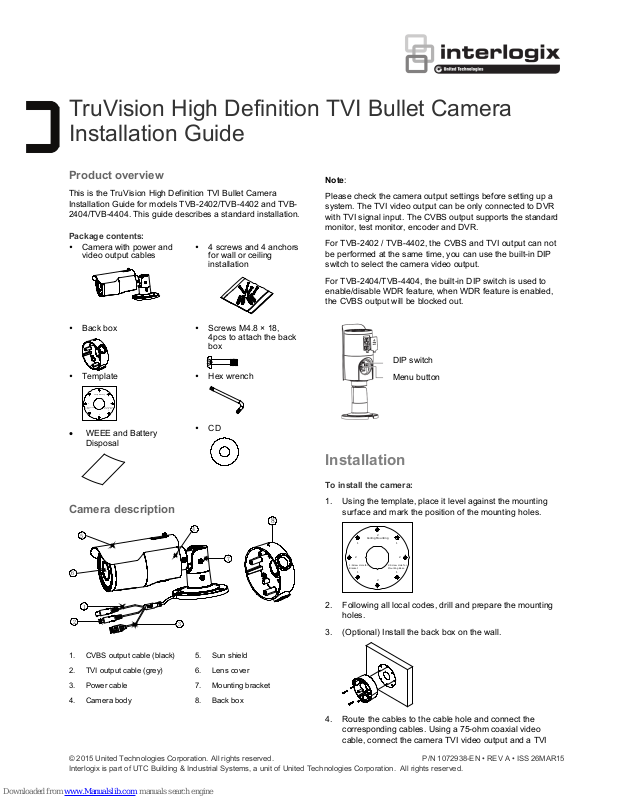

TruVision High Definition TVI Bullet Camera
Installation Guide
Product overview
This is the TruVision High Definition TVI Bullet Camera
Installation Guide for models TVB-2402/TVB-4402 and TVB2404/TVB-4404. This guide describes a standard installation.
Package contents:
Camera with power and
video output cables
4 screws and 4 anchors
for wall or ceiling
installation
Back box
Screws M4.8 × 18,
4pcs to attach the back
box
Template
Hex wrench
• WEEE and Battery
Disposal
CD
Camera description
1. CVBS output cable (black)
2. TVI output cable (grey)
3. Power cable
4. Camera body
5. Sun shield
6. Lens cover
7. Mounting bracket
8. Back box
Note:
Please check the camera output settings before setting up a
system. The TVI video output can be only connected to DVR
with TVI signal input. The CVBS output supports the standard
monitor, test monitor, encoder and DVR.
For TVB-2402 / TVB-4402, the CVBS and TVI output can not
be performed at the same time, you can use the built-in DIP
switch to select the camera video output.
For TVB-2404/TVB-4404, the built-in DIP switch is used to
enable/disable WDR feature, when WDR feature is enabled,
the CVBS output will be blocked out.
DIP switch
Menu button
Installation
To install the camera:
1. Using the template, place it level against the mounting
surface and mark the position of the mounting holes.
2. Following all local codes, drill and prepare the mounting
holes.
3. (Optional) Install the back box on the wall.
4. Route the cables to the cable hole and connect the
corresponding cables. Using a 75-ohm coaxial video
cable, connect the camera TVI video output and a TVI
Ceiling Mounting
1
1
1
1
2
2
2
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base
8
2
7
3
1
5
6
4
Ceiling Mounting
1
1
1
1
2
2
2
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base
Page 2
2 / 3 P/N 1072938-EN • REV A • ISS 26MAR15
DVR, and connect a 12 VDC or 24 VAC power supply to
the power cable.
5. Secure the camera to the ceiling or wall with the screws.
6. Loosen the three screws and adjust the camera according
to the figure below to get an optimum angle. Tighten the
screw after completing the adjustment.
7. Loosen the three screws and adjust the camera according
to the figure below to get an optimum angle. Tighten the
screw after completing the adjustment.
Programming
Programming on TVI output:
Once the camera hardware has been installed, you can
configure the camera settings on the TVI DVR.
Select PTZ protocol as TruVision Coax and click menu button
to call up the camera menu.
For more details, please see the TVI DVR user manual.
Programming on CVBS output:
The camera can then be configured by using the built-in OSD
button or a TVS-C200 controller (purchase separately).
Please connect a monitor and the TVS-C200 (if needed)
controller as following system figure.
TVB-2402/TVB-4402
The camera has CVBS and TVI selectable video output. Set
the built-in DIP switch to CVBS for viewing the program on a
standard monitor.
The TVI is blocked out until you finish the settings and change
the DIP switch back to TVI.
TVB-2404/TVB-4404
The camera has the CVBS and TVI dual video output. The
built-in DIP switch is for WDR/CVBS selection.
Please set the built-in DIP switch to CVBS for viewing the
program on a standard monitor.
When the programing is finished, you may change the DIP to
WDR to enable the WDR feature. In such case, the CVBS
output will be blocked out.
If the DIP is set as CVBS, the WDR feature will be disabled,
and the camera has CVBS and TVI output available at the
same time
Setup menus
TVB-2402/TVB-4402
360°
90°
360°
Page 3
P/N 1072938-EN • REV A • ISS 26MAR15 3 / 3
TVB-2404/TVB-4404
Specifications
Power
supply 12 VDC / 24 VAC
Current
TVB-2402 / TVB-4402:
12 VDC: Max. 333 mA
24 VAC: Max. 250 mA
TVB-2404/TVB-4404:
12 VDC: Max. 420 mA
24 VAC: Max. 250 mA
Power consumption
TVB-2402/TVB-4402:
12 VDC: Max. 4W
24 VAC: Max. 6W
TVB-2404/TVB-4404:
12 VDC: Max. 5W
24 VAC: Max. 6W
Weight (net)
860 g / 1.89 lb. (without back box)
1075 g / 2.36 lb. (with back box)
Dimensions
105 × 94.7 × 265.4 mm / 4.13 × 3.74 ×
10.4 in. (without back box）
105 × 94.7 × 301.4 mm / 4.13 × 3.74 ×
11.86 in. (with back box)
