Interlogix VADR14120WDM Specsheet

®

System Design

Opt. Pwr. Budget

Max. Distance*

2 miles (3 km)

31 miles (51 km)

43 miles (69km)

1

1

1

Fibers Required

10 dB @ 1550 nm
10 dB @ 1310 nm

17 dB

23 dB

♦

All accessories are third party manufactured.

IFS

Line / Fiber Transmission

VADT/ VADR14100WDM
Series

IFS Video with Bi-Directional Stereo
Audio, 2 Data Channels & Reverse
Sync

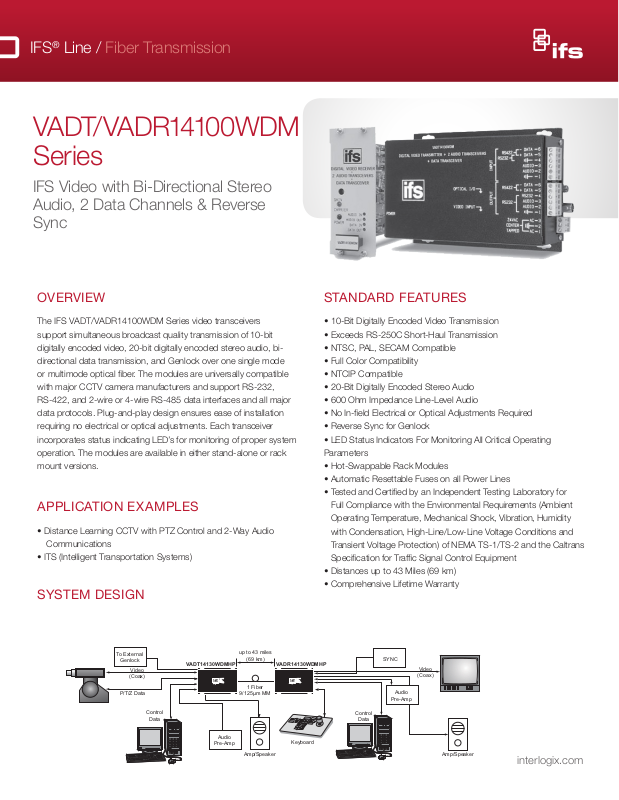

OVERVIEW

T

he IFS VADT/VADR14100WDM Series video transceivers
support simultaneous broadcast quality transmission of 10-bit
digitally encoded video, 20-bit digitally encoded stereo audio, bi­directional data transmission, and Genlock over one single mode
or multimode optical fiber. The modules are universally compatible
with major CCTV camera manufacturers and support RS-232,
RS-422, and 2-wire or 4-wire RS-485 data interfaces and all major
data protocols. Plug-and-play design ensures ease of installation
requiring no electrical or optical adjustments. Each transceiver
incorporates status indicating LED’s for monitoring of proper system
operation. The modules are available in either stand-alone or rack
mount versions.

APPLICATION EX AMPLES

• Distance Learning CCTV with PTZ Control and 2-Way Audio

Communications

• ITS (Intelligent Transportation Systems)

SYSTEM DESIGN

STANDARD FEATURES

• 10-Bit Digitally Encoded Video Transmission

• Exceeds RS-250C Short-Haul Transmission

• NTSC, PAL, SECAM Compatible

• Full Color Compatibility

• NTCIP Compatible

• 20-Bit Digitally Encoded Stereo Audio

• 600 Ohm Impedance Line-Level Audio

• No In-field Electrical or Optical Adjustments Required

• Reverse Sync for Genlock

• LED Status Indicators For Monitoring All Critical Operating
Parameters

• Hot-Swappable Rack Modules

• Automatic Resettable Fuses on all Power Lines

• Tested and Certified by an Independent Testing Laboratory for
Full Compliance with the Environmental Requirements (Ambient
Operating Temperature, Mechanical Shock, Vibration, Humidity
with Condensation, High-Line/Low-Line Voltage Conditions and
Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans
Specification for Traffic Signal Control Equipment

• Distances up to 43 Miles (69 km)

• Comprehensive Lifetime Warranty

To External

Genlock

Video

(Coax)

P/T/Z Data

Control

Data

VADT14130WDMHP

International

Fiber

Systems

ifs

Incorporated

203.426.1180

Audio

Pre-Amp

up to 43 miles

(69 km)

1 Fiber

9/125μm MM

Amp/Speaker

VADR14130WDMHP

International

Fiber

Systems

ifs

Incorporated

203.426.1180

Keyboard

Control

Data

SYNC

Audio

Pre-Amp

Video

(Coax)

Amp/Speaker

interlogix.com

Specifications

Data

Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚

Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM

D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM

Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2

D1030: 2 D1030WDMA: 1 D1030WDMB: 1

Connectors

Optical: ST
Data and Power: Terminal Block with Screw Clamps

Electrical & Mechanical

Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†

†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.

GE

Security

North America
T 888-GE-SECURITY

888-437-3287
F 503-691-7566
E [e-mail]

Asia
T 852-2907-8108
F 852-2142-5063

Australia and New Zealand
T 613-9239-1200
F 613-9239-1299

Europe
T 44-113-238-1668
F 44-113-253-8121

Latin America
T 305-593-4301
F 305-593-4300

gesecurity.com/ifs

Specifications subject to
change without notice

© 2008 General Electric Company
All Rights Reserved

VADT/ VADR14100WDM Series

IFS Video with Bi-Directional Stereo Audio, 2 Data Channels & Reverse Sync

Ordering Information

Multimode 62.5/125µm**VADT14120WDM Video Transmitter/Audio & Data Transceiver (1310/1550 nm) 1 10 dB @ 1550 nm 2 miles (3 km)

Single Mode 9/125µm

Accessories ♦

Options

*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.

♦ All accessories are third party manufactured.

Specifications

Video

Video Input/Output: 1 volt pk-pk (75 ohms)

Bandwidth: 5 Hz - 10 MHz

Differential Gain: <2%

Differential Phase: <0.7°

Tilt: <1%

Signal-to-Noise Ratio (SNR): >67 dB

Data

Data Interface: RS-232, RS-422, 2 or 4-Wire RS-485 with Tri-State

Data Format: NRZ, NRZI, Manchester, Bi-phase

Data Rate: DC - 100 kbps (NRZ)

Operation Mode: Simplex or Full-Duplex

Audio

No. of Bits: 20

Bandwidth: 20 Hz to 18 KHz @ -1 dB

Maximum Input/Output Level: 0 dBm across 600 ohms

Total Harmonic Distortion: 0.01% @ 0 dB Output Level

Input/Output Balanced or Unbalanced, 600 ohms

Sampling Rate: 52.3 KHz

Signal-to-Noise Ration (SNR): 87 dB Minimum

Channel Crosstalk: -100 dB @ 1 KHz

DTE/DCE Interface: User-Selectable

Wavelength

Number Of Fibers

Connectors

Optical: ST

Power: Terminal Block with Screw Clamps

Video and Reverse Sync: BNC (Gold Plated Center-Pin)

Audio and Data: DB 25 Connector

North America

T 855-286-8889

Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*

ADR14120WDM Video Receiver/Audio & Data Transceiver (1550/1310 nm) 1 10 dB @ 1310 nm 2 miles (3 km)

V

ADT14130WDM Video Transmitter/Audio & Data Transceiver (1310/1550 nm) 1 17 dB 31 miles (51 km)

V

V

ADR14130WDM Video Receiver/Audio & Data Transceiver (1550/1310 nm)

PS12VDC1.5A-U 12VDC, 1.5A Plug-in Power supply (110/220VAC) with Universal power plug adapter kit (Included)

Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately)

Electrical & Mechanical

Power:

Surface Mount: 12 VDC @ 500 mA

Rack: From Rack

Number of Rack Slots: 2

Current Protection: Automatic Resettable Solid-State Current Limiters

Circuit Board: Meets IPC Standard

Size (in./cm.) (LxWxH)

Surface Mount: 7.0 x 4.0 x 2.0 in., 17.8 x 10.2 x 5.1 cm

Rack Mount: 7.7 x 5.0 x 2.0 in., 19.6 x 12.7 x 5.1 cm

Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours

1310/1550 nm, Multimode or Single Mode

1

Operating Temp: -40° C to +74° C

Storage Temp: -40° C to +85° C

Relative Humidity: 0% to 95% (non-condensing)

1

Specifications subject to change without notice.

Interlogix is par t of UTC Building & Industrial Systems,

17 dB

Agency Compliance

Complies with FDA Performance

Standard for Laser Products, Title 21,

Code of Federal Regulations, Subchapter J

© 2013 United Technologies Corporation

a unit of United Technologies Corporation.

VADT/ VADR14100WDM Series

Latin America

T 561-998-6114

31 miles (51 km)
