Introduction
Product overview
This is the installation guide for TruVision Series 5 IP camera
models:
TVB-5501 (3MPX IP bullet camera)
TVB-5502 (8MPX IP bullet camera)
TVT-5501 (3MPX IP turret camera)
TVT-5502 (8MPX IP turret camera)
TVD-5501 (3MPX IP dome camera)
TVD-5502 (8MPX IP dome camera)
2 Installation Guide
Installation
This section provides information on how to install the
cameras.
Installation environment
When installing your product, consider these factors:
• Electrical: Install electrical wiring carefully. It should be
done by qualified service personnel. Always use a proper
PoE switch or a 12 VDC UL listed Class 2 or CE certified
power supply to power the camera. Do not overl oad the
power cord or adapter.
• Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.
• Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings.
The operating temperature of the camera wi thout heater
is between -30 to +60°C (-22 to 140°F). Humidity is below
90%. For the outdoor cameras that feature built-in
heaters, the operati ng temperature range is -40 to 60°C
(-40 to140°F)
• Moisture: Do not expose the camera to rain or moisture
or try to operate it in wet areas. Turn the power off
immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the
camera and also create the danger of electri c shock.
• Servicing: Do not attempt to service this camera
yourself. Any attempt to dismantle or remove the covers
from this product will invalidate the warranty and may
also result in serious injury. Refer all servicing to qualified
service personnel.
Installation Guide 3
• Cleaning: Do not touch the sensor modules with fingers.
Hole
Hole
Hole
Ceiling Mounting
If cleaning is necessary, use a clean cloth with some
ethanol and wipe the camera gently. If the camera will not
be used for an extended period of time, put on the lens
cap to protect the sensors from dirt.
Package contents
Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use
the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.
IP bullet camera
• Camera
• 12 VDC connector:
Two terminal
connector with positive
and negative
indicators.
• Water joint: Provides
water resistance to
• Drill template
network cable connector.
4 Installation Guide
• Screws
Drywall anchor
7.5 × 24.5 mm (3 pcs)
Screw
M4 × 25 mm (3 pcs)
• Installation manual
• CD with Configuration
manual and TruVision
Device Manager
• Equipment Disposal
Sheet
• Battery Disposal Sheet • Torx wrench
Installation Guide 5
IP turret camera
• Camera
• Camera drill template • Water joint: Provides
• 12 VDC connector:
Two terminal connector
with positive and
negative indicators.
water resistance to
network cable
connector.
• Screws
Drywall anchor
7.5 × 24.5 mm (4 pcs)
• Adapter plate
Screw
M4 × 25 mm (4 pcs)
6 Installation Guide
• CD with Configuration
manual and TruVision
Device Manager
• Screw PM6-32 × 10
(4 pcs, used to attach
the turret camera to a 2
Gang electrical box)
• Screw PM4 × 8 (3pcs)
• Screw KM4 × 8 (4 pcs,
used to attach the
adapter to the
brackets)
• Torx wrench
• Installation manual of the
turret adapter
• Installation manual
• Equipment Disposal
sheet
Installation Guide 7
• Battery Disposal Sheet
IP dome camera
• Camera
• Camera drill template
• 12 VDC connector:
Two terminal connector
with positive and
negative indicators.
• Screws
Drywall anchor
7.5 × 24.5 mm (3 pcs)
M4 × 25 mm (3 pcs)
Screw
8 Installation Guide
• Torx wrench
• Toggle bolt (3 pcs)
• CD with Configuration
manual and TruVision
Device Manager
• Water joint: Provides
water resistance to
network cable
connector.
• Gray cloth
• Installation manual
Installation Guide 9
• Equipment Disposal
IP bullet
IP turret
IP dome
sheet
• Battery Disposal Sheet
Caution: Use direct plug-in UL listed power supplies marked
Class 2/CE certified or LPS (limited power source) of the
required output rating as listed on the unit.
Caution: Risk of explosion if the battery is replaced by an
incorrect type. Dispose of used batteries according to the
instructions.
Cable requirements
For proper operation, adhere to the following cable and power
requirements for the cameras. Category 5 cabling or better is
recommended. All network cabling must be install ed according
to applicable codes and regulations. Table 1 li sts the
requirements for the cables that connect to the camera.
Table 1: Recommended power cable requirements
camera: 12 VDC power wires or PoE (802.3af)
camera: 12 VDC power wires or PoE (802.3af)
camera: 12 VDC power wires or PoE (802.3af)
10 Installation Guide
Camera description
port
Figure 1: IP bullet camera
1. Adjustable bracket
2. Back housing
3. Front housing
4. Lens
5. Sunshield
6. Ethernet RJ45 PoE
Note: To reset the camera to default settings, press and hold
the RESET button and power on the camera. After the camera
has started up, hold the RESET button for an additional 20
seconds.
7. 12 VDC power
8. Reset button
9. SD card slot
10. Grounding screw
11. Serial port (factory use)
Installation Guide 11
Figure 2: IP turret camera
3. Housing
6. Ethernet RJ45 PoE port
4. Ethernet RJ45 PoE port
5. Housing cover
1. Lens assembly
2. Trim ring
Figure 3: IP dome camera
1. 12 VDC power
2. Audio I/O
3. Alarm I/O
4. Base
5. 12 VDC power
5. Base
6. Dome liner
7. Lens
12 Installation Guide
Setting up the camera
Note: If the light source where the camera is installed
experiences rapid, wide-variations in lighting, the camera may
not operate as intended.
To quickly put the camera into operation:
1. Prepare the mounting surface.
2. Mount the camera on the mounting surface using the
appropriate fasteners. See “Mounting the bull et camera”
on page 14.
3. Set up the camera’s network and streaming parameters
so that the camera can be controlled over the network.
For further information, please refer to the “TruVision
Series 5 IP Camera Configuration Manual”.
4. Program the camera as appropriate for its location. For
further information, please refer to the “TruVision Series 5
IP Camera Configuration Manual”.
IR illuminators
The camera’s built-in IR illumination provides high-quality
video in low-light environments, even when there is no other
illumination available.
You can configure the IR illumination using a web browser or a
client software, such as TruVision Navigator. If the function is
enabled, the IR light is On when the camera enters night
(black and white) mode. If disabled, the IR light is always Off.
The visible IR range may vary due to multiple factors such as
weather, IR reflection level of objects in frame, lens
adjustment, and camera settings. Please refer to the camera
datasheet for the standard IR range.
Installation Guide 13
Note: Avoid installing the IR camera closely facing a solid
object such as a tree or wall. The reflection will cause over-
exposure and loss of visibility of detail in field of view.
Accessing the SD card
Insert a Micro SD card with up to 128GB to use the camera as
an additional recording device, or as a backup in case of
failure of communication with the network video recorder (see
Figure 1 on page 11). The card is not supplied with the
camera.
Recorded video and log files can be accessed via the web
browser or via TruVision Navigator.
Mounting the bullet camera
Mount the camera on a ceiling or wall.
To mount the bullet camera:
1. Use the supplied template to mark out the mounting area.
Drill the screw holes on the ceiling or wall. If you need to
route the cables from the camera base, drill a cable hole
in the ceiling or wall.
2. Secure the mounting base to the ceiling or wall using the
three mounting screws and drywall anchors.
14 Installation Guide
3. Loosen the large nut at the base of the mounting bracket
to adjust the camera’s viewing angle.
Pan direction: 0 to 360° adjustable
Tilt direction: 0 to 90° adjustable
Rotate direction: 0 to 360° adjustable
4. Adjust the lens to the desired surveillance angle. Tighten
the adjustable nuts to complete the installation.
Mounting the turret camera
To mount the turret camera on a surface:
1. Place the drill template (supplied) on the surface where
the camera is to be mounted. Drill mounting holes in the
surface using the holes labeled number “1” on the drill
template.
If you would like to route the cable harness through the
mounting surface, cut a cable access hole i n the
mounting surface, referencing the letter “A” on the drill
template. Skip this step if you want to route the cables on
the surface.
Installation Guide 15
If installing the turret camera to a wall mount or other
accessory, an adapter plate is provided. Install the
adapter plate to the accessory with three PM4X8 screws,
referencing number “2”.
2. Rotate the trim ring counterclockwise to remove it from
the camera.
3. Route the cables directly out of the base of the camera.
4. Install the camera on the mo unting surface using the
supplied hardware.
5. Connect the corresponding power and network cables.
6. Adjust the lens.
a) Loosen the locking screw using a Philips screw
driver.
16 Installation Guide
b) Rotate the lens assembly to adjust the pan angle.
Rotate the lens assembly to adjust the tilt angle.
c) Tighten the locking screw to secure the lens at the
desired surveillance angle.
Locking
screw
7. Attach the trim ring to the camera and rota te it clockwise
to secure it.
Installation Guide 17
Mounting the dome camera
To mount the dome cam era on a ceiling or wall:
1. Place the drill templ ate (supplied) on the surface where
the camera is to be mounted. Drill mounting holes in the
surface using the holes labeled number ‘1’ on the drill
template.
If you would like to route the cable harness through the
mounting surface, cut a cable access hole i n the
mounting surface, referencing the letter “A” on the drill
template. Skip this step if you want to route the cables on
the surface.
2. Using the supplied Torx wrench, remove the dome
bubble assembly.
18 Installation Guide
Screw
3. Install the dome on the mounting surface using the
supplied hardware.
Installation Guide 19
4. Loosen the tilt adjust screws (see image below) and
adjust the tilt position of the lens assembly within a range
of 75 degrees. Retighten the tilt adjust screws.
Rotate the dome liner to adjust the pan position within a
range of 355 degrees. Rotate the lens assembl y (0 to
355°) to obtain the desired surveillance angle.
20 Installation Guide
5. (Optional) If using a micro SD card (not included):
To remove the SD card, push the micro SD card forward.
The micro SD card will spring out.
SD slot
6. Reinstall the dome housing and tighten the Torx screws.
Installation Guide 21
Using the camera with a TruVision
Electrical
Voltage input
Power consumption
Miscellaneous
Con
Operating temperature
Dimensions
Weight
recorder or another system
Please refer to the NVR/DVR user manuals for instructions o n
connecting and operating the camera with these systems.
Using the camera with TruVision
Navigator
A camera must be connected to an Interlogix NVR in order to
be operated by TruVision Navigator. Please refer to the
TruVision Navigator user manual for instructi ons on operating
the camera with TruVision Navigator.
Specifications
TruVision IP bullet cameras
12 VDC, PoE (IEEE 802.3af)
3MPX: Max. 7 W
8MPX: Max. 7.5 W
nectors 12 VDC Power Input, Network Port
70 × 155.03 mm
410 g (0.9 lbs.)
(PoE)
-30 to +60 °C (-22 to +140°F)
(2.76 x 6.1 in.)
22 Installation Guide
Environmental rating
IP67
Electrical
Voltage input
Power consumption
Miscellaneous
Connectors
Operating temperature
Dimensions
Weight
Environmental rating
Electrical
Voltage input
Power consumption
Miscellaneous
Connectors
Operating temperature
TruVision IP turret dome
12 VDC, PoE (IEEE 802.3af)
3MPX: Max. 7 W
8MPX: Max. 7 W
12 VDC Power Input, Network Port
127.3 × 95.9 mm
620 g (1.37 lbs.)
(PoE)
-30 to +60 °C (-22 to +140 °F)
(5.01 × 3.78 in.)
IP67
TruVision IP dome cameras
12 VDC, PoE (IEEE 802.3af)
3MPX: Max. 7W
8MPX: Max. 9W
Network Port(PoE), Audio In/Out,
Alarm In/Out, 12 VDC Power Port
-30 to +60 °C (-22 to 140°F)
Installation Guide 23
Dimensions
111 × 82.4 mm
Weight
Environmental rating
(4.4 × 3.2 in.)
500 g (1.1 lbs.)
IP67, IK10
Pin definitions
There are eight wires on a standard UTP/STP cable and each
wire is color-coded. The following shows the pin allocation and
color of straight and crossover cable connection:
Figure 4: Straight-through cable
1 White/Orange
2 Orange Orange 2
3 Whi te-Green Whit e-Green 3
4 Blue Blue 4
5 White/Blue White/Blue 5
6 Green Green 6
7 White/Brown White/Brown 7
8 Brown Brown 8
White/Orange 1
24 Installation Guide

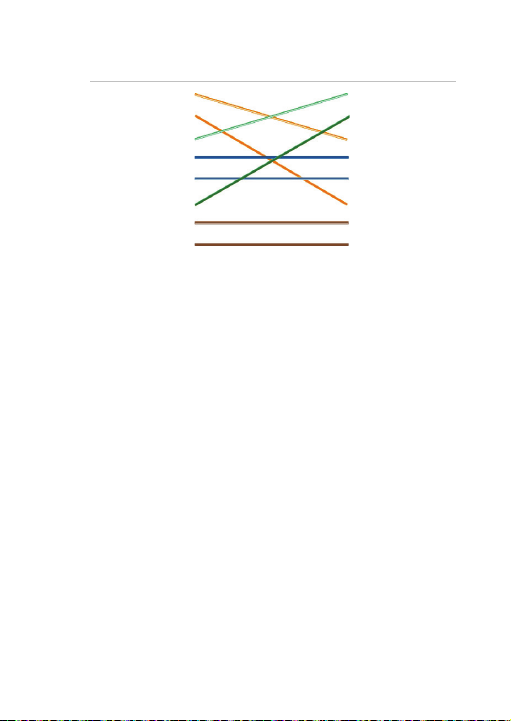

Figure 5: Cross-over cable
1 White/Orange
2 Orange Orange 2
3 Whi te-Green Whit e-Green 3
4 Blue Blue 4
5 White/Blue White/Blue 5
6 Green Green 6
7 White/Brown White/Brown 7
8 Brown Brown 8
Please make sure your connected cables have the same pin
assignment and color as above before depl oying the cables in
your network.
White/Orange 1
Installation Guide 25
Loading...
