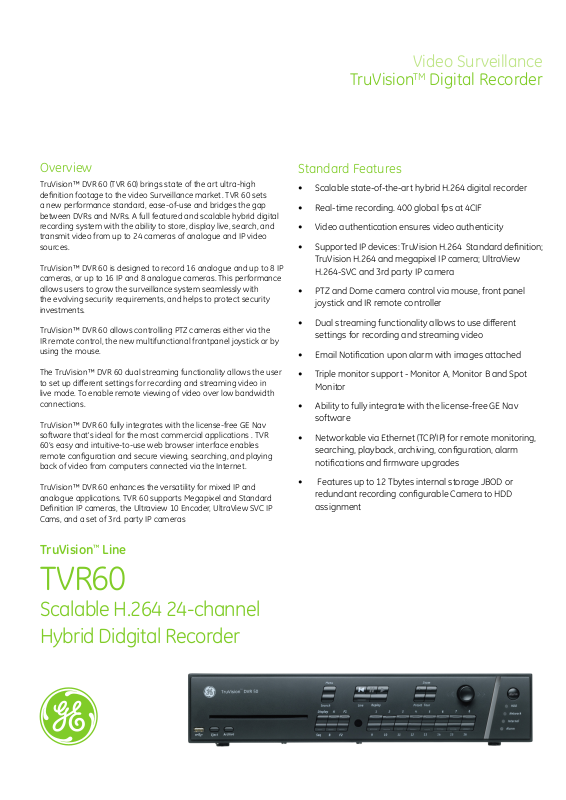

Interlogix TVR-6016-4T-R, TVR-6016-12T-R, TVR-6016-2T-R, TVR-6016-8T-R Specsheet

Video Surveillance

TruVisionTM Digital Recorder

Overview

TruVision™ DVR 60 (TVR 60) brings state of the art ultra-high

denition footage to the video Surveillance market. TVR 60 sets
a new performance standard, ease-of-use and bridges the gap
between DVRs and NVRs. A full featured and scalable hybrid digital
recording system with the ability to store, display live, search, and
transmit video from up to 24 cameras of analogue and IP video
sources.

TruVision™ DVR 60 is designed to record 16 analogue and up to 8 IP
cameras, or up to 16 IP and 8 analogue cameras. This performance
allows users to grow the surveillance system seamlessly with
the evolving security requirements, and helps to protect security
investments.

TruVision™ DVR 60 allows controlling PTZ cameras either via the
IR remote control, the new multifunctional frontpanel joystick or by
using the mouse.

The TruVision™ DVR 60 dual streaming functionality allows the user
to set up dierent settings for recording and streaming video in
live mode. To enable remote viewing of video over low bandwidth
connections.

TruVision™ DVR 60 fully integrates with the license-free GE Nav
software that's ideal for the most commercial applications . TVR
60’s easy and intuitive-to-use web browser interface enables
remote conguration and secure viewing, searching, and playing
back of video from computers connected via the Internet.

TruVision™ DVR 60 enhances the versatility for mixed IP and
analogue applications. TVR 60 supports Megapixel and Standard
Denition IP cameras, the Ultraview 10 Encoder, UltraView SVC IP
Cams, and a set of 3rd. party IP cameras

Standard Features

• Scalable state-of-the-art hybrid H.264 digital recorder

• Real-time recording. 400 global fps at 4CIF

• Video authentication ensures video authenticity

• Supported IP devices: TruVision H.264 Standard denition;
TruVision H.264 and megapixel IP camera; UltraView
H.264-SVC and 3rd party IP camera

• PTZ and Dome camera control via mouse, front panel
joystick and IR remote controller

• Dual streaming functionality allows to use dierent
settings for recording and streaming video

• Email Notication upon alarm with images attached

• Triple monitor support - Monitor A, Monitor B and Spot

Monitor

• Ability to fully integrate with the license-free GE Nav

software

• Networkable via Ethernet (TCP/IP) for remote monitoring,
searching, playback, archiving, conguration, alarm
notications and rmware upgrades

• Features up to 12 Tbytes internal storage JBOD or
redundant recording congurable Camera to HDD
assignment

TruVision™ Line

TVR60

Scalable H.264 24-channel
Hybrid Didgital Recorder

Specications

Australia & New Zealand

T 61-3 -9239-1 200
F 61-3 -9239-129 9

utcfs.com.au

Specications subject to change without notice.

© 2010 UTC Fire & Security. All rights reserved.

is a trademark of the General Electric
Company and is used under license to
UTC Fire & Security, 9 Farm Springs Road,
Farmington, CT 06034-4065

Approximate Storage 16 Cameras

25 FPS

Days CIF 2CIF 4CIF

7 1,384 GB 2,423 GB 2,769 GB

14 2,769 GB 18,457 GB 5,537 GB

30 5,933 GB 10,382 GB 11,865 GB

Approximate Storage 24 Cameras

16 FPS

Days CIF 2CIF 4CIF

7 1,038 GB 1,730 GB 2,423 GB

14 2,076 GB 3,461 GB 4,845 GB

30 4,449 GB 7,416 GB 10,382 GB

Video

Video Signal Input

Resolution 1024 x 768 pixels
Video compression

standard

Monitor A VGA Full & Multi-Screen output

Monitor B
composite

Monitor C
composite

Multi-Screen

display

Conformity

IP Device Support

TruVision H.264

UltraView Standard denition 540 TVL
Panasonic NW484S, NF284, NP-244
Encoder Ultraview UVE 10

Recording

Hard drive 6-HDD SATA supporting SMART

Resolution

Frame Rates 400fps 4CIF

Bandwidth

Mode

Audio

Compression

standard

Input 16 channels, RCA

Output 2 RCA

Bi-directional ­Line In

Zones per camera

Operation

OS VxWorks real-time OS

Users

AGC, 0.7 to 1.4 V p-p video

accepted

H.264

Full & Multi-Screen output, BNC
connector, NTSC/EIA or
PAL/CCIR compatible

Spot Monitor for Alarms, BNC
connector, NTSC/EIA or
PAL/CCIR compatible

Full, quad, 9, 12 and 16 up

N4131

Standard denition 540TVL,

1.3 and 2.0 megapixel

4CIF (704x576), 2CIF (704x288), CIF
(352x288) and QCIF (176x144)
(Available frame rates, eg: 1fps,

6.5fps, 12.5 etc)

Up to 6 Mbit/sec. per channel.

scalable

Manual, Schedule, Motion and
Alarm

OggVorbis, 16 Kbps

RCA

396 zones per camera (22 x 18

grid) Operation

Admin, Manager, Operator & 13

additional

Network

Type 10/100/1000 Base-T, RJ-45

Protocols

Others

e-SATA 1

Archive

Audio and Video

Connectors RS-232 serial port: RJ-45

RS-485 PTZ control

port

USB

Keypad Screw terminal strip

Alarm Handling

Alarm Monitor Mon A or B or C (congurable)
Alarm input 16 programmable NO/NC
Alarm output Form C alarm relay (4)

Miscellaneous

Input voltage

Temperature -10 to +50°C
Relative humidity 10 to 90%
Dimensions

(W x H x D)

Weight Max. 11kg

Mounting Rack mount kit optional

Remote Software Requirements

Intel-based PC 1 GHz or faster

Memory 1 GB RAM minimum

Operating System Windows® XP, Vista or Windows 7

DirectX 9.0 or later

Browser

Supported Devices

PDA/Mobile Phone WinMobile 5 or higher

Touch Screen support

Free memory at least 20MB

CPU 200MHz and better

TCP, IP, ARP, RARP, PPP, PPPoE,
DHCP,SNMP

ADSL modem and PSTN line for
alarm video transmission

Via built-in CD/DVD burner, USB2.0
or e-SATA

Screw terminal strip

2, one at the front one at the
back

to 135 VAC / 180 to 256 VAC, 47
to 63 Hz

435 x 95 x 455 mm, 19-inch (2U)

Microsoft® Internet Explorer 6.0

or later

Ordering Information

Recorders

TVR-6016-1TEA

TVR-6016-2TEA

TVR-6016-4TEA

TVR-6016-8TEA

TVR-6016-12TEA

Accessories

TVR-RK-1 TruVision Line DVR 60 Rack-mount Kit

IP Cameras

UVD-IPEVRDNRVA2P

UVD-IPEVRDNRVA9P

UVD-IPXP3DNRVA2P

UVD-IPXP3DNRVA9P

UVC-IPXP3DN-HR-P 1/3" color 540TVL WD CMOS D/N IP Full Body camera,DC 12V/AC24V/PoE,6.8W, PAL
UVC-IPEVRDN-HR-P 1/3" color 540TVL Super HAD D/N IP Full Body camera,DC 12V/AC24V/PoE8.9W, PAL

TruVision™ Line DVR 60, Scalable H.264 24-channel hybrid digital recorder, real-time 4CIF
– 1TB hard drive

TruVision™ Line DVR 60, Scalable H.264 24-channel hybrid digital recorder, real-time 4CIF
– 2TB hard drive

TruVision™ Line DVR 60, Scalable H.264 24-channel hybrid digital recorder, real-time 4CIF
– 4TB hard drive

TruVision™ Line DVR 60, Scalable H.264 24-channel hybrid digital recorder, real-time 4CIF
– 8TB hard drive

TruVision™ Line DVR 60, Scalable H.264 24-channel hybrid digital recorder, real-time 4CIF
– 12TB hard drive

1 /3" color 540TVL Super HAD 2.8~10.5mm. D/N AI UTP Rugged Dome IP camera, DC 12V/
AC24V/PoE 12W, PAL

1/3" color 540TVL Super HAD 9~22mm; D/N AI UTP Rugged Dome IP camera, DC 12V/
AC24V/PoE 12W, PAL

1/3" color 540TVL WD CMOS 2.8~10.5mm; D/N AI UTP Rugged Dome IP camera, DC 12V/
AC24V/PoE 11W, PAL

1 /3" color 540TVL WD CMOS 9~22mm; D/N AI UTP Rugged Dome IP camera, DC 12V/
AC24V/PoE 11W, PAL

TVR60 -DS -100 819-1
