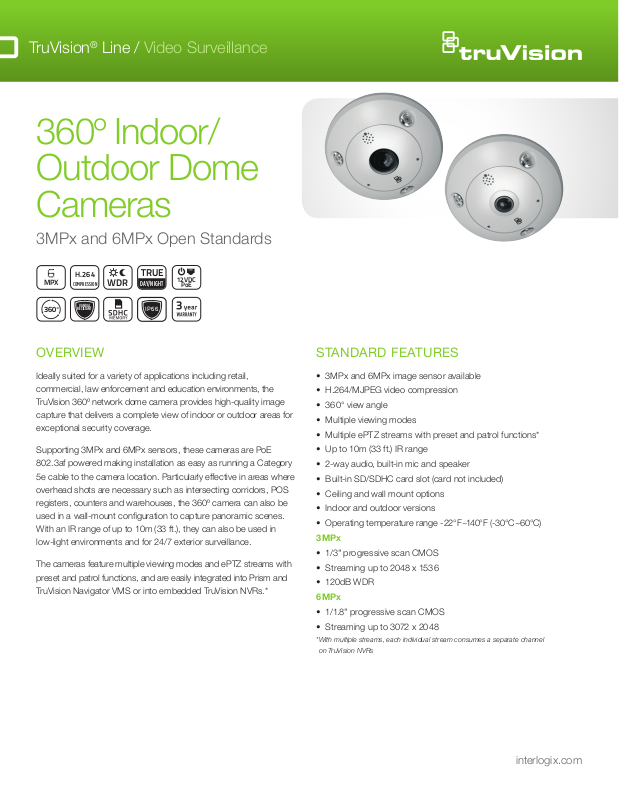

Interlogix TVF-1103 Specsheet

TruVision® Line / Video Surveillance

360º Indoor/
Outdoor Dome
Cameras

3MPx and 6MPx Open Standards

MPX

360°

H.264

COMPRESSION

VANDAL

RESISTANT

WDR

TRUE

DAY/NIGHT

IP66

12V D C

PoE

OVERVIEW

Ideally suited for a variety of applications including retail,
commercial, law enforcement and education environments, the
TruVision 360º network dome camera provides high-quality image
capture that delivers a complete view of indoor or outdoor areas for
exceptional security coverage.

Supporting 3MPx and 6MPx sensors, these cameras are PoE

802.3af powered making installation as easy as running a Category
5e cable to the camera location. Particularly effective in areas where
overhead shots are necessary such as intersecting corridors, POS
registers, counters and warehouses, the 360º camera can also be
used in a wall-mount confi guration to capture panoramic scenes.
With an IR range of up to 10m (33 ft.), they can also be used in
low-light environments and for 24/7 exterior surveillance.

The cameras feature multiple viewing modes and ePTZ streams with
preset and patrol functions, and are easily integrated into Prism and
TruVision Navigator VMS or into embedded TruVision NVRs.*

STANDARD FEATURES

• 3MPx and 6MPx image sensor available

• H.264/MJPEG video compression

• 360° view angle

• Multiple viewing modes

• Multiple ePTZ streams with preset and patrol functions*

• Up to 10m (33 ft.) IR range

• 2-way audio, built-in mic and speaker

• Built-in SD/SDHC card slot (card not included)

• Ceiling and wall mount options

• Indoor and outdoor versions

• Operating temperature range -22°F~140°F (-30°C~60°C)

3MPx

• 1/3" progressive scan CMOS

• Streaming up to 2048 x 1536

• 120dB WDR

6MPx

• 1/1.8" progressive scan CMOS

• Streaming up to 3072 x 2048

* With multiple streams, each individual stream consumes a separate channel

on TruVision NVRs

interlogix.com

Dimensional Diagrams

Outdoor Camera Indoor Camera

Ø6.57 in.

Ø167 mm

1.77 in.

(45 mm)

Ø6.57 in.

Ø167 mm

1.77 in.

(45 mm)

TVF-BBM

Ø6.59 in.

Ø167.5 mm

1.65 in.

(42) mm

TVF-WBM TVF-CBM

Ø6.59 in.

Ø167.5 mm

7.57 in.

(192.3) mm

Ø7.04 in.

Ø178.7 mm

G1

1.92 in.

(48.7) mm

3.37 in.

85.5 mm

TVD-SNB

7.09 in.

(180 mm)

G1 1/8

TVD-PPB

3.35 in.

(85) mm

.787 in.

(20) mm

G1

9.96 in.

(253 mm)

3.35 in.

(85) mm

Ø5.91 in.

Ø150 mm

Tube

Mounting Plate

G1

3.74 in.

(95 mm)

1.42 in.

(36) mm

21.1 in.

(537) mm

Bracket Specifi cations

SKU Dimensions Weight

TVD-SNB 9.96 x 3.74 x 7.09 in. (253 × 95 × 180 mm) 1.1 lbs. (490g)

TVD-PPB Ø 5.91 x 21.14 in. (Ø 150 × 537 mm) 2.58 lbs. (1169g)

TVF-BBM Ø 6.59 x 1.65 in. (Ø 167.5 × 42 mm) .75 lbs. (337.5g)

TVF-WBM Ø 6.59 x 1.92 in. (Ø 167.5 × 48.7 mm) .67 lbs. (304.5g)

TVF-CBM Ø 7.04 x 3.37 in. (Ø 178.7 × 85.5 mm) 1.2 lbs. (542g)

Pipe Threading Information

Pipe thread
size

G1 11 2.309 33.249 1.309 25 33.7 1.33 3.2 30.75

The hole of back box and wedge box is G 3/4

Threads
(in.)

Pitch (mm) Thread major diameter Corresponding pipe Tapping drill

(mm) (in.) DN OD (mm) OD (in.) Thickness

(mm)

size (mm)

BSP.F (g)

360º Indoor/Outdoor Dome Cameras

3MPx and 6MPx Open Standards

Specifi cations

SKU

Description 3MPx, Indoor 3MPx, Outdoor 6MPx, Indoor 6MPx, Outdoor

Sensor 1/3" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS

Lens 1.19mm @ f2.0 1.27mm @ f2.8

Minimum
Illumination

Day/Night ICR, True D/N

Shutter
Speed

Max. Image
Resolution

Image High-frame mode supports:

IR Range 10m (33 ft.) Confi gurable IR on/off

Video
Compression

Bit Rate 128Kbps~16Mbps

Wide
Dynamic
Range

Digital Noise
Reduction

Settings

Features Network storage NAS, Alarm trigger motion detection, tampering alarm,

Interface Communication interface 1 RJ45 10 M / 10 0 M Ethernet interface, DC Power

Power
Source

Operating
Tem pera tur e

Environmental
Rating

Audio Bi-directional , built-in speaker and mic

Impact
Rating

Storage Built-in SD/SDHC card slot (card not included)

Regulatory
Compliance

*With multiple streams, each individual stream consumes a separate channel on TruVision NVRs.

TVF-3101 (NTSC)
TVF-1101 (PAL)

0.1 lux @ f1.2, AGC ON

0.28 @ f2.0 AGC ON, 0 lux with IR

50 Hz: 1/25s ~ 1/100,000s
60 Hz: 1/30s ~ 1/100,000s

2048 x 1536 3072 x 2048

50Hz: 1 x fi sheye (2048 x 1536,
25fps) or (1536 x 1536, 25fps)
or 4 x PTZ (800 x 600, 25fps)

60Hz: 1 × fi sheye (2048 x 1536, 25fps)
or (1536 × 1536, 30fps) or 4 × PTZ
(800 × 600, 30fps)

Multi-channel mode supports:

50Hz: 1 x fi sheye (1536 × 1536, 20fps)
and 1 x panoramic (1600 x 1200,
20fps) and 3 x PTZ (800 x 600, 20fps)

60Hz: 1 x fi sheye (1536 × 1536, 20fps)
and 1 x panoramic (1600 x 1200,
20fps) and 3 x PTZ (800 x 600, 20fps)

Video compression H.264 / MJPEG Multiple streams: surrounding,
Panoramic, 4 x PTZ*

120dB WDR DWDR

3D-NR

Saturation, brightness, contrast, sharpness adjustable through client
software or Web browser

storage exception

Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, ezDDNS, RTP, RTSP,
PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,

802.1x, Qos, IPv6

Interoperability Onvif, PSIA, CGI

Security User Authentication, reset button, watermark, Multicast

interface, RS485 interface

PoE (802.3 af) /12VDC ± 10%

-22°F~140°F (-30°C~60°C)

NA IP66 NA IP66

NA IK10 NA IK10

FCC, CE, UL, WEEE, RoHS, REACH

TVF-3102 (NTSC)
TVF-1102 (PAL)

TVF-3103 (NTSC)
TVF-1103 (PAL)

0.05 lux @ f1.2, AGC ON

0.3 lux @ f2.8 AGC ON, 0 lux with IR

High-frame mode supports:

50Hz: 1 x fi sheye (3072 x 2048,
25fps) or (2048 x 2048, 25fps)
or 4 x PTZ (1024 x 768, 25fps)

60Hz: 1 × fi sheye (3072 × 2048, 25fps)
or (2048 × 2048, 30fps) or 4 × PTZ
(1024 × 768, 30fps)

Multi-channel mode supports:

50Hz: 1 x fi sheye (1280 × 1280,

12.5fps) and 1 x panoramic (2048 x
1536, 12.5fps) and 3 x PTZ (1024 x
768, 12.5fps)

60Hz: 1 x fi sheye (1280 × 1280, 15fps)
and 1 x panoramic (2048 x 1536,
15fps) and 3 x PTZ (1024 x 768, 15fps)

TVF-3104 (NTSC)
TVF-1104 (PAL)

Ordering Information

NTSC

TVF-3101

TVF-3102

TVF-3103

TVF-3104

PAL

TVF-1101

TVF-1102

TVF-1103

TVF-1104

TruVision® 360º Dome, 3MPx, WDR, 1.19mm Fisheye
Lens, True D/N, 10m IR, 2-Way Audio (built-in mic
& speaker), SD/SHDC Slot, PoE (802.3af) /12VDC

TruVision 360° Dome, 3MPx, WDR, 1.19mm Fisheye Lens,
True D/N, 10m IR, 2-Way Audio (built-in mic & speaker),
SD/SHDC Slot, POE (802.3af) /12VDC, IP66, IK10

TruVision 360° Dome, 6MPx, DWDR, 1.27mm Fisheye
Lens, True D/N,10m IR, 2-Way Audio (built-in mic
& speaker), SD/SHDC Slot, POE (802.3af) /12VDC

TruVision 360° Dome, 6MPx, DWDR, 1.27mm Fisheye Lens,
True D/N, 10m IR, 2-Way Audio (built-in mic & speaker),
SD/SHDC Slot, POE (802.3af) /12VDC, IP66, IK10

TruVision 360º Dome, 3MPx, WDR, 1.19mm Fisheye Lens,
True D/N, 10m IR, 2-Way Audio (built-in mic & speaker),
SD/SHDC Slot, POE (802.3af) /12VDC

TruVision 360º Dome, 3MPx, WDR, 1.19mm Fisheye Lens,
True D/N, 10m IR, 2-Way Audio (built-in mic & speaker),
SD/SHDC Slot, POE (802.3af) /12VDC, IP66, IK10

TruVision 360º Dome, 6MPx, DWDR, 1.27mm Fisheye
Lens, True D/N,10m IR, 2-Way Audio (built-in mic
& speaker), SD/SHDC Slot, POE (802.3af) /12VDC

TruVision 360º Dome, 6MPx, DWDR, 1.27mm Fisheye Lens,
True D/N, 10m IR, 2-Way Audio (built-in mic & speaker),
SD/SHDC Slot, POE (802.3af) /12VDC, IP66, IK10

Accessories

TVF-BBM

TVF-WBM

TVF-CBM

TruVision 360º Dome Round Back Box, Conduit Ports,
Gang Box Compatible, Metal, Indoor/Outdoor

TruVision 360º Dome Round Angled Back Box, Conduit
Ports, Gang Box Compatible, Metal, Indoor/Outdoor

TruVision 360º Dome Cup Base (Use w/TVD-PPB for
Pendant Mount or TVD-SNB for Wall Mount)
