TruVision

Series 4 IP

Camera Installation

Guide

P/N 1073195-EN • REV D • ISS 24AUG16

Copyright © 2016 United Technologies Corporation,

environment. This equipment generates, uses, and

interference to radio communications. Operation of

(1) This device may not cause harmful

Interlogix is part of UTC Climate, Controls &
Security, a unit of United Technologies

Trademarks and

Manufacturer Interlogix

Certifica tion

FCC compliance Class A: This equipment has been tested and

FCC conditions This device complies with Part 15 of the FCC

Corporation. All rights reserved.

Trade names used in this document may be

patents

trademarks or registered trademarks of the
manufacturers or vendors of the respective
products.

2955 Red Hill Avenue, Costa Mesa, CA

92626-5923, USA

Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial

can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful

this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.

Rules. Operation is subject to the following two
conditions:

interference.

equipment, or dispose of it at designated collection

product contains a battery that cannot be disposed

battery information. The battery is marked with this

or to a designated collection point. For more

(2) This Device must accept any interference
received, including interference that may cause
undesired operation.

ACMA compliance Notice! This is a Class A product. In a domestic

environment this product may cause radio
interference in which case the user may be
required to take adequate measures.

Canada This Class A digital apparatus complies with CAN

ICES-003 (A)/NMB-3 (A ).

Cet appareil numérique de la classe A est
conforme à la norme CAN ICES-003 (A)/NMB-3
(A).

European Union

directives

This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized

European standards listed under the EMC

Directive 2014/30/EU, the RoHS Directive
2011/65/EU.

2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent new

points. For more information see:
www.recyclethis.info.

2013/56/EU & 2006/66/EC (battery directive): This

of as unsorted municipal waste in the European
Union. See the product documentation for specific

symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For

proper recycling, return the battery to your supplier

Contact information

information see: www.recyclethis.info.

For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.

Content

Introduction 2

Product overview 2

Installation 3

Installation environment 3
Package contents 4
Cable requirements 10
Camera description 11
Setting up the camera 15
IR illuminators 16
Accessing the SD card 17

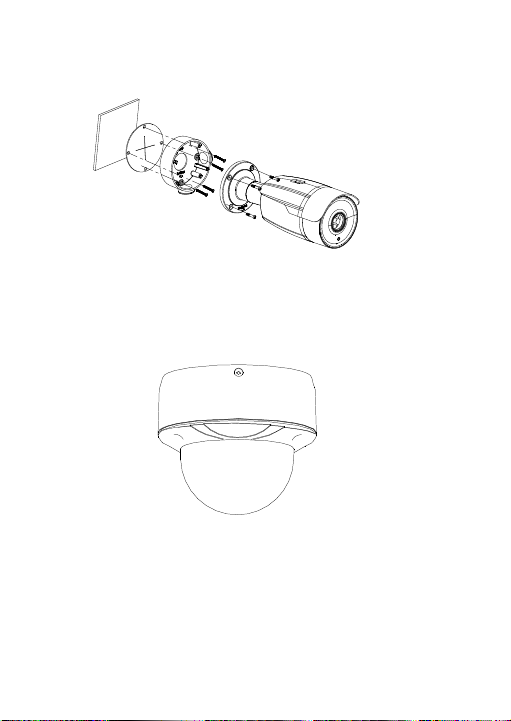

Mounting the bullet camera 17

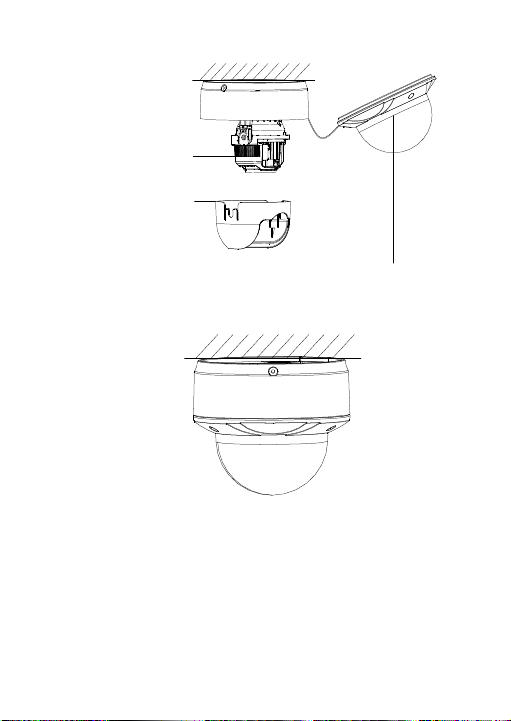

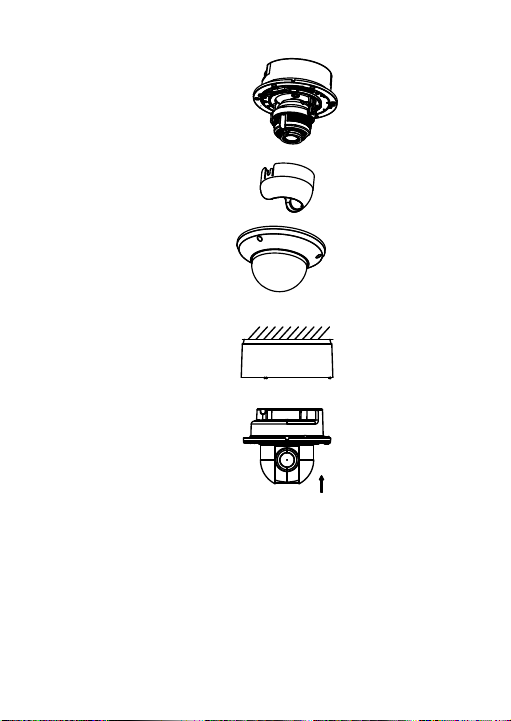

Mounting the VF mini dome camera 18

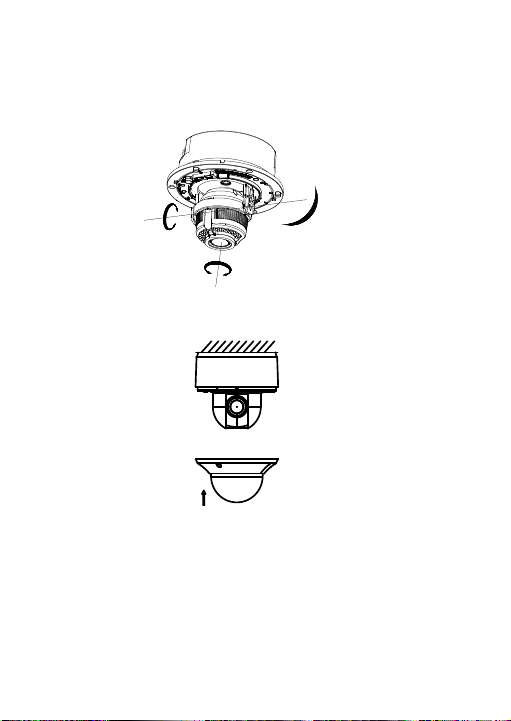

Mounting the outdoor dome camera 24

Using the camera with a TruVision recorder or another

system 29

Using the camera with TruVision Navigator 29

Specifications 29

TruVision IP box cameras 29
TruVision IP VF bullet dome 30
TruVision IP VF mini cameras 30
TruVision IP VF outdoor dome cameras 31

Pin definitions 32

Installation Guide 1

Introduction

Product overview

This is the installation guide for TruVision Series 4 IP camera
models:

 TVC-5401 (2MPX IP box camera)

 TVC-5402 (3MPX IP box camera)

 TVC-5403 (5MPX IP box camera)

 TVB-5401 (2MPX IP bullet camera, 2.8 to 12 mm)

 TVB-5402 (2MPX IP bullet camera, 8 to 32 mm)

 TVB-5403 (3MPX IP bullet camera, 2.8 to 12 mm)

 TVB-5404 (3MPX IP bullet camera, 8 to 32 mm)

 TVB-5405 (5MPX IP bullet camera, 2.8 to 12 mm)

 TVD-5401 (2MPX IP VF mini dome, 2.8 to 12 mm)

 TVD-5402 (3MPX IP VF mini dome, 2.8 to 12 mm)

 TVD-5403 (5MPX IP VF mini dome, 2.8 to 12 mm)

 TVD-5404 (2MPX IP outdoor dome, 2.8 to 12 mm)

 TVD-5405 (2MPX IP outdoor dome, 8 to 32 mm)

 TVD-5406 (3MPX IP outdoor dome, 2.8 to 12 mm)

 TVD-5407 (3MPX IP outdoor dome, 8 to 32 mm)

 TVD-5408 (5MPX IP outdoor dome, 2.8 to 12 mm)

2 Installation Guide

Installation

This section provides information on how to install the
cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be

done by qualified service personnel. Always use a proper
PoE switch or a 12 VDC UL listed Class 2 or CE certified
power supply to power the camera. Do not overl oad the
power cord or adapter.

• Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.

• Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings.
The operating temperature of the camera without heater
is between -30 to +60°C (-22 to 140°F). Humidity is below
90%. For the outdoor cameras that feature built-in
heaters, the operati ng temperature range is -40 to 60°C
(-40 to140°F)

• Moisture: Do not expose the camera to rain or moisture
or try to operate it in wet areas. Turn the power off
immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the
camera and also create the danger of electri c shock.

• Servicing: Do not attempt to service this camera
yourself. Any attempt to dismantle or remove the covers
from this product will invalidate the warranty and may
also result in serious injury. Refer all servicing to qualified
service personnel.

Installation Guide 3

• Cleaning: Do not touch the sensor modules with fingers.
If cleaning is necessary, use a clean cloth with some
ethanol and wipe the camera gently. If the camera will not
be used for an extended period of time, put on the lens
cap to protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use
the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.

IP box camera

• Camera

• C-CS adaptor

• CD with Configuration

manual and TruVision
Device Manager

4 Installation Guide

• Installation manual

• WEEE and Battery

Disposal sheets

IP VF bullet camera

• Camera

• Back box

• Template

• Screws M4.8 × 18

(4 pcs) to attach the
back box

Installation Guide 5

• Screws (4 pcs)

• CD with Configuration

manual and TruVision
Device Manager

• Water j oint: Provide
water resistance to
network connection.

• Wrench

• Installation manual

• WEEE and Battery

Disposal sheets

6 Installation Guide

IP VF mini dome camera

• Camera

• Template

• Adaptor: for TVD-CB3

cup base

• Screws (4 pcs)

• Hex wrench

Installation Guide 7

• CD with Configuration
manual and TruVision
Device Manager

• Installation manual

Drill Template

• WEEE and Battery
Disposal sheets

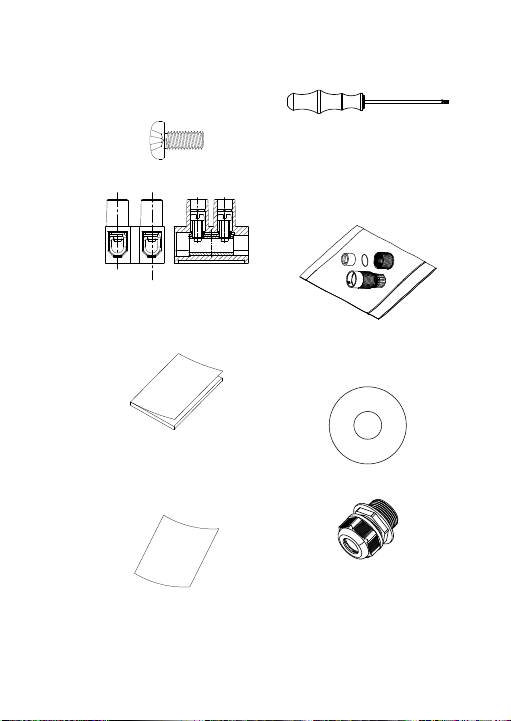

IP VF outdoor dome camera

• Camera

• Template (flush mount)

• Screws (4 pcs)

8 Installation Guide

• Back box

• Template (back box)

• Screws: 4 × 75 mm

(3 pcs)

• Screws M4 × 9.5
(3 pcs) to attach the
back box

• Wrench

• Alarm connector (4 pcs)

• Water j oint: Provide

water resistance to
network connection.

• Installation manual

• CD with Configuration

manual and TruVision
Device Manager

• WEEE and Battery
Disposal sheets

• G 3/4 conduit

Installation Guide 9

CAUTION: Use direct plug-in UL listed power supplies

Box camera

VF

VF

VF

marked Class 2/CE certified or LPS (limited power source) of
the required output rating as listed on the unit.

CAUTION: Risk of explosion if the battery is replaced by an
incorrect type. Dispose of used batteries according to the
instructions.

Cable requirements

For proper operation, adhere to the following cable and power
requirements for the cameras. Category 5 cabling or better is
recommended. All network cabling must be installed according
to applicable codes and regulations.

Table 1 below lists the requirements for the cables that
connect to the camera.

Table 1: Recommended power cable requirements

: 12 VDC/24 VAC power wires or PoE

bullet camera:

mini dome:

outdoor dome: 12 VDC/24 VAC power wires or PoE+

(802.3af)

12 VDC power wires or PoE+ (802.3at)

12 VDC power wires or PoE (802.3af)

(802.3at)

10 Installation Guide

Camera description

GND

AUX

13. Audio In

Figure 1: IP bullet camera

1. Ethernet RJ45 PoE port

2. Power supply

3. Reset button

4. SD card slot

5. BNC port

6. Ground

8. Aux Power Port
(AUX&GND)

9. RS-485 port

10. Alarm In

11. Audio O ut

12. ABF (automatic back
focus) button

7. Alarm Out

Installation Guide 11

Note:

1. To reset the camera to default settings, press and hold

the RESET button and power on the camera. After the

camera is started up, please hold the Reset button for an
additional 20 seconds.

2. The type of auto-iris interface is shown below:

No. DC-driven

1 Damp-

2 Damp+

3 Drive+

4 Drive-

Power, Video and GND pins are used when the auto-iris
is driven by video. Damp+, Damp-, Drive+ and Drive­pins are used when the auto-iris is driven by DC.

12 Installation Guide

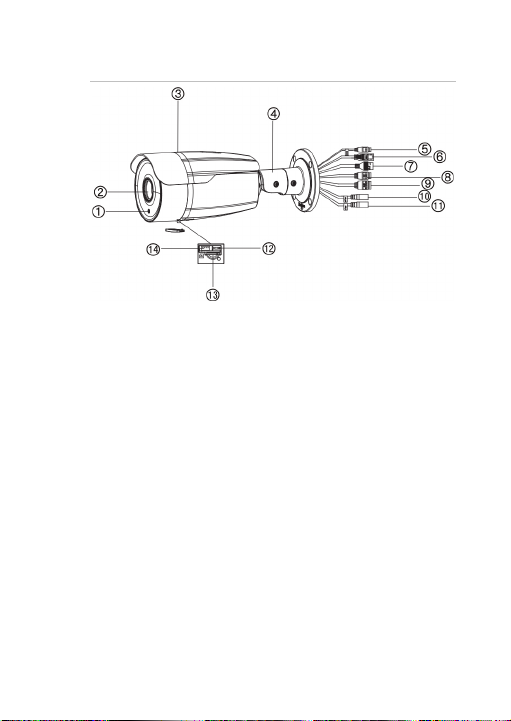

Figure 2: IP VF bullet camera

7. Ethernet RJ45 PoE port

14. Serial port

1. Light sensor

2. Lens

3. Shield

4. Mounting base

5. DC 12V output

6. BNC output

8. Power supply

9. Alarm I/O

10. Audio o utput

11. Audio i nput

12. Reset button

13. SD card slot

Installation Guide 13

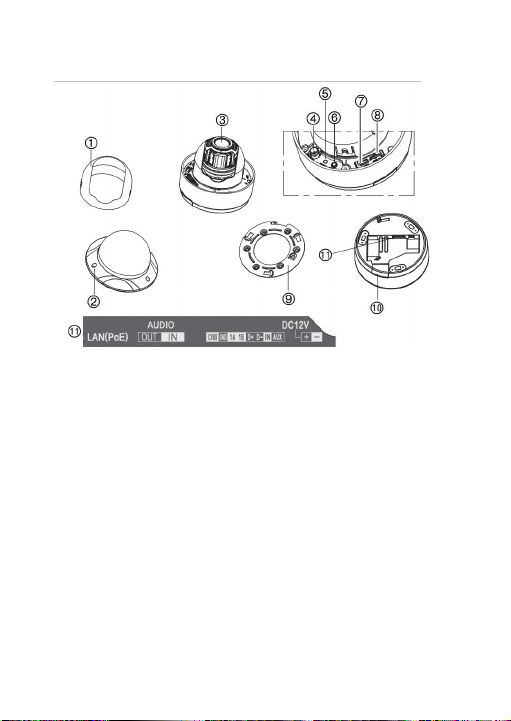

Figure 3: IP VF mini dome camera

6. Status indicator

1. Dome liner

2. Bubble Assembly

3. Lens

4. BNC port

5. Reset button

7. Serial port

8. SD card slot

9. Adaptor

10. Knocko ut

11. Camera terminals

14 Installation Guide

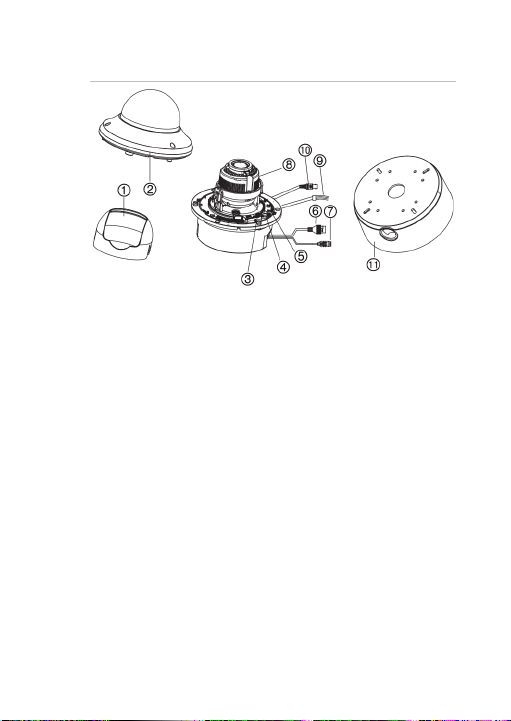

Figure 4: IP VF outdoor dome camera

6. Ethernet RJ45 PoE port

1. Dome liner

2. Bubble Assembly

3. SD card slot

4. Video output

5. Reset button

7. Power supply

8. Lens

9. Alarm I/O, 12 V AUX
output and Audio I/O

10. BNC output

11. Back box

Setting up the camera

Note: If the light source where the camera is installed

experiences rapid, wide-variations in lighting, the camera may
not operate as intended.

Installation Guide 15

To quickly put the camera into operation:

1. Prepare the mounting surface.

2 Mount the camera on the mounting surface using the

appropriate fasteners. See “Mounting the bull et camera”
on page 17.

3. Set up the camera’s network and streaming parameters
so that the camera can be controlled over the network.
For further information, please refer to the “TruVision
Series 4 IP Camera Configuration Manual”.

4. Program the camera as appropriate for its location. For
further information, please refer to the “TruVision Series 4
IP Camera Configuration Manual”.

IR illuminators

The camera’s built-in IR illumination provides high-quality
video in low-light environments, even when there is no other
illumination available.

You can configure the IR illumination using a web browser or a
client software, such as TruVision Navigator. If the function is

enabled, the IR light is On when the camera enters night
(black and white) mode. If disabled, the IR light is always Off.

The visible IR range may vary due to multiple factors such as
weather, IR reflection level of objects in frame, lens
adjustment, and camera settings. Please refer to the camera
datasheet for the standard IR range.

Note: Avoid installing the IR camera closely facing a solid
object such as a tree or wall. The reflection will cause over-

exposure and loss of visibility of detail in field of view.

16 Installation Guide

Accessing the SD card

Insert a Micro SD card with up to 128GB to use the camera as
an additional recording device, or as a backup in case of
failure of communication with the network video recorder (see
Figure 1 on page 11). The card is not supplied with the
camera.

For the IP VF mini dome and outdoor dome cameras, point the
lens vertically upwards to access the SD card slot.

Recorded video and log files can be accessed via the web
browser or via TruVision Navigator.

Mounting the bullet camera

Mount the camera on a ceiling or wall.

To mount the bullet camera:

1. Use the supplied template to mark out the mounting area.
Drill the screw holes on the ceiling or wall. If you need to
route the cables from the camera base, drill a cable hole
in the ceiling or wall.

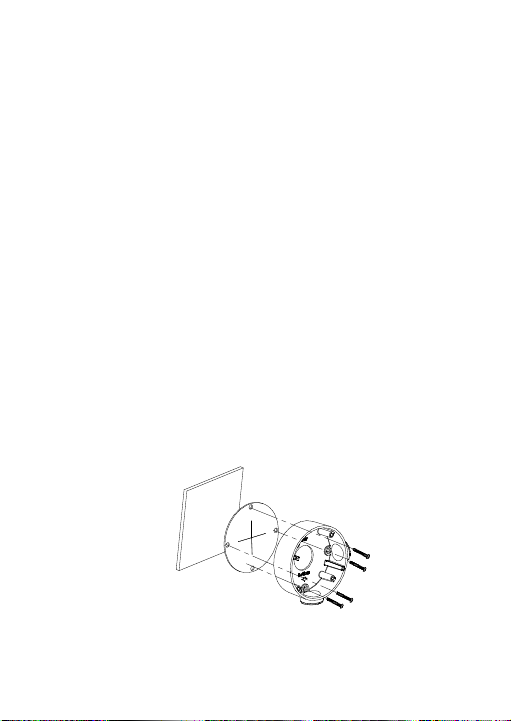

2. Secure the back box to the ceiling or wall with the
supplied screws.

Installation Guide 17

3. Hook the camera to the back box with the safety cable.
Use the screws to fix the camera to the back bo x.

Mounting the VF mini dome camera

To mount the VF dome camera on a ceiling or wall:

1. Loosen the three screws on the edge of the lower dome
with a wrench.

2. Open the lower dome and remove the black inner liner.

18 Installation Guide

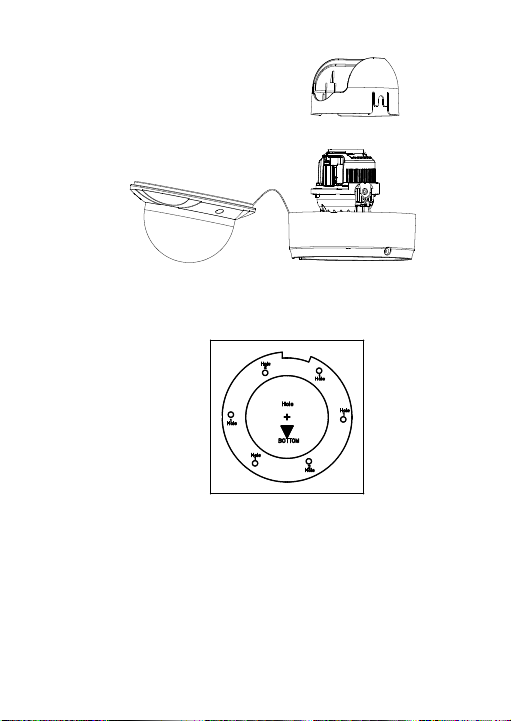

3. Using the drill template, drill the holes in the mounting
surface.

Screw holes

Cable holes

4. If you want to route the cables behind the dome, drill a
cable hole in the ceiling or wall using the drill templ ate.

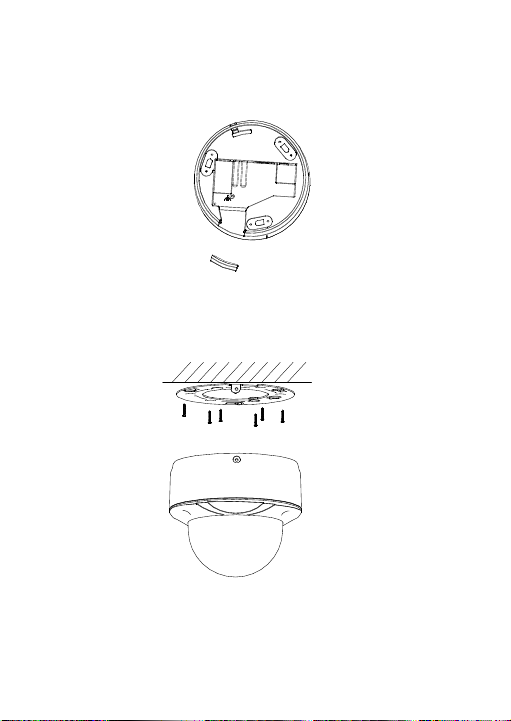

(Optional) Routing the cable from the side knockout
instead of the cable hole drilled on the ceiling is

Installation Guide 19

supported. Use a pliers to remove the knockout plug
shown in the figure below, and route the cables from the
knocko ut.

5. Fix the adapter plate to the ceiling with the supplied
screws.

Knockout

6. Align the mounting base with the adapter plate and route
the mounting base counterclockwise to fit it to the adapter
plate. Then secure it by tightening the lock screw.

20 Installation Guide

Lock screw

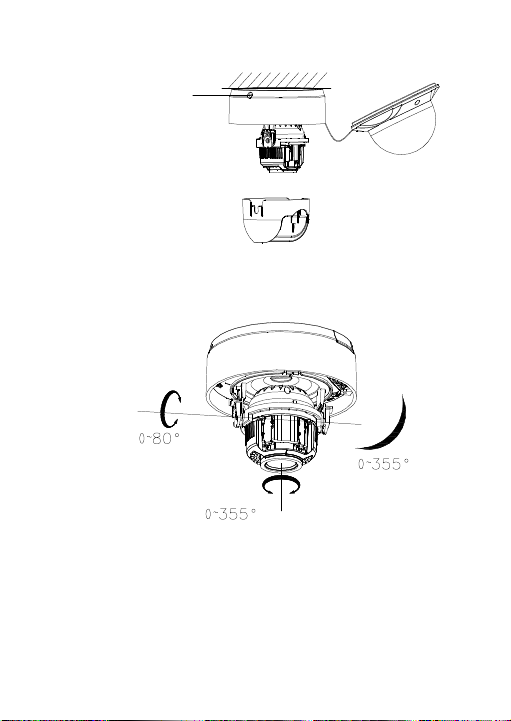

7. Adjust the viewing angle according to the figure below.
Panning angle [0~80°], tilting angle [0~355°], and azimuth
angle of the lens [0~355°].

8. Adjust the focus and zoom.

a) Connect the VIDEO OUT interface of the camera to

the event monitor.

b) Set the iris type to MANUAL.

Installation Guide 21

c) Adjust the No.1 Zoom Lever (T~W) to select a

1

2

proper angle of view.

d) Adjust the No.2 Focus Lever (F~N) to obtain the

desired image quality on the monitor.

e) Set the iris type as MANUAL if the environment has

a good and stable illumination. Set the iri s type as
AUTO if the environment has varied levels of
illumination.

9. Attach the black liner to the dome drive.

10. Attach the bubble to the dome drive and rotate i t to
tighte n.

22 Installation Guide

Bubble

Dome drive

Black liner

11. Tighten the lock screw to complete the installation.

Installation Guide 23

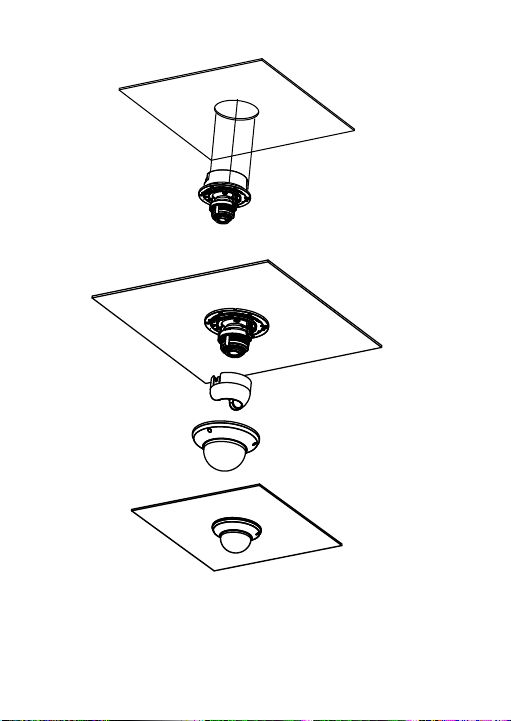

Mounting the outdoor dome camera

To mount the outdoor dome camera on a ceiling:

1. Drill the screw holes on the ceiling with the supplied
drilling template. To route the cables from the base of the
camera, cut a cable hole in the ceiling.

2. Install the mounting base to the ceiling with the s upplied
screws.

3. Connect the corresponding power cable and network
cables.

4. Remove the bubble and liner of the camera.

24 Installation Guide

5. Install the dome camera to the mounting base.

6. Adjust the viewing angle.

a) Loosen the lock screw beside the lens.

b) Hold the plastic plate and rotate the camera to adjust

the panning angle [0~350°].

c) Push the lens forward and backward to ad just the

tilting angle [0~80°].

Installation Guide 25

d) Rotate the lens to adjust the azimuth angle of the

Rotation 350°

Tilt 80°

Pan 350°

camera [0~350°].

e) Tighten the lock screw.

7. Re-attach the dome liner and bubble to the camera.

To mount the outdoor dom e camera into a ceiling:

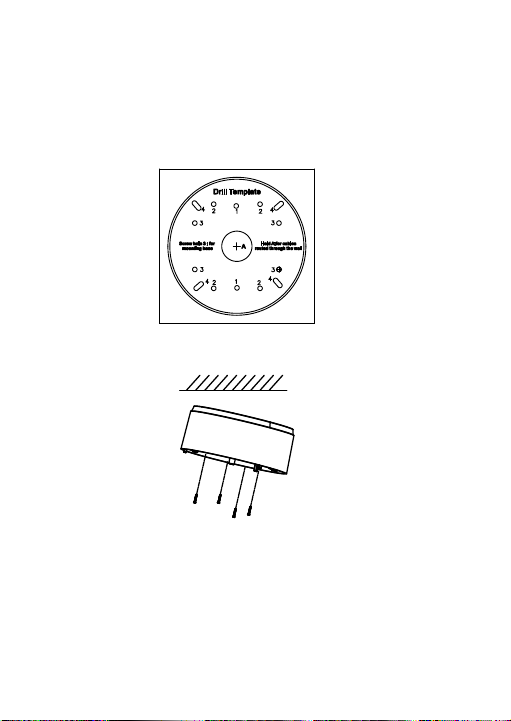

1. Drill the screw holes on the ceiling with the supplied
drilling template.

26 Installation Guide

Drill Template

2. Remove the housing and liner from the camera.

3. Secure the camera to the holes with three screws.

Installation Guide 27

4. Re-attach the ho using and liner.

28 Installation Guide

Using the camera with a TruVision

Electrical

Voltage input
Power

Miscellaneous

Connectors
Operating temperature

Dimensions

Weight

recorder or another system

Please refer to the NVR/DVR user manuals for instructions on
connecting and operating the camera with these systems.

Using the camera with TruVision
Navigator

A camera can either be connected to a TruVision, or it can be
added directly to TruVision Navigator. Please refer to the
TruVision Navigator user manual for instructions on operating
the camera with TruVision Navigator.

Specifications

TruVision IP box cameras

12 VDC/24 VAC, PoE (IEEE

consumption Max. 10 W

AC/DC Power, Network, Audio,

69.8 × 58 × 145 mm

830 g (1.83 lbs.)

802.3af)

Alarm In/Out and Video

-30 to +60 °C (-22 to +140°F)

(2.75 x 2.28 x 5. 71 in.)

Installation Guide 29

TruVision IP VF bullet dome

Electrical

Voltage input

Power consumption

Miscellaneous

Connectors

Operating temperature

Dimensions

Weight

Environmental rating

Electrical

Voltage input

Power consumption

Miscellaneous

Connectors

Operating temperature

12 VDC, PoE+ (IEEE 802.3at)

Max. 13 W

Audio In/Out, Alarm In/Out, 12 VDC

Ø 115.8 × 291.8 mm

1600 g

Power Input, Network Port (PoE),
CVBS Output, AUX Power Output

-40 to +60 °C (-40 to +140 °F)

(Ø 4.56 × 11.5 in.)

IP66

TruVision IP VF mini cameras

12 VDC, PoE (IEEE 802.3af)

2MPX: Max. 7.5W

3MPX: Max. 9W

5MPX: Max. 9 W

Network Port(PoE), Audio In/Out,

30 Installation Guide

Alarm In/Out, CVBS Output, RS­485 Port, Aux Power Port, 12 VDC
Power Port

-30 to +60 °C (-22 to 140°F)

Dimensions

Ø 140 × 121.8 mm

Weight

Environmental rating

Electrical

Voltage input
Power consumption

Miscellaneous

Connectors

Operating temperature

F), with

Dimensions

Weight

Environmental rating

1400 g (3.09 lbs.)

(Ø 5.51 × 4.80 in.)

IK10

TruVision IP VF outdoor dome cameras

12 VDC/24 VAC, PoE+ (IEEE

Network Port(PoE), 12 VDC/24

Ø 159.8 × 146 mm

2100 g (4.62 lbs.)

802.3at)

Max. 17 W

VAC Power Input, Aux Power
Output, Audio In/Out, Alarm
In/Out, CVBS Output.

-40 to +60°C (-40 to +140°

heater on

(Ø 6.29 × 5.75 in.)

IP66, IK10

Installation Guide 31

Pin definitions

There are eight wires on a standard UTP/STP cable and each
wire is color-coded. The following shows the pin allocation and
color of straight and crossover cable connection:

Figure 5: Straight-through cable

1 White/Orange

2 Orange Orange 2

3 White -Green White -Green 3

4 Blue Blue 4

5 White/Blue White/Blue 5

6 Green Green 6

7 White/Brown White/Brown 7

8 Brown Brown 8

Figure 6: Cross-over cable

1 White/Orange

2 Orange Orange 2

3 White -Green White-Green 3

4 Blue Blue 4

5 White/Blue White/Bl ue 5

6 Green Green 6

7 White/Brown White/Brown 7

8 Brown Brown 8

White/Orange 1

White/Orange 1

32 Installation Guide

Please make sure your connected cables have the same pin
assignment and color as above before depl oying the cables in
your network.

Installation Guide 33
