TruVision® Line / Video Surveillance
1.3MPx and
3MPx Intelligent IP
Dome Cameras
IP Open Standards
PROGRESSIVE
SCAN
H.264
COMPRESSION
TRUE
DAY/NIGHT
30/25
FPS
PRIVACY
MASK
WDR
SD Card
IP66
IK10
OVERVIEW
TruVision IP Open Standards dome cameras bring state-of-the-art,
high-defi nition pictures to the mass video surveillance market. With
camera resolutions of 1.3 or 3 megapixel, these IP cameras represent
a fl exible video surveillance device to meet any need. Equipped with
advanced technology and signal processing capability, they effectively
capture video under challenging conditions.
TruVision cameras utilize H.264 compression technology with
triple-streaming capability, making it easy to manage the camera’s
bandwidth usage. These cameras adhere to PSIA and ONVIF
Profi le S open communication standards, and also support a CGI
command set for simple integration into any IP system. Video
streams can be set for high or low bandwidth, and images can be
streamed for live viewing or sent to a designated recording location.
These cameras go above and beyond standard motion detection
with enhanced alarm capabilities, including cross lines, intrusion,
de-focus and face detection features. Each is user-confi gurable to
best suit the installation environment. A Region of Interest function
ensures specifi c portions of an image are given priority during
instances of high network traffi c or network degradation.
Location-specifi c functions include a Hallway View Mode to provide a
portrait view of a hallway or corridor, a De-Fog Mode to help resolve
images though fog or rain and Electronic Image Stabilization for
installations subject to physical vibration or shaking.
STANDARD FEATURES
Video
• 1.3MPx and 3MPx imagers
• H.264 compression technology with triple-streaming capability
accommodates multiple settings
• Select models feature real-time video streaming up to 1080p
resolution to capture every detail
• Designed to PSIA and ONVIF Profi le S open standards
Video Enhancement
• True Day/Night functionality and infrared illuminators to capture
images in various lighting scenarios
• Up to 120dB of Wide Dynamic Range (WDR) performance for
contrasting lighting environments
• ROI (Region of Interest), hallway view, mirror, de-fog, electronic
image stabilization
Advanced Alarm Intelligence
• Integrated motion detection and privacy masking
• Face detection, cross line, intrusion detection, de-focus detection,
scene change detection
• Alarm inputs and outputs provide easy notifi cation and control
of events
Edge Recording
• Edge recording supports up to 64GB micro SD/SDXC card for
video playback
interlogix.com
Page 2
G
Standard Features
(
)
Environment and Installation
• Vandal-resistant housings and polycarbonate bubbles provide
an extra level of protection
• Domes feature external analog BNC video out connection for
easier installation and setup
• Included TruVision Device Manager program provides fast and
easy access to newly added system devices
• UL approved
Warranty
• 3-Year warranty
Accessories – General Bracket
Application
Delivering detailed images in a variety of environments that need
it most, TruVision
applications that require high-quality IP images. These cameras
provide ideal surveillance for environments such as retail, banking,
airports or gaming where detailed image capture is critical for
effectively monitoring people and transactions.
®
IP cameras are specifi cally designed for
TVD-SNB
Swan Neck Bracket
9.96 in.
(253mm)
G1 1/8
7.08 in.
(180mm)
3.74 in.
(95mm)
TVD-SNB-BB
Back Box
7.08 in.
(180mm)
TVD-M-CMA
Corner Mount Adaptor
6.22 in.
(158mm)
Accessories – VF Mini Dome
TVD-M2-WM
Indoor Dome Wall Mount
6-M4
(83.5mm)
3.2874 in.
5.315 in.
(135mm)
1.811 in.
(46mm)
9.8819 in.
(251mm)
3.2874 in.
(83.5mm)
7.185 in.
(182.5mm)
(158mm)
6.2205 in.
75mm
0.3346 in.
(8.5mm)
TVD-M2-FM
Indoor Dome Flush Mount
(90mm)
(50mm)
3.5433 in.
1.9685 in.
TVD-M-PMA
Pole Mount Adaptor
4.60 in.
(Ø117mm)
1.49 in.
(38mm)
7.63 in.
(194mm)
5.62 in.
(143mm)
3.74 in.
(95mm)
6.81 in.
(173mm)
2.95 in.
(75mm)
4.76 in.
(121mm)
TVD-PPB
Pendant Ceiling Bracket
1.45 in.
3.34 in.
(85mm)
3.34 in.
(85mm)
5.90 in.
.78 in.
(Ø150mm)
1.65 in.
(42mm)
7.63 in.
(194mm)
5.62 in.
(143mm)
1.49 in.
3.5 in.
(89mm)
4.13 in.
(105mm)
4.52 in.
(115mm)
4.76 in.
(121mm)
(38mm)
2.95 in.
(75mm)
(20mm)
G1
9.84 in.
(250mm)
(37mm)
(10.5mm)
G1
.41 in.
G1
TVD-CB3
3" Cup Base
1.81 in.
(46mm)
20
8.2677 in.
(210mm)
7.0079 in.
(178mm)
3.3 in.
(84mm)
5.51 in.
(Ø140mm)
2.36 in.
(60mm)
G1
Accessories – Motorized Lens Dome
4.72 in.
TVD-CB5A
(120mm)
Integrated 5" Cup Base
4.72 in.
(120mm)
6.29 in.
(Ø160mm)
3.93 in.
(100mm)
1
Page 3

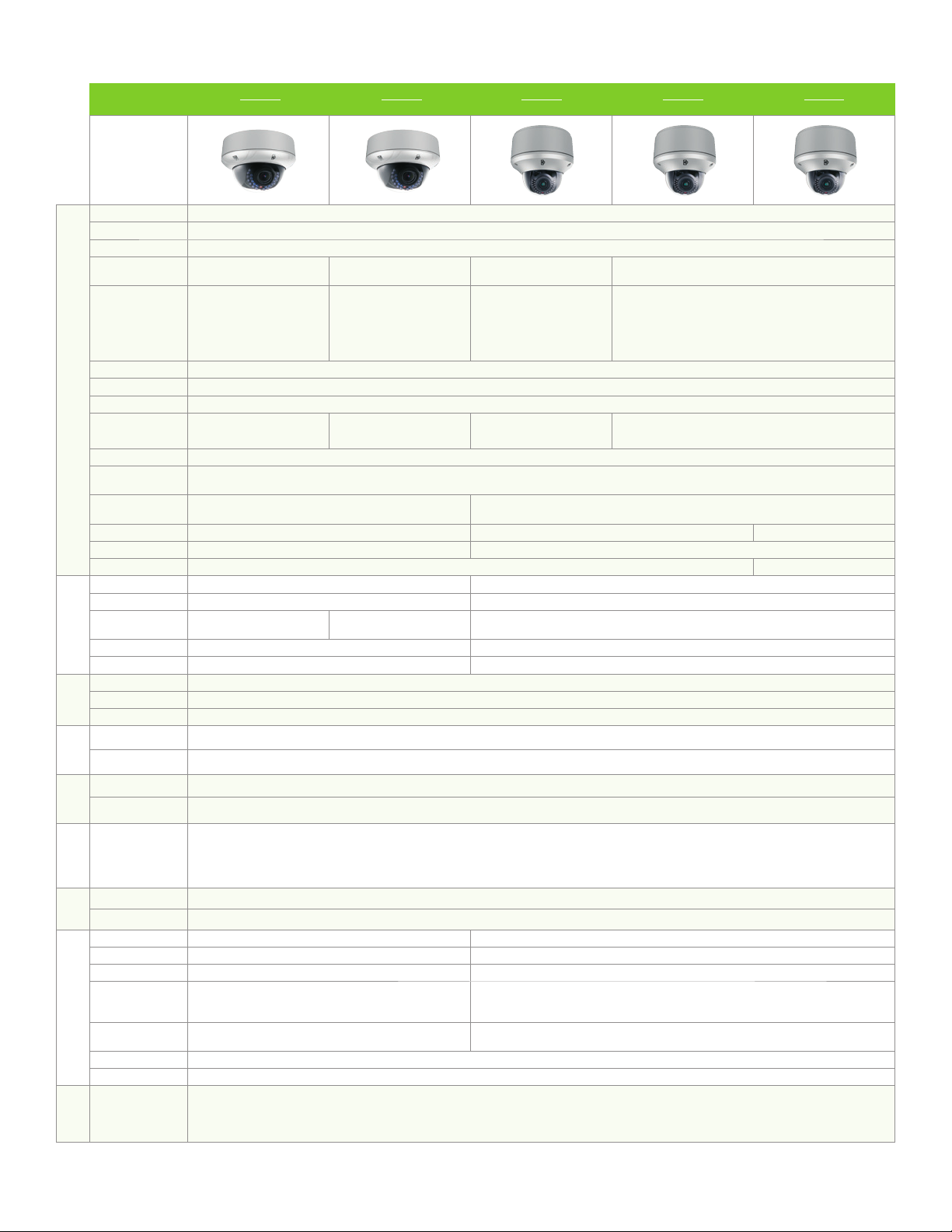

Specifi cations
PART NO. TVD-3201
TVD-1201
TVD-3202
TVD-1202
TVD-3203
TVD-1203
TVD-3204
TVD-1204
TVD-3205
TVD-1205
Description
Sensor 1/3" Progressive Scan CMOS
Day/Night IR Cut Filter
IP Compression H.264 (Baseline profi le / Main profi le / High profi le) / MPEG4 / MJPEG
Maximum Resolution
(@ fps)
Maximum Real-Time
Resolution (@ fps)
Multiple Streaming Triple streams
Video Bit Rate
WDR
Camera
Sensitivity
S/N Ratio 50 dB (AGC OFF)
Auto Exposure
(shutter)
Composite Output
(BNC)
Lens 2.8 ~12mm VF lens 2.8 ~12mm motorized lens 8 ~ 32mm motorized lens
Focus Manual one touch Remote Auto Focus
IR Distance 98 ft. (30m) 164 ft. (50m)
Voltage Input 12VDC PoE (IEEE 802.3-af) 24VAC, PoE (IEEE 802.3-af)
Current 0.67A 0.71A
Power
Consumption
Electrical
I/O Connection 1/1 2/2
Others RS-485
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, ezDDNS, DynDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, UPnP, NAT, MULTICAST, 802.1x, Qos, IPv4, IPv6
PoE IEEE 802.3-af
Network
Port 10/100Mbps, auto-negotiate, Ethernet port (RJ45)
Media Micro SD/SDXC
Local
Capacity Up to 64GB
Storage
Basic Motion Detection, Tamper Proof, Privacy Mask
Advanced Face Detection, Cross Line, Intrusion Detection, De-focus Detection, Scene Change Detection
Alarms
Camera
1280 x 960 @ 25fps (50Hz)
1280 x 960 @ 30fps (60Hz)
1280 x 960 @ 25fps (50Hz )
1280 x 960 @ 30fps (60Hz)
1280 x 720 @ 50fps (50Hz,
WDR off )
1280 x 720 @ 60fps (60Hz,
WDR off)
128 kbps to 16 Mbps, or user-defi ned
120dB
Color 0.01 lux @ f1.2, AGC ON
0 lux IR ON
50 Hz: 1/25s ~1/100,000s
60 Hz: 1/30s ~1/100,000s
1Vp-p composite output (75 Ω/BNC) Internal BNC port for installation only
Max. 8W Max. 8.5W Max. 12.5W (heater on)
2048 × 1536 @ 20fps (50Hz)
2048 × 1536 @ 20fps (60Hz)
1920 x 1080 @ 25fps (50Hz )
1920 x 1080 @ 30fps (60Hz)
Color 0.1 lux @ f1.2, AGC ON
0 lux IR ON
1280 x 960 @ 25fps (50Hz)
1280 x 960 @ 30fps (60Hz)
1280 x 960 @ 25fps (50Hz )
1280 x 960 @ 30fps (60Hz)
1280 x 720 @ 50fps (50Hz,
WDR off )
1280 x 720 @ 60fps (60Hz,
WDR off)
Color 0.01 lux @ f1.2, AGC ON
0 lux IR ON
2048 × 1536 @ 20fps (50Hz)
2048 × 1536 @ 20fps (60Hz)
1920 x 1080 @ 25fps (50Hz )
1920 x 1080 @ 30fps (60Hz)
Color 0.1 lux @ f1.2, AGC ON
0 lux IR ON
ONVIF Profi le S, PSIA, CGI
Integration
Standard &
Display mode ROI (Region of Interest), Hallway View, Mirror, De-fog, Electronic Image Stabilization
OSD Text overlay and picture overlay
Display
Dimensions 5.51 × 3.94 in. (140 × 100 mm)
Weight 1.76 lbs. (800g) 4.63 lbs. (2100g)
Storage Temperature -4°F~158°F (-20°C~70°C) -4°F~158°F (-20°C~70°C)
Operating
Temperature
(cold start)
Operating
Mechanical/
Environment
Temperature
Environmental Rating IP66
Vandal Rating IK10
Compliance FCC, CE, UL, C-Tick, REACH, RoHS, WEEE
Regulation
-22°F~140°F (-30°C~60°C) -40°F~140°F (-40°C~60°C), with heater on
-22°F~140°F (-30°C~60°C) -58°F~140°F (-50°C~60°C), with heater on
6.29 × 5.75 in. (159.8 × 146 mm)
Page 4
1.3MPx and 3MPx Intelligent
IP Dome Cameras
IP Open Standards

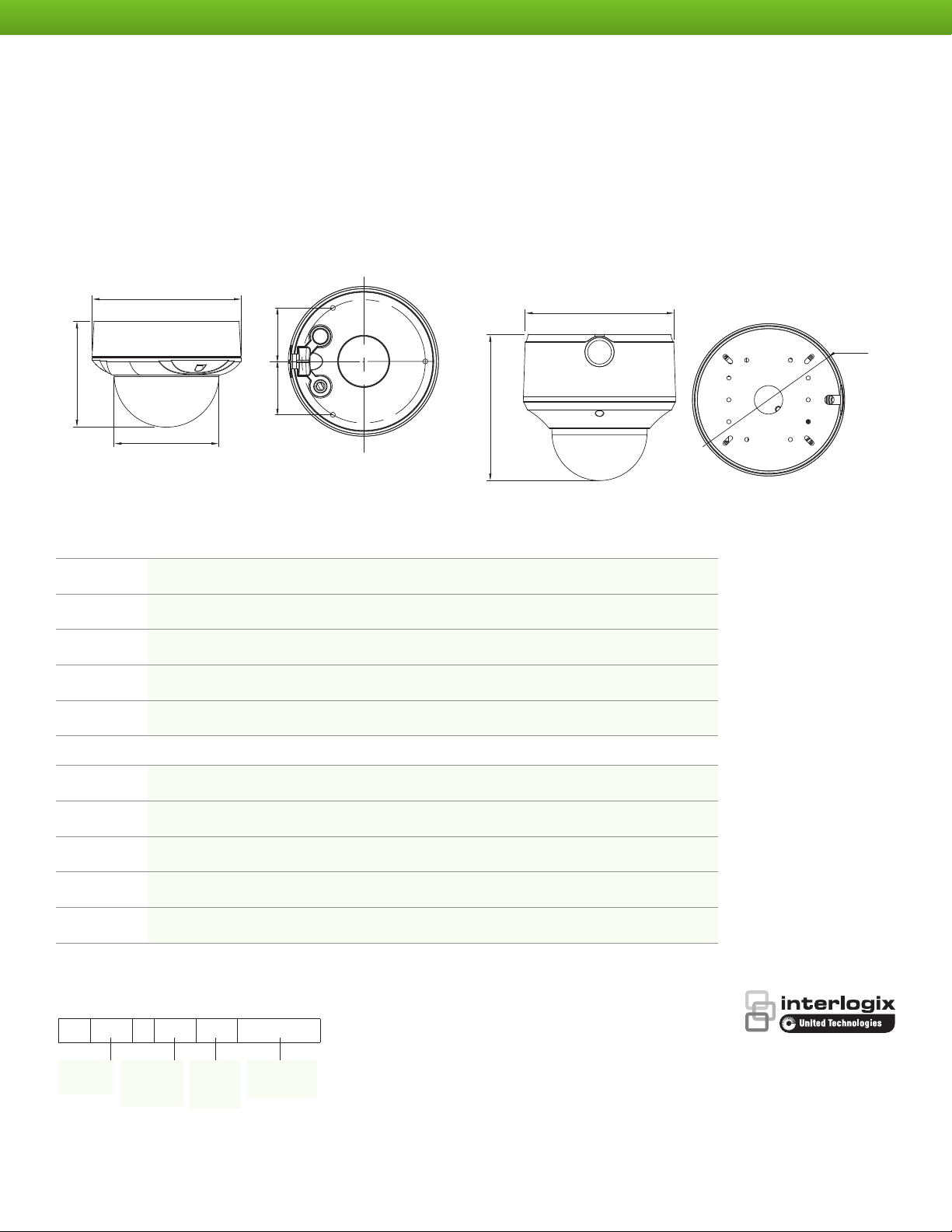

Dimensional Diagrams
North America
T 855-286-8889
Latin America
T 561-998-6114
Vandal Dome
3.93 in.
(100 mm)
5.51 in.
(140 mm)
3.89 in.
(99 mm)
Ordering Information
NTSC
TVD-3201
TVD-3202
TVD-3203
TVD-3204
TVD-3205
TruVision® IP Vandal Dome Camera, 1.3MPx, 2.8 ~12mm VF Lens, WDR, True D/N, 30m IR, Alarm,
SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC, IP66, IK10, NTSC
TruVision IP Vandal Dome Camera, 3MPx, 2.8 ~12mm VF Lens, WDR, True D/N, 30m IR, Alarm,
SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC, IP66, IK10, NTSC
TruVision IP Motorized Lens Dome Camera, 1.3MPx, 2.8 ~12mm Motorized Lens, WDR, True D/N,
30m IR, Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 24VAC, Heater, IP66, IK10, NTSC
TruVision IP Motorized Lens Dome Camera, 3MPx, 2.8 ~12mm Motorized Lens, WDR, True D/N, 30m
IR, Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 24VAC, Heater, IP66, IK10, NTSC
TruVision IP Motorized Lens Dome Camera, 3MPx, 8 ~32mm Motorized Lens, WDR, True D/N, 50m IR,
Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 24VAC, Heater, IP66, IK10, NTSC
1.97 in.
(50.2 mm)
1.97 in.
(50.2 mm)
Motorized Vandal Dome
6.29 in.
(159.8 mm)
5.74 in.
(146 mm)
6.29 in.
(159.8 mm)
PAL
TVD-1201
TVD-1202
TVD-1203
TVD-1204
TVD-1205
TruVision IP Vandal Dome Camera, 1.3MPx, 2.8 ~12mm VF Lens, WDR, True D/N, 30m IR, Alarm,
SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC, IP66, IK10, PAL
TruVision IP Vandal Dome Camera, 3MPx, 2.8 ~12mm VF Lens, WDR, True D/N, 30m IR, Alarm,
SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC, IP66, IK10, PAL
TruVision IP Motorized Lens Dome Camera, 1.3MPx, 2.8 ~12mm Motorized Lens, WDR, True D/N,
30m IR, Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 24VAC, Heater, IP66, IK10, PAL
TruVision IP Motorized Lens Dome Camera, 3MPx, 2.8 ~12mm Motorized Lens, WDR, True D/N,
30m IR, Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 24VAC, Heater, IP66, IK10, PAL
TruVision IP Motorized Lens Dome Camera, 3MPx, 8 ~32mm Motorized Lens, WDR, True D/N,
50m IR, Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 24VAC, Heater, IP66, IK10, PAL
Part Number Schema
D320
TV ___ - ___ ___ ________
IP Type
D=Dome
Format
1=IP PAL
3=IP NTSC
Series
1=1st
2=2nd
Camera
Specifi cs
1
interlogix.com
Specifi cations subject to change without notice.
© 2015 United Technologies Corporation.
All rights reserved.
Interlogix is part of UTC Building & Industrial Systems,
a unit of United Technologies Corporation.
412-3881 2015/01 (80110)
