TruVision® Line / Video Surveillance
TRUE
1.3MPx and
3MPx IR Dome
IP Cameras
IP Open Standards Cameras
SCAN
PoE
DUAL
STREAMING
IP66
DAY/NIGHT
IK10
DWDR
AUDIO
MPX
PROGRESSIVE
12VDC
OVERVIEW
TruVision IP Megapixel Open Standards dome IR cameras
bring state-of-the-art, high-definition images to the mass video
surveillance market. Designed to adhere to ONVIF Profile S open
communication standards, these cameras also support a CGI
command set for simple integration into any IP system. 1.3MPx
and 3MPx resolution options provide the flexibility for a wide
variety of applications.
An integrated browser and the varifocal models micro SD
memory card storage capabilities simplify remote, live monitoring/
playback of edge-recorded video and audio. Memory card
recording protects data in the event of network disruptions.
STANDARD FE ATUR ES
Video
• 1.3MPx or 3MPx resolution options
• H.264 compression technology with dual-streaming capability
accommodates multiple settings
• Compatible with ONVIF Prole S open standards
Video Enhancement
• Hallway view, ROI (Region of Interest)
• DWDR and/or real-time video streaming up to 1080p resolution to
capture every detail
• True day/night functionality and infrared illuminators for capturing
images in various lighting scenarios
• 33~49 ft. (10m~15m) IR range - with on/off settings
Video Alarms
• Integrated Motion Detection, Tamper proof and Privacy masking
• Advanced Cross line and Intrusion detection
Audio and Edge Recording
• Select models support external audio I/O
• Varifocal models feature edge recording on up to 64GB micro
SD/SDXC card for video playback (card not included)
Installation and Environment
• IP66 Environmental rating
• IK10 Vandal rating (select models)
• Included TruVision Device Manager program provides fast and
easy access to newly added system devices
Warranty
• 3-year warranty
interlogix.com
Dimensional Diagrams
3.29 in.
(83.5mm)
1.68 in.
(42.7mm)
3.98 in.
(101mm)
TVD-1103/3103, TVD-1104/3104
5.51 in.
(140mm)
3.93 in.
(140mm)
5.51 in.
(140mm)
Mounting Plate (included)
1.98 in.
(50.23mm)
1.14 in.
(29mm)
1.97 in.
(50.2mm)
1.97 in.
(50.2mm)
(41.75mm)
1.64 in.
(136.28mm)
2.28 in.
(58mm)
5.37 in.
1.64 in.
(41.75mm)
TVD-3105/1105, TVD-3106/1106
4.4 in.
(Ø111mm)
3.24 in.
(82.4mm)
3.11 in.
(79.1mm)
Ø100.4

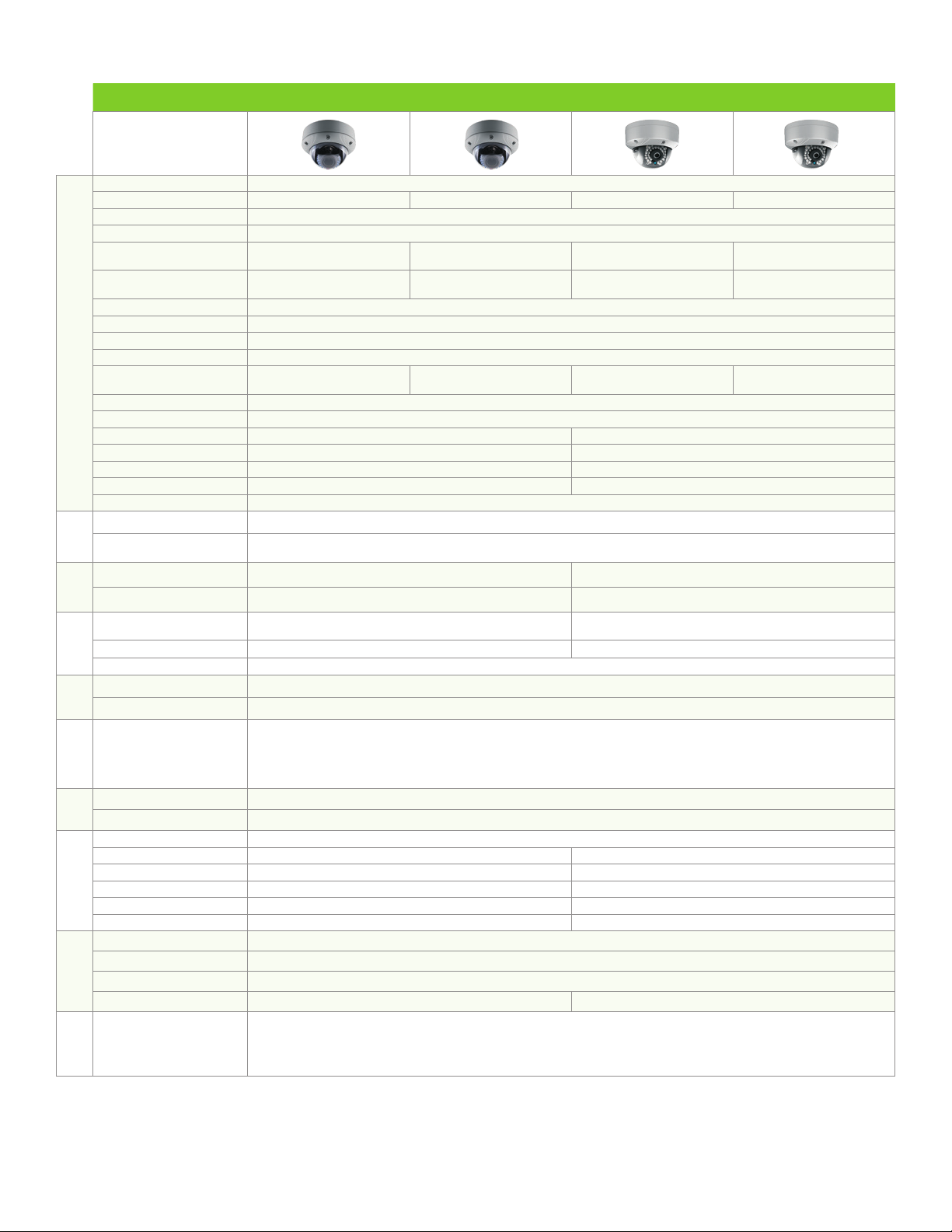

Specifications
PART NO.
Description
Sensor Size 1/3" Progressive Scan CMOS sensor
Resolution 1.3MPx 3MPx 1.3MPx 3MPx
Day/Night IR cut filter with auto switch
IP Compression H.264 (Main prole) / MJPEG
Maximum Resolution (@ FPS)
Maximum Real-Time
Resolution (@ FPS)
Multiple Streaming Dual Streams
Video Bit Rate
WDR DWDR (72dB)
Digital Noise Reduction 3D
Camera
Sensitivity
S/N Ratio 50 dB (AGC OFF)
Auto Exposure (shutter) 60 Hz: 1/3s ~ 1/100,000s, 50 Hz: 1/3s ~ 1/100,000s
Composite Output (BNC) N/A BNC
Lens 2.8~12mm @ f1.4 auto iris 2.8mm @ f2.0
Focus Varifocal Fixed
IR Distance 49 ft. (15 m) with on/off setting 33 ft. (10m) with on/off setting
IR Wavelength 850nm
Ethernet Port RJ45 10/100Mpbs Auto-negotiate
Network Protocols
Network
Media Micro SD/SDXC slot (card not included) N/A
Local
Capacity Up to 64 GB N/A
Storage
Input
Output Audio OUT/GND for external audio connection N/A
Audio
Audio bit rate (protocol) 64Kbps (G.711) / 16Kbps (G.726) / 32-128Kbps (MP2L2)
Basic Motion Detection, Tamper Proof, Privacy Mask
Video
Advanced Cross line, Intrusion detection
Alarms
1280 x 960 @ 30fps (60Hz)
1280 x 960 @ 25fps (50Hz)
1280 x 960 @ 30fps (60Hz)
1280 x 960 @ 25fps (50Hz)
Mainstream: 128Kbps to 12Mbps; Sub-stream: 128kbps to 8Mbps
0.01 lux @ (f1.2, AGC ON)
0 lux @ (IR ON)
TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, ezDDNS, DynDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, UPnP, NAT, MULTICAST,
802.1x, Qos, IPv4, IPv6
Cable harness for external Mic level (Supports stereo or mono
microphones) or Line-level inputs
TVD-3103
TVD-1103
2048 x 1536 @ 20fps (60Hz)
2048 x 1536 @ 20fps (50Hz)
1920 × 1080 @ 30fps (60Hz)
1920 × 1080 @ 25fps (50Hz)
0.07 lux @ (f1.2, AGC ON)
0 lux @ (IR ON)
TVD-3104
TVD-1104
TVD-3105
TVD-1105
1280 x 960 @ 30fps (60Hz)
1280 x 960 @ 25fps (50Hz)
1280 x 960 @ 30fps (60Hz)
1280 x 960 @ 25fps (50Hz)
0.01 lux @ (f1.2, AGC ON)
0 lux @ (IR ON)
N/A
TVD-3106
TVD-1106
2048 x 1536 @ 20fps (60Hz)
2048 x 1536 @ 20fps (50Hz)
1920 × 1080 @ 30fps (60Hz)
1920 × 1080 @ 25fps (50Hz)
0.07 lux @ (f1.2, AGC ON)
0 lux @ (IR ON)
ONVIF, (Prole S), PSIA, CGI
Integration
Standards &
Display Mode Flipped horizontally (up/down), vertically (right/left) or centered, Hallway view, ROI (Region of Interest)
Dis-
play
On Screen Display (OSD) Text overlay
Voltage Input 12VDC, PoE (IEEE 802.3-af)
Current 460 mA 585 mA
Power Consumption 5.5W (Max.) 7W (Max.)
I/O Connection Wires 1/1 N/A
chanical
Dimensions 5.5 x 3.9 in. (140 × 100mm) 4.4 x 3.2 in. (111 × 82mm)
Electrical & Me-
Weight 1.7 lbs. (767g) 0.8 lbs. (370g)
Storage Temperature -4°F~158°F (-20°C~70°C)
Operating Temperature -22°F~140°F (-30°C~ 60°C)
Environmental Temperature IP66
Environmental
Vandal Rating IK10 N/A
Compliance FCC, CE, UL, C-Tick, REACH, RoHS, WEEE
Regulatory
1.3MPx and 3MPx
IR Dome IP Cameras
IP Open Standards Cameras
Ordering Information
NTSC
®
TVD-3103
TVD-3104
TVD-3105
TVD-3106
PAL
TVD-1103
TVD-1104
TVD-1105
TVD-1106
TruVision
DWDR, 15m IR, 2.8~12mm VF Lens, Micro SD/SDXC Slot, ONVIF, PoE/12VDC, IP66, NTSC
TruVision 3MPx Open Standards, Progressive Scan CMOS, Outdoor Vandal Dome, True D/N, DWDR,
15m IR, 2.8~12mm VF Lens, Micro SD/SDXC Slot, ONVIF, PoE/12VDC, IP66, NTSC
TruVision 1.3MPx Open Standards, Progressive Scan CMOS, Outdoor Mini Dome, True D/N, DWDR,
2.8mm Fixed Lens, 10m IR, ONVIF, PoE/12VDC, BNC, IP66, NTSC
TruVision 3MPx Open Standards, Progressive Scan CMOS, Outdoor Mini Dome, True D/N, DWDR,
2.8mm Fixed Lens, 10m IR, ONVIF, PoE/12VDC, BNC, IP66, NTSC
TruVision 1.3MPx Open Standards, Progressive Scan CMOS, Outdoor Vandal Dome, True D/N,
DWDR, 15m IR, 2.8~12mm VF Lens, Micro SD/SDXC Slot, ONVIF, PoE/12VDC, IP66, PAL
TruVision 3MPx Open Standards, Progressive Scan CMOS, Outdoor Vandal Dome, True D/N, DWDR,
15m IR, 2.8~12mm VF Lens, Micro SD/SDXC Slot, ONVIF, PoE/12VDC, IP66, PAL
TruVision 1.3MPx Open Standards, Progressive Scan CMOS, Outdoor Mini Dome, True D/N, DWDR,
2.8mm Fixed Lens, 10m IR, ONVIF, PoE/12VDC, BNC, IP66, PAL
TruVision 3MPx Open Standards, Progressive Scan CMOS, Outdoor Mini Dome, True D/N,
DWDR,2.8mm Fixed Lens, 10m IR, ONVIF, PoE/12VDC, BNC, IP66, PAL
1.3MPx Open Standards, Progressive Scan CMOS, Outdoor Vandal Dome, True D/N,
Accessories
DR-RWM-AD Adapter for TruVision Wedge Dome or Plastic Dome to DR Wall-mount Bracket
TVD-CB3
TVD-LWB-1 TruVision Dome Bracket, L-Shape (for Analog/IP Wedge and Analog/HD/IP Plastic Dome Cameras)
TVD-LWB-2
TVD-M-CMA TruVision Corner Mount Adaptor for TVD-SNB (or TVC-IP VF Bullet Cameras)
TVD-M-PMA TruVision Pole Mount Adapter (use w/TVD-SNB or TVC-IP VF Bullet Cameras)
TVD-M2-FM TruVision Indoor Flush Mount (use w/Open Standard Series Indoor TVD-IP Domes)
TVD-M2-PNDT TruVision Dome Pendant Mount (use without TVD-CB2 for Wedge Cameras)
TVD-M2-WM
TVD-SNB TruVision Dome Swan Neck Bracket (use w/TVD-CB5A, TVD-CB3, TVD-CB2)
TVD-PPB TruVision Dome Pendant-Mount Bracket (use w/TVD-CB5A, TVD-CB3, TVD-CB2)
TruVision Dome 3" Cup Base (use w/UVD and TVD-6/7 Series Analog Domes; TVD-IP Domes;
TVD-SNB; TVD-PPB)
TruVision Dome Bracket, L-Shape (for TVD-6/7 Series and TVD Analog VF Domes, TVD HD-TVI
Analog VF Domes and TVD-IP VF Domes)
TruVision Dome Wall Mount (use w/Open Standard Series Indoor TVD-IP Domes and TVD-6/7 Series
Analog Domes)
IP/Megapixel part number schema
D 1 1 0 3
TV ___ - ___ ___ _____
Device Type
B=Bullet
C=Camera
D=Dome
P=PTZ
W=Wedge
T=Turret
Format
1=IP PAL
2=Analog PAL
3=IP NTSC
4= Analog
NTSC
Sequence/
Camera
Specifics
Series
1=First
