TruVision® Line / Video Surveillance
1.3MPx and
3MPx Intelligent
IP Box Cameras
IP Open Standards
PROGRESSIVE
SCAN
H.264
COMPRESSION
TRUE
DAY/NIGHT
30/25
FPS
PRIVACY
MASK
WDR
SD Card
12VDC
24VAC
OVERVIEW
The TruVision line of IP Open Standards box cameras bring stateof-the-art, high-defi nition pictures to the mass video surveillance
market. With camera resolutions of 1.3 or 3 megapixel, these IP
cameras represent a fl exible video surveillance device to meet any
need. Equipped with advanced technology and signal processing
capability, they effectively capture video under challenging conditions.
TruVision cameras utilize H.264 compression technology with
triple-streaming capability, making it easy to manage the camera’s
bandwidth usage. These cameras adhere to PSIA and ONVIF Profi le
S open communication standards, and also support a CGI command
set for simple integration into any IP system. Video streams can be
set for high or low bandwidth, and images can be streamed for live
viewing or sent to a designated recording location.
These cameras go above and beyond standard motion detection
with enhanced alarm capabilities, including cross lines, intrusion, defocus and face detection features. Each is user-confi gurable to best
suit the installation environment. A Region of Interest function ensures
specifi c portions of an image are given priority during instances of
high network traffi c or network degradation.
Location-specifi c functions include a Hallway View Mode to provide a
portrait view of a hallway or corridor, a De-Fog Mode to help resolve
images though fog or rain and Electronic Image Stabilization for
installations subject to physical vibration or shaking.
STANDARD FEATURES
Video
• 1.3MPx and 3MPx imagers
• H.264 compression with triple-streaming functionality
accommodates multiple settings
• Select models feature real-time video streaming up to 1080p
resolution for exceptionally detailed image capture
• Designed to PSIA and ONVIF Profi le S open standards
Video Enhancement
• True Day/Night functionality
• ROI (Region of Interest), hallway view, mirror, de-fog, electronic
image stabilization
Advanced Alarm Intelligence
• Integrated motion detection and privacy masking
• Face detection, audio exception detection, cross line, intrusion
detection, de-focus detection, scene change detection
• Alarm inputs and outputs provide easy notifi cation and control
of events
Edge Recording
• Edge recording supports up to 64GB micro SD/SDXC card for
audio/video playback (card not included)
• Browser-supported mono and bi-directional audio to expand IP
stream to include audio
Installation and Environment
• External analog BNC video out connection for easier installation
and setup
• Included TruVision Device Manager program provides fast and
easy access to newly added system devices
Warranty
• 3-Year warranty
interlogix.com
Application
Delivering detailed images in a variety of environments that need it most, IP cameras are specifi cally designed
for applications that require high-quality IP images. These cameras provide ideal surveillance for environments
such as retail, banking, airports or gaming where detailed image capture is critical for effectively monitoring
people and transactions.
Dimensional Diagrams
2.74 in.
(69.8 mm)
5.70 in.
(145 mm)
2.28 in.
(58 mm)
Accessories
TVC-OH/TVC-OH-H
Box Camera and Outdoor IP 66 Clamshell Housing
5.45 in.
(138.6mm)
5.78 in.
(146.9mm)
18.11 in.
(460mm)
TVC-M-WM Box and Clamshell Housing Wall Mount
3.15 in.
(80mm)
2.71 in.
(69mm)
1.18 in.
(30mm)
4.87 in.
(123.9mm)
3.26 in.
(83mm)
3.92 in.
(99.7mm)
2.79 in.
(71mm)
11.96 in.
(304mm)
TVC-OH-HW
Box Camera Outdoor IP 66 Clamshell Housings with
Heater and Wiper
5.45 in.
(138.6mm)
6.55 in.
(166.4mm)
18.11 in.
(460mm)
TVD-M-PMA Pole Mount Adaptor
(For use with TVD-M-OWM, TVD-M-WM, TVC-M-WM)
7.63 in.
(194mm)
5.63 in.
(143mm)
2.67 in.
(68mm)
2.67 in.
(68mm)
7.63 in.
(194mm)
4.6 in.
(117mm)

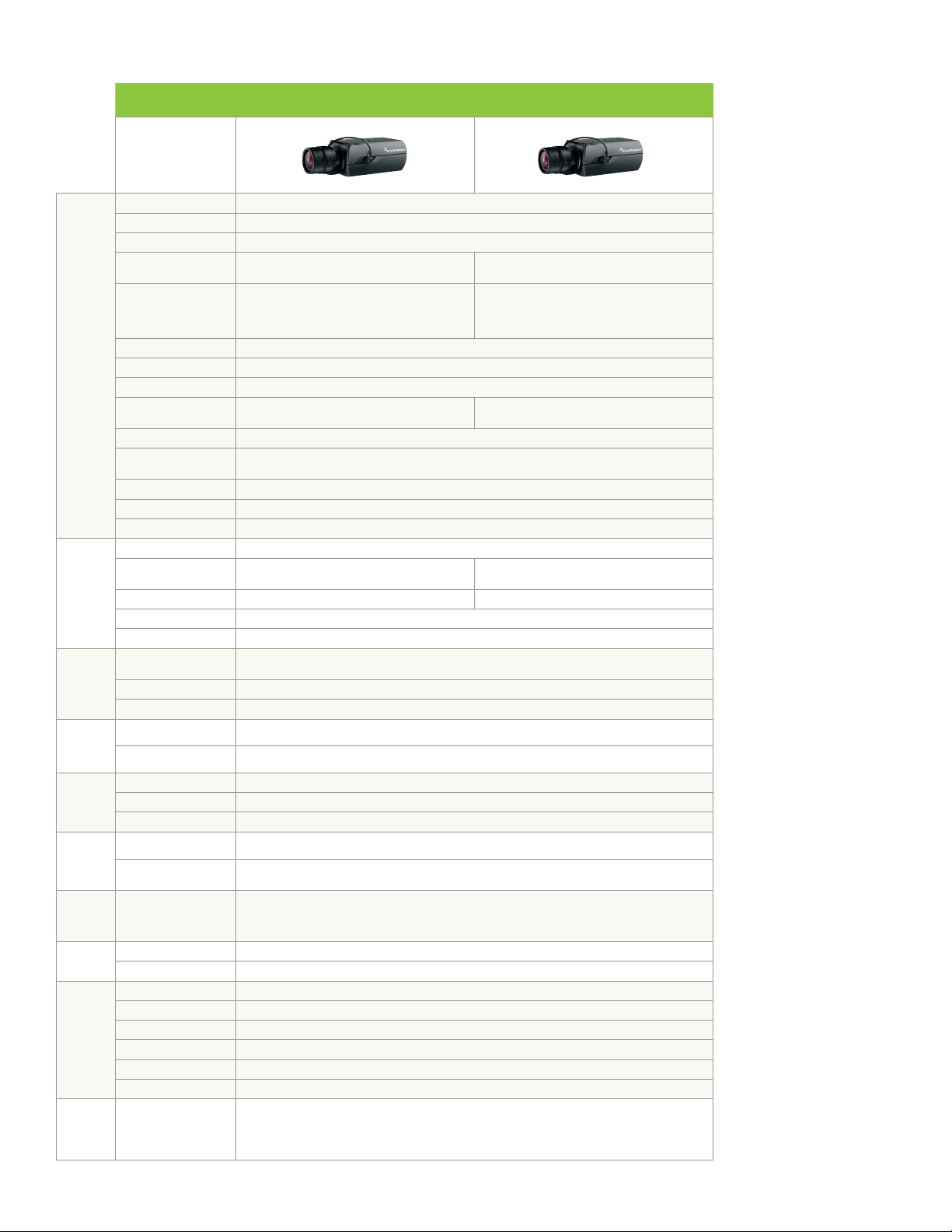

Specifi cations
PART NO. TVC-3201
TVC-1201
TVC-3202
TVC-1202
Description
Sensor 1/3" Progressive Scan CMOS Sensor
Day/Night IR Cut Filter
IP Compression/Standard H.264 (Baseline profi le / Main profi le / High profi le) / MPEG4 / MJPEG
Maximum Resolution
(@ fps)
Maximum Real-Time
Resolution (@ fps)
Multiple Streaming Triple Streams
Video Bit Rate
Camera
WDR
Sensitivity
S/N Ratio 50 dB (AGC OFF)
Auto Exposure (shutter)
Composite Output (BNC) BNC Port - 1.0 Vp-p @75 ohm
Lens C/CS (w/auto iris)
Auto Focus One-touch auto back Focus
Voltage Input 12VDC/24VAC, PoE (IEEE 802.3-af)
Current
Power Consumption Max. 9W with IR cut fi lter on @12VDC/24VAC Max. 9.5W with IR cut fi lter on @12VDC/24VAC
Electrical
I/O Connection Terminal type, 1/1
Others RS-485, RS-232
Network Protocols
PoE IEEE 802.3-af
Network
Port 10/100Mbps, Auto-negotiate, Ethernet port (RJ45)
Media Micro SD/SDXC
Local
Capacity Up to 64GB
Storage
Input 1 ch. 3.5 mm audio interface (2.0 - 2.4 Vp-p, 1K ohm), 1 built-in microphone
Output 1 ch. 3.5 mm audio interface (Line level, 600 Ohm)
Audio
Audio Bitrate (protocol) 64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32-128Kbps (MP2L2)
Basic Motion Detection, Tamper Proof, Privacy Mask
Alarms
Advanced
Camera
1280 x 960 @ 25fps (50Hz)
1280 x 960 @ 30fps (60Hz)
1280 x 960 @ 25fps (50Hz )
1280 x 960 @ 30fps (60Hz)
1280 x 720 @ 50fps (50Hz, WDR off )
1280 x 720 @ 60fps (60Hz, WDR off)
128 kbps to 16 Mbps, or user-defi ned
120dB
Color 0.01 lux @ f1.2, AGC ON
B/W 0.001 lux @ f1.2, AGC ON
50 Hz: 1/25s ~ 1/100,000s
60 Hz: 1/30s ~ 1/100,000s
0.75A @12VDC
0.375A @ 24VAC
TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, ezDDNS, DynDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS,
FTP, UPnP, NAT, MULTICAST, 802.1x, Qos, IPv4, IPv6
Face Detection, Audio Exception Detection, Cross Line, Intrusion Detection, De-focus Detection,
Scene Change Detection
2048 × 1536 @ 20fps (50Hz)
2048 x 1536 @ 20fps (60Hz)
1920 x 1080 @ 25fps (50Hz )
1920 x 1080 @ 30fps (60Hz)
Color 0.1 lux @ f1.2, AGC ON
B/W 0.01 lux @ f1.2, AGC ON
0.79A @12VDC
0.4A @ 24VAC
ONVIF Profi le S, PSIA, CGI
Standard
Display mode ROI (Region of Interest), Hallway View, Mirror, De-fog, Electronic Image Stabilization
OSD Text overlay and picture overlay
Display
Dimensions 2.68 x 2.56 x 5.70 in. (69.8 × 58 × 145mm)
Weight 1.83 lbs. (830g)
Storage Temperature -4~158°F (-20~70°C)
Operating Temperature -22~140°F (-30~60 °C)
Mechanical/
Environment
Environmental Rating Indoor
Vandal Rating N/A
Compliance FCC, CE, UL, C-Tick, REACH, RoHS, WEEE
Regulation
1.3MPx and
3MPx Intelligent
IP Box Cameras
IP Open Standards
Ordering Information
NTSC
TVC-3201
TVC-3202
PAL
TVC-1201
TVC-1202
TruVision® IP Box Camera, 1.3MPx, WDR, True D/N, Auto Back Focus, Audio,
Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC/24VAC, NTSC
TruVision IP Box Camera, 3MPx, WDR, True D/N, Auto Back Focus, Audio,
Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC/24VAC, NTSC
TruVision IP Box Camera, 1.3MPx, WDR, True D/N, Auto Back Focus, Audio,
Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC/24VAC, PAL
TruVision IP Box Camera, 3MPx, WDR, True D/N, Auto Back Focus, Audio,
Alarm, SD/SHDC Slot, Intelligence, PoE (802.3-af) / 12VDC/24VAC, PAL
North America
T 855-286-8889
Latin America
T 561-998-6114
Part Number Schema
C3201
TV ___ - ___ ___ ________
IP Type
C=Camera
Format
1=IP PAL
3=IP NTSC
Series
1=1st
2=2nd
Camera
Specifi cs
interlogix.com
Specifi cations subject to change without notice.
© 2015 United Technologies Corporation.
Interlogix is par t of UTC Building & Industrial Systems,
a unit of United Technologies Corporation.
412-3883 2015/01 (80109)
All rights reser ved.
