Interlogix TVB-5801, TVB-5802 Installation Guide

TruVision Stainless Steel
Box Camera Outdoor
Housing Installation Guide

P/N 1073433-EN • REV B • ISS 23MAR18

Copyright

© 2018 United Technologies Corporat ion,

Trademarks

Trade names used in this document may be trademarks or

Manufacturer

Interlogix

Certificati on

FCC

Class A: This equi pment has been tested and found to comply with

FCC

This device complies with Part 15 of the FCC Rules. Operation is

ACMA

Notice! This is a Class A product. In a domestic envir onment this

Canada

This Class A digital apparatus complies with CAN I CES-003

European

This product and - if applicable - the supplied accessories too ar e

2012/19/EU (WEEE directive): Products marked with this symbol

Interlogix is part of UTC Climate, Contr ols & Security, a unit of
United Technologies Corporation. All ri ghts reserved.

and patents

registered trademarks of the manufactur ers or vendors of the
respective products.

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA
Authorized EU manufacturing representat ive:

UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Net herlands

compli ance

compli ance

the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interf erence when the equipment is
operated in a commercial environment. Thi s equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction m anual, may cause
harmful interference to radio communi cations. Operation of this
equipment in a resi dential area is likely to cause harmful
interference in which case the user will be required t o correct the
interference at his own expense.

conditions

subject to the following two conditions:
(1) This device may not cause harmful interfer ence.

(2) This Device must accept any int erference received, including

interference that may cause undesired operati on.

product may cause radio interference in whic h case the user may
be required to take adequate measures.

(A)/NMB-3 (A). Cet appareil numérique de la classe A est
conforme à la norme CAN ICES-003 (A)/NMB-3 (A).

Union

marked with "CE" and comply therefore with the applicabl e

directives

harmonized European standards li sted under the EMC Directive
2014/30/EU, the RoHS Directiv e 2011/65/EU.

cannot be disposed of as unsorted municipal waste in the
European Union. For proper recycling, ret urn this product to your
local supplier upon the purchase of equiv alent new equipment, or
dispose of it at designated collection poi nts. For more information
see: www.recyclethis.info.

Product

warnings

THESE PRODUCTS ARE INTENDED FOR SALE TO AND

Contact

For contact information go to: www.interl ogix.com or

and

disclaimers

INSTALLATION BY QUALIFIED PROFESSIONALS. UTC FIRE &
SECURITY CANNOT PROVIDE ANY ASSURANCE THAT ANY
PERSON OR ENTITY BUYING ITS PRODUCTS, INCLUDING
ANY “AUTHORIZED DEALER” OR “AUTHORIZED RESELLER”,
IS PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY
INSTALL FIRE AND SECURITY RELATED PRODUCTS.

For more information on warranty disclaimers and product saf ety
information, please check
www.firesecurityproducts.com /policy/product-warning/ or scan the
QR code:

information

and manuals

www.firesecurityproducts.com
To get translations for this and other product manual s go to:

www.firesecurityproducts.com

Content

Introduction 6

Product overview 6

Installation 6

Installation environment 6

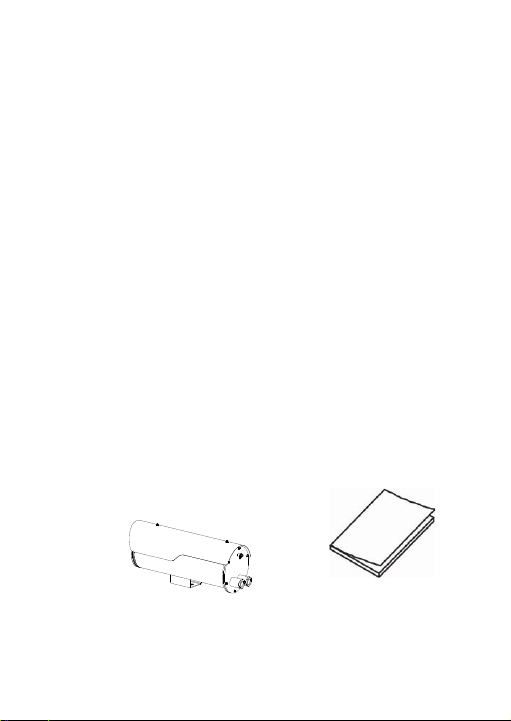

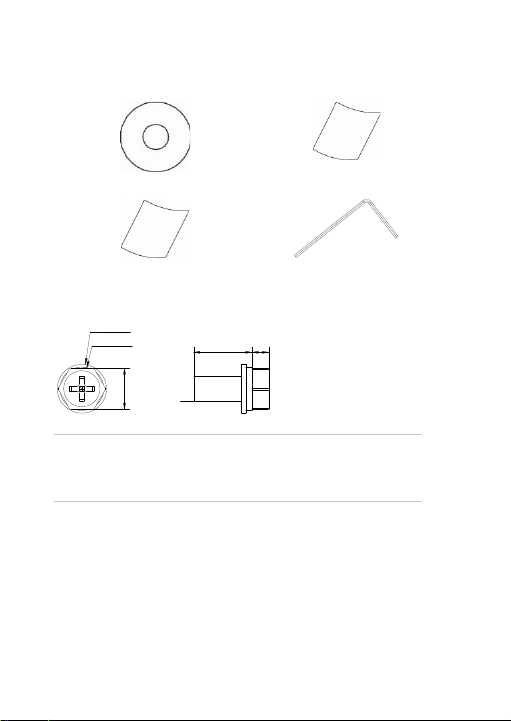

Package contents 7

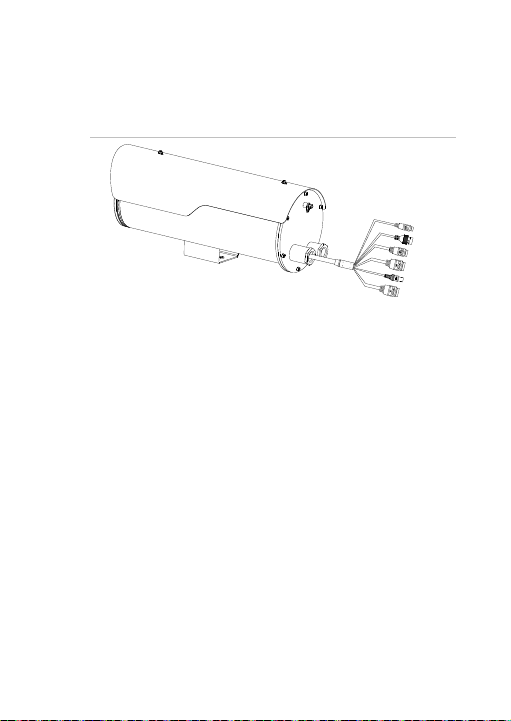

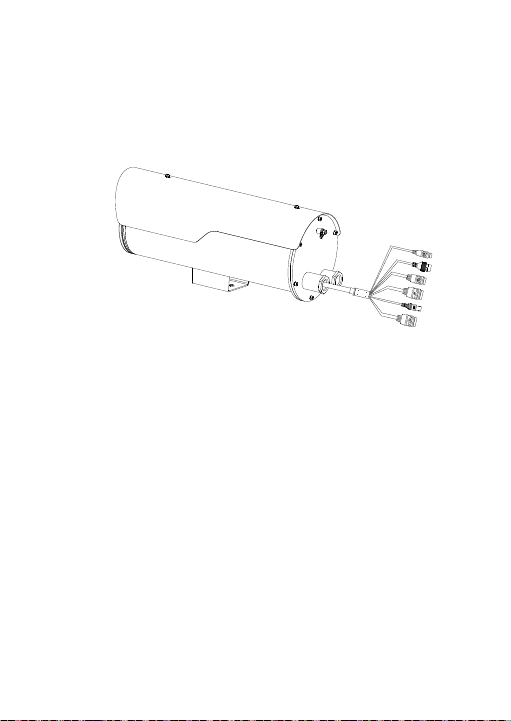

SS box camera housing description 9
IR illuminators 9

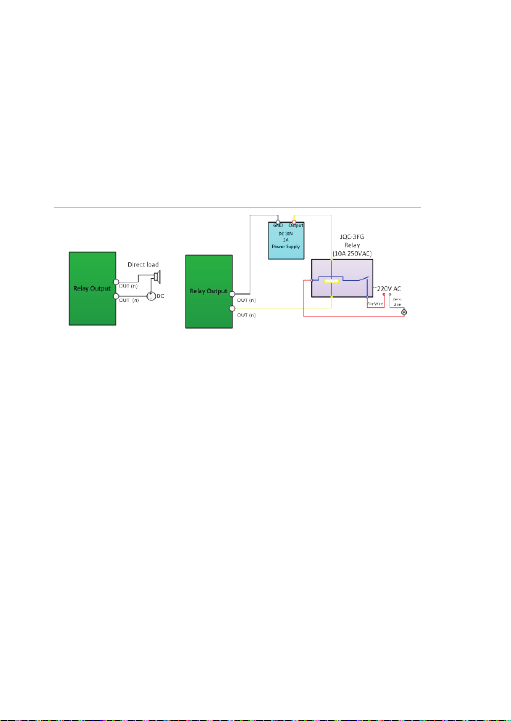

Alarm input and output connections 10
SD memory card installation 10

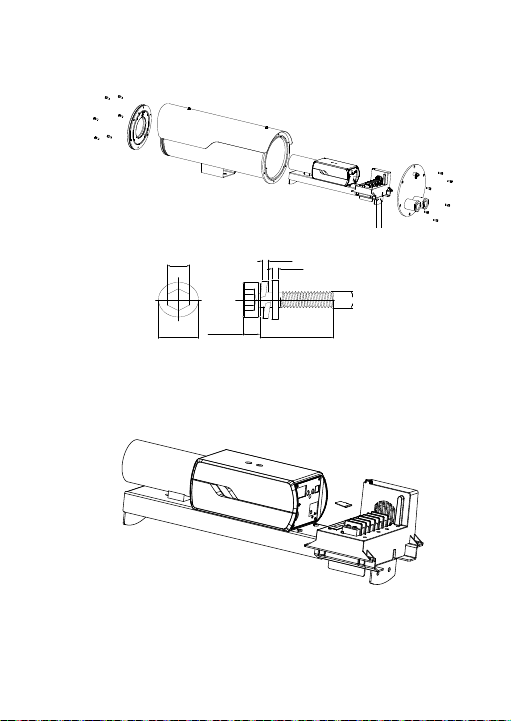

Mounting the SS box camera housing 13
Mounting the TVJ-JBS junction box 13
Using the camera with an Interlogix NVR or Hybrid DVR or

another system 14

Using the camera with TruVision Navigator 14

Access the camera over the internet 14

Specifications 17

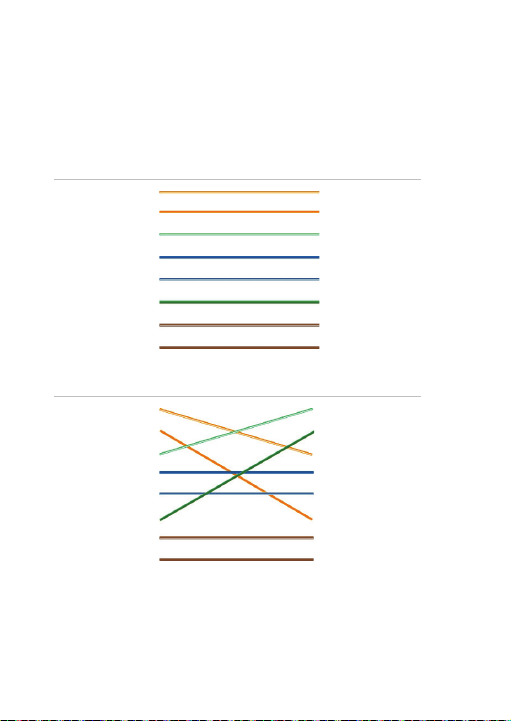

Pin definitions 18

Installation Guide 5

Introduction

Product overview

This is the installation guide for the TruVision Stainless Steel
(SS) box camera housing models:

• TVB-5801 (stainless steel outdoor box camera housing
with 2 MPX camera, 3.8-16 mm lens, 50 m IR, fan, heater)

• TVB-5802 (stainless steel outdoor box camera housing
with 2 MPX camera, 11-40 mm lens, 100 m IR, fan,
heater)

Installation

This section provides information on how to install the
housing.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be

done by qualified service personnel. Always use a proper
PoE switch or a 24 VAC UL listed Class 2 or CE certified
power supply to power the camera. Do not overl oad the
power cord or adapter.

• Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.

• Temperature: Do not operate the camera beyond the
specified temperature, humidity, or power source ratings.
For the outdoor cameras that feature built-in heaters, the
operating temperature range is -40 to 60°C (-40 to140°F).
