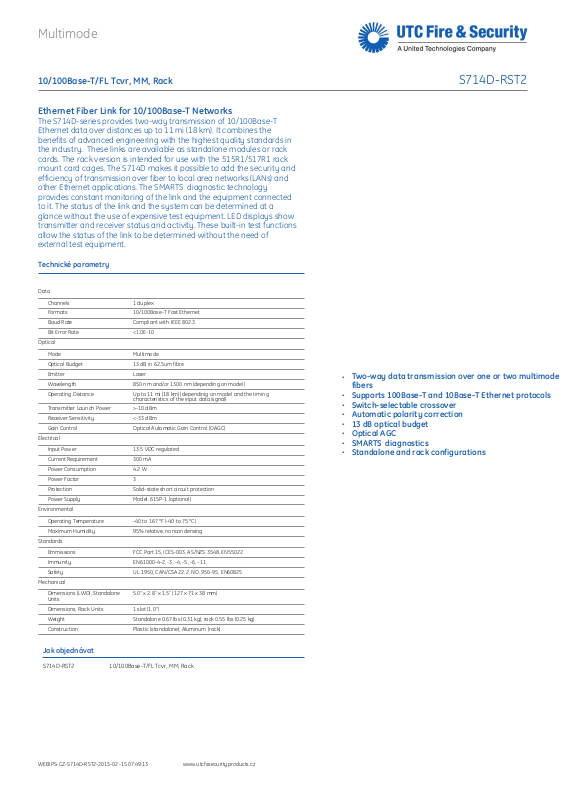

Interlogix S714D-RST2-R Specsheet

Multimode

10/100Base-T/FL Tcvr, MM, Rack

Ethernet Fiber Link for 10/100Base-T Networks

The S714D-series provides two-way transmission of 10/100Base-T
Ethernet data over distances up to 11 mi (18 km). It combines the
benefits of advanced engineering with the highest quality standards in
the industry. These links are available as standalone modules or rack
cards. The rack version is intended for use with the 515R1/517R1 rack
mount card cages. The S714D makes it possible to add the security and
efficiency of transmission over fiber to local area networks (LANs) and
other Ethernet applications. The SMARTS diagnostic technology
provides constant monitoring of the link and the equipment connected
to it. The status of the link and the system can be determined at a
glance without the use of expensive test equipment. LED displays show
transmitter and receiver status and activity. These built-in test functions
allow the status of the link to be determined without the need of
external test equipment.

Technické parametry

Data

Channels1 duplex

Formats10/100Base-T Fast Ethernet

Baud RateCompliant with IEEE 802.3

Bit Error Rate<1.0E-10

Optical

ModeMultimode

Optical Budget13 dB in 62.5um fibre

EmitterLaser

Wavelength850 nm and/or 1300 nm (depending on model)

Operating DistanceUp to 11 mi (18 km) (dependinig on model and the timing

Transmitter Launch Power>-10 dBm

Receiver Sensitivity<-33 dBm

Gain ControlOptical Automatic Gain Control (OAGC)

Electrical

Input Power13.5 VDC regulated

Current Requirement300 mA

Power Consumption4.2 W

Power Factor3

ProtectionSolid-state short circuit protection

Power SupplyModel 615P-1 (optional)

Environmental

Operating Temperature-40 to 167 °F (-40 to 75 °C)

Maximum Humidity95% relative, noncondensing

Standards

EmmissionsFCC Part 15, ICES-003, AS/NZS 3548, EN55022

ImmunityEN61000-4-2, -3, -4, -5, -6, -11

SafetyUL 1950, CAN/CSA 22.2, NO. 950-95, EN60825

Mechanical

Dimensions (LWD), Standalone
Units

Dimensions, Rack Units1 slot (1.0'')

WeightStandalone 0.67 lbs (0.31 kg); rack 0.55 lbs (0.25 kg)

ConstructionPlastic (standalone); Aluminum (rack)

S714D-RST2

Two-way data transmission over one or two multimode

E

fibers

E

characteristics of the input data signal)

5.0'' x 2.8'' x 1.5'' (127 x 71 x 38 mm)

Supports 100Base-T and 10Base-T Ethernet protocols

E

Switch-selectable crossover

E

Automatic polarity correction

E

13 dB optical budget

E

Optical AGC

E

SMARTS diagnostics

E

Standalone and rack configurations

Jak objednávat

S714D-RST2

WEBIPS-CZ-S714D-RST2-2015-02-15 07:49:13 www.utcfssecurityproducts.cz

10/100Base-T/FL Tcvr, MM, Rack
