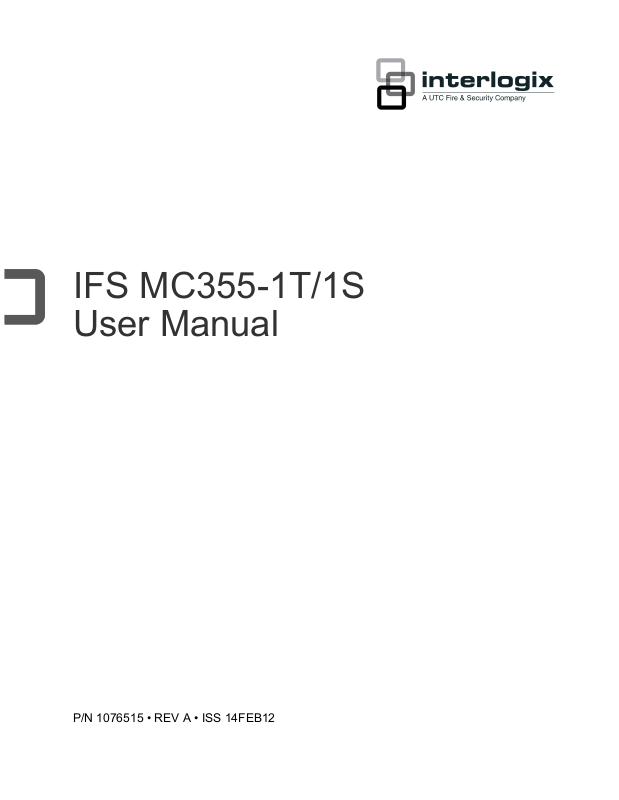

Interlogix MC355-1T-1S User Manual
IFS MC355-1T/1S
User Manual
P/N 1076515 • REV A • ISS 14FEB12
Copyright © 2012 UTC Fire & Security. All rights reserved.
r
Trademarks and
patents
Manufacture
Version This document applies to IFS MC355-1T/1S version 00.20.
Certification
FCC compliance
Interlogix, the IFS MC355-1T/1S and the IFS Brand and logo are trademarks of
UTC Fire & Security.
Other trade names used in this document may be trademarks or registered
trademarks of the manufacturers or vendors of the respective products.
UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
N4131
Class A: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
Canada This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
ACMA compliance Notice! This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
European Union
directives
2004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this
device is in compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC
2002/96/EC (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
Contact information
Customer support
www.utcfireandsecurity.com or www.interlogix.com
www.interlogix.com/customer-support
Content
Overview 1
Package Contents 1
Product Description 1
Applications 2
Product Features 3
Hardware Installation 5
MC355-1T/1S Front Panel 5
LED Indicators 6
Top Panel 6
Wiring the Power Inputs 6
Wiring the Fault Alarm Contact 7
Mounting Installation 8
Stand-alone Installation 11
Converter Management 12
Overview 12
Requirements 13
Management Methods 13
Web Management 16
Main Menu 16
System 17
Port Management 29
Converter Configuration 33
VLAN
OAM Setup 44
Security 51
Logout 52
Troubleshooting 53
Specifications 55
Contacting Technical Support 57
Appendix A Networking Connection
Rj-45 Pin Assignments 58
Fiber Optic Cable Connection Parameters 60
34
58
IFS MC355-1T/1S User Manual i
ii IFS MC355-1T/1S User Manual
Overview
Package Contents
Thank you for purchasing the IFS 10/100/1000-T to mini-GBIC Industrial
Managed Media Converter, model MC355-1T/1S.
Open the package containing the MC355-1T/1S and carefully unpack it. The box
should contain the following items:
• The MC355-1T/1S x1
• User Manual CD x1
• Quick Installation Guide x1
• Wall Mount Kit x 4
• DIN Rail Kit x 1
If any of the items in the package are damaged or missing, please contact your
distributor or IFS sales rep. If possible, retain the original carton and packaging
material in case of need to return the product for repair/replacement.
Product Description
The MC355-1T/1S provides conversion between 10/100/1000Base-T and
1000Base-SX /LX networks. Ethernet signal that allows two type segments
connect easily, efficiently and inexpensively. The mini-GBIC slot accepts Gigabit
mini-GBIC module with LC connectors and single-mode / multi-mode media for
your needs, based on the Gigabit mini-GBIC modules selection, the MC3551T/1S is capable of handling the data from 220m to 70km with high reliability
and flexibility.
The MC355-1T/1S is equipped with remote Web / SNMP interface. With its builtin Web-based management, the MC355-1T/1S offers an easy-to-use, platformindependent management and configuration facility and can be programmed for
advanced management functions - such as IP address Configuration / DHCP
Client function, password setting / firmware upgrade, system reboot / factory
default, port configuration that include TP / Fiber port speed duplex mode setting,
flow control setting and Ingress/Egress bandwidth control setting, converter
configuration that include maximum packet length setting, Broadcast / Multicast /
Unicast storm control setting, 16 IEEE 802.1Q VLAN groups support and
powerful Q-in-Q VLAN function, Quality of Service (QoS), TS-1000 / IEEE
802.3ah OAM function and TCP & UDP filter function. It supports standard
Simple Network Management Protocol (SNMP) and can be managed via any
standard-based management software as well.
IFS MC355-1T/1S User Manual 1
Applications
Access Control System – Traditional Installation
Industrial area Media Converter for data receiving and forwarding
Most of the enterprises perform centralized management to remotely access
machine or other network equipment via Internet network or Fiber optical
network. The MC355-1T/1S media converter can extend the distance of the high
speed data transmission up to 70km and can be managed via the Web interface.
The Gigabit port supporting 9K jumbo packet can handle large amounts of data
transmission in a secure topology linking to a backbone Switch or high-power
servers. The MC355-1T/1S with the slim type IP 30 metal enclosure is ideal for
most Heavy Industrial demanding environments.
2 IFS MC355-1T/1S User Manual
Product Features
Interface
• 1 Mini-GBIC port utilizes the flexibility of the SFP modules
Industrial Conformance
• 12 to 48V DC, redundant power with polarity reverse protect function
• -30 to 75 Degree C operation temperature support
• IP-30 metal enclosure
• Relay alarm for port breakdown
• Supports 6KVDC Ethernet ESD protection
• Free fall, Shock and Vibration Stability
• DIN-Rail and Wall-mountable hardware design
Layer 2 Features
• Store-and-Forward mechanism
• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x
PAUSE frame flow control (Full-Duplex)
• Maximum frame size to 9216 Bytes
• Loop detection / Broadcast / Multicast / Unicast storm control
IFS MC355-1T/1S User Manual 3
• Supports VLANs
• IEEE 802.1Q Tag based VLAN
• Up to 16 VLAN groups, out of 4K VLAN IDs
• Management VLAN
Quality of Service
• Ingress/Egress Bandwidth control on TP / Fiber port
• 4 priority queues, strict priority and Weighted Round Robin (WRR)
• Traffic classification by:
• IEEE 802.1p Class of Service
• IP DSCP priority
• IP Address priority
Management
• Built-in IP-based Web interface for remote management
• SNMP v1 / v2c and 4 RMON groups
• Event trap and SNMP trap support
• Manual IP address setting / DHCP client for IP address assignment
• TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
• 16 TCP / UDP Filter groups
• Firmware upgrade via remote Web interface
• Reset Button at the front panel for the factory default reset
4 IFS MC355-1T/1S User Manual
Hardware Installation
This product provides three different running speeds – 10Mbps, 100Mbps and
1000Mbps in the same MC355-1T/1S and automatically distinguishes the speed
of incoming connection.
This section describes the functionalities of MC355-1T/1S’s components and
guides how to install it on the DIN Rail. Please read this chapter completely
before the installation.
MC355-1T/1S Front Panel
The Front Panel of the MC355-1T/1S consists of one 1000Base mini-GBIC SFP
slot and one Auto-Sensing 10/100/1000Mbps Ethernet RJ-45 Port. Figure1
shows the front panel of the MC355-1T/1S.
Figure 1: MC355-1T/1S Front Panel
IFS MC355-1T/1S User Manual 5
LED Indicators
LED Color Function
P1 Green Lit Indicates that power 1 has power.
P2
FAULT
Fiber LNK /ACT
TP 1000 Lit
TP LNK /ACT
Note: Pressing and releasing the RESET button will revert the settings to the
factory default mode. Be sure that you backup the latest configuration of MC3551T/1S; or else the entire configuration will be lost after the unit is reset.
Green
Green
Green
Green
Lit Indicates that power 2 has power.
Lit Indicates that either power 1 or power 2 has no power.
Lit
Blinks
Lit
Blinks
Indicates that the Fiber Optical Port is successfully
connecting to the network at 1000Mbps.
Indicates the Fiber Optical Port is receiving or sending
data.
Indicates that the Gigabit Ethernet Port is successfully
connecting to the network at 1000Mbps. OFF indicates
that the Gigabit Ethernet Port is successfully connecting
to the network at 10/100Mbps.
Indicates that the Gigabit Ethernet Port is successfully
connecting to the network at 10/100/1000Mbps.
Indicates that the Gigabit Ethernet Port is receiving or
sending data.
Press and release the RESET button quickly, the device will reboot.
Press the RESET button about 10 seconds and release, the device will be set to
the factory default mode.
Top Panel
The top panel of the MC355-1T/1S consists of a terminal block connector with
two DC power inputs. Figure 2 shows the top panel of the MC355-1T/1S.
Figure 2: Top Panel
Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of the MC355-1T/1S is
used for two DC redundant power supply inputs. Please follow the steps below to
insert the power wires.
6 IFS MC355-1T/1S User Manual
1. Insert the positive / negative DC power wires into the contacts 1 and 2 for
POWER 1 or 5 and 6 for POWER 2. Figure 1 shows PWR1 and PWR2 of the
MC355-1T/1S.
Figure 3: PWR1 & PWR2 of the MC355-1T/1S
V1- V1+ V2- V2+
2. Tighten the wire-clamp screws to prevent the wires from disconnecting.
Figure 4 shows PWR1 and PWR2 pin of the terminal block.
Figure 4: PWR1 & PWR2 of the MC355-1T/1S
1 2 3 4 5 6
Power 1 Fault Power 2
－ ＋
－ ＋
Note: The wire gauge for the terminal block should be in the range between 12 ~
24 AWG.
Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block connector as the
picture shows below. Inserting the wires, the Industrial
IFS MC355-1T/1S User Manual 7
The MC355-1T/1S will detect the fault status of the power failure, or port link
failure (available for managed model) and then forms an open circuit. The
following illustration shows an application example for wiring the fault alarm
contacts.
1 2 3 4 5 6
Insert the wires into the fault alarm contacts
Note: The wire gauge for the terminal block should be in the range between 12 ~
24 AWG. The alarm relay circuit accepts up to 30V, max. 3A current.
Mounting Installation
This section describes how to mount the MC355-1T/1S and make connections to
it. Please read the following sections and perform the procedures in the order
presented.
Note: In the installation steps below, this Manual uses the GE-DSGH-8 (IFS 8
Port Industrial Gigabit Switch) as an example. However, the steps for any IFS
Industrial Switch & Industrial Media Converter are similar.
Mounting to a DIN-Rail
The DIN-Rail kit comes assembled on the MC355-1T/1S out of the box. Please
refer to following figures to hang the MC355-1T/1S on a DIN-Rail.
8 IFS MC355-1T/1S User Manual
1. Lightly press the bottom of the DIN-Rail connector mount into the track.
2. Check that the DIN-Rail connector mount is tightly mounted on the track.
3. Please refer to following procedures to remove the MC355-1T/1S from the
track.
IFS MC355-1T/1S User Manual 9
4. Lightly press the bottom of DIN-Rail connector mount to remove it from the
track.
Mounting to a Wall
To install the MC355-1T/1S on the wall, please follows the instructions described
below.
1. Loosen the screws to remove the DIN Rail from the Media Converter.
2. Place the wall mount plate on the rear panel of the MC355-1T/1S.
10 IFS MC355-1T/1S User Manual
3. Assemble the wall mount plate on the MC355-1T/1S.
4. Use the hook holes at the corners of the wall mount plate to hang the MC3551T/1S on the wall.
Stand-alone Installation
MC355-1T/1S Installation:
To install the MC355-1T/1S with 1000Base-SX / LX SFP, simply complete the
following steps:
1. Connect the DC power to the MC355-1T/1S and verify that the Power LED
illuminates.
2. Turn on the power of the device/station; the PWR LED (Green) should
illuminate when all cables are attached.
3. Make sure that both ends of the fiber cable is connected to the same type of
SFP transceiver, i.e. the 1000Base-SX / 220m & 550m to 1000Base-SX /
220m & 550m, 1000Base-LX / 10km to 1000Base-LX / 10km
4. Connect the fiber cable. Attach the duplex LC connector on the network cable
into the SFP transceiver.
IFS MC355-1T/1S User Manual 11
Figure 5: Stand alone Installation
We recommend using the IFS SFP modules to prevent potential compatibility
issues.
Converter Management
This chapter describes how to manage the MC355-1T/1S. Topics include:
• Overview
• Management methods
• Assigning an IP address to the MC355-1T/1S
• Logging on to the MC355-1T/1S
Overview
This chapter gives an overview of MC355-1T/1S management. The MC3551T/1S provides a simple WEB browser interface for management purposes.
Using this interface, you can perform various MC355-1T/1S configuration and
management activities, including:
• System
• Port Management
• Converter Configuration
• VLAN
• Quality of Service
• OAM Setup
• Security
• Logout
12 IFS MC355-1T/1S User Manual
Requirements
• Network cables.
For the MC355-1T/1S copper interface, Use standard network (UTP) cables with
RJ-45 connectors.
For the MC355-1T/1S Fiber interface, Use Multi-mode or Single-mode fiber patch
cord with LC connectors.
• Client PC installed with Ethernet NIC (Network Card)
• Workstations of clients running Windows 98/ME, NT4.0, 2000/2003/XP, MAC
OS X or later, Linux, UNIX or other platform compatible with TCP/IP
protocols.
• The client PC installed with a WEB Browser, such as Microsoft Internet
Explorer, Mozilla Firefox, Google Chrome or Apple Safari.
Note: We recommend using Internet Explore 6.0 or above to access the MC355-
1T/1S.
Management Methods
There are two ways to manage the MC355-1T/1S:
• Web Management via a network or dial-up connection.
• Using SNMP Network Management Station.
Web Management
The MC355-1T/1S provides a built-in browser interface. You can manage the
MC355-1T/1S remotely by having a remote host with a Web browser, such as
Microsoft Internet Explorer, Mozilla Firefox, Google Chrome or Apple Safari.
Figure 6: Web Management over Ethernet
IFS MC355-1T/1S User Manual 13
Login to the MC355-1T/1S
The following shows how to startup the Web Management of the MC355-1T/1S.
Please note that the device needs to be configured through an Ethernet
connection and make sure that the administrator PC is set on the same IP subnet
address.
For example, the default IP address of the MC355-1T/1S is 192.168.0.100 (the
factory-default IP address), then the administrator PC should be set at
192.168.0.x (where x is a number between 1 and 254, except 100), and the
default subnet mask should be 255.255.255.0.
Enter the default IP address of http://192.168.0.100 in the address bar of the web
browser.
After entering the username and password (default user name and password is
“admin”) in login screen the Web main screen will appear.
Default IP Address: 192.168.0.100
Default Account: admin
Default Password: admin
Figure 7: Login Web Page screen
Note: For security reasons, please change and keep a record of the new
password after this first setup.
Only lowercase entries are accepted under web interface.
14 IFS MC355-1T/1S User Manual
SNMP Management
You can manage the MC355-1T/1S across a LAN using an SNMP Network
Management Station with a graphical user interface.
This management method lets you monitor statistical counters and set MC3551T/1S parameters from the remote Network
Management Station.
Using this management method:
- The network must run the IP protocol.
- The MC355-1T/1S must have an IP address.
IFS MC355-1T/1S User Manual 15
Web Management
The MC355-1T/1S provides remote Web interface for management function
configuration and make the MC355-1T/1S operate more effectively. A network
administrator can manage and monitor the MC355-1T/1S from the local LAN.
This section indicates how to configure the MC355-1T/1S to enable its
management function.
Main Menu
After a successful login, the main screen appears and displays the MC355-1T/1S
Welcome page.
Figure 8: Web Main screen
As listed at the left of the main screen, the configurable management functions
are shown as below:
• System – Provides System configuration of the MC355-1T/1S.
• Port Management – Provides Port Management configuration of MC3551T/1S.
16 IFS MC355-1T/1S User Manual
Loading...
