Interlogix MC251-4P-1CXT, MCR300-1T-1S, MCR205-1T-1S, MCR200-1T-1CX, MC355-1T-1S Specsheet

...

Leading transmission solutions for today’s

demanding IP Security Networks.

IFS® delivers cost-effective, high-performance network transmission solutions for IP Video, Access and Life Safety Applications.

Robust performance. Complete ﬂexibility.

Offering a wide range of analog and digital products with seamless migration

to leading IP technology, IFS

standard of performance and ﬂexibility to meet your current and future needs.

With a comprehensive catalog of network switches, media converters, PoE accessories and

power supplies, IFS solutions provide an integrated communication platform that combines

transmission solutions represent the highest

powerful hardware with Command Line Interface (CLI) or simple, yet powerful, browser-based

software for efﬁcient operation and management.

Industry-leading development and support

Combining solid engineering practices and quality components, IFS products have a long-

standing reputation for precise design that is ﬁeld-proven and time-tested. All IFS network

products meet IEEE standards to provide full interoperability with other vendors in an enterprise

network environment. Interlogix provides pre- and post-sales engineering support, and all IFS

network products undergo stringent quality control processes backed by a three-year warranty.

Network Switches

The ideal choice for access layer connectivity

IFS® network switches are designed to meet the needs of security

integrators. Engineered with a high-bandwidth, non-blocking switch

fabric, IFS switches provide low-latency IP video performance and

advanced layer 2 features offering network interoperability and

network management for small-to-medium commercial environments,

as well as at the enterprise level.

Key features, such as powerful PoE management, advanced security

and built-in diagnostic tools, are all easily accessible through CLI

or a browser-based interface. IFS network switches effectively

accommodate IP-based Video, Access and Intercom, as well as VoIP

and WAP applications.

ES SERIES

ES Series

BEST APPLICATION Retail • Light Commercial

ORDERING INFORMATION

ES Series Network Switches

ES2001-4P-4T 8-Port Fast Ethernet Switch w/4 PoE (15.4W) ports

Designed for small stand-alone Ethernet systems, the IFS Economy

Series (ES) provides a “plug-and-play” unmanaged solution with

highly efﬁcient throughput while offering robust PoE for demanding

end-point power requirements.

• Fast or Gigabit Ethernet

• 8 RJ45 ports

• Built-in 4-port PoE-af (15.4W) injector

• Internal 55W power supply delivers robust

PoE performance

• Energy efﬁcient*

– Idle Mode Link down Power Down

– Intelligent Power Scaling Technology

*ES3001-4P-4T only

ES3001-4P-4T 8-Port Gigabit Ethernet Switch w/4 PoE (15.4W) ports

Cat 5e Cable

100m (328 ft.) Max.

ES2001-4P-4T or ES3001-4P-4T

IP PoE Camera

NVR

IP PoE Camera

VMS Software

IP PoE Camera

Cat 5e Cable

100m (328 ft.) Max.

HIGH PERFORMANCE

BEST APPLICATION Enterprise • Educational/Campus

Fast Ethernet Managed Switches

Designed for efﬁcient connectivity from the network edge to a

backbone switch or server, IFS

Switches offer GigE copper or ﬁber (SFP) trunking and powerful full-

power PoE capabilities.

Powerful Layer 2

Network Management

• IPv4 and IPv6 Support

• Powerful QoS, bandwidth and

trafﬁc management

• Multicasting with IGMP

Fast Ethernet layer 2 Managed

Robust PoE Management

• Total power budget control

• Per port control (enable/

disable, priority, power limit)

• PD classiﬁcation detection

• PoE scheduling

ORDERING INFORMATION

Network Switches (PoE-af)

GE-DS-82-POE

GE-DS-242-POE

Network Switches (PoE-at)

NS2503-8P/2C

NS2503-24P/2C

8-Port 10/100 + 2 GigE TP/SFP PoE (15.4W) Managed Switch

24-Port 10/100 + 2 GigE TP/SFP PoE (15.4W) Managed Switch

8-Port 10/100 + 2 GigE TP/SFP PoE+ (30W) Managed Switch

24-Port 10/100 + 2 GigE TP/SFP PoE+ (30W) Managed Switch

snooping and query

• Advanced security

• Built-in diagnostic tools

HIGH PERFORMANCE

BEST APPLICATION Enterprise • Educational/Campus

ORDERING INFORMATION

Network Switches (PoE-at)

Gigabit Ethernet Managed Switches

IFS Enterprise-class Gigabit Switches are engineered to provide

high-performance, with reliable PoE distribution and high bandwidth

optical network transmission.

Powerful Network Performance

• Available Layer 2+ static-

routing

• Optional 10G SFP+ ports

Built-in diagnostics/

troubleshooting tools

• PoE management

• Cable diagnostics

NS3502-8P-2S

NS3702-24P-4S

Network Switch (PoE-af)

NS3601-24P/4S

Network Switch (Non-PoE)

NS3500-28T-4S 28-Port GigE w/ 4 Shared SFP Managed Switch

Network Switches (10G SFP+)

NS4702-24P-4S-4X

NS4750-24S-4T-4X

8-Port GigE + 2 SFP Uplinks PoE+ (30W) Managed Switch

24 Port Gigabit Ethernet w/4 Gigabit SFP Ports, PoE+ and L3 Static Routing

24-Port GigE w/ 4 Shared SFP Stackable Full PoE Managed Switch

24-Port PoE+ Gigabit Ethernet w/4 10Gig SFP+ Layer 2+ Managed Switch

24-Port Gigabit Fiber Switch w/4 10Gig SFP+ Layer 2+ Managed Switch

• Robust PoE Power Budgets

• Local/Remote syslog

• PoE PD Alive-checking*

* Gigabit PoE+ (IEEE802.3-at)

versions only

HIGH PERFORMANCE

BEST APPLICATION Transportation • Airports • Parking Lots

ORDERING INFORMATION

Industrial Fast Ethernet Managed Switch

The IFS® Industrial Fast Ethernet PoE Managed Switch is engineered

for optimum performance in harsh and demanding environments,

including highway/mass transit, factories and warehouse locations.

With the unique IFS industrial failsafe ring topology, these switches are

speciﬁcally designed for mission-critical network recovery and integrity.

8+2-port Fast Ethernet PoE Managed Switch

• 8 -10/100Mbps RJ45 ports

GE-DSH-82-POE

GE-DSH-82-PoE

Self-healing Ring Topology – 2 physical routes at the edge

Primary Path Primary Path

8-Port Fast Ethernet PoE (15.4W) + 2 GigE TP/SFP Combo Ports

Ring Master

Link

Failure

Industrial Fail-Safe

(IFS) Ring

Network Recovery

Time <20ms

DVR/NVR

• 2 -1000Mbps RJ45/SFP combo ports

• Support for PoE-af (15.4W)

• IFS redundant-ring topology w/ < 20ms

network recovery time

• Redundant power with alarm outputs

• Voltage/surge-suppression

• -40ºC~+75ºC operating temperature range

Backup Path

HIGH PERFORMANCE

BEST APPLICATION Transportation • Airports • Parking Lots

Industrial Gigabit Ethernet Managed Switches

IFS Industrial Gigabit Ethernet Managed Switches meet a variety of high-

performance applications and are available with high-power PoE support

(PoE+) or optical SFP ﬁber communications.

8 or 24-port GigE Managed Switches

• 8 or 24-port GigE w/2 or 4 SFP (ﬁber) uplink ports

• 8 100/1000Mbps SFP (ﬁber) ports + 2-RJ45 ports

• Support for PoE-at (30W)**

• IFS redundant-ring topology with < 20ms network recovery time

• Redundant power with alarm outputs

• Voltage/surge-suppression

ORDERING INFORMATION

Industrial Gigabit Ethernet Managed Switches

NS3552-8P-2S

NS3550-8T-2S 8-Port Gigabit Ethernet Industrial + 2-SFP Managed Switch

NS3550-2T-8S

NS3550-24T/4S

8-Port Gigabit Ethernet Industrial PoE+ (30W) + 2-SFP Managed Switch

8-Port Gigabit Ethernet Industrial SFP (Fiber) + 2-RJ45 Managed Switch

24-Port Gigabit Ethernet Industrial Managed Switch w/ 4 Shared SFP Ports

• -40ºC~+75ºC operating temperature range

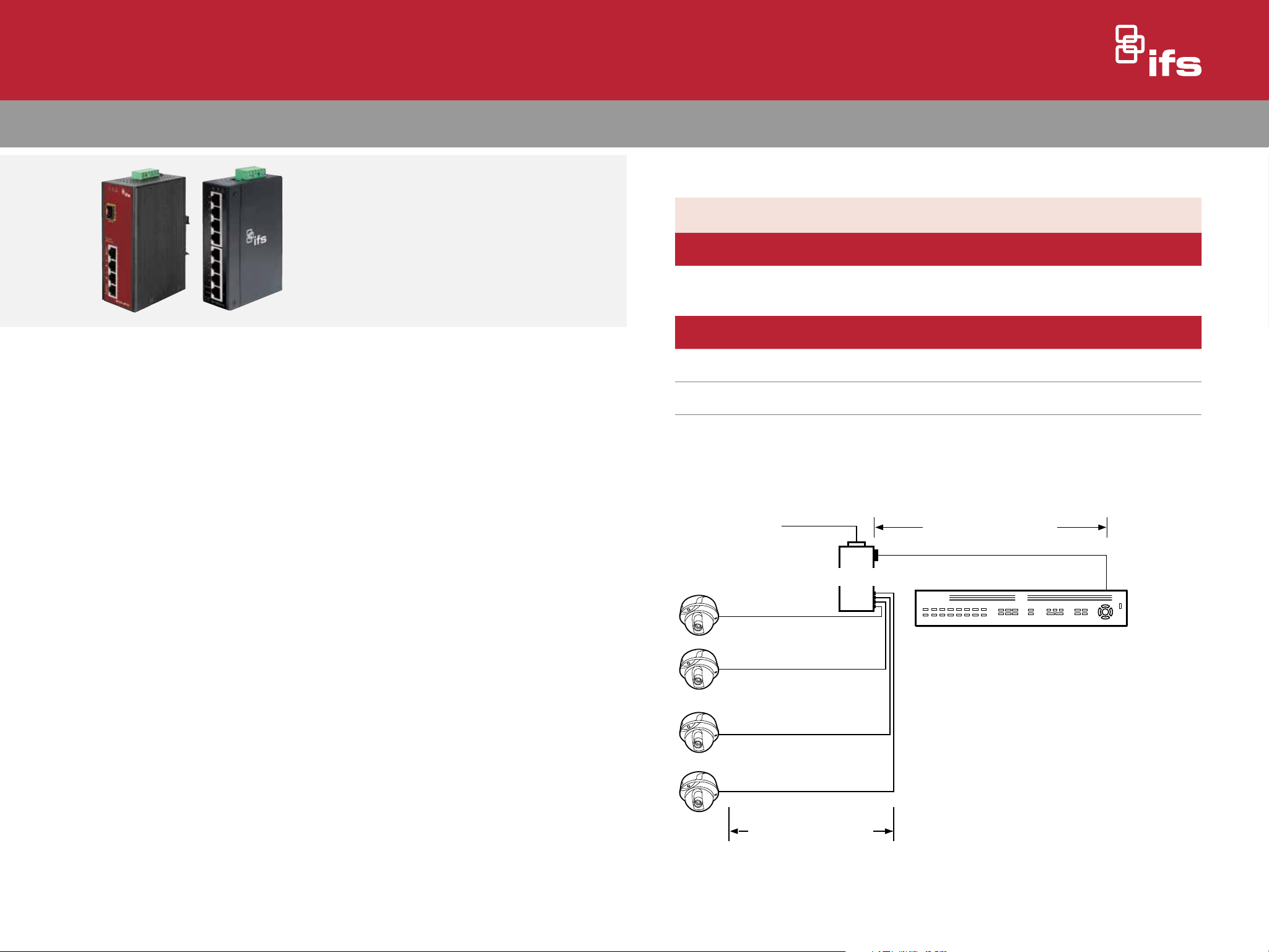

HARSH ENVIRONMENTS

ORDERING INFORMATION

Unmanaged Fast Ethernet with PoE-af (15.4W)

Industrial Unmanaged Switches

Designed for easy, “plug-and-play” connectivity, IFS® Unmanaged

Ethernet Switches represent a rugged, reliable transmission solution

well suited for demanding industrial environments. Easy to install

and maintain, these robust switches provide fast and reliable data

network transfer to the network edge.

5 or 8-port GigE/Fast Ethernet Unmanaged Switches

• 10/100 or 10/100/1000Mbps RJ45 por ts

• Redundant power with alarm outputs

NS20 51-4P/1T

Unmanaged Gigabit Ethernet

GE-DSGH-5 5-Port Gigabit Industrial Unmanaged Switch

GE-DSGH-8 8-Port Gigabit Industrial Unmanaged Switch

Redundant Power

and

Alarm Fault Relay

IP PoE Camera

5-Port Fast Ethernet Industrial Unmanaged Switch w/ 4-Port PoE (15.4W)

Cat 5e Cable

100m (328 ft.) Max.

NS2051-4P/1T

NVR

• Voltage/surge-suppression

• -40ºC~+75ºC operating temperature range

• Built-in 4-port PoE-af (15.4W) Injector*

*NS2051-4P/1T only

IP PoE Camera

Cat 5e Cable

100m (328 ft.) Max.

Media Converters

Cost-effective solution for challenging analog to IP migrations

MCR SERIES MEDIA CONVERTERS

Fast Ethernet over Telephone Wire

• Fast Ethernet

• VDSL on telephone wire

• High-bandwidth transmission

• Up to 1 mile (1.6km)

Fast Ethernet over Coax

• Fast Ethernet

• VDSL on Coax

• High-bandwidth transmission

Migrate from analog to IP transmission easily and efﬁciently with IFS®

media converters that utilize existing coax, ﬁber or telephone-wire

cabling. Reliable and cost-effective, these converters allow system

integrators to fully leverage the investment of end-users’ existing

cabling infrastructure with proven, industry-standard technology.

ORDERING INFORMATION

MCR Series Media Converters

MCR2 00 -1T-1T W Fast Ethernet over Telephone Wire (2-RJ11 Ports)

MCR200 -1T/ 1CX Fast Ethernet over Coax

MCR205 -1T/1S Fast Ethernet over Fiber (1 SFP Port)

MCR300-1T/1S Gigabit Ethernet over Fiber (1 SFP Port)

• 50 or 75 ohm coax

• Up to 1.8 miles (2.9km)

Fast or GigE Ethernet over Fiber

• Fast or GigE Ethernet

• 1 or 2 SFP ports

• High-bandwidth transmission

• Multi-mode or single mode

• Up to 43.5 miles (70.0km)

MCR Chassis

MCR3 00 -1T-2S Fast or GigE Ethernet over Fiber (2 SFP Ports)

MCR-R15 MCR Chassis w/Internal Power Supply - 15 slots

MCR-RPS Internal Redundant Power Supply

• Standard EIA 19" design

• Up to 15 MCR modules

• Hot-swappable

• Optional redundant power supply

INDUSTRIAL-GRADE MEDIA CONVERTERS

Fast Ethernet over Coax/Telephone Wire

The IFS® Ethernet to Coax/TW Media Converters are high-

performance unmanaged switches that combine two well-proven

technologies — Ethernet and VDSL2 — to provide a cost-effective

solution for utilizing an existing coax or telephone cable infrastructure

when migrating from analog to an Ethernet/IP system.

• 4-port 10/100Mbps RJ45 ports

• VDSL on Coax or Telephone wire

• IEEE802.3-af (15.4W) option

• Redundant power with alarm outputs

• Voltage/surge-suppression

ORDERING INFORMATION

Fast Ethernet to Coax/Telephone Wire

MC250-4T/1CXT

MC251-4P/1CXT

4-Port Fast Ethernet to 1-Port Coax/TW Industrial Media Converter

4-Port Fast Ethernet to 1-Port Coax/TW Industrial Media Converter w/PoE (15.4W)

• -40ºC~+75ºC operating temperature range

INDUSTRIAL-GRADE MEDIA CONVERTERS

Fast Ethernet over Fiber

IFS® Fast Ethernet to SFP Industrial Media Converters are designed

for the most demanding IP network applications, offering the ﬂexibility

of SFP technology for optimizing network performance with wide

operating temperature range.

• 4-port 10/100Mbps RJ45 ports

• 1 or 2 Fiber (SFP) or Fixed Optics (SC) ports

• IEEE802.3-af (15.4W) option

• Redundant power with alarm outputs

• Voltage/surge-suppression

• -40ºC~+75ºC operating temperature range

ORDERING INFORMATION

Fast Ethernet to Fiber (SFP)

MC250-1T/1S Fast Ethernet to SFP Industrial Media Converter

MC250- 4T/2S

MC251-4P/1S

Fast Ethernet to Fiber (Fixed Optics)

MC250-4T/1FM

MC250-4T/1FS

MC-4TX2FX

4-Port Fast Ethernet to 2-Port SFP Fiber Industrial Media Converter

4-Port Fast Ethernet to 1-Port SFP Industrial Media Converter w/PoE (15.4W)

4-Port Fast Ethernet to 1-Port MM Fiber Industrial Media Converter - 2km

4-Port Fast Ethernet to 1-Port SM Fiber Industrial Media Converter - 15km

4-Port Fast Ethernet to 2-Port MM Fiber Media Converter - 2km

INDUSTRIAL MEDIA CONVERTERS

ORDERING INFORMATION

Gigabit Ethernet to Fiber (SFP)

Gigabit Ethernet over Fiber (SFP)

IFS® Industrial Gigabit Media Converters are unmanaged switches

ideally suited for challenging environments including transportation

and a wide range of industrial security applications.

• 4-port 10/100/1000Mbps RJ45 ports

• 1 or 2 SFP (Fiber) ports

• IEEE802.3-at (30W) PoE option

• Redundant power with alarm outputs

• Voltage/surge-suppression

MC352-1P/1S

MC355 -1T/1S

Gigabit Ethernet to SFP Industrial Media Converter w/PoE+ (30W)

Gigabit Ethernet to SFP Industrial Managed Media Converter

Gigabit Ethernet to Fiber (SFP) Drop-and-Repeat

MC35 0-1T-2S Gigabit Ethernet to 2-Port SFP Industrial Media Converter

MC350-4T-2S

MC352-4P-2S

Drop-and-Repeat Application

MC352-4P-2S

4-Port Gigabit Ethernet to 2-Port SFP Industrial Media Converter

4-Port Gigabit Ethernet to 2-Port SFP Industrial Media Converter w/PoE+ (30W)

Distance varies

by SFP

MC352-4P-2S

Distance varies

by SFP

MC352-4P-2S

Distance varies

by SFP

• -40ºC~+75ºC operating temperature range

IP Camera Access IP Intercom

Gate #1

Redundant Power

and

Alarm Fault Relay

IP Camera Access IP Intercom

Gate #2

Redundant Power

and

Alarm Fault Relay

IP Camera Access IP Intercom

Gate #3

Redundant Power

and

Alarm Fault Relay

Network Fiber Switch

POWER OVER ETHERNET (PoE) MEDIA CONVERTERS

ORDERING INFORMATION

Fiber to PoE Media Converters

Fiber to Power over Ethernet (PoE) Media Converters

• 10/100Mbps

• IEEE802.3-af (15.4W)

• Up to 2Km (MM) or 15Km (SM)

MC100FX-TX-POE

MC201-1P/1FS

Power Supply

Fiber to Ethernet with PoE Injector

Cat 5e Cable

Fast Ethernet/PoE (15.4W) to MM Fiber Media Converter - 2km

Fast Ethernet/PoE (15.4W) to SM Fiber Media Converter - 15km

Up to 15km Dependent on fiber and model

or fiber directly from a fiber switch

100m (328 ft) Max.

Fiber to Fiber Media Convertor

Ethernet with PoE

IP PoE

Camera

100m (328 ft) Max.

Cat 5e Cable

Network Switch

Network Fiber Switch

POWER OVER ETHERNET (PoE) MEDIA CONVERTERS

100m (328 ft) Max.

Power over Coax (PoC) Media Converters

ORDERING INFORMATION

Power over Coax Media Converters

MC252-1P-1CX Power over Coax (PoC) - Switch End

MC252-1P-1CXP Power over Coax (PoC) - IP Camera End

• 10/100Mbps

• IEEE802.3-af (15.4W) or IEEE802.3-at (30W)

• Powered via PoE+ switch or external power supply

• Wide-temperature operation

MC252-1P-1CX

100m (328 ft) Max.

Data and PoE

Up to 20W of available power

IP PoE Camera

Bandwidth and power

varies based on coax length.

See specification table.

Data and Power over Coax

MC252-1T-1CXP

Power Supply

Cat 5e Cable

Non-PoE

Network Switch

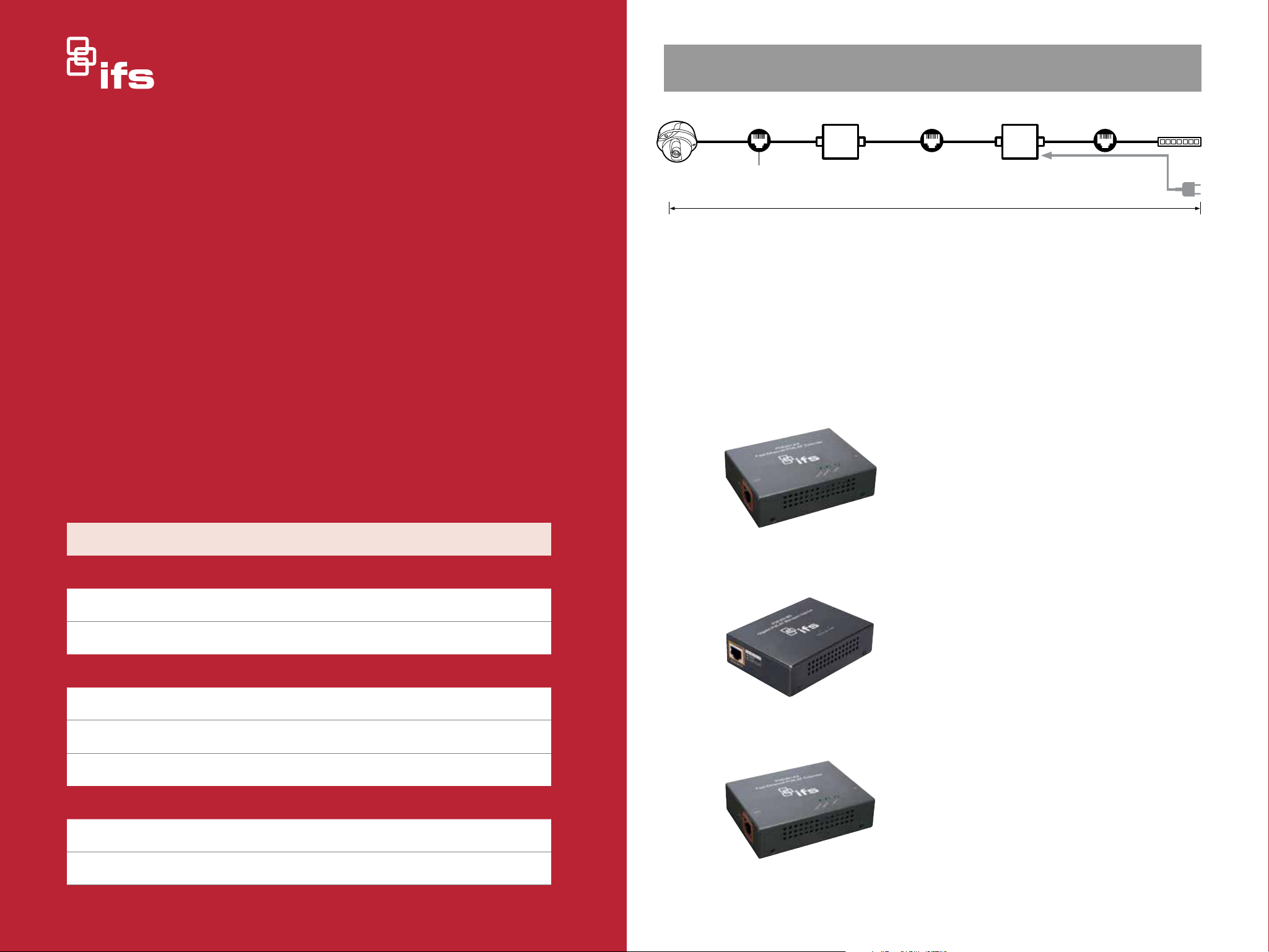

POWER OVER ETHERNET ACCESSORIES

PoE Accessories & Power Supplies

Solutions for enhanced ﬂexibility in PoE distributed systems

Delivering stable network distributed power is critical for today’s

demanding end-point devices. IFS

Ethernet (PoE) accessories and external power supply options for

ﬂexible, robust and reliable power for IP network infrastructures.

provides a full line of Power over

IP PoE Camera

Data + Power Data + Power

Up to 100m

POE302-EX

PoE Extender

200m

POE302-MS Network

PoE Injector

Data Only

Switch

IFS Power over Ethernet (PoE) accessories provide quick and easy

solutions for PoE challenges. A full range of IEEE802.3-af or at compliant

products allows for injecting, extending or splitting Power over Ethernet

cable to provide extreme ﬂexibility in handing PoE at the edge for powered

devices, including IP-based Video, Access and Intercom, as well as VoIP

and WAP applications.

PoE Splitters

• IEEE802.3-af or at compliant

• Fast or Gigabit Ethernet

Power

ORDERING INFORMATION

PoE Splitters

SP-POE Fast Ethernet PoE-af (15.4W) Splitter

POE302-SP Gigabit Ethernet PoE-at (30W) Splitter

PoE Injectors

MS-POE Fast Ethernet PoE-af (15.4W) Mid-span Injector

POE201-MS/4 4-Port Fast Ethernet/PoE-af (15.4W) Mid-span Injector

POE302-MS Gigabit Ethernet PoE-at (30W) Mid-span Injector

PoE Extenders

POE201-E X Fast Ethernet POE-af (15.4W) Extender

POE302-EX Gigabit Ethernet POE-at (30W) Extender

• 15.4 or 30W PoE

• Requires no external power supply

PoE Injectors

• IEEE802.3-af or -at compliant

• Fast or Gigabit Ethernet

• 15.4 or 30W PoE

• 4-port Fast Ethernet/PoE-af

PoE Extenders

• IEEE802.3-af or at compliant

• Fast or Gigabit Ethernet

• Extend PoE Ethernet beyond 100m

• Requires no external power supply

POWER SUPPLIES

Wall-Mount Power Supplies

• 5VDC power supplies for MCR Series modules

• 12VDC with interchangeable plugs for use in various

countries/regions

• 48 and 56VDC power supplies for single-port PoE and

PoE+ applications

ORDERING INFORMATION

For non-PoE Products

PS5VDC2A-US 5VDC –10W Wall-Mount Power Supply

PS12VDC1.5A-U 12VDC –18W Wall-Mount Power Supply

ORDERING INFORMATION

Ethernet Surge Protector

ESP-300

20KA 10/100/1000Mbps Ethernet Surge Protector w/PoE Pass-through

For Single-port PoE-af (15.4W) Products

PS48VDC.38A-US 48VDC –18W Wall-Mount Power Supply

PS48VDC65W-US 48VDC – 65W Wall-Mount Power Supply

For Single-port PoE-af (30W) Products

PS56VDC65W-US 56VDC – 65W Wall-Mount Power Supply

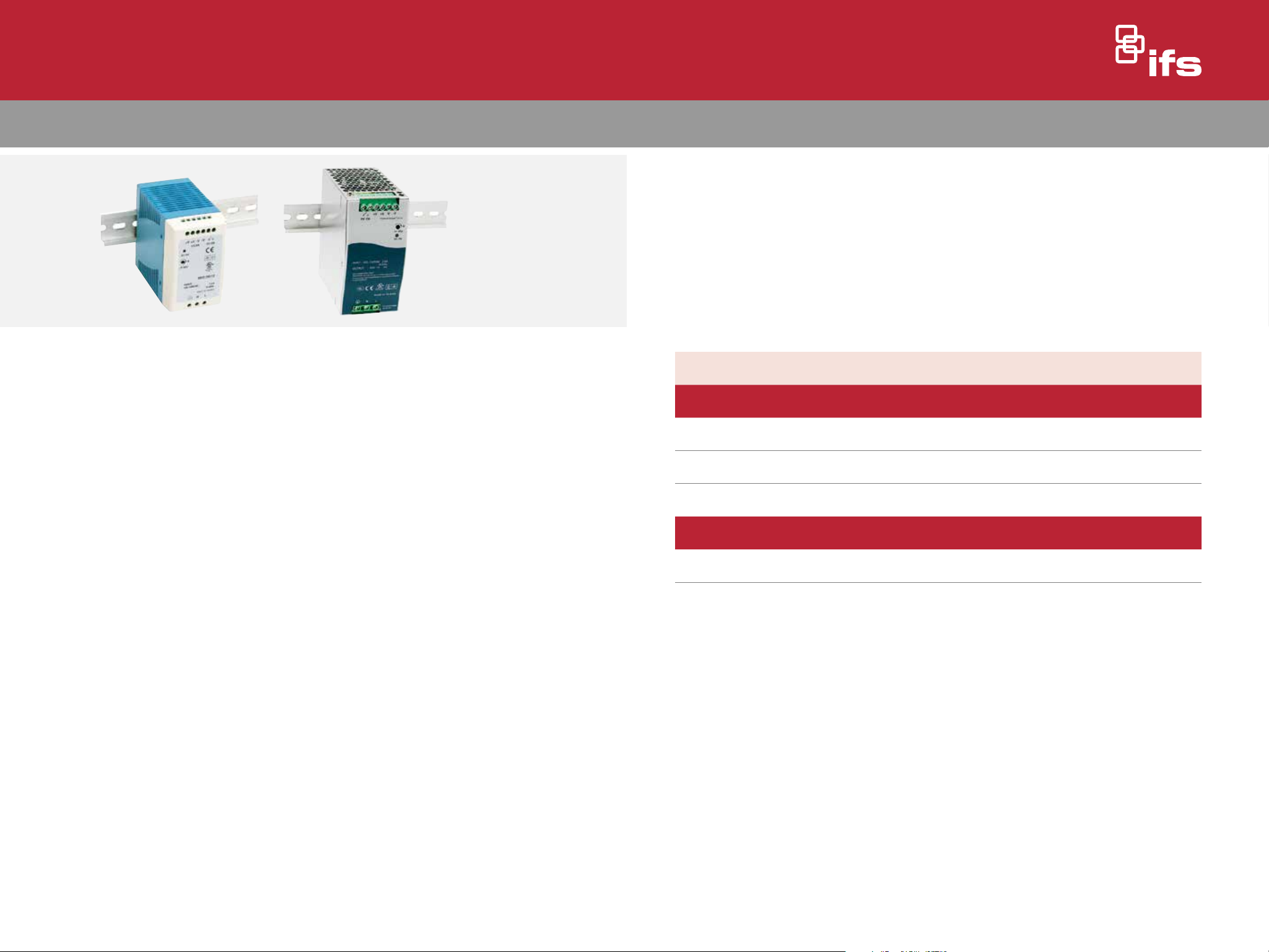

POWER SUPPLIES

Industrial DIN-Rail Power Supplies

Engineered for optimal performance in harsh environmental

conditions, IFS

reliable operation under full load in industrial environments, even in

extreme temperature ranges.

• 48VDC for PoE and PoE+ multi-port products

• Available in 100W, 240W and 480W versions

• 94% high efﬁciency and low power dissipation

Hardened Power DIN-rail power supplies provide

ORDERING INFORMATION

DIN-rail Mount Hardened (Wide-temp) Power Supplies

PS48VDC100W-DIN 48VDC 100W DIN-Rail Power Supply

PS48VDC240W-DIN 48VDC 240W DIN-Rail Power Supply

PS48VDC480W-DIN 48VDC 480W DIN-Rail Power Supply

Surface Mount Hardened (Wide-temp) Power Supply

HLG-240-48 48VDC 240W Industrial Power Supply

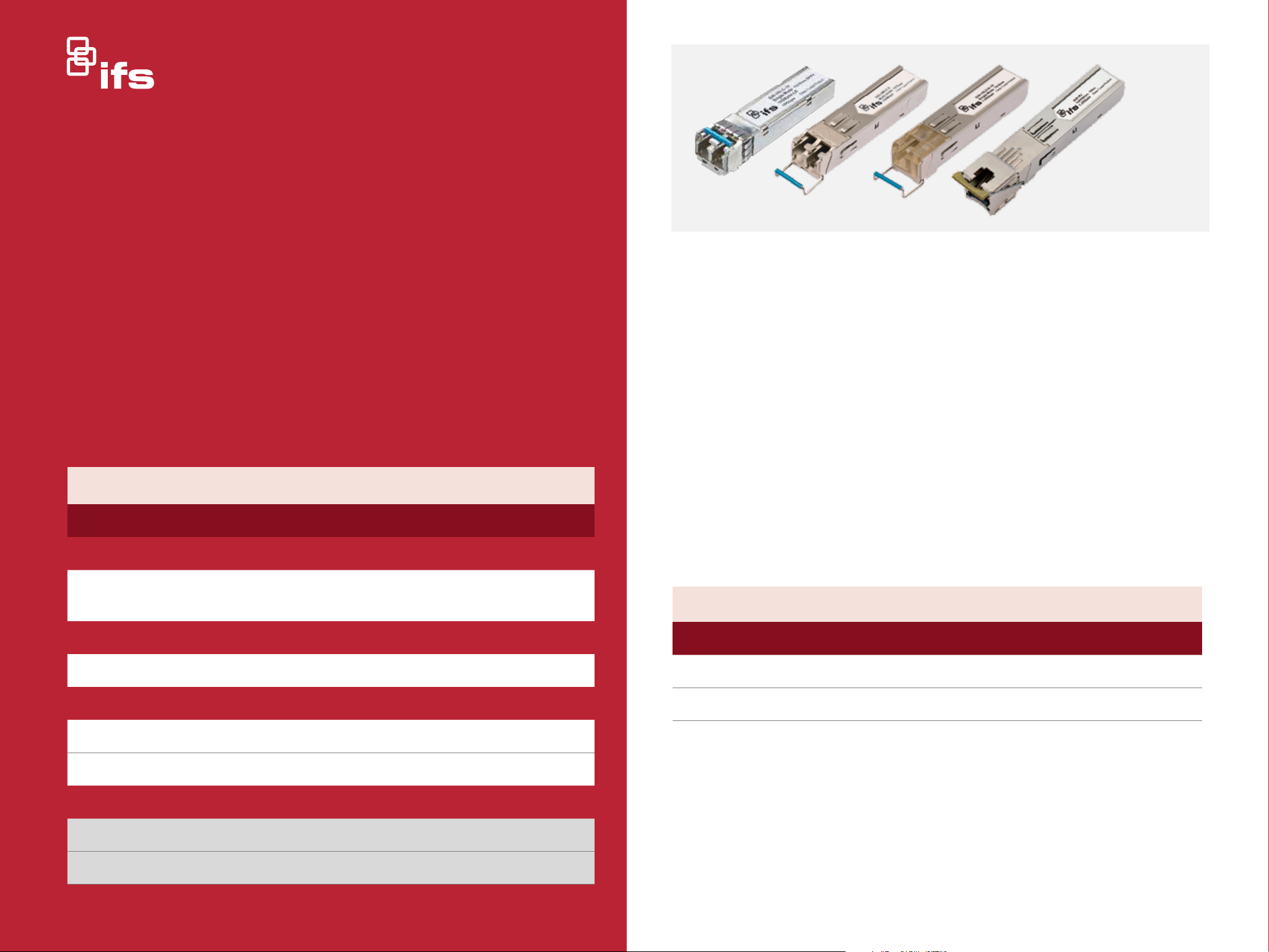

Small Form-Factor Pluggables (SFPs)

High-performance transmission over optical ﬁber

IFS® Small Form-Factor Pluggable (SFP) transceiver modules are

designed for high-performance, integrated duplex data transmission

over optical ﬁber. These SFP transceiver modules are compliant with

the industry’s SFP Multi-Source Agreement (MSA) standard.

Fast Ethernet

IFS Fast Ethernet SFPs are available in multi-mode or single mode

versions, 1- or 2-ﬁber conﬁgurations with LC connectors. Hardened

versions accommodating wide temperature ranges are also available

with transmission distances up to 20km.

ORDERING INFORMATION

Part Media Description Distance

2 Fiber (Multi-mode)

S20-2MLC-2 MM SFP - 100Mbps 2MM Fiber LC 2km

2 Fiber (Single mode)

S20-2SLC-20 SM SFP - 100Mbps 2SM Fibers LC 20km

1 Fiber (Single mode)

S20-1SLC/A-20 SM SFP - 100Mbps 1SM Fiber LC/A 20km

S20-1SLC/B-20 SM SFP - 100Mbps 1SM Fiber LC/B 20km

Hardened (Wide-temp)

S25-2MLC-2 MM SFP - 100Mbps 2MM Fibers LC 2km

10 Gigabit Ethernet

10G Ethernet SFP+ modules are available for multi-mode or single

mode applications.

ORDERING INFORMATION

Part Media Description Distance

S40-2MLC MM SFP+ - 10Gbps 2MM Fibers LC 300m

S40-2SLC-10 SM SFP+ - 10Gbps 2SM Fibers LC 10km

S25-2SLC-20 SM SFP - 100Mbps 2SM Fibers LC 20km

SMALL FORM-FORMAT PLUGGABLES (SFPs)

Gigabit Ethernet

ORDERING INFORMATION

Part Media Description Distance

Copper (RJ45)

S30-RJ TP SFP - 1000Mbps RJ45 100m

2 Fiber (Multi-mode)

S30-2MLC MM SFP - 100Mbps 2MM Fibers LC 220/550m

S30-2MLC-2 MM SFP - 100Mbps 2MM Fibers LC 2km

2 Fiber (Single mode)

Gigabit Ethernet SFPs are available in multi-mode or single mode

versions, 1- or 2-ﬁber conﬁgurations with LC connectors. An SFP with

an RJ45 connector is available to add additional copper ports to a ﬁber

network switch. Gigabit Ethernet SFPs are also available in hardened

versions with transmission distances up to 70km.

S30-2SLC-10 SM SFP - 1000Mbps 2SM Fiber LC 10km

S30-2SLC-30 SM SFP - 1000Mbps 2SM Fiber LC 30km

S30-2SLC-70 SM SFP - 1000Mbps 2SM Fiber LC 70km

1 Fiber (Single mode)

S30-1SLC/A-10 SM SM SFP - 1000Mbps 1SM Fiber LC/A 10km

S30-1SLC/B-10 SM SM SFP - 1000Mbps 1SM Fiber LC/B 10km

S30 -1SLC/A-20 SM SFP - 1000Mbps 1SM Fiber LC/A 20km

S30 -1SLC/B -2 0 SM SFP - 1000Mbps 1SM Fiber LC/B 20km

S30 -1SLC/A- 60 SM SFP - 1000Mbps 1SM Fiber LC/A 60km

S30 -1SLC/B -6 0 SM SFP - 1000Mbps 1SM Fiber LC/B 60km

Hardened (Wide-temp)

S35-2MLC MM SFP - 1000Mbps 2MM Fiber LC 220/550m

S35-2SLC-10 SM SFP - 1000Mbps 2SM Fiber LC 10km

S35-2SLC-30 SM SFP - 1000Mbps 2SM Fiber LC 30km

S35-2SLC-70 SM SFP - 1000Mbps 2SM Fiber LC 70km

REFERENCE

Network Switches Comparison Matrix

Port Type Ports PoE Uplink Ports Management Environmental

Part Number

Economy Switches

Fast

Ethernet

Gigabit Ethernet

Number

of RJ45 Ports

PoE

(15.4w)

PoE+

(30.8w)

Uplink

SFP

SFP+

Unmanaged

Managed

L2+ Static Routing

Industrial

Recommended

Power Supply

ES2001-4P-4T

ES3001-4P-4T

Network Switches

GE-DS-82-POE

NS2503-8P/2C

NS3502-8P-2S

GE-DS-242-POE

NS2503-24P/2C

NS3500-28T-4S

NS3601-24P/4S

NS3702-24P-4S

NS4702-24P-4S-4X

NS4750-24S-4T-4X

8 4

8 8

8 8 5

8 8 4 2 SFP S20/S30 Series

24 24

24 24 12

28 4 SFP (Shared) S20/S30 Series

24 24 4 SFP (Shared) S20/S30 Series

24 24 12 4 SFP (Shared) S20/S30 Series

24 24 14

4 TP

(Shared)

2 TP/SFP

(Combo)

2 TP/SFP

(Combo)

2 TP/SFP

(Combo)

2 TP/SFP

(Combo)

4 SFP

4 SFP+

24 SFP 4 SFP+

S30 Series

S20/S30 Series

S30/

S40

Series

S30/

S40

Series

P P

P P P

Built-in or external DC Power Supply

option (PS48VDC100W-DIN)

Built-in

REFERENCE

Network Switches Comparison Matrix cont.

Port Type Ports PoE Uplink Ports Management Environmental

Part Number

Industrial Switches

Fast

Ethernet

Gigabit Ethernet

Number

of RJ45 Ports

PoE

(15.4w)

PoE+

(30.8w)

Uplink

SFP

SFP+

Unmanaged

Managed

L2+ Static Routing

Industrial

Recommended

Power Supply

NS2051-4P/1T

GE-DSH-82-POE

NS3550-8T-2S

NS3552-8P-2S

NS3550-2T-8S

GE-DSGH-5

GE-DSGH-8

NS3550-24T/4S

Surge Protector

5 4

8 8

8 2 SFP

8 8 8 2 SFP

2 8 SFP

24 4 SFP (Shared)

100Mbps

(TP)

2 TP/SFP

(Combo)

1000Mbps

(TP)

1000Mbps

(TP)

N/A

S20/S25 or S30/

S35 Series

S20/S25 or S30/

S35 Series

S20/S25 or

S30/S35

Series

S20/S25 or

S30/S35

Series

N/A

S20/S25 or S30/

S35 Series

P P

PS48VDC100W-DIN

PS48VDC240W-DIN

HLG-240-48

PS12VDC1.5A-U

PS48VDC480W-DIN

PS12VDC1.5A-U

PS48VDC100W-DIN

ESP-300

P P

Pass-

through

Pass-

through

N/A

REFERENCE

Media Converters Comparison Matrix

Part Number

Ethernet to Coax or Twisted Pair

MCR Series

Compatible Hardened

Fast

Ethernet

Gigabit

Ethernet Coax

POTS

Wire

Optical

Fiber

or SFPs PoE

Recommended

Power Supply

MCR200-1T-1TW

MC252-1T-1CXP & MC252-1P-1CX

MCR200-1T/1CX

MC250-4T/1CXT

MC251-4P/1CXT

Ethernet to Fiber

MCR205-1T/1S

MC100FX-TX-POE

MC201-1P/1FS

MC-4TX2FX

MCR300-1T/1S

MCR300-1T-2S

P P P

P P P P

P P

PS5VDC2A-US

AT (30W) PoE Switch or PS56VDC65W-US

PS5VDC2A-US

PS12VDC1.5A-U

AF (15.W) PS48VDC100W-DIN

S20 Series PS5VDC2A-US

MM – 2km AF (15.W) PS48VDC.38A-US

SM – 15km AF (15.W) PS48VDC.38A-US

MM – 2km PS12VDC1.5A-U

S30 Series PS5VDC2A-US

S20 or S30

Series

PS5VDC2A-US

REFERENCE

Media Converters Comparison Matrix cont.

Part Number

Industrial Ethernet to Fiber

MCR Series

Compatible Hardened

Fast

Ethernet

Gigabit

Ethernet Coax

POTS

Wire

Optical

Fiber

or SFPs PoE

Recommended

Power Supply

MC250-1T/1S

MC250-4T/1FM

MC250-4T/1FS

MC251-4P/1S

MC250-4T/2S

MC355-1T/1S

MC350-1T-2S

MC352-1P/1S

MC350-4T-2S

P P

S20/S25

Series

MM – 2km PS12VDC1.5A-U

SM – 15km PS12VDC1.5A-U

S20/S25

Series

S20/S25

Series

S30/S35

Series

S20/25 or

S30/35

Series

S20/S25 or

S30/S35

Series

S20/S25 or

S30/S35

Series

AF (15.W) PS48VDC100W-DIN

AT (30W) PS48VDC100W-DIN

PS12VDC1.5A-U

MC352-4P-2S

MCR Card Cages

MCR-R15

MCR-RPS

Surge Protector

ESP-300

S20/S25 or

P P

S30/S35

Series

AT (30W)

Pass-

Through

PS48VDC240W-DIN

HLG-240-48

MCR-RPS

N/A

REFERENCE

PoE Comparison Matrix

PoE Splitters

SP-POE

POE302-SP

PoE Injectors

MS-POE

POE302-MS

POE201-MS/4 (4-port)

PoE Extenders

POE201-EX

POE302-EX

Fast

Ethernet

P P P

P P

P P P

Gigabit

Ethernet

P P P

P P

P P P

PoE-af

15.4W

PoE-at

30W

No PS

Required

Recommended

Power Supply

N/A

PS48VDC.38A-US

PS56VDC65W-US

PS48VDC65W-US

N/A

IFS’s® comprehensive solutions are developed by Interlogix,

™

a leading provider of security and life safety solutions including advanced video, recording and wireless transmission technology. Through an ongoing commitment to secure and protect people, property and assets, Interlogix continues to develop innovative and reliable products that meet the demands of the modern world.

interlogix.com

Speciﬁcations subject to change without notice.

Interlogix is a part of UTC Building & Industrial Systems,

a unit of United Technologies Corporation.

2014/09 (79444)

Interlogix MC251-4P-1CXT, MCR300-1T-1S, MCR205-1T-1S, MCR200-1T-1CX, MC355-1T-1S Specsheet

Specifications and Main Features

Frequently Asked Questions

User Manual
