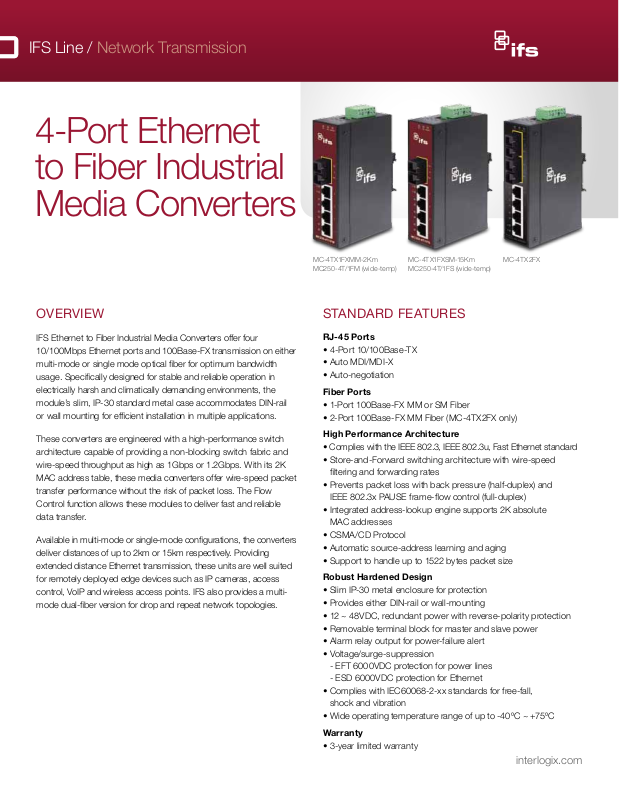

IFS Line / Network Transmission
4-Port Ethernet
to Fiber Industrial
Media Converters
Overview
IFS Ethernet to Fiber Industrial Media Converters offer four
10/100Mbps Ethernet ports and 100Base-FX transmission on either
multi-mode or single mode optical fiber for optimum bandwidth
usage. Specifically designed for stable and reliable operation in
electrically harsh and climatically demanding environments, the
module’s slim, IP-30 standard metal case accommodates DIN-rail
or wall mounting for efficient installation in multiple applications.
These converters are engineered with a high-performance switch
architecture capable of providing a non-blocking switch fabric and
wire-speed throughput as high as 1Gbps or 1.2Gbps. With its 2K
MAC address table, these media converters offer wire-speed packet
transfer performance without the risk of packet loss. The Flow
Control function allows these modules to deliver fast and reliable
data transfer.
Available in multi-mode or single-mode configurations, the converters
deliver distances of up to 2km or 15km respectively. Providing
extended distance Ethernet transmission, these units are well suited
for remotely deployed edge devices such as IP cameras, access
control, VoIP and wireless access points. IFS also provides a multimode dual-fiber version for drop and repeat network topologies.
MC-4TX1FXMM-2Km
MC250-4T/1FM (wide-temp)
MC-4TX1FXSM-15Km
MC250-4T/1FS (wide-temp)
MC-4TX2F X
Standa rd Feature S
RJ-45 Ports
• 4-Port 10/100Base-TX
• Auto MDI/MDI-X
• Auto-negotiation
Fiber Ports
• 1-Port 100Base-FX MM or SM Fiber
• 2-Port 100Base-FX MM Fiber (MC-4TX2FX only)
High Performance Architecture
• Complies with the IEEE 802.3, IEEE 802.3u, Fast Ethernet standard
• Store-and-Forward switching architecture with wire-speed
filtering and forwarding rates
• Prevents packet loss with back pressure (half-duplex) and
IEEE 802.3x PAUSE frame-flow control (full-duplex)
• Integrated address-lookup engine supports 2K absolute
MAC addresses
• CSMA/CD Protocol
• Automatic source-address learning and aging
• Support to handle up to 1522 bytes packet size
Robust Hardened Design
• Slim IP-30 metal enclosure for protection
• Provides either DIN-rail or wall-mounting
• 12 ~ 48VDC, redundant power with reverse-polarity protection
• Removable terminal block for master and slave power
• Alarm relay output for power-failure alert
• Voltage/surge-suppression
- EFT 6000VDC protection for power lines
- ESD 6000VDC protection for Ethernet
• Complies with IEC60068-2-xx standards for free-fall,
shock and vibration
• Wide operating temperature range of up to -40ºC ~ +75ºC
Warranty
• 3-year limited warranty
interlogix.com
Specifications
RJ45 Ports MC-4TX1FXMM-2Km MC250-4T/1FM MC-4TX1FXSM-15Km MC250-4T/1FS MC-4TX2FX
10/100Base-TX Connectors RJ-45 (4); Auto-negotiate and Auto MDI/MDI-X support
Throughput (packet per second) 148,800pps
Switch Architecture Store-and-forward
Max Packet Size 1522 Bytes
Electro Static Discharge
(ESD) Protection
Fiber Ports
100Base-FX SC Connectors 1 1 1 1 2
Optical Fiber Type
Optical Distance 2km 2km 15km 15km 2km
Optical
Optical Wavelength
TX Launch Power (dBm) Max: -14, Min: -19.0 Max: -14, Min: -20 Max:-7, Min: -20 Max:0, Min: -20 Max:-14, Min: -19.0
Receiver Sensitivity (dBm) -34.5 32 -28 32 -34.5
Maximum Input Power (dBm) -14 0 -8 0 -14
Switch Performance
Switch Architecture Store-and-Forward
Switch Fabric 1Gbps / non-blocking 1Gbps / non-blocking 1Gbps / non-blocking 1Gbps / non-blocking 1.2Gbps / non-blocking
Throughput (Packet per second) 0.744Mpps@64bytes 0.744Mpps@64bytes 0.744Mpps@64bytes 0.744Mpps@64bytes 0.892Mpps@64bytes
Address Table 2K entries
Shared Data Buffer 1Mbit on-chip frame buffer
Maximum Frame Size 1522 Bytes packet
Flow Control Back pressure for Half-Duplex, IEEE 802.3x PAUSE Frame for Full-Duplex
LED Indicators
Power Power input 1 – Green; Power input 2 – Green
Power Fault Proper Operation – Off; Fault – Green
RJ-45 (10/100Mbps) 100Mbps Activity – Green; 10Mbps Activity – Off
Fiber (100Base-FX) Connected to network – Green
Optical Link Link established – Steady Green; TX/RX Activity – Blinking green
Electrical & Mechanical
Supply Voltage 12~48VDC, Redundant power with polarity-reverse protection function
Power Consumption 9.1Watts / 31BTU max. 9.1Watts / 31BTU max. 9.1Watts / 31BTU max. 9.1Watts / 31BTU max. 11.6Watts / 40BTU max.
Electrical Fast Transient
(EFT) Protection
Power and Alarm Fault
Connector
Alarm Fault Relay Provides one relay output for power failure notification; 24VDC – 1A max.
Enclosure IP-30 slim-type metal enclosure
Mounting DIN-rail kit and wall-mount ears
Dimensions (in/cm) (W x D x H) 5.31 x 3.42 x 1.26 in. (13.5 x 8.7 x 3.2cm)
Weight (lbs./kg) 0.965 lbs./.437kg 0.965 lbs./.437kg 0.965 lbs./.437kg 0.965 lbs./.437kg 0.977 lbs./.437kg
Environmental
MTBF > 100,000 Hrs @ 25°C
Operating Temperature -10°C ~ 60°C -40°C ~ 75°C -10°C ~ 60°C -40°C ~ 75°C -10°C ~ 60°C
Storage Temperature -40°C ~ 85°C
Relative Humidity 0% ~ 90% (non-condensing)
Standards Compliance
IEEE Standards
IEC Standards
EIA/TIA-568 Standards 2-Pair UTP Cat. 3, 4, 5 (100meters, max.) EIA/TIA-568 100-ohm STP (100meters, max.)
Regulation FCC Part 15 Class A, CE
6KVDC
Multi-mode (62.5/125μm
or 50/125um)
1300nm 1300nm 1310nm 1310nm 1300nm
6KVDC
6-pin removable screw terminal
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX /100Base-FX
IEEE 802.3x Flow Control and Back pressure
IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Multi-mode (62.5/125μm
or 50/125um)
Single-mode (9/125μm) Single-mode (9/125μm)
Multi-mode (62.5/125μm
or 50/125μm)
3.42 in.
(87.8 mm)
1.25 in.
(32 mm)
5.31 in.
(135 mm)
Top
Side
Front
Dimensional Diagrams
MC-4TX1FXMM-2KM
MC-4TX1FXSM-15KM
MC -250 -4T/1F M
MC -250 -4T/1F S
Front
5.31 in.
(135 mm)
1.25 in.
(32 mm)
MC250-4TX2FX
Front
Top
3.42 in.
(87.8 mm)
Top
Side
3.45 in.
(87.8 mm)
1.25 in.
(32 mm)
Mounting Kit
1.10 in. (28mm)
3.74 in. (95mm)
.71 in. (18mm)
Mounting Kit
1.10 in. (28mm)
DIN-Rail
Kit
6.89 in. (175mm)
1.92 in. (48.80mm)
Mounting
Kit
5.31 in.
(135 mm)
1.25 in.
(32 mm)
3.42 in.
(87.8 mm)
Side
3.74 in. (95mm)
.71 in. (18mm)
DIN-Rail
Kit
6.89 in. (175mm)
1.92 in. (48.80mm)
Mounting
Kit
4-Port Ethernet
to Fiber Industrial
Media Converters
North America
T 855-286-8889
Asia
T 852-2907-8108
Australia
T 61-3-9239-1200
Europe
T 32-2-725-11-20
Latin America
T 561-998-6114
Ordering Information
MC-4TX1FXMM-2KM 4-Port Fast Ethernet to 1 MM Fiber Port
MC250-4T/1FM 4-Port Fast Ethernet to 1 MM Fiber Port (wide-temp)
MC-4TX1FXSM-15KM 4-Port Fast Ethernet to 1 SM Fiber Port
MC250-4T/1FS 4-Port Fast Ethernet to 1 SM Fiber Port (wide-temp)
MC-4TX2FX 4-Port Fast Ethernet Drop-and-Repeat 2 MM Fiber Ports
Included Accessories User’s Manual, DIN Rail Kit, Wall Mount Kit
Note: External power supply must be ordered separately.
Typical Applications
Point-to-Point Application
Redundant Power
and
Alarm Fault Relay
IP Camera
Access
IP Intercom
Remote
Gate
Location
100m (328 ft.) Max.
Cat 5e Cable
Multi-mode Fiber – Up to 2km
Single-mode Fiber –Up to 15km
Alternate application using two modules
Redundant Power
and
Alarm Fault Relay
Accessories
PS12VDC1.5A-U
HLG-240-48
PS48VDC100W-DIN
Network Fiber Switch
Cat 5e Cable
100m (328 ft.) Max.
To
NVR
Access
Control
Intercom
12VDC@1.5A External Power Supply
48VDC High Temperature Industrial Power Supply
48VDC@2A (100W) DIN-Rail Mount Hardened Power
Supply (100~240VAC)
Drop-and-Repeat Application
Up to 2km
Multi-mode Fiber
MC-4TX1
IP Camera Access IP Intercom
Gate #1
Redundant Power
and
Alarm Fault Relay
Multi-mode Fiber
MC-4TX2
IP Camera Access IP Intercom
Gate #2
Redundant Power
and
Alarm Fault Relay
Up to 2km
MC-4TX2
IP Camera Access IP Intercom
Redundant Power
and
Alarm Fault Relay
Gate #3
Up to 2km
Multi-mode Fiber
Network Fiber Switch
interlogix.com
Specifications subject to change without notice.
© 2012 Interlogix.
All rights reserved.
210-3572 2012/09 (71654B)
