Interlogix MC250-4T-1CXT User Manual

IFS MC250-4T/1CXT
User Manual

P/N 1076521 • REV A • ISS 30APR12

Copyright © 2012 UTC Fire & Security Company. All rights

r

reserved.

Trademarks and

patents

Interlogix, IFS MC250-4T/1CXT, the IFS Brand

and logo are trademarks of UTC Fire & Security.

Other trade names used in this document may be
trademarks or registered trademarks of the
manufacturers or vendors of the respective
products.

Manufacture

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA
92626-5923, USA

EU Authorized EU manufacturing representative:

UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands

Version This document applies to IFS MC250-4T/1CXT

version 1.0.

Certification

N4131

FCC compliance Class A: This equipment has been tested and

found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.

Canada This Class A digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la classe A est
conforme à la norme NMB-003 du Canada.

ACMA

compliance

Notice! This is a Class A product. In a domestic

environment this product may cause radio
interference in which case the user may be
required to take adequate measures.

European Union

directives

2004/108/EC (EMC directive): Hereby, UTC Fire

& Security declares that this device is in
compliance with the essential requirements and
other relevant provisions of Directive 2004/108/EC

2002/96/EC (WEEE directive): Products marked

with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.

Contact

information

Customer support

www.utcfireandsecurity.com or
www.interlogix.com

www.interlogix.com/customer-support

Contents

Overview 1

Package Contents 1
Ethernet over VDSL2 Bridge Description 1
Key Features 3

Hardware Overview 4

LED Indicators 5

System 5
VDSL/BNC 5
10/100Base-TX Port 5
Mode DIP Switch 5
The Top Panel 7

Installation 8

Installing the MC250-4T/1CXT 8

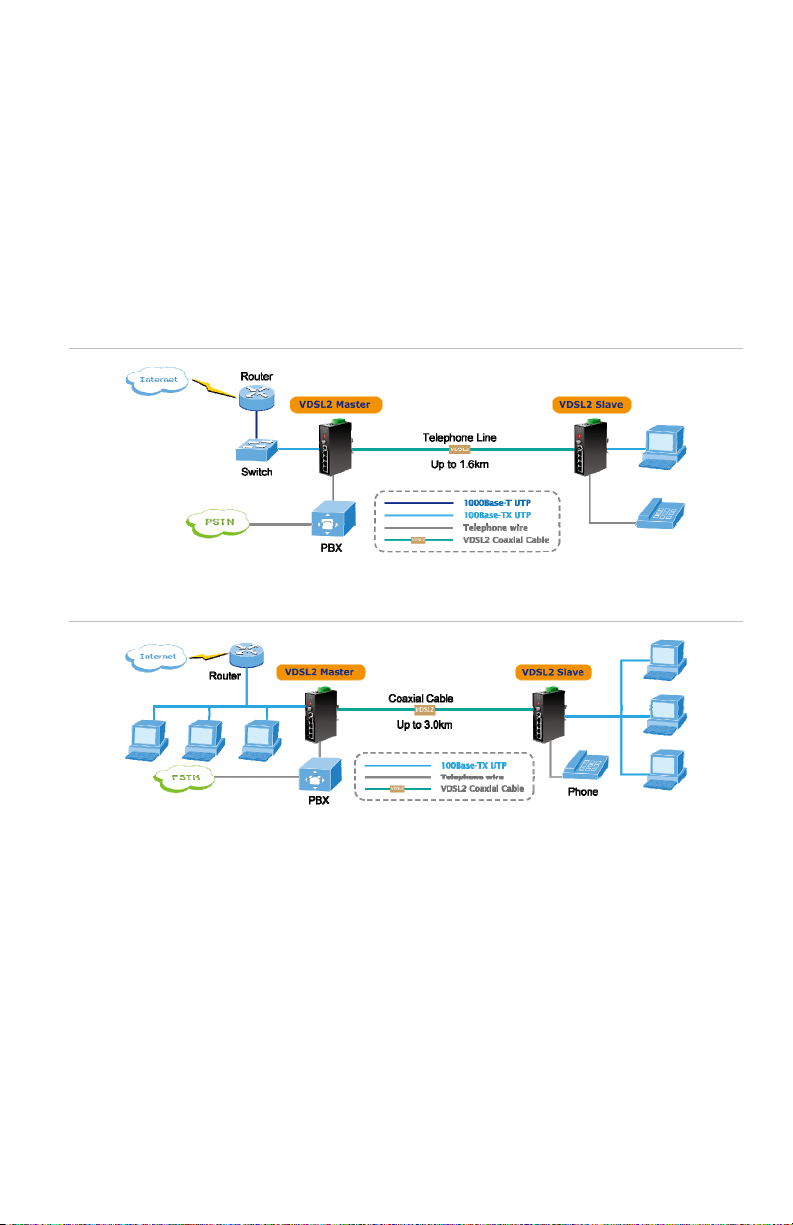

MC250-4T/1CXT Application Connection 9
Wiring the Power Inputs 9

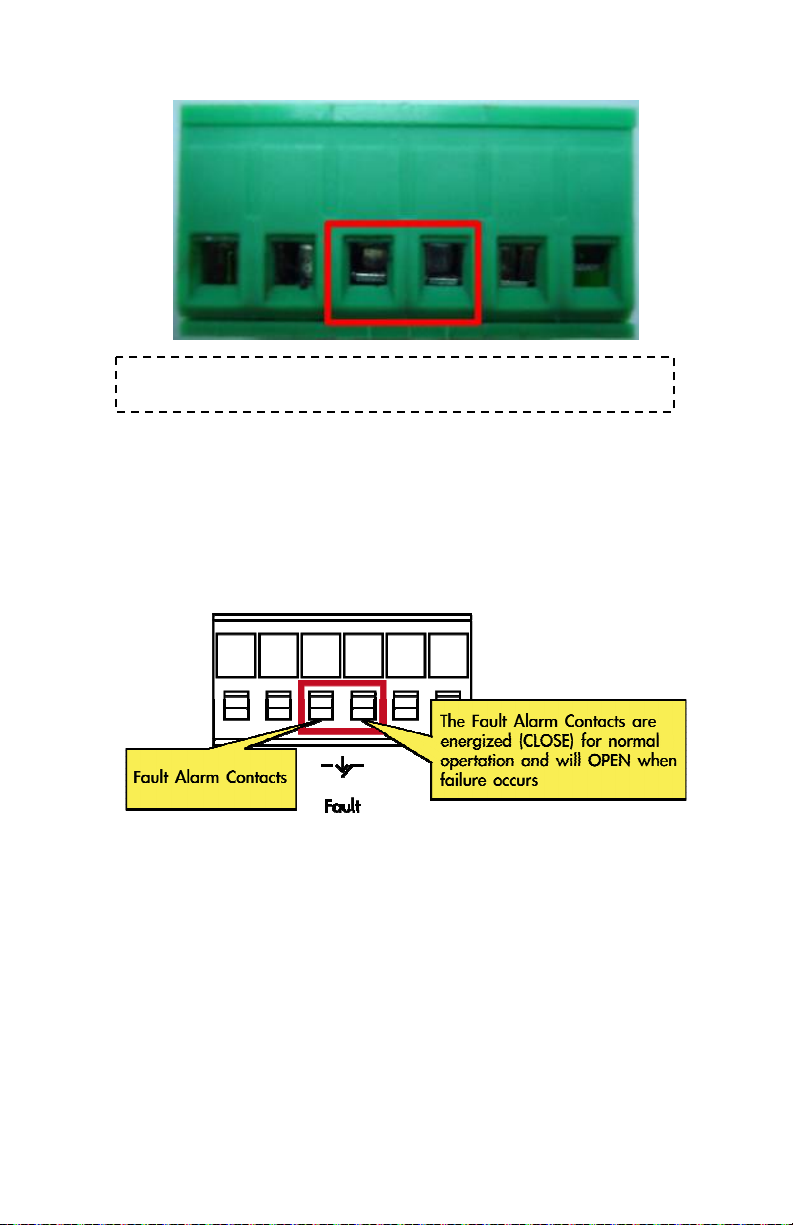

Wiring the Fault Alarm Contact 10

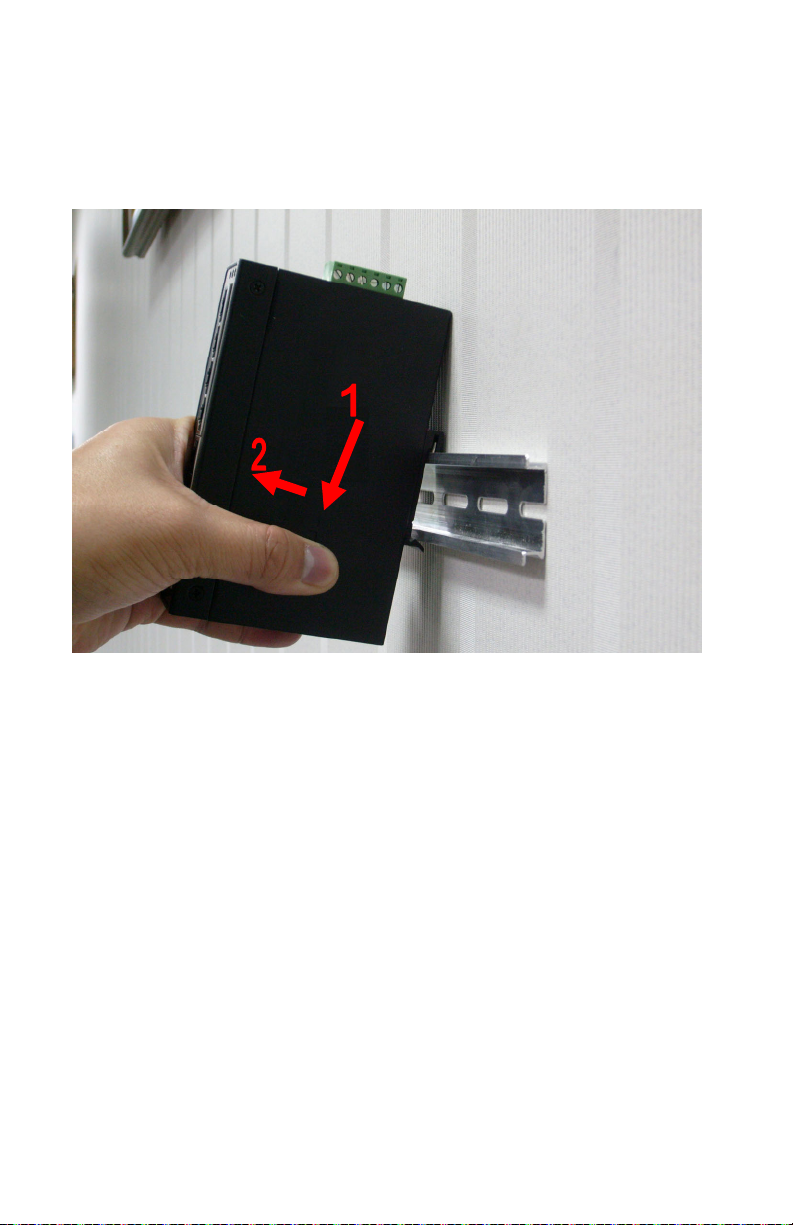

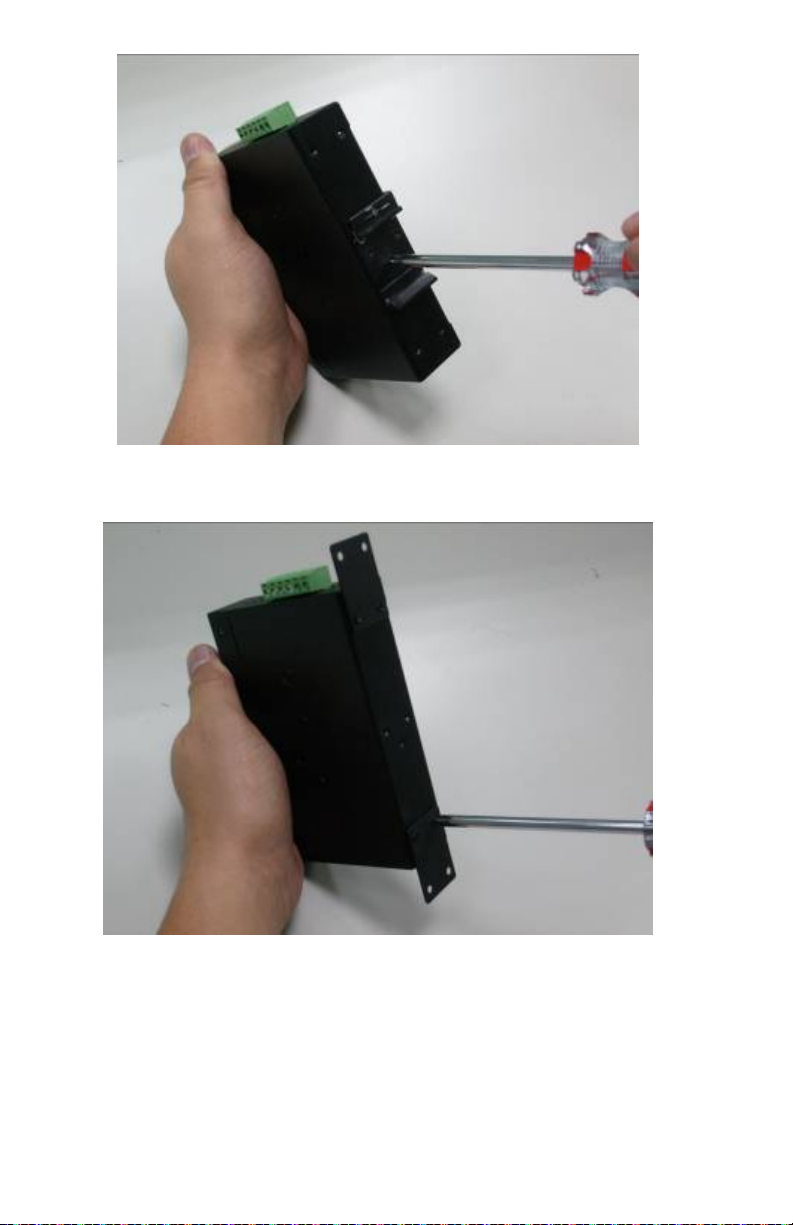

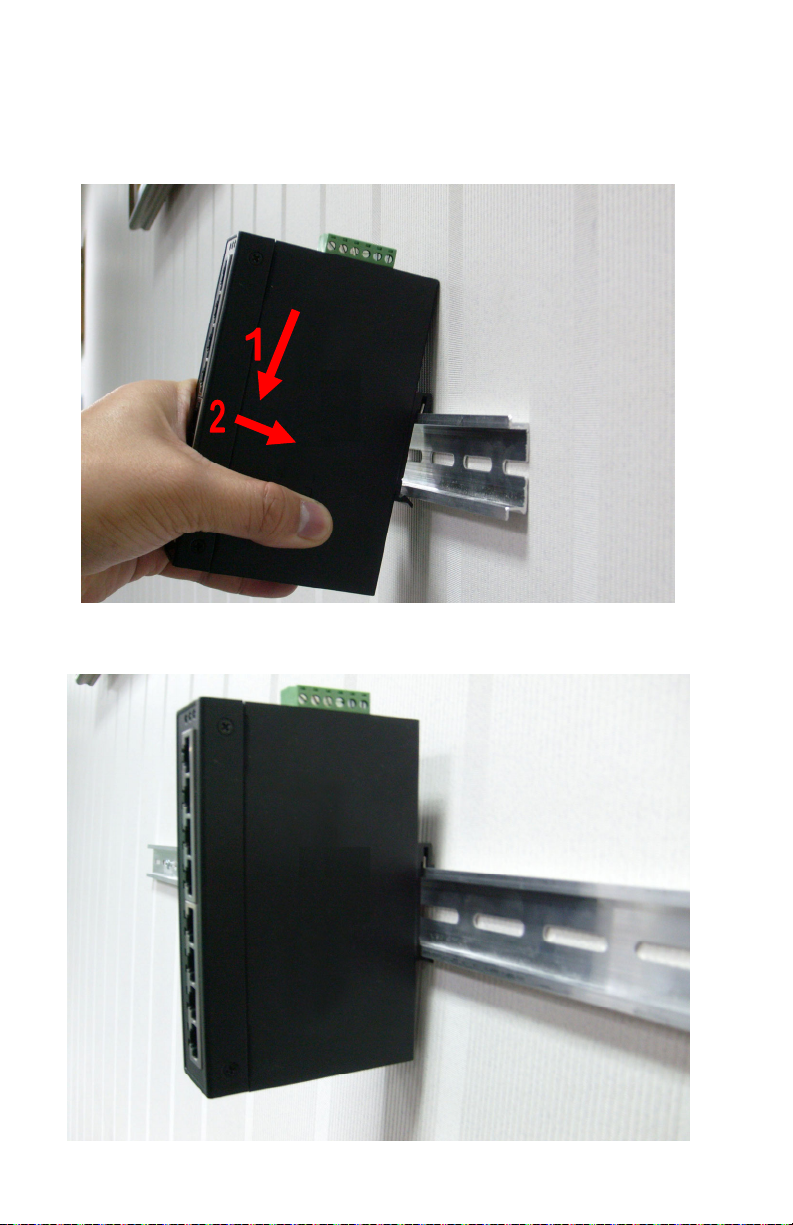

Mounting Installation 11

Troubleshooting 15

FAQs 16

Specifications 18

Contacting Technical Support 19

IFS MC250-4T/1CXT User Manual i

Overview

Package Contents

Before installing the IFS MC250-4T/1CXT Industrial Ethernet
Converter, verify that package contains the following parts:

• IFS MC250-4T/1CXT x1

• DIN Rail Kit x1

• Wall Mount Kit x1

• User’s Manual x1

If any of the items in the package are damaged or missing,
please contact your distributor or IFS sales rep. If possible,
retain the original carton and packaging material in case of
need to return the product for repair/replacement.

Ethernet over VDSL2 Bridge Description

IFS’s state-of-the-art Ethernet-over-VDSL2 products are based
on two core networking technologies: Ethernet and VDSL2
(Very-high-data-rate Digital Subscriber Line 2). This
technology offers the absolute fastest possible data
transmission speeds over existing copper telephone lines or
coaxial cables without the need for rewiring.

The IFS MC250-4T/1CXT Industrial Ethernet Converter has a
switching architecture with 4 RJ-45 10/100Mbps Ethernet ports
and one asymmetric or symmetric Ethernet over VDSL port
(Asymmetric means upstream and downstream rate are not
the same and Symmetric means upstream and downstream
rate are similar) – the VDSL port can be RJ-11or BNC
Connector.

The MC250-4T/1CXT can be set to Master or Slave mode via
a DIP switch. The MC250-4T/1CXT coax symmetric data rate
performance will be 95/99Mbps for at 200m, and 19/13Mbps at

IFS MC250-4T/1CXT User Manual 1

2400m. The MC250-4T/1CXT (BNC) coax performance is up
to 100/65Mbps for asymmetric data rate within 200m and
31/4Mbps for asymmetric data rate at 2.4km.

The IFS MC250-4T/1CXT Industrial Ethernet Converter is
engineered in a slim metal enclosure that conforms to IP30
standards for deployment in demanding industrial
environments.

The IFS MC250-4T/1CXT provides a lower cost replacement
and smooth migration for existing Long Reach Ethernet (LRE)
networks.

The cable specifications of the connection are listed as
following:

• 10Base-T, Category 3, 4 or 5 UTP

• 100Base-TX, Category 5, 5e or 6 UTP

• Ethernet over VDSL2, Twisted-pair Telephone Wires

• Ethernet over VDSL2 Coaxial Cable

Note: Slave devices (CPE) must connect to the Master device

(CO) through the telephone wire or coaxial cable. To define
the MC250-4T/1CXT as a Master or Slave, please refer to the
Mode DIP Switch section for more detail.

2 IFS MC250-4T/1CXT User Manual

Key Features

The MC250-4T/1CXT provides the following key features:

• Cost-effective VDSL2 Master / Slave bridge solution

• -40º to 75º Degree C operating temperature

• Redundant Power Design: 12~48V DC, redundant power
with polarity reverse protect function

• IP-30 metal case

• One box design, Master / Slave selectable via DIP Switch

• Defines Asymmetric (Band Plan 998) and Symmetric band
plans for the transmission of Upstream and Downstream
signals

• Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x
standards

• DMT (Discrete Multi-Tone) line coding

• Half Duplex Back Pressure and IEEE 802.3x Full Duplex
Pause Frame Flow Control

• Support up to 1536 bytes packet size, 802.1Q VLAN tag
transparent

• Integrated address look-up engine, support 2K absolute
MAC addresses

• VDSL2 Stand-Alone transceiver for simple bridge modem
application

• Selectable Target Band Plan and Target SNR Margin

• LED indicators for network diagnostics

• DIN Rail and Wall Mount Design

IFS MC250-4T/1CXT User Manual 3

Hardware Overview

The MC250-4T/1CXT provides 4 10/100 Mbps RJ-45, 1 RJ-11
and 1 BNC port for network line connection. The 4 RJ-45 ports
will distinguish the speed of incoming connection
automatically.

This section describes the hardware features of the MC250­4T/1CXT. For easier control of the MC250-4T/1CXT, it's

recommended to get familiar with the LED indicators and port
characteristics. Front panel illustrations in this chapter display

the units LED indicators. Before connecting any network
device to the MC250-4T/1CXT, read this chapter carefully.

Figure 1: Front Panel

4 IFS MC250-4T/1CXT User Manual

LED Indicators

System

LED
P1 Green Light Indicates that the power is active.

P2
FAULT

VDSL/BNC

LED

ACT

Color Function

Green
Green

Color Function

Green

Light indicates power 2 is active.
Light indicates that either power 1 or power 2 does

Light

Blink

not have power.

Indicates that the VDSL link is established.
Indicates that the VDSL link is actively sending or
receiving data over that port.

Sync

Master

Slave

Green

Green

Green

Light

Fast
Blink
Slow
Blink

Light

Light

Indicates that the VDSL link is established.

Indicates that the VDSL link is at training status
(about 10 seconds).
Indicates that the VDSL link is at idle status.

Indicates that the VDSL Bridge is running in Master
mode.
Indicates that the VDSL Bridge is running in Slave
mode.

10/100Base-TX Port

LED

LNK/
ACT

Color Function

Light

Green

Blink

Off Indicates that the port is link down.

Indicates that the port is link up.
Indicates that the Converter is actively sending or
receiving data over that port.

Mode DIP Switch

The MC250-4T/1CXT provides 4 selective transmission
modes. By switching the transmission modes, you can obtain
a best transmission mode to suit the phone line quality or

IFS MC250-4T/1CXT User Manual 5

distance of connectivity. The following is a summary table of
transmission settings, bandwidth and distance extensibility
tested for AWG 24 (0.5mm) twisted-pair without noise and
cross talk.

DIP-1 DIP-2 DIP-3 DIP-4

Mode Channel

OFF Master Interleave Symm 9dB

Band
Plan

SNR

ON
(default)

Slave Fast Asymm 6dB

Master / Slave

• Master (Central Office) – in Master device mode, usually
the Master device will be located at the data center of the
ISP or enterprise to link to the backbone. For IP video

applications, the Master (CO) setting should be used at the
IP camera for maximum bandwidth availability over
distance.

• Slave (Customer Premises Equipment) – the Slave device
mode, usually the Slave device will be located at branch
office, home or remote side as the long reach data
receiver. The Slave also can be connected to the network
devices such as a PC, VoIP, Wireless Access Point, etc.

When the MC250-4T/1CXT is operating in Slave mode, the
DIP switch 2, 3, and 4 are disabled.

Fast and Interleave mode

• Fast mode guarantees a minimum end to end latency of
less than 1 ms.

6 IFS MC250-4T/1CXT User Manual

• Interleaved mode provides impulse noises protection with a
duration of less than 250 µs. Interleaved mode has a
maximum end to end latency of 10m sec.

Band Plan

• User can switch the Band Plan to either Symmetric or
Asymmetric based on the application. Symmetric band plan

provides better upstream performance while Asymmetric
band plan provides a better downstream performance.

Target SNR (Signal Noise Ratio) Margin

• When fixed SNR margin is selected, the system will
maintain the SNR margin at 9 dB across all usable loop
length.

Note: The default for the DIP switch settings is "ON" for all

four switches, that sets the media converter to CPE mode. For
selecting "CO" mode, please adjust the DIP 1 switch to "OFF".

Please power off the MC250-4T/1CXT before making any
transmission mode adjustments.

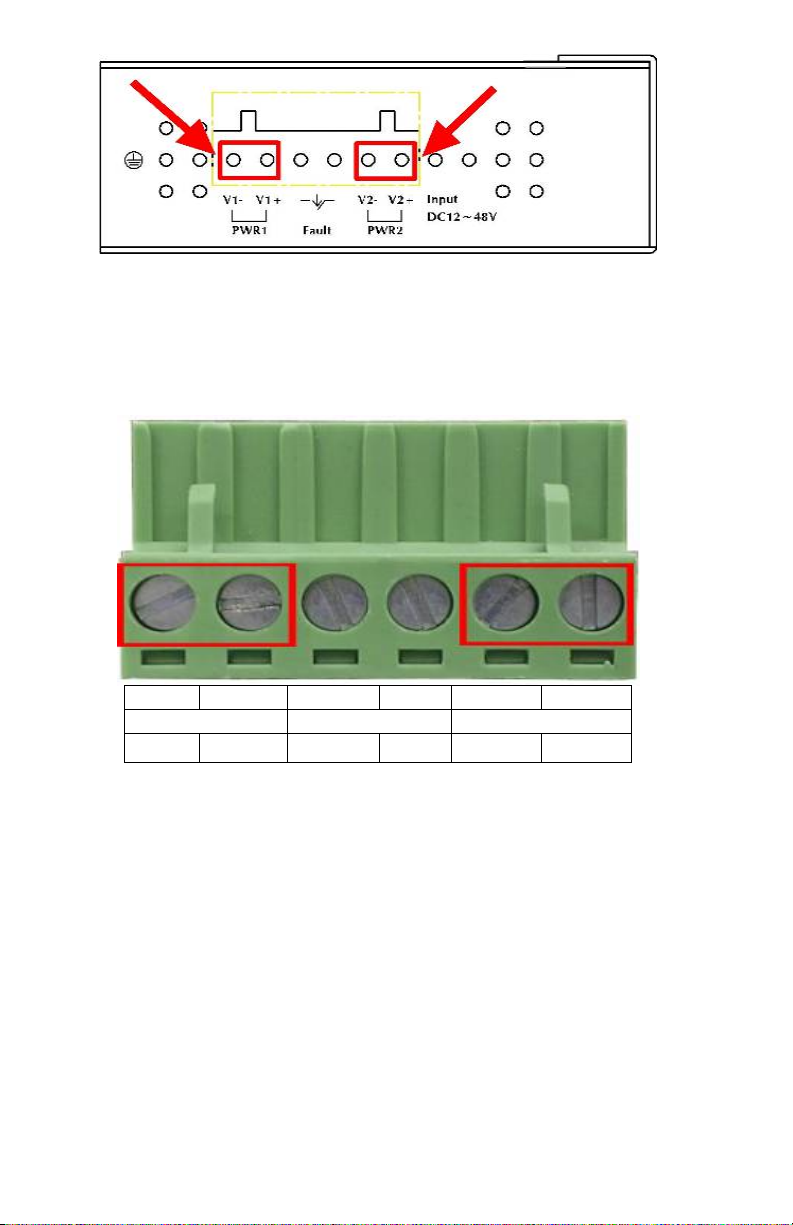

The Top Panel

The top panel of the MC250-4T/1CXT consists of a terminal
block connector with two DC power inputs. Figure 2 shows the
top panel of the MC250-4T/1CXT.

IFS MC250-4T/1CXT User Manual 7

Figure 2: Top Panel

Installation

Installing the MC250-4T/1CXT

The MC250-4T/1CXT does not require any software
configuration. Users can immediately use any feature of this
product simply by attaching the cables and power plug. There
is some key limitation on the MC250-4T/1CXT. Please check
the following items:

MC250-4T/1CXT: The device is used for Point-to-Point
connection only (Master device to Slave device) and is
equipped with one RJ-11 and one BNC connectors for VDSL2
port for network link connection.

Phone wire: Depending on the quality of the telephone line
being used, the maximum distance of one VDSL segment is

1.6km (5249ft) with AWG 24 telephone wires.

Coaxial: Depending on the quality of the coaxial cable being
used, the maximum distance of one VDSL segment is 3.0km
(9842ft) with 50 or 75 ohm coaxial cable.

The distance achieved will vary according to the quality of
telephone wires and coaxial cables.

8 IFS MC250-4T/1CXT User Manual

MC250-4T/1CXT Application Connection

Two sets of the MC250-4T/1CXTs could be used to link two
local Area networks that are located in different locations.
Through a normal telephone line or coaxial cable, 100/55Mbps
(RJ-11) or 100/65Mbps (BNC) asymmetric backbone, can be
setup with one media converter in Master (CO) mode and the
other in Slave (CPE) mode.

Figure 3: MC250-4T/1CXT VDSL2 (RJ-11) connection

Figure 4: MC250-4T/1CXT VDSL2 (BNC) connection

Wiring the Power Inputs

The 6-contact terminal block connector on the top panel of the
MC250-4T/1CXT is used for two DC redundant powers inputs.
Please follow the steps below to insert the power wires.

1. Insert positive / negative DC power wires into the contacts
1 and 2 for POWER 1, or 5 and 6 for POWER 2.

IFS MC250-4T/1CXT User Manual 9

V1- V1+ V2- V2+

2. Tighten the wire-clamp screws to prevent the wires from
disconnecting.

1 2 3 4 5 6

Power 1 Fault Power 2

- + - +

Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle of the terminal block
connector as the picture shows below. Inserting the wires, the
MC250-4T/1CXT will detect the fault status of the power failure
and then forms an open circuit. The following illustration shows
an application example for wiring the fault alarm contacts.

10 IFS MC250-4T/1CXT User Manual

1 2 3 4 5 6

Insert the wires into the fault alarm contacts

Note: The wire gauge for the terminal block should be in the

range between 12 ~ 24 AWG.

The alarm relay circuit accepts up to 30V, max. 3A currents.

Mounting Installation

This section describes how to mount the MC250-4T/1CXT and
make connections to it. Please read the following sections and
perform the procedures in the order presented.

Note: In the installation steps below, this Manual uses the GE-

DSGH-8 (IFS 8 Port Industrial Gigabit Switch) as an example.

However, the steps for any IFS Industrial Switch & Industrial
Media Converter are similar.

IFS MC250-4T/1CXT User Manual 11

Mounting to a DIN-Rail

The DIN-Rail kit comes assembled on the MC250-4T/1CXT
out of the box. Please refer to following figures to hang the
MC250-4T/1CXT on a DIN-Rail.

1. Lightly press the bottom of the DIN-Rail connector mount
into the track.

12 IFS MC250-4T/1CXT User Manual

2. Check that the DIN-Rail connector mount is tightly mounted
on the track.

3. Please refer to following procedures to remove the MC250­4T/1CXT from the track.

4. Lightly press the bottom of DIN-Rail connector mount to
remove it from the track.

Mounting to a Wall

To install the MC250-4T/1CXT on the wall, please follows the
instructions described below.

1. Loosen the screws to remove the DIN Rail from the Media
Converter.

IFS MC250-4T/1CXT User Manual 13

2. Place the wall mount plate on the rear panel of the MC250­4T/1CXT.

3. Assemble the wall mount plate on the MC250-4T/1CXT.

4. Use the hook holes at the corners of the wall mount plate
to hang the MC250-4T/1CXT on the wall.

14 IFS MC250-4T/1CXT User Manual

Troubleshooting

SYMPTOM:

VDSL LNK LED does not light after wire is connected to the
VDSL port.

CHECKPOINT:

• Verify that the length of the wire connected between two
MC250-4T/1CXT is not more than 2.4km. Please also try to
adjust the DIP switch of MC250-4T/1CXT to other SNR
mode.

• Please note you must use one MC250-4T/1CXT with
Master mode and the other MC250-4T/1CXT with Slave
mode.

SYMPTOM:

TP LED does not illuminate after the cable is connected to the
port.

CHECKPOINT:

• Verify that you are using the Cat.5, 5e or 6 cables with RJ­45 connector to connect to the port.

• If your device (i.e. LAN card) supports Auto-Negotiation, try
to set it to a fixed speed manually.

• Make sure that both converter and the connected devices
are turned on.

• Make sure that all cables are properly plugged in to the
correct ports.

• Make sure that the cable is not bad.

• Make sure that the power adapters are functional for each
device.

IFS MC250-4T/1CXT User Manual 15

FAQs

Q1: What is the voltage and current rating to power MC250-

4T/1CXT media converter?

A1: 12 ~ 48V DC

Q2: What is VDSL2?

A2: VDSL2 (Very High-Bit-Rate Digital Subscriber Line 2),

G.993.2 is the newest and most advanced standard of xDSL
broadband wire line communications.

Designed to support the wide deployment of Triple Play
services such as voice, data, high definition television (HDTV)
and interactive gaming, VDSL2 enable operators and carrier to
gradually, flexibly, and cost efficiently upgrade exiting xDSL­infrastructure.

Q3: What distances can be achieved between MC250-4T/1CXT
media converters?

A3: Under ideal conditions and use of quality cable maximum
distances of 1.4 km for telephone wire (POTS) or 2.4km for
coax cable can be achieved.

Q4: What is the maximum date rate for MC250-4T/1CXT?

A4: Under ideal conditions and use of quality cable maximum

distances: 200 meters, 99Mbps/63Mbps
(downstream/upstream) for telephone cable or
100Mbps/65Mbps (downstream/upstream) for coax cable.

Q5: What is SNR and what’s the effect?

A5: In analog and digital communications, Signal-to-Noise

Ratio, often written SNR, is a measure of signal strength

16 IFS MC250-4T/1CXT User Manual

relative to background noise. The ratio is usually measured in
decibels (dB).

In digital communications, the SNR will probably cause a
reduction in data speed because of frequent errors that require
the source (transmitting) computer or terminal to resend some
packets of data. SNR measures the quality of a transmission
channel over a network channel. The greater the ratio, the
easier it is to identify and subsequently isolate and eliminate
the source of noise.

Generally speaking, the higher SNR value gets better line
quality, but lower performance.

Q6: What is band plan and what’s the effect?

A6: VDSL2 defines multiple band plans and configuration

modes (profiles) to allow asymmetric and symmetric services
in the same binder (by designated frequency bands) for the
transmission of upstream and downstream signals. User has
the ability to select fixed band plan. Symmetric band plan

provides better downstream performance while Asymmetric
band plan provides better upstream performance.

IFS MC250-4T/1CXT User Manual 17

Specifications

Ethernet Description

Data Rate 10/100Bast-TX with Auto-negotiate and Auto-MDI/MDI-X
Connectors 4-RJ-45

Cable

VDSL2

VDSL2 Transmission Mode CO/CPE Mode; Channel; Rate Limit; SNR
VDSL-DMT Encoding ITU-T G.993.1 VDSL; ITU-T G.997.1;

Telephone cable
Phone Line connector 1-RJ-11 female

Coaxial Cable 50 or 75 ohm coax

Coax Connector 1-BNC female

VDSL2 Distance >
Data Rate

Distance Twisted-Pr Coax Twisted-Pr Coax
656 ft. (200m) 99/63 Mbps 99/65 Mbps 91/99 Mbps 95/99 Mbps
1,312 ft. (400m) 91/48 Mbps 99/64 Mbps 74/79 Mbps 92/97 Mbps
1,969 ft. (600m) 71/32 Mbps 97/59 Mbps 54/51 Mbps 81/82 Mbps
2,525 ft. (800m) 53/18 Mbps 94/51 Mbps 38/34 Mbps 71/70 Mbps
3,281 ft. (1000m) 38/8 Mbps 84/45 Mbps 27/21 Mbps 60/57 Mbps
3,937 ft. (1200m) 33/5 Mbps 73/37 Mbps 24/15 Mbps 50/44 Mbps
4,593 ft. (1400m) 28/2 Mbps 62/28 Mbps 21/10 Mbps 42/33 Mbps
5,249 ft. (1600m) -- 54/20 Mbps -- 37/27 Mbps
5,906 ft. (1800m) -- 48/13 Mbps -- 29/22 Mbps
6,562 ft. (2000m) -- 38/9 Mbps -- 23/21 Mbps
7,218 ft. (2200m) -- 35/6 Mbps -- 19/17 Mbps
7,874 ft. (2400m) -- 31/4 Mbps -- 19/13 Mbps

LED Indicators

Power

10/100 Base-TX Port

VDSL2 Port

Electrical and Mechanical

Power 12VDC ~ 48VDC

Enclosure IP-30 Rated Metal

Dimensions (H x W x D)
Weight 0.3 lbs. / 83g

Environmental

Operating Temperature -40ºC ~ +75ºC

Storage Temperature -40ºC ~ +85ºC
Relative Humidity 0%–90% (non-condensing)

10 Base-T (Cat 3, 4, 5) / 100Base-TX T (Cat 5, 5e, 6) - 328ft (100m)

ITU-T G.993.2 VDSL2 (Profile 17a support)

24AWG or better

Down Stream / Up Stream

Asymmetric Symmetric

P1: On - Green; P2: On - Green; FAULT: Green

LNK/ACT; 100Mbps - Green

LNK/ACT; CO Mode; CPE Mode; Sync. (Green)

5.3 x 3.5 x 1.26 in. (135 x 87.8 x 32 mm)

18 IFS MC250-4T/1CXT User Manual

Contacting Technical Support

Contact technical support if you encounter any difficulties
during this installation. Please make sure you have the
requested diagnostic or log files ready before you contact us
by phone or go to www.interlogix.com/customer-support.

Technical Support

Europe, Middle East and Africa

W Select Contact Us at www.utcfssecurityproducts.eu

North America

T +1 855.286.8889

E [e-mail]

Australia

E [e-mail]

IFS MC250-4T/1CXT User Manual 19
