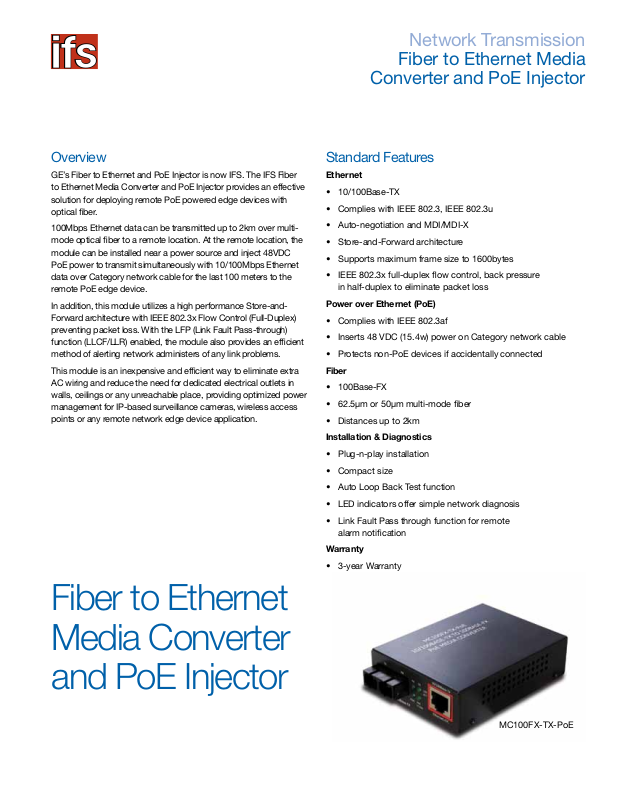

Interlogix MC100FX-TX-POE Specsheet

Network Transmission

Fiber to Ethernet Media

Converter and PoE Injector

Overview

GE’s Fiber to Ethernet and PoE Injector is now IFS. The IFS Fiber
to Ethernet Media Converter and PoE Injector provides an effective
solution for deploying remote PoE powered edge devices with
optical ber.

100Mbps Ethernet data can be transmitted up to 2km over multi­mode optical ber to a remote location. At the remote location, the
module can be installed near a power source and inject 48VDC
PoE power to transmit simultaneously with 10/100Mbps Ethernet
data over Category network cable for the last 100 meters to the
remote PoE edge device.

In addition, this module utilizes a high performance Store-and­Forward architecture with IEEE 802.3x Flow Control (Full-Duplex)
preventing packet loss. With the LFP (Link Fault Pass-through)
function (LLCF/LLR) enabled, the module also provides an efcient
method of alerting network administers of any link problems.

This module is an inexpensive and efcient way to eliminate extra
AC wiring and reduce the need for dedicated electrical outlets in
walls, ceilings or any unreachable place, providing optimized power
management for IP-based surveillance cameras, wireless access
points or any remote network edge device application.

Standard Features

Ethernet

• 10/100Base-TX

• Complies with IEEE 802.3, IEEE 802.3u

• Auto-negotiation and MDI/MDI-X

• Store-and-Forward architecture

• Supports maximum frame size to 1600bytes

• IEEE 802.3x full-duplex ow control, back pressure

in half-duplex to eliminate packet loss

Power over Ethernet (PoE)

• Complies with IEEE 802.3af

• Inserts 48 VDC (15.4w) power on Category network cable

• Protects non-PoE devices if accidentally connected

Fiber

• 100Base-FX

• 62.5μm or 50μm multi-mode ber

• Distances up to 2km

Installation & Diagnostics

• Plug-n-play installation

• Compact size

• Auto Loop Back Test function

• LED indicators offer simple network diagnosis

• Link Fault Pass through function for remote

alarm notication

Warranty

• 3-year Warranty

Fiber to Ethernet
Media Converter
and PoE Injector

MC100FX-TX-PoE

North America

3.82 in.

(97 mm)

OFF

LFP

ON

2.76 in.

(70mm)

3.82 in.

(97 mm)

OFF

LFP

ON

T 888-437-3287
F 503-691-7566
E [e-mail]

Asia
T 852-2907-8108
F 852-2142-5063

Australia and New Zealand
T 613-9239-1200
F 613-9239-1299

Europe
T 44-113-238-1668
F 44-113-253-8121

Latin America
T 561-998-6100
F 561-994-6572

interlogix.com
ufcreandsecurity.com

Specications subject to
change without notice.

© 2011 Interlogix, A UTC Fire & Security Company.
All rights reserved.

GE and the GE monogram are trademarks of the
General Electric Company and a re under license
to UTC Fire & Security, 9 Farm Springs Road,
Farmington, CT 06034- 4065

Agency Compliances

•FCC

•CE

Dimensional Diagram

2.76 in.

(70mm)

ON

LFP

OFF

1.02 in.
(26 mm)

3.82 in.

(97 mm)

3.82 in.

(97 mm)

Specications

Ethernet

Data Rate 10/100Base-TX with Auto-negotiate (IEEE 802.3 / 802.3u)

Throughput (packet per second) 148810pps @ 64Bytes

Switch Architecture Store-and-Forward

Flow Control

Back pressure for Half-Duplex mode
Pause from for Full-Duplex mode (IEEE 802.3x)

Connector RJ-45 with Auto-MDI/MDI-X and PoE injector function

Cable Type and Distance 10Base-T (Cat 3, 4, 5e) or 100Base-T (Cat 5e) – 328ft (100m)

Fiber

Data Rate 100Base-FX

Connector SC

Fiber Type and Distance Multi-mode 50/125μm or 62.5/125μm – Up to 2Km

Optics

Wave-length 1310 nm

Launch Power Min. -19.0dBm; Max. -14dBm

Receive Sensitivity -34.5dBm

Maximum Input Power -14dB

Power over Ethernet (PoE) Injector

PoE Standard IEEE 802.3af

Power PIN Assignment (+) Pins 1 & 2; (–) Pins 3 & 6

Power Output (Max. 1 PoE Device) PoE 48 VDC, Max. 15.4 watts, 350mA

Standard Compliance

Regulation FCC Part 15 Class A, CE

LED Indicators

Power/Status On - Green

10/100Base-T Link Data Activity - Green

100Base-FX Link Data Activity - Green

PoE in Use Detection of PSE Device - Green

LFP Mode Switch

On If either TX or FX port is faulty, disable other port

Off Active link LED will still operate if other port is faulty

Electrical & Mechanical

Power 48V DC @ 0.38A

Enclosure Metal

Dimensions (H x W x D) 3.82 x 2.76 x 1.02 in. (9.7 x 7.0 x 2.6 cm)

Weight 0.44 lbs/200g

Environmental

Operating Temperature 0ºC ~ 50ºC

Storage Temperature -20ºC ~ 70ºC

Relative Humidity 0% ~ 90% (non-condensing)

Ordering Information

MC100FX-TX-PoE Fiber to Ethernet Media Convertor and PoE Injector

Note: External power supply must be purchased separately.

Typical Application

48VDC Input

IP PoE

Camera

MC-100FX-TX-POE

Cat 5e Cable

Ethernet with PoE

100m (328 ft) Max.

Up to 2km

Multi-mode Fiber

or fiber directly from a fiber switch

Network Fiber Switch

MC-100FX-TX-POE

Cat 5e Cable

100m (328 ft) Max.

Network Switch
