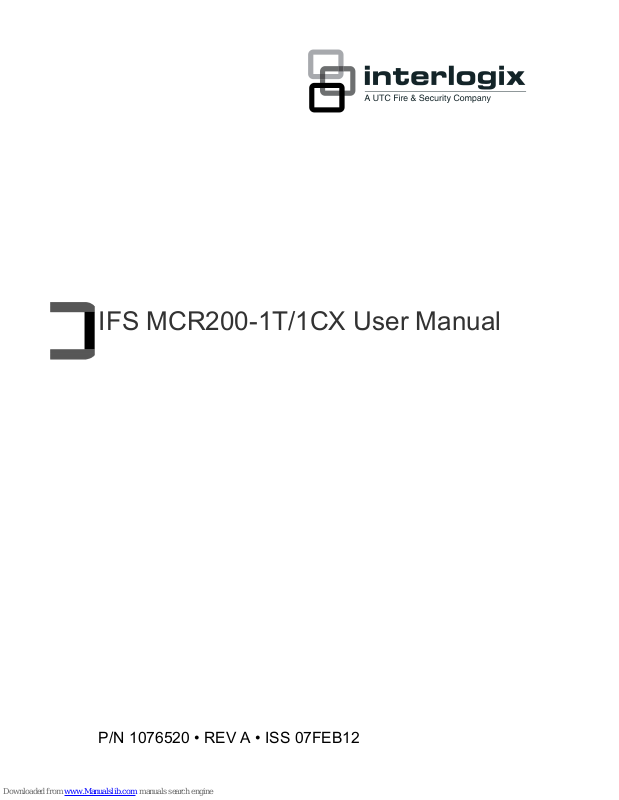

IFS MCR200-1T/1CX User Manual
P/N 1076520 • REV A • ISS 07FEB12
Copyright © 2012 UTC Fire & Security Company. All rights
reserved.
Trademarks and
patents
Interlogix, IFS MCR200-1T/1CX, the IFS Brand
and logo are trademarks of UTC Fire & Security.
Other trade names used in this document may be
trademarks or registered trademarks of the
manufacturers or vendors of the respective
products.
Manufacture
r
UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue, Costa Mesa, CA
92626-5923, USA
EU Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
Version This document applies to IFS MCR200-1T/1CX
version 1.0.
Certification
N4131
FCC compliance Class A: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.
Canada This Class A digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe A est
conforme à la norme NMB-003 du Canada.
ACMA
compliance
Notice! This is a Class A product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures.
European Union
directives
2004/108/EC (EMC directive): Hereby, UTC Fire
& Security declares that this device is in
compliance with the essential requirements and
other relevant provisions of Directive 2004/108/EC
2002/96/EC (WEEE directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
Contact
information
www.utcfireandsecurity.com or
www.interlogix.com
Customer support
www.interlogix.com/customer-support
IFS MCR200-1T/1CX User Manual i
Contents
Overview 1
Package Contents 1
Ethernet over VDSL2 Bridge Description 1
Product Features 3
Hardware Description 4
MCR200-1T/1CX 4
Front Panel 4
LED Indicators 5
Rear Panel 5
Mode DIP Switch 6
CO/CPE 6
Fast and Interleave mode 7
Band Plan 7
Target SNR (Signal Noise Ratio) Margin 7
DC Power Jack 8
Installation 9
Installing the MCR200-1T/1CX 9
MCR200-1T/1CX LAN to LAN connection 9
Connecting the MCR200-1T/1CX 10
Chassis Installation and Rack Mounting 11
Power Information 13
Troubleshooting 14
FAQ 15
Specifications 17
Contacting Technical Support 19
IFS MCR200-1T/1CX User Manual 1
Overview
Package Contents
Check the contents of your package for following parts:
• MCR200-1T/1CX x1
• User’s Manual x1
If any of the items in the package are damaged or missing,
please contact your distributor or IFS sales rep. If possible,
retain the original carton and packaging material in case of
need to return the product for repair/replacement.
Ethernet over VDSL2 Bridge Description
The IFS state-of-the-art Ethernet-over-VDSL2 products are
based on two core networking technologies: Ethernet and
VDSL2 (Very-high-data-rate Digital Subscriber Line 2). This
technology offers the absolute fastest possible data
transmission speeds over existing lines or coaxial cables
without the need for rewiring.
The IFS MCR200-1T/1CX has a switching architecture with
RJ-45 10/100Mbps Ethernet port and one asymmetric or
symmetric Ethernet over VDSL port (Asymmetric refers to
different upstream and downstream rates while symmetric
refers to similar rates.) – which is a BNC Connector.
The MCR200-1T/1CX can be a data transceiver capable of
operating as a Central Office (CO) or Customer Premises
Equipment (CPE) mode via a DIP switch. The MCR2001T/1CX asymmetric performance is up to 100/65Mbps at
200m and up to 25/5Mbps for 3km. The MCR200-1T/1CX
symmetric performance is up to 100/100Mbps at 200m and up
to 17/13Mbps for 3km.
2 IFS MCR200-1T/1CX User Manual
This capability is ideal for use as an Ethernet extender for your
existing Ethernet network.
The MCR200-1T/1CX Converter provides a cost-effective and
efficient analog migration to Long Reach Ethernet (LRE)
networks.
The cable specifications of the connection are listed as
follows:
• 10Base-T, Category 3, 4 or 5 UTP
• 100Base-TX, Category 5, 5e or 6 UTP
• Ethernet over VDSL2, Coaxial cable (50 or 75 ohm)
The following illustrations are typical application diagrams for
the MCR200-1T/1CX.
Note: A Slave device (CPE) must connect to a Master device
(CO) through 50 or 75 ohm coaxial cable. It does not allow
such connections from Master to Master or Slave to Slave.
IFS MCR200-1T/1CX User Manual 3
Product Features
The MCR200-1T/1CX Ethernet over Coax Converter provides
the following key features:
• Cost-effective VDSL2 CO/CPE bridge solution
• One unit design, CO/CPE selectable via DIP Switch
• Defines Asymmetric (Band Plan 998) and Symmetric band
plans for the transmission of Upstream and Downstream
signals
• Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x
standards
• DMT (Discrete Multi-Tone) line coding
• Half Duplex Back Pressure and IEEE 802.3x Full Duplex
Pause Frame Flow Control
• Support up to 1536 bytes packet size, 802.1Q VLAN tag
transparent
• VDSL2 Stand-Alone transceiver for simple bridge modem
application
• Selectable Target Band Plan and Target SNR Margin
• LED indicators for network diagnostics
4 IFS MCR200-1T/1CX User Manual
Hardware Description
MCR200-1T/1CX
The MCR200-1T/1CX provides 1 BNC connector and supports
50 or 75 ohm cable with distances of up to 3.0km.
The MCR200-1T/1CX provides 1 RJ-45 port. It will distinguish
the speed of the incoming connection automatically.
This section describes the hardware features of the MCR2001T/1CX. Front panel illustrations in this chapter describe the
unit LED indicators. Before connecting any network device, we
recommend you read this chapter carefully.
Front Panel
The front panel of the MCR200-1T/1CX provides LEDs for
interface monitoring as shown in Figure 1 and following table.
Figure 1: MCR200-1T/1CX Front Panel
IFS MCR200-1T/1CX User Manual 5
LED Indicators
System
LED
Color Function
On Power ON
PWR Green
Off Power OFF
VDSL
LED
Color Function
On
Indicates that the VDSL link is established.
Fast
Blinking
Indicates that the VDSL link is at training
status (about 10 seconds).
LNK/ACT
Green
Slow
Blinking
Indicates that the VDSL link is at idle status.
CO
Green
On
Indicates the VDSL Bridge is running at CO
mode.
CPE
Green
On
Indicates the VDSL Bridge is running at CPE
mode.
10/100Base-TX Port
LED
Color Function
On Indicates that the port link is On.
Blinking
Indicates that the Converter is actively
sending or receiving data over that port.
LNK/ACT
Green
Off Indicates that the port link is Off.
On
Indicates that the port is operating at
100Mbps.
100
Green
Off
Indicates that the port is off or operating at
10Mbps.
Rear Panel
The units’ rear panel provides a simple interface for monitoring
the MCR200-1T/1CX.
6 IFS MCR200-1T/1CX User Manual
Figure 2: Rear Panel
Mode DIP Switch
The MCR200-1T/1CX provides 4 selective transmission
modes. By switching the transmission modes, you can obtain
the best transmission mode to suit your cable quality or
distance of connectivity. The following is a summary table of
transmission settings, bandwidth and distance extensibility
tested for AWG 24 (0.5mm) twisted-pair without noise and
cross talk.
DIP-1 DIP-2 DIP-3 DIP-4
Mode Channel
Band
Plan
SNR
OFF CO Interleave Symm 9dB
ON
(default)
CPE Fast Asymm 6dB
CO/CPE
CO (Central Office) – the Master device mode, usually the CO
device will be located at the data center of an ISP or enterprise
to link to the backbone. For security surveillance applications,
the CO setting should be selected for use at the IP camera
location to allow for maximum bandwidth utilization of video
streaming.
CPE (Customer Premises Equipment) – the Slave device
mode, usually the CPE device will be located at branch office,
IFS MCR200-1T/1CX User Manual 7
home or remote side as the long reach data receiver. The CPE
can be connected to a PC, IP Camera or Wireless Access
Point network devices. However, for high-end security
surveillance applications, the CPE setting should be selected
for use at the head-end/NVR location.
Note: When the MCR200-1T/1CX operates in the CPE mode,
the DIP switches 2, 3, and 4 settings are non-functional.
Fast and Interleave mode
Fast mode guarantees a minimum end to end latency–less
than 1 ms. Interleaved mode provides impulse noises
protection with a duration less than 250 µs. Interleaved mode
has a maximum end to end latency of 10m sec.
Band Plan
The user can switch the Band Plan either Symmetric or
Asymmetric by their own. While the Symmetric Band Plan
gives better upstream performance, the Asymmetric Plan
gives better downstream performance. Refer to the table on
the previous page.
Target SNR (Signal Noise Ratio) Margin
When fixed SNR margin is selected, the system will maintain
the SNR margin at 9 dB across the entire usable loop length.
Note: The default for the DIP switch settings is "ON" for all
four switches, which sets the CPE mode. For selecting "CO"
mode, please adjust the DIP 1 switch to "OFF".
Please power off the MCR200-1T/1CX before making any
transmission mode adjustments.
8 IFS MCR200-1T/1CX User Manual
DC Power Jack
The MCR200-1T/1CX requires 5 VDC power input (Sold
Separately). If you have problems related to the power
connection, please contact your local sales representative.
Note: This device requires power to operate. For continuous
functionality of the device, using an UPS (Uninterrupted Power
Supply) is recommended to prevent data loss or network
downtime.
For additional protection against unregulated voltage or
current surges, you may also want to consider surge
suppression as part of your installation.
IFS MCR200-1T/1CX User Manual 9
Installation
Installing the MCR200-1T/1CX
The MCR200-1T/1CX does not require any software
configuration. Users can immediately use any feature of this
product simply by attaching the cables and power plug. Based
on the quality of the coaxial cable, the maximum distance of
one connection is 3.0 km (9842 ft.) with 50 ohm coaxial cable.
Changes in the cable quality would affect the maximum
distance of a connection.
MCR200-1T/1CX LAN to LAN connection
Two sets of the MCR200-1T/1CX should be used to link two
local Area networks that are located at different locations.
Through a normal coaxial cable, the devices can be set up as
a 100/65Mbps asymmetric backbone, but one MCR2001T/1CX must be selected as a Master (CO mode) and the
other one as a Slave (CPE mode).
Figure 3: MCR200-1T/1CX LAN to LAN connection
10 IFS MCR200-1T/1CX User Manual
Connecting the MCR200-1T/1CX
Connecting to a Standalone IP device
Refer to the following procedures to setup the MCR2001T/1CX to a standalone PC.
1. Set the MCR200-1T/1CX to be CO or CPE mode from the
DIP switch at the rear panel.
2. Turn power on the MCR200-1T/1CX by connecting its
power source.
3. The power LED will illuminate.
4. Connect the coaxial cable from another MCR200-1T/1CX
to the BNC port of the MCR200-1T/1CX.
5. The LNK LED will blink.
6. Connect the Ethernet port to an Ethernet device via regular
Cat. 5, 5e, or 6 cables.
Figure 4: Connecting Standalone IP devices
Connecting Multiple Ethernet Devices to an Ethernet LAN
Refer to the following procedures to setup the MCR2001T/1CX to an Ethernet LAN.
1. Set the MCR200-1T/1CX to CO or CPE mode by using the
DIP switch at the rear panel.
IFS MCR200-1T/1CX User Manual 11
2. Turn the power on the MCR200-1T/1CX by connecting its
power source.
3. The power LED will illuminate.
4. Connect the coaxial cable from another MCR200-1T/1CX
to the BNC port of the MCR200-1T/1CX.
5. The LNK LED will illuminate.
6. Connect the Ethernet port to an Ethernet Switch (or
Broadband Router) via regular Cat. 5, 5e, or 6 cables.
Figure 5: Connecting Multiple PCs to an Ethernet LAN
Note: Please refer to your Ethernet device User’s Manual for
the device’s set up information.
Chassis Installation and Rack Mounting
To install the MCR200-1T/1CX into the MCR-R15 media
converter rack, follow the instructions described below.
1. Place your MCR200-1T/1CX on a hard flat surface, with
the front panel facing you.
2. Carefully slide in the module until it is fully and firmly fitted
into the slot of the MCR-R15 chassis.
12 IFS MCR200-1T/1CX User Manual
Figure 6: Insert a MCR200-1T/1CX into an available slot of the MCR-R15
3. Attach a rack-mount bracket to each side of the MCR-R15
Chassis with screws supplied with the rack.
4. After the brackets are attached to the MCR-R15 Chassis,
use suitable screws to securely attach the brackets to the
EIA 19” rack.
5. Proceed with the steps 4 and steps 5 of the Stand-alone
Installation on page 11 to connect the network cabling and
supply power to your MCR-R15 Chassis.
Note: It is recommended to use the screws supplied with the
mounting brackets. Otherwise, it may cause damage on the
parts if wrong screws are used to install the rack.
IFS MCR200-1T/1CX User Manual 13
Power Information
The power input of MCR200-1T/1CX is a 2.5mm type in the
central post and requires +5VDC power input. It will work with
the supported power supply, as well as the MCR-R15 media
converter rack chassis. If you need assistance regarding the
correct power supply, please contact your local sales
representative.
2.5mm
DC Receptacle 2.5mm
+5V for each slot
The MCR-R-15 DC outputs are a 2.5mm type that are designed to
power the MCR family of media converters. Do not install any unit that
is not supported by this rack, as this may cause damages on media
converter and the rack backplane connectors.
14 IFS MCR200-1T/1CX User Manual
Troubleshooting
SYMPTOM:
VDSL LNK LED does not light after the cable is connected to
the VDSL port.
CHECKPOINT:
• Verify that the length of the cable connected between two
MCR200-1T/1CX units are not more than 3 km. Please
also try to adjust the DIP switch of MCR200-1T/1CX to
another SNR mode.
• Please note you must use one MCR200-1T/1CX with CO
mode and the other MCR200-1T/1CX with CPE mode,
when connecting them together.
SYMPTOM:
TP LED does not light after a cable is connected to the port.
CHECKPOINT:
• Verify that you are using either Cat.5, 5e, or 6 cables with
an RJ-45 connector to connect to the port.
• If your device (i.e. LAN card) supports Auto-Negotiation, try
to set it to a fixed speed manually.
• Make sure that both converter and the connected devices
are turned on.
• Make sure that all cables are properly plugged in to the
correct ports.
• Make sure that the cable is not bad.
• Make sure that the power adapters are functional for each
device.
IFS MCR200-1T/1CX User Manual 15
FAQ
Q1: What is the voltage and current rating to power MCR200-
1T/1CX media converter?
A1: 5 VDC, 2A
Q2: What is VDSL2?
A2: VDSL2 (Very High-Bit-Rate Digital Subscriber Line 2),
G.993.2 is the newest and most advanced standard of xDSL
broadband wire line communications.
Designed to support the wide deployment of Triple Play
services such as voice, data, high definition television (HDTV)
and interactive gaming, VDSL2 enable operators and carrier to
gradually, flexibly, and cost efficiently upgrade exiting xDSLinfrastructure.
Q3: What is the recommended maximum distance between
MCR200-1T/1CX media converters?
A3: 3 kilometers.
Q4: What is the maximum data rate for MCR200-1T/1CX?
A4: 100Mbps/65Mbps (downstream/upstream) at 200 meters.
Q7: What is SNR and what’s its effect?
A7: In analog and digital communications, Signal-to-Noise
Ratio (SNR) is a measure of signal strength relative to
background noise. The ratio is usually measured in decibels
(dB).
In digital communications, the SNR will probably cause a
reduction in data speed because of frequent errors that require
the source (transmitting) computer or terminal to resend some
16 IFS MCR200-1T/1CX User Manual
packets of data. SNR measures the quality of a transmission
channel over a network channel. The greater the ratio, the
easier it is to identify and subsequently isolate and eliminate
the source of noise.
Generally speaking, the higher SNR value gets better line
quality, but lower performance.
Q8: What is band plan and what’s the effect?
A8: VDSL2 defines multiple band plans and configuration
modes (profiles) to allow asymmetric and symmetric services
in the same binder (by designated frequency bands) for the
transmission of upstream and downstream signals. The user
has the ability to select a fixed band plan.
Symmetric band plan provides better downstream
performance while Asymmetric band plan provides better
upstream performance.
IFS MCR200-1T/1CX User Manual 17
Specifications
Product MCR200-1T/1CX
Hardware Specifications
10/100
Base-TX
1 x RJ-45, Auto-negotiation Auto-MDI/MDI-X
Ports
VDSL
1 x BNC,
female connector
DIP Switch 4 position DIP switch
Functionality
• CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Band Plan
• Selectable target SNR mode
Encoding
• VDSL-DMT
- ITU-T G.993.1 VDSL
- ITU-T G.997.1
- ITU-T G.993.2 VDSL2 (Profile 17a Support)
One Power
3 for RJ-11/VDSL2
LED Indicators
2 for RJ-45 10/100Base-TX port
Ethernet
• 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
• 100Base-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m (328ft)
Cabling
VDSL
50 ohm, RG58A/U, RG58C/U, RG58/U or 75 ohm, RG6
(Distance 3.0km)
18 IFS MCR200-1T/1CX User Manual
Asymmetric Mode
200m -> 100/65Mbps
400m -> 100/64Mbps
600m -> 100/59Mbps
800m -> 100/53Mbps
1000m -> 94/44Mbps
1200m -> 84/36Mbps
1400m -> 74/28Mbps
1600m -> 66/19Mbps
1800m -> 60/14Mbps
2000m -> 44/15Mbps
2200m->35/12Mbps
2400m->32/10Mbps
2600m->29/8Mbps
2800m->27/6Mbps
3000m->25/5Mbps
Symmetric Mode
Performance*
(Down Stream /
Up Stream)
200m ->100/100Mbps
400m -> 97/100Mbps
600m -> 86/91Mbps
800m -> 79/80Mbps
1000m -> 69/66Mbps
1200m -> 60/52Mbps
1400m -> 51/41Mbps
1600m -> 45/36Mbps
1800m -> 40/29Mbps
2000m -> 27/26Mbps
2200m->23/24Mbps
2400m->22/21Mbps
2600m->20/18Mbps
2800m->18/15Mbps
3000m->17/13Mbps
Power Requirement
5V DC, 2A
Operating
Temperature
0~50ºC
Storage Temperature
-10~70ºC
Operating Humidity
10% to 90%, relative humidity, non-condensing
Storage Humidity
10% to 90%, relative humidity, non-condensing
Standard Conformance
Regulation
Compliance
FCC Part 15 Class A, CE
Standards
Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Full Duplex Pause frame Flow Control
ITU-T
。 G.997.1
。 G.993.1 VDSL
。 G.993.2 VDSL2 (Profile 17a)
* The actual data rate will vary on the quality of the cable and environmental factors.
IFS MCR200-1T/1CX User Manual 19
Contacting Technical Support
Contact technical support if you encounter any difficulties
during this installation. Please make sure you have the
requested diagnostic or log files ready before you contact us
by phone or go to www.interlogix.com/customer-support.
Technical Support
Europe, Middle East and Africa
W Select Contact Us at www.utcfssecurityproducts.eu
North America
T +1 855.286.8889
E techsupport@interlogix.com
Australia
E techsupport@interlogix.au
Loading...
