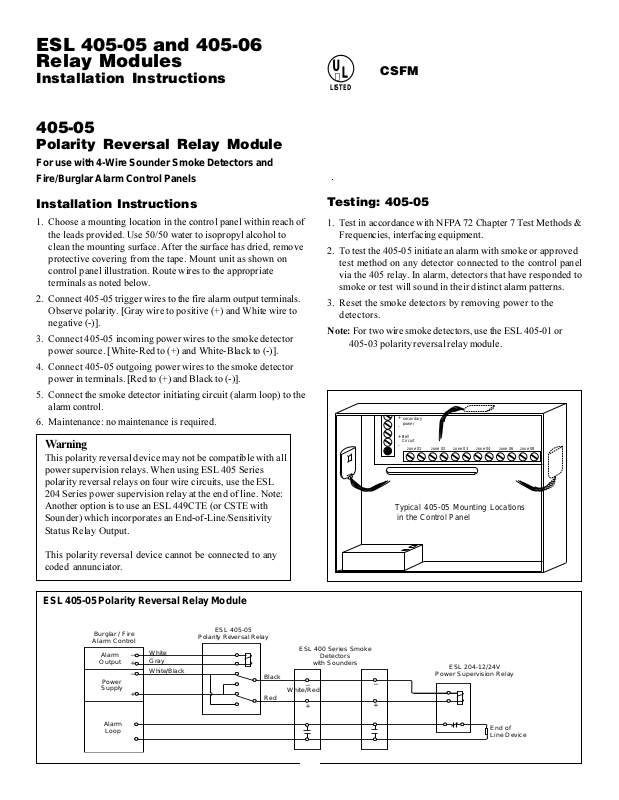

ESL 405-05 and 405-06 Relay Modules

Installation Instructions

405-05

Polarity Reversal Relay Module

For use with 4-Wire Sounder Smoke Detectors and Fire/Burglar Alarm Control Panels



LISTED

CSFM

Installation Instructions

1. Choose a mounting location in the control panel within reach of the leads provided. Use 50/50 water to isopropyl alcohol to clean the mounting surface. After the surface has dried, remove protective covering from the tape. Mount unit as shown on control panel illustration. Route wires to the appropriate terminals as noted below.

2. Connect 405-05 trigger wires to the fire alarm output terminals. Observe polarity. [Gray wire to positive (+) and White wire to negative (-)].

3. Connect 405-05 incoming power wires to the smoke detector power source. [White-Red to (+) and White-Black to (-)].

4. Connect 405-05 outgoing power wires to the smoke detector power in terminals. [Red to (+) and Black to (-)].

5. Connect the smoke detector initiating circuit (alarm loop) to the alarm control.

6. Maintenance: no maintenance is required.

Warning

This polarity reversal device may not be compatible with all power supervision relays. When using ESL 405 Series polarity reversal relays on four wire circuits, use the ESL 204 Series power supervision relay at the end of line. Note: Another option is to use an ESL 449CTE (or CSTE with Sounder) which incorporates an End-of-Line/Sensitivity Status Relay Output.

Testing: 405-05

1. Test in accordance with NFPA 72 Chapter 7 Test Methods & Frequencies, interfacing equipment.

2. To test the 405-05 initiate an alarm with smoke or approved test method on any detector connected to the control panel via the 405 relay. In alarm, detectors that have responded to smoke or test will sound in their distinct alarm patterns.

3. Reset the smoke detectors by removing power to the detectors.

Note: For two wire smoke detectors, use the ESL 405-01 or

405-03 polarity reversal relay module.

Typical 405-05 Mounting Locations in the Control Panel

This polarity reversal device cannot be connected to any coded annunciator.

ESL 405-05 Polarity Reversal Relay Module

Burglar / Fire

Alarm Control

Alarm

Output

Power

Supply

Alarm

Loop

− +

−

White Gray

White/Black

ESL 405-05

Polarity Reversal Rela y

Black

Red

ESL 400 Series Smoke

Detectors

with Sounders

−

White/Red

ESL 204-12/24V

−

Power Supervision Relay

End of Line Device

405-06 DPDT Relay Module

For use as a Universal Switch Device

Installation Instructions

1. Connect 405-06 trip wires to trigger circuit. Observe polarity. [Gray to positive (+) and White to negative (-)].

2. Connect the 405-06 DPDT relay contacts as required. The first set of contacts are:

common red

closed white-red

open white-blue

3. The second set of contacts are:

common black

closed white-black

open blue

4. When fail safe operation is required, wire the relay in the powered or energized condition.

5. Do not exceed rating of relay.

6. Testing: 405-06

Test unit in accordance with NFPA 72 Chapter 7 Test Methods and Frequencies, interface equipment.

To test the 405-06, energize the relay coil and confirm the contacts tranfer.

NC COM NO

White-Black Black

Blue

ESL 405-06 DPDT Relay

4300 Series Wireless Smoke Alarm

White-Red Red White-Blue

hite W

+ Gray

Specifications for 405-05 & 405-06

Operating voltage..........................................................8.5-33VDC

Maximum operating current............................34.0 mA at 12 VDC

35.0 mA at 24 VDC

Relay contacts ............................ 2 A at 30 VDC, 1 A at 120 VAC

Operating temperature .................32° F to 120° F (0° C to 49° C)

Operating humidity range .................0 to 85% Non-condensing

Dimensions ..................................1.8 in. (4.6 cm) x 1.7 in. (4.3 cm)

Wire connections ............... 18 AWG stranded, tinned, 18 long

SENTROL-CADDX

12345 SW Leveton Dr., Tualatin, OR 97062 Tel.: 503.692.4052 Fax: 503.691.7566 http://www.sentrol.com

ESL

a product of sentrol

U.S. & Canada: 800.547.2556 Technical Service: 800.648.7424 FaxBack: 1.800.483.2495

Sentrol-Caddx reserves the right

to change specifications

without notice.

12859 Rev B 07/00
