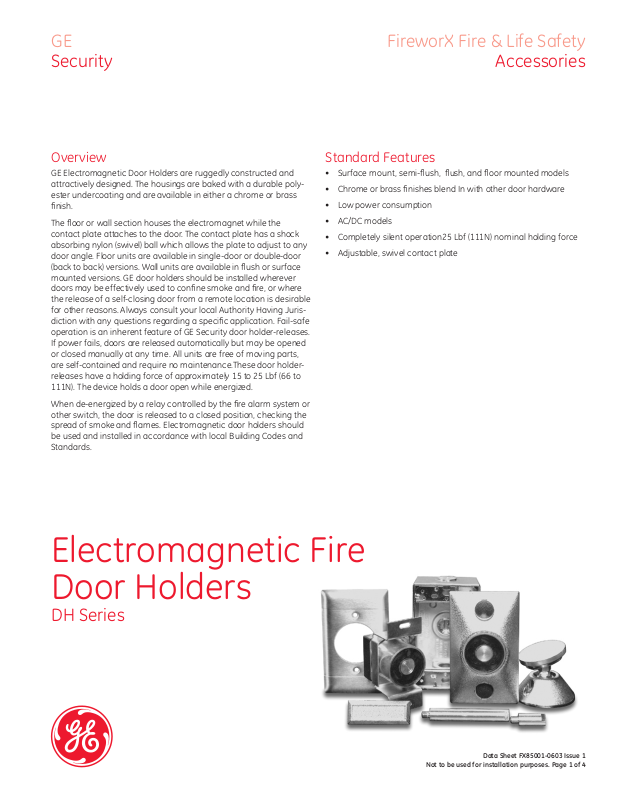

GE
FireworX Fire & Life Safety
Security
Overview
GE Electromagnetic Door Holders are ruggedly constructed and
attractively designed. The housings are baked with a durable polyester undercoating and are available in either a chrome or brass
finish.
The floor or wall section houses the electromagnet while the
contact plate attaches to the door. The contact plate has a shock
absorbing nylon (swivel) ball which allows the plate to adjust to any
door angle. Floor units are available in single-door or double-door
(back to back) versions. Wall units are available in flush or surface
mounted versions. GE door holders should be installed wherever
doors may be effectively used to confine smoke and fire, or where
the release of a self-closing door from a remote location is desirable
for other reasons. Always consult your local Authority Having Jurisdiction with any questions regarding a specific application. Fail-safe
operation is an inherent feature of GE Security door holder-releases.
If power fails, doors are released automatically but may be opened
or closed manually at any time. All units are free of moving parts,
are self-contained and require no maintenance.These door holderreleases have a holding force of approximately 15 to 25 Lbf (66 to
111N). The device holds a door open while energized.
When de-energized by a relay controlled by the fire alarm system or
other switch, the door is released to a closed position, checking the
spread of smoke and flames. Electromagnetic door holders should
be used and installed in accordance with local Building Codes and
Standards.
Accessories
Standard Features
•
Surface mount, semi-flush, flush, and floor mounted models
Chrome or brass finishes blend In with other door hardware
•
Low power consumption
•
AC/DC models
•
Completely silent operation25 Lbf (111N) nominal holding force
•
Adjustable, swivel contact plate
•
Electromagnetic Fire
Door Holders
DH Series
Not to be used for installation purposes. Page 1 of 4
Data Sheet FX85001-0603 Issue 1
Surface Mount Back Box Dimensions
3.3”
8.4 cm
1.1”
2.8 cm
4.6”
11.7 cm
Door Magnet
4.7”
11.7 cm
3.3”
8.4 cm
1.2”
3.0 cm
2.75”
7.0 cm
Extension Rod Applications
and Accessories
DHW
(Wrench)
DH-ER3
2.54 cm
1.0”
DH-ER1
2.4”
5.2 cm
2.8”
7.1 cm
Catch Plate Assembly
2.5”
6.4 cm
1.1”
2.8 cm
.95”
2.4 cm
5.1 cm
2.0”
5.1 cm
2.0”
Not to be used for installation purposes. Page 2 of 4
Data Sheet FX85001-0603 Issue 1
Extension Rod Applications
C L H C L H
C L H C L H
C L H
C L H
and Accessories
(C+L) Low
Voltage
Low Voltage
High Voltage
(C+H) High
Voltage
Catch Plate Assembly
Low Voltage
Voltage Reference
C — Common
L — Low
H — High
High Voltage
Performance Data
Model Voltage DC/mA AC/mA Terminals Coil lbs kg. (Nominal)
DHX*-1224 12V 30 30 C&L Single 35 15.9
24V 15 15 C&H Single 35 15.9
DHX*-24120 24V 15 15 C&L Single 35 15.9
120V — 15 C&H Single 35 15.9
DHFM†-1224 12V 60 60 C&L Double 35 15.9
24V 60 60 C&H Double 35 15.9
DHFM†-24120 24V 30 30 C&L Double 35 15.9
120V — 30 C&H Double 35 15.9
* For all models, “X” represents either F (Flush Mount), FM (Floor Mount single-coil), R (Recessed), or S (Surface Mount).
† For Floor Mount, double coil models.
NOTE: Voltage supplied by a UL listed control panel
Not to be used for installation purposes. Page 3 of 4
Data Sheet FX85001-0603 Issue 1
GE
Security
U.S.
T 888-GESECURITY
F 503-691-7566
Canada
T 519 376 2430
F 519 376 7258
Asia
T 852 2907 8108
F 852 2142 5063
Latin America
T 305 593 4301
F 305 593 4300
www.gesecurity.com/fireworx
© 2009 General Electric Company
All Rights Reserved
Ordering Information
Model Description Case Qty
Wall Mount
DHR-1224C 12 or 24 V DC/V AC, recess-mount, chrome, with 3” Extension Rod 20/case
DHR-24120C 24 V DC/V AC 120V AC, recess-mount, chrome, with 3” Extension Rod 20/case
DHF-1224C 12 or 24 V DC/V AC, semi-flush-mount , chrome 20/case
DHF-1224B 12 or 24 V DC/V AC, semi-flush-mount , brass 20/case
DHF-24120C 24 V DC/V AC 120V AC, recess-mount, chrome 20/case
DHF-241OB 24 V DC/V AC 120V AC, semi-flush-mount, brass 20/case
DHS-1224C 12 or 24V DC/V AC, surface-mount, chrome 20/case
DHS-1224B 12 or 24V DC/V AC, surface-mount , brass 20/case
DHS-24120C 24V DC/V AC 120V AC, surface-mount, chrome 20/case
DHS-2412OB 24V DC/V AC 120V AC, surface-mount, brass 20/case
Floor Mount
DHFM1-1224 Single coil, 12 or 24VDC/VAC, floor-mount, brushed steel 6/case
DHFM1-24120 Single coil, 24VDC/VAC 120VAC, floor-mount, brushed steel 6/case
DHFM2-1224 Double coil, 12 or 24VDC/VAC, floor-mount, brushed steel 6/case
DHFM2-24120 Double coil, 24VDC/VAC 120VAC, floor-mount, brushed steel 6/case
Extension Rods
DHFM1-1224 Single coil, 12 or 24VDC/VAC, floor-mount, brushed steel
DH-ER1C 1” chrome
DH-ER1B 1” brass
DH-ER3C 3” chrome
DH-ER3B 3” brass
Accessories
DHW Extension rod wrenches
DH-BP Back Plate (chrome or brass)
DH-ARMC Replacement armature, chrome
DH-ARMB Replacement armature, brass
imagination at work
Not to be used for installation purposes. Page 4 of 4
Data Sheet FX85001-0603 Issue 1
