Interlogix DE7210M Specsheet
®
System Design
DE7230M: 1310 nm, Single Mode
12 VDC @ 200 mA
IFS
Line / Fiber Transmission

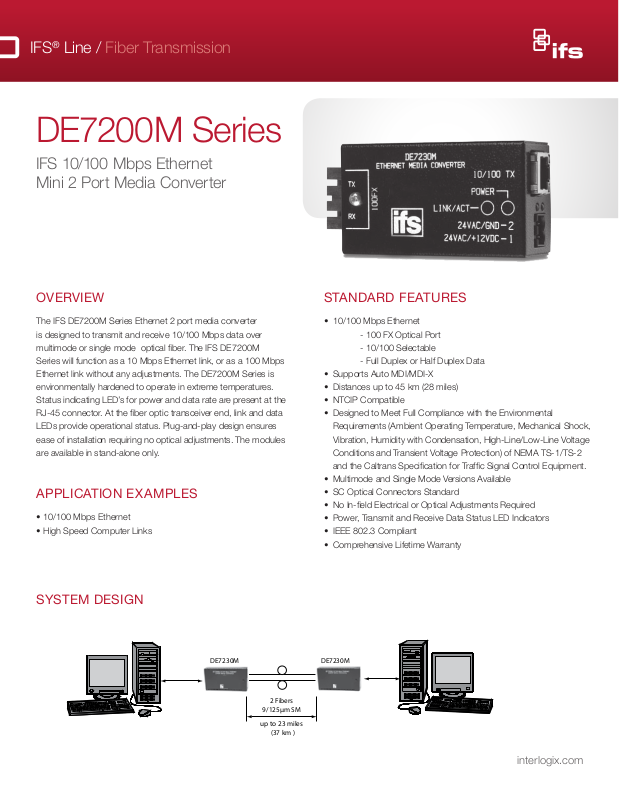

DE7200M Series
IFS 10/100 Mbps Ethernet
Mini 2 Port Media Converter
OVERVIEW
The IFS DE7200M Series Ethernet 2 port media converter
is designed to transmit and receive 10/100 Mbps data over
multimode or single mode optical fiber. The IFS DE7200M
Series will function as a 10 Mbps Ethernet link, or as a 100 Mbps
Ethernet link without any adjustments. The DE7200M Series is
environmentally hardened to operate in extreme temperatures.
Status indicating LED’s for power and data rate are present at the
RJ-45 connector. At the fiber optic transceiver end, link and data
LEDs provide operational status. Plug-and-play design ensures
ease of installation requiring no optical adjustments. The modules
are available in stand-alone only.
APPLICATION EXAMPLES
• 10/100 Mbps Ethernet
• High Speed Computer Links
STANDARD FEATURES
• 10/100 Mbps Ethernet
- 100 FX Optical Port
- 10/100 Selectable
- Full Duplex or Half Duplex Data
• Supports Auto MDI/MDI-X
• Distances up to 45 km (28 miles)
• NTCIP Compatible
• Designed to Meet Full Compliance with the Environmental
Requirements (Ambient Operating Temperature, Mechanical Shock,
Vibration, Humidity with Condensation, High-Line/Low-Line Voltage
Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2
and the Caltrans Specification for Traffic Signal Control Equipment.
• Multimode and Single Mode Versions Available
• SC Optical Connectors Standard
• No In-field Electrical or Optical Adjustments Required
• Power, Transmit and Receive Data Status LED Indicators
• IEEE 802.3 Compliant
• Comprehensive Lifetime Warranty
SYSTEM DESIGN
DE7230M
DE7230M
2 Fibers
9/125µm SM
up to 23 miles
(37 km )
interlogix.com
Specifications
Data
Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚
Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM
D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM
Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2
D1030: 2 D1030WDMA: 1 D1030WDMB: 1
Connectors
Optical: ST
Data and Power: Terminal Block with Screw Clamps
Electrical & Mechanical
Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.
GE
Security
North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E sales@ifs.com
Asia
T 852-2907-8108
F 852-2142-5063
Australia and New Zealand
T 613-9239-1200
F 613-9239-1299
Europe
T 44-113-238-1668
F 44-113-253-8121
Latin America
T 305-593-4301
F 305-593-4300
gesecurity.com/ifs
Specifications subject to
change without notice
© 2008 General Electric Company
All Rights Reserved
DE7200M Series
IFS 10/100 Mbps Ethernet Mini 2 Port Media Converter
Ordering Information
Multimode 62.5/125µm** DE7210M 10/100 Mbps Ethernet (1310 nm) 2 10 dB 1.2 miles (2 km)
Single Mode 9/125µm DE7230M 10/100 Mbps Ethernet (1310 nm) 1 15 dB 23 miles (37 km)
Accessories ♦
*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.
♦ All accessories are third party manufactured.
Specifications
Data
Data Interface: Ethernet
Data Rate: 10/100 Mbps, IEEE 802.3 Compliant
Operating Mode: Full Duplex of Half Duplex
Wavelength
DE7210M: 1310 nm, MM
DE7210MWDM: 1310/1550 nm, MM
DE7230M: 1310 nm Single Mode
Number Of Fibers
Connectors
Power: Terminal Block with Screw Clamps
Optical: SC
Data: RJ-45
Electrical & Mechanical
Power: 24 VAC @ 110 mA
Voltage Regulation: Solid-state; independent on each board
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 1.0 x 2.0 x 3.5 in., 2.5 x 5.1 x 8.9 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)
North America
T 855-286-8889
Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*
10/100 Mbps Ethernet (1310 /1550 nm) 1 8 dB 1.2 miles (2 km)
DE7210MWDMA
DE7210MWDMB
PS12VDC1.5A-U 12VDC, 1.5A Plug-in Power supply (110/220VAC) with Universal power plug adapter kit (Included)
10/100 Mbps Ethernet (1550/1310 nm) 1 8 dB 1.2 miles (2 km)
Latin America
T 561-998-6114
WDMA must mate with a WDMB
1 or 2
12 VDC @ 200 mA
Specifications subject to change without notice.
Interlogix is part of UTC Building & Industrial Systems,
Standard for Laser Products, Title 21,
Code of Federal Regulations, Subchapter J
© 2013 United Technologies Corporation
a unit of United Technologies Corporation.
Agency Compliance
Complies with FDA Performance
interlogix.com
All rights reserved.
