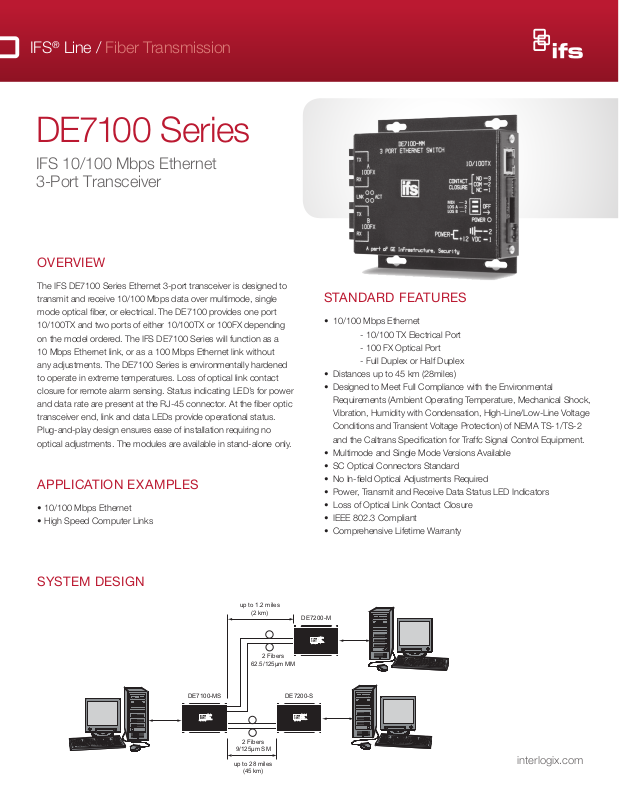

Interlogix DE7100-SS Specsheet
®
DE7100-SS, ES, MS: 1310 nm, Single Mode
IFS
Line / Fiber Transmission
DE7100 Series
I
FS 10/100 Mbps Ethernet
3-Port Transceiver
OVERVIEW
he IFS DE7100 Series Ethernet 3-port transceiver is designed to
T
transmit and receive 10/100 Mbps data over multimode, single
mode optical fiber, or electrical. The DE7100 provides one port
10/100TX and two ports of either 10/100TX or 100FX depending
on the model ordered. The IFS DE7100 Series will function as a
10 Mbps Ethernet link, or as a 100 Mbps Ethernet link without
any adjustments. The DE7100 Series is environmentally hardened
to operate in extreme temperatures. Loss of optical link contact
closure for remote alarm sensing. Status indicating LED’s for power
and data rate are present at the RJ-45 connector. At the fiber optic
transceiver end, link and data LEDs provide operational status.
Plug-and-play design ensures ease of installation requiring no
optical adjustments. The modules are available in stand-alone only.
APPLICATION EXAMPLES
• 10/100 Mbps Ethernet
• High Speed Computer Links
STANDARD FEATURES
• 10/100 Mbps Ethernet
- 10/100 TX Electrical Port
- 100 FX Optical Port
- Full Duplex or Half Duplex
• Distances up to 45 km (28miles)
• Designed to Meet Full Compliance with the Environmental
Requirements (Ambient Operating Temperature, Mechanical Shock,
Vibration, Humidity with Condensation, High-Line/Low-Line Voltage
Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2
and the Caltrans Specification for Traffc Signal Control Equipment.
• Multimode and Single Mode Versions Available
• SC Optical Connectors Standard
• No In-field Optical Adjustments Required
• Power, Transmit and Receive Data Status LED Indicators
• Loss of Optical Link Contact Closure
• IEEE 802.3 Compliant
• Comprehensive Lifetime Warranty
SYSTEM DESIGN
System Design
DE7100-MS
International
Fiber
Systems
ifs
Incorporated
203.426.1180
up to 1.2 miles
(2 km)
2 Fibers
62.5/125μm MM
2 Fibers
9/125μm SM
up to 28 miles
(45 km)
DE7200-M
DE7200-S
International
Fiber
Systems
ifs
Incorporated
203.426.1180
International
Fiber
Systems
ifs
Incorporated
203.426.1180
interlogix.com
Specifications
Data
Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚
Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM
D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM
Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2
D1030: 2 D1030WDMA: 1 D1030WDMB: 1
Connectors
Optical: ST
Data and Power: Terminal Block with Screw Clamps
Electrical & Mechanical
Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.
GE
Security
North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E sales@ifs.com
Asia
T 852-2907-8108
F 852-2142-5063
Australia and New Zealand
T 613-9239-1200
F 613-9239-1299
Europe
T 44-113-238-1668
F 44-113-253-8121
Latin America
T 305-593-4301
F 305-593-4300
gesecurity.com/ifs
Specifications subject to
change without notice
© 2008 General Electric Company
All Rights Reserved
DE7100 Series
FS 10/100 Mbps Ethernet 3-Port Transceiver
I
Ordering Information
Electrical DE7100-EE 10/100 Mbps Ethernet N/A N/A 328 Ft. (100 m)
Multimode 62.5/125µm** DE7100-MM 10/100 Mbps Ethernet (1310 nm) 4 10 dB 1.2 miles (2 km)
MM/SM DE7100-MS 10/100 Mbps Ethernet (1310 nm) 4 10 dB/15 dB
Single Mode 9/125µm DE7100-SS 10/100 Mbps Ethernet (1310 nm) 4 15 dB 28 miles (45 km)
Accessories ♦
*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.
♦
All accessories are third party manufactured.
Specifications
Data
Data Interface: Ethernet
Data Rate: 10/100 Mbps, IEEE 802.3 Compliant
Operating Mode: Full Duplex of Half Duplex
Wavelength
DE7100-MM, EM, MS 1310 nm, Multimode
DE7100-SS, ES, MS 1310 nm, Single Mode
Number Of Fibers
Connectors
Power: Terminal Block with Screw Clamps
Optical SC
Data: RJ-45
Electrical & Mechanical
Power: 12 VDC @ 200 mA
Voltage Regulation: Solid-state; independent on each board
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.0 x 3.0 x 1.0 in., 10.2 x 7.6 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)
North America
T 855-286-8889
Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*
DE7100-SE 10/100 Mbps Ethernet (1310 nm) 2 15 dB 28 miles (45 km)
PS12VDC1.5A-U 12VDC, 1.5A Plug-in Power supply (110/220VAC) with Universal power plug adapter kit (Included)
2, 4
Latin America
T 561-998-6114
1.2 miles (2 km) MM
28 miles (45 km) SM
Interlogix is par t of UTC Building & Industrial Systems,
Code of Federal Regulations, Subchapter J
Specifications subject to change without notice.
© 2013 United Technologies Corporation
a unit of United Technologies Corporation.
Agency Compliance
Complies with FDA Performance
Standard for Laser Products, Title 21,
interlogix.com
All rights reser ved.
DE7100 Series
