Interlogix Concord Express Installation Manual

Concord Express Installation Instructions

P/N 466-1665 • REV • OCT12

Trademarks and

patents

Concord is trademarks of UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the

manufacturers or vendors of the respective products.

Manufacturer

UTC Fire & Security Americas Corporation, Inc. 1275 Red Fox Rd., Arden Hills, MN 55112-6943, USA

Contact information

www.utcfireandsecurity.com or www.interlogix.com

Customer support

www.interlogix.com/customer-support

Notices

FCC Notices

FCC Part 15 Information to the User

Changes or modifications not expressly approved by UTC Fire & Security can void the user’s authority to operate the equipment.

FCC Part 15 Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the affected equipment and the panel receiver to separate outlets, on different branch circuits.

• Consult the dealer or an experienced radio/TV technician for help.

ACTA Part 68

This equipment complies with Part 68 of the FCC Rules. Located on this equipment is a label that contains, among other information, the FCC registration number and the ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

FCC Part 68 Registration No. B4ZUSA-27621-AL-E REN: 0.2B The REN is used to determine the maximum number of devices that may be connected to your telephone line. Excessive

RENs on a telephone line may result in devices not ringing in response to an incoming call. In most areas, the sum of all device RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements as adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compliant modular jack that is also compliant. See the Installation Instructions for details.

Alarm dialing equipment must be able to seize the telephone line and place a call in an emergency situation. It must be able to do this even if other equipment (telephone, answering system, computer modem, etc.) already has the telephone line in use. To do so, alarm dialing equipment must be connected to a properly installed RJ31X jack that is electrically in series and ahead of all other equipment attached to the same telephone line. Proper installation is depicted in the following diagram. If you have any questions concerning these instructions, consult your local telephone company or a qualified installer about installing an RJ31X jack and alarm dialing equipment for you.

If this equipment causes harm to the telephone network, the telephone company may temporarily disconnect your service. If possible, you will be notified in advance. When advance notice is not practical, you will be notified as soon as possible. You will also be advised of your right to file a complaint with the FCC.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. You will be given advance notice in order to maintain uninterrupted service.

If you experience trouble with this equipment, please contact the company that installed the equipment for service and/or repair information. The telephone company may ask you to disconnect this equipment from the network until the problem has been corrected or you are sure that the equipment is not malfunctioning.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs

Patent Information

This product and the use of this product may be covered by one or more of the following patents: 5,805,063, 5,872,512, 5,942,981, 4,855,713. Except expressly provided herein, the purchase of this product shall not constitute a license or otherwise provide a right to practice a method covered by any of the identified patents. UTC Fire & Security hereby grants the purchaser of this product a limited, non-exclusive license to practice the methods patented in the identified patents solely with products manufactured, sold or licensed by UTC Fire & Security. This license grant does not extend to the use of unlicensed, third party products with this product.

Canada notice

The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safety requirements. The department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

For your protection, make sure that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together

Caution: Do not attempt to make connections yourself. Contact the appropriate electrician or electric inspections

authority.

The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop which is used by the device, to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the requirement that the total of the LNs of all the devices does not exceed 100. Load Number: .1 The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met. IC: 867A 787SIMON

“AVIS: - L ´étiquette du ministère des Communications du Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme a certaines normes de protection, d ´ exploitation et de sécurité des réseaux de télécommunications. Le ministère n ´ assure toutefois pas que le matériel fonctionnera a la satisfaction de l ´ utilisateur.

Avant d ´ installer ce matériel, l ´ utilisateur doit s ´ assurer qu´ il est permis de le raccorder aux installations de l ´ enterprise locale de télécommunication. Le matériel doit également etre installé en suivant une méthod acceptée de raccordement. Dans certains cas, les fils intérieurs de l´ enterprise utilisés pour un service individuel a ligne unique peuvent etre prolongés au moyen d´ un dispositif homologué de raccordement (cordon prolongateur téléphonique interne). L ´ abonné ne doit pas oublier qu ´ il est possible que la conformité aux conditions énoncées ci-dessus n ´ empechent pas le dégradation du service dans certaines situations. Actuellement, les enterprises de télécommunication ne permettent pas que l ´ on raccorde leur matériel a des jacks d ´ abonné, sauf dans les cas précis prévus pas les tarrifs particuliers de ces enterprises.

Les réparations de matériel homologué doivent etre effectuées pas un centre d ´ entretien canadien autorisé désigné par le fournisseur. La compagne de télécommunications peut demander a l ´ utilisateur de débrancher un appareil a la suite de réparations ou de modifications effectuées par l ´ utilisateur ou a cause de mauvais fonctionnement.

Pour sa propre protection, l ´ utilisateur doit s ´ assurer que tous les fils de mise a la terre de la source d ´ énergie électrique, des lignes téléphoniques et des canalisations d ´´ eau métalliques, s ´ il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales.

Avertissment. - L ´ utilisateur ne doit pas tenter de faire ces raccordements lui-meme; il doit avoir recours a un service d ´ inspection des installations électriques, ou a electricien, selon le cas”.

Une note explicative sur les indices de charge (voir 1.6) et leur emploi, a l ´ intention des utilisateurs du matériel terminal, doit etre incluse dans l ´ information qui accompagne le materiel homologué. La note pourrait etre rédigée selon le modèle suivant:

“L ´ indice de charge (IC) assigné a chaque dispositif terminal indique, pour éviter toute surcharge, le pourcentage de la

charge totale qui peut etre raccordée a un circuit téléphonique bouclé utilisé par ce dispositif. La terminaison du circuit bouclé peut etre constituée de n ´ import somme des indices de charge de l ´ ensemble des dispositifs ne dépasse pas

100.” L ´ Indice de charge de cet produit est ____________.

Content

Notices

Chapter 1 Installation 1

Special installation requirements 2 Planning the Installation 6 Installing the System 7

Chapter 2 Programming 27

Entering programming mode 28 Programming Tier 1 Menu Items 30 Programming Tier 2 Menu Items 32

Chapter 3 Testing/Troubleshooting 71

Troubleshooting 76

Appendix A System configuration worksheets 85 Appendix B Programming mode menus and settings 103 Appendix C Software release notes and specifications 107

Concord Express Installation Instructions i

Chapter 1

Installation

This manual provides information for planning, installing, programming, and testing this security system. When necessary, this manual refers you to other documentation included with compatible devices.

Planning sheets are included for you to record hardware layout and software programming settings.

Content

Special installation requirements 2

UL Listed Systems 2 UL-Canada Listed Systems 5

Planning the Installation 6

Standard Panel 6 Touchpads 6 SnapCard™ 7

Installing the System 7

Determine the Panel Location 8 Total System Power and Wire Length Guidelines 8 Mounting the Panel 10 Identify Panel Components 11 Connecting the Panel to Earth Ground 12 Installing Optional SnapCards 13 Installing Optional Hardwire Input Modules (HIMs) 13 Connecting Detection Devices to Panel Zone Inputs#14 Connecting Sirens#17 Connecting Siren Drivers, Self-Contained Sirens, and Bells 19 Connecting Touchpads#20 Installing an RJ-31X Phone Jack (13-081)#21 Connecting the Phone Line to the Panel with a DB-8 Cord 22 Connecting the AC Power Transformer 23 Powering Up the Panel 24

Concord Express Installation Instructions 1

Chapter 1

Special installation requirements

This security system can be used as a wire warning system, an intrusion alarm system, an emergency notification system, or any combination of the three.

Some installations may require configurations dictated by city or state codes,

insurance, or Underwriter’s Laboratories (UL). This section describes the various

component and configuration listings.

UL Listed Systems

This section describes the requirements for UL Listed systems. Basic System

• Control Panel (60-806, 60-806-95R)

• Backup Battery, 12 VDC, 4 AH (60-681)

• SuperBus 2000 2x16 LCD Touchpad (60-746-01), SuperBus 2000 Fixed

Display Touchpad (60-820), SuperBus 2000 2x20 LCD Touchpad (60-803), or SuperBus 2000 2x20 VFD Touchpad (60-804)

• Standard Class II 16.5 VAC, 25 VA Power Transformer; manufacturer—Tech Electro Ind, Inc. Part No. 48A0164 (60-822) or Standard Class II 16.5 VAC, 40 VA Power Transformer; MG Electronics Model # MGT1640CC, UTC Fire & Security # 22-156

• 15-Watt, Dual Tone Siren (13-469) or Hardwire Siren (13-046)

Household Burglary Alarm System Unit (UL 1023)

Basic system, plus:

• Hardwire Magnetic Contact (Sentrol part # 1075-N or 1038T-N) or Wireless Learn Mode Door/Window Sensor (60-362), Wireless Learn Mode PIR Motion Sensor (60-703-95, 60-511, or 60-639)

• IMMEDIATE TROUBLE BEEPS set to on

• UL 98 OPTIONS set to on

• RECEIVER FAILURE set to on

• EXIT DELAY set to 60 seconds or less

• QUICK EXIT set to off

• SIREN TIMEOUT set to 4 minutes or more

• SIREN VERIFY set to on

• ENTRY DELAY set to 45 seconds or less

2 Concord Express Installation Instructions

Chapter 1

• RF TX TIMEOUT set to 24 hours

• EXTENDED DELAY set to off

• TWO TRIP ERROR set to off

• ALARM VERIFY set to off

• DISABLE TROUBLE BEEPS set to off

• SYSTEM TAMPER set to on

Household Fire Warning System (UL 985)

Basic system plus:

• Hardwire Smoke Detector: System Sensor models 2100D, 2100TD, 2100S, 2100TS, 2400, or 2400TH learned into Sensor Group 26 Sentrol (ESL) models 429AT, 521B, or 521BXT learned into sensor group 26

• Wireless Smoke Sensor 60-506-319.5 or 60-645-95 learned into sensor group 26

• IMMEDIATE TROUBLE BEEPS set to on

• UL 98 OPTIONS set to on

• RECEIVER FAILURE set to on

• SIREN VERIFY set to on

• RF TX TIMEOUT set to 4 hours

• ALARM VERIFY set to off

• DISABLE TROUBLE BEEPS set to off

UL 1023 & 985 24-Hour Backup

For 24-hour backup, the total current draw for all connected devices is limited to 90 mA continuous using a 4.0 AH battery.

SIA System Requirements

Note: UL requirements take priority over SIA requirements.

SIA system requirements are the same as those described for a UL Listed Basic System on page 1, plus:

• If multiple annunciation is required, use Hardwire Siren part no.13-046.

SIA Setting Requirements

The following table describes programming requirements to meet ANSI-SIA CP-

01.

Concord Express Installation Instructions 3

Chapter 1

Shortcut #

Function

Programmin g page reference

Default setting

Required setting

0003

SIA False Alarm Reduction

0013

Exit Extension

0014

Auto Stay Arming

0016

Duress Code

Disabled

02005

Dialer Abort

02006

Dialer Abort Delay

30 Sec.

15-45 sec.

02007

Cancel Message

02009

Call Wait Cancel

Disabled

On if reporting to central station and customer has call waiting

0310

Entry Delay

30 sec.

30-240 sec.

0311

Exit Delay

60 sec.

45-184 sec.

05014

Swinger Limit

52 1 1

0900

Smoke Verify

Off

On if smoke alarms are programmed into system

N/A

Cross Zoning

Disabled

Enabled for zones with a high probability of false alarms

Function

Operation

Disarm During Entry Delay

Enter Code Only (or 1 + CODE)

Cancel Alarm

Enter Code Only (or 1 + CODE)

Abort Annunciation

Enabled

Cancel Report Annunciation

Enabled

The following table describes non-programmable (hard coded) system operation as required to meet ANSI-SIA CP-01 and is provided only for your reference.

UL 1635 Digital Alarm Communicator System

Note: For UL 1635 installations, Entry Delay plus Dialer Abort Delay must not

exceed 60 seconds. Same as UL 1023 & 985 plus:

4 Concord Express Installation Instructions

Chapter 1

• AC FAILURE set to on

• PHONE NUMBER must be programmed

• HIGH LEVEL REPORTS set to on.

• LOW LEVEL REPORTS set to on

• PHONE TEST set to on

• AUTO PHONE TEST set to on

• PHONE TEST FREQ. set to 1

• NEXT PHONE TEST set to 1

• LOW CPU BATTERY set to on

• COMM FAILURE set to on

• RF TX TIMEOUT set to 4 hours

Central Station Reporting

The panel has been tested with the following central station receivers using SIA and Contact ID reporting formats:

• CS-5000 Central Station Receiver

• Sur-Gard Central Station Receiver with models SG-DRL2A and SG-CPM2

UL-Canada Listed Systems

This section describes the requirements for ULC (UL Canada) Listed systems.

• CSA Certified Accessories The UL-Canada Basic System is nearly the same as the “UL Basic System” described previously, the only difference being that you must use the ITI 60679-CN Class II transformer (Basler part number BE 116250-AAA) to power the panel.

• Residential Burglary Alarm System Unit (CAN/ULC-S309)

Same as “UL Basic System and Household Burglary Alarm System Unit (UL

1023)” described previously and siren timeout must be set to 5 minutes or

more.

Residential Fire Warning System Control Unit (CAN/ULC-S545-M89)

Same as “UL Basic System and Household Fire Warning System (UL 985)”

described previously. Note: For 24-hour backup, external power drain is limited to 90 mA continuous

using a 4.0AH battery.

California State Fire Marshall Listed Systems

Same as Household Fire Warning System (UL 985), plus:

Concord Express Installation Instructions 5

Chapter 1

• SMOKE VERIFY must be set to off

Planning the Installation

This section describes the system capabilities to help you get familiar with the system. To help you prepare for system installation, Appendix A provides planning sheets with tables that let you record the hardware and programming configuration of the system.

Standard Panel

The following describes the basic panel (out-of-box) hardware capabilities.

• Power: Input for an AC step-down, plug-in style transformer.

• Auxiliary Power Output: Output that supplies up to 750 mA (90 mA for UL

Listed systems) at 12 VDC for bus devices and hardwired detectors, such as touchpads and motion detectors.

• Bus A and B: Input and output that provide communication between bus

devices and the panel.

• 2 Onboard Outputs: One 12-volt and one open-collector output that can be

set up to activate other signalling devices, based on system events.

• 6 Supervised Hardwire Zones: Factory programmed inputs for various

hardwired detectors (see “Accessory Modules Menu” on page 60 for a list of factory programmed settings). Zone 6 can be set up in programming to accept 2-wire smoke detectors.

• Built-In Radio Receiver: Allows use of UTC Fire & Security 319.5 MHz.

crystal and/or SAW Learn Mode wireless sensors and touchpads.

• Phone Line Connection: Allows the panel to communicate with central

monitoring stations and pagers.

Touchpads

The following describes the different touchpads that can be used for system programming and operation.

• SuperBus 2000 2x16 LCD Alphanumeric Touchpad: Provides complete

system programming and operation control. Displays system messages, and indicates system status.

6 Concord Express Installation Instructions

Chapter 1

• SuperBus 2000 2x20 LCD/VFD Alphanumeric Touchpads: Provide complete system programming and operation control, display system messages and indicate system status.

• SuperBus 2000 Fixed Display LCD Touchpad: Provides operation control and user programming access (not installer or dealer programming). Displays system messages and indicates system status.

SnapCard™

The following SnapCards expand the system as described:

• 8Z Input SnapCard: Provides eight additional hardwire zone inputs, of which two are dedicated for 2-wire smoke detectors.

• 4 Output SnapCard: Provides four form C relay outputs that can be set up to activate other signalling devices, based on system events.

• 4Z Input/2 Output Combo SnapCard: Provides three standard hardwire zone inputs, one 2-wire smoke detector loop input, and two outputs that can be set up to activate other signalling devices that are based on system events.

Installing the System

This section describes how to install the system control panel. Before starting the installation, plan your system layout and programming using the worksheets provided in Appendix A.

Installing the system consists of the following steps:

• Determining the Panel Location

• Identifying Total System Power and Wire Length Guidelines

• Mounting the Panel

• Identifying Panel Main Components

• Installing Optional SnapCards

• Installing Optional HIMs

• Connecting Detection Devices to Panel Zone Inputs

• Connecting Sirens

• Connecting Touchpads

• Installing an RJ-31X Phone Jack

• Connecting the Phone Line to the Panel with a DB-8 Cord

• Connecting the AC Power Transformer

• Powering Up the Panel

Concord Express Installation Instructions 7

Chapter 1

Determine the Panel Location

Before permanently mounting the panel, determine the location using the following guidelines:

• To help reduce wire run lengths and labor, centrally locate the panel with relation to detection devices whenever possible.

• Avoid running wires parallel with electrical wiring or fixtures, such as fluorescent lighting, to prevent wire runs from picking up electrical noise.

• Mount the panel at a comfortable working height (about 45 to 55 inches from the floor to the bottom of the panel, as shown in Figure 1 below).

• Leave space to the left and right of the panel for wiring, phone jack, and optional modules.

• For installations that include wireless sensors, allow at least 10 inches above the panel cabinet for the antenna.

• Allow at least 24 inches in front of the panel for opening the panel door.

Figure 1: Determining panel location

Total System Power and Wire Length Guidelines

Note: A) Class 2, Class 3, and power-limited fire alarm circuits must be installed

using FPL, FPLR, FPLP, or substitute cable permitted by the National Electrical Code ANSI/NFPA 70. Wire that extends beyond the cable jacket must be separated from all other conductors by a minimum of 1/4-inch or by a nonconductive barrier. OR

8 Concord Express Installation Instructions

Chapter 1

Panel terminal

Voltage range

Max. current

4 (+12V)

8.5 - 14.2 VDC

9.1 - 14.2 VDC (UL)

750 mA—non-UL Listed systems 90 mA—UL Listed systems

7 (OUT1/+12)

8.5 - 14.2 VDC

1.25 A at default configuration—non-UL Listed systems 650 mA—UL Listed systems

17 (Z6/2W+)

8.9 - 13.7 VDC

80 mA

Device

Max. wire length to panel

Wire type

AC Power Transformer

18 AWG—25 ft.

Stranded

Earth Ground

16 AWG—25 ft.

Solid

Telephone (RJ-31X)

as required

Stranded

Detection Devices

22 or 18 AWG—300 ohms maximum loop resistance + 2k end-of-line

Stranded

2-Wire Smoke Detectors

22 AWG—330 ft. 18 AWG—830 ft. (based on 10 ohms maximum loop resistance + 2k end-of-line)

Stranded

Sirens

22 AWG—80 ft. 18 AWG—200 ft. when using siren models 13-469 or 13-046

Stranded

SuperBus 2000 2x16 LCD Alphanumeric Touchpad

22 AWG—300 ft. 18 AWG— 750 ft.

Stranded SuperBus 2000 Fixed Display LCD Touchpad

22 AWG—300 ft.

18 AWG— 750 ft.

Stranded

SuperBus 2000 2x20 LCD Alphanumeric Touchpad

22 AWG—250 ft.

18 AWG— 600 ft.

Stranded

(B) Class 2, Class 3, and power-limited fire alarm circuit conductors must be installed as Class 1 or higher circuits.

Table 1 below describes panel voltage/current output ranges. See Appendix A for maximum and standby device current draw.

Table 1: Panel voltage/surrent output ranges

Total system wire allowed varies depending on devices powered by the panel, wire length between devices and the panel, and the combined wire length of all devices.

Table 2 below describes the maximum wire length allowed between compatible devices and the panel.

Table 2: Maximum device wire lengths

Concord Express Installation Instructions 9

Chapter 1

Device

Max. wire length to panel

Wire type

SuperBus 2000 2x20 VFD Alphanumeric Touchpad

22 AWG—250 ft.

18 AWG— 600 ft.

Stranded SuperBus 2000 Hardwire Input Module

22 AWG—1,800 ft.

18 AWG— 4,500 ft.

Stranded

Mounting the Panel

Use the following procedure to mount the panel to the wall or wall studs.

Caution: Make sure you are free of static electricity whenever you work on the

panel with the cover open. To discharge any static, first touch the metal panel chassis, then stay in contact with the chassis when touching the circuit board. Using an approved grounding strap is recommended.

To mount the panel cabinet and circuit board:

1. Open the panel door and slide it up to remove it from the cabinet. Set the door aside.

2. Remove the knockout to provide access for system wiring (see Figure 2 below).

3. Feed all device wires through the knockout and place the panel in position against the wall.

4. Level the panel and mark the top and bottom mounting holes (see Figure 2 below).

Figure 2: Mounting holes

10 Concord Express Installation Instructions

Chapter 1

5. Install anchors where studs are not present.

6. Partially insert screws into the two top mounting hole locations, then hang the panel on the two screws.

7. Recheck for levelness, insert the two lower screws, and tighten all four mounting screws.

8. Install the antenna housing (included with the panel) by pushing it down into the top left hole of the cabinet until it snaps into place (see Figure 3 below).

9. Install the circuit board into the cabinet, inserting the loop antenna loop up into the antenna housing (see Figure 3 below), then secure the circuit board with the four mounting screws (included).

Figure 3: Installing the antenna housing and the circuit board

Identify Panel Components

Before installing devices and making wiring connections, familiarize yourself with the main components of the panel. Figure 4 on page 12 shows the main component locations on the circuit board.

Concord Express Installation Instructions 11

Chapter 1

Figure 4: Main component locations

Connecting the Panel to Earth Ground

For maximum protection from lightning strikes and transients, connect the lowerright circuit board screw to earth ground as shown in Figure 5 below. Use 16gauge, solid copper wire from an earth grounded cold water pipe clamp to the panel.

Note: For best results, it is recommended that you crimp a spade lug on the wire end at the panel and secure the lug under the circuit board screw as shown in Figure 5 below.

Figure 5: Connecting the panel to earth ground

12 Concord Express Installation Instructions

Chapter 1

Installing Optional SnapCards

The SnapCard Header on the lower-left side of the panel accepts one of the following SnapCard models:

• 8Z Input SnapCard—60-757

• 4 Output SnapCard—60-758

• 4Z Input/2 Output Combo SnapCard—60-756

Install the desired SnapCard onto the panel SnapCard Header and secure it in place with two screws, included with the card (Figure 6 below).

Connect all necessary input/output wiring using the installation instructions included with the SnapCard.

Figure 6: Installing a SnapCard

Installing Optional Hardwire Input Modules (HIMs)

Each SuperBus 2000 8-Zone Input Module (60-774) adds eight supervised hardwire zones to the system. Both normally open and normally closed detectors can be wired to module inputs (see Figure 8 on page 15).

Connect all necessary input/output wiring using the installation instructions included with the HIM.

Note: Use of the HIM with the Concord™ Express panel has not been

investigated by UL.

Concord Express Installation Instructions 13

Chapter 1

Figure 7: Installing and connecting the HIM in the Concord Express

Connecting Detection Devices to Panel Zone Inputs

The panel comes with six factory programmed onboard hardwire zones (see “Accessory Modules Menu” on page 60 for factory settings). Zone inputs 1 through 6 are supervised using a 2k-ohm, end-of-line resistor (included with panel) at the last device on the circuit.

Note: Install an end-of-line resistor on all unused, factory programmed, onboard panel zones.

All six zones accept either normally open (N/O) or normally closed (N/C) detection devices (see Figure 8 on page 15).

The maximum loop resistance for each zone input is 300 ohms, plus the 2k endof-line (EOL) resistor.

Connecting Intrusion Detection Devices

Figure 8 on page 15 shows the typical wiring for N/C and N/O door/window intrusion detection.

14 Concord Express Installation Instructions

Chapter 1

Figure 8: Connecting N/C and N/O intrusion detection circuits

Figure 9 below shows the typical wiring for Optex model RX-040 (PI) PIR motion detectors. The minimum available panel voltage for hardwired PIR motion detectors is 8.5 VDC (9.1 VDC for UL Listed systems).

Figure 9: Connecting a PIR motion detector

Connecting 2-Wire Smoke Detectors

Zone input 6 can be set up (in program mode) to accept 12 VDC, 2-wire smoke detectors by the following manufacturers:

• System Sensor models 2100D, 2100TD, 2100S, 2100TS, 2400, 2400TH

• Sentrol (ESL) models 429AT, 521B, 521BXT—models 521B and 521BXT

require the following dip switch settings: 1-on, 2-off.

Concord Express Installation Instructions 15

Chapter 1

Note: When using 2-wire smoke detectors on Zone 6, the Two-Wire Smoke setting (in program mode) must be turned on before entering the LEARN SENSORS menu. See ONBOARD OPTIONS—INPUTS in the section “Entering programming mode” on page 28 for complete details.

WARNING: Use only 2-wire smoke detector models described above. Alarm

signals from other detectors may not be processed correctly if the panel has lost AC power and is operating only from the backup battery.

When set up for 2-wire smoke detectors, zone 6 can handle up to 10 smoke detectors with 120 µA maximum idle current per detector. Maximum total loop current allowed in an alarm condition is 80 mA. The maximum loop resistance for 2-wire smoke detectors connected to zone input 6 is 10 ohms, plus the 2k endof-line resistor.

Caution: Panel terminal 16 (ZCOM/2W-) cannot be used as a common

loopconnection for any other zones, when using Zone 6 for 2-wire smoke detectors.

Connect one or more 2-wire smoke detectors to the panel as shown in Figure 10 below.

Figure 10: Connecting 2-wire smoke detectors

Connecting 4-Wire Smoke Detectors

Zone inputs 1 through 6 can be used with 4-wire smoke detectors that latch and remain in the alarm state until power is removed and then restored to the detector.

16 Concord Express Installation Instructions

Chapter 1

The panel provides this power interruption from panel terminal 8 (OUT2/OC) provided that the output configuration number is set (in program mode) to 01500.

For more information on output configuration numbers, see the section “Programming the Panel” and the tables in Appendix A. Use only 4-wire smoke detectors that operate on 8.5 to 14.2 VDC.

Note: The Two-Wire Smoke setting (in program mode) must be off when connecting 4-wire smoke detectors to zone 6. For UL Listed systems, 4-wire smoke detectors cannot be connected to onboard panel zone inputs.

Connect up to five Sentrol (ESL) model 449AT (ITI part no. 13-360) smoke detectors to panel power input as shown in Figure 11 below.

Figure 11: Connecting 4-wire smoke detectors

Connecting Sirens

Note: Install all sirens/speakers indoors, in a concealed location.

Two onboard programmable outputs allow for siren connections when using the default setting of each output. For more information on output configuration numbers, see the section “Programming the Panel” and the tables in Appendix A.

The following describes siren connections using the default settings of each onboard output.

Concord Express Installation Instructions 17

Chapter 1

Note: If the backup battery is not connected, or if the configuration of panel terminal 7 is programmed to anything other than the default (00410), then the combined currents of terminal 7 (OUT 1/+12) and terminal 4 (+12V) must not exceed 750 mA.

15-Watt, Dual Tone Siren (13-469)

Panel terminal 7 (OUT1/+12V) is a +12V programmable output. At the default configuration setting (00410), this output can provide up to 1.25 A during an alarm (650 mA for UL Listed systems) if the backup battery is connected.

The default configuration setting (00410) activates the output during any audible alarm, allowing for a siren connection without changing the output configuration number.

Note: For UL Listed systems, Siren Verify must be on.

Figure 12: Connecting 15-watt, Dual-Tone siren 13-469

Note: Some versions of this siren may have two wires of each color. Only one

black wire and one yellow wire are needed for panel connections. For UL Listed installations, you can connect only one 15-Watt, Dual-Tone Siren

to panel terminals 3 and 7 as shown in Figure 12 above. For all other installations, connect up to two sirens. This siren does not require an end-of-line resistor.

Hardwire Siren (13-046)

Connect one or two sirens to the panel with supervision as shown in Figure 13 on page 19. If Siren Verify is turned off, the 2k end-of-line resistor is not required.

Note: For UL Listed systems, Siren Verify must be on and the 2k end-of-line resistor installed.

18 Concord Express Installation Instructions

Chapter 1

Figure 13: Connecting hardwire siren 13-046

Interior Piezo Siren (30-006)

Panel terminal 8 (OUT2/OC) is an open-collector (switched path-to-ground), programmable output that can handle up to a 200 mA current.

The default setting (01710) activates the output for status and alarm tones, which allows for a piezo siren connection without changing the output configuration number.

Connect the piezo siren to the panel terminals with a 2k end-of-line resistor as shown in Figure 14 below.

Note: Piezo siren connections to terminal 8 require a 2k end-of-line resistor that can be located at the panel since it does not supervise the circuit.

Figure 14: Connecting an interior piezo siren

Note: If using an external power supply instead of panel terminal 4, the supply

voltage must be limited to 9.5 VDC maximum and the negative side of the power supply must be connected to panel ground (terminal 3).

Connecting Siren Drivers, Self-Contained Sirens, and Bells

Power for a siren driver, self-contained siren, or bell can be connected to panel terminals 7 (OUT1/+12V) and 3 (GND).

Concord Express Installation Instructions 19

Chapter 1

Panel terminal 7 (OUT1/+12V) is a +12-volt programmable output. At the default configuration setting (00410), this output can provide up to 1.25 A during an alarm (650 mA for UL Listed systems) if the backup battery is connected.

The default configuration setting (00410) activates the output during any audible alarm.

The following siren drivers, self-contained sirens, and bells have been tested and found compatible for use with the panel:

• Moose Models MPI-11 (use only 8-ohm speaker loads), MP-47, MP-47B

• Altronix Model ALSD2 (4- or 8-ohm speaker loads)

• ATW Models DT-24, DS508 (both self-contained)

• Wheelock MB-G6-12 Six-inch, 12V Bell Refer to the manufacturer’s documentation for installation details.

Connecting Touchpads

• SuperBus 2000 2x16 LCD Alphanumeric Touchpad (60-746-01)

• SuperBus 2000 2x20 LCD Alphanumeric Touchpads (60-803, 60-809)

• SuperBus 2000 2x20 VFD Alphanumeric Touchpad (60-804, 60-810)

• SuperBus 2000 Fixed Display LCD Touchpad (60-820)

Alphanumeric touchpads can be used for installer programming, system operation, and user programming. Fixed display touchpads can be used for system operation and user programming but not for installer programming.

Note: Be sure to have an alphanumeric (programming) touchpad on hand for onsite programming in installations that do not include one as part of the final system configuration. This programming touchpad can be connected to the Programming Touchpad Header (see Figure 15 on page 21) using a Programming Touchpad Cable (part no. 60-791).

Connect 2x16 and fixed display LCD touchpads to the panel power output and bus terminals as shown in Figure 15 on page 21.

The 2x20 LCD/VFD touchpads include a supervised hardwire input for connection to a hardwire detection device (see Figure 15 on page 21 for an example of a normally closed connection).

20 Concord Express Installation Instructions

Chapter 1

Connect 2x20 LCD/VFD touchpads to the panel power output and bus terminals as shown in Figure 15 below.

Figure 15: Connecting 2x16 Alphanumeric Fixed Display LCD touchpad and 2x20 LCD/VFW touchpads

Installing an RJ-31X Phone Jack (13-081)

Note: The panel cannot be used on a digital or PBX phone line. These systems

are designed only for digital type devices that operate anywhere from 5 volts DC and up. The panel uses an analog modem and does not have a digital converter, adapter, or interface to operate with such systems.

Use the following guidelines when installing an RJ-31X phone jack for system control by phone and central station monitoring.

• Locate the RJ-31X jack (CA-38A in Canada) no further than five feet from the panel.

• The panel must be connected to a standard analog (loop-start) phone line.

• For full line seizure, install an RJ-31X phone jack on the premises phone line

so the panel is ahead of all phones and other devices on the line. This allows the panel to take control of the phone line when an alarm occurs even if the phone is in use or off-hook.

• If an analog line is not available, contact your customers’ telecommunications specialist and tell him/her you need an analog line off the phone switch (PBX mainframe) or a 1FB (standard business line).

Concord Express Installation Instructions 21

Chapter 1

To connect a phone line to the panel using an RJ-31X/CA-38A jack:

1. Run a 4-conductor cable from the TELCO protector block to the jack location (see A in Figure 16 below).

2. Connect one end of the cable to the jack (see B in Figure 16 below).

Figure 16: Installing an RJ-31X Phone Jack

3. At the TELCO protector block, remove the premises phone lines (lines from phone jacks on premises) from the block and splice them to the black and white (or yellow) wires of the 4-conductor cable (see C in Figure 16 above).

Note: Connecting the panel to an analog line off the phone switch places the panel ahead of the phone system which prevents panel access from phones on the premises. However, the panel can still be accessed from off-site phones.

4. Connect the green and red wires from the 4-conductor cable to the TIP (+) and RING (-) posts on the block (see D in Figure 16 above).

5. Check the phones on the premises for dial tone and the ability to dial out and make phone calls. If phones do not work correctly, check all wiring and make

corrections where necessary. Proceed to the “Troubleshooting” section of this

manual if problems persist.

Connecting the Phone Line to the Panel with a DB-8 Cord

After installing the RJ-31X jack, you are ready to connect the phone line to the panel. A DB-8 cord (not included) uses a plug at one end for connecting to the RJ-31X module and flying leads on the other end for panel terminal connections.

22 Concord Express Installation Instructions

Chapter 1

To connect the DB-8 cord to the panel terminals and RJ-31X jack:

1. Connect the green, brown, gray, and red flying leads from the DB-8 cord to panel terminals 18, 19, 20, and 21 (see Figure 17 below).

2. Insert the DB-8 cord plug into the RJ-31X (see Figure 17 below).

Figure 17: Connecting the DB8 cord

3. Check the phones on the premises for dial tone and the ability to dial out and make phone calls. If phones do not work correctly, check all wiring and correct where necessary. Proceed to the “Troubleshooting” on page 76 of this manual if problems persist.

Connecting the AC Power Transformer

Note: If you plan on connecting an alphanumeric touchpad to the programming

touchpad header on the panel, do not connect it until after the panel is powered up. Refer to “Entering Programming Mode.”

The panel must be powered by a plug-in stepdown transformer that supplies 16.5 VAC, 25 VA (60-822 or 60-679-CN). Connect the power transformer to the panel as shown in Figure 18 on page 24.

Caution: Do not plug in the power transformer at this time. The panel must be

powered up using the sequence of steps described in “Powering Up the Panel” on page 24.

Concord Express Installation Instructions 23

Chapter 1

Figure 18: Connecting the power transformer

Powering Up the Panel

Note: Without AC power, shutdown will occur if battery voltage falls below 10.2

VDC. After installing SnapCards and wiring all devices to the panel, you are ready to

apply AC and backup battery power to the panel.

To power up the panel:

1. Connect the red and black battery leads (included with panel) to the lugs located in the upper-left area of the panel circuit board (see Figure 19 below).

Figure 19: Connecting the backup battery

2. Connect the battery leads to the battery terminals as shown.

3. Plug the transformer into an outlet that is not controlled by a switch or ground fault circuit interrupt (GFCI).

24 Concord Express Installation Instructions

Chapter 1

Alphanumeric touchpads display ************, SCANNING BUS DEVICES, then a date and time display. Fixed display touchpads briefly show all text, no text, BUS SCAN, then a time display.

4. To permanently mount the transformer, unplug it and remove the existing screw securing the AC outlet cover.

5. Hold the outlet cover in place and plug the transformer into the lower receptacle.

6. Use the screw supplied with the transformer to secure the transformer to the outlet cover.

WARNING: Use extreme caustion when securing the transformer to a metal

outlet cover. You could receive a serious shock if a metal outlet cover drops onto the prongs of the plug while you are securing the transformer and cover to the outlet box.

Note: If touchpads don’t display anything, immediately unplug the transformer and disconnect the backup battery. Refer to the “Troubleshooting” on page 76.

Concord Express Installation Instructions 25

Chapter 2

Programming

This section describes how to program all settings found in programming mode. For on-site system programming, an alphanumeric touchpad is required.

Content

Entering programming mode 28

Touchpad Button Programming Functions 29 Moving Through Program Mode Tiers and Menus 29

Programming Tier 1 Menu Items 30 Programming Tier 2 Menu Items 32

Using Shortcut Numbers 32 Exiting Programming Mode 64 Entering User Programming Mode 64 Downloader Programming 69

Concord Express Installation Instructions 27

Chapter 2

Entering programming mode

Enter programming mode on site from an alphanumeric touchpad using an installer/dealer code (default = 4321). The system can be put into program mode only when it is disarmed.

To enter programming mode using an alphanumeric touchpad connected to the panel terminals:

1. Make sure the system is disarmed.

2. Press 8 + CODE + 0 + 0. The touchpad shows SYSTEM PROGRAMMING.

Note: If the programming touchpad is connected before the panel is powered up, it will be added (learned) into panel memory as a permanent touchpad.

To enter programming mode using a programming touchpad:

1. Connect the red, black, green, and white wires from the Programming Touchpad Cable (60-791) to the power and bus wires on an alphanumeric touchpad while matching the wire colors on each.

2. Make sure the system is powered up and disarmed.

3. Connect the plug on the cable onto the panel programming touchpad header (see Figure 20 below).

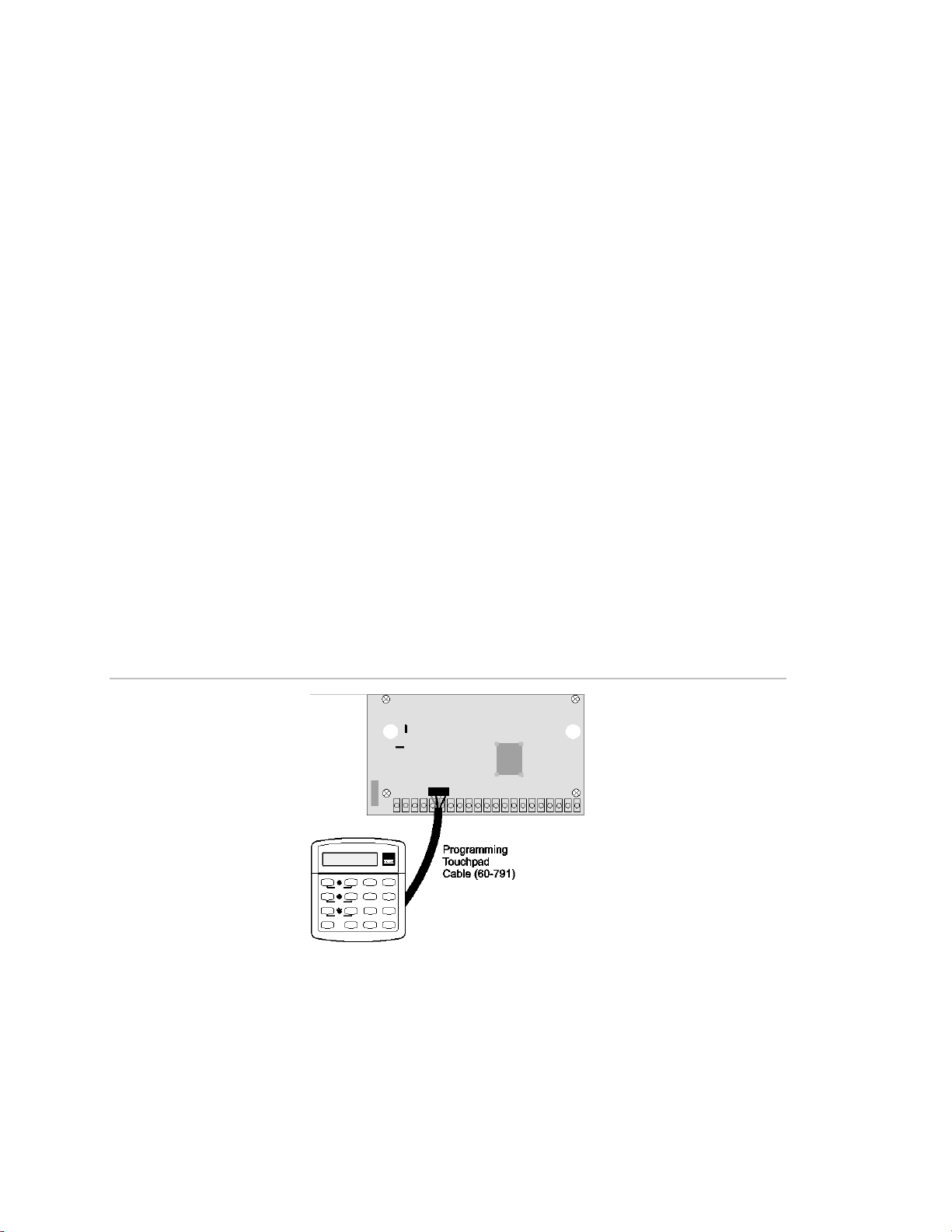

Figure 20: Connecting a programming touchpad

4. Press 8 + 4321 + 0 + 2. The touchpad sounds one short beep and the display shows a flashing star. Press * and the display shows SERVICE TOUCHPAD ACTIVE.

5. Press 8 + 4321 + 0 + 0 and the display shows SYSTEM PROGRAMMING.

28 Concord Express Installation Instructions

Chapter 2

Button

Programming function

Selects menu item or data entry.

Deselects menu item or data entry (if pressed before #).

A & B

Scroll through available options at the current menu tier. Also scroll through sensor text options during sensor text programming.

Enters pauses when programming phone numbers.

Deletes certain programmed settings.

0 thru 9

Enter numeric values wherever needed.

1 & 2

Select off (1) or on (2) wherever needed.

1 thru 6

Press and hold to enter alphabetical characters A thru F for account numbers.

7 or 9

Press and hold to enter * (7) or # (9) for phone numbers.

6. After programming is completed, simply disconnect the touchpad from the panel header.

Touchpad Button Programming Functions

In program mode, the touchpad buttons let you navigate to all installer programming menus for configuring the system. Table 3 below describes the touchpad button functions in program mode.

Table 3: Alphanumeric touchpad buttons

Moving Through Program Mode Tiers and Menus

There are two basic tiers of programming menus. Tier 1 menus are accessible immediately after entering program mode (see Figure 21 below).

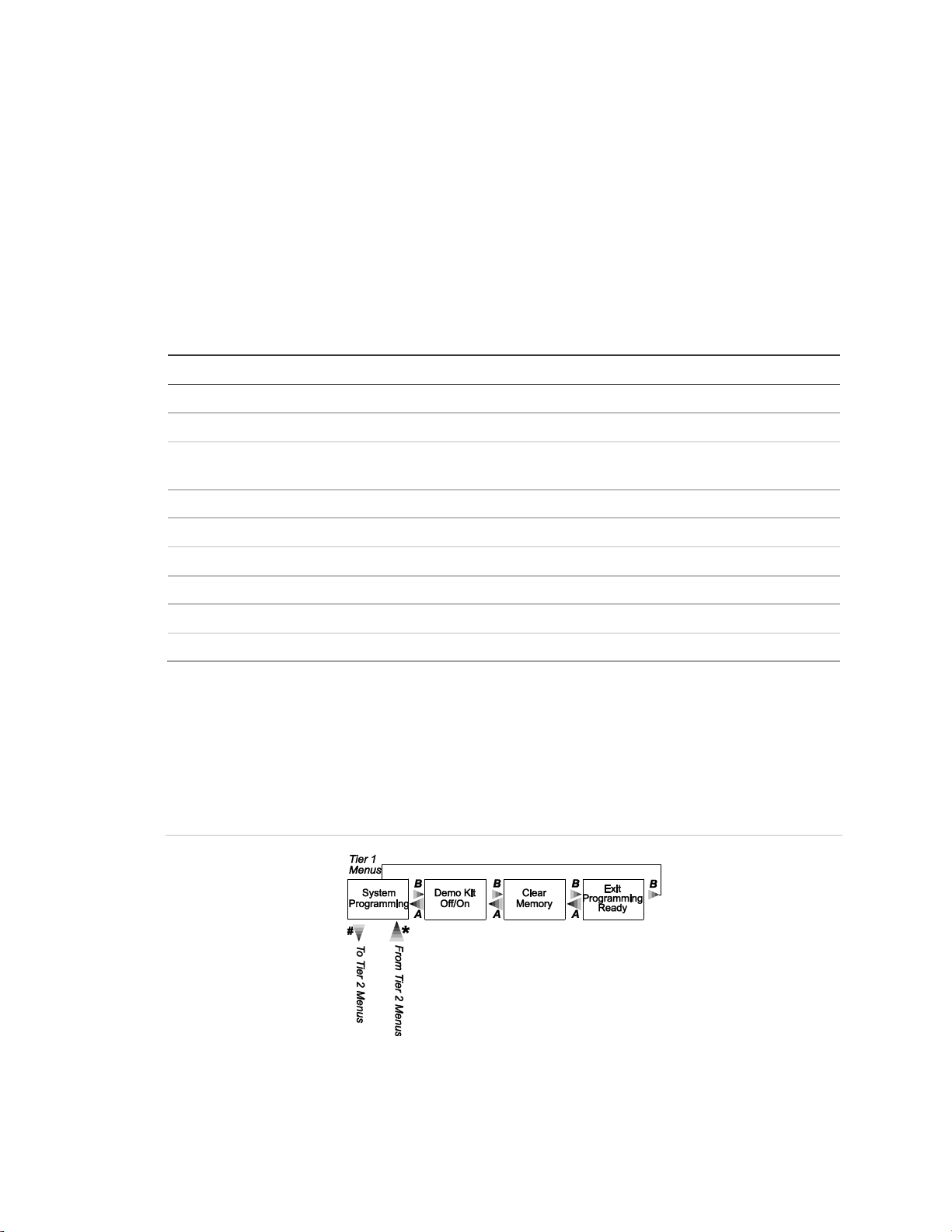

Figure 21: Tier 1 programming menus

Arrows pointing right represent pressing B, arrows pointing left represent pressing A.

Concord Express Installation Instructions 29

Chapter 2

The arrow below the SYSTEM PROGRAMMING menu represents pressing # to move to tier 2 programming menus.

Only when SYSTEM PROGRAMMING is displayed can you advance to tier 2 menus (see Figure 22 below).

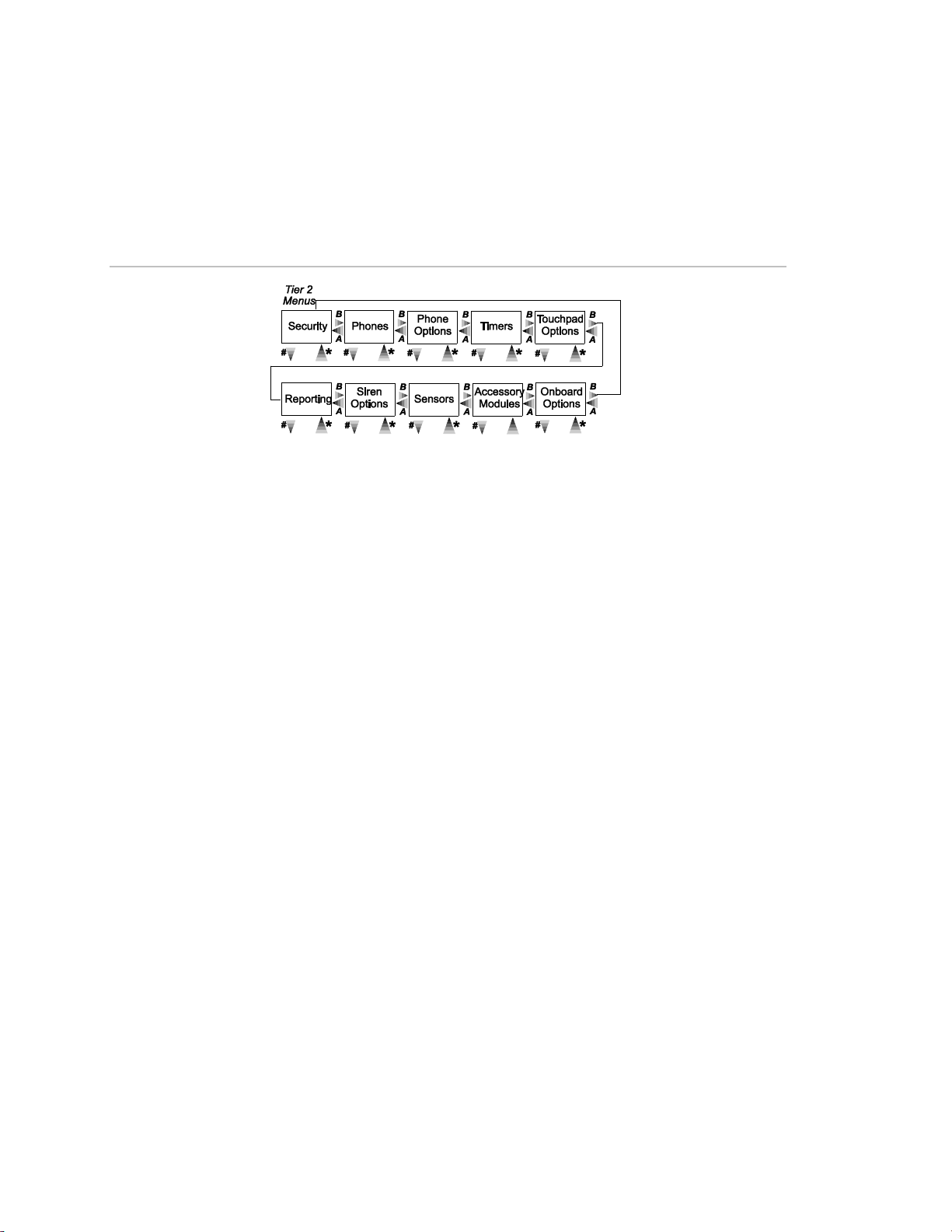

Figure 22: Tier 2 programming menus

Again, arrows pointing right represent pressing B, arrows pointing left represent pressing A.

Arrows below each menu represent pressing # (or Ç) to advance to (or back up from) those settings that pertain to that menu. Only when a specific menu is displayed can you advance to those settings. For example, pressing # from the

SENSORS menu gives you access to learning sensors, programming sensor text,

deleting sensors, and viewing sensor programming. Settings in tier 2 menus can also be accessed by entering shortcut numbers. See

the section, “Programming Tier 2 Menu Items” on page 32 for complete details.

Programming Tier 1 Menu Items

This section guides you through programming tier 1 menu items as they appear in sequence. The exact order you need to follow will depend on whether you’re installing a new system or changing the programming of an existing system.

30 Concord Express Installation Instructions

Chapter 2

Demo Kit Mode

System Programming (Default = Off)

This setting determines whether the panel is used for a standard installation (off) or as a demo kit (on). Turning on this feature and performing a memory clear changes the following settings:

• System Master Code = 1234

• User Code 00 = 1001 (standard user code capabilities)

• User Code 01 = 1002 (standard user code capabilities, bypass

sensors)

• User Code 04 = 1122 (standard user code capabilities, system tests)

• Zone 1 (hardwire) = Group 10, Front Door

• Zone 2 (hardwire) = Group 13, Bedroom Window

• Zone 3 (hardwire) = Group 17, Living Room PIR

• Zone 4 (hardwire) = Group 01, Panic

• Zone 5 (wireless) = Group 01, Keychain Touchpad

• Zone 6 (wireless) = Group 13, Kitchen Window

• COMM FAILURE = off

• Entry Delay = 8 seconds

• Exit Delay = 8 seconds

• Extended Delay = 1 minute

• Siren Timeout = 2 minutes

• Status Beeps = on (all touchpads)

• Central Station Reporting = sensors learned into groups 01 and

03, Duress code use, and phone test (8 + CODE + 2)

To turn Demo Kit Mode On or Off:

1. With the display showing DEMO KIT OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows DEMO KIT OFF/ON (new setting).

3. Clear panel memory to enable the demo kit mode (see next menu).

Clear Memory (System Programming)

System Programming

Clearing memory with the Dealer Code deletes all existing programming except the Dealer Code.

If the Dealer Code HAS NOT been set, clearing the memory with the Installer Code deletes all existing programming.

If the Dealer Code HAS been set, clearing the memory with the Installer Code deletes all existing programming except:

• Dealer Code

• Downloader Code

• CS Phone 1

• CS Phone 2

To clear Panel Memory:

1. With the system in program mode, press B until the display shows CLEAR MEMORY.

2. Press # and the display shows ENTER CODE TO CLEAR MEMORY.

3. Enter the 4-digit installer CODE (or dealer if programmed) + #.

After about one second, the system restarts and the panel scans the bus to learn all bus devices. If the system doesn’t respond as described, repeat step 3.

Concord Express Installation Instructions 31

Chapter 2

Downloader code (0000)

System Programming

Programming Tier 2 Menu Items

This section guides you through programming tier 2 menu items as they appear in sequence. Each menu on tier 2 represents a group of settings related to the menu name. Refer to Figure 22 on page 30 for the menus available on tier 2.

Using Shortcut Numbers

To go directly to a setting in tier 2, you can enter the shortcut number for that setting. Shortcut numbers in this manual appear in parenthesis ( ), next to the setting name. For example this heading shows the Downloader Code shortcut to be 0000.

Shortcut numbers can be used from any setting location within tier 2.

To advance to tier 2 program menus:

With the system in program mode and the display showing SYSTEM PROGRAMMING, press # once. The display should show SECURITY.

Security Menu

The SECURITY menu lets you choose whether security settings affect the whole system (global) or a specific partition.

Important: Each security access code (Installer, Dealer, System Master, or

User) must be unique. Do not us the same combination of numbers for any two codes.

To access global or partition security menu items:

1. With the display showing SECURITY, press #. The display should show GLOBAL.

2. Press # again to advance to global settings OR Press A or B to display PARTITION 1, then press # to advance to partition 1 settings.

The following describes how to program the security settings that appear under GLOBAL.

32 Concord Express Installation Instructions

Chapter 2

Downloader Code (0000)

Security-Global (Default = 12345)

The 5-digit downloader code is used in conjunction with downloader programming. The down-loader operator must have the panel account number and downloader code in order to perform any programming.

Note: The Downloader Code cannot be deleted from

panel memory. To change the Downloader Code to its default setting, enter 12345 in the procedure to the right. The Downloader Code will be reset to defaults during a Memory Clear only if the Dealer Code is not set OR if the Dealer Code is used to initiate the Memory Clear.

To program a Downloader Code:

1. With the display showing DOWNLOADER CODE nnnnn (current code), enter the desired 5-digit code, + #. The display flashes the entered code.

2. Press # and the display shows DOWNLOADER CODE nnnnn (new code).

Installer Code (0001)

Security-Global (Default = 4321)

The 4-digit installer code is used for entering program mode and changing system settings. If a dealer code is programmed, only those settings not associated with phone numbers can be changed.

Note: The Installer Code cannot be deleted or cleared

from panel memory. To change the Installer Code to its default setting, enter 4321 in the procedure above.

To program an Installer Code:

1. With the display showing INSTALLER CODE nnnn (current code), enter the desired 4-digit code + #. The display flashes the entered code.

2. Press # and display shows INSTALLER CODE nnnn (new code).

Dealer Code (0002)

Security-Global (Default = none)

The 4-digit dealer code is used to prevent unauthorized persons from changing the programmed central station phone numbers and the Downloader Access Code. When this feature is enabled, central station phone numbers and the Downloader Code cannot be changed (unless you enter the program mode by using the dealer code). All other system settings are still accessible by entering the program mode with the installer code.

To program a Dealer Code:

1. With the display showing DEALER CODE ****, enter the desired 4-digit code. The display flashes the entered setting.

2. Press # and the display shows the new code.

To delete a Dealer Code:

With the display showing DEALER CODE nnnn (current code), press D. The display shows

DEALER CODE ****.

Note: The Dealer Code cannot be deleted by clearing panel memory.

Concord Express Installation Instructions 33

Chapter 2

SIA False Alarm Reduction (0003)

Security-Global (Default = on)

Controls the following settings that are required by the SIA False Alarm Reduction Standard:

• Arming level changes made from wireless touchpads and keychain touchpads are sounded (beeps) on exterior siren output (on) OR are not sounded on exterior siren output (off).

Note: The siren output must be configured for

“Exterior Siren” (016xx) for the arming level

beeps to be annunciated.

• The Arming Always Silent feature is disabled for users if this setting is on OR can be controlled by users if the setting is off. Silent Arming on Demand is not affected.

To turn SIA False Alarm Reduction off or on:

1. With the display showing SIA FALSE ALARM

(current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Account Number (0010)

Security-Partition 1 (Default = 00000)

The account number is used as panel (or customer) identification for the central monitoring station. The panel sends the account number every time it reports to the central station. Account numbers must be 1 to 10 characters long.

Alpha characters A-F can be assigned to the account number by pressing and holding buttons 1-6 respectively until the character appears.

To program an Account Number:

1. With the display showing ACCOUNT NUMBER

nnnnn (current number), enter the desired

account number. The display flashes the entered setting.

2. Press # and the display shows the new number.

Quick Arm (0011)

Security-Partition 1 (Default = off)

Quick Arm allows system arming without using an access code. When this feature is on, the system arming level can be increased from Level 1-OFF to LEVEL 2-STAY, from Level 1OFF to LEVEL 3-AWAY, or from Level 2-STAY to LEVEL 3-AWAY without entering an access code. A valid access code is still required to decrease the arming level or disarm the system.

To turn Quick Arm off or on:

1. With the display showing QUICK ARM

OFF/ON (current setting), press 1 (off) or 2

(on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

The following describes how to program the security settings that appear under PARTITION 1.

34 Concord Express Installation Instructions

Chapter 2

Quick Exit (0012)

Security-Partition 1 (Default = on)

This setting determines whether or not users can open and close a standard entry or exit door without causing an alarm (while the system is armed). This feature would be useful if the user wanted to go out to get the morning paper while the system was armed. This feature also allows the user to leave the armed premises without having to disarm and rearm the system.

Note: For UL Listed systems, Quick Exit must be turned off. When this feature is on, pressing D on a touchpad (while the

system is armed) starts a 2-minute timer that allows one standard entry or exit door (sensor groups 10 and 19 only) to be activated once (opened, then closed).When this feature is turned off, the system must be disarmed before opening any protected door.

To turn Quick Exit off or on:

1. With the display showing

QUICK EXIT OFF/ON (current

setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Exit Extension (0013)

Security-Partition 1 (Default = on)

This setting determines whether or not the system automatically arms to STAY (level 2) if the user arms the system to AWAY (level 3) without exiting the premises. This can help prevent accidental alarms by deactivating interior motion sensors during occupied arming periods.

Note: Arming the system to AWAY with No Delay overrides the Auto Stay Arming feature.

With the feature turned on, the user arms the system to AWAY. Touchpads (and other status sounders) emit one exit delay beep every four seconds, then one every second during the last 10 seconds. If the exit delay time expires with no standard delay sensor activation, the system automatically arms to STAY.

To turn Auto Stay Arming off or on:

1. With the display showing

AUTO STAY ARMING OFF/ON

(current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Concord Express Installation Instructions 35

Chapter 2

Auto Stay Arming (0014)

Security-Partition 1 (Default = on)

Note: Arming the system to AWAY with No Delay overrides the Auto Stay Arming feature.

To turn Auto Stay Arming off or on:

1. With the display showing

AUTO STAY ARMING OFF/ON

(current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Keyswitch Sensor (0015)

Security-Partition 1 (Default = none)

This feature lets users arm and disarm the system using either a keyswitch wired to a hardwire zone input or a wireless door or window sensor.

For example, if sensor 1 is designated as the keyswitch sensor and the system is disarmed, then tripping sensor 1 arms the system to AWAY. If the system is armed to STAY or AWAY, tripping sensor 1 disarms the system. The panel reports opening, closing, and force armed reports (if these features are turned on) to the central monitoring station.

Note: A bypassed keyswitch sensor cannot arm or disarm the system. During an audible alarm, keyswitch sensors can disarm the system (which sends a cancel report to the central monitoring station), but cannot arm the system. The system can be armed only after siren timeout expires. Keyswitch sensors test the same as any other sensor and do not arm or disarm the system during a sensor test.

To assign a Keyswitch Sensor:

1. With the display showing

KEYSWITCH SENSOR n (current

sensor number), enter the desired sensor number (01-24). The display flashes the entered sensor number.

2. Press # and the display shows the new number.

36 Concord Express Installation Instructions

Chapter 2

Duress code (0016)

Security-Partition 1 (Default = none)

The duress code is a unique 4-digit access code that allows users to operate the system and, at the same time, instructs the panel to send a silent alarm report to the central station.

Do not use a duress code unless it is absolutely necessary. Using duress codes often results in false alarms due to code entry errors. If a duress code is absolutely necessary, use it with an Interrogator® audio verification module (AVM) to reduce false alarms and accidental dispatches.

Note: To use this feature, the Duress Option setting under the REPORTING—PARTITION 1 menu must be turned on.

To program a Duress Code:

1. With the display showing DURESS

CODE ****, enter the desired 4-digit

duress code. The display flashes the entered setting.

2. Press # and the display shows the new code.

To delete a Duress Code:

With the display showing DURESS CODE

nnnn (current code), press D. The

display shows DURESS CODE ****.

Phone Number (0100-cs phone 1, 0110cs phone 2)

Phones-CS Phone 1-2 (Default = none)

(Default = none) This setting is used for programming the central station receiver phone number. Phone numbers can be 124 digits long, including pauses or * and # characters. To enter pauses, press C. To enter *, press and hold 7 for one second. To enter #, press and hold 9 for one second.

Note: The PHONE NUMBER menus are not accessible if a Dealer Code is programmed and the Installer Code is used to enter installer programming mode. To access these menus when a Dealer Code is programmed, you must enter installer programming mode using the Dealer Code. A phone number must be programmed for UL 1635 listed installations.

To program a Central Station Phone Number:

1. With the display showing PHONE NUMBER _ (or current number), enter the desired phone number. The display flashes the entered number.

2. Press # and the display shows the new number.

Note: Call-waiting services should be disabled to prevent interruptions to panel communication to the central monitoring station (or pager). To program a dialing prefix that disables call-waiting, see the Call Wait Cancel setting under the menu PHONE

OPTIONS—GLOBAL.

To delete a Central Station Phone Number:

With the display showing PHONE NUMBER n (current number), press D. The display shows PHONE

NUMBER _.

Phones Menu

The PHONES menu lets you set up central station reporting for the system (global) and pager reports (partition specific). The following describes how to program the settings that appear under CS PHONE 1-2.

Concord Express Installation Instructions 37

Chapter 2

High Level Rpts (0101-cs phone 1, 0111-cs phone 2)

Phones-CS Phone 1-2 (Default: CS Phone 1=on, CS Phone 2=off)

When this setting is on, the panel reports to the central station events that involve a high-level security risk, including the following conditions:

• Fire, Police, Auxiliary, Duress, and Freeze alarms

• No Activity

• Receiver Failure (or jam)

• System Tamper (40 incorrect keystrokes or

touchpad supervisory),

• Entering or exiting Sensor Test mode

Note: For UL 1635 listed installations, this feature must be set to on for the programmed phone number.

To turn High-Level Reports off or on:

1. With the display showing HIGH LEVEL

RPTS OFF/ON (current setting), press 1

(off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Low Level Rpts (0102-cs phone 1, 0112-cs phone 2)

Phones-CS Phone 1-2 (Default: CS Phone 1=on, CS Phone 2=off)

When this setting is on, the panel reports non-alarm conditions to the central station, including the following conditions:

• Force Armed

• Hardwire Zone Trouble (open or short)

• Supervisory (wireless devices)

• Low Battery (wireless devices)

• Other non-alarm related conditions

Note: For UL 1635 listed installations, this feature must be set to on for the programmed phone number.

To turn Low-Level Reports off or on:

1. With the display showing LOW LEVEL

RPTS OFF/ON (current setting), press 1

(off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Open/Close Rpts (0103-cs phone 1, 0113-cs phone 2)

Phones-CS Phone 1-2 (Default=off)

When this setting is on, the panel sends a report when the system is armed (closed) or disarmed (opened).

Note: To use this feature, the Opening Reports and Closing Reports settings under the REPORTING menu must be turned on.

To turn Opening/Closing Reports off or on:

1. With the display showing OPEN/CLOSE RPTS

OFF/ON (current setting), press 1 (off) or 2 (on).

The display flashes the entered setting.

2. Press # and the display shows the new setting.

38 Concord Express Installation Instructions

Chapter 2

Backup (0104-cs phone 1, 0114-cs phone 2)

Phones-CS Phone 1-2 (Default: CS Phone 1=on, CS Phone 2=off)

This setting determines whether or not the panel uses another programmed central station phone number for reporting if three initial attempts are unsuccessful.

CS Phone 1 is backed up by CS Phone 2, and CS Phone 2 is backed up by CS Phone 1. The panel makes up to 16 attempts (8 per phone number), alternating between the two programmed phone numbers.

For example, if Backup is on and three failed reporting attempts occur using CS Phone 1, the panel switches to CS Phone 2 for three more reporting attempts. If these attempts fail, the panel switches back to CS Phone 1 for five more reporting attempts and, if necessary, switches back to CS Phone 2 for five final attempts.

To turn Backup off or on:

1. With the display showing BACKUP

OFF/ON (current setting), press 1

(off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Reporting Format (0105-cs phone 1, 0115-cs phone 2)

Phones-CS Phone 1-2 (Default=all CID)

This setting determines whether the panel uses the SIA or CID (Contact ID) reporting format for central station communication.

To select SIA or CID Reporting Format:

1. With the display showing REPORTING FORMAT

SIA/CID (current setting), press 1 (for SIA) or 2 (for

CID). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Phone Number (0120-pager 1, 0130-pager 2, 0140-pager 3)

Phones-Pager Phone 1-3 (Default=none)

This setting is used for programming a phone number that communicates to a pager. Phone numbers can be 1-24 digits long, and can include pauses or * and # characters.

To enter pauses, press C. To enter *, press and hold 7 for one second. To enter #, press and hold 9 for one second.

PHONE OPTIONS—GLOBAL.

To program a Pager Phone Number:

1. With the display showing PHONE NUMBER

_ (or current number), enter the desired

pager phone number including pauses. The display flashes the entered number.

2. Press # and the display shows the new number.

To delete a Pager Phone Number:

With the display showing PHONE NUMBER _ (current number), press D. The display shows

PHONE NUMBER _.

The following describes how to program the phone settings that appear under PAGER PHONE 1-3.

Concord Express Installation Instructions 39

Chapter 2

High Level Rpts (0121-pager 1, 0131-pager 2, 0141pager 3)

Phones-Pager Phone 1-3 (Default=on)

When this setting is on, the panel reports to the pager events that involve a high-level security risk, including the following conditions:

• Fire, Police, Auxiliary, Duress, and Freeze alarms

• No Activity

• Receiver Failure (or jam)

• System Tamper (40 incorrect keystrokes or

touchpad supervisory),

• Entering or exiting Sensor Test mode

To turn High-Level Reports off or on:

1. With the display showing HIGH

LEVEL RPTS OFF/ON (current

setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Low Level Rpts (0122-pager 1, 0132-pager 2, 0142pager 3)

Phones-Pager Phone 1-3 (Default=off)

When this setting is on, the panel reports non-alarm conditions to the pager, including the following conditions:

• Force Armed

• Hardwire Zone Trouble (open or short)

• Supervisory (wireless devices)

• Low Battery (wireless devices)

• Other non-alarm related conditions

To turn Low-Level Reports off or on:

1. With the display showing LOW

LEVEL RPTS OFF/ON (current

setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows

LOW LEVEL RPTS OFF/ON (new

setting).

Open/Close Rpts (0123-pager 1, 0133pager 2, 0143-pager 3)

Phones-Pager Phone 1-3 (Default=off)

When this setting is on, the panel sends a report when the system is armed (closed) or disarmed (opened).

Note: To use this feature, the Opening Reports and Closing Reports settings under the REPORTING menu must be turned on.

To turn Opening/Closing Reports off or on:

1. With the display showing OPEN/CLOSE RPTS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

40 Concord Express Installation Instructions

Chapter 2

Latchkey Rpts (0124-pager 1, 0134pager 2, 0144-pager 3)

Phones-Pager Phone 1-3 (Default=on)

This setting determines whether or not the panel reports to a pager when the system is disarmed by using the latchkey modifier (6) and latchkey designated access code.

To turn Latchkey reports off or on:

1. With the display showing LATCHKEY REPORTS

OFF/ON (current setting), press 1 (off) or 2 (on).

The display flashes the entered setting.

2. Press # and the display shows the new setting.

Streamlining (0125-pager 1, 0135pager 2, 0145-pager 3)

Phones-Pager Phone 1-3 (Default=on)

This setting determines whether the panel includes (off) or excludes (on) the account number when reporting to a pager.

To turn Streamlining off or on:

1. With the display showing STREAMLINING OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Phone Number (0150)

Phones-Downloader (Default=none)

This setting is used for entering the phone number of a computer used for programming the panel from off-site. Phone numbers can be 1-24 digits long, including pauses or * and # characters. To enter pauses, press C. To enter *, press and hold 7 for one second. To enter #, press and hold 9 for one second.

To program a downloader phone number:

1. With the display showing PHONE NUMBER (current number), enter the desired phone number. The display flashes the entered number.

2. Press # and the display shows the new setting.

To delete a downloader phone number:

With the display showing PHONE NUMBER _ (current number), press D. The display shows

PHONE NUMBER _.

The following describes how to program the phone settings that appear under DOWNLOADER PHONE.

Phone Options Menu

The PHONE OPTIONS menu lets you set up system phone access and communications that affect the whole system (global) or a specific partition.

The following describes how to program the phone option settings that appear under GLOBAL.

Concord Express Installation Instructions 41

Chapter 2

Phone Test (02000)

Phones Options-Global (Default=on)

This setting determines if the user can test the communication from the panel to the central station (or a pager). When this feature is on, the user can test communications at any time by entering 8 + CODE + 2.

Note: For UL 1635 listed installations, this feature must be set to on.

To turn the Phone Test setting off or on:

1. With the display showing PHONE TEST OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new

setting.

Auto Phone Test (02001)

Phones Options-Global (Default=off)

This setting determines if the panel sends a phone test automatically to the central station (or a pager) on a predetermined schedule.

(Refer to the “Phone Test Freq.” and “Next Phone Test” settings found under TIMERS—

GLOBAL). Note: For UL 1635 listed installations, this

feature must be set to on.

To turn Automatic Phone Test off or on:

1. With the display showing AUTO PHONE TEST

OFF/ON (current setting), press 1 (off) or 2

(on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Auto Test Reset (02002)

Phones Options-Global (Default=on)

This setting determines whether or not the Auto Phone Test interval is reset after any successful report to the central

monitoring station. Refer to the “Phone Test Freq.” and “Next Phone Test” settings found under TIMERS—

GLOBAL. When this feature is on, the panel considers any successful

report to the central station to be a successful phone test. Thus, any successful panel report to the central monitoring station resets the Next Phone Test setting to the Phone Test Freq. value. The panel only conducts an Auto Phone Test if no other reports are made during the Phone Test Freq. time period.

When this feature is off, an Auto Phone Test is always conducted according to the Phone Test Freq. setting, even if the panel makes other reports to the central monitoring station during that time period.

Note: Phone Test Freq must be set to 2 or higher for this feature to work.

To turn Auto Test Reset off or on:

1. With the display showing AUTO

TEST RESET OFF/ON (current

setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

42 Concord Express Installation Instructions

Chapter 2

Comm Failure (02003)

Phones Options-Global (Default=on)

When this setting is on, the panel activates trouble beeps to alert users on the premises that communication to the central station has failed. Failure notification occurs after the third unsuccessful reporting attempt to the central station (or pager).

Note: For UL 1635 listed installations, this feature must be set to on.

To turn Communication Failure notification off or on:

1. With the display showing COMM FAILURE

OFF/ON (current setting), press 1 (off) or 2

(on). The display flashes the entered setting.

2. Press # and the display shows the new

setting.

DTMF Dialing (02004)

Phones Options-Global (Default=on)

This setting determines whether the panel uses DTMF tones (on) or pulse (off) for dialing programmed phone numbers.

To turn DTMF Dialing off or on:

1. With the display showing DTMF DIALING

OFF/ON (current setting), press 1 (off) or 2

(on). The display flashes the entered setting.

2. Press # and the display shows the new

setting.

Dialer Abort (02005)

Phones Options-Global (Default=on)

This setting determines whether or not users can stop the first dialing attempt of the panel (within the Dialer Abort Delay time setting) to report to the central station. When this feature is on, alarm reports from sensors in groups 00-20, 34, and 35 can be aborted by entering CODE (or 1 + CODE) within the Dialer Abort Delay time setting (defaulted to 30 seconds). Cancel and restoral reports from these sensor groups are also aborted if the related alarm report was aborted. Other reports that can be aborted include System Alarm Tamper/Cancel, No Activity Alarm/Cancel, Touchpad Police and Auxiliary Panic/Cancel, Recent Closing, and Two Trip Error. Fire alarm reports to the central station cannot be aborted.

To turn Dialer Abort off or on:

1. With the display showing

DIALER ABORT OFF/ON (current

setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Dialer Abort Delay (02006)

Phones Options-Global (Default=30 sec.)

This setting determines how much time (15 to 45 seconds) the user has to enter the disarm command in order to prevent the panel from reporting to the central monitoring station.

Note: For UL Listed systems, the combined time for the Entry Delay (0310) and Dialer Abort Delay must not exceed 60 seconds.

To change the Dial Abort Delay:

1. With the display showing DIAL ABORT DELAY

nn (current setting), enter the desired time (15

to 45 seconds). The display flashes the entered setting.

2. Press # and the display shows the new

setting.

Concord Express Installation Instructions 43

Chapter 2

Cancel Message (02007)

Phones Options-Global (Default=on)

This setting determines whether or not the panel displays a cancel message after the user disarms the system to clear an alarm condition.

To turn Cancel Message off or on:

1. With the display showing CANCEL MESSAGE OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Pager Delay (02008)

Phones Options-Global (Default=15 sec.)

This setting determines how long a report is delayed to a pager (00-30 seconds) after the panel dials the pager number.

Note: The Pager Delay time should not be set below 5 seconds unless absolutely necessary.

To set the Pager Delay time:

1. With the display showing PAGER DELAY nn (current setting), enter a two-digit time (00-

30). The display flashes the entered setting.

2. Press É and the display shows the new

setting.

Call Wait Cancel (02009)

Phones Options-Global (Default=none)

This feature lets you set up a dialing prefix to disable the call waiting feature before the panel makes its first dialing attempt to any programmed central monitoring station, pager, or downloader phone number. The prefix can be up to eight digits. For prefixes that require dialing * or #, press and hold for two seconds 7 (for *) or 9 (for #).

Caution: DO NOT change this option from its default if the

customer doesn’t have call waiting. Verify with the customer that

they have call waiting with their phone service provider before changing this option from its default. Changing this option from its default without call waiting will prohibit the panel from calling the central station.

To set up Call Wait Cancel:

1. With the display showing

CALL WAIT CANCEL __ (or

current setting), enter the desired prefix. The display flashes the entered setting.

2. Press # and the display shows the new setting.

Remote Access (0210)

Phones Options-Partition 1 (Default=on)

This setting determines whether or not the panel can be accessed from off-site for downloader programming.

To turn Remote Access off or on:

1. With the display showing REMOTE ACCESS

OFF/ON (current setting), press 1 (off) or 2 (on).

The display flashes the entered setting.

2. Press # and the display shows the new setting.

The following describes how to program the PHONE OPTION settings that appear under PARTITION 1.

44 Concord Express Installation Instructions

Chapter 2

Ring/Hang/Ring (0211)

Phones Options-Partition 1 (Default=on)

This setting determines how the panel picks up (seizes) the phone line for downloader programming by remote access.

Note: The Remote Access setting (0210) must be turned on for this feature to work.

When this feature is on, the caller must listen for one or two full rings, hang up, then call the premises again within the next 10-40

seconds. The system then answers after the first ring. The “on”

setting is recommended if an answering machine shares the phone line with the panel.

When Ring/Hang/Ring is turned off, the caller must listen for 12

full rings before the system answers. The “off” setting is

recommended if there is no answering machine sharing the phone line with the panel.

To turn Ring/Hang/Ring access off or on:

1. With the display showing

RING/HANG/RING OFF/ON

(current setting), press 1 (off) or 2 (on). The display begins flashing the entered selection.

2. Press # and the display shows the new setting.

Supervisory Time (0300)

Timers-Global (Default=random)

This setting determines what time of day the panel sends supervisory, low battery, or auto phone test reports to the central station. The setting is based on a 24-hour timer so there is no need to enter a.m. and p.m. settings. These will appear automatically on the display.

Note: The panel clock must be set with the correct time for accurate supervisory time reporting. Refer to the user programming section for setting the panel clock.

To set the Supervisory Time:

1. With the display showing SUPERVISORY TIME HH:MM (current setting), enter the desired 4-digit time value (for example, enter 1330 to set the supervisory time for 1:30 p.m.). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Timers Menu

The TIMERS menu lets you set up the various system feature times that affect the whole system (global) or a specific partition. The following describes how to program the timer settings that appear under GLOBAL.

Concord Express Installation Instructions 45

Chapter 2

RF Tx Timeout (0301)

Timers-Global (Default=12 hours)

If any supervised wireless device stops sending supervisory transmissions, the panel reports a supervisory condition to the central station. This setting determines how long the panel should wait (2-24 hours) for a supervisory transmission before sending the report.

Note: For UL 985 & 1635 listed installations, the RF Tx Timeout must be set to 4 hours. For UL 1023 listed installations, the RF Tx Timeout must be set to 24 hours.

To set the RF Tx Timeout:

1. With the display showing RF TX TIMEOUT nn HOURS (current setting), enter the desired 2-digit timeout value (02-24). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Phone Test Freq. (0302)

Timers-Global (Default=7 days)

This setting determines how often the panel

sends the automatic phone test (see “Auto Phone Test” under PHONE OPTIONS—

GLOBAL) to the central station (or a pager). The phone test frequency can be set to report every 1 to 255 days.

Note: For UL 1635 listed installations, this feature must be set to 1.

To set the Phone Test Freq:

1. With the display showing PHONE TEST FREQ nnn DAYS (current setting), enter the number of days (1-255). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Next Phone Test (0303)

Timers-Global (Default=7 days)

This setting determines how many days (1-255) until the next automatic phone test occurs. When setting up Phone Test Freq, Next Phone Test must be set to accurately count the number of days left in the cycle before the next phone test occurs. This setting should be the same or less than the Phone Test Freq. setting.

Note: For UL 1635 listed installations, this feature must be set to 1.

To set the Next Phone Test:

1. With the display showing NEXT PHONE TEST nnn DAYS (current setting), enter the number of days (1-255). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Output Trip Time (0304)

Timers-Global (Default=4 sec.)

This setting determines how long onboard and SnapCard outputs are activated when tripped (if they are configured for a momentary response).

To set the Output Trip Time:

1. With the display showing OUTPUT TRIP TIME nn SECONDS (current setting), enter the number of seconds (1-12). The display flashes the entered setting.

2. Press # and the display shows the new setting.

46 Concord Express Installation Instructions

Chapter 2

Activity Timeout (0305)

Timers-Global (Default=24 hours)

This setting determines when the system

sends a “no activity” report. The panel can

be set to wait from 1-42 hours. If no user interaction or device activation occurs in that time, the panel sends a report to the central station.

To set the Activity Timeout:

1. With the display showing ACTIVITY TIMEOUT nn HOURS (current setting) enter the desired 2digit time value (1-42). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Daylight Savings (0306)

Timers-Global (Default=on)

This setting determines whether or not the panel clock automatically adjusts for daylight saving time changes in spring and fall.

To turn Daylight Savings off or on:

1. With the display showing DAYLIGHT SAVINGS

OFF/ON (current setting), press 1 (off) or 2 (on).

The display flashes the entered setting.

2. Press # and the display shows the new setting.

Entry Delay (0310)

Timers-Partition 1 (Default=30 sec.)

This setting determines how much time (30-240 seconds) users have to disarm the system (after entering the armed premises through a designated delay door) to avoid causing an alarm.

Note: For UL Listed residential installations, the Entry Delay must be set to 45 seconds or less. The combined time for the Entry Delay and Dialer Abort Delay (02006) must not exceed 60 seconds.

To set the Entry Delay:

1. With the display showing ENTRY DELAY nnn SECONDS (current setting), enter the desired time value (30-240 using 8-second intervals). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Exit Delay (0311)

Timers-Partition 1 (Default=60 sec.)

This setting determines how much time (45184 seconds) the user has to leave the premises through a designated delay door (after arming the system) without causing an alarm.

Note: For UL Listed residential installations, the Exit Delay must be set to 60 seconds or less.

To set the Exit Delay:

1. With the display showing EXIT DELAY nnn SECONDS (current setting), enter the desired time value (45-184 using 8-second intervals). The display flashes the entered setting.

2. Press # and the display shows the new setting.

The following describes how to program the Timer settings that appear under PARTITION 1.

Concord Express Installation Instructions 47

Chapter 2

Extended Delay (0312)

Timers-Partition 1 (Default=4 min.)

This setting determines how much time (1-8 minutes) the user has to enter or exit the premises through a designated extended delay door without causing an alarm.

Note: For UL Listed systems, Extended Delay shall not be used.

To set the Extended Delay:

1. With the display showing EXTENDED DELAY nn MINUTES (current setting), enter the desired time value (1-8). The display flashes the entered setting.

2. Press É and the display shows the new setting.

Siren Timeout (0313)

Timers-Partition 1 (Default=4 min.)

This setting determines how long sirens sound (1-30 minutes) if no one is present to disarm the system.

Note: For UL Listed systems, Siren Timeout must be set to 4 minutes or more.

To set the Siren Timeout:

1. With the display showing SIREN TIMEOUT nn MINUTES (current setting), enter the desired time value (1-30). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Fire Panic (0400)

Touchpad Options-Partition 1 (Default=on)

This setting determines whether touchpad fire panic buttons are enabled (on) or disabled (off).

To change the Fire Panic setting:

1. With the display showing FIRE PANIC OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Aux. Panic (0401)

Touchpad Options-Partition 1 (Default=on)

This setting determines whether touchpad auxiliary panic buttons are enabled (on) or disabled (off).

To change the Auxiliary Panic setting:

1. With the display showing AUXILIARY PANIC OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Touchpad Options Menu

The TOUCHPAD OPTIONS menu lets you set up touchpad panic and arming operation. The following describes how to program the touchpad option settings that appear under PARTITION 1.

48 Concord Express Installation Instructions

Chapter 2

Police Panic (0402)

Touchpad Options-Partition 1 (Default=on)

This setting determines whether touchpad police panic buttons are enabled (on) or disabled (off) on.

To change the Police Panic setting:

1. With the display showing POLICE PANIC OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Keychain TP Arm (0403)

Touchpad Options-Partition 1 (Default=off)

This setting determines how the keychain touchpad arms the system. When set to ON, pressing the LOCK button arms the system directly to AWAY with no Entry and Exit Delay. When set to OFF, pressing the LOCK button increments the arming level from OFF to STAY and from STAY to AWAY.

To change the Keychain Touchpad Arming setting:

1. With the display showing KEYCHAIN TOUCHPAD ARM OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Star Is No Delay (0404)

Touchpad Options-Partition 1 (Default=off)

This setting determines whether the keychain touchpad star button controls an onboard or SnapCard output (off) or the No Delay feature (on).

To change the Keychain Star Is No Delay setting:

1. With the display showing STAR IS NO DELAY OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

24-Hour Tamper (05000)

Reporting-Global (Default=off)

When this feature is turned on, the panel sounds sirens and reports a tamper alarm when wireless sensor tamper switches are activated (even when the system is disarmed).

To turn 24-Hour Tamper off or on:

1. With the display showing 24-HOUR TAMPER OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Reporting Menu

The REPORTING menu lets you set up which system events (global or partition) are reported to the central monitoring station. The following describes how to program the reporting settings that appear under GLOBAL.

Concord Express Installation Instructions 49

Chapter 2

Buffer Control (05001)

Reporting-Global (Default=off)

When this setting is on, only arming level changes are logged into the buffer (memory) of the panel. When this setting is off, all system events are logged in the buffer.

To turn Buffer Control off or on:

1. With the display showing BUFFER CONTROL OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Back In Service (05002)

Reporting-Global (Default=on)

When this feature is turned on, the panel reports to the central station when AC and backup battery power are restored (after an extended power outage).

To turn Back In Service reports off or on:

1. With the display showing BACK IN SERVICE OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Bypass Reports (05003)

Reporting-Global (Default=off)

When this feature is turned on, the panel reports to the central station (or a pager) whenever sensors or zones are bypassed.

To turn Bypass Reports off or on:

1. With the display showing BYPASS REPORTS

OFF/ON (current setting), press 1 (off) or 2 (on).

The display flashes the entered setting.

2. Press # and the display shows the new setting.

Low CPU Battery (05004)

Reporting-Global (Default=on)

When this setting is on, the panel reports a low panel battery to the central station (or pager) before shutting down.

Note: For UL listed systems, Low CPU Battery must be set to “on.”

To turn Low CPU Battery reports off or on:

1. With the display showing LOW CPU BATTERY OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Battery Restoral (05005)

Reporting-Global (Default=off)

If this setting is on, the panel reports to the central monitoring station (or pager) when the panel battery is restored or replaced or when a wireless sensor reports a battery replacement to the panel.

To turn Battery Restoral reports off or on:

1. With the display showing BATTERY RESTORAL OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

50 Concord Express Installation Instructions

Chapter 2

Buffer Full Rpt (05006)

Reporting-Global (Default=off)

When this setting is turned on, the panel

sends an “event buffer full” report to the

central monitoring station when the panel event buffer (memory) is nearly full.

To turn Buffer Full Report off or on:

1. With the display showing BUFFER FULL RPT OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Zone Restorals (05007)

Reporting-Global (Default=off)

When this setting is on, the panel reports a restoral to the central monitoring station (or pager) when wireless or hardwire

zones in alarm are reset or “restored”

before the alarm is canceled. Note: As with all UTC panels, hardwire

smoke detectors connected to Concord or SnapCard hardwire zones do not send restorals.

To turn Zone Restoral reporting off or on:

1. With the display showing ZONE RESTORALS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Two Trip Error (05008)

Reporting-Global (Default=off)

This setting works with the “Alarm Verify” feature. If Alarm

Verify is turned on, then the panel waits for a second sensor

trip before sending an alarm (see “Appendix A: Table A3. Sensor Group Characteristics”).

If Two Trip Error is also on and a second sensor trip does not occur within a 4-minute time period, then the panel sends an error report to the central monitoring station.

When this feature is turned off, the panel does not send “Two Trip Error” reports.

Note: For UL Listed systems, Two Trip Error must be turned off.

To turn Two Trip Error off or on:

1. With the display showing TWO TRIP ERROR OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

TP Panic RPT FMT (05009)

Reporting-Global (Default=off)

This setting determines how the panel formats touchpad panic alarms reports to the central station.

When this feature is on, touchpad panic alarms report using the following 3-digit codes:

Auxiliary—597, Police—598, Fire—599 When turned off, touchpad panic alarms report using a

3-digit code from 500 to 503 with the last digit identifying the touchpad device number.

To turn TP Panic RPT FMT off or on:

1. With the display showing TP PANIC RPT FMT OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Concord Express Installation Instructions 51

Chapter 2

AC Failure (05010)

Reporting-Global (Default=off)

When this setting is on, the panel reports to the central station if AC power to the panel is out for 15 continuous minutes.

Note: For UL Listed systems, AC Failure must be turned on.

To turn AC Failure reports off or on:

1. With the display showing AC FAILURE OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Receiver Failure (05011)

Reporting-Global (Default=off)

When this setting is on, the panel reports a receiver failure if either no wireless sensor signals have been received for two hours or if signals are being received constantly (jamming the receiver).

Note: For UL Listed installations that include wireless devices, this feature must be on.

To turn Receiver Failure reports off or on:

1. With the display showing RECEIVER FAILURE OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

RF Low Bat Rpt (05012)

Reporting-Global (Default=weekly)

This setting determines whether the panel reports to the central monitoring station (or pager) daily or weekly when a wireless device reports a low battery condition to the panel.

To set RF Low Battery Report to daily or weekly:

1. With the display showing RF LOW BAT RPT DAILY/WEEKLY (current setting), press 1 (daily) or 2 (weekly). The display flashes the entered setting.

2. Press # and the display shows the new setting.

RF Supv Report (05013)

Reporting-Global (Default=weekly)

This setting determines whether the panel reports to the central monitoring station (or pager) daily or weekly when the panel detects a wireless device supervisory condition.

To set RF Supv Report to daily or weekly:

1. With the display showing RF SUPV REPORT DAILY/WEEKLY (current setting), press 1 (daily) or 2 (weekly). The display flashes the entered setting.

2. Press # and the display shows the new setting.

52 Concord Express Installation Instructions

Chapter 2

Swinger Limit (05014)

Reporting-Global (Default=1)

This setting determines the maximum number of times a sensor or zone can go into alarm (during a single arming period) before the panel automatically bypasses that sensor or zone. This feature only applies to sensors in groups 00-20, 29, or 34.

When set to 1, the panel automatically bypasses a sensor or zone after it causes an alarm. When set to 2, the panel waits until a sensor or zone has caused a second alarm (during the same arming period) before bypassing it. At either setting, the automatic bypass is logged into the event buffer.

A bypassed zone or sensor will be cleared

(automatically “unbypassed”) if the system

receives no further activations from that sensor or zone over the next 48-50 hours.

Changing the arming level also clears all automatically bypassed sensors and zones and resets the Swinger Limit count on all sensors and zones.

To set the Swinger Limit:

1. With the display showing SWINGER LIMIT n (current setting), press 1 or 2. The display flashes the entered setting.

2. Press # and the display shows the new setting.

Opening Reports (0510)

Reporting-Partition 1 (Default=off)

This setting determines whether or not the panel sends an opening report to the central station (or pager) after disarming the system.

Note: To use this feature, the Open/Close Reports settings under the PHONES—CS PHONE 1-2 and/or PHONES—PAGER PHONE 1-3 menus must be turned on for the specific CS Phone or Pager Phone number.

To turn Opening Reports off or on:

1. With the display showing OPENING REPORTS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

The following describes how to program the settings that appear under REPORTING—PARTITION 1.

Concord Express Installation Instructions 53

Chapter 2

Closing Reports (0511)

Reporting-Partition 1 (Default=off)

This setting determines whether or not the panel sends a closing report to the central station (or pager) after arming the system.

Note: To use this feature, the Open/Close Reports settings under the PHONES—CS PHONE 1-2 and/or PHONES—PAGER PHONE 1-3 menus must be turned on for the specific CS Phone or Pager Phone number..

To turn Closing Reports off or on:

1. With the display showing CLOSING REPORTS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Recent Closings (0512)

Reporting-Partition 1 (Default=on)

This setting determines whether or not the panel sends a recent closing report to the central station (or a pager) if an alarm occurs within two minutes after the exit delay time expires. Such a report is used to identify a possible exit fault.

To turn Recent Closings off or on:

1. With the display showing RECENT CLOSINGS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

No Activity (0513)

Reporting-Partition 1 (Default=off)

This setting determines whether or not the panel sends a no activity report to the central station (or pager) if there is no system activity within a preset time period.

To turn No Activity reports off or on:

1. With the display showing NO ACTIVITY OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Duress Option (0514)

Reporting-Partition 1 (Default=off)

This setting determines whether or not the system can be controlled using a programmed duress code.

Caution: Because using duress codes often results in false alarms due to code entry errors, it is strongly recommended not to program any duress codes. If a duress code is absolutely necessary, their use with an Interrogator is highly recommended to reduce false alarms and accidental dispatches.

To turn Duress Option off or on:

1. With the display showing DURESS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and display shows the new setting.

54 Concord Express Installation Instructions

Chapter 2

Force Armed (0515)

Reporting-Partition 1 (Default=off)

This setting determines whether or not the panel reports to the central monitoring station when a user force arms the system.

Force Armed occurs if the user presses bypass when arming the system with open sensors/zones protesting.

Note: Auto Force Armed always reports to the central monitoring station. Auto Force Armed occurs if the user does not press bypass when arming the system with open sensors/zones protesting and the siren time expires. For UL Listed systems, Force Armed must be turned off.

To turn Force Armed off or on:

1. With the display showing FORCE ARMED OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Alarm Verify (0516)

Reporting-Partition 1 (Default=off)

This setting determines whether the panel reports to the central monitoring station after a single sensor/zone trip (off) or waits for a second trip before reporting (on). The second trip must be a different sensor and occur within 4 minutes of the first trip.

This setting affects sensors/zones learned into groups 10 through 20. If Alarm Verify is set to on, group 18 responds the same as group 17. See

“Appendix A, Table A.3: Sensor Group Characteristics.”

Note: For UL Listed systems, Alarm Verify must be turned off.

To turn Alarm Verify off or on:

1. With the display showing ALARM VERIFY OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press É and the display shows the new setting.

System Tamper (0517)

Reporting-Partition 1 (Default=off)

This setting determines the following:

• Whether or not the armed system goes into alarm if several incorrect access codes (40 consecutive keystrokes) are entered.

• Whether or not the panel reports to the central station if a bus device stops communicating with the panel.

• Whether or not the panel reports to the central station if an RF sensor (non fire) is tampered with. Tamper on fire sensors will always be reported to the central station.

Note: For UL Listed systems, System Tamper must be turned on.

To change the System Tamper setting:

1. With the display showing SYSTEM TAMPER OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Concord Express Installation Instructions 55

Chapter 2

Immediate Trouble Beeps (0600)

Siren Options-Global (Default=off)

This setting determines whether the panel activates trouble beeps immediately (on) once a wireless device supervisory condition is detected, or only if the condition exists at panel supervisory time (off). Refer to TIMERS—GLOBAL—SUPERVISORY TIME.

Note: For UL Listed systems, this feature must be on.

To turn Immediate Trouble Beeps off or on:

1. With the display showing IMMEDIATE BEEPS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Disable Trouble Beeps (0601)

Siren Options-Global (Default=off)

This setting determines whether or not the panel activates trouble beeps when a wireless device supervisory condition is detected.

Note: For UL Listed systems, this feature must be off.

To turn Disable Trouble Beeps off or on:

1. With the display showing DISABLE TR BEEPS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new

setting.

UL 98 Options (0602)

Siren Options-Global (Default=off)

This setting determines whether or not the panel complies with UL 98 requirements (4hour trouble beep restart, 4-hour backup battery test, 2-hour supervisory time period for sensor group 26—Fire).

Note: For UL Listed systems, this feature must be on.

To turn UL 98 Options off or on:

1. With the display showing UL 98 OPTIONS OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new

setting.

Siren Options Menu

The SIREN OPTIONS menu lets you set up siren operation and supervision. The following describes how to program the siren option settings that appear under GLOBAL.

The following describes how to program the settings that appear under SIREN OPTIONS—PARTITION 1.

56 Concord Express Installation Instructions

Chapter 2

Siren Verify (0610)

Siren Options-Partition 1 (Default=off)

This setting determines whether or not the panel monitors sirens connected to panel terminal 7 (OUT1/+12V).

When this feature is on, sirens connected to panel terminals 3 (GND) and 7 (OUT1/+12V) require a 2k end-of-line resistor. Refer to

“Installing the System—Connecting Sirens” for

complete details. Note: For UL Listed systems, this feature must

be on.

To turn Siren Verify off or on:

1. With the display showing SIREN VERIFY OFF/ON (current setting), press 1 (off) or 2 (on). The display flashes the entered setting.

2. Press # and the display shows the new setting.

Sensors Menu

Note: If 2-wire smoke detectors are connected to hardwire zone input 6, the Two-

wire Smoke setting must be turned on before entering the LEARN SENSORS menu. See ONBOARD OPTIONS—INPUTS.

The SENSORS menu gives you access to the following:

• LEARN SENSORS—lets you learn hardwire zones and wireless sensors into panel memory and assign zones/sensors to specific partitions.

• SENSOR TEXT—lets you program sensor text for zone/sensor identification.

• DELETE SENSORS—lets you delete zones/sensors from panel memory.

• EDIT SENSORS—lets you view and/or change sensor/zone group

assignment, view sensor number and text assignments of learned sensors/zones, identify whether zone is wireless or hardwire, and indicates sensor/zone/touchpad input N/C or N/O configuration.

The following describes how to program the sensor settings that appear under LEARN SENSORS.

Concord Express Installation Instructions 57

Chapter 2

Learn Sensors (070)

Sensors (Default=none)

The following describes how to learn hardwire zones and wireless devices into panel memory.

The panel comes with six factory programmed onboard hardwire zones. The factory programmed setting are listed below:

• Zone 1: 10-Entry/Exit

• Zone 2: 17-Instant Interior

Follower

• Zone 3: 13-Instant Perimeter

• Zone 4: 13-Instant Perimeter

• Zone 5: 13-Instant Perimeter

• Zone 6: 13-Instant Perimeter

Note: Clearing panel memory also clears all factory programmed zones.Install an end-of-line resistor on all unused, factory programmed, onboard panel zones OR Delete the unused zone from panel memory (see “Accessory Modules Menu” on page 60).

To Learn Sensors into panel memory:

1. With the display showing SENSORS, press # and the display shows LEARN SENSORS.

2. Press # and the display shows SENSOR GROUP 0.

3. Enter the desired 2-digit sensor group + # (see Appendix A for a description of all sensor group characteristics). The display shows TRIP SENSOR nn, where nn is the displayed (next available) sensor number.

4. To change the displayed sensor number, enter the desired 2-digit sensor number + #.

5. With the desired sensor number displayed, trip the sensor or zone as follows:

• Hardwire Zones—trip the zone into the alarm state.

• Wireless Sensors—follow the instructions included

with each sensor. Wireless Door/Window Sensors with External Contacts—place the external contact in the alarm condition, then activate the sensor tamper switch.

• Handheld Wireless Touchpads—press and hold the

BYPASS button until the touchpad LED flashes.

• Keychain Touchpads—press and hold the LOCK and

UNLOCK buttons together until the touchpad LED

flashes.

• ELM Keychain Touchpads—a.) Press and release the

UNLOCK button twice quickly, then press and hold until

the LED flashes three times. b.) Press and release the

UNLOCK button once quickly, then press and hold until

the LED flashes two times. c.) Press and hold the

UNLOCK button until the LED flashes once.

6. Continue tripping sensors to learn them into the selected sensor group. To stop learning sensors into a group, press Ç twice and start again from step 1 (LEARN SENSORS) to learn sensors into another group (or use the EDIT SENSORS menu to change group assignment after learning the sensor/zone).

58 Concord Express Installation Instructions

Chapter 2

Sensor Text (071)

Sensors (Default=none)

Use the following guidelines for programming text to identify zone/sensor locations.

• There are 16 character/word locations or

“Item Numbers” for each zone/sensor

name. Item numbers for each

character/word appear in “Appendix A, Table A4.”

• If a desired word does not appear in the list,

create it using characters (custom text).

• When using words, spaces between them appear automatically. When creating words using characters, you must reserve an item

number for a “space” after creating the

word.

• Each character or word uses up one item number. For example, a word from the list counts as one item number. A created

word, such as BOY’S counts as six item

numbers, 4 letters, 1 apostrophe, and 1 space.

• Plan ahead before programming sensor text. You may need to abbreviate words you create to avoid running out of item numbers.

To program Sensor Text:

1. With the display showing LEARN SENSORS, press B until the display shows SENSOR TEXT.

2. Press # and the display shows TEXT FOR SN 01.

3. Press # and the display shows SN 01 ITEM 00 000 -. Where ITEM 00 is the first character/word location and 000 is the 3digit character/word number.

4. Enter the 3-digit number of the desired character/word or scroll through the numbers by pressing B (forward) or by pressing A (backward). If you make a mistake, simply enter the correct 3-digit number or continue scrolling through choices.

5. Press # to accept the displayed choice and the display shows SN 01 ITEM 01 000 -.

6. Repeat steps 4 and 5 as needed to complete the zone/sensor name.

7. Press * after entering the last 3-digit character/word number. The display shows the complete text name. For example, TEXT FOR SN 01 FRONT ENTRY DOOR.

Delete Sensors (072)

Sensors (Default=none)

The following describes how to remove hardwire zone and wireless sensor numbers from panel memory.

Note: Deleting sensors does not delete sensor text associated with the deleted sensor number. To delete sensor text, enter the SENSOR TEXT menu and enter 000 (nulls) for each item number.

To Delete Sensors from panel memory:

1. With the display showing LEARN SENSORS, press B until the display shows DELETE SENSORS.

2. Press # and the display shows DELETE SENSOR nn (lowest zone/sensor number in panel memory).

3. Press # to delete the displayed sensor or enter the desired sensor number, then press #. The display flashes the entered number, then stops and shows DELETE SENSOR NN DONE.

4. Repeat steps 2 and 3 until all desired sensors are deleted.

Concord Express Installation Instructions 59

Chapter 2

Edit Sensors (073)

Sensors (Default=none)

This menu lets you view the assignments for each learned zone/sensor. For example, the display shows: S01 P1 G13 NC HW BACK DOOR.

where S01 = zone/sensor number, P1 = partition 1, G13 = sensor group 13, NC = normally closed, HW = hardwired, and BACK DOOR is the programmed text name.

You can also change the zone/sensor group assignment to eliminate the need to delete and relearn the zone/sensor.

To Edit Sensors:

1. With the display showing LEARN SENSORS, press B until the display shows EDIT SENSORS.

2. Press # and the display shows the lowest sensor number zone/sensor assignments.

3. Press A or B to scroll through all learned zone/sensor number assignments.

4. When the desired zone/sensor is displayed press #. The display shows SENSOR GROUP nn (current group assignment).

5. Enter the desired group number, then press #. The display shows the new group assignment.

Accessory Modules Menu

The ACCESSORY MODULES menu gives you access to the following:

• BUS DEVICES—this menu lets you read bus device unit numbers, assign bus devices to a partition, and set other features associated with a specific bus device.

Note: Most settings under ACCESSORY MODULES—BUS DEVICES have no shortcut numbers.

• SNAPCARD—this menu lets you set the configuration number for each SnapCard output.

The following describes how to program the settings that appear under ACCESSORY MODULES—BUS DEVICES.

60 Concord Express Installation Instructions

Chapter 2

Unit-ID (0800 thru 0803)

Acc. Modules-Bus Devices (Default=none)

This menu lets you identify all connected bus devices, each device address, unit ID number, and other configurations based on a specific device. You can also delete learned bus device addresses.

Note: To help identify bus devices, the 8-digit unit ID number is also located on a label on each SuperBus 2000 device.

To identify bus device Unit and ID:

1. With the display showing BUS DEVICES, press #. The display shows the bus device unit number and the 8-digit unit ID number. For example, UNIT - ID 0—02110185. Where 0 is the bus device unit number and 02110185 is the unit ID number.

2. Press A or B to identify all other bus device unit numbers (0-3) and identification numbers.

To delete learned bus device unit numbers:

1. With the display showing BUS DEVICES, press #. The display shows the bus device set to unit number 0.

2. Press A or B until the bus device unit number you want to delete is displayed.

3. Press D. The display changes the unit number to NONE.

Device ID

Acc. Modules-Bus Devices (Default=none)

This menu lets you change a bus device ID number when replacing a defective bus device.

To change a Device ID:

1. With the display showing the desired device, press # twice. The display shows DEVICE ID (current ID).

2. Enter the ID of the new bus device. The display flashes the entered selection. Press # and the display shows the new setting.

3. Exit programming mode.

4. Remove AC and battery power from the panel.

5. Replace the defective bus device with the new one.

6. Apply AC and battery power to the panel.

Status Beeps

Acc. Modules-Bus Devices (Default=on)

This setting determines whether or not the selected touchpad sounds status beeps. Each touchpad can be set individually. This feature is usually turned off if a touchpad is located in or near bedrooms to avoid disturbing persons sleeping.

Note: For UL Listed systems, Status Beeps must be turned on.

To turn touchpad Status Beeps on or off:

1. With the display showing the desired touchpad, press # then B once. The display shows TOUCHPAD OPTIONS.

2. Press # and the display shows STATUS BEEPS OFF/ON (current setting).

3. Press 1 (off) or 2 (on) to select the desired setting. The display flashes the entered selection. Press # and the display shows the new setting.

Concord Express Installation Instructions 61

Chapter 2

Key Beeps

Acc. Modules-Bus Devices (Default=on)

This setting determines whether or not selected touchpads sound beeps when their buttons are pressed. This feature is usually turned off if a touchpad is located in or near bedrooms to avoid disturbing persons sleeping.

To turn Key Beeps on or off:

1. With the display showing the desired touchpad, press # + B + # + B. The display shows KEY BEEPS OFF/ON (current setting).

2. Press 1 (off) or 2 (on) to select the desired setting. The display flashes the entered selection. Press # and the display shows the new setting.

Output 1, 2, 3, 4 (081000-output 1) (081010output 2) (081020-output 3) (081030-output 4)

Acc. Modules-SnapCards (Defaults: Output 1=01400, Output 2=00410, Output 3=00903, Output 4=01003)

This setting lets you assign the 5-digit configuration number for each SnapCard relay output that determines which system event activates the output and the duration or time the output is activated.

The first three digits represent the trigger number of an event such as an alarm, open sensor, or arming the system.

The last two digits represent how the output responds such as momentary, sustained (or latched), or for a preset time.

Tables A6-A10 in “Appendix A” identify system event trigger and response numbers.

To assign configuration numbers to SnapCard Relay outputs:

1. With the display showing SNAPCARDS, press #. The display shows OUTPUT

PROGRAMMING.

2. Press # again and the display shows

OUTPUT 1.

3. Press A or B to select the desired output (1-

4), then press #. The display shows OUTPUT

n (current setting).

4. Enter the desired 5-digit configuration number for this output. The display flashes the entered number. Press # and the display shows the new setting.

Onboard Options Menu

The ONBOARD OPTIONS menu lets you set up the following built-in options: INPUTS—this menu lets you set panel zone input 6 for 2-wire smoke operation

and turn the smoke verification feature off/on. OUTPUTS—this menu lets you assign the two built-in panel outputs to partitions

and set their configuration numbers. The following describes how to program the settings that appear under

ONBOARD OPTIONS—INPUTS.

62 Concord Express Installation Instructions

Chapter 2

Smoke Verify (0900)

Onboard Options-Inputs (Default=off)

This setting controls the number of sensor group 26 (fire) zone trips needed to report a fire alarm.

• Hardwire Smokes: will determine whether or not the panel requires two alarm signals within five minutes (on) from 2-wire smoke detectors connected to panel zone input 6 and/or SnapCard zone inputs or any other hardwire zone learned into group 26 (fire) before activating system sirens and reporting to a central station (or pager).

• Wireless Smokes: the first trip of a group 26 RF sensor will cause a local fire alarm. The second trip of any group 26 zone within the siren timeout will cause that fire alarm to be reported to the central station.

Note: RF smoke detectors repeat the alarm transmission every 60 seconds as long as they are detecting smoke. This repeated transmission will serve as the second zone trip, causing the alarm to be reported.

To turn Smoke Verify off or on:

1. With the display showing ONBOARD OPTIONS, press # twice. The display shows SMOKE VERIFY OFF/ON (current setting).

2. Press 1 (off) or 2 (on). The display flashes the entered number. Press # and the display shows the new setting.

Note: For California State Fire Marshall Listed installations, this feature must be off.

Two-Wire Smoke (0901)

Onboard Options-Inputs (Default=off)

This setting determines whether panel zone input 6 is set up for 2-wire smoke detectors (on) or for standard intrusion or 4-wire smoke detectors (off).

Note: If 2-wire smoke detectors are connected to hardwire zone input 6, this setting must be turned on before entering the LEARN SENSORS menu.

To turn Two-Wire Smoke off or on:

1. With the display showing ONBOARD OPTIONS, press # twice, then B once. The display shows TWO WIRE SMOKE OFF/ON (current setting).

2. Press 1 (off) or 2 (on). The display flashes the entered number. Press # and the display shows the new setting.

Concord Express Installation Instructions 63

Chapter 2

Output 1, 2 (09100-output 1) (09110output 2)

Onboard Options-Inputs (Defaults: Output 1=00410, Output 2=01710)

This setting lets you assign the selected output a 5-digit configuration number that determines which system event activates the output and the duration or time the output is activated.

The first three digits represent the trigger number of an event, such as an alarm, open sensor, or arming the system.

The last two digits represent how the output responds, such as momentary, sustained (or latched), or for a preset time.

Tables A6-A10 in “Appendix A” identify system event trigger and response numbers.

To set up onboard Output 1 & 2 partition and configuration assignments:

1. With the display showing ONBOARD OPTIONS, press # + B. The display shows OUTPUT PROGRAMMING.

2. Press # and the display shows OUTPUT 1. Press # to select OUTPUT 2.

3. After selecting the desired output, press É. The display shows CONFIGURATION (current setting).

4. Enter the desired configuration number. The display flashes the entered number. Press # and the display shows the new setting.

Exiting Programming Mode

After all installer/dealer programming is completed, use the following procedure to exit programming mode.

To exit programming mode:

1. Press * until the display shows SYSTEM PROGRAMMING.

2. Press A once and the display shows EXIT PROGRAMMING.

3. Press #. The panel exits program mode and the touchpad displays TIME AND DATE.

Entering User Programming Mode

The user programming mode lets you program or view the following system settings:

• Time and Date

• User Codes

• Options

• View System Version Information

You can enter user programming from an alphanumeric or fixed display touchpad, using the system master code.

The system master code default is 1234.

64 Concord Express Installation Instructions

Chapter 2

Time (00)

Time and Date (Default=00:00)

This setting lets you adjust the panel clock to the correct time. The panel uses a 24-hour clock, eliminating the need to designate

A.M. or P.M. For example, to set the

time to 4:17 P.M., enter 1617.

To set the Time:

1. With the display showing TIME AND DATE, press # and the display shows TIME hh:mm AM/PM (current time).

2. Enter the correct time (0000 - 2359). The display flashes the entered time. Press # and the display shows the new time.

Date (01)

Time and Date (Default=01/01/00)

This setting lets you adjust the panel calendar to the correct month, day, and year.

To set the Date:

1. With the display showing TIME AND DATE, press # then B and the display shows DATE nn/nn/nn (current date).

2. Enter the correct month (01 - 12), day (01 - 31), and year (00 - 99). For example, enter 090100 for September 1,

2000. The display flashes the entered date. Press # and the display shows the new date.

To enter user-programming mode:

Press 9 + CODE. The display shows TIME AND DATE. Press

Time and Date Menu

The TIME AND DATE menu lets you set the panel clock and calendar. Alphanumeric touchpads display the time and date whenever the system is disarmed. Setting the time and date is important for accurate tracking of system events stored in the event buffer. The panel uses a global clock and calendar for time and date.

The following describes how to set the panel time and date.

User Codes Menu Important: Each security access code (Installer, Dealer, system Master, or User)

must be unique. Do not use the same combination of numbers for any two codes.

The USER CODES menu lets you program/change regular user access codes and the system master code.

Concord Express Installation Instructions 65

Chapter 2

User Codes (10nn0-nn=user 00 thru 15)

User Codes (Default=none)

User Codes perform basic arming and disarming functions. The system allows up to 16 user codes (user numbers 00-15). User numbers that show **** indicate no code is currently programmed for that user number.

To program Regular User Codes:

1. With the display showing USER CODES, press # and the display shows REGULAR USER CODES.

2. Press # and the display shows USER nn (first available user number).

3. Press A or B to select the desired user number, then press #. The display shows USER nn - nnnn.

4. Enter a 4-digit user code and the display flashes USER nn - nnnn (new code). Press É to accept the new setting.

To delete Regular User Codes:

1. With the display showing USER CODES, press # and the display shows REGULAR USER CODES.

2. Press # and the display shows USER nn (first available user number).

3. Press A or B to select the desired user number/user code you want to delete, then press É. The display shows USER nn - nnnn.

4. Enter a 4-digit code that is the same as the system master code. With the display flashing the entered code, press # and the display shows USER nn - **** (no code).

Direct Bypassing (10nn1--nn=user 00 thru 15)

User Codes (Default=off)

To turn user code Direct Bypassing off or on:

1. With the display showing USER CODES, press # and the display shows REGULAR USER CODES.

2. Press # and the display shows USER nn (first available user number).

3. Press A or B to select the desired user number, then press #. The display shows USER nn - nnnn.

4. Press B and the display shows DIRECT BYPASSING OFF/ON (current setting).

5. Press 1 (off) or 2 (on) and the display flashes the entered setting. Press # to accept the new setting.

66 Concord Express Installation Instructions

Chapter 2

System Tests (10nn2-nn=user 00 thru 15)

User Codes (Default=off)

This setting determines whether or not a user code can perform phone and sensor tests.

To turn user code System Tests off or on:

1. With the display showing USER CODES, press # and the display shows REGULAR USER CODES.

2. Press # and the display shows USER nn (first available user number).

3. Press A or B to select the desired user number, then press #. The display shows USER nn - nnnn.

4. Press B until the display shows SYSTEM TESTS OFF/ON (current setting).

5. Press 1 (off) or 2 (on) and the display flashes the entered setting. Press # to accept the new setting.

System Master Code (110)

User Codes (Default=1234)

The System Master Code performs all system operations and user programming.

To change the System Master Code:

1. With the display showing USER CODES, press É then B. The display shows SYSTEM MASTER CODE.

2. Press # and the display shows SYSTEM MASTER nnnn (current code).

3. Enter a new 4-digit code. The display flashes the entered code. Press # and the display shows the new code.

Downloading (20)

Options (Default=on)

This setting determines whether or not the panel can communicate with ToolBox software for programming the system from off-site.

Note: The panel must have a Downloader phone number and Downloader code programmed and be connected to a phone line for this feature to work.

To turn Downloading off or on:

1. Enter user programming with the system master code. The display shows TIME AND DATE.

2. Press A or B until the display shows OPTIONS.

3. Press # and the display shows DOWNLOADING OFF/ON (current setting).

4. Press 1 (off) or 2 (on). The display flashes the entered selection. Press # and the display shows the new setting.

Options Menu

The OPTIONS menu lets you set up the system for downloading and silent arming, and lets you adjust alphanumeric touchpad display brightness.

Concord Express Installation Instructions 67

Chapter 2

Silent Arming (21)

Options (Default=off)

This setting determines whether the partition arms the system with (off) or without (on) sounding status beeps from sirens and the touchpad.

Note: Turning this feature on will double the exit time. This option is not available when SIA False Alarm Reduction (0003) is on.

To turn Silent Arming off or on:

1. Enter user programming mode with the system master code. The display shows TIME AND DATE.

2. Press A or B until the display shows OPTIONS.

3. Press #, then B and the display shows SILENT ARMING OFF/ON (current setting).

4. Press 1 (off) or 2 (on). The display flashes the entered selection. Press # and the display shows the new setting.

Touchpad Brightness (22)

Options (Default=2)

This setting lightens or darkens the background on touchpad displays. Each touchpad display can be set independently to compensate for lighting conditions in the touchpad location.

To adjust Touchpad Brightness:

1. Enter user programming mode with the system master code. The display shows TIME AND DATE.

2. Press A or B until the display shows OPTIONS.

3. Press #, then B twice and the display shows TOUCHPAD BRIGHTNESS n (current setting).

4. Enter a setting from 0 (darkest background) to 3 (brightest background). The display flashes the entered selection. Press # and the display shows the new setting.

Chime On Close (25)

Options (Default=off)

This setting determines whether or not a single chime is sounded when a perimeter door or window is closed.

To turn Chime On Close off or on:

1. Enter user programming mode with the system master code. The display shows TIME AND DATE.

2. Press A or B until the display shows OPTIONS, then press #. The display shows DOWNLOADING OFF/ON.

3. Press A or B until the display shows CHIME ON CLOSE OFF/ON (current setting).

4. Press 1 (off) or 2 (on). The display flashes the entered selection. Press # and the display shows the new setting.

System Version Menu

The SYSTEM VERSION menu lets you view and identify panel hardware and software. This information is primarily used for troubleshooting purposes.

68 Concord Express Installation Instructions

Chapter 2

System Version (30=factory code, 31=system number, 32=system level)

(Default=N/A)

This menu lets you view and identify the panel hardware and software version.

To view and identify the System Version:

1. Enter user programming with the system master code. The display shows USER CODES.

2. Press A or B until the display shows SYSTEM VERSION.

3. Press # and the display shows FACTORY CODE nnn*nnnn.

4. Press B and the display shows SYSTEM NUMBER *nnnnnnn.

5. Press B again and the display shows SYSTEM LEVEL nnnn.

Downloader Programming

The panel can be programmed remotely using ToolBox. Use the information you recorded in Appendix A to inform the downloading operator of your installation programming requirements.

ToolBox Downloader Programming

Note: A Downloader Phone Number must be programmed and the user-

programmable option Downloading must be set to on in order for remote downloader programming to work.

To initiate a ToolBox download session:

1. Contact your download station and ask the operator to prepare to download to the panel.

2. Make sure the system is disarmed.

3. Press 8 + system master CODE + 7 + 0 (any), 1 (down), or 2 (up). The display shows SYSTEM DOWNLOAD IN PROGRESS during the downloading process.

If the alphanumeric touchpad does not display SYSTEM DOWNLOAD IN PROGRESS, call the downloader operator to verify the downloader phone number and that ToolBox is set up properly. Refer to the “Troubleshooting” on page 76 if the problem persists.

Concord Express Installation Instructions 69

Chapter 3

Testing/Troubleshooting

This section describes the following subjects:

• Basic System Commands

• Testing Zones/Sensors

• Testing Phone Communication

• Testing Central Station/Pager Communication

You should test the system after installing or servicing and after adding or removing devices from the system. UL Listed systems should be tested weekly.

Refer to the “Troubleshooting” on page 76 if correct test results are not achieved.

Content

Basic system commands 72 Testing Zones/Sensors 72 Testing Phone Communication 73 Testing Central Station/Pager Communication 74 Testing Outputs/Sirens 74 Changing Fixed Display LCD Touchpad Chime and Trouble Beep Tones 76

Troubleshooting 76

Concord Express Installation Instructions 71

Chapter 3

Command

Response

* (STATUS)

Indicates current system status

1 + CODE

Disarms system to OFF

2 + CODE

Arms system to STAY

3 + CODE

Arms system to AWAY

2 (quick arm on)

Arms system to STAY

3 (quick arm on)

Arms system to AWAY

2 or 3 + CODE + 4 or 2 or 3 + 4

Makes entry/exit doors instant (4 must be pressed within five seconds of arming)

5 + 2 or 3 + CODE or 5 + 2 or 3

Arms system silently (no arming status beeps)

7 + 1

Turns chime feature on and off

7 + 6

Identifies alarms in memory

8 + CODE + 2

Initiates a phone test

8 + CODE + 3

Initiates a sensor test

8 + installer CODE + 3

Initiates a dealer sensor test

Basic system commands

Table 4 below describes the basic system touchpad operating commands. For complete details on system operation, including user programming, refer to the system users guide.

Table 4: Basic system commands

Testing Zones/Sensors

We recommend that you test sensors/zones after all programming is completed and whenever a zone/sensor-related problem occurs.

If the system does not respond as described in the following procedure, see the “Troubleshooting” section.

Note: While the sensor test is a valuable installation and service tool, it only tests sensor operation for the current conditions. You should perform a sensor test after any change in environment, equipment, or programming.

1. Place all sensors/zones in their non-alarm state.

2. At an alphanumeric touchpad, enter the sensor test mode by pressing 8 + installer CODE + 3. The touchpad sounds one beep and displays SENSOR TEST, 15 MINUTES LEFT. The system stays in sensor test for 15 minutes.

72 Concord Express Installation Instructions

Chapter 3

When less than 5 minutes remain, touchpads and interior sirens beep once every minute. After 15 minutes the panel disarms to OFF automatically.

3. Trip each zone/sensor one at a time. Touchpads (and interior sirens) should sound one short, high-pitched beep and the display shows the sensor name (or number if text for that sensor is not programmed) and OK.

Note: If you hear a long, low-pitched beep, proceed to the section “If a Wireless Sensor Does Not Test.”

4. Press the status button when you think all zones/sensors are tested. The touchpad displays any untested sensors/zones and touchpad panics. If all sensors/zones and touchpad panics have been tested, the display shows SENSOR TEST OK or ZONES ALL TESTED (fixed display touchpads).

5. Test any untested zones/sensors and touchpad panics.

6. If you need more time to complete the sensor test, press 8 + installer CODE + 3 while the system is still in sensor test. This restarts the 15 minutes of test time.

7. When all sensors/zones and touchpad panics have been tested, press 1 + installer CODE to exit sensor test.

If a Wireless Sensor Does Not Test

If touchpads display SENSOR FAILURE and sirens sound a long, low-pitched beep when a zone/sensor is tripped, this indicates wireless sensor signal strength is below acceptable limits. Distance from the receiver and/or installation environment are most likely affecting the sensor signal strength.

When possible, locate wireless sensors within 100 feet of the panel. While a transmitter may have a range of 1,000 feet or more out in the open, the environment at the installation site can have a significant effect on transmitter range. Refer to the ““Troubleshooting” on page 76 to resolve the problem.

For wireless sensors that don’t respond, use an RF Sniffer (60-401) test tool to verify that the sensor is transmitting. Constant beeps from the RF Sniffer indicate a runaway (faulty) sensor. Remove the sensor battery and replace the sensor.

Testing Phone Communication

Perform a phone test to check the phone communication between the panel and the central monitoring station.

To perform a phone test:

1. Contact the central monitoring station to inform them that you are testing the system.

Concord Express Installation Instructions 73

Chapter 3

2. Press 8 + system master CODE + 2. The display shows PHONE TEST and the touchpad sounds one beep.

When the panel completes the test, the system returns to the previous arming level automatically.

If the display continues to show PHONE TEST for 1½ minutes or more, enter 1 + system master CODE and refer to the “Troubleshooting” on page 76.

Testing Central Station/Pager Communication

After performing sensor and phone tests, check that the system is reporting alarms successfully to the central station (or pager).

To test communication with the central station/pager:

Note: The way information is displayed varies with pager services and may not

match the example to the right. Account numbers with alpha-characters also vary when displayed, depending on pager service. Account numbers are not displayed if Streamlining is turned on.

1. Call the central station and tell the operator that you will be testing the system.

2. Arm the system.

3. Test each of the touchpad and wireless panic buttons and trip at least one sensor of each type (fire, intrusion, etc.) to verify correct operation.

4. Check pager displays to verify reports are received. Pagers display an event code, digit sensor number, and the last four digits of the account number. For example, a pager display of 999 002 7468 indicates the following; 999 = alarm condition, 002 = sensor/zone in alarm or user number, and 7468 = last four digits of account number. Table 5 on page 75 describes pager system event codes. Table 6 on page 75 describes pager sensor/zone number and user number report codes

5. When you finish testing the system, call the central monitoring station to verify that the alarms were received.

Testing Outputs/Sirens

All outputs (Onboard and SnapCard) should be tested to verify configuration programming.

74 Concord Express Installation Instructions

Chapter 3

Code

System event

009

Zone Restoral

111

System Disarmed

118

Trouble Condition Cleared

119

Alarm Canceled

222

System Armed to STAY

333

System Armed to AWAY

555

Phone Test

888

System Trouble Condition

999

System in Alarm

Code

System event

000

System event not caused by a zone or user

001 - 0024

Sensor/Zone Numbers 1 - 24

600 - 615

Regular User Codes 0 - 15 used

678

System Master Code used

679

Installer Code used

680

Dealer Code used

697

Quick Arm used

698

Keyswitch Sensor used

To Test Outputs:

1. Contact the central monitoring station to inform them that you are testing the system.

2. Verify that all wiring at the panel and output devices is correct.

3. Activate the appropriate device to trigger each output as programmed.

4. Verify that each output responds according to the programmed configuration number. For outputs that trigger sirens, verify that the correct alarm sounds are produced from these sirens. Table 7 on page 76 describes the system alarm sounds you should hear for each alarm event.

Contact the central monitoring station when you are finished testing.

Caution: Be sure to contact the central monitoring station before activating

outputs that trigger from an alarm condition.

Table 5: Pager system event codes

Table 6: Pager codes

Concord Express Installation Instructions 75

Chapter 3

Code

System event

699

System Armed Itself (during service or powerup)

Code

System event

Fire

Repeating series of three beeps

Police/Intrusion

Continuous tone

Auxiliary

Rapid beeps

Table 7: System alarm sounds

Changing Fixed Display LCD Touchpad Chime and Trouble Beep Tones

The frequency (pitch) of chime and trouble beep tones from a fixed display touchpad can be adjusted to a more desirable or distinct tone, and to compensate for hearing impaired persons.

Note: For the comfort of users, chime and trouble beep tones revert to the quieter, default frequency while the keypad is in use (during or within 15 seconds of any button activity at that specific touchpad).

To change status tone pitch:

1. Press and hold the * and 0 buttons together until you hear a steady tone, then release the buttons.

2. Press and hold 1 to lower the pitch or press and hold 2 to raise the pitch.

3. When the desired pitch is heard, release the button.

If there is no touchpad activity for about 15 seconds, the steady tone stops sounding.

Troubleshooting

This section describes what to do if you experience problems with system operation. Topics are in alphabetical for easy reference.

Access code

Customer cannot remember access code(s).

1. Check your records to see if you have the customer’s access code(s) on file.

2. Verify the access code(s) using the Downloader.

76 Concord Express Installation Instructions

Chapter 3

3. Clear memory and reprogram the panel locally.

Note: Clearing panel memory deletes factory zone programming.

Installer cannot remember install code.

1. Check your records to see if you have the install code on file.

2. Verify the install code using the Downloader.

3. Use the Dealer Code to enter program mode and view the installer code.

4. Call Technical Support for assistance. Installer cannot remember dealer code

1. Check your records to see if you have the dealer code on file.

2. Verify the dealer code using the Downloader.

3. Call Technical Support for assistance.

Alphanumeric Touchpads

Display shows all ************.

• Touchpad is not connected to panel bus terminals or is wired incorrectly. Check and correct wiring.

Display is blank.

1. Check that panel is powered up.

2. Check for touchpad power and/or bus miswiring, opens, or shorts.

3. Check touchpad brightness setting (see the user programming OPTIONS menu).

Touchpad buttons don’t beep when pressed.

1. Check for touchpad power and/or bus miswiring, opens, or shorts.

2. Check that key beeps option is set to on (see the ACCESSORY MODULES— BUS DEVICES menu).

Arming and Disarming

System protests and won’t arm.

1. If arming to level 2, make sure all monitored perimeter doors and windows are closed.

2. If arming to level 3, make sure all perimeter and interior sensors are closed.

3. Press status for an indication of the problem.

System won’t disarm.

Concord Express Installation Instructions 77

Chapter 3

1. Disarming using incorrect code. Enter correct code.

2. Access code is not programmed or set up in user programming to disarm system.

3. Wireless touchpad is not learned into system or hardwire touchpad is not communicating to panel. Check installer programming for learned touchpads.

4. The installer code is being used to disarm the system. The system is designed not to disarm using the installer code. Use a regular or system master code to disarm the system.

Bypassing

Touchpad indicates Invalid when you attempt to bypass a sensor.

1. Sensor is already bypassed.

2. Attempting to bypass a 24-hour sensor that cannot be bypassed (group 26 fire sensors).

3. Sensor is not active in the current arming level.

System cancels sensor bypass when you try to arm to level 2 or 3.

• Sensor is being bypassed before arming to 2—STAY or 3—AWAY. Arm to the desired level before bypassing a sensor.

Central Station/Pager Reporting

Central station/pager is not receiving reports.

1. Check that the premises phone line is working.

2. Perform a phone test.

3. Check that the DB-8 cord is plugged into the RJ-31X/CA-38A jack.

4. Check that the DB-8 cord is wired correctly to the panel.

5. Check for correct phone line wiring between the TELCO block and RJ31X/CA-38A jack.

6. Replace faulty RJ-31X/CA-38A jack.

7. Replace faulty DB-8 cord.

8. Verify that central station/pager phone number is programmed into the panel. Reprogram the phone number and retest, if necessary.

9. Verify that reporting features, such as High Level Rpts and Low Level Rpts, are set to “on.”

10. Verify that the correct phone format (SIA or CID) is being used.

78 Concord Express Installation Instructions

Chapter 3

11. For pagers, extend the pager delay setting (see the PHONE OPTIONS— GLOBAL menu in the “Entering programming mode” on page 28.

Downloading/Uploading

Download/upload session fails on a pre-programmed panel.

1. Check all phone troubleshooting Action/Solution steps.

2. Verify Downloader Phone Number matches ToolBox setting.

3. Verify Downloader Code matches ToolBox setting.

4. Verify Dealer Code matches ToolBox setting.

5. Verify panel Account Number matches ToolBox setting.

Download/upload session fails on an unprogrammed panel.

• Check all phone troubleshooting Action/Solution steps.

Hardwire Zones

System doesn’t go into alarm when zone is tripped.

1. System is disarmed. Arm system and then trip the zone.

2. Zone is not learned into panel memory. Enter installer/dealer program mode and use the LEARN SENSORS menu to add the zone into memory.

Zone reports trouble condition.

1. Check that onboard and SnapCard zone inputs have a 2k-ohm EOL resistor installed at the last device on the loop (in series for N/C loops or in parallel for N/O loops).

2. Check for zone wire fault—short circuit on N/C loops, open circuit on N/O loops.

3. Make sure all devices on zone are in non-alarm state, then enter disarm command to reset zone.

Panel Power

Panel does not power up. Touchpads don’t display or respond.

1. Check that panel transformer is plugged into an unswitched outlet.

2. Check the AC circuit breaker to be sure the circuit is live.

3. Check that the backup battery is installed correctly and the AC power transformer is plugged in.

4. Check for proper panel and transformer wiring.

Concord Express Installation Instructions 79

Chapter 3

5. Measure the incoming AC voltage at panel terminals 1 and 2. It should read about 16.5 VAC.

No incoming AC voltage at panel terminals 1 and 2.

1. Unplug the AC power transformer and disconnect the wires from the transformer and the panel.

2. Check transformer to panel wire for short or open circuits.

3. Plug in the transformer and check for 16.5 VAC at the transformer unconnected terminals. If zero (0) volts, replace the transformer.

Touchpad display indicates SYSTEM LOW BATTERY.

1. Check that the backup battery is installed correctly and the AC power transformer is plugged in.

2. Measure the incoming AC voltage at the panel terminals 1 and 2. It should read about 16.5 VAC.

3. Remove the backup battery power by disconnecting the red (positive) battery wire. Check for 11.75 to 13.5 VDC battery charging voltage between panel terminal 3 (GND) and the disconnected red battery wire. If the charging voltage is not within range, call Technical Services.

4. Check for 11.75 to 13.5 VDC battery voltage between the backup battery spade lugs. If the battery voltage is not within this range, replace the battery.

Note: When the panel is running a backup battery test, the reading at the connected battery can range from 11.2 to 13.5 VDC. The panel automatically runs a backup battery test under the following conditions: (1) on initial powerup, (2) during user sensor test, (3) once every minute when backup battery has failed, (4) once every 24 hours at the programmed STIME (UL 98 Options off) or once every 4 hours (UL 98 Options on). With the AC power transformer plugged in, the panel automatically charges the battery. While the battery is charging for the first time it is normal for the system to indicate System battery failure. This can take a number of hours depending on the initial battery charge. Once the battery reaches 12.5 VDC (full charge as measured while in battery test), the condition clears. If the trouble condition persists after 24 hours, replace the backup battery.

After you press status, the touchpads flash AC or display AC POWER FAILURE/AC FAILURE. (Panel continues to operate from backup battery.)

1. Check the AC circuit breaker to be sure the circuit is live.

2. Check for proper panel and transformer wiring.

3. Check that the transformer is plugged into a nonswitched outlet and secured with the provided screw.

80 Concord Express Installation Instructions

Chapter 3

4. Check that the transformer is supplying AC to the panel. (Transformer internal fuse may be blown.)

WARNING: Be careful when securing the transformer to an outlet metal cover.

Hold the cover tightly in place. You could receive a serious shock if the metal outlet cover drops down onto the prongs of the plug while you are securing the transformer and cover to the outlet box.

Phones

Loss of dial tone at on-site phones after wiring RJ-31X jack or connecting the DB-8 cord.

1. Wait 2 minutes and try again. The panel may be busy trying to report to the central station.

2. Disconnect the panel DB-8 cord from the RJ-31 jack. If the phone still doesn’t work, the system is okay and the problem is in the wiring.

3. Check RJ-31X jack wiring and TELCO block wiring. Replace RJ-31X jack if necessary.

4. Check DB-8 cord connections at the panel and RJ-31X jack. Replace cord if necessary.

5. Perform a phone test after troubleshooting the phone line.

Constant dial tone preventing dial-out on premises phones.

• One or more polarity-sensitive phones exist on-site. Reverse the phone wires connected to the brown and gray wire terminals on the RJ-31X jack.

Sirens

Piezo sirens connected to SnapCard or onboard (panel) outputs 1 and/or 2 don’t

produce any alarm sounds.

1. Check for incorrect wiring between siren and panel; correct where necessary.

2. Output has not been configured (set up) to activate sirens. Enter program mode and configure output (see ACCESSORY MODULES—BUS DEVICES—SNAP CARD, or ONBOARD OPTIONS—OUTPUT 1, 2 in the “Programming” section and the tables in Appendix A).

Wireless Sensor and Touchpad Batteries

System indicates SENSOR/TOUCHPAD NN LOW BATTERY.

• Replace the indicated device battery. Test the sensor/touchpad after replacing the battery.

Concord Express Installation Instructions 81

Chapter 3

Note: If the sensor/touchpad is not tested after battery replacement, the system continues to show a low battery condition since that was the last signal it received from the device. Testing the sensor/touchpad with new batteries allows the panel to receive a signal with good battery information.

Wireless Sensor Zones

System doesn’t respond (in sensor test or when armed) when sensor is tripped.

1. Verify that panel loop antenna is installed up into antenna housing mounted on top of panel cabinet.

2. Check that the wireless sensor battery is installed.

3. Check the sensor battery for low voltage. Replace batteries if necessary.

4. Use an RF Sniffer (60-401) to verify that sensor is transmitting.

5. Sensor is not learned into panel memory. Enter installer/dealer program mode and use the LEARN SENSORS menu to add the sensor into memory.

Sensor reports trouble condition.

1. Sensor tamper switch is tripped—sensor cover is off, not latched securely, or sensor is not mounted securely. Secure sensor mounting and/or cover, then trip sensor to clear the condition.

2. Check the sensor battery for low voltage. Replace batteries, if necessary.

Touchpad indicates [SENSOR #] SUPERVISORY.

1. Use an RF Sniffer (60-401) to verify that sensor is transmitting. If sensor is not transmitting, check battery for low or no voltage and replace.

2. Change mounting position of sensor (from horizontal to vertical or vice versa) and test sensor several times for consistency.

3. Sensor signal is not reaching panel/receiver because sensor is too far away. Remove sensor from mounted location and test from other locations. Mount sensor in area where signal can reach panel/receiver.

Smoke sensor beeps once every minute.

• Sensor batteries are getting low. Replace batteries.

Note: System Sensor smoke sensors (model RF2300) don’t transmit a low

battery signal to the panel/receiver until battery voltage drops to within a range of 4.7 to 5.4 VDC. The sensor sounds beeps to notify occupants that the sensor batteries need replacing, but the sensor does not transmit a low battery signal to the panel until the next supervisory signal (69 minutes later).

82 Concord Express Installation Instructions

Chapter 3

Wireless Touchpads

System doesn’t respond to commands entered from a wireless touchpad.

1. Verify that panel loop antenna is installed up into antenna housing mounted on top of panel cabinet.

2. Check that touchpad battery is installed.

3. Check the touchpad battery for low voltage. Replace battery, if necessary.

4. Use an RF Sniffer (60-401) to verify that touchpad is transmitting.

5. Touchpad is not learned into panel memory. Enter program mode and learn touchpad into memory.

Touchpad reports trouble condition.

• Check the touchpad battery for low voltage. Replace battery, if necessary.

Concord Express Installation Instructions 83

Part no.

Descritpion

Quantity

Standby current draw

Standb y current subtota l

Maximum current draw

Maximum current subtotal

Hardwire Sensors/Detectors

N/A

System sensor models 2100D, 2100TD, 2100S, 2100TS, 2400, 2400TH, or ESL series 429AT, 521B, 521BXT

1.2 mA for 10 detectors

Panel limited to 100 mA

13-463

Visus LP60 PIR Motion Detector

10 mA

13-464

DS940 PIR Motion Detector

17 mA

13-468

Optex RX-040 (PI) PIR Motion Detector

17 mA

Appendix A

System configuration worksheets

Customer Name _________________________________ Address _______________________________________

City _________________ County ___________ State ___ Zip __________ Phone (____) _______________

Table 8: System hardwire devices

Concord Express Installation Instructions 85

Appendix A

Part no.

Descritpion

Quantity

Standby current draw

Standb y current subtota l

Maximum current draw

Maximum current subtotal

SuperBus 2000 Devices (4 maximum)

60746-01

SuperBus 2000 2x16 LCD Alphanumeric Touchpad

57 mA

90 mA

60-820

SuperBus 2000 Fixed Display Touchpad

33 mA

65 mA

60803-04

SuperBus 2000 2x20 LCD Alphanumeric Touchpad

75 mA

120 mA

60804-04

SuperBus 2000 2x20 VFD Alphanumeric Touchpad

75 mA

120 mA

60-774

SuperBus 2000 Hardwire Input Module

18 mA

SnapCards (1 per panel)

60-756

4 Input/2 Output SnapCard

10 mA + 2.5 mA per zone used + 7 mA per smoke loop used + 34 mA per relay used

185 mA

60-757

8Z Hardwire Input SnapCard

10 mA + 2.5 mA per zone used + 7 mA per smoke loop used

230 mA

60-758

4 Output SnapCard

6 mA + 34 mA per relay used

130 mA

Total Standby Current Draw (must not exceed 90 mA for UL systems)

Total Maximum Current Draw (must not exceed 750 mA)

Note: For UL listed systems, the difference between the standby current draw and the maximum current draw of each device must be subtracted from the UL allowed alarm load of 650 mA (panel terminal 7—OUT1/+12)

86 Concord Express Installation Instructions

Appendix A

No.

Group

Zone/sensor text

No.

Name

Application

Alarm

Delay

Restoral

Superviso

Reports

Chime

Active

levels

Fixed Panic

24-hour audible fixed emergency buttons.

Police

Instant

X X

1, 2, 3

Table 9: Zone/sensor assignments

Table 10: Sensor group characteristics

Concord Express Installation Instructions 87

Appendix A

Portable Panic

24-hour audible portable emergency buttons.

Police

Instant

1, 2, 3

Fixed Panic

24-hour silent fixed emergency buttons.

Silent

Instant

X X

1, 2, 3

Portable Panic

24-hour silent portable emergency buttons.

Silent

Instant

1, 2, 3

Fixed Auxiliary

24-hour auxiliary sensor, such as Pendant Panic or holdup button.

Auxiliary

Instant

X X

1, 2, 3

Fixed Auxiliary

24-hour auxiliary emergency button. Siren shutoff confirms CS report.

Auxiliary

Instant

X X

1, 2, 3

Portable Auxiliary

24-hour portable auxiliary alert button.

Auxiliary

Instant

1, 2, 3

Portable Auxiliary

24-hour portable auxiliary button. Siren shutoff confirms CS report.

Auxiliary

Instant

1, 2, 3

Special Intrusion

Special belongings, such as gun cabinets and wall safes.

Police

Instant

X X X

1, 2, 3

Special Intrusion

Special belongings, such as gun cabinets and wall safes.

Police

Standard

X X X

1, 2, 3

Entry/Exit Delay

Entry and exit doors that require a standard delay time.

Police

Standard

X X X

2, 3

Entry/Exit Delay

Garage doors and entrances that require an extended delay time. *

Police

Extended

X X X

2, 3

88 Concord Express Installation Instructions

Appendix A

Entry/Exit Delay

Driveway gates and entrances that require a twice extended delay time. *

Police

Twice Extended

X X X

2, 3

Instant Perimeter

Exterior doors and windows.

Police

Instant

X X X

2, 3

Instant Interior

Interior doors.

Police

Follower

X X X

2, 3

Instant Interior

Interior PIR motion sensors. *

Police

Follower

X X

2, 3

Instant Interior

Interior doors.

Police

Follower

X X X 3

Instant Interior

PIR motion sensors. *

Police

Follower

X X 3

Instant Interior

PIR motion sensors subject to

false alarms. * †

Police

Follower

X X 3

Delayed Interior

Interior doors that initiate a delay before going into alarm. *

Police

Standard

X X X 3

Delayed Interior

PIR motion sensors that initiate a delay before going into alarm. *

Police

Standard

X X 3

Local Instant Interior

24-hour local alarm zone protecting anything that opens and closes.

Police

Instant

X X

1, 2, 3

Local Delayed Interior

Same as group 21, plus activation initiates a delay before going into alarm.

Police

Standard

X X

1, 2, 3

Local Instant Auxiliary

24-hour local alarm zone protecting anything that opens and closes.

‡

Auxiliary

Instant

X X

1, 2, 3

Concord Express Installation Instructions 89

Appendix A

Local Instant Auxiliary

24-hour local alarm zone protecting anything that opens and closes. Sirens shut off at restoral. *

Auxiliary

Instant

X X

1, 2, 3

Local Special Chime

Notify the user when a door is opened. Sounds emit from a local annunciator. *

Special Chime

Instant

1, 2, 3

Fire 24-hour fire, rateof-rise heat, and smoke sensors.§§

Fire Instant

X X

1, 2, 3

Output Module

Hardwire Output Module (HOM) lamp control or other customer

feature. ‡

Silent

Instant

X X

1, 2, 3

Output Module

HOM, PIR motion sensor, sound sensor, or

pressure m at. ‡

Silent

Instant

1, 2, 3

Auxiliary

Freeze sensor.

Auxiliary

Instant

X X X

1, 2, 3

Output Module

HOM, PIR motion sensor, sound sensor, or

pressure m at. ‡

Silent

Instant

1, 2, 3

Gas Carbon monoxide (CO) Gas

Detectors ‡

Auxiliary

Instant

X X X

1, 2, 3

Local Instant Police (Day Zone)

Local alarm in levels 1 and 2. Reports to CS in level 3.

Police

Instant

X X X leve l 3 only

1, 2, 3

Note: Check marks (X) represent characteristics present in a group. * This group is not certified as a primary protection circuit for UL-listed systems and is for

supplementary use only. † Sounds instant police siren if two or more sensors are tripped within 4 minutes. Otherwise

sensors are followers to delayed sensors. If Alarm Verification is on, group 18 functions like group 17.

‡ This group has not been investigated by UL.

§ This group is required for UL-listed residential fire alarm applications.

90 Concord Express Installation Instructions

Appendix A

Item #

Sensor text

Item #

Sensor text

Item #

Sensor text

Item #

Sensor text

Item #

Sensor text

Item #

Sensor text

001

Aborted

041

Date

081

Gas

121

North

161

Siren

201

002

042

Daughter’s

082

Glass

122

Not

162

Sliding

202

003

Access

043

Degree

083

Goodbye

123

Now

163

Smoke

203

004

Active

044

Delay

084

Hallway

124

Number

164

Son’s

204

005

Activity

045

Den

085

Heat

125

Off

165

Sound

205

006

Alarm

046

Desk

086

Hello

126

Office

166

South

206

007

All

047

Detector

087

Help

127

167

Special

207

008

048

Dining

088

High

128

168

Stairs

208

009

Area

049

Disarmed

089

Home

129

Open

169

Stay

209

010

Arm

050

Door

090

House

130

Opening

170

Supervisory

210

011

Armed

051

Down

091

131

Panic

171

System

211

012

Arming

052

Download

092

Install

132

Partition

172

Tamper

212

Cross-Zoning

Note: Cross-Zoning is not recommended for exit/entry zones. Each zone has the

ability to individually protect the intended area. (e.g. motion detector patterns overlap).

Cross-Zone (Alarm Verify) refers to two different Group 10-20 sensors that must be tripped within four minutes of each other to report an alarm to the central station. The diagram in Figure 23 below shows the path of a person walking from the kitchen to the living room. When the person is detected walking through the kitchen, the motion sensor in the kitchen is tripped, sounding a local alarm. If motion is detected by the living room motion sensor within two minutes, an alarm report will be sent to the central station.

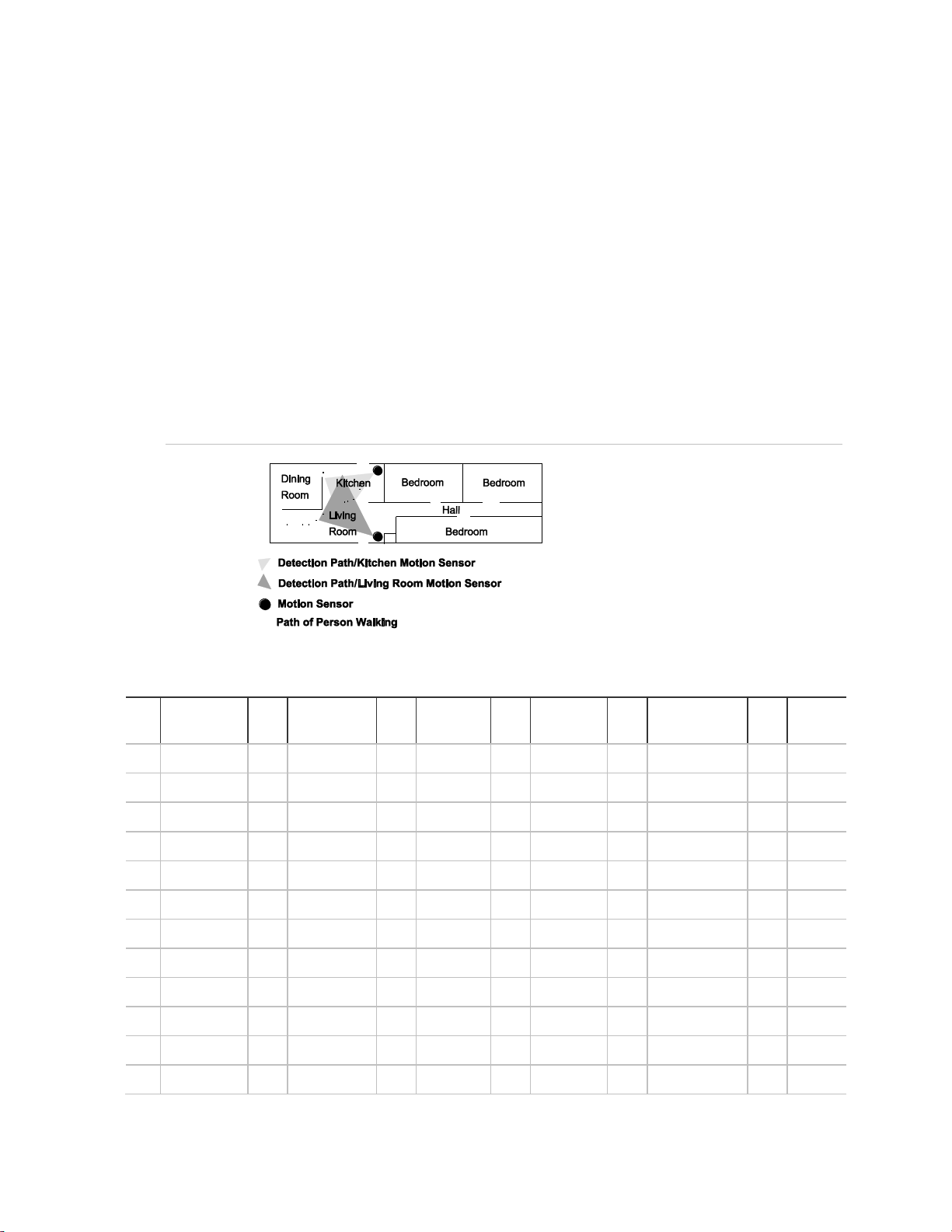

Figure 23: Cross-zone diagram

Table 11: Item numbers and sensor text

Concord Express Installation Instructions 91

Appendix A

013

Attic

053

Downstairs

093

Interior

133

Patio

173

Temperature

213

014

Auxiliary

054

Door

094

Intrusion

134

Pet

174

Test

214

015

Away

055

Driveway

095

Invalid

135

Phone

175

Time

215

016

Baby

056

Duct

096

136

Please

176

216

017

Back

057

Duress

097

Key

137

177

Touchpad

217

018

Bar

058

East

098

Kids

138

Police

178

Trouble

218

019

Basement

059

Energy Saver

099

Kitchen

139

Pool

179

Unbypass

219

020

Bathroom

060

Enter

100

Latchkey

140

Porch

180

Unit

220

021

Battery

061

Entry

101

Laundry

141

Power

181

221

(space)

022

Bedroom

062

Error

102

Left

142

Press

182

West

222

‘

023

Bottom

063

Exit

103

Level

143

Program

183

Window

223

024

Breezeway

064

Exterior

104

Library

144

Progress

184

Zone

224

025

Building

065

Factory

105

Light

145

Quiet

185 0 225

026

Bus

066

Failure

106

Lights

146

Rear

186 1 226

027

Bypass

067

Family

107

Living

147

Receiver

187 2 227

028

Bypassed

068

Father’s

108

Load

148

Report

188 3 228

029

Cabinet

069

Feature

109

149

189 4 229

030

Canceled

070

Fence

110

Low

150

Right

190 5

031

Car

071

Fire

111

Lower

151

Room

191 6

032

Carbon Monoxide

072

First

112

Main

152

Safe

192 7

033

Central

073

Floor

113

Master

153

Schedule

193 8

034

Chime

074

Force

114

Mat

154

Screen

194 9

035

Closed

075

Foyer

115

Medical

155

Second

195 A

036

Closet

076

Freeze

116

Memory

156

Sensor

196 B

037

Closing

077

Front

117

157

Service

197 C

038

Code

078

Furnace

118

Mother’s

158

Shed

198 D

039

Computer

079

Gallery

119

Motion

159

Shock

199 E 040

Control

080

Garage

120

160

Side

200 F

Menu name & (Default)

Shortcut no.

Setting

Installer Programming—8 + Installer/Dealer CODE + 00

24-Hour Tamper

05000

Table 12: System settings

92 Concord Express Installation Instructions

Appendix A

Menu name & (Default)

Shortcut no.

Setting

AC Failure (Off)

05010

Account No. (00000)

0010

Activity Timeout (24 hours)

0305

Alarm Verify (Off)

0516

Auto Phone Test (Off)

02001

Auto Stay Arming (On)

0014

Auto Test Reset (On)

02002

Auxiliary Panic (On)

0401

Back In Service (On)

05002

Backup (CS Phone 1 On, CS Phone 2 Off)

0104-cs phone 1 0114-cs phone 2

______________ ______________

Battery Restoral (Off)

05005

Buffer Control (Off)

05001

Buffer Full Report (Off)

05006

Bypass Reports (Off)

05003

CS Phone 1 (None)

0100

CS Phone 2 (None)

0110

Call Wait Cancel (None)

02009

Cancel Message (On)

02007

Closing Reports (Off)

0511

Comm. Failure (On)

02003

Daylight Savings (On)

0306

Dealer Code (None)

0002

Delete Sensors (None)

072

Dialer Abort (On)

02005

Dial Abort Delay (30 seconds)

02006

Disable Trouble Beeps (Off)

0601

Downloader Code (12345)

0000

Downloader Phone No. (None)

0150

DTMF Dialing (On)

02004

Duress Code (None)

0016

Duress Option (Off)

0514

Edit Sensors (None)

073

Entry Delay (30 seconds)

0310

Concord Express Installation Instructions 93

Appendix A

Menu name & (Default)

Shortcut no.

Setting

Exit Delay (60 seconds)

0311

Exit Extension (On)

0013

Extended Delay (4 minutes)

0312

Fire Panic (On)

0400

Force Armed (Off)

0515

High Level Reports (CS Phone 1 On, CS Phone 2 Off, Pagers 1, 2, 3 all

On)

0101-cs phone 1 0111-cs phone 2 0121-pager 1 0131-pager 2 0141-pager 3

_______________ _______________ _______________ _______________ _______________

Immediate Trouble Beeps (Off)

0600

Installer Code (4321)

0001

Keychain TP Arming (Off)

0403

Keyswitch Sensor (None)

0015

Latchkey Reports (Pagers 1, 2, 3 all On)

0124-pager 1 0134-pager 2 0144-pager 3

_______________ _______________ _______________

Learn Sensors (None)

070

Low CPU Battery

05004

Low Level Reports (CS Phone 1 On, CS Phone 2 Off, Pagers 1, 2, 3 all

Off)

0102-cs phone 1 0112-cs phone 2 0122-pager 1 0132-pager 2 0142-pager 3

_______________ _______________ _______________ _______________ _______________

Next Phone Test (7 days)

0303

No Activity Reports (Off)

0513

Open/Close Reports (All Off)

0103-cs phone 1 0113-cs phone 2 0123-pager 1 0133-pager 2 0143-pager 3

_______________ _______________ _______________ _______________ _______________

Opening Reports (Off)

0510

Output 1 (00410 - any audible alarm)

09100

Output 2 (01710 - status & alarm tones)

09110

Output Trip Time (4 seconds)

0304

Pager Delay (15 seconds)

02008

Pager Phone 1 (None)

012

Pager Phone 2 (None)

0130

94 Concord Express Installation Instructions

Interlogix Concord Express Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
