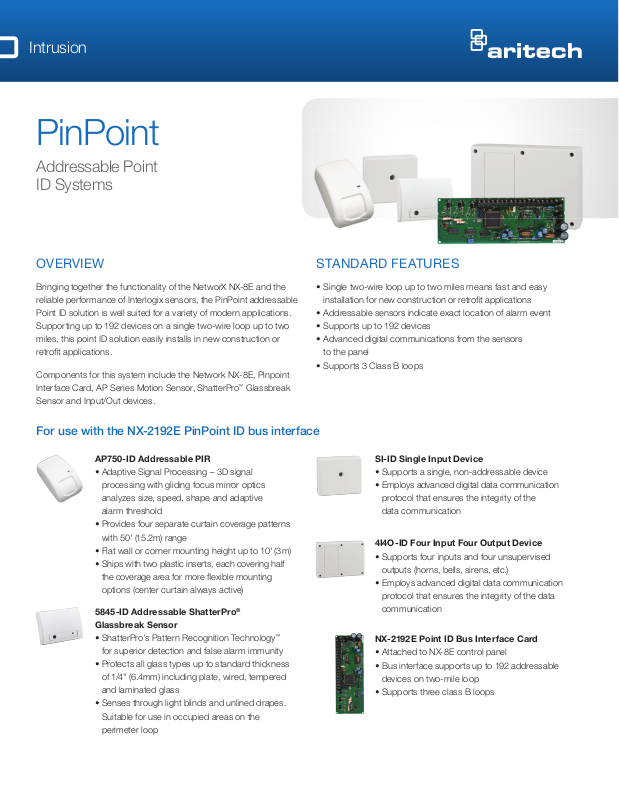

Interlogix 4I4O-ID, 5845-ID Specsheet
Intrusion
PinPoint
Addressable Point
ID Systems
OVERVIEW
Bringing together the functionality of the NetworX NX-8E and the
reliable performance of Interlogix sensors, the PinPoint addressable
Point ID solution is well suited for a variety of modern applications.
Supporting up to 192 devices on a single two-wire loop up to two
miles, this point ID solution easily installs in new construction or
retrofi t applications.
Components for this system include the Network NX-8E, Pinpoint
Interface Card, AP Series Motion Sensor, ShatterPro
Sensor and Input/Out devices.
For use with the NX-2192E PinPoint ID bus interface
AP750-ID Addressable PIR
• Adaptive Signal Processing – 3D signal
processing with gliding focus mirror optics
analyzes size, speed, shape and adaptive
alarm threshold
• Provides four separate curtain coverage patterns
with 50' (15.2m) range
• Flat wall or corner mounting height up to 10' (3m)
• Ships with two plastic inserts, each covering half
the coverage area for more fl exible mounting
options (center curtain always active)
5845-ID Addressable ShatterPro
Glassbreak Sensor
• ShatterPro’s Pattern Recognition Technology
for superior detection and false alarm immunity
• Protects all glass types up to standard thickness
of 1/4" (6.4mm) including plate, wired, tempered
and laminated glass
• Senses through light blinds and unlined drapes.
Suitable for use in occupied areas on the
perimeter loop
™
Glassbreak
®
™
STANDARD FEATURES
• Single two-wire loop up to two miles means fast and easy
installation for new construction or retrofi t applications
• Addressable sensors indicate exact location of alarm event
• Supports up to 192 devices
• Advanced digital communications from the sensors
to the panel
• Supports 3 Class B loops
SI-ID Single Input Device
• Supports a single, non-addressable device
• Employs advanced digital data communication
protocol that ensures the integrity of the
data communication
4I4O-ID Four Input Four Output Device
• Supports four inputs and four unsupervised
outputs (horns, bells, sirens, etc.)
• Employs advanced digital data communication
protocol that ensures the integrity of the data
communication
NX-2192E Point ID Bus Interface Card
• Attached to NX-8E control panel
• Bus interface supports up to 192 addressable
devices on two-mile loop
• Supports three class B loops
North America
PinPoint
T 855-286-8889
Addressable Point ID Systems
Specifi cations
Model AP750-ID 5845-ID SI-ID 4I4O-ID NX-2192E
Housing material Flame retardant ABS Flame retardant ABS Flame retardant ABS Flame retardant ABS
Operating voltage 8 to 27V (as supplied
by NX-2192E)
Signaling voltage 4 to 9V 4 to 9V
Current draw 250 μA typical avg.
3mA with LED
momentarily on
Microphone Omni-directional
Detection range 50 ft. (15.2m)
Mounting height 6 to 10 ft. (1.8 to 3m)
Number of curtains 7
Input loop resistance
(47k EOL included)
Operating temperature 32°F~131°F
(0°C~55°C)
Relative humidity 10%~90%
(non-condensing)
Maximum line length 10,000 ft. (3km) 10,000 ft. (3km) 10,000 ft. (3km) 10,000 ft. (3km)
Dimensions (WxDxH) 2.9 x 2.2 x 5.1 in.
(74 x 56 x 129mm)
Regulatory UL 639, FCC, CE FCC, CE UL 365, UL 609,
8 to 27V (as supplied
by NX 2192E)
250 μA typical avg.
3mA with LED
momentarily on
electret
14°F~120°F
(-10°C~50°C)
10%~90%
(non-condensing)
3.13 x 1.7 x 4.2 in.
(80 x 43 x 108mm)
8 to 27V (as supplied
by NX-2192E)
250mA 2.2A max. 170mA standby max.
>1MΩ — Open
47k±5% — Single EOL
94k±5% — Double EOL
>20Ω — Short
32°F~131°F
(0°C~55°C)
10%~90%
(non-condensing)
3.3 x 1.3 x 2.8 in.
(84 x 33 x 71mm)
UL 985, UL 1023,
UL 1610, FCC, CE
8 to 27V (as supplied
by NX-2192E)
>1MΩ — Open
47k±5% — Single EOL
94k±5% — Double EOL
>20Ω — Short
32°F~131°F
(0°C~55°C)
10%~90%
(non-condensing)
6.8 x 2.0 x 4.8 in.
(173 x 51 x 122mm)
UL 365, UL 609,
UL 985, UL 1023,
UL 1610, FCC
32°F~122°F
(0°C~50°C)
2 x 1.25 x 9 in
(51 x 32 x229mm)
UL 365, UL 609,
UL 985, UL 1023,
UL 1610, UL 1635,
UL 1637, FCC, CE
Latin America
T 561-998-6114
Ordering Information
AP750-ID Addressable AP750W PIR Motion Sensor Features Adaptive Signal
Processing that Analyzes Size, Speed, Shape and Adaptive Alarm
Threshold. Provides 4 Separate Curtain Coverage Patterns w/50’
Range. Flat Wall or Corner Mounting. UL, FCC, CE Approved
5845-ID Addressable ShatterPro Glassbreak Sensor. Featuring Pattern
Recognition Technology for Superior Detection and False Alarm
Immunity, it Protects All Glass Types Up to a Thickness of 1/4”. It Has a
Range of 20’ and Can Be Wall or Ceiling Mounted. FCC, CE Approved
SI-ID Single Input Device, Addressable. The Addressable Single Input Device
Connects a Single Non-Addressable Device to the NX-2192 Interface
Card. UL, FCC, CE Approved
4I4O-ID Four Input, Four Output Device, Addressable. The Addressable
Four Input, Four Output Device Allows Connection of Up to 4 NonAddressable Devices to the NX-2192 Interface Card. Supports
4 Inputs and 4 Unsupervised Outputs (Horns, Bells, Sirens, Etc.).
UL, FCC Approved
NX-2192E NetworX Pinpoint Interface Card Attaches to the NX-8E Control
Panel. Supports Up to 192 Addressable Devices on a Two-Mile
Loop. Suppor ts Two Class B Loops and One Class A Loop. UL,
FCC, CE Approved
NX-8E NetworX Control Panel Includes Owner’s Manual and Installation
Instructions. Keypad and Transformer Sold Separately. UL, FCC,
CE Approved
interlogix.com
Specifi cations subject to change without notice.
© 2014 United Technologies Corporation.
All rights reserved.
Interlogix is par t of UTC Building & Industrial Systems,
a unit of United Technologies Corporation.
302-3647 2014/03 (73949)
