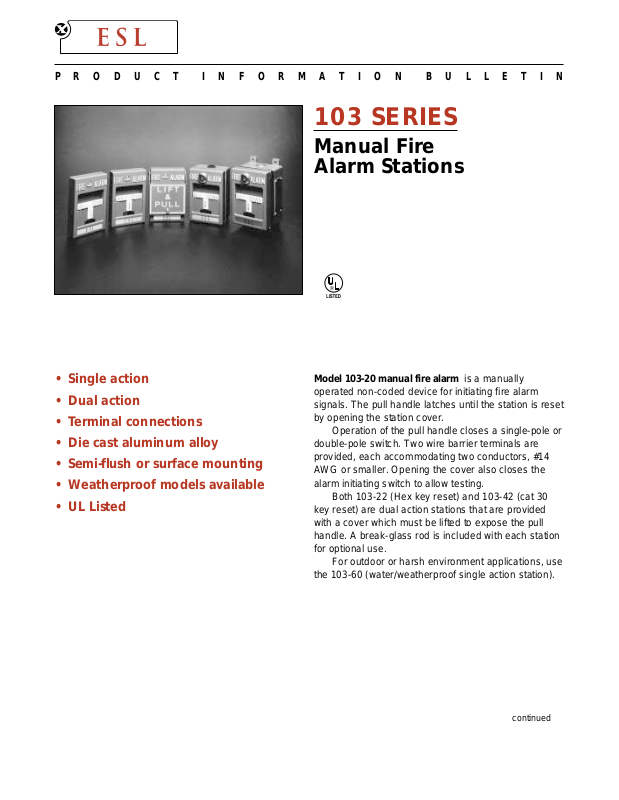

P R O D U C T I N F O R M A T I O N B U L L E T I N

103 SERIES

Manual Fir e
Alarm Stations

• Single action

• Dual action

• Terminal connections

• Die cast aluminum alloy

• Semi-flush or surface mounting

• Weatherproof models available

• UL Listed

Model 103-20 manual fire alarm is a manually
operated non-coded device for initiating fire alarm
signals. The pull handle latches until the station is reset
by opening the station cover.

Operation of the pull handle closes a single-pole or
double-pole switch. Two wire barrier terminals are
provided, each accommodating two conductors, #14
AWG or smaller. Opening the cover also closes the
alarm initiating switch to allow testing.

Both 103-22 (Hex key reset) and 103-42 (cat 30
key reset) are dual action stations that are provided
with a cover which must be lifted to expose the pull
handle. A break-glass rod is included with each station
for optional use.

For outdoor or harsh environment applications, use
the 103-60 (water/weatherproof single action station).

continued

Sentrol 103 Series Manual Fire Alarm Stations

Application

The 103 Series manual fire alarm stations are intended for
use as fire alarm initiating devices, with any fire alarm
initiating circuit to be operated by a contact closure rated not

more than 10 amperes, 125 VAC.

Installation

The 103 Series manual fire alarm stations mount to standard
single-gang electrical boxes or to a plaster ring. The
maximum depth of the equipment is 1 1/4".

Model 103-25 surface mounting box is available. The box is
5" high x 3 1/4" wide x 2 3/4" deep.

All stations should be installed in compliance with the
applicable NFPA standards, local building codes, and plans

and specifications.

Ordering Information

Product Data

Contact Ratings.............................................10A @ 125 VAC

Mounting ...............Flush Standard Outlet Box with onedevice

cover at least 1 3/4" deep

Surface Model 103-25..........................................Surface Box

5"H x 3 1/4"W x 2 3/4"D

Material .................. Die cast aluminum alloy–enameled finish

Color..............................................Red housing–white handle

Operation ....................... General alarm–single or dual action

Pre-Signal–Key Operated .......... Removable in either position

Shipping Weight

Station .......................................................................20 oz.

Surface Box ...............................................................14 oz.

Model Description

103-20 Single action manual fire alarm station, hex key reset, non-coded SPST
103-21 Same as above except DPST
103-22 (s)* Dual action manual fire alarm station, hex key reset, non-coded SPST

(s)* with NY stripe
103-23 Same as above except DPST
103-25 Surface mounting box
103-26 Replacement break-glass rod
103-31 Single action (SPST) with key reset
103-42 Dual action manual fire alarm station, cat 30 key reset, non-coded SPST
103-60 Water/weatherproof, single action (SPST) with key reset
