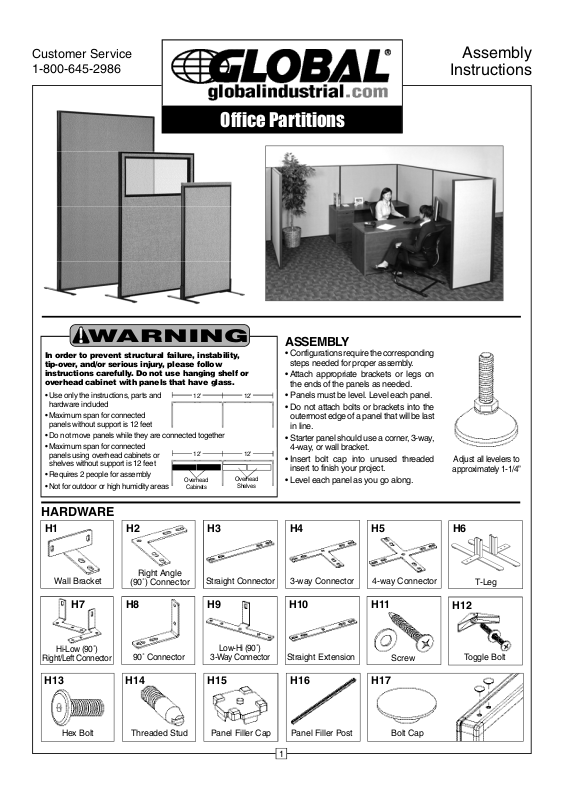

Office Partitions
Assembly
Instructions
Customer Service
1-800-645-2986
Low-Hi (90˚)
3 - W ay Connector
Straight Extension
Hi-Low (90˚)
Right/Left Connector
90˚ Connector
S c r e w
Adjust all levelers to
approximately 1-1/4”
H7
HARDWARE
A S S E M B LY
• Configurations require the corresponding
steps needed for proper assembly.
• Attach appropriate brackets or legs on
the ends of the panels as needed.
• Panels must be level. Level each panel.
• Do not attach bolts or brackets into the
outermost edge of a panel that will be last
in line.
• Starter panel should use a corner, 3-way,
4 - w a y, or wall bracket.
• Insert bolt cap into unused threaded
insert to finish your project.
• Level each panel as you go along.
H8 H9 H10 H11
Panel Filler Cap Panel Filler PostHex Bolt Threaded Stud Bolt Cap
H13 H14 H15 H16 H17
Toggle Bolt
H12
1
Straight Connector 3-way ConnectorWall Bracket
Right A n g l e
(90˚) Connector
4-way Connector
H1 H2 H3 H4 H5
T- L e g
H6
WARNING
In order to prevent structural failure, instability,
t i p - o v e r, and/or serious injury, please follow
i n s t r uctions care f u l l y. Do not use hanging shelf or
o v e r head cabinet with panels that have glass.
• Use only the instructions, parts and
hardware included
• Maximum span for connected
panels without support is 12 feet
• Do not move panels while they are connected together
• Maximum span for connected
panels using overhead cabinets or
shelves without support is 12 feet
• Requires 2 people for assembly
• Not for outdoor or high humidity areas
12’
12’
12’
12’
O v e r h e a d
C a b i n e t s
O v e r h e a d
S h e l v e s
Assembly Instructions1-800-645-2986
Office Partitions
2

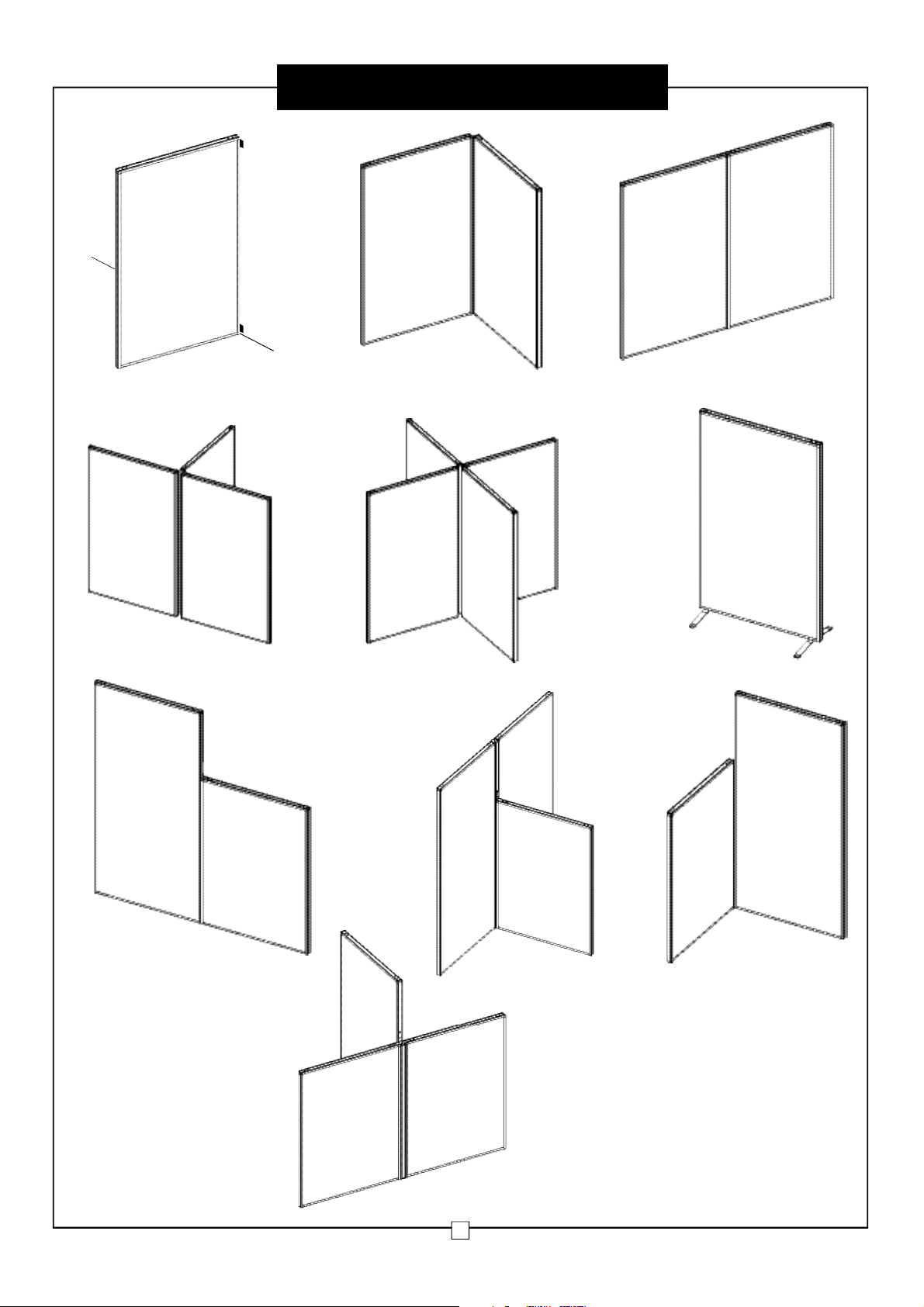

Go To
“ A ”
Go To
“ B ”
Go To
“ C ”
Go To
“ D ”
Go To
“ E ”
Go To
“ F ”
Go To
“ G ”
Go To
“ I ”
Go To
“ J ”
Go To
“ H ”
Assembly Instructions1-800-645-2986
3
Office Partitions
A
(2) (4)
Note: Hardware
to anchor wall
bracket to wall is
not provided.
P1
H1
H13
H1 H13

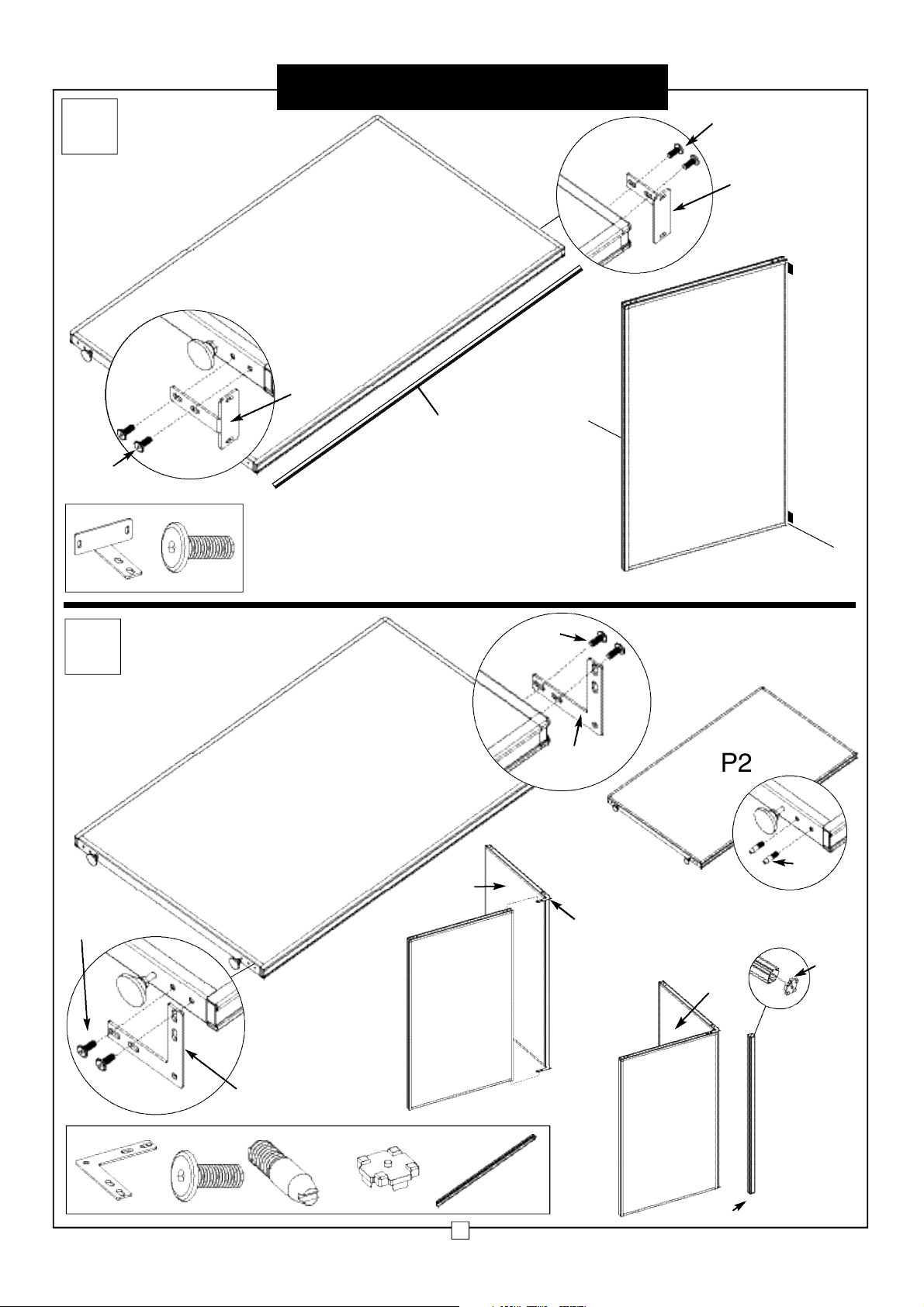

B
P1
H13
H2
Loosely attach
top bolts
P2
P2
P2
P1
P1
STEP 1
STEP 2
STEP 3
STEP 4
Fit panel
studs into
bottom
bracket,
then loosely
attach to
top bracket
Insert panel
filler caps into
panel filler
post top and
bottom. Insert
post into
bottom
bracket first,
then into top
bracket. Then
tighten all
bolts firmly
H16
H15
H2
H13
Foam seal may
need to be trimmed
to fit panel
H1
H13
H14
H2 H13 H14 H15 H16
(2) (6) (2) (2) (1)
P1
Start at
wall and
level
panel
Assembly Instructions
STEP 2
P1
P1
1-800-645-2986
4
Office Partitions

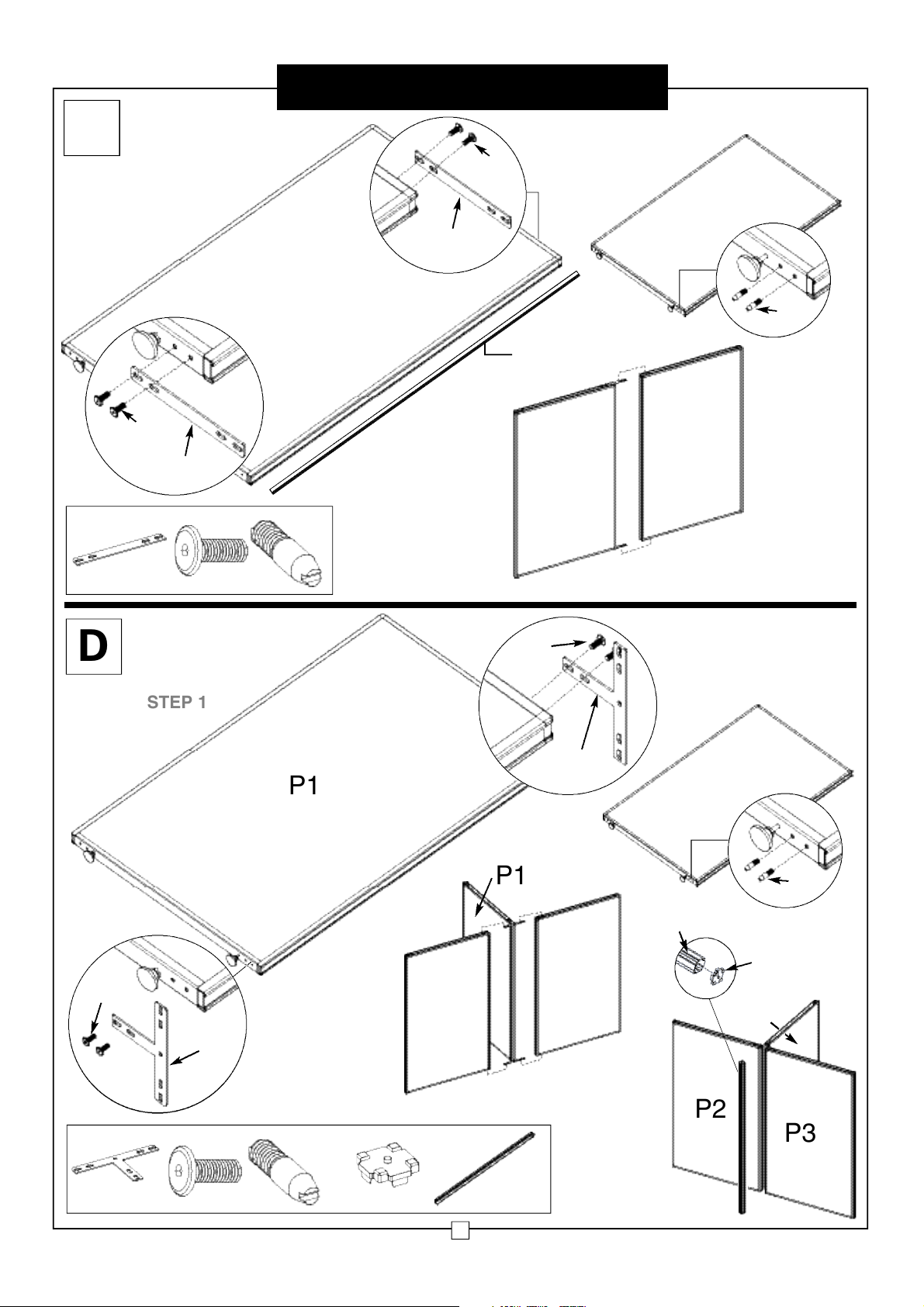

C
D
P2
STEP 2
Loosely attach
top bolts
STEP 1
STEP 3
P1
P2
Loosely attach
top bolts
STEP 3
P1
P2
P3
Fit panel studs into
bottom bracket, then bolt
and tighten top bracket
Fit panel studs
into bottom
bracket, then
loosely attach
to top bracket
STEP 4
P2
P3
H4
H13
H14
H14
H13
H3
H3
H13
I n s e rt panel filler
caps into panel
filler post top and
bottom. Insert
post into bottom
bracket first, then
into top bracket.
Then tighten all
bolts firm l y
STEP 1
H15
H16
Foam seal may
need to be trimmed
to fit panel
H3 H13 H14
(2) (6) (2)
P2
P3
H4 H13 H14 H15 H16
(2) (8) (4) (2) (1)
H13
H4
P1
H14
Assembly Instructions1-800-645-2986
Office Partitions
H6 H13
(2) (4)
P1
E
F
P2
P3
P4

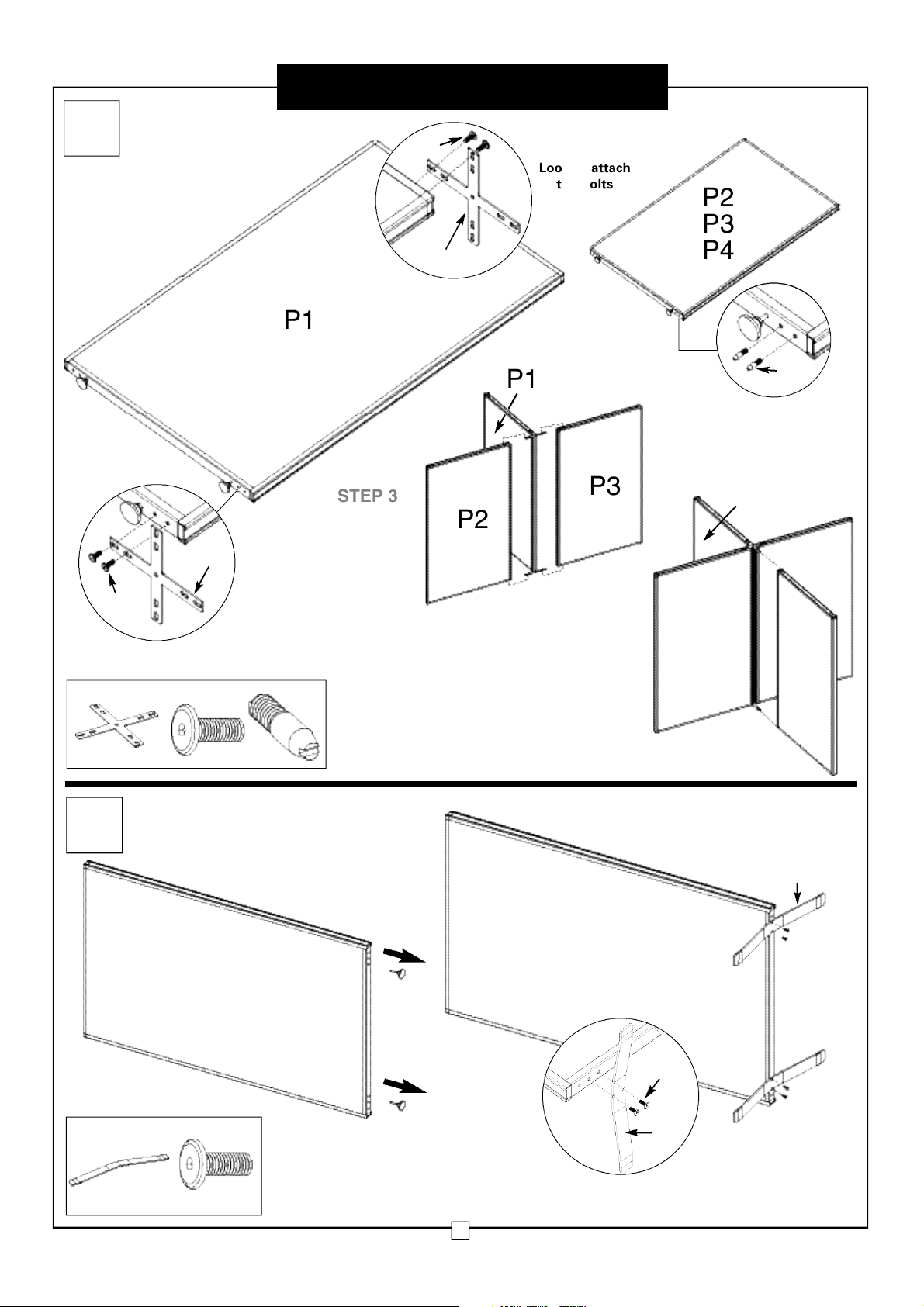

STEP 2
H5
H13
H6
H6
H13
STEP 3
STEP 4
Fit panel studs
into bottom
bracket, then
loosely attach
to top bracket
Fit panel studs
into bottom
bracket first,
then into top
bracket. Then
tighten all
bolts.
P2
P3
P1
P2
P3
P4
Loosely attach
top bolts
Remove
both levelers
and discard
P1
5
H5 H13 H14
(2) (10) (6)
H5
H13
Assembly Instructions
P1
1-800-645-2986
G
P2
STEP 2
STEP 1
H3
H13
Office Partitions
P1
P2
STEP 3
H13
H8
STEP 4
H3 H8 H11 H13 H14
(1) (1) (2) (6) (2)
Fit panel studs into
panel bracket.
Align panel to bracket and screw
in using 2 self tapping screws
and washers (H11) until tight
(do not overtighten).
Foam seal may
need to be
trimmed to
fit panel.

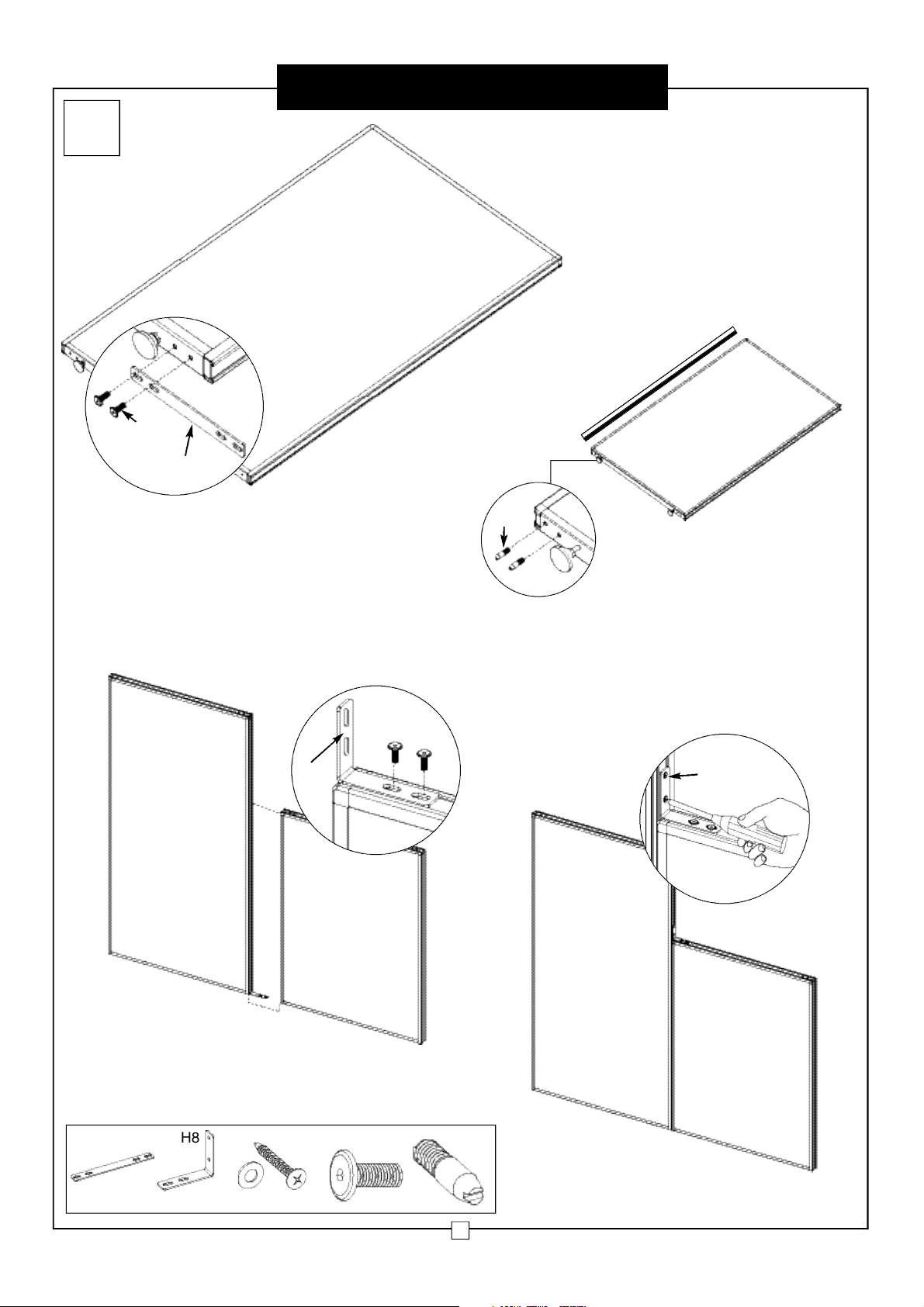

Bolt and tighten top
bracket H8 onto panel 2.
H14
P1
P2
6
H11
Assembly Instructions
P1
1-800-645-2986
7
Office Partitions
H
P2
P3
STEP 2
Loosely attach
top bolts.
STEP 1
STEP 3
P1
P2
Insert panel filler
caps into filler post
top and bottom.
Insert post into
bottom bracket.
Fit panel studs into
bottom bracket,
then bolt and
tighten top bracket.
H13
H10
H4 H8 H10 H12 H13 H14 H15 H16
(1) (1) (1) (2) (8) (4) (2) (1)
P1
P1
P3
P2
P2
P3
STEP 4
STEP 5
STEP 6
H8
H12
H16
Assembled
panels P1
and P2.
Bolt on top
bracket H8 to
short panel 3.
DO NOT FORCE DRILL
WARNING
H14
H14

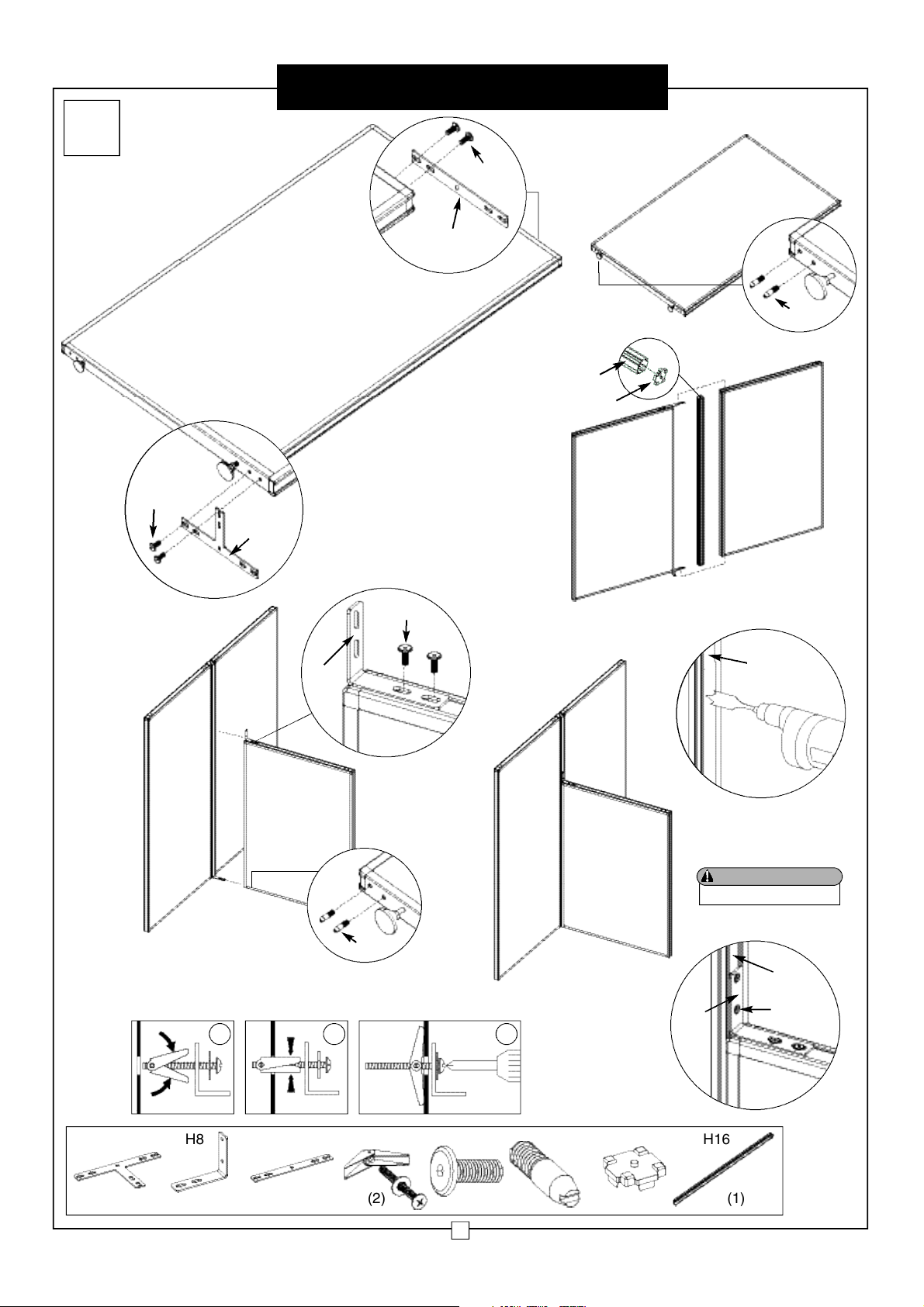

TOGGLE BOLT (H12) A S S E M B LY I N T O FILLER POST
31 2
H15
H16
Follow toggle
bolt assembly
diagram.
Fit panel studs into bottom
bracket first, then mark position
of vertical holes on filler post.
Drill holes where
marked from
previous Step 5.
H13
H13
H4
H8
H16
Assembly Instructions1-800-645-2986
Office Partitions
8

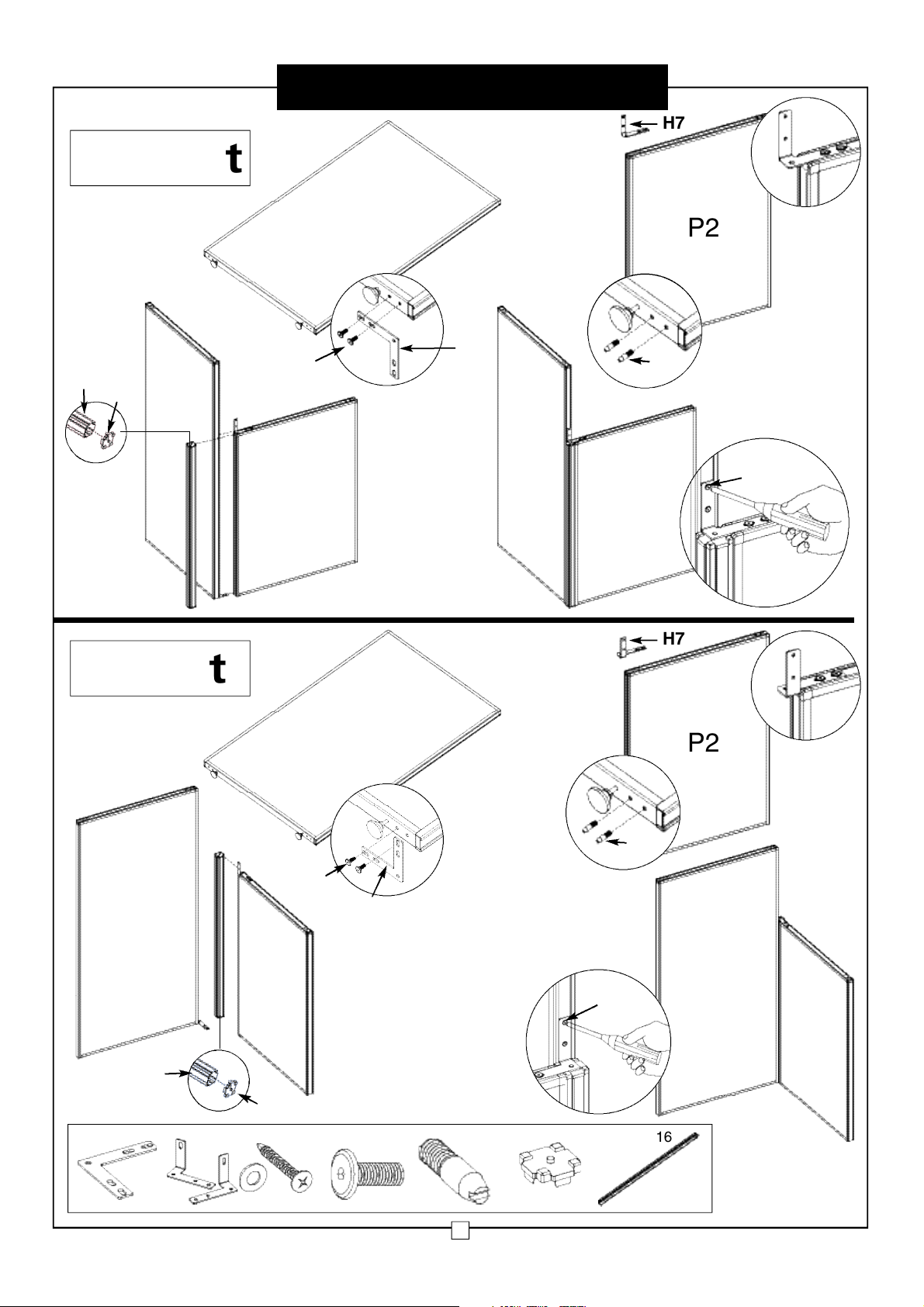

I - Right
H2
H2 H7 H11 H13 H14 H15 H16
(1) (2) (2) (4) (2) (2) (1)
P1
P2
P1
P2
P2
P1
H15
H16
STEP 1
STEP 3
STEP 4
H13
H7
STEP 2
Insert panel filler
caps into panel
filler post top and
bottom. Insert
post into bottom
bracket first, then
into top bracket.
Then tighten all
bolts firmly
Align panel to bracket
and screw in using 2 self
tapping screws and
washers (H11) until tight
(do not overtighten).
Loosely attach
top bolts.
H14
I - Left
H2
P2
P1
P2
P1
H15
H16
STEP 1
STEP 3
STEP 4
H13
H7
STEP 2
Insert panel filler
caps into panel
filler post top and
bottom. Insert
post into bottom
bracket first, then
into top bracket.
Then tighten all
bolts firmly
Align panel to bracket
and screw in using 2 self
tapping screws and
washers (H11) until tight
(do not overtighten).
Loosely attach
top bolts.
H14
P1
P2
H11
H11
Assembly Instructions1-800-645-2986
Office Partitions
9

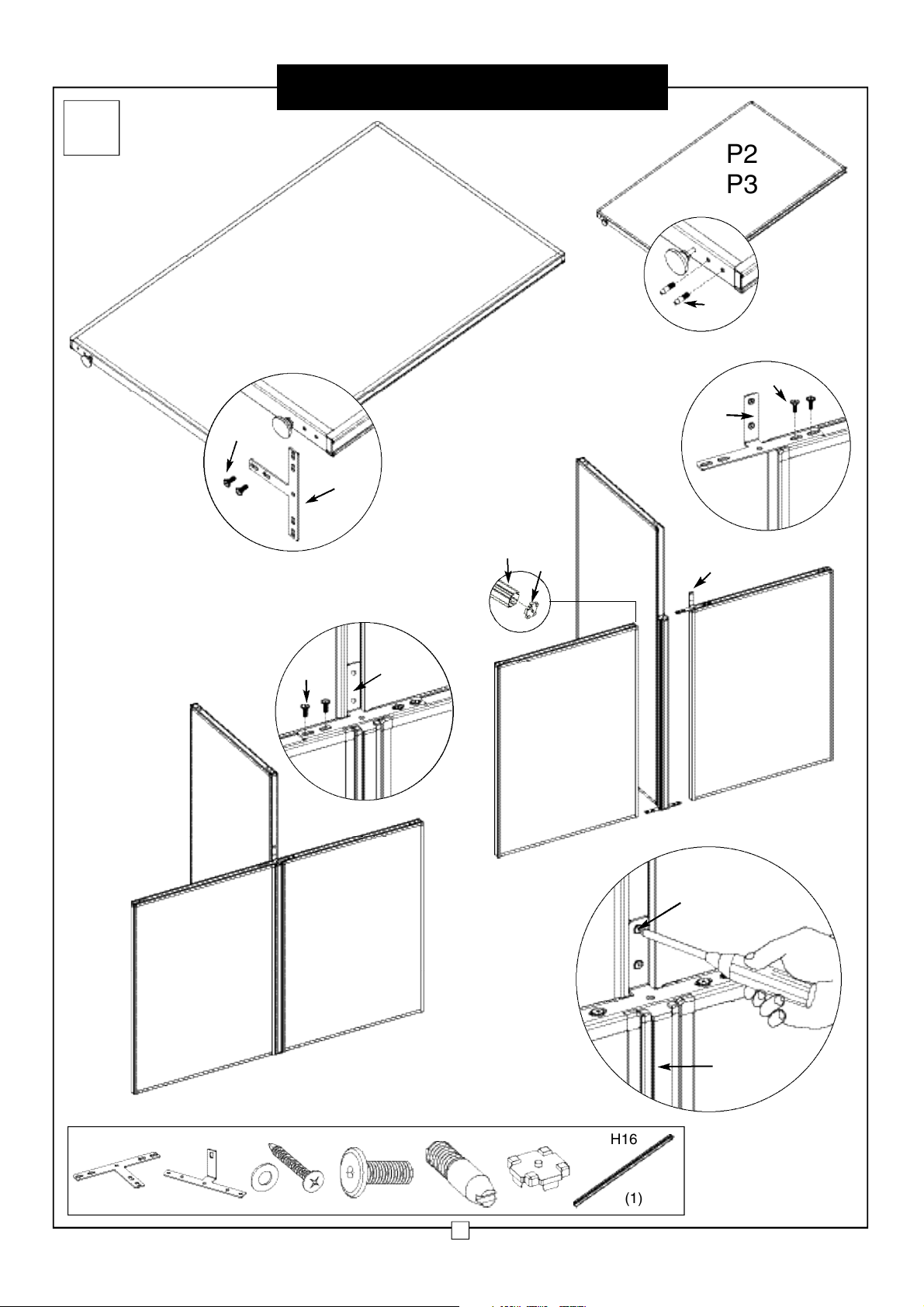

J
P1
P1
P1
P2
P3
P2
P2
P3
P3
P3
H4
H13
H13
H9
H9
H9
H13
STEP 1
STEP 3
H4 H9 H11 H13 H14 H15 H16
(2) (1) (2) (6) (4) (2) (1)
H15
H16
Loosely
attach
top bolts
STEP 4
Insert panel filler caps
into panel filler post
top and bottom
STEP 5
Insert post into
bottom bracket
first. Fit panel
studs into bottom
bracket then
attach bracket to
panel 2. Tighten
bolts
STEP 6
Align panel 1 to
bracket and screw
in self tapping
screws and
washers H11 into
side of panel 1.
H11
H16
STEP 2
H14
Assembly Instructions1-800-645-2986
Office Partitions Layout
