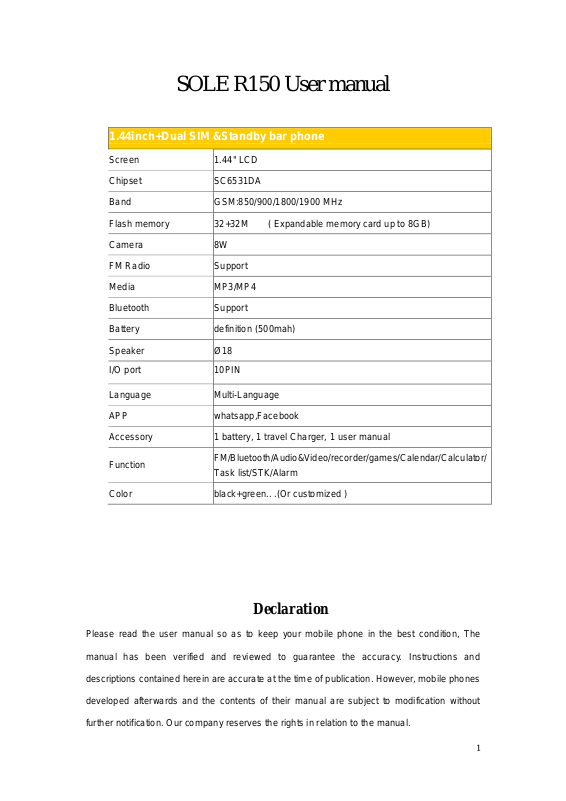

SOLE R150 User manual

1.44inch+Dual SIM &Standby bar phone

Screen

Chipset

Band

Flash memory

Camera

FM Radio

Media

Bluetooth

Bat

Speaker

I/O port

Language

APP

Accessory

Function
Colo

1.44" LCD
SC6531DA

GSM:850/900/1800/1 900 MH z

32+32M ( Expandable memory card up to 8GB)

8W

Support

MP3/MP4

Support

tery definition (500mah)

Ø18

10PIN

Multi-Language

whatsapp,Facebook

1 battery, 1 travel Charger, 1 user manual

r black+green.. .(Or customized )

FM/Bluetooth/Audio&Video/recorder/games/Calendar/Calculator/
Task list/STK/Alarm

Declaration

Please read the user manual so as to keep your mobile phone in the best condition, The
manual has been verified and reviewed to guarantee the accuracy. Instructions and
descriptions contained here in are accurate at the time of publicat io n. Ho w ever, mobile phones
developed afterwards and the contents of their manual are subject to modification without
further notification. Our company reserves the rights in relation to the manual.

2

Contents

Overview………………………………………………………………………….. 2

1.Introduction……………………………………………………………………... 3

2. Function of main menu……………………………………………………….....3

3.Whatsapp…………………………………………………………………………6

4.Settings…………………………………………………………………………...6

5.. PC connect………………………………………………………………………8

6.. Maintenance and service………………………………………………………...8

 Overview

Please read the following concise rules carefully. Nonobservance to the rules may
lead to danger or violence of the laws. The user’s manual gives details about the
safety precautions.

 Emergency call

Make sure the equipment is in the cover ed area of the netw ork service and t he calling
function is activated. As per the specific requirements, press the key of finish to clear
the screen and return to the standby state. Input the emergency call number （112）
and press the call key.

 Function Description

The phone is a perfect combination of humanized design and exquisite w orkmansh ip,

the streamline and ingenious body is comfortable to hold. With streamline and ingenious
frame, it feels comfortable to hold the mobile phone in your hand. It supports TXT
electronic book, Blue-tooth, dual SIM cards with one standby, network camera, camera,
FM and etc，It makes your work more convenient and your free time more fun with the
combination of keyboard, florid colored screen, pleasant bells, cartoon head portrait for
incoming calls, strong file management function (supporting T-FLASH card), fa shionabl e
camera function and long time tape recording function, music player, video player.

 Introduction

Insert the SIM card and the batt er y

Ask your SIM card dealer whether he has provided SIM card service and the method
of usage who may be s ervice provider or other dea lers，SIM card and its contact s are
vulnerable to scratch or bending. Attention shall be attached when use, insert or take
out the card.

 Inserting/taking out T -FLASH Card

3

Only use approved and compatible T-FLASH card applicable to the mobile phone.
Approved memory card t rade st andar d is appl ied; howev er, certain bands may not be
completely compatible with the mobile phone. Using incompatible memory card may
damage not only the card and the mobile, but also the data stored in the car d.

 Charging the battery

 Check the model number of the charger before using it to charge the mobile，Only

use approved battery, charger and accessories applicable to the specific mobile
model. Using other types of battery, charger and accessories may violate the
certification or warranty terms of t he equ ipment and may r esult in dang er，Refer to the
dealer for supply of relativ e appr oved accessories.

 Startup and shutdown

Press the key of power supply to start up or shut down the mobile phone，If it is
prompted to input PIN or UPIN, pleas e input the req uired p as sword ( show n as **** on
the screen).

2. Function of main menu

 Message

Write a message: You may select to send the finished message from SIM card 1 or SIM
card 2You may select multiple r eceivers to send the message to more than 1 per s on.

Phonebook

You may save the information of contacts including names and telephone numbers in the
phonebook, which can save as much as 300 entries.

Call history

Information, invites the menuch oosing if needing t o check y our co mmunicati ng by phone
 Communicate by phone center Communicate by phone taking notesSIM card 1

communicates by phone recording/ SIM card 2 communicates by phone taking notes 
SIM card 1/ SIM card 2 possessio ns telepho ne , SIM card 1/ SIM card 2 has no t answered
the phone , SIM card 1/ SIM card 2 already answers the phone or 2 already batches of

4

SIM card 1/ SIM card telephone.

 Multimedia

 Camera

In the options of camera, you may set the photometry mode, flash light，exposure
compensation, avoidance of flickering, postponing shooting, white balance, photo
quality, photo size, special effect, profile and etc. You may enter the album to check
the formats that the cel l phone supports.

 Video recorder

Like recording video files.

 Image viewer

Here is the mobile phone photo albums, camera photos stored in the memory card
"photos".

 Video player

Check the video files in the memory card supported by the cell phone. Play your
favorite video files

 Audio player

The music player is used to play music files in supported formats in the current
player’s list. You may view details of the music files and set the current music file as
the ring signal for incoming call.

 FM radio

At first, you must insert earphone, Turn on FM broadcast, and you may press the
direction keys of left and right t o manually t une the channel. Press the directio n key of
upward to turn on or off the auto-searching mode. Press OK to record the FM
broadcast. Press the direc t ion key of downward to turn on or off FM broadcast. In the
options, you may set m anual ly or auto matica lly sear chin g for channe ls, t urn ing off the
background during broadcasting as well as the format of recordin g t her eof.

 Sound Recorder

You can record the sounds that you want.

 File manager

You can insert the memory car d and save files in it.

 Internet

5

your mobile Internet support based on wireless application protocol (WAP) service.
You can access a variety of WAP service. WAP service need network support, the
WAP service availability, price and tax, please contact your network operator or
provide you with the servic e pr oviders of services required.

 Bluetooth

You may establish wireless connection with other compatible devices with the
Bluetooth technology; you may send images, videos, music files and etc. with the
Bluetooth technology.

 Alarm

this is the mobile phone alarm clock, you can set the alarm time, three may choose
memory card in the audio file as the alarm clock, can set the alarm clock ring
frequency：once/daily/working days.

 Calendar

in phone setting set time date, enter calendar interface will show the date, you can
add a memo, the date can jump to any date, W hen the user presses th e back key
Back in the day date

 Calculator

You can calculate in this function.

 STK

This function by the network providers, according to the SIM card provides services
will appear different menu options. If a SIM card and network supplier does not
support this service, this function will not be used. If you need t o get more info rmat ion.
Please contact wit h net w or k providers.

 WhatsApp

WhatsApp (WhatsApp messenger) this application by the push notification service,
can instantly receive messages from relatives and friends and colleagues. Free from
sending text messages to use WhatsApp program, in order to send and receive
information, pictures, audio and video information.
operating guide:
WhatsApp is based on the mobile phone number registered, at the time of re
gistration, need you to enter your phone number, and received a validation me
ssage, and then WhatsApp will search your phone contacts are already using
people and automatically added to your mobile phone contacts list. In fact, afte
r you registered a WhatsApp is binding you cell phone number to generate a
WhatsApp number, number and a mobile phone card can only apply for a fast,
in other words, the number you registered for the first time use, say, like your
ID, always belong to you this card, in the mobile phone of what can be, is c
an't change, if you accidentally delete the program, the next installation, you as

6

long as the input of the original old at the time of registration number, the sy
stem will automatically skip SMS verification step.

 Settings

 Call settings

You can some on the communications aspects of setting.

 Phone settings

Refer to settings of basic functions, including city, time and format, display language
and response time, reset all s et t ings.

① date＆time

You can set the cell phone time and date.

② Language settings

You can set the phone language and input method.

③ Shortcut

You can set any navigation shortcut keys.

④ Auto power on/off

You can set the cell phone autom at ically switch machine.

⑤ Restore the factory settings

Enter the correct password of the phone will have to change your phone settings
back to factory default state value, the user of the function be used with caution.
(Default password: 1122).

 Display

You may set functions in display.

 Security

You may set functions in relations to cell phone security.

 Profiles

You may customize the profiles and activate any profile in order to use a specific
function. You may set the ring signal, ringing mode, prompt for connecting through,
answer mode, and etc.

 Connections

You can set the network account i n t his menu.

 World clock
The clock automatically adjusts when you enter a new time z one.

7

 Facebook

Facebook is a web site. Like myspace.com, it is for high school and college students,

employees and other social organizations to provide a network communication
services. Detailed website: www.facebook.com.

3. PC connect

 USB

Use the T-Flash inserted in the mobile phone as U-Disk. You can transfer music,
videos, games and other files form PC to the T-Flash by US B c abl e . Enj o y i t an yti me
and anywhere.

4. Maintenance and service

Refer to the local dealer for supply of accessories. Hereafter are some precautions
for usage of the acces sories，Only use batteries, ch argers a nd acce ssories ap prov ed
by the manufacturer. Usage of other types of batteries, chargers and accessories
may result in violence of the certification or warranty terms or even lead to danger，
Keep the equipment dry ，Don't keep the equipment in under cooled place s; otherwise,
when the temperature rises to normal, moisture may be generated within the
equipment, resulting in damage of the circuit board. Only use matched or approved
antenna.

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE:

8

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not o ccur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.

S

AR Information Statement

Your wireless phone is a radio transmitter and receiver.

It is designed and manufactured not to
exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines
are based on standards that w ere developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health. The exposure
standard for wireless m obile phones employs a unit of measurement known as t he Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual SAR level
of the phone while operating can be well below the maximum value. This is because the phone is
designed to operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower the power
output. Before a phone model is available for sale to the public, it must be tested and certified to
the FCC that it does not exceed the limit established by the government adopted requirement f or
safe exposure. The tests are performed in positions and locations (e.g., at the ear a nd worn on the
body) as required by the FCC for each model. The highest SAR value for this model phone when
tested for use at the ear is 1.04W/Kg and when worn on the body, as described in this user guide,
is 0.784W/Kg(Body-worn measurements differ among phone models, depending upon available
accessories and FCC requirements). While there may be differences between the SAR levels of
various phones and at various positions, they all meet the government requirement for safe
exposure. The FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RFexposure guidelines. SAR
information on this model phone is on file with the FCC and can be found under the Display Grant
section of http://www.fcc.gov/ oet/fccid after searching on
FCC ID: 2AC7INSOLE-R150 Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at
http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones
used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a sub-stantial margin of safety to give additional protection for the public and to
account for any variations in measurements.

ody-worn Operation

B

This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance of 10mm must be maintained between the user’s
body and the handset, including the antenna. Third-party belt-clips, holsters, and similar

9

accessories used by this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with RF exposure requirements
and should be avoided. Use only the supplied or an approved antenna.
