OWNER’S ASSEMBLY
AND OPERATING
MANUAL
FOR MODELS: Silver/Gold/Titanium
SERIAL NUMBER:
TABLE OF CONTENTS
SPECIAL NOTES .......................................................................................4
SAFETY SUMMARY ........................................................................... 5 - 7
ASSEMBLY INSTRUCTIONS ....................................................... 8 - 10
Bed Installation and Setup……............................................................ 8
Mattress Retainer Installation and Setup ....................................................10
CONTROL OPERATIONS ..............................................................11-15
WARRANTY INFORMATION............................................................. 16
TROUBLE SHOOTING GUIDE…………………………… 17-18
SPECIAL NOTES
IMPORTANT: READ WARNINGS BELOW
This bed is for residential use only. This bed is NOT for hospital use and was not designed to meet hospital standards. Please
adhere to the following safety warnings:
• DO NOT use this bed outdoors.
• DO NOT use near explosive gases.
• Possible fire hazard when used with oxygen administering equipment other than nasal masked type.
• When using nasal or masked type administering equipment, oxygen or air tubing MUST be routed
and secured property to ensure that tubing does NOT become entangled and damaged during
normal operation of the bed.
• When using liquids in or around the bed, caution should be taken to ensure that liquids of any kind
are not spilled. If a liquid is spilled in or around the bed stand in a dry, clean area and UNPLUG the
bed immediately. Clean up spill and allow bed and area around bed to dry thoroughly before using
the electric controls again.
• Do not EAT or DRINK hot liquids while operating the bed.
• DO NOT ALLOW CHILDREN OR INDIVIDUALS WITH DISABILITIES TO OPERATE THE
BED WITHOUT ADULT SUPERVISION.
• DO NOT LET CHILDREN ON OR NEAR THE BED UNATTENDED.
• NEVER PERMIT ANYONE OR PETS UNDER THE BED AT ANY TIME.
• When operating beds, ALWAYS ensure that the individual utilizing the bed is positioned properly
within the confines of the bed. Do not let any extremities protrude over the side of the bed when
performing these functions.
• This product is not a medical product and is not intended for medical purposes. It is for in-home
use only.
WARNING REGARDING HAND CONTROLS
REMOVE HAND CONTROLS WHEN NOT IN USE AND STORE OUT OF REACH OF
CHILDREN. DO NOT ALLOW CHILDREN TO OPERATE HAND CONTROL
UNATTENDED.
Par t 15.2 1
Chan ges o r m o dific a tion s not ex p ressl y app r oved by t he par t y re s pon s ible f o r com pl i ance
ld v o id th e user ’s aut h ori t y to o pera t e th e eq uip m e n t.
cou
NOTE: The m anu fa ct urer is n o t res p on sible for a n
una u tho r ized m od ificat i ons t o th i s equ i pm en t. Such mo d ifica t ion
aut hor i ty t o op e rat e the e q uip me n t.
REMOVING THE CABLE FROM (WIRED) HAND CONTROL
y ra d io or TV int e rferenc e caus e d by
s cou l d vo i d th e user’ s
Figure 1.
The wire for the hand control clips into the remote just like a standard phone cord (see figure 1)
OPERATING INFORMATION
• After adjustable base has been assembled, always test to make sure that all sections of the bed are properly and
securely in place before using.
• KEEP ALL MOVING PARTS FREE OF ANY OBSTRUCTION DURING OPERATION OF ADJUSTABLE
BASE (for example; blankets/sheets, clothing, heating blankets/pads, tubing, and wiring, etc. and other types of products using
electric cords, which may get tangled around the bed or legs).
• Body weight MUST be evenly distributed over the surface of the bed. DO NOT
entire body weight is placed only on RAISED head or foot sections of bed. This includes when assisting in repositioning or
transferring in or out of bed.
lay, sit, or lean in such a way that
WEIGHT LIMITATION
quipp
g
g
plug
prop
a
p
g
g
g
p
WARNING - Do not use this bed if weight limitation is exceeded.
The weight limitations for adjustable beds (while taking into consideration user’s size, proper positioning, realignment,
transfer, and overall care) are: Twin Size – 350 pounds*; Full and Queen Size – 450 pounds*. *Determined with weight
distributed evenly over the entire bed surface.

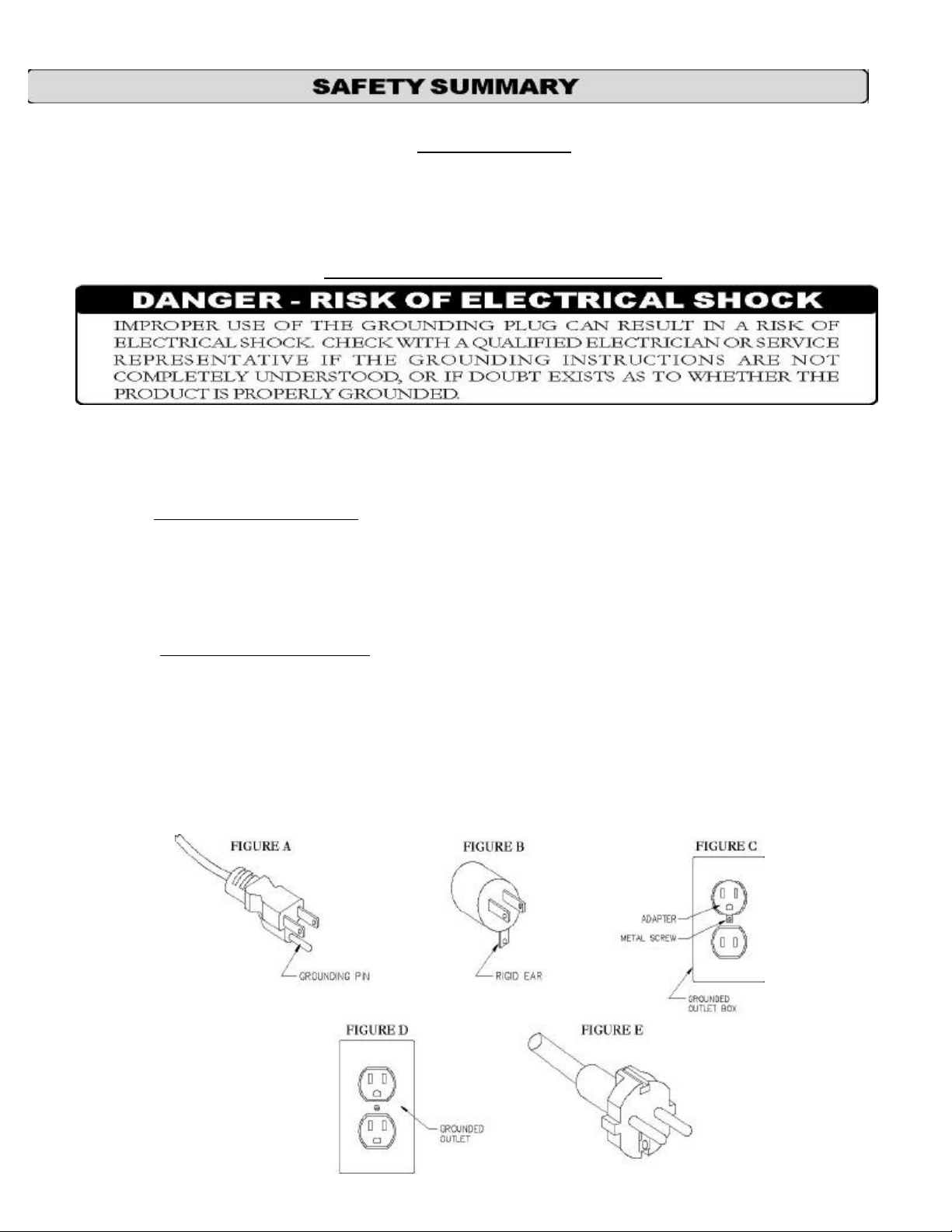

ELECTRICAL – GROUNDING INSTRUCTIONS:
A. This product MUST be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electrical shock by providing an escape wire for the electrical current. This product is e
ed with a cord having a
rounding wire with a grounding plug. The plug must be plugged into an outlet that is property installed and grounded.
DO NOT bypass the grounding plug.
B.
FOR 115 VAC CIRCUITS ONLY: Products ordered for use on a 115 VAC circuit must have a
that looks like the
illustrated in Figure A, shown at the bottom of this page. A temporary adapter, which looks like
rounding plug
the adapter illustrated in Figures B and C, may be used to connect this plug to a 2-pole outlet as shown in Sketch C if a
erly grounded outlet is not available. The temporary adapter should be used only until a qualified electrician can
install a properly grounded outlet (see Figure D). The rigid ear, extending from the adapter MUST be connected to
ermanent ground such as properly grounded outlet box cover. Whenever the adapter is used, it MUST be held in place
by the screw.
C.
FOR 220 VAC CIRCUITS ONLY: Products ordered for use on a 220 VAC must have a
looks like the plug illustrated in Fi
must be
rounded in accordance with local electrical codes. A temporary adapter may be used until a qualified electrician
ure E, shown at the bottom of this page. This plug is a European type CEE 7/7 and
rounding plug that
can install a properly grounded plug as long as the above grounding requirements are met.
NEVER o
erate if the unit has a damaged cord or plug. If it is not working properly, call a Qualified
Service Personnel for examination and repair.
Keep all cords away from HEATED or HOT surfaces such as space heaters or heating ducts.
USING TWO (2) TWIN BEDS AS A KING SIZE BED
W
Otherwise, individuals may become entangled
y
The manufacturer cautions against use of any
T
j
y
HE
J
ADJUSTABLE BED TOGETHER WITH
D FRAME. THE MANUFACTURER FURTHER DISCLAIMS ANY RESPONSIBILITY
hen put together to form a king size bed, a gap will exist between the two (2) twin beds. After bed have been
assembled, confirm the area between the two (2) twin beds is clear.
between the two (2) twin beds, possibly causing injury and/or damage.
APPROVED BED FRAMES
The unique design of the InterFlex adjustable bed enables the adjustable foundation to be used in conjunction with
certain standard bed frames. The InterFlex adjustable weighs more than a traditional mattress and box spring; thus, onl
certain bed frames will work to support the weight of the product.
unapproved bed frames along with the Lifestyle adjustable bed.
he following bed frames are approved:
Bed Frame Used without a Headboard/Footboard (see Figure 3)
Knickerbocker Bed Frame: Style #xxx-xxxxx
Bed Frame Used with a Headboard/Footboard – Frames with Center Sup port (see Figure 4)
Knickerbocker Bed Frame: Style #xxx-xxxxx
Mantua
Leggett & Platt
Use of an unapproved Bed Frame or Bed Bridge with the InterFlex ad
InterFlex adjustable bed and is likely to significantl
frame and damage to other property and is likely to significantly increase the risk of personal injury. IN ADDITION TO
ANY OTHER DISCLAIMERS WITH RESPECT TO THE INTERFLEX ADJUSTABLE BED, THE
MANUFACTURER HEREBY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FOR, AND SHALL HAVE
NO LIABILITY OR OBLIGATION TO THE END USER WITH RESPECT TO ANY ABUSE, IMPROPER USE,
ACCIDENT, OR MODIFICATION OF THE INTERFLEX ADJUSTABLE BED, FOR ANY FAILURE OF T
END USER TO FOLLOW THE OPERATING OR MAINTENANCE PROCEDURES OUTLINED HEREIN,
FOR ANY IMPROPER PLACEMENT OR INSTALLATION OF THE INTERFLEX AD
APPROVED BED FRAME OR FOR ANY USE OF THE INTERFLEX
AN UNAPPROVED BE
OR LIABILITY FOR ANY DEFECTS IN THE MANUFACTURING, DESIGN, OR WORKMANSHIP OF ANY
BED FRAME, WHETHER APPROVED OR UNAPPROVED, AND THE END USER SHOULD UNDERSTAND
THAT THE END USER MUST LOOK TO THE SELLER AND/OR MANUFACTURER OF THE BED FRAME
FOR ANY CLAIMS ARISING FROM ANY FAILURE OF OR DEFECT IN ANY BED FRAME, WHETHER
APPROVED OR UNAPPROVED.
increase the risk of damage to the adjustable bed, damage to the bed
ustable bed will void the product warranty for the
USTABLE BED ON AN
Figure 3.
InterFlex Adjustable BASE
Note: It is required that two (2) people unpack the bed.
CAUTION: BANDING IS UNDER TENSION. CARE SHOULD
BE TAKEN TO PREVENT INJURY.

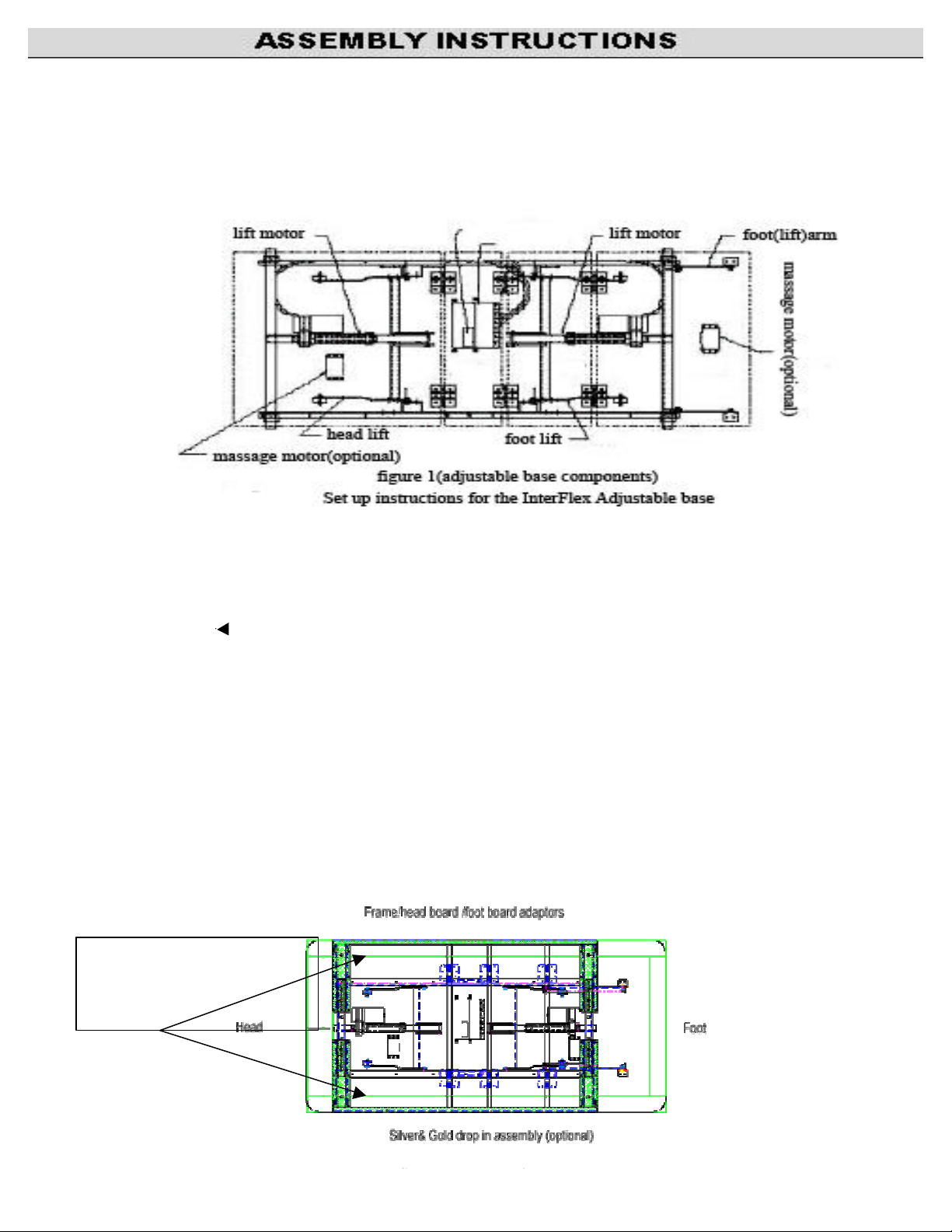

Unpacking and assembly
1. Place carton on the floor with arrows pointing towards the floor. Carefully cut banding with scissors or knife and
remove lid.
2. Base should be in the box with the frame pointing upwards. Gold & Silver models are shipped with legs and casters
(casters are installed in the legs) - locate the leg & caster assembly in the customer instruction manual bag and screw
into the frame rivet nuts (4 outer) making sure the legs are securely tightened.
3. Titanium model (Silver & Gold models) Frame adaptors installation (figure 2) adjust the adaptors by loosing
the 4 bolts and slide the adaptors to the correct width- re-tighten the bolts securely.
4. Place Base onto metal frame*. It is required that two (2) people remove the bed from the carton and set on the metal
frame. Suggestion: Raise carton on side, tip slightly, and gently lay bed down on metal frame.
5. Remove protective plastic covering from adjustable base and mattress.
6. Install the mattress bar at the foot section of the bed using the provided two (4) bolts, found at the base of the bed.
7. Place mattress on baseand enjoy!
Figure 2
Drop in frame adaptors
(optional Silver & Gold
series) Titanium standard
NOTE: Plasti
c must be removed from both adjustable base and mattress to ensure proper ventilation
g
Plug both bases into a power source and push the head up button, both bases should
and avoid possibility of mildew a nd odor. Dispose of plastic covering properly to avoid injury.
The InterFlex Adjustable Base has been designed to allow two (2) Split King or Split Cal-King bases to
work in conjunction with a one-piece King Mattress as well as a one-piece Cal-Kin
for your bases to work simultaneously with one (1) Hand Control the beds must be set up prior to
operation via the electronics.
mattress. In order
Assembling one piece king (2- twin extra long bases to work simultaneously)
1. When configuring 2 twin extra long base together to work simultaneously follow
the above unpacking instructions.
2. Disconnect one hand control that will not be used by un-attaching the telephone
type cable at the rear of the remote control.
3. Locate the other end of the cable at the electronic control box port and unattach,
move in the port labeled “secondary” the other end should be installed into the
other base electronic box in the secondary port as well.
4.
operate simultaneously.
INSTALLING MATTRESS RETAINE
R
n
1. Remove the Mattress Retainer from the foot of the adjustable base (upside down
condition).
2. Re-install the mattress retainer with the 4 supplied screws ,making sure the radius ends are on topinstall retainer co ver
Insert four (4) supplied truss screws
into the top of the base at the foot
sectio
H
H
A
N
D
C
O
N
T
R
O

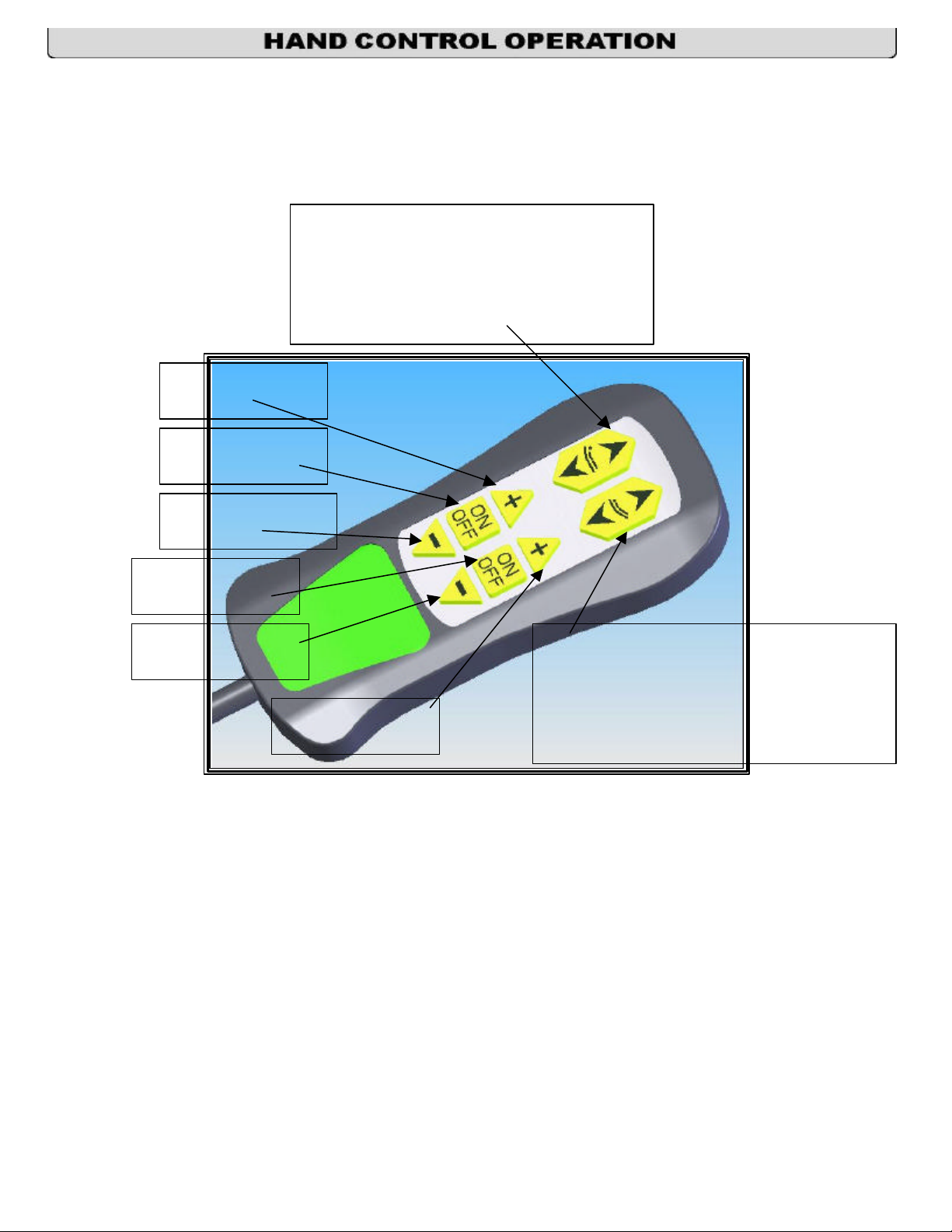

Silver Series
TM
OPERATING INSTRUCTIONS
ead up/down button- to move the head up
or down depress the top of the button to
move the head section up and the bottom of
the button to move the head section back to
the flat position of down
L
O
P
E
R
A
T
I
O
N
Foot up/down button- to move the foot up or
down depress the top of the button to move
the foot section up and the bottom of the
button to move the foot section back to the
flat position of down
H
H
Foot up/down button
n
n
A
N
D
C
Gold Series
OPERATING INSTRUCTIONS
ead up/down button- to move the head up
or down depress the top of the button to
move the head section up and the bottom of
the button to move the head section back to
the flat position of down
Increase massage
intensity
O
N
T
R
O
L
O
P
E
R
A
T
I
O
N
Back massage o
and off button
Decrease massage
intensity
Foot massage o
and off button
Decrease massage
intensity
Increase massage
intensity
- to move the foot up or
down depress the top of the button to move
the foot section up and the bottom of the
button to move the foot section back to the
flat position of down

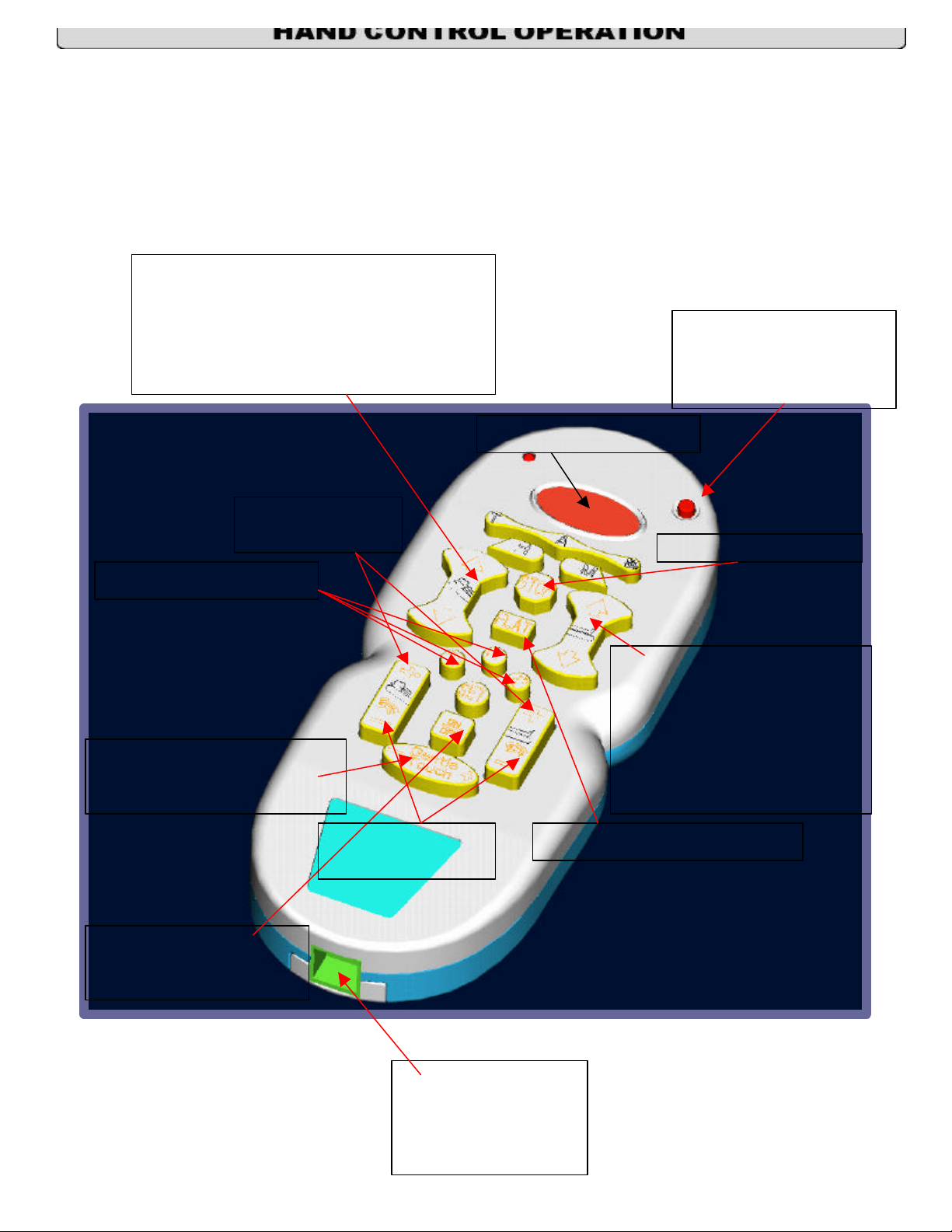

TITANIUM PLUG ‘N’ PLAY ™ (WIRED/WIRE LESS) OPERATING
He
Turn integrated flashlight
f
Foot up/down button
foot up or down depress the
foot section up and the bottom
e
INSTRUCTIONS
The New Titanium base is capable or either being a wired hand control or wire less using a state of the
art 2.4 GHz digitally encoded frequency, enabling trouble/interference free operation and providing
extended coverage area.
ad up/down button- to move the head up
or down depress the top of the button to
move the head section up and the bottom of
the button to move the head section back to
the flat position of down
on/off or turn of
IllumiNite™
H
A
((())) Alarm On/Off Indicator
N
D
C
N
T
R
L
P
E
R
A
T
Increase massage
intensity
Three position recall
Press to increase/decrease th
massage oscillation
Decrease massage
intensity
I
Press to Start/Stop
Gentle Touch massage
Press to return to flat position
Press to Stop All Functions
- to move
the
top of the button to move the
of the button to move the foot
section back to the flat position
of down
N
Insert cable for
wired configuration
if wired remote is
desired
1. Press button once.
To Set Time:
2. Set hour/minute with
3. Press
1. Turn on alarm by pressing
2. “((()))” will appear on LCD screen.
1. Turn off alarm by pressing
2. “((()))” will disappear on LCD screen.
1. Press
2. Turn alarm on by pressing
3. Press
again.
once, then set hour/minute with and buttons.
to turn off alarm.
and buttons.
button once.
button once.
button. “((()))” will appear in indicator.
To Turn On Gentle Rise™ Alarm:
To Turn Off Gentle Rise™ Alarm:
To Program Gentle Rise™ Alarm
To Program Recall Buttons:
1. Set head and foot to desired position press
2. Press to save position.
3. Repeat steps to save positions in and .
1. Push any button on the hand control.
1. Your new adjustable power base is setup from the factory to be wire less- no additional setup is required , if you desire
P1
P2 P3
To Turn on the IllumiNite™ indirect lighting:
your base to operate as a wired remote or more than one wire less unit read below.
once.
Remote Control Setup:
2. If wired is desired prior to applying power, plug the telephone cable into the bottom of the remote making sure TO REMOVE
the 2-AA supplied batteries and plug the power cord into a surge protected AC outlet. Push any button on the remote- waiting
30 seconds for the computer to discover the wired remote.
Wire less Remote Channel Setup:
Operating more than one adjustable power base in close proximity of each other will require you to perform a channel setup
1.
function.
2. Remove the batteries from each hand control and disconnect the AC power.
3. Plug one base into a surge protected AC power supply.
4. Re-install the supplied “AA” batteries.
5. Hold both the “head up” and “foot up” buttons simultaneously until the LCD displays all eights (see figure 1 below) and
release the buttons.
Figure l.
6. The LCD will display a “C” and search for a channel, after about 30 seconds a number will be displayed , push up or down on
the foot massage button for the desired channel and push the “set” button on the hand control.
7. Repeat the steps above for the additional base keeping in mind the selected channel should be a different number from the first
base; you should have both base operating independent of each other, if you desire both bases to operate together please refer
to pages 8, 10 of the owner’s manual.
Gold/Silver/Titanium Series 1-2-20 Warranty
0
y
ion costs related to the replacement
y
y
InterFlex, LLC warrants this adjustable bed to the consumer who is the original purchaser (the
“purchaser”), subject to the terms and conditions set forth herein. This warranty begins on the “warranty
commencement date” which is the date of purchase for new unused beds and the date of manufacture for
beds that have been used as floor or display models.
FULL 1-YEAR WARRANTY 2-YEAR LIMITED WARRANTY
This adjustable bed is warranted against defects
in the workmanship or materials for a period of
two years from the warranty commencement
date. Upon notice during 1commencement date, InterFlex, LLC will repair
or replace (at no cost to the purchaser) any
defective adjustable bed part, and InterFlex, LLC
will pay all authorized labor and transportation
costs associated with the repair or replacement of
any parts found to be defective.
2
Upon receipt of notice during the first through the
twentieth years from the warranty
commencement date InterFlex, LLC will replace,
upon terms and conditions set forth in this
paragraph, any frame structural bed part found to
be defective. Electronics, electrical components,
drive motors and massage motors are excluded.
Repairs to or replacement of an adjustable bed or
its components under the terms of this limited
warranty will apply to the original warranty period
and will not serve to extend such period. The
decision to repair or to replace defective parts
under this warranty shall be made, or cause to be
made, by InterFlex, LLC at its option and its sole
discretion. There shall be no liabilit
e InterFlex, LLC for any special, indirect,
incidental, or consequential damages or for any
other damage, claim, or loss not expressly
covered by the terms of this warranty.
-YEAR LIMITED FRAME WARRANTY ADDITIONAL TERMS AND CONDITIONS
ear after the warranty
on the part of
After expiration of the full 1-year in home warranty
from the warranty commencement date, upon
receipt of notice, InterFlex, LLC will replace any
adjustable bed part found to be defective. This
limited two-year warranty shall not apply unless
the defective part is returned to InterFlex, LLC
within ten (10) days of purchaser’s receipt of the
replacement part. Purchaser shall pay all service
and transportat
of the defective part inclusive of part(s) shipment
This warranty does not apply; (a) to any damage
caused b
repair or replacement of adjustable bed parts by
an unauthorized Person(s); (c) if the adjustable
bed has been mishandled (whether in transit or by
other means), subjected to physical or electrical
abuse or misuse, or otherwise operated in any
manner inconsistent with the operation and
maintenance procedures outlined in the Owners
Manual and this warranty; (d) to damage to
mattresses, fabric, cables, electrical cords or items
supplied by dealers. Contact the dealer for
warranty information on these items; (e) if there
has been any modification of the adjustable bed
without prior written consent by InterFlex, LLC; (f)
to costs for unnecessary service calls, including
costs for in-home service calls solely for the
purpose of educating the consumer about the
adjustable bed or finding an unsatisfactory power
connection.
the purchaser; (b) if there has been any
InterFlex Integrated Sleep Systems
For Customer Service or Any
Questions About Your Adjustable
Bed Please Call 1-800-835-7384
Revision 09/05/2007
Loading...
