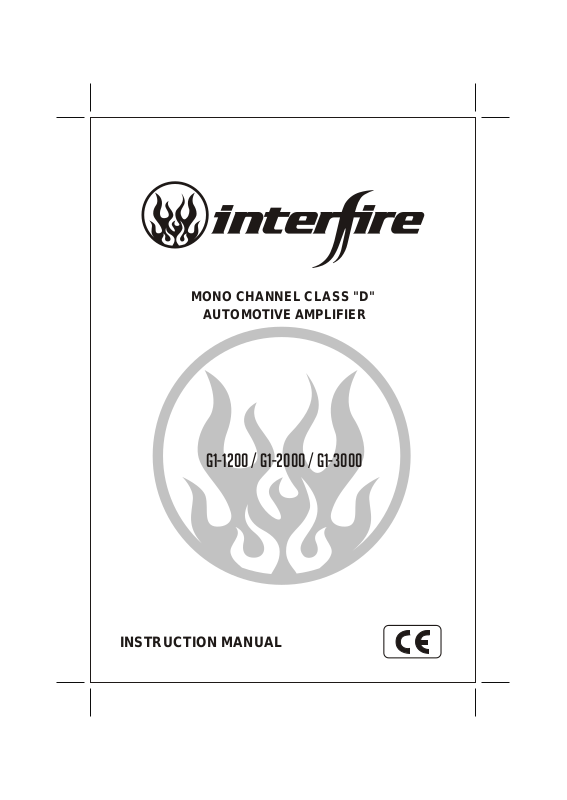

MONO CHANNEL CLASS "D"
AUTOMOTIVE AMPLIFIER
G1-1200 / G1-2000 / G1-3000
INSTRUCTION MANUAL
CONGRATULATIONS ON YOUR PURCHASE
Your new high fidelity mono block amplifier is designed to deliver maximum enjoyment
and one year of trouble free service. Please take a few moments to read this manual
thoroughly. It will explain the features and operation of your unit and help insure trouble
free installation.
FEATURES
Class ''D'' Technology
•
1 Ohm Stable
•
Spec Audiophile Grade Components
•
High Efficiency PWM Power Supply
•
- Multi-stranded power toroid
- Tow toroidal core
- MOSFET transistors
Oversized Capacitor Banks
•
Discrete Mount Power and speaker terminals
•
Variable Low Pass Electronic Crossover 50Hz - 250Hz
•
Built in power bridging module
•
Circuit / Thermal / Overload Protection
•
Bridge Sync Capable
•
Remote Level Control
•
IMPORT ANT
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION !
The quality of installation may affect the performance and reliability of your product. If
you have any doubts or questions regarding installation, you may wish to contact your
authorized dealer. Remember to heed all wire and fuse requirements suggested in this
manual. Warranty may be void if proper installation technique is not used (refer to warranty
section in the rear of the manual )
1
INSTALLATION
MOUNTING:
1. After reading precaution, decide where you are going to install the unit. Also, see Fig.1.
2. Once the location has been determined, place the amplifier into position. Using a felt tip
pen or pencil mark the four holes to be drilled for mounting. NEVER use the amplifier as
a template for drilling. It is very easy to damage the amplifier surface in this manner.
3. Remove amplifier. Drill four 3.5 m/m holes into mounting surface. If you want to mount
the amplifier to MDF or wood panel, drill four 3.0m/m diameter holes into mounting surface.
4. If possible, test the system to ensure it is operating correctly before final mounting of
the amplifier.
Mount the amplifier using the supplied 4 self tapping screws.
5.
INSTALLATION DIAGRAM
Self Tapping Screws
FIG.1
2
SPEAKER WIRING
The Class "D" amplifier is a SINGLE CHANNEL dedicated subwoofer amplifier. Unlike
other amplifiers, the Class "D" operates as a single channel and cannot be bridged.
Don't be fooled by the outputs. Two outputs are used strictly for convenience and are
paralleled internally on the amplifier. This means that if both outputs are used with one
driver each, the amplifier sees the same load as if the same drivers are connected to
only one output terminal. See diagram below.
4OHM
SUBWOOFER
SPEAKER
SPEAKER
digital mono block AMPLIFIER
FUSE
30A 30A 30A
4OHM
SUBWOOFER
digital mono block AMPLIFIER
FUSE
30A 30A 30A
G1-2000
G1-2000
POWER
REM GNDB+
POWER
REM GNDB+
4OHM
SUBWOOFER
4OHM
SUBWOOFER
In both diagrams, the amplifier sees a 2 ohm load.
3
SPEAKER WIRING

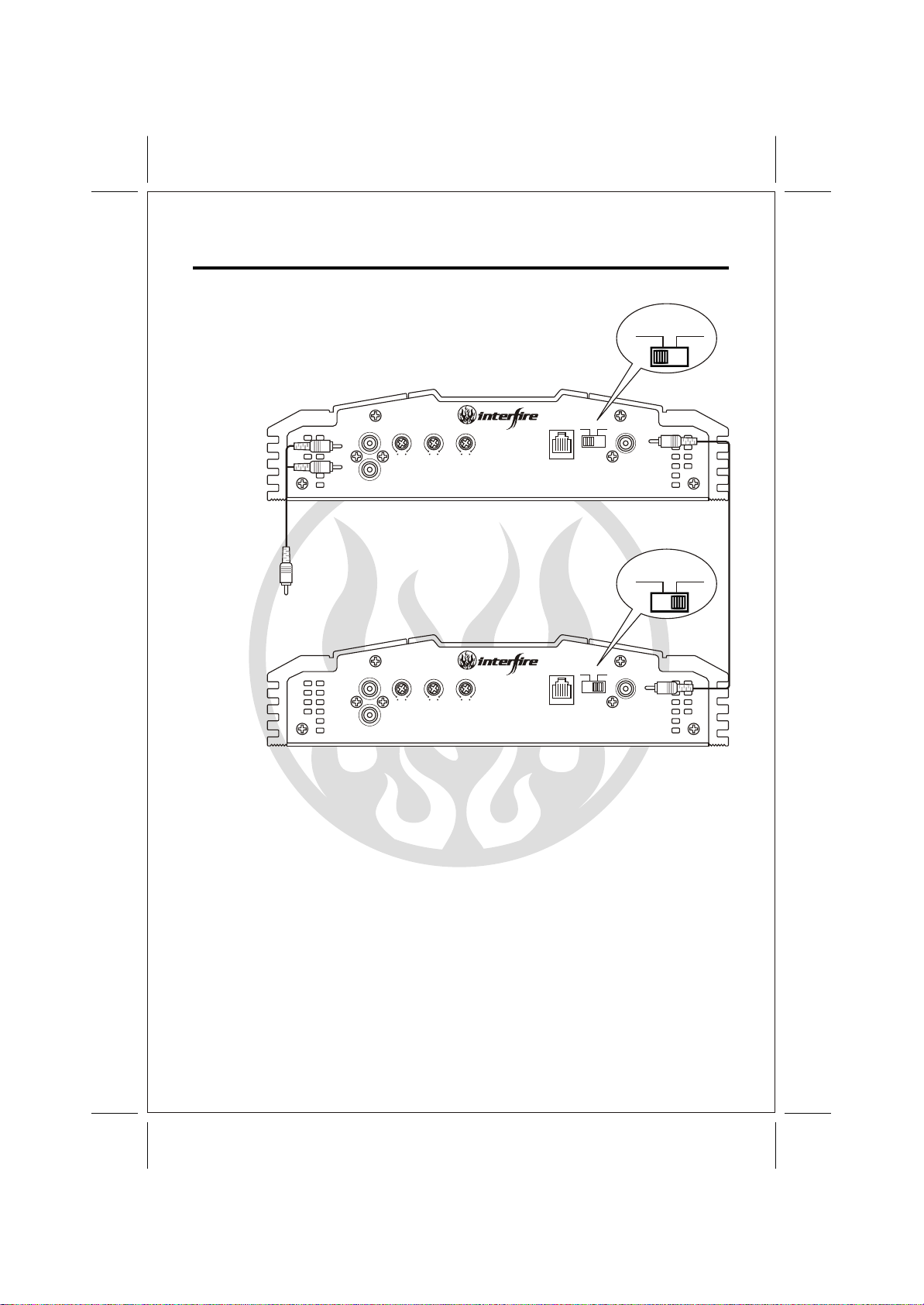

MONO BRIDGED
Master
Amplifier
CH1
CH2
LINE INPUT
GAIN LPF
6V 0.2V 50Hz
250Hz
BASS BOOST
12dB
0dB
REMOTE
GAIN CONTROL
MASTER SLAVE
SLAVEMASTER
MASTER
/SLAVE
Slave
Amplifier
FROM
RADIO
CH1
CH2
LINE INPUT
GAIN LPF
6V 0.2V 50Hz
250Hz
BASS BOOST
0dB
12dB
REMOTE
GAIN CONTROL
MASTER SLAVE
SLAVEMASTER
MASTER
/SLAVE
WIRING SUBWOOFERS (DUAL AMPS)
When using dual amplifiers to power one subwoofer, the Positive terminal of the Subwoofers
voice coil is connected the positive terminal of the MASTER Amplifier and the Negative terminal
of the Subwoofers voice coil is connected to Positive terminal on the SLAVE Amplifier. This
procedure will allow the total power of both amplifiers to be added together and act like a single
powerful amplifier. Please check that your subwoofer power handling capabilities are not exceeded
when hooking two amplifiers to it.
CAUTION
Always check your speaker load with a multi-meter before hooking up to the amplifier. These
digital amplifiers are only 1 ohm stable. Any Impedance (load) smaller than 1 ohm will damage
the amplifier. Such Damage is not covered under warranty either, so pay strict attention to what
connections are made to the amplifier.
4
SPEAKER WIRING
MONO BRIDGED
Master
Amplifier
SPEAKER
digital mono block AMPLIFIER
30A 30A 30A
Using a lead wire of 8 gauge or
bigger connect from the master
Amp's negative(-) speaker
terminal to the slave Amp's
negative(-) speaker terminal.
FUSE
G1-2000
POWER
REM GNDB+
Slave
Amplifier
SPEAKER
digital mono block AMPLIFIER
FUSE
30A 30A 30A
BATTERY VIA FUSE
G1-2000
POWER
REM GNDB+
REMOTE TURN ON
CHASSIS GROUND

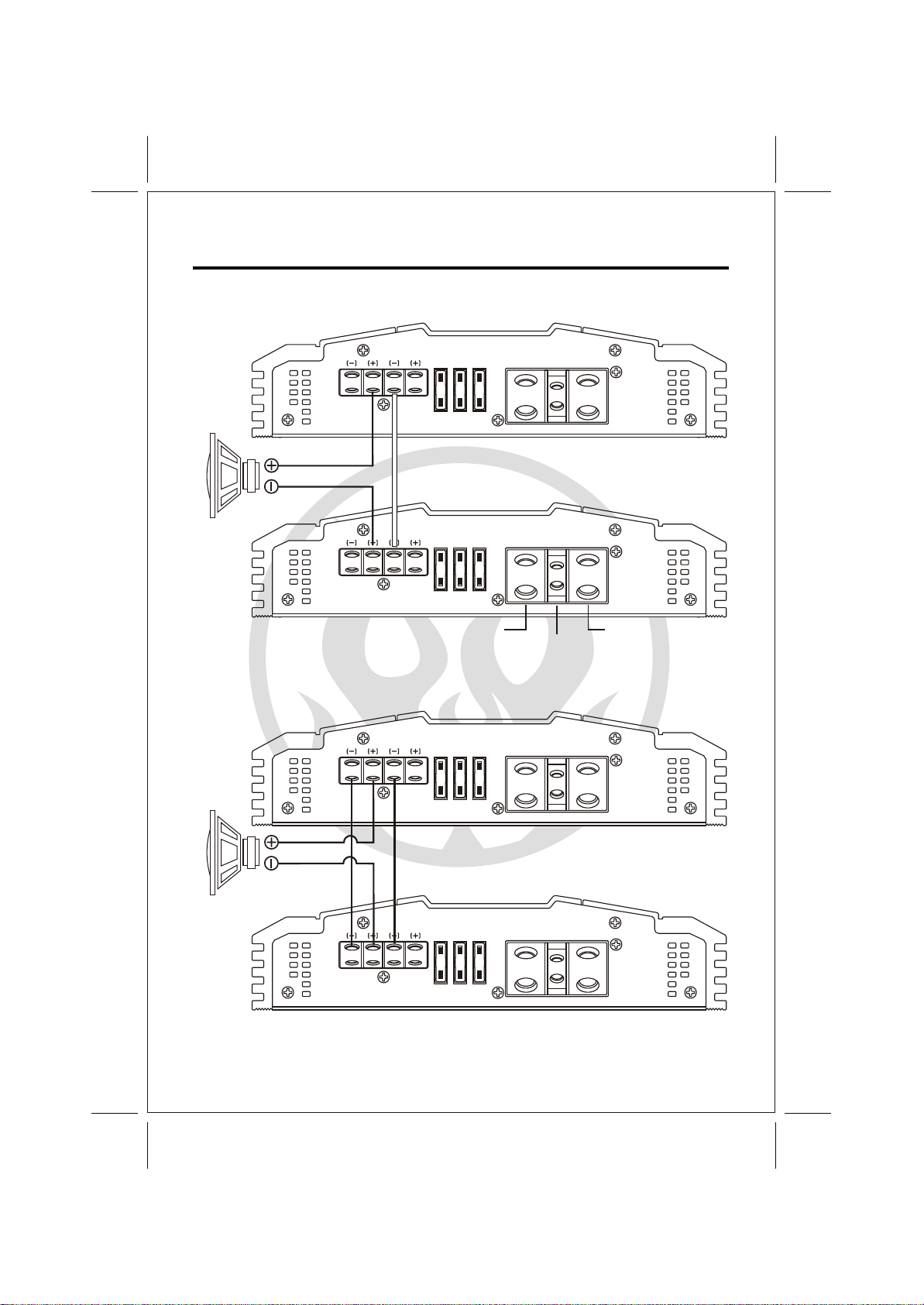

(OPTION) TWO AMPLIFIER/ ONE SUBWOOFER (SINGLE VOICE COIL)CONFIGURATION
Master
Amplifier
Slave
Amplifier
SPEAKER
SPEAKER
digital mono block AMPLIFIER
FUSE
30A 30A 30A
digital mono block AMPLIFIER
FUSE
Gd-1000
Gd-1000
POWER
REM GNDB+
POWER
REM GNDB+
Recommend : Competition Only
30A 30A 30A
5
SPEAKER WIRING
MONO BRIDGED

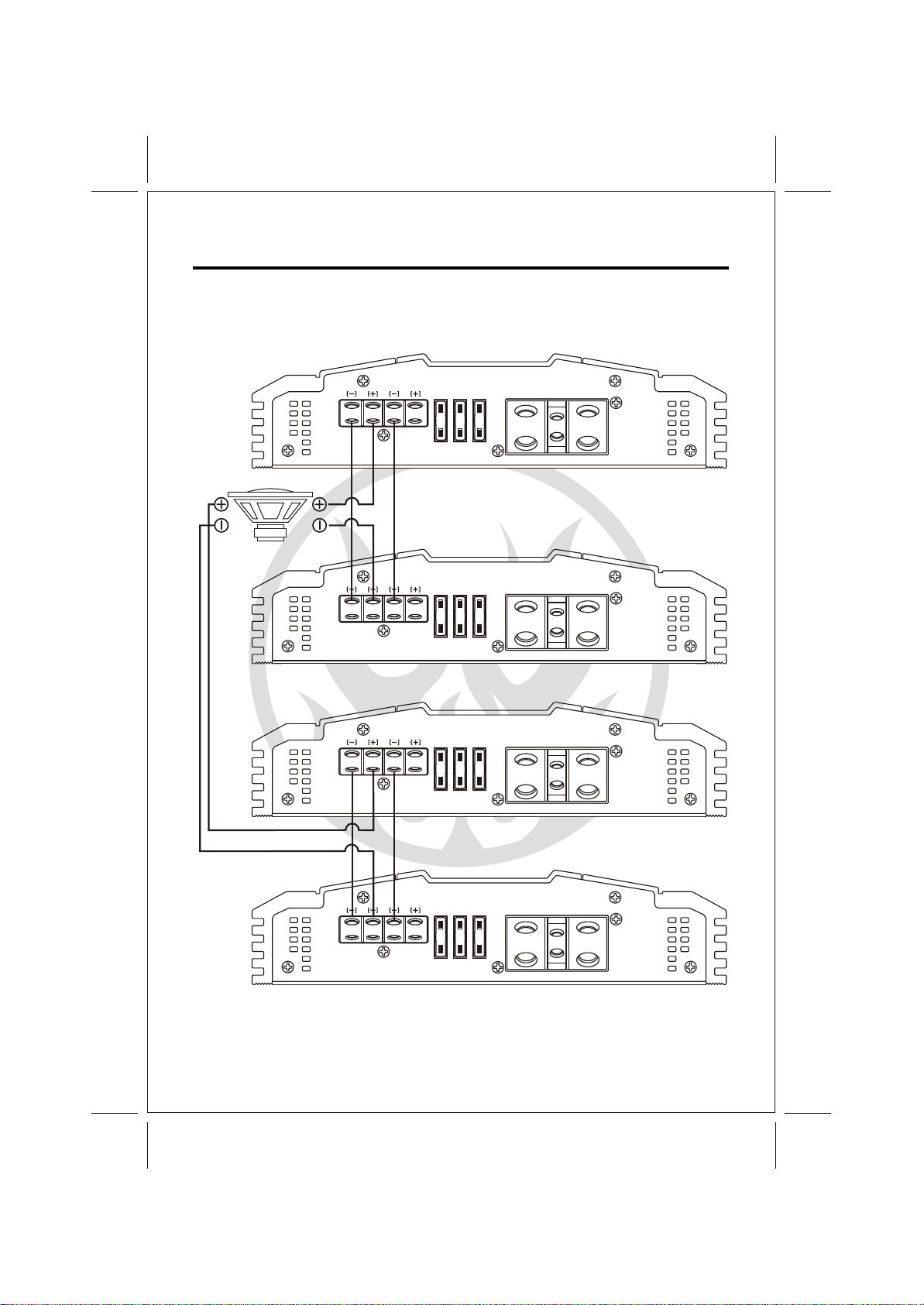

(OPTION) FOUR AMPLIFIER/ ONE SUBWOOFER (DUAL VOICE COIL)CONFIGURATION
Master
Amplifier
Voice
Coil1
Slave
Amplifier
Master
Amplifier
Voice
Coil2
SPEAKER
SPEAKER
SPEAKER
digital mono block AMPLIFIER
FUSE
30A 30A 30A
digital mono block AMPLIFIER
FUSE
30A 30A 30A
digital mono block AMPLIFIER
FUSE
30A 30A 30A
G1-2000
G1-2000
G1-2000
POWER
REM GNDB+
POWER
REM GNDB+
POWER
REM GNDB+
Slave
Amplifier
SPEAKER
digital mono block AMPLIFIER
FUSE
30A 30A 30A
6
G1-2000
POWER
REM GNDB+
POWER SUPPLY CONNECTIONS
The Class "D" amplifier is designed to work within 10 to 16 volts DC. Before any wires
are connected, the vehicle's electrical system should be checked for correct voltage
supply with the help of a voltmeter. First check the voltage at the battery terminals with
the ignition in the off position. The voltmeter should read no less than 12 volts. Next,
check the battery with the engine running between 1500 and 2000 rpm. The voltmeter
should now read between 13.5 and 14.5 volts. If your vehicle's electrical system Is not
up to these specifications, we recommend having it checked by an automotive mechanic
before further installation.
RECOMMENDED POWER WIRE
The proper wire size is very important for an amplifier of this power level. Because the
Class "D" amplifier is capable of drawing in excess of 90 amperes,4 gauge wire is
recommended for lengths up to twenty feet. if a longer length is needed, a larger gauge
wire may be necessary.
POWER
Amplifier power wire should be wired directly to the battery using the wire requirements
listed above. Start at the amplifier and run the power wire through the vehicle to the
battery. The use of grommets is recommended when passing the power wire through
any metal wall. Avoid sharp corners or sharp body parts that may easily cut through the
insulation on the wire. Avoid running the power wire over engine components and near
heater cores. Use an inline fuse to eliminate the risk of a fire caused by a short in your
power wire. Connect the fuse holder as close to the battery positive as possible. For
most applications, an 80 ampere Maxi fuse or comparable ANL wafer fuse can be used.
Now connect the wire to the battery, but remember to leave the fuse out until all other
wire connections are mode.
GROUND
When grounding your amplifier, locate a metal area close to the amplifier that is a good
source of ground ( preferably the floor ).Once again, investigate the area you wish to use
for electrical wires, vacuum lines, and brake or fuel lines. Using either a wire brush or
sandpaper eliminate unwanted paint to supply a better contact for your ground. Use the
same gauge wire for ground as you did for the power. Terminate the ground wire using the
correct size ring terminal and attach it to the bare metal using a nut and bolt. It is important
for this connection to be solid. To complete the job, spread silicon over the screw and bare
metal to prevent rust and possible water leaks.
REMOTE TURN-ON
In between the power and ground is a remote turn-on terminal. This terminal must be
connected to a switched +12volt source. Typically, remote turn-on leads are provided
at the source unit that will turn on and off the amplifier in correspondence with the source.
If a radio does not have a remote turn-on, then a power antenna wire may be used. Yet, if
neither of these leads are available at the source, a switched +12 volt supply must be
supplied. Run a minimum of 18-gauge wire from the amplifier location to the source of the
switched +12 volt lead. If possible, route this wire on the same side of the vehicle as your
power wire. Connect the source remote output wire to the REM terminal on the amplifier
using a 3mm screw key. Cut the remote wire to length. Strip approximately 1/2 inch of
insulation from the end of the wire and insert into the terminal. Tighten the screw securely.
7
OPERATION
1 2 3 4 5 6 7
SLAVEMASTER
MASTER
/SLAVE
CH1
CH2
LINE INPUT
GAIN LPF
6V 0.2V 50Hz
250Hz
BASS BOOST
12dB
0dB
REMOTE
GAIN CONTROL

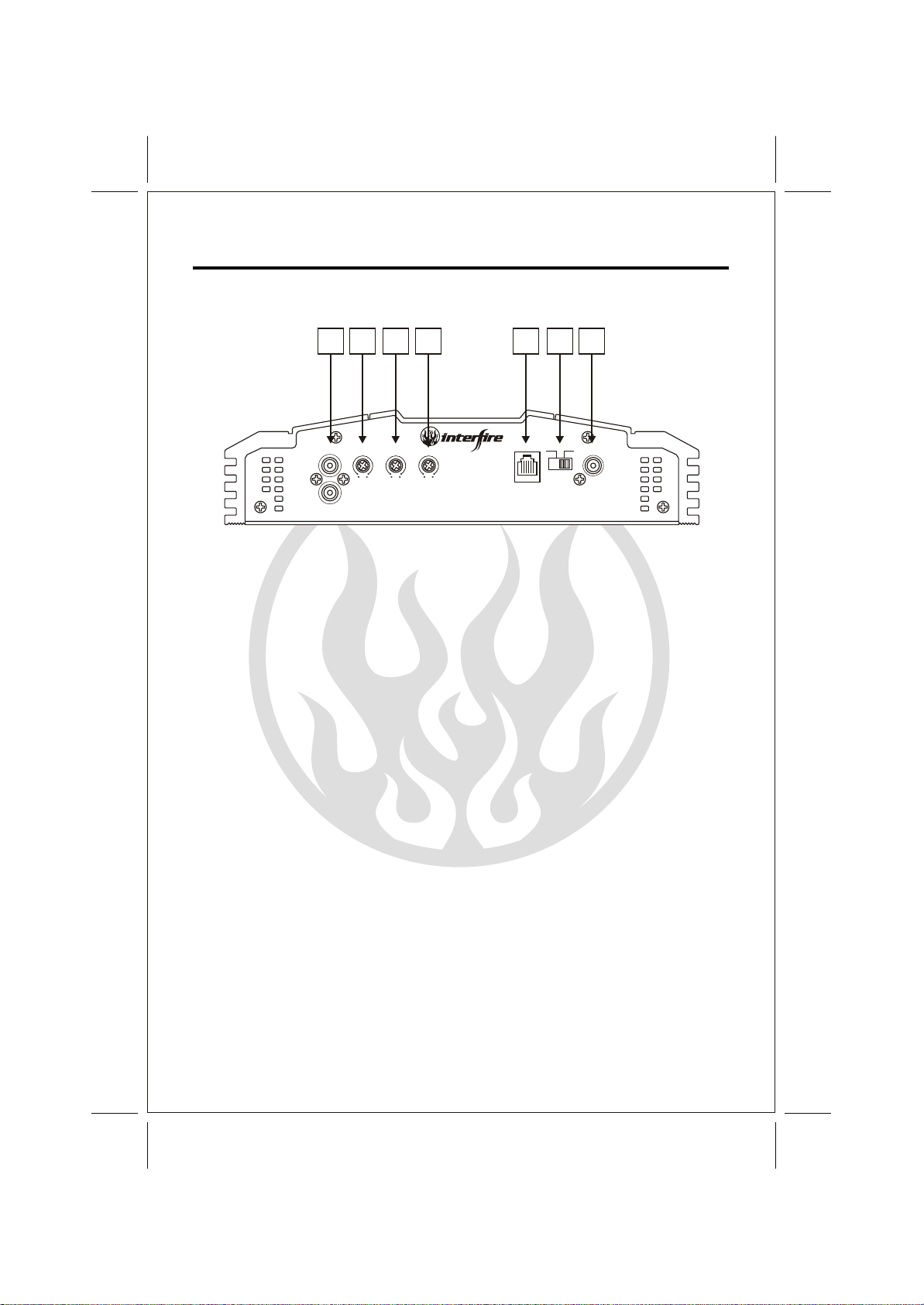

1. RCA Input Jacks 2. Input Level Control 3. Low Pass Frequency
4. Bass Boost
5. Remote Control Jack 6. Master/Slave Switch 7. Slave Input Jack
Control and Crossover
1. RCA Input Jacks - Low level-high impedance inputs. Use high quality RCA cables designed
for mobile applications.
2. Input Level Control - Adjust the input level for the marked channels. Turn clockwise to
increase the level, counterclockwise to decrease. Amplifiers will run cooler and produce
less system noise at lower level settings.
3. Low Pass Frequency - Adjust the crossover frequency by turning clockwise to set to a higher
frequency, counterclockwise to set to a lower frequency.
4. Bass Boost - Adjust the sub boost level of the selected frequency output from 0dB to 12dB.
5. Remote Control Jack - For connecting the remote control module to the amplifier.
6. Master/Slave Switch - Select the remote level control or the on-board level control as the
master control.
7. Slave Input Jack - Used to connect to another amplifier when bridging 2 amps together.
The Slave mode bypasses normal input jacks and controls.
8

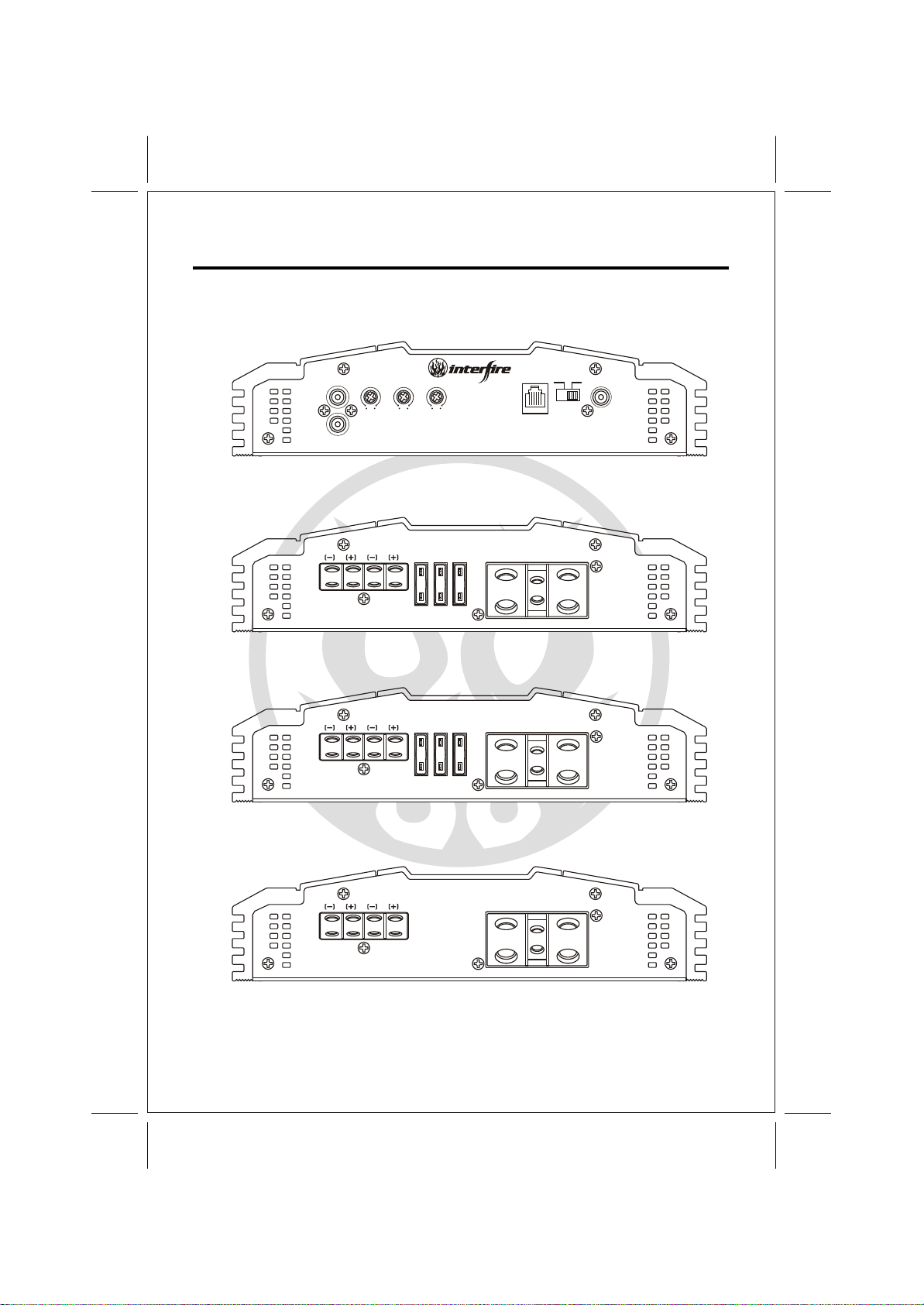

FRONT/REAR PANEL
LINE INPUT
CH1
CH2
GAIN LPF
6V 0.2V 50Hz
G1-1200/2000/3000 front
SPEAKER
G1-1200 REAR
SPEAKER
G1-2000 REAR
BASS BOOST
12dB
250Hz
0dB
digital mono block AMPLIFIER
FUSE
25A 25A 25A
digital mono block AMPLIFIER
FUSE
30A 30A 30A
GAIN CONTROL
Gd-1500
Gd-2000
REMOTE
POWER
REM GNDB+
POWER
REM GNDB+
SLAVEMASTER
MASTER
/SLAVE
G1-3000 REAR
SPEAKER
digital mono block AMPLIFIER
9
Gd-3000
POWER
REM GNDB+
TROUBLE SHOOTING GUIDE
This section provides you with a catalog of amplifier symptoms and their probable causes
and solutions. Before you consult this listing, make sure the vehicle's electrical system is
working properly by verifying that other electrical items (e. g. headlights, windows, etc.)
Still function correctly.
SYMPTOM
No Audio
Low or N.C Remote
Turn-on connections
Blown Fuse
Power wires not connected
Blown or non speakers
connected
SOLUTIONPROBABLE CAUSE
Check remote turn-on voltage at
amp and head unit
Replace with new fast-blow fuse
Check butt splices or solder joints
Check ground and battery
connections
Use VOM or DVM to measure speaker
coil
impedance; check speaker wiring
connections
Distorted Audio
Audio Level Low Mute circuit on head
Audio Lacks
External Fuse
Blowing
Whining noise
on audio with
engine running
Ticking noise on
audio with
engine
running
Input Sensitivity not set
properly
or damaged speaker cones
Low turn-on voltage
unit is on.
Speakers wired with wrong
polarity, causing
cancellation of bass
frequencies
Incorrect wiring or short
circuit
Amplifier is picking
up alternator noise
Amplifier is picking up
radiated spark noise
See adjustment procedure and check
each step;
Inspect each speaker for damage
and repair or replace suspected
component
Refer to head unit owner's manual
Check electrical system for low
voltage;
Check ground connection
Check polarity of wires from
amplifiers to each speaker as defined
by the system design
Check battery voltage at amplifier
during operation
Refer to electrical installation and
check each installation step
Install an in-line noise filter on the
head unit's power wire; Check
alternator routing diodes or voltage
regulator for proper operation. Check
all grounds , battery voltage, and
RCA cables
Check RCA audio cable; Install an
in-line noise filter on the head unit's
power wire. Check spark plug wires.
10
SPECIFICATION
AMPLIFIER
RMS POWER / 1 ohm @ 1% T.H.D
2 ohms @ 0.05% T.H.D
4 ohms @ 0.05% T.H.D
Efficiency / Typical @ 4 ohms
MIN RATE @ 1 ohm
Bandwidth ±1dB
Signal To Noise Ratio ('A' WTD)
Damping Factor
Input Sensitivity
Input Impedance
X-Over Slope
Variable Low Pass Filter
Variable Bass Boost
Circuit Breaker
Dimensions (W x H x D) mm
G1-1200 G1-2000 G1-3000
1200W x 1 2000W x 1 3000W x 1
750W x 1 1000W x 1 2000W x 1
400W x 1 500W x 1 1000W x 1
90% 90% 90%
79% 79% 79%
10Hz ~ 250Hz 10Hz ~ 250Hz 10Hz ~ 250Hz
>100dB >100dB >100dB
150 150 150
200mV ~ 6V 200mV ~ 6V 200mV ~ 6V
20K Ohms 20K Ohms 20K Ohms
24dB 24dB 24dB
50 ~ 250Hz 50 ~ 250Hz 50 ~ 250Hz
0dB ~ 12dB 0dB ~ 12dB 0dB ~ 12dB
75Amp 90 Amp
245 x 55 x 320 245 x 55 x 350 245 x 55 x 420
Need External Fuse/
Minimum 180 Amp
NOTE : Specifications & design subject to change without notice
for improvements.
11
WARRANTY
WARRANTY LIMITATIONS
The following is NOT covered under Interfire
Audio's warranty program:
Product owned by anyone other than the
1.
original purchaser from an authorized
Interfire Audio dealer. (The warranty is
NOT transferable and will not apply to
products purchased from unauthorized
dealers.)
2.
Speaker products that have been overpowered, causing thermal (burnt voice coil)
and/or mechanical failure (ripped surrounds
or spiders).
3.
Product that has NOT been installed
according to the instructions in the owner's
manual
4.
Product in which repair and/or modification
has been attempted by unauthorized parties
Product damaged in an accident, due to
5.
criminal activity (attempted theft, gunshot
damage, etc.) or by "acts of God" (flooding,
lightning, etc.)
Product that has been physically damaged
6.
abused and/or altered. Including bent frames
or missing magnets.
7.
Custom finishes or other cosmetic treatments
applied to products. (Interfire Audio will not be
responsible for restoring or maintaining any
Custom finishes)
8.
Product with defaced, altered or removed
serial numbers (no valid, legible serial No.
= no warranty).
Product damaged cosmetically due to
9.
improper handling or normal wear and
tear Including Freight damage. Be sure
to package all returns in its packing material
and box.
Installation and shipping costs associated
10.
with removing, re-installing or shipping the
product to Interfire Audio for warranty service
WARRANTY TERMS
(Effective January 01, 2010)
These terms supersede all prior published
warranty terms
Interfire Audio products are warrantied against
defects in materials and workmanship for a
period of One (1) Year from the original date of
purchase.
Products found to be defective during the
warranty period will be repaired or replaced
(with a product deemed to be equivalent) at
Interfire's discretion.
Note: Products purchased from unauthorized
dealers are not covered under warranty. Ask
your dealer for details on warranty limitations.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States
of America are covered only by that country's
distributor and not by Interfire Audio, Inc.
IF YOU NEED SERVICE ON YOUR
INTERFIRE AUDIO PRODUCT:
Please call Interfire Customer Service at
1-877-90-AUDIO to obtain an RA # (Return
Authorization number). All warranty returns
should be sent to INTERFIRE AUDIO freight
prepaid through an authorized INTERFIRE
AUDIO dealer and must be accompanied
by proof of purchase (a copy of the original
sales receipt.) Direct returns from consumers
or non-authorized dealers will be refused
unless specifically authorized by INTERFIRE
AUDIO with a valid return authorization
number. Warranty expiration on products
returned without proof of purchase will be
determined from the manufacturing date
code. Coverage may be invalidated as this
date is previous to purchase date. Return
only defective components. Non-defective
items received will be returned freight-collect.
Customer is responsible for shipping charges
and insurance in sending the product to
INTERFIRE AUDIO. Freight damage on
returns is not covered under warranty.
Always include proof of purchase (sales
receipt).
NOTICE: Products shipped without a valid RA # will be refused and shipped back.
Interfire Audio, Inc.
Santa Fe Springs, CA 90670
www.interfireaudio.com
Printed in PRC
Loading...
