1. Introduction
1.1 Product Description
The TAHOE 8824 is a 1U network processing platform designed for enterprise
market. TAHOE 8824 is based on the Cavium 64-bit ARM technology. It supports
CN82xx/83xx family of processors. TAHOE 8824 features an optional swappable IO
module that supports either Eight ports of 10G or two ports of 40G.
1.2 Standard Features
• 24 CN ARM64TM III processor cores. Core frequency up to 1.8GHz.
• 72-bit of DDR4 memory with ECC
• 4GB eMMC Interface
• SPI NOR Flash memory
• SD Card slot
• One M.2 NVMe SSD drives
• One on-board 1000Base-T Ethernet port
• Four on-board 10Gbps SFP+ ports
• Eight 10Gbps ports or two 40Gbps ports
• Two USB 3.0 Type A ports
• RJ45 RS232 serial port
• Four hot replaceable fans
• Two redundant hot swappable power supplies
Page 7
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 7 OF 34
1.3 Functional Diagram
The below functional diagram of TAHOE 8824 Board.

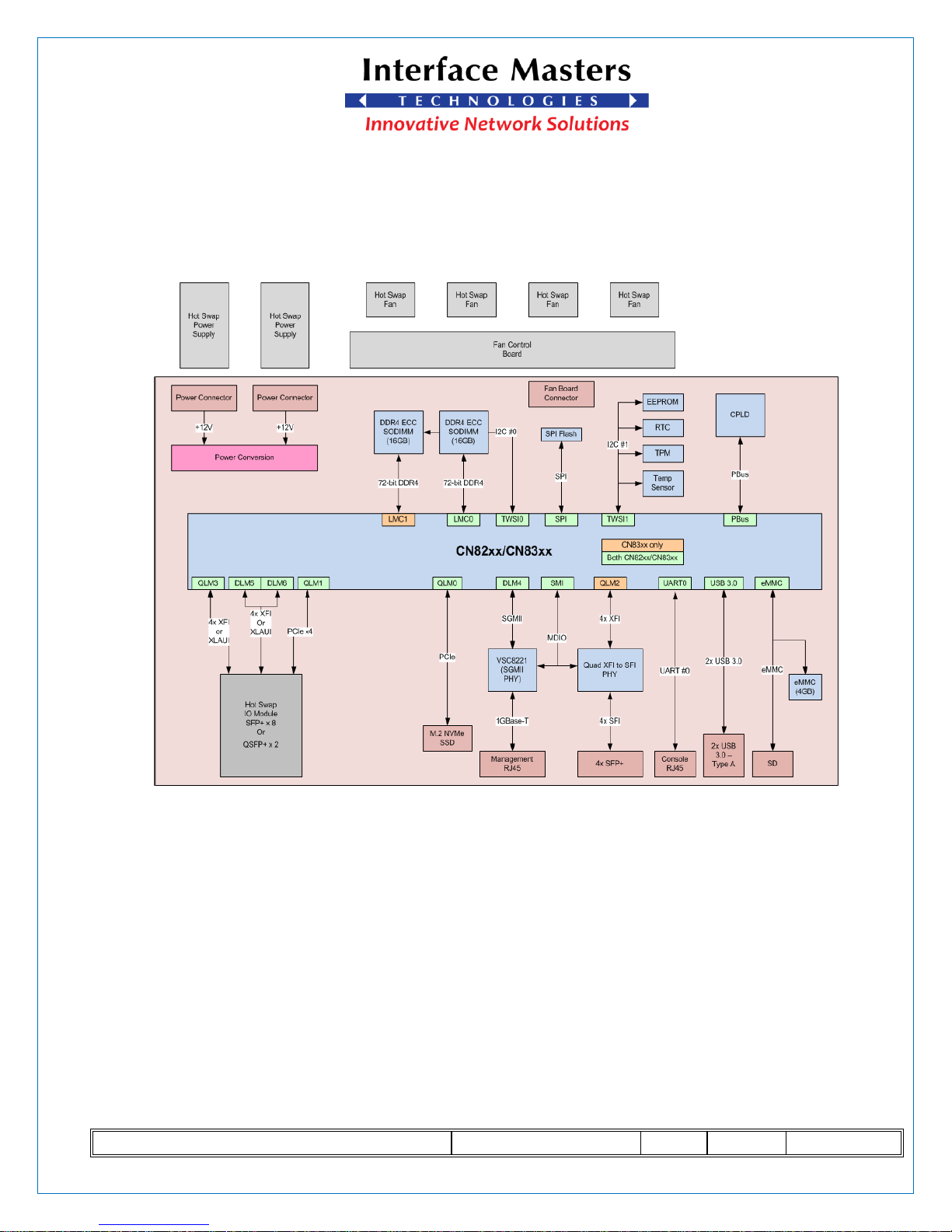

Figure 1. TAHOE 8824 Block Diagram
Page 8
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 8 OF 34
1.4 Physical Layout for System

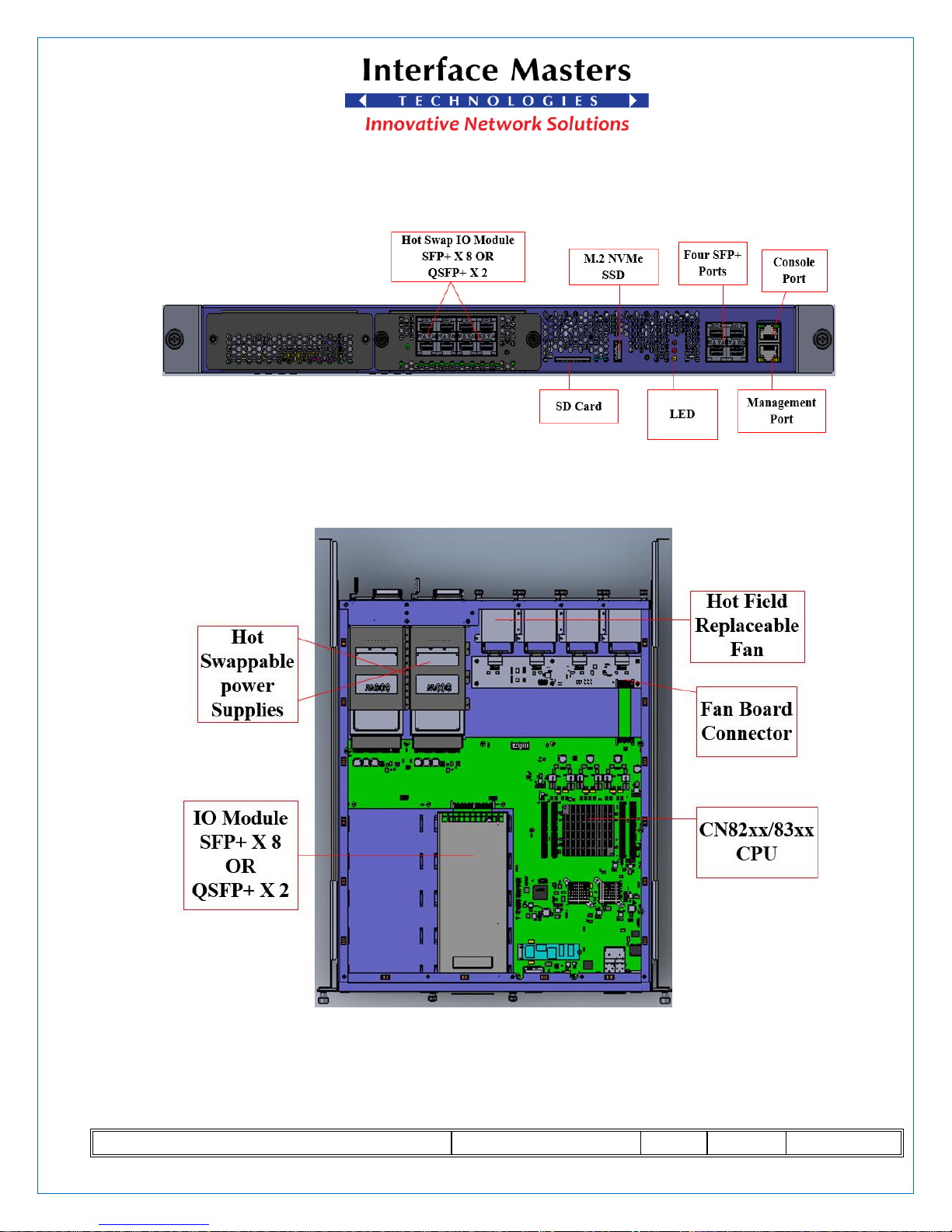

Figure 2, Front view of TAHOE 8824
Figure 3, Top view of TAHOE 8824
Page 9
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 9 OF 34

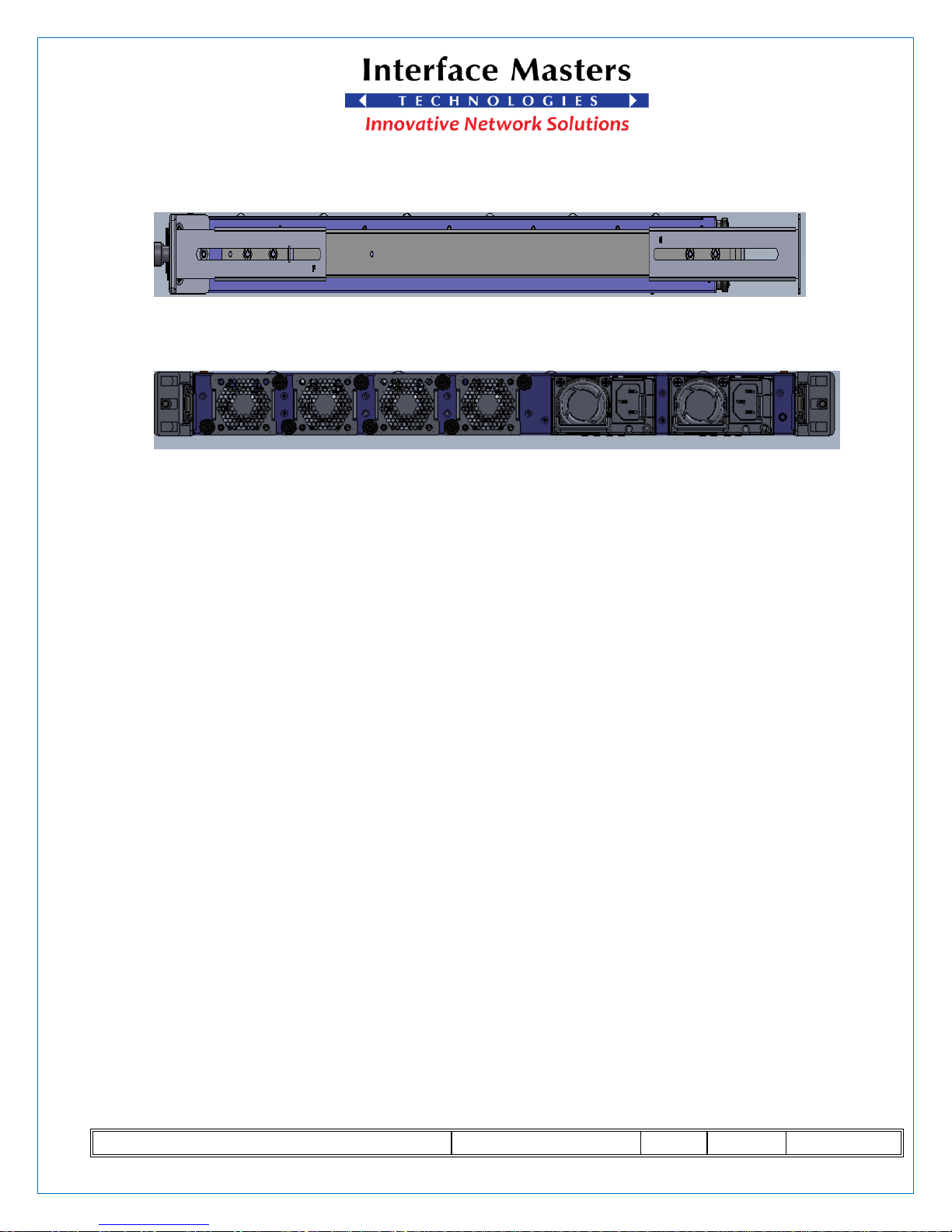

Figure 4, Side View of TAHOE 8824
Figure 5, Rear view of TAHOE 8824
Page 10
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 10 OF 34
2. Major Components
2.1 CN82xx/CN83xx – Processor
The main CPU of the TAHOE 8824 is CN82xx/CN83xx, which is a multicore (up
to 24) CNARM64TM III processor that’s part of the Octeon TX family. The CN82xx has
one 72-bit DRAM controllers that can support DDR4, while the CN83xx has two
controllers. In addition, both CN82xx and CN83xx has several SERDES that can be
configured as various Ethernet interfaces, SATA and PCI-e.
The following is a list of interfaces that is provided by the CPU:
➢ 72-bit wide DDR4 module
➢ eMMC Interface
➢ SPI Interface
➢ QLM SERDES blocks
➢ Three DLM SERDES blocks
➢ Two USB 3.0 host ports
➢ Two UART Interface
➢ Two TWSI bus (I2C)
➢ Two SMI/MDIO bus
➢ PBus (GPIOs)
Page 11
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 11 OF 34
2.2 DDR4 DRAM Controller
The CN82xx support 72-bit DRAM interface controllers that can support DDR4 (up
to 2133 MT/s data rate) and the CN83xx has two. Each controller can support single-,
dual-, and quad-rank configurations.
The TAHOE 8824 support both DRAM controllers with a single DDR4 SODIMM
slot per controller. 16GB is the highest density SODIMM module available.

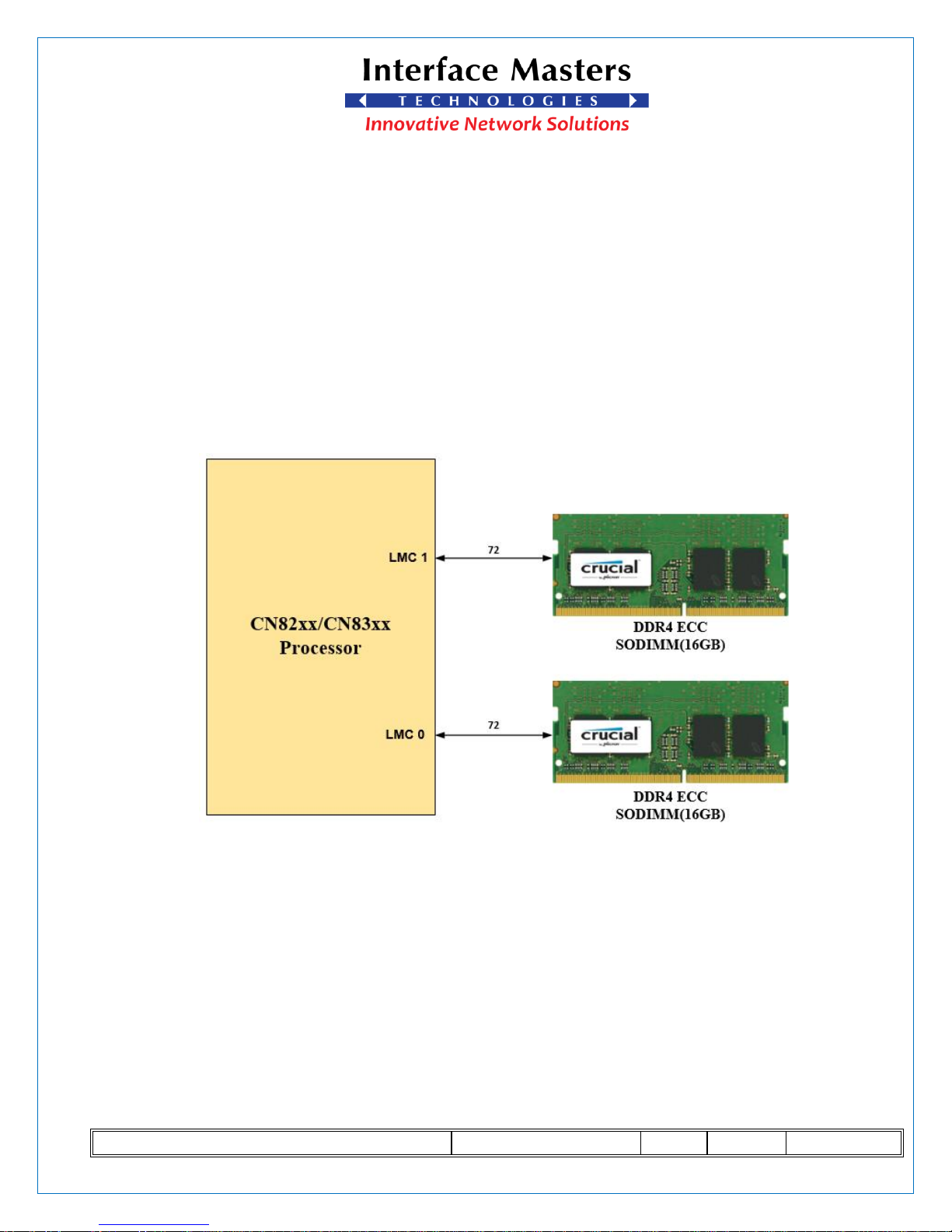

Figure 6, DRAM controller Functional diagram
Page 12
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 12 OF 34
2.3 eMMC Interface
The CN83xx has an eMMC interface and it can support up to three attached eMMC
flash based memory devices with 3 CMD lines. The eMMC interface can operate at speeds
up to 52MHz. In addition, the memory device connected to the CMD0 and the SD card
slot is connected to CMD1, but a eMMC Boot Select Jumper can swap the CMD0 and
CMD1 lines to allow boot up from an SD card possible.

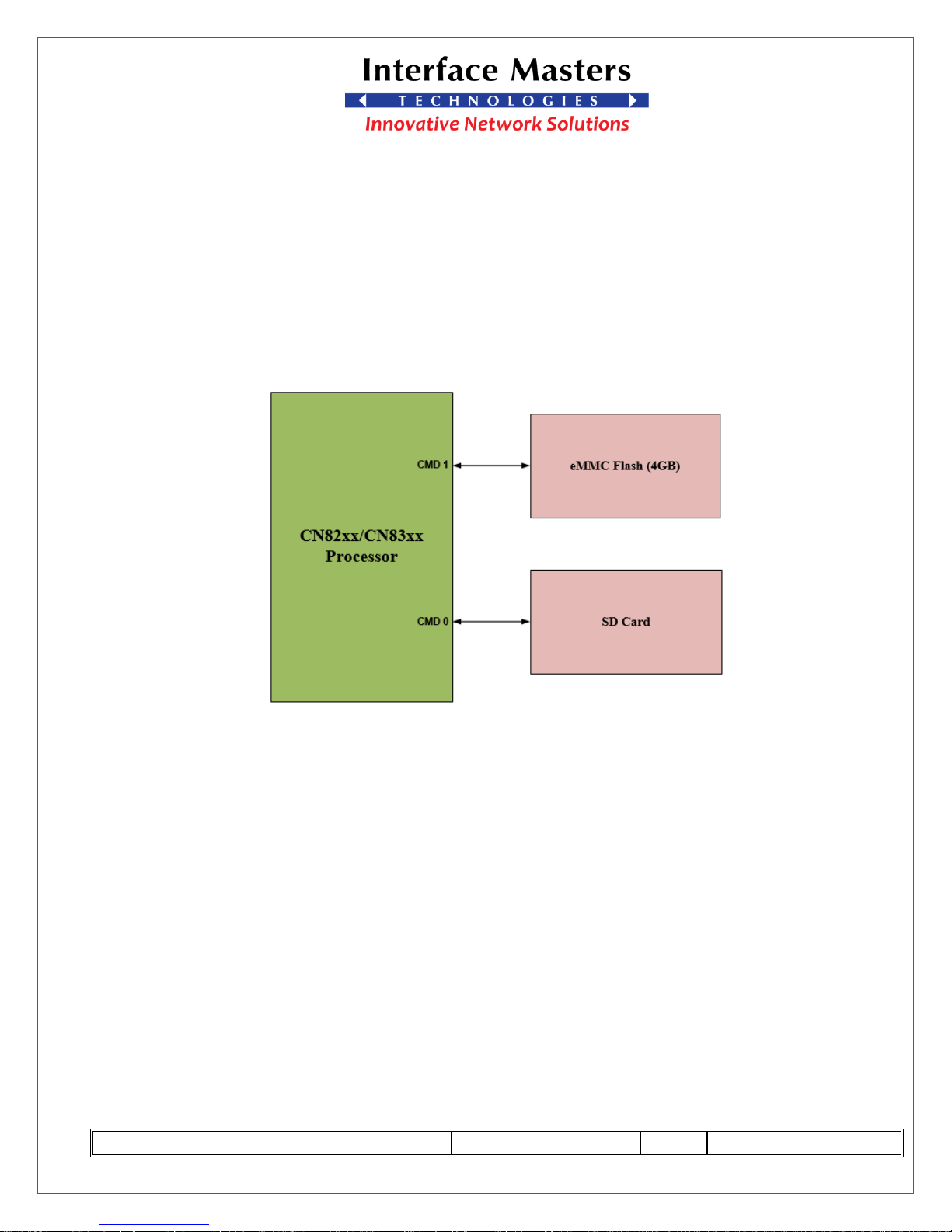

Figure 7, TAHOE 8824 eMMC Interface
Page 13
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 13 OF 34
2.4 SPI Interface
The CN83xx has one SPI interface and can run with a clock speed of up to 50MHz.
The CN83xx can also boot from a SPI flash device as well. The maximum initial clock
speed during boot up is 12.5MHz.
The TAHOE 8824 has a SPI flash storage device attached and can be used as a boot
device when optioned to do so. By default, the eMMC flash is the boot device.

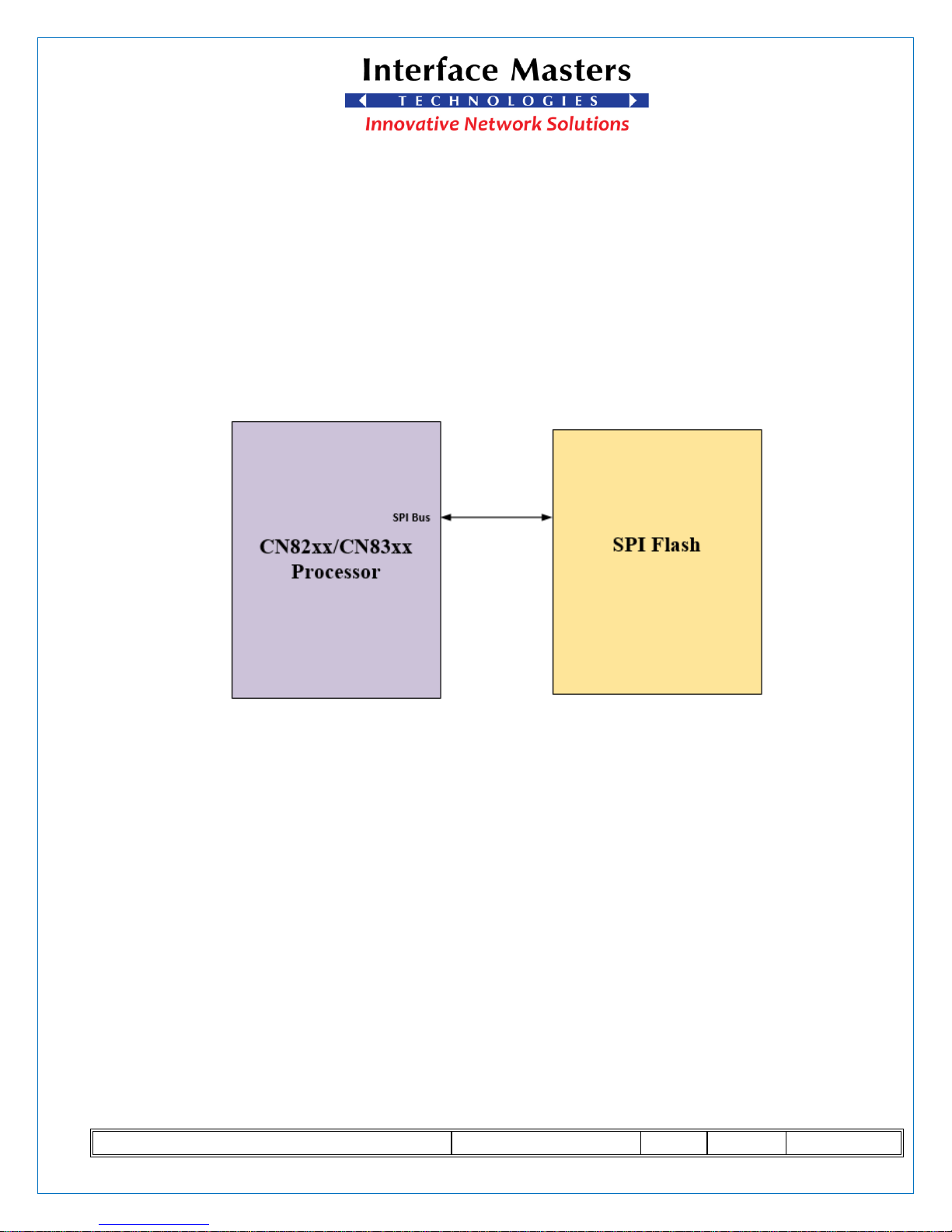

Figure 8, TAHOE 8824 SPI Flash
Page 14
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 14 OF 34
2.5 SERDES - QLMs/DLMs
The CN82xx has three Quad Lane Modules (QLM) and three Dual Lane Modules
(DLM), while the CN83xx has four QLMs and three DLMs. Each QLM has four SERDES
and each DLM has two SERDES. Each QLM/DLM can independently be configured to
different high-speed Ethernet, PCI-e, or SATA interfaces.
The TAHOE 8824 will have the QLM/DLM configured as follows:
• QLM0 – PCI-e
• QLM1 – PCI-e
• QLM2 – Four XFI KR
• QLM3 – Four XFI KR or One XLAUI
• DLM4 – One SGMII
• DLM5 & DLM6 – Four XFI of One XLAUI (DLM5 & DLM6 are combined to
create a 4-lane interface)
➢ QLM0 is configured as a PCI-e host interface and connect to a M.2 connector that
is meant for an NVMe SSD.
➢ QLM1 is configured as a PCI-e host interface and is connected to the IO module
expansion slot for any PCI-e peripheral device.
➢ QLM2 is configured as four XFI interface, which connect to a Quad XFI to SFI
PHY for the four on-board 10Gbps SFP+ ports.
➢ QLM3, DLM5, & DLM6 are configured as eight XFI or two XLAUI interfaces to
connect to the Octal 10Gbps IO module or Dual 40Gbps IO module, respectively.
➢ DLM4 is configured as an SGMII interface, that’s connected to an SGMII to
1000Base-T PHY to provide the Management Port.
Page 15
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 15 OF 34
2.6 USB 3.0
The CN83xx has two USB 3.0 host interfaces and can support Super-Speed
(5.0Gbps), High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
transmission rates.
The TAHOE 8824 has both interfaces exposed to the front panel as two USB 3.0 Type A
connectors.

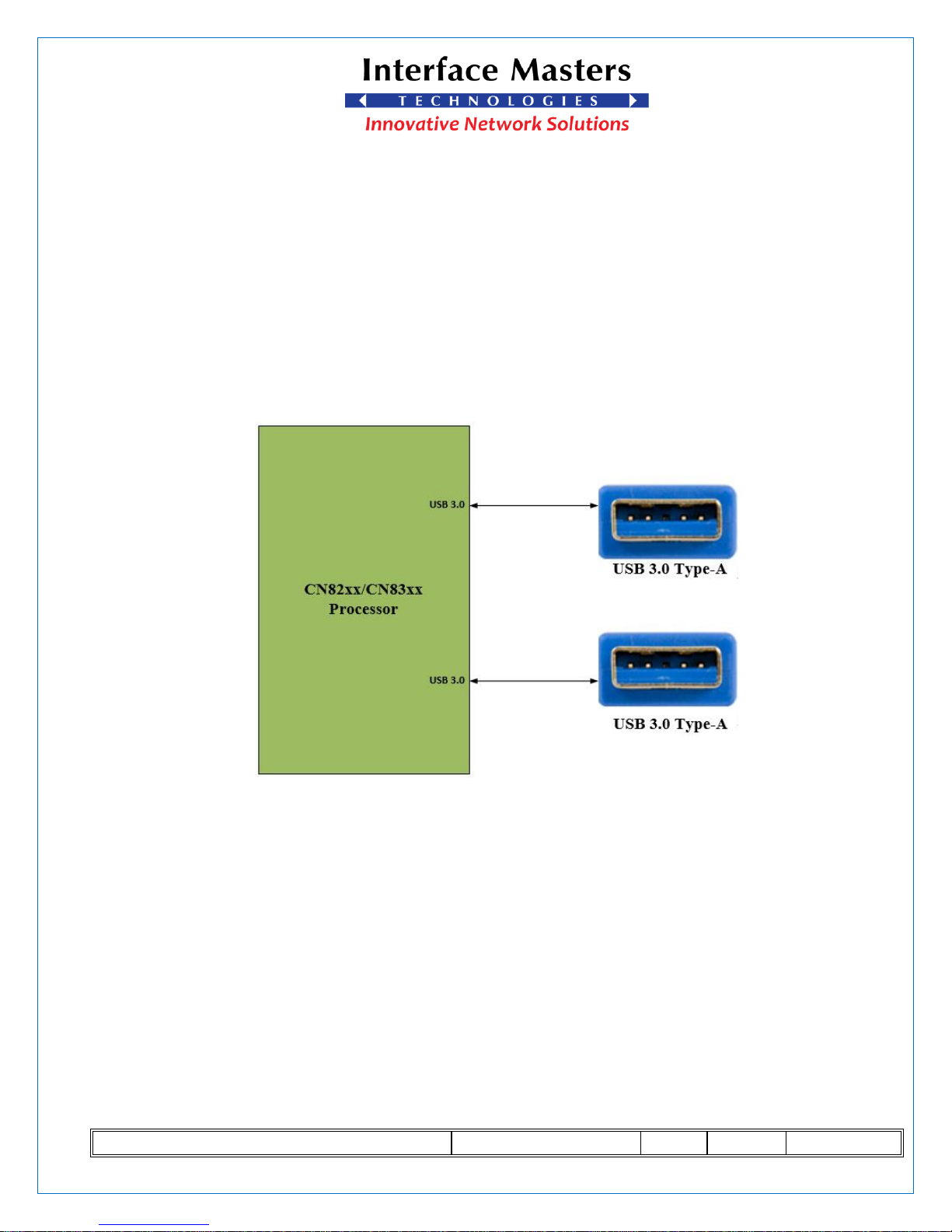

Figure 9, TAHOE 8824 USB 3.0 Diagram
Page 16
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 16 OF 34

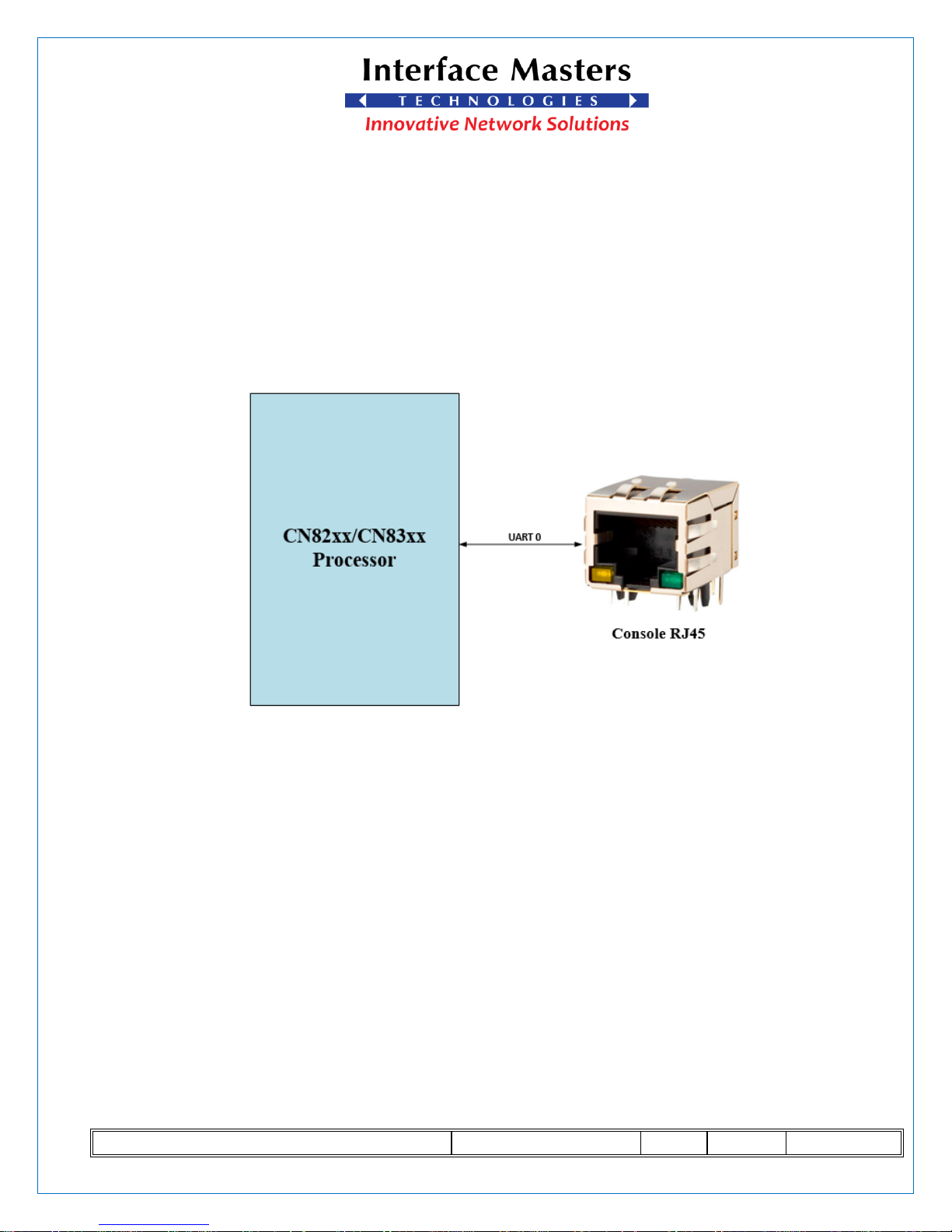

2.7 UART Interface
The CN83xx has two UART interfaces.
The TAHOE 8824 has UART0 connected to a TTL to RS232 level translator,
which then connects to an RJ45 connector as the serial console. UART1 is exposed to an
internal header for factory debug use only.
Figure 10, TAHOE 8824 UART Interface
Page 17
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 17 OF 34
2.8 I2C Interface
The CN83xx has two I2C interfaces that can each support standard mode (100kbps)
and fast mode (400kbps).
The TAHOE 8824 has TWSI0 connected to the DDR4 modules for the SPD and
TWSI1 connected to the TLV EEPROM, RTC, and temperature sensor.

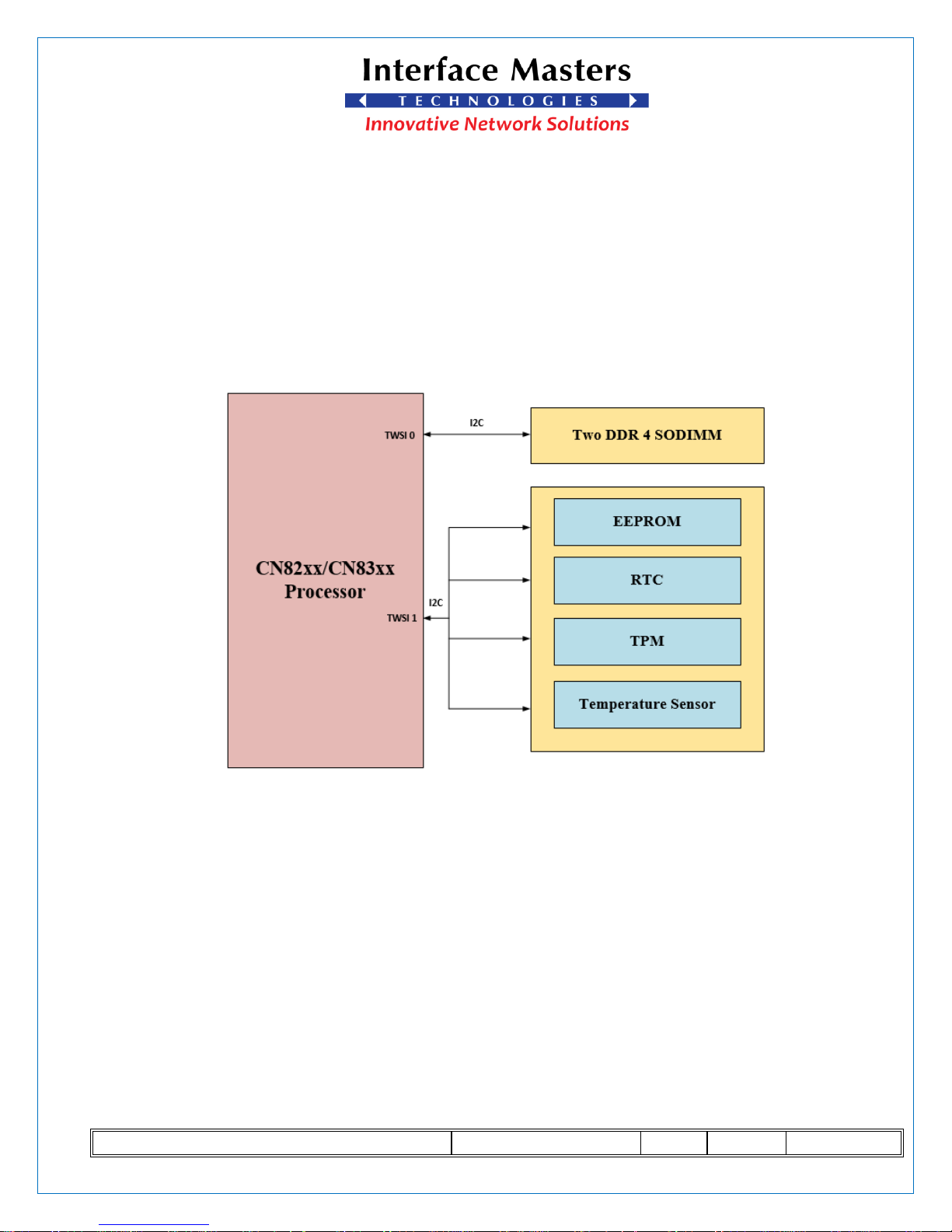

Figure 11, TAHOE 8824 TWSI Interface
Page 18
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 18 OF 34
2.9 SMI interface
The CN83xx has two MDIO interfaces that allows the CPU to manage Ethernet
PHYs. Both MDIO interfaces can support both Clause 22 and Clause 45 of the IEEE 802.3
standard.
The TAHOE 8824 has SMI0 connected to the on-board PHYs and SMI1 connected
to the IO module.

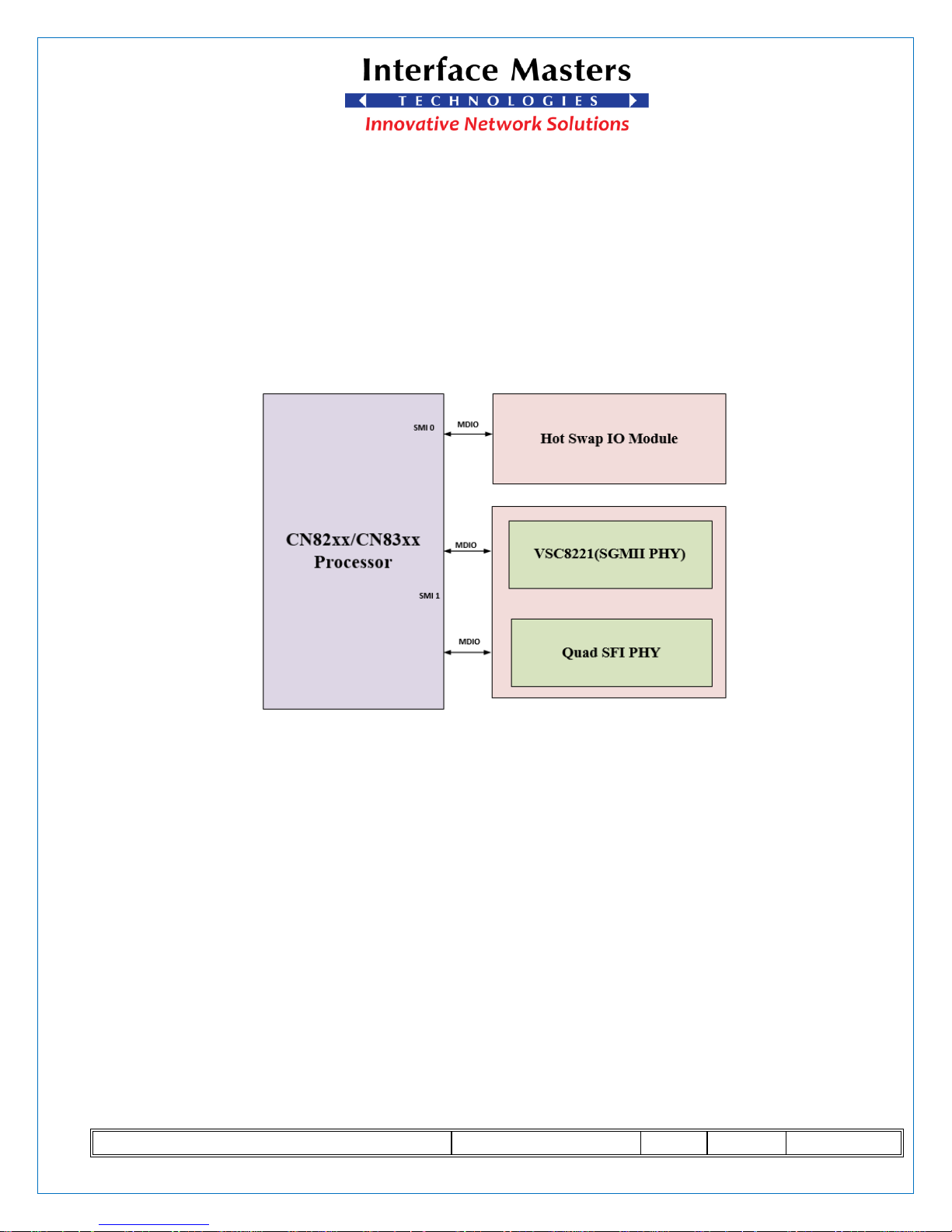

Figure 12, TAHOE 8824 SMI Interface Diagram
Page 19
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 19 OF 34
2.10 PBus interface
The CN83xx has a general purpose parallel address/data bus interface called PBus.
The PBus has 32 address/data lines and can support up to eight connected devices with its
eight chip selects.
The TAHOE 8824 has the CPLD connected to the PBus and the PBus interface is
the main communication channel between the CPU and the CPLD.

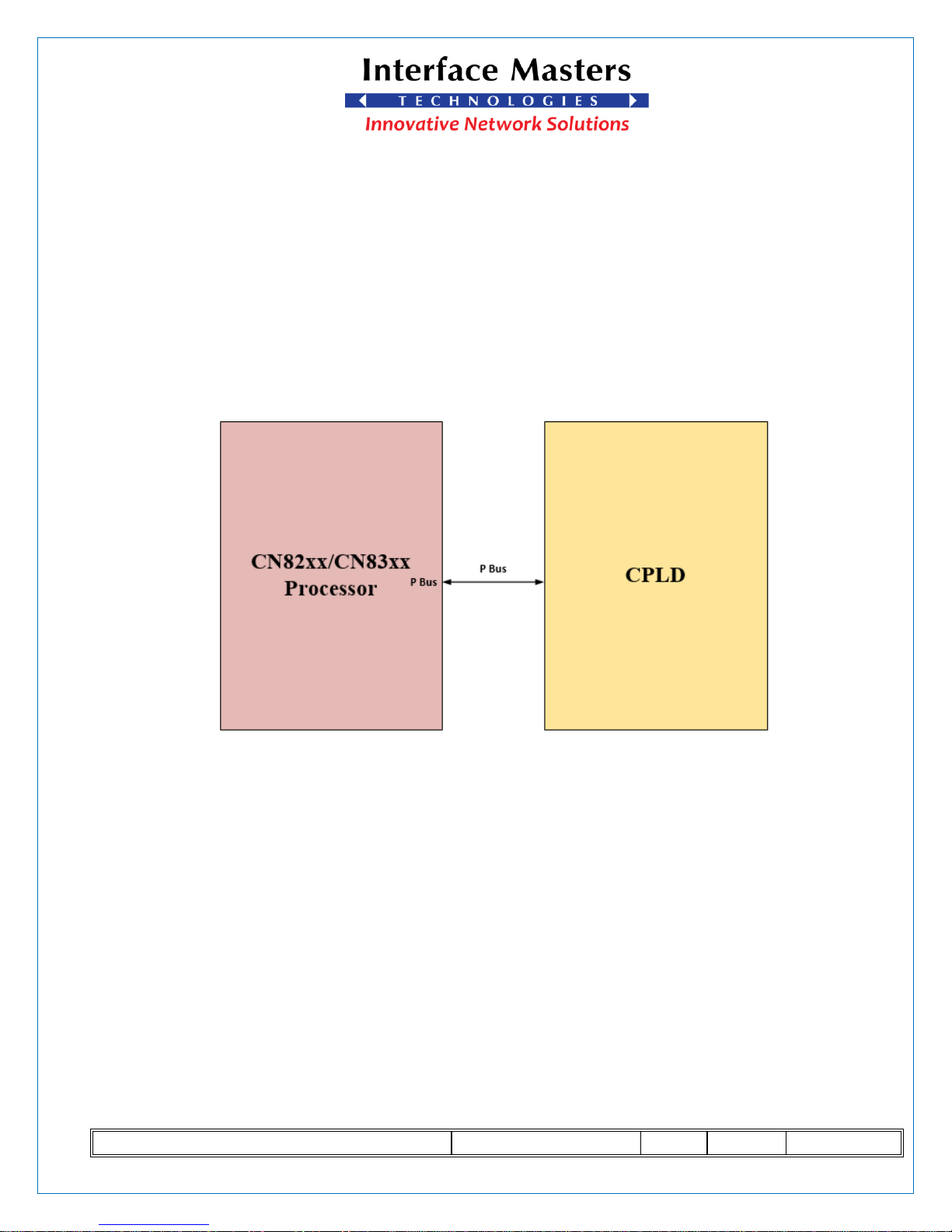

Figure 13, TAHOE 8824 PBus Functional Diagram
Page 20
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 20 OF 34
3 CPLD
The CPLD used in the TAHOE 8824 is an Altera MAX II CPLD. The main
purpose of the CPLD is to control power-up and reset sequencing, LED control, boot
strapping, and other miscellaneous glue logic.

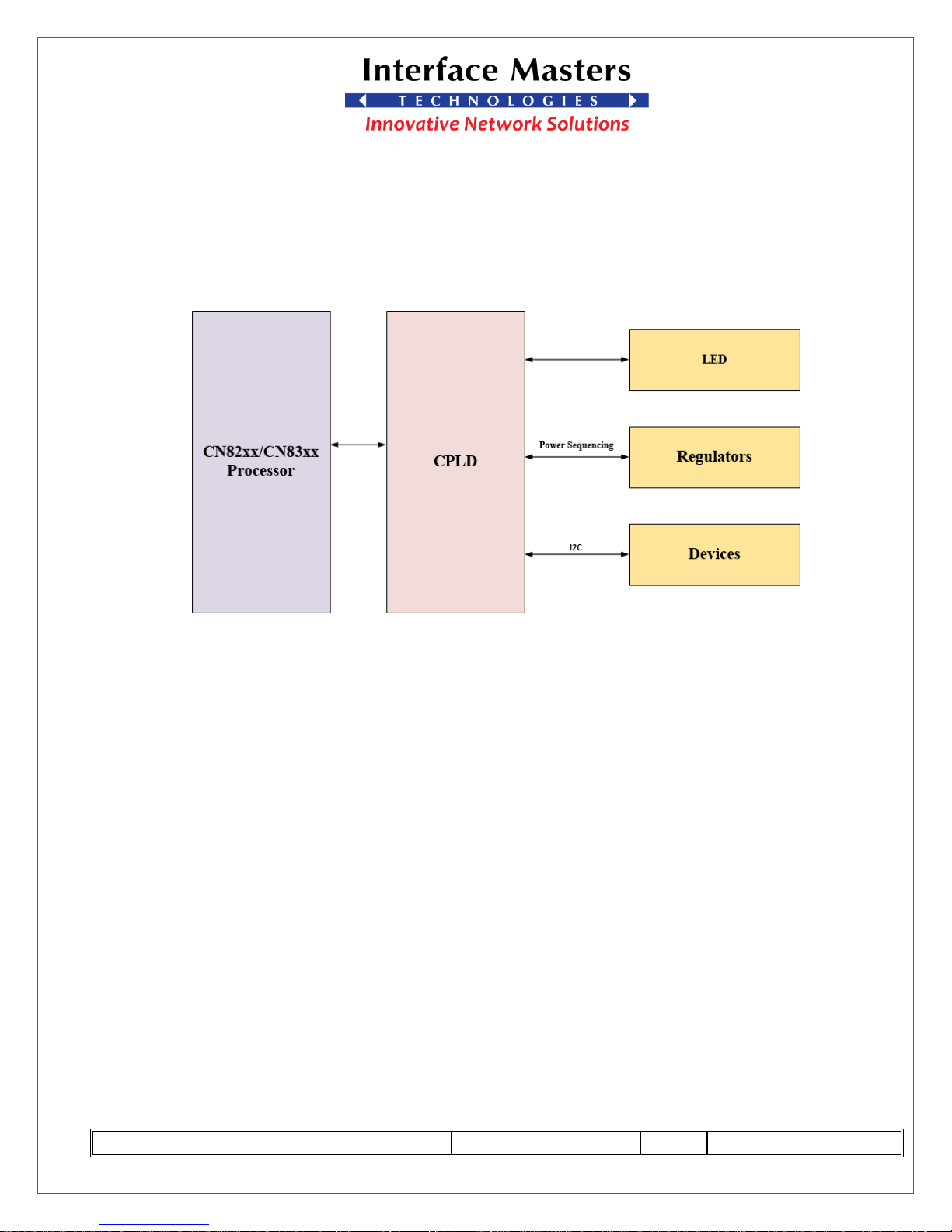

Figure 14, TAHOE 8824 CPLD Functional Diagram
3.1 Access Interface
The main interface used to access the control registers of the CPLD is through the
CPU’s P Bus.
3.2 LED Control
All of the system LEDs will be driven by the CPLD and can be controlled by
software through the CPLD control registers.
3.3 Boot Strap
The hardware strap pins of the CN83xx are connected to the CPLD to allow the
user to easily change the boot media device by hardware jumper settings or by the CPLD
control registers for subsequent warm reboots.
Page 21
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 21 OF 34
3.4 Boot Devices
TAHOE 8824 supports three boot devices.
3.4.1 SPI NOR Flash
SPI NOR Flash is 16GB it is the default boot device.
3.4.2 SD card
SD card supports capacity up to 128GB.
3.4.3 eMMC
eMMC is 4GB device and it is the second boot device after the SPI NOR flash.
3.5 Selecting Boot Device
Registered BOOT_CSR in the CPLD Selects Boot Device The boot device could be
selected by writing the appropriate values into BDSL_2 and BDSL_3
BOOT_CSR – Boot Control and Status
7
6 5 4 3 2
1
0
CN_FAILSF
res
res
res
BDSL_3
BDSL_2
res
res
Table 1, Boot Device Register
bit 7 CN_FAILSF – CPU Failsafe
Upon reset, it is set to 1, but if the CPU fails to boot it is set to 0.
bits 6:4 Reserved
bits 3:2 BDSL [3:2] – Boot Device Select
BDSL_ [3:2]
Boot Device
11
eMMC
10
SPI Flash
01
reserved
00
SD Card
Table 2, Boot Device Bits
Page 22
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 22 OF 34
4 Ethernet PHYs
Network functionality for both the Management Port and the Quad SFP+ ports are
through Ethernet PHYs that connect to the CN82xx/CN83xx SGMII and XFI ports.
4.1 VSC8221 – SGMII to 1000Base-T PHY
The VSC8221 is a Gigabit Ethernet PHY that converts the SGMII interface to
1000Base-T and vice versa. This PHY also supports 10Base-T and 100Base-T.
Below is a list of the major interfaces for the VSC8221:
• SGMII – Connects to the SGMII interface of the CN82xx/CN83xx (DLM4).
• MDI – Connects to the RJ45 Management Port for 10/100/1000Base-T connection.
• MDIO – Connects to the SMI/MDIO interface of the CN82xx/CN83xx.

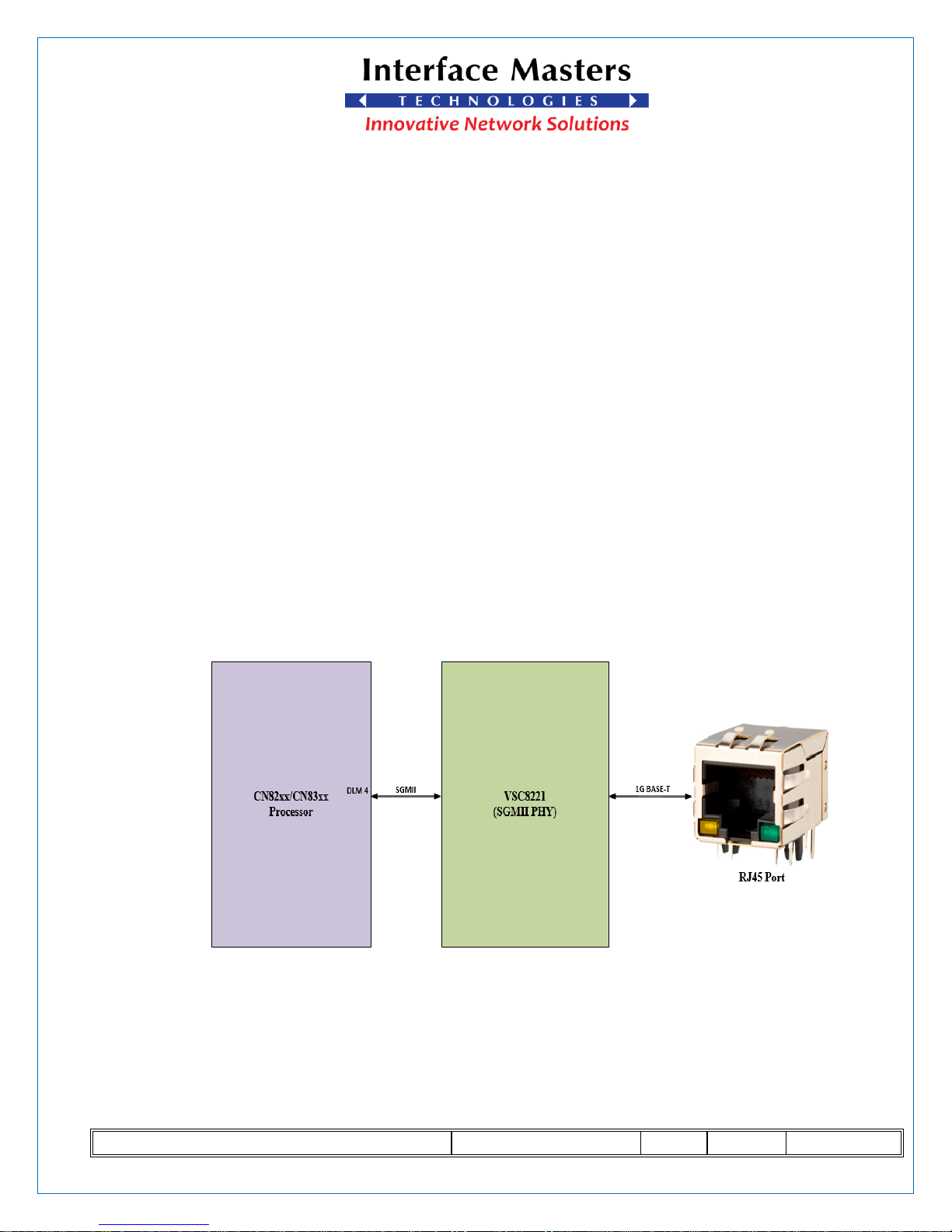

Figure 15, TAHOE 8824 SGMII Interface
Page 23
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 23 OF 34
4.2 VSC8257 – Quad XFI to SFI PHY
The VSC8257 is a quad XFI to SFI PHY that converts the XFI to SFI and vice
versa. This PHY is only populated on systems that use the CN83xx processor.
Below is a list of the major interfaces for the VSC8257:
• Four XFI – Connects to the four XFI interfaces of the CN83xx (QLM2).
• Four SFI – Connects to the four SFP+ cages on the main board.
• MDIO – Connects to the SMI/MDIO interface of the CN83xx.

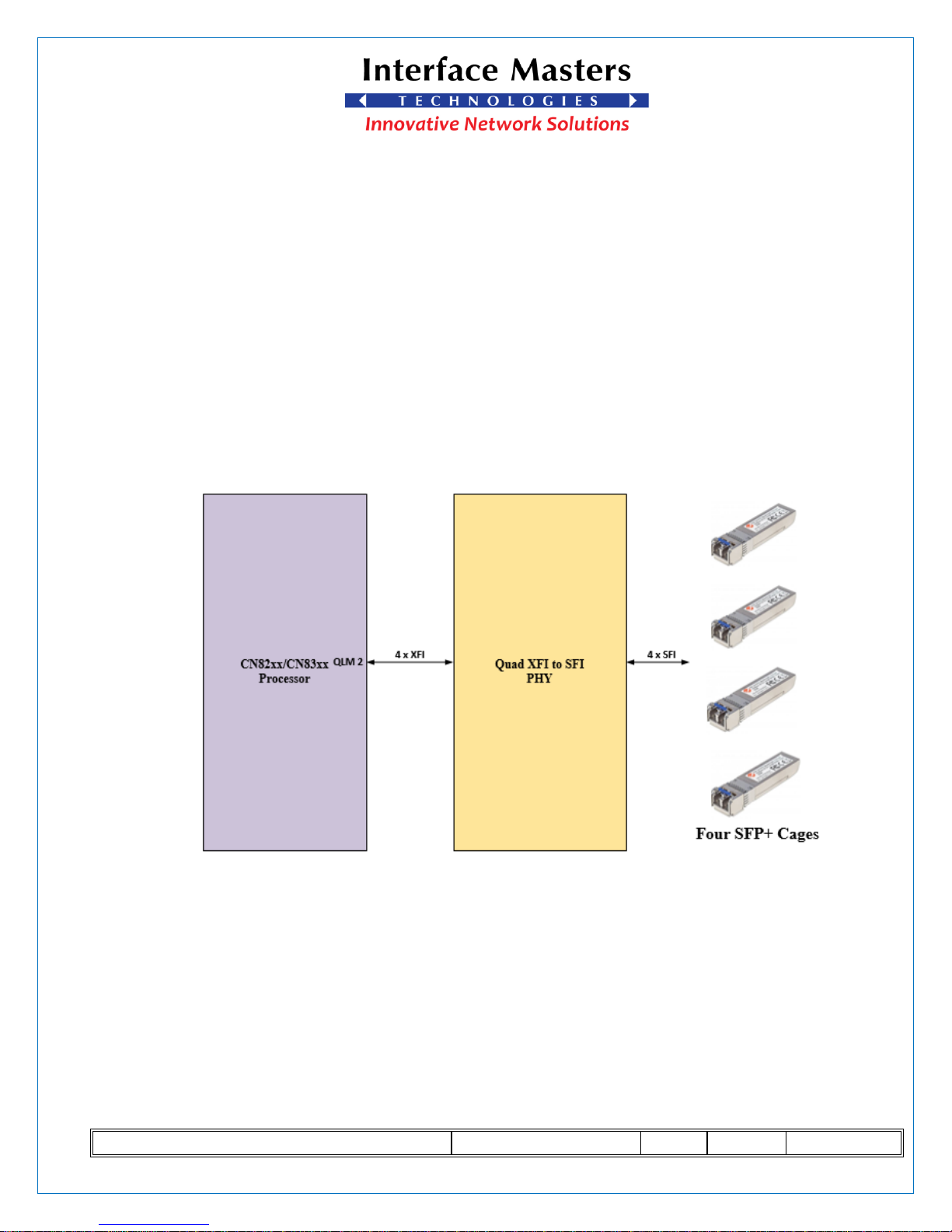

Figure 16, TAHOE 8824 XFI to SFP interface
Page 24
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 24 OF 34
4.3 M.2 NVMe SSD
TAHOE 8824 supports NVM e SSD module. The capacity of these modules ranges
from 128GB to 1 TB. The NVMe SSD connected with CN82xx/CN83xx processor(QLM0)
through PCI-e interface.

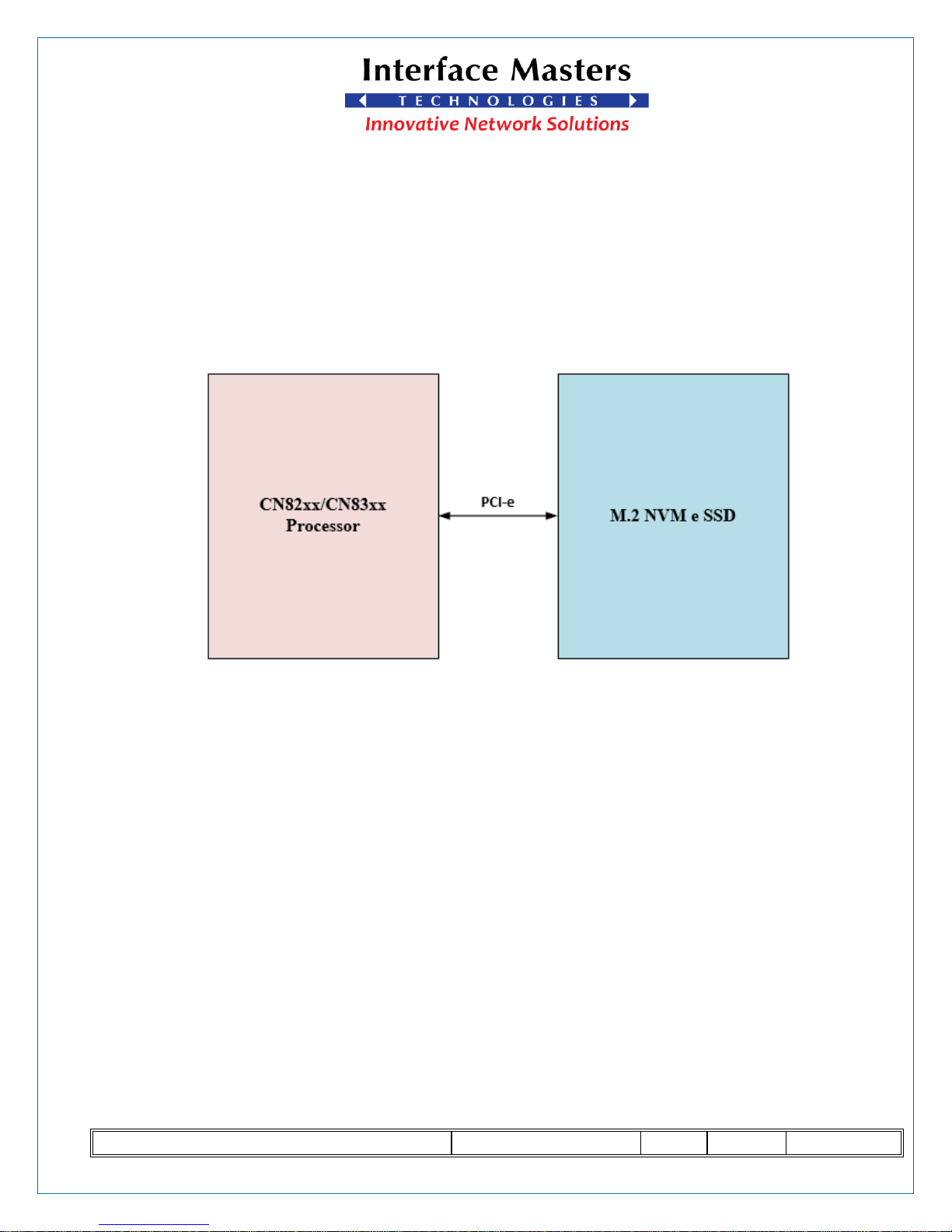

Figure 17, TAHOE 8824 NVMe Interface
Page 25
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 25 OF 34
5 I2C Peripherals
The TAHOE 8824 has a total of four I2C devices, DDR4 SPD EEPROM, TLV
EEPROM, real time clock (RTC), and a temperature sensor controller.

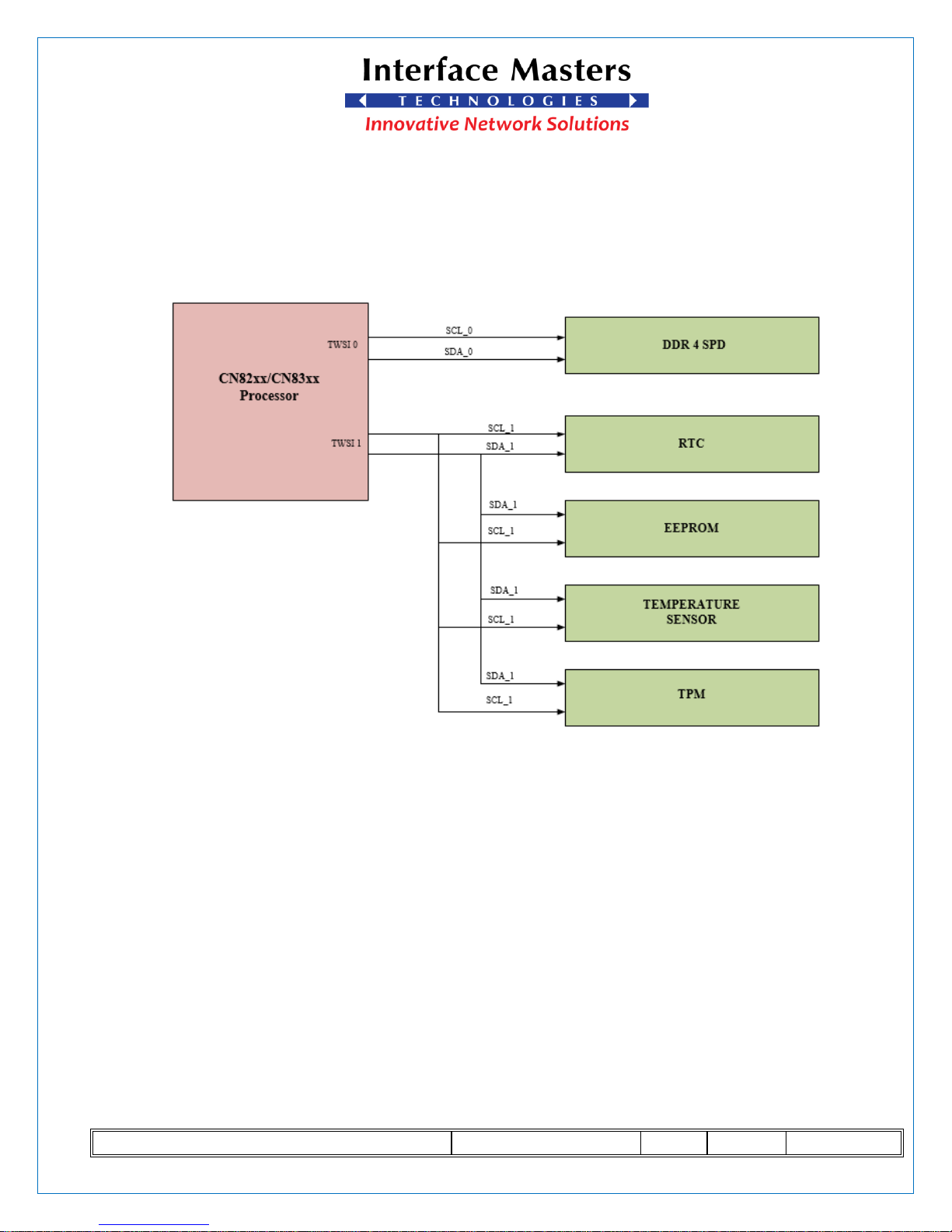

Figure 18, TAHOE 8824 I2C peripherals Diagram
5.1 I2C Bus 0 Peripherals
The CN82xx/CN83xx TWSI0 interface is the I2C master for bus 0.
5.1.1 DDR4 SPD
Each DDR4 module consist an EEPROM that stores SPD data. The I2C IDs for the
DIMM slot 0,1,2,3 are 1010 000x, 1010 001x, 1010 010x, 1010 011x.
Page 26
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 26 OF 34
5.2 I2C Bus 1 Peripherals
The CN78XX TWSI1 interface is the I2C master for bus 1.
5.2.1 ADM1032ARZ - Temperature Sensor
ON Semiconductor temperature sensor utilized to monitor the junction temperature
of the CPU and board temperature. The I2C ID is 1001 100x
5.2.2 Real Time Clock
The MCP7940N is a battery backed I2C real time clock. With having an external
32.768kHz crystal and a battery, this device can keep track of time while the system is off.
The I2C ID is 1101 111x. Microchip RTC device is installed on the system to provide RTC
function.
5.2.3 EEPROM
An EEPROM is utilized to store MAC address for the CN78xx, and other
configuration data. The I2C ID is 1010 100x ST Micro Electronics 512Kb EEPROM is
installed on the system to store customized information.
Page 27
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 27 OF 34
6 IO Module
The TAHOE 8824 has one IO module slot that is connected to eight of the
CN82xx/CN83xx 10Gbps Ethernet SERDES, which allows for either eight 10Gbps ports
(XFI) or two 40Gbps ports (XLAUI). In addition, the TAHOE 8824 has one of the
CN82xx/CN83xx PCI-e host interfaces connected to the IO module slot, which allows
support for future PCI-e peripheral devices.
The IO Module slot is hot-swappable however, a system reset is required when
changing from one media type to another.

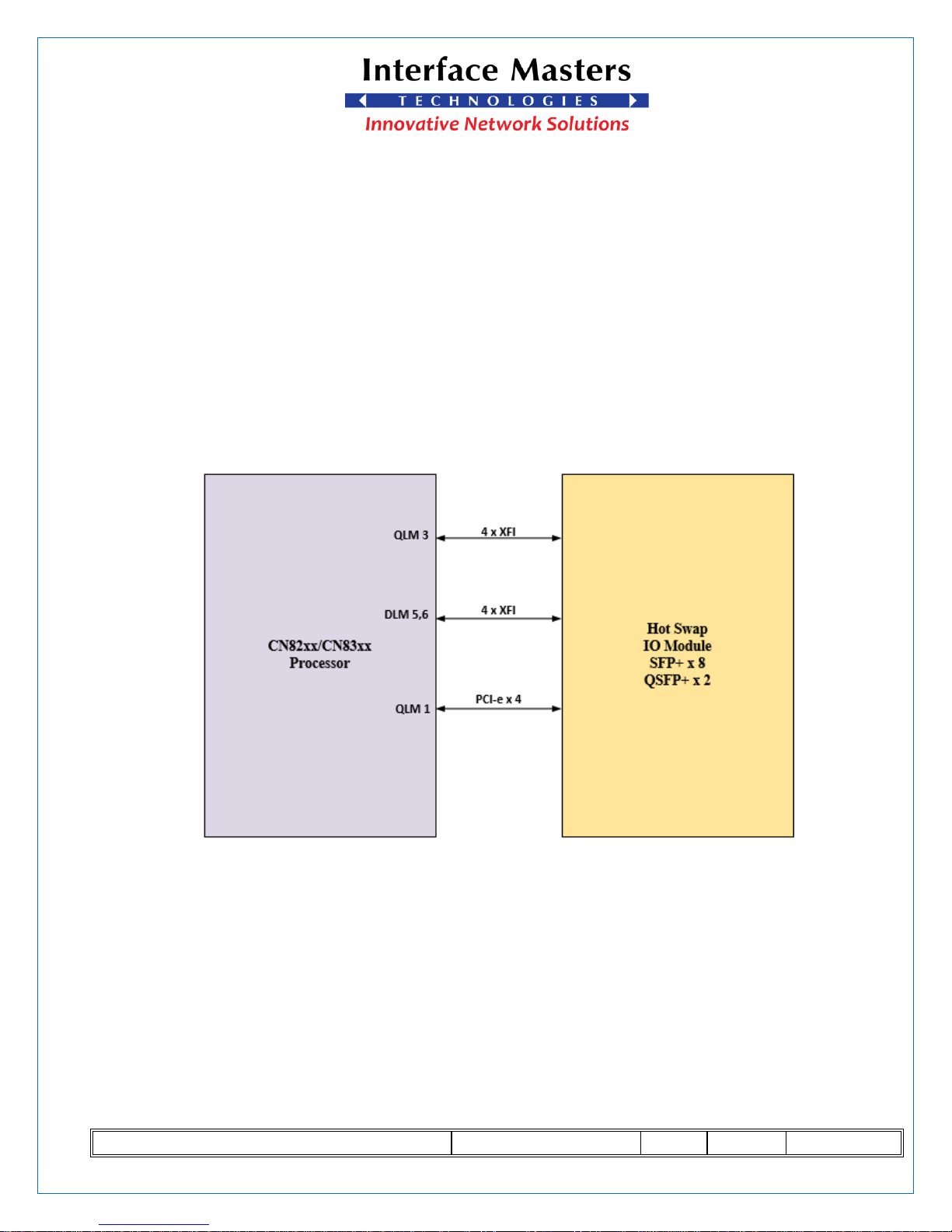

Figure 19, TAHOE 8824 IO Module
Page 28
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 28 OF 34
7 Power Supply
The TAHOE 8824 has two redundant hot-swappable AC power supplies. The two
power supplies are configured as a one plus one redundant setup. the TAHOE 8824 can
still be fully functional in the event when one power supply can’t deliver any power.
Input Voltage
(VAC)
Max Input Current
(A)
100
8
240
4
Table 3, Input Power Supply
Output Voltage
(DC)
Max Output Current
(A)
12
44
Table 4, Output Power Supply
7.1 Power Consumption
TAHOE 8824 consume 245W power depending on CPU speed, DRAM size,
DRAM speed, Number of active I/O ports.
Page 29
Interface Masters Technologies Inc. Confidential & Proprietary
Tahoe 8824 User Guide
Rev: 01
09/15/2017
Page 29 OF 34
8 Cooling Fan
TAHOE 8824 provide Four hot swap fans with speeded control and temperature
control chip with four sensors. The cooling fan cools the system depends on temperature of
the system and it is automatically adjusted when it is required.

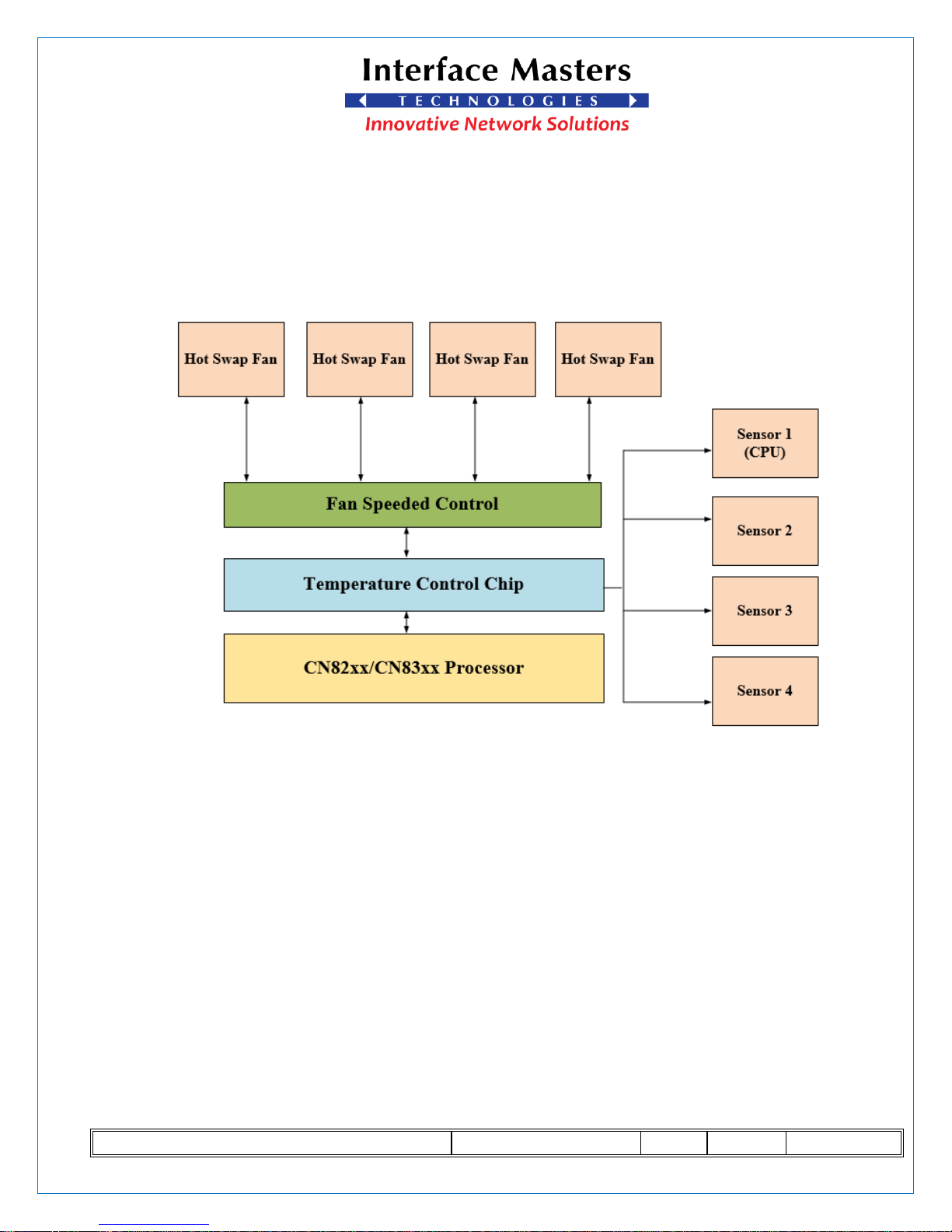

Figure 20, Cooling Fan Functional diagram
Page 30
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 30 OF 34
9 Enclosure Dimension
TAHOE 8824 is a 1U appliance with following dimension.
Inches
MM
Height
17.5
445
Width
1.73
44
Length
17.25
438
Table 5, Dimensions of TAHOE 8824
Page 31
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 31 OF 34
10 Customer Support
10.1 Technical Assistance
Interface Masters Technologies technical support staff is available to assist you
with questions that you may have. Please contact Interface Masters Technologies using one
of the methods shown below.
Phone: (408) 441-9341 ext. 100
Fax: (815) 364-0888
Email: [email protected]
Website: http://www.interfacemasters.com
10.2 Life Support Policy
Interface Masters Technologies products are not authorized for use as critical
components in life support devices or systems without the express written approval of the
CEO of Interface Masters Technologies. Refer to the following for definitions of critical
components and life support devices.
A critical component is any component of a life support device or system whose
failure to perform can be expected to cause the failure of the life support device or system,
affect its safety, or limit its effectiveness.
Life support devices or systems are devices or systems which support or sustain
life, and whose failure to perform, when properly used in accordance with instructions for
use provided in the labeling, can be reasonably expected to result in a significant injury to
the user.
Page 32
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 32 OF 34
10.3 Warranty
Standard hardware warranty period is ONE year from date of purchase. Interface
Masters Technologies will, solely at its option, repair or replace products, which prove to
be defective in materials or workmanship, provided they are returned to an Interface
Masters Technologies authorized repair center. Shipment to Interface Masters
Technologies is at the customer's expense. Interface Master Technologies pays return
shipment by ground Products, which in Interface Masters Technologies opinion, have been
subject to misuse, abuse, neglect or unauthorized alteration or repair are excluded from this
warranty.
Page 33
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 33 OF 34
11 Ordering Part Number
11.1 System ordering part number
TAHOE 8824
CPU
CPU
DRAM
Power
Speed
Size
Supply
1=AC
2=DC
1=32
2=64
1=1200
2=1400
3=1800
4=2000
5=2200
1=CN8240
2=CN8250
3=CN8340
4=CN8350
5=CN8360
6=CN8365
7=CN8370
Table 6, Ordering Part Numbers
Page 34
Interface Masters Technologies Inc. Confidential & Proprietary
TAHOE 8824 User Guide
Rev: 01
09/18/2017
Page 34 OF 34
11.2 Standard Configurations
Following configurations will be stocked with Four weeks of lead time
Ordering Number
Configuration
TAHOE 8824-7321
TAHOE 8824-
CPU CN8370
CPU Speed 1800
DRAM size 32GB
AC power supply
Table 7, Standard Configurations
11.3 Accessories Part Numbers
Part Number
Description
TAC104
Left & Right mounting Ears
TAC103
Sliding Guides
Table 8, Accessories Part Numbers
Loading...
