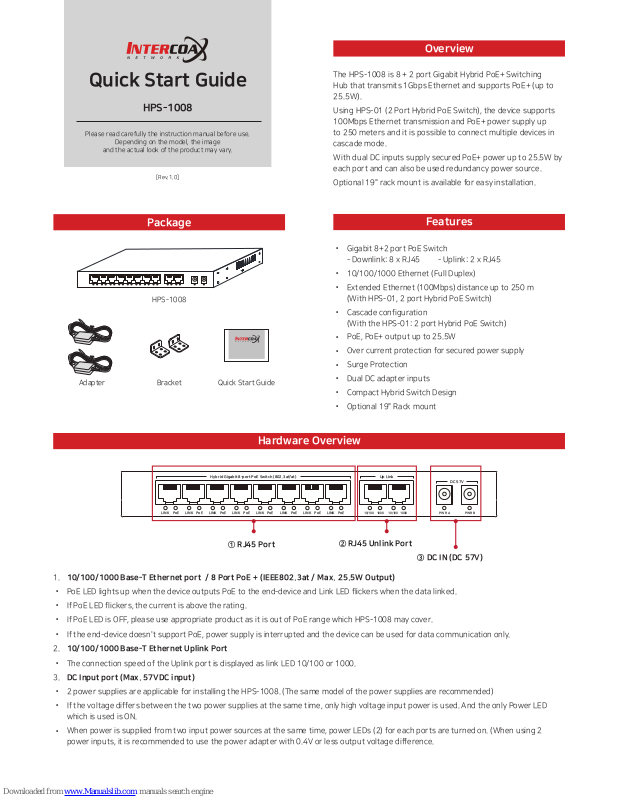

Intercoax HPS-1008 Quick Start Manual

Package

HPS-1008

Adapter Bracket Quick Start Guide

Overview

The HPS-1008 is 8 + 2 port Gigabit Hybrid PoE+ Switching
Hub that transmits 1Gbps Ethernet and supports PoE+ (up to

25.5W).

Using HPS-01 (2 Port Hybrid PoE Switch), the device supports
100Mbps Ethernet transmission and PoE+ power supply up
to 250 meters and it is possible to connect multiple devices in
cascade mode.

With dual DC inputs supply secured PoE+ power up to 25.5W by
each port and can also be used redundancy power source.

Optional 19" rack mount is available for easy installation.

Features



Gigabit 8+2 port PoE Switch

- Downlink: 8 x RJ45 - Uplink: 2 x RJ45

10/100/1000 Ethernet (Full Duplex)



Extended Ethernet (100Mbps) distance up to 250 m
(With HPS-01, 2 port Hybrid PoE Switch)



Cascade configuration
(With the HPS-01: 2 port Hybrid PoE Switch)



PoE, PoE+ output up to 25.5W



Over current protection for secured power supply



Surge Protection

Dual DC adapter inputs



Compact Hybrid Switch Design



Optional 19" Rack mount

Hardware Overview

LINK PoE LINK PoE LINK PoE LINK PoE LINK PoE LINK PoE LINK PoE LINK PoE

10/100 1000 10/100 1000

Up Link

PWR A PWR B

Hybrid Gigabit 8-port PoE Switch (802.3af/at)

DC 57V

① RJ45 포트 ② RJ45 Unlink 포트

③ DC IN (DC 57V)

① RJ45 Port

② RJ45 Unlink Port

③ DC IN (DC 57V)

1.

10/100/1000 Base-T Ethernet port / 8 Port PoE + (IEEE802.3at / Max. 25.5W Output)



PoE LED lights up when the device outputs PoE to the end-device and Link LED flickers when the data linked.



If PoE LED flickers, the current is above the rating.



If PoE LED is OFF, please use appropriate product as it is out of PoE range which HPS-1008 may cover.



If the end-device doesn't support PoE, power supply is interrupted and the device can be used for data communication only.

2.

10/100/1000 Base-T Ethernet Uplink Port

The connection speed of the Uplink port is displayed as link LED 10/100 or 1000.

3.

DC Input port (Max. 57VDC input)



2 power supplies are applicable for installing the HPS-1008. (The same model of the power supplies are recommended)



If the voltage differs between the two power supplies at the same time, only high voltage input power is used. And the only Power LED
which is used is ON.

When power is supplied from two input power sources at the same time, power LEDs (2) for each ports are turned on. (When using 2

power inputs, it is recommended to use the power adapter with 0.4V or less output voltage difference.

HPS-1008

Quick Start Guide

Please read carefully the instruction manual before use.

Depending on the model, the image

and the actual look of the product may vary.

[Rev.1.0]

Caution

Please install the device following the installation guide.



Do not touch the device and cable with wet hands.



Keep away from moisture and shock.

Do not install near any heat sources such as radiators, heat

registers, stoves or other apparatus that produce heat.



Indoor use only.

Do not use for other purposes.

Do not disassemble or modify this device.



Do not put any sticker or paint on it.

If this device is defective or malfunctioning, please unplug

the power adapter immediately and contact dealer or service
center.



Use only rated 56V power adapter specified by the
manufacturer.

Î

Connect DC power to the device first and then to AC outlet.

Specification

Model

HPS-1008:

8 Port Hybrid PoE Switch

Interface

Downlink

8 x RJ-45 – 10/100/1000 Base-T

with Auto-detect MDIX

Uplink

2 x RJ-45 – 10/100/1000 Base-T

with Auto-detect MDIX

Transmission Rate Max. 1Gbps Full Duplex

Transmission

distance

Ethernet / PoE

Up to 100m

Up to 250m with HPS-01

(2 Port Hybrid Switch)

LED

Indication

Ethernet (Downlink) 8 x RJ45 Data Link (Green)

Ethernet (Uplink) 2 x RJ45 Data Link (Green/Orange)

PoE Output 8 x PoE Output (Orange)

PWR Input 2 x Power Input (Blue)

Power Input

2 x Power input [ DC-Jack ]

DC48V-57V

Power

Output

PoE

IEEE802.3af(PoE), IEEE802.3at

(PoE+ / up to 25.5W)

Dimension 225(L) x 105(W) x 29(H) mm

Mechanical

Weight 700g

Operating Temp. 0 ~ 50 °C

Storage Temp. - 30 ~ 80 °C

Environment Relative Humidity 10% ~ 90%

Compliance

Certification FCC, CE, KC

Surge Protection

IEC 61000-4-5 4kV(1.2 / 50us),

2kA(8 / 20us)

Applications

NVR

Network Switch

PoE Camera

HPS-01

DC 57V

(PoE 사용 시 DC48-57V
아답터 적용)

HPS-1008

PTZ IP PoE

Camera

PoE Camera

PTZ IP PoE

Camera

Max. 100m

Max. 100m

Max. 250m

Max. 100m

AC/DC Adapter(12V)

DC 57V
(When using PoE
DC48-57V adapter applied)

Warranty

This device has passed the quality control and product

inspection.



Please install and use according to the installation guide.



The warranty period for this product is 24 months from the
date of purchase.



If this device is defective or malfunctioning, please unplug
the power adapter immediately and contact dealer or service
center.



Any damages or breakage from user’s abuse, accident,
modification or natural disasters will not be covered
manufacturer’s warranty

Please visit below website for more detailed information.

http://www.intercoax.com

TEL : [phone]~4 FAX : [phone]

E-mail : [e-mail]

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION
