Smart SAM2W User Guide V1.2

I

Ver1.2

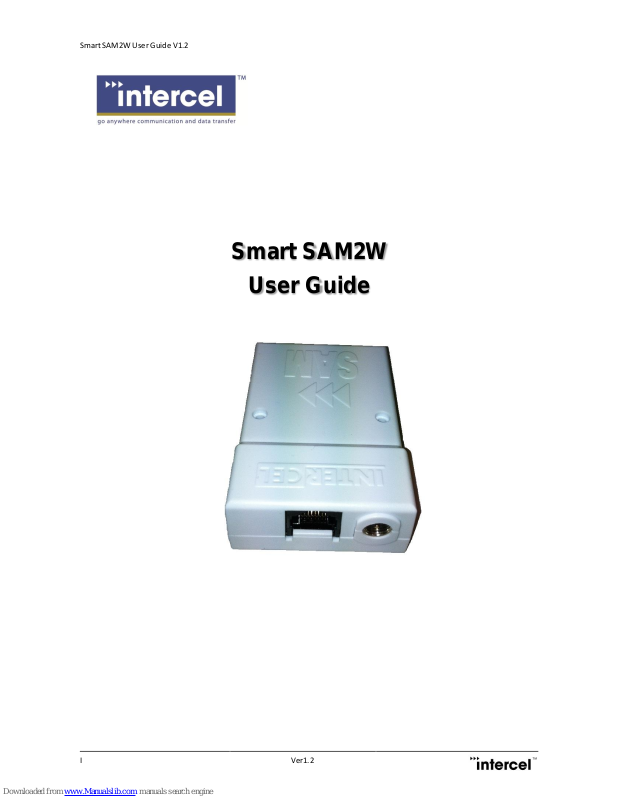

Smart SAM2W

User Guide

Smart SAM2W User Guide V1.2

II

Ver1.2

Revision History

Version

Modified By

Date

Description

1.0 18/04/2012

Initial version

1.1 28/11/2012

Updated to Smart SAM2W

1.2 09/10/2013

New Packaging Information

Smart SAM2W User Guide V1.2

1

Ver1.2

Contents

1 Introduction ..........................................................................................................................................................2

2 Safety Precautions .............................................................................................................................................3

3 Radio Frequency Exposure - SAR ...................................................................................................................4

4 WEEE Directive 2002/96/EC, Disposal Of Old Electronic Equipment .......................................................5

5 Packaging ............................................................................................................................................................6

5.1 Contents ............................................................................................................................................................6

5.2 Packaging Box ..................................................................................................................................................6

5.3 Production Label ..............................................................................................................................................7

6 Functionality ........................................................................................................................................................8

6.1 General ..............................................................................................................................................................8

6.2 RJ45 Socket ......................................................................................................................................................9

6.3 FME-Male 50Ω Antenna Connector ..............................................................................................................9

6.4 SIM Holder ........................................................................................................................................................9

6.5 LED Status ........................................................................................................................................................9

6.6 Data Cable .....................................................................................................................................................10

7 Electrical Characteristics .................................................................................................................................11

7.1 Power Consumption ......................................................................................................................................11

7.2 RF Bands ........................................................................................................................................................11

7.3 Receive Sensitivity .........................................................................................................................................11

7.4 Conducted Transmit Power ..........................................................................................................................11

7.5 Main Antenna Specifications ........................................................................................................................12

7.6 Environmental Characteristics .....................................................................................................................12

8 The AMR TCP/IP STACK ...............................................................................................................................13

8.1 Descriptions ....................................................................................................................................................13

8.2 TCP/UDP/IP AT Commands .......................................................................................................................14

9 Remote Escape Sequence .............................................................................................................................23

10 Specific Requirements .....................................................................................................................................24

Smart SAM2W User Guide V1.2

2

Ver1.2

1 Introduction

The Smart SAM2W is a compact, light-weight, GSM/GPRS based modem. It is a quad-band
850/900/1800/1900MHz modem, providing GSM and GPRS connectivity.

The Smart SAM2W also provides Open-AT platform for different applications.

The Smart SAM2W is designed for both mobile and fixed M2M applications. It has an RJ45 socket for input
voltage and the serial RS232 signals, an FME-male for antenna connection, a SIM holder and an LED
indicator.

The Smart SAM2W is capable of sending/receiving SMS; Circuit switched data and Packet-switched data.

FME-Male antenna connector

SIM holder

LED indicator

RJ45 socket for input power and serial RS232

Mobile station engine SL6087
EU approval CE-0682
GCF-CC Version 3.27.1
A-tick

Smart SAM2W User Guide V1.2

3

Ver1.2

2 Safety Precautions

The following safety precautions must be observed whenever the Smart SAM2W modem is in operation or in
service. Failure to comply with these precautions violates the safety standards of the design, manufacture
and intended use of the product

- Switch off the Smart SAM2W modem :

 In hospitals or places where medical equipment may be in use.
 In an aircraft
 Refuelling points
 Explosive areas

- Restricted use of the Smart SAM2W modem

 Near any chemical plant
 Near any fuel depot
 Areas with mobile phone warning signs

Respect national regulations on the use of cellular devices.

The Smart SAM2W modem receives and transmits radio frequency energy while switched on, therefore
interference can occur if the Smart SAM2W is near TVs, radios, PCs or any inadequately shielded
equipment.

Smart SAM2W User Guide V1.2

4

Ver1.2

3 Radio Frequency Exposure - SAR

The Smart SAM2W modem is a low-power transceiver, similar to a typical handheld GSM/GPRS/UMTS
mobile phone. When it is turned on, it will emit low-level radio frequency energy.

There are different guidelines and standards around the world that govern the permitted levels of radio
frequency exposure for general population. The levels include a safety margin to a human body.

The Specific Absorption Rate (SAR) is a measure of the rate at which radio frequency energy is absorbed by
the body when exposed to radio frequency electromagnetic field. The SAR value is determined at the highest
certified power level in the laboratory conditions, but the actual SAR level of the transceiver while operating
can be well below this value. This is because the transceiver is designed to use minimum power to connect
to the network.

The Smart SAM2W modem is approved to use in applications where the antenna is placed more than

21cm from the body.

For other applications, the integrator is responsible for the local SAR requirements.

Smart SAM2W User Guide V1.2

5

Ver1.2

4 WEEE Directive 2002/96/EC, Disposal Of Old Electronic

Equipment

This symbol on the product indicates that this product shall not be treated as household waste.
It must be placed at an appropriate collection point for the recycling of electrical and electronic equipments.

By ensuring the correct disposal of this equipment, it will help the environment and human health. Recycling
will help to conserve natural resources.

The Smart SAM2W product is RoHS compliant

Smart SAM2W User Guide V1.2

6

Ver1.2

5 Packaging

5.1 Contents

The Smart SAM2W package consists of:

- A Smart SAM2W Modem

- A Data Cable

- A Smart SAM2W Short Specification

- A Smart SAM2W User Guide

5.2 Packaging Box

The carton box dimensions are 230mm x 155mm x 70mm
The data cable is 2m long
The label size is 50mm x 33mm

A power supply is available on request. It is recommended that the Smart SAM2W is powered using a
12Vdc/1A power supply.

The antenna is also available on request. Please make sure the correct antenna is used to get optimised
performance from the Smart SAM2W.

Smart SAM2W User Guide V1.2

7

Ver1.2

5.3 Production Label

The production part number is located at the back of the Smart SAM2W, which includes:

- The product model

- The software version

- The hardware version

- The IMEI number

- The manufacturer

- The part number

Product Model: Smart SAM2W
Software : Version 1.2
Hardware : Version 1.2

IMEI

352679010 049570

Made by: Intercel Pty Ltd

Smart SAM2W User Guide V1.2

8

Ver1.2

6 Functionality

6.1 General

The Smart SAM2W modem consists of an RJ45 socket for serial port and input power, an FME male
antenna connector and a SIM holder. The LED indicator, located next to the SIM holder, indicates the Smart
SAM2W operating status.

FME connector

The Smart SAM2W also contains the power assist circuitry. This PA circuitry is optionally loaded and
activated when the power supply does not have enough power to assist the Smart SAM2W when it is in a
CSD call or in a GPRS session. It also helps to send the last-gasp message back to the server when power
is cut off to the modem.

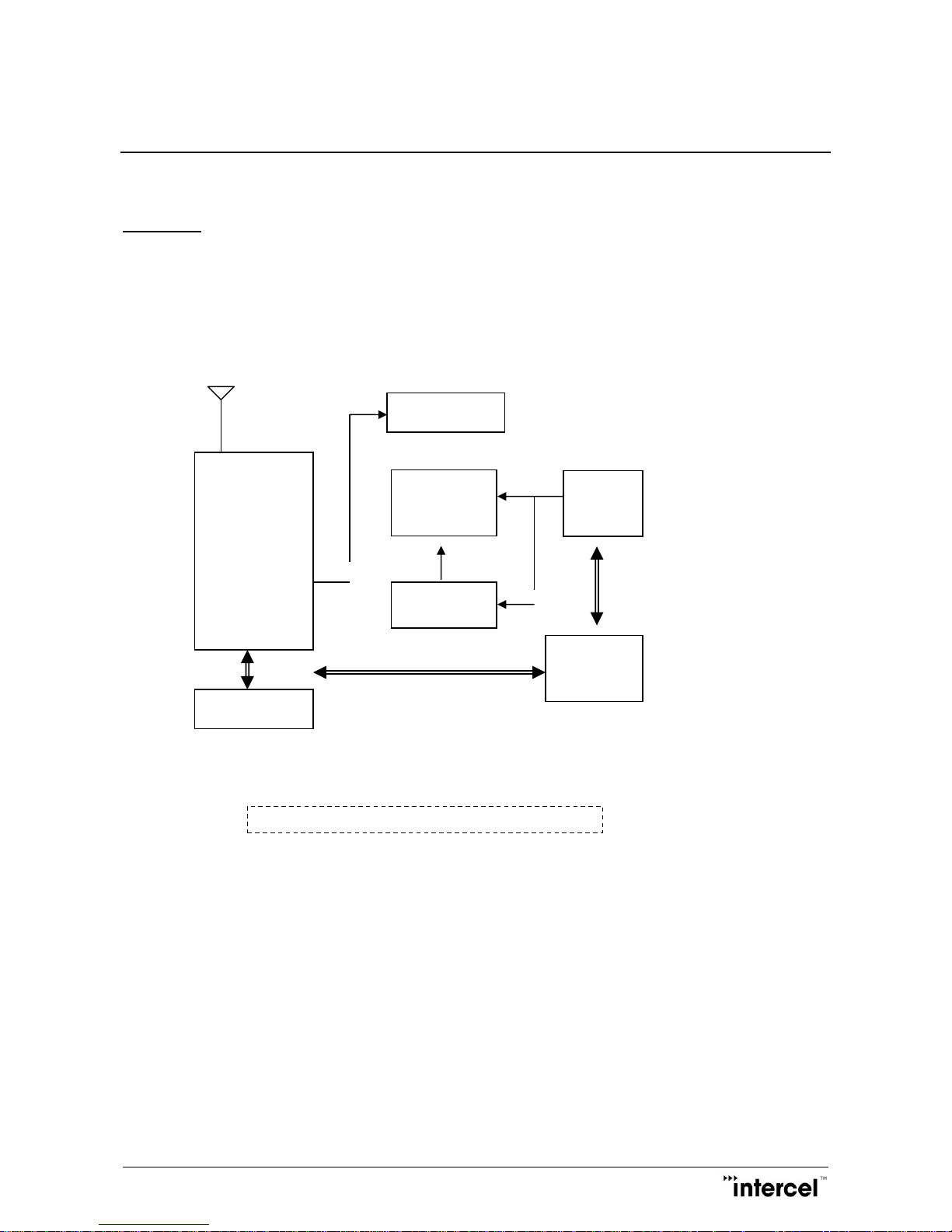

SL6087

ENGINE

(Supporting

Open-AT
platform)

Switching

Power

Supply

RS232

Serial Data

Interface

SIM Interface

RJ45

Socket

LED Indicator

The Smart SAM2W Functional Block Diagram

Power assist

(optional)

Smart SAM2W User Guide V1.2

9

Ver1.2

6.2 RJ45 Socket

Pin Signals Description

1 VIN Input Voltage 5Vdc - 32Vdc
2 DCD Data Carrier Detect
3 DTR Data Terminal Ready
4 GND Common Ground
5 RXD Serial Data out of the Smart SAM2W
6 TXD Serial Data into the Smart SAM2W
7 CTS Clear to Send
8 RTS Ready to Send

6.3 FME-Male 50Ω Antenna Connector

The FME male antenna connector is a 50Ω impedance antenna connector. The antenna used for the Smart

SAM2W must have 50Ω impedance.

6.4 SIM Holder

The SIM holder is designed to accommodate a mini-SIM card. The SIM card can either be 3V or 1V8 SIM. To

insert the SIM card, remove the door by sliding it back toward the end. Make sure the SIM card faces the
right way as indicated on the box. Voltage levels over this SIM interface complies with 3GPP standards

6.5 LED Status

The LED indication has the following status:

- LED on steady: No SIM card or no SIM PIN or Network search in progress.

- 200ms on/ 2sec off: Idle mode, registered to the GSM network.

- 200ms on/600ms off: CSD or PSD data transfer in progress.

- 100ms on/200ms off: The downloaded firmware is either not compatible or corrupted.

- LED is off permanently : No power

Smart SAM2W User Guide V1.2

10

Ver1.2

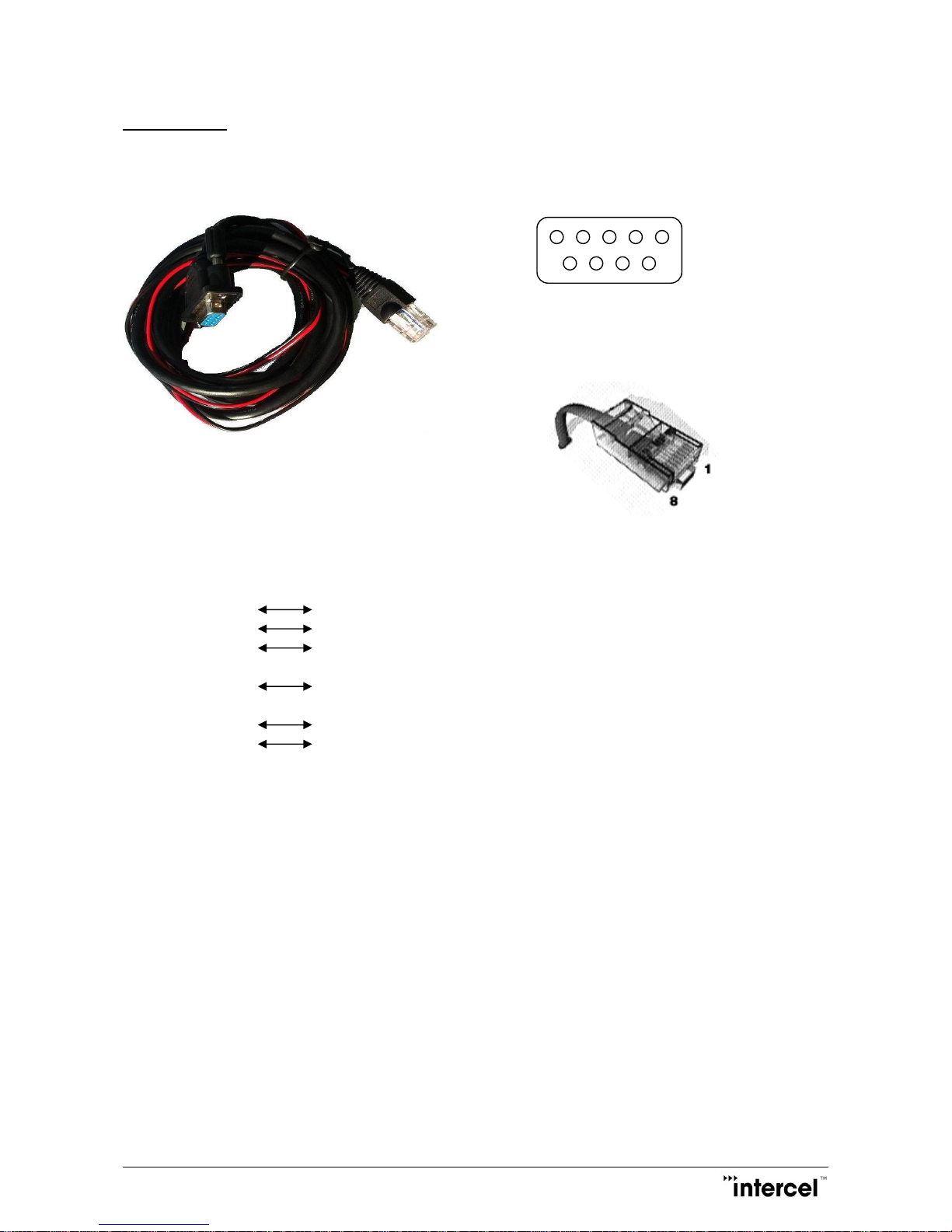

6.6 Data Cable

The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire input power.

5 4 3 2 1

9 8 7 6

DB9 Signals RJ45 Description

1 DCD 2 Data Carrier Detect
2 RXD 5 Serial Data out of the Smart SAM2W
3 TXD 6 Serial Data into the Smart SAM2W
4 DTR 3 Not Used
5 GND 4 Common Ground
6 DSR
7 RTS 8 Ready to Send
8 CTS 7 Clear to Send
9 RI Not used
1 RED wire: Input voltage from 5Vdc to 32Vdc
4 BLACK wire: Power Ground

Smart SAM2W User Guide V1.2

11

Ver1.2

7 Electrical Characteristics

7.1 Power Consumption

Network search 65mA @ 12V
Idle mode 40mA @ 12Vdc
Connected mode 90mA @ 12Vdc
GPRS PSD transfer 245mA @ 12Vdc
Peak current during the 577µs transmission pulse 500mA @ 12V

7.2 RF Bands

GSM850 Tx = 824MHz – 849MHz Rx = 869MHz – 894MHz
EGSM900 Tx = 880MHz - 915MHz, Rx = 925MHz - 960MHz
DCS1800 Tx = 1710MHz - 1785MHz, Rx = 1805MHz - 1880MHz
PCS1900 Tx = 1850MHz - 1910MHz, Rx = 1930MHz - 1990MHz

7.3 Receive Sensitivity

Band Typical Rx Sensitivity
(dBm)

GSM850 -109dBm
EGSM900 -109dBm
DCS1800 -108dBm
PCS1900 -108dBm

7.4 Conducted Transmit Power

Parameter Min Max

GSM850 & EGSM900 +5dBm +33dBm

DCS1800 & PSC1900 +0dBm +30dBm

Smart SAM2W User Guide V1.2

12

Ver1.2

7.5 Main Antenna Specifications

Max cable loss 0.5dBm
Impedance 50Ω
VSWR 1.5 : 1

The maximum antenna gain recommended for consideration against RF exposure and ERP/EIRP limits, is:

- In Cellular band : 5dBi

- In PCS band : 4dBi

7.6 Environmental Characteristics

Operating temperature -30°C to +70°C
Storage temperature -40°C to +85°C
Humidity 93% relative humidity (non-condensing)

Smart SAM2W User Guide V1.2

13

Ver1.2

8 The AMR TCP/IP STACK

8.1 Descriptions

The AMR TCP/IP stack allows the Smart SAM2W modem to make/receive GSM data call and at the same
time enables the modem to act as a GPRS TCP server/client and UDP server/client. When powered up this
stack will automatically activate a GPSR connection then create 3 sockets; one TCP port in server mode for
data transfer, TCP port 11111 for remote AT Command and one UDP port for data transfer. The modem can
also create a TCP client to a remote TCP server if it is programmed to do so:

Server TCP Data: Socket connection allows transparent data to pass through from host computer to the

modem serial port and vice versa. This operation is similar to the GSM data communication.
Idle connection is disconnected after 5 minutes.

TCP Command: Socket (port 11111) connection allows a user from the host computer to send AT command

to the modem and receive its response. Idle connection is disconnected after 5 minutes.

UDP Data: Socket connection allows transparent data to pass through from host computer to the

modem serial port and vice versa. This operation is similar to the GSM data communication.
In server mode modem switches serial port from data mode to AT Command mode if there
is no data from remote for 2 minutes.

Client TCP Data: Socket connection allows transparent data to pass through from host computer to the

modem serial port and vice versa. This operation is similar to the GSM data communication.
Connection is permanent.

The software stack also allows remote sending of AT Commands over SMS and GSM data call. Firmware
download over the air can be done over GSM data call using 1K XModem protocol or over GPRS using File
Transfer Protocol.

GPRS connectivity is maintained by meaning of sending Ping. The modem is also set to reset daily at 11 pm
(time feature needs support from GSM/GPRS network provider).

The modem keeps a 250 event log in a cyclical buffer which is stored in flash memory. The events log can
be retrieved by means of an AT Command either locally or remotely

Smart SAM2W User Guide V1.2

14

Ver1.2

8.2 TCP/UDP/IP AT Commands

The TCP/UDP/IP stack provides some AT commands for setting up communication parameters, software
upgrade, checking status and more.

AT$SETGPRS

Use to set up the GPRS parameters required for GPRS connection. This command can be sent from serial
port, over SMS, GSM data call and TCP GPRS.

AT$SETGPRS=?
$SETGPRS: APN(100),Username(50),Password(50)
OK

AT$SETGPRS?
$SETGPRS: <ApnServ>,<ApnUn>,<ApnPw>
OK

AT$SETGPRS=<ApnServ>,<ApnUn>,<ApnPw>
OK

<ApnServ> : Access Point Name, maximum length allow = 100

<ApnUn> : Username, maximum length allow = 50
<ApnPw> : Password, maximum length allow = 50

AT$SETGPRS=”mach2”,”intercel”,”mach”
OK

AT$SETGPRS?
$SETGPRS: =”mach2”,”intercel”,”mach”
OK

Smart SAM2W User Guide V1.2

15

Ver1.2

AT$SETTCP

Use to setup parameters for TCP data socket. This command is for serial port entry only.

AT$SETTCP=?
$SETTCP: Port(1-65535), TimeOutTrigger(0-65535),Server(120)
OK

AT$SETTCP?
$SETFTP: <TCPPort>,<TimeOutTrigger>,<TCPServ>
OK

AT$SETTCP=<TCPPort>,<TimeOutTrigger>,<TCPServ>

<TCPPort> : From 1 to 65535, is port number for both local TCP server and remote TCP

server, default is10000.

<TimeOutTrigger>: This defines a time interval of no data activity in the serial data stream that is
used as the trigger to packetize and transmit the collected data. The time is entered in milliseconds
and between 0 and 65535 but only affective in multiples of 20, default is 100ms.

<TCPServ> : IP address of the remote server, default is 255.255.255.255.

AT$SETTCP=10000,100,”255.255.255.255”
OK

Smart SAM2W User Guide V1.2

16

Ver1.2

AT$SETUDP

Use to setup parameters for UDP data socket. This command is for serial port entry only.

AT$SETUDP=?
$SETUDP: Port(1-65535),TimeOutTrigger(0-65535),Server(120)
OK

AT$SETUDP?
$SETUDP: <UDPPort>,<TimeOutTrigger>,<UDPServ>
OK
AT$SETUDP=<UDPPort>,<TimeOutTrigger>,<UDPServ>

<UDPPort> : From 1 to 65535, is port number for both local UDP server and remote UDP server,

default is 20000.

<TimeOutTrigger>: This defines a time interval of no data activity in the serial data stream that is
used as the trigger to packetize and transmit the collected data. The time is entered in milliseconds
and between 0 and 65535 but only affective in multiples of 20, default is 100ms.

<UDPServ> : IP address of the remote server, default is 255.255.255.255.

AT$SETUDP=20000,100,”255.255.255.255”
OK

AT$SETPING

Use to set up Ping parameters. The software usea Ping to maintain GPRS connection. This command is for
serial port entry only.

AT$SETPING=?
$SETPING: PingIP(120),Interval(5-1440)
OK

AT$SETPING?
$SETPING: <PINGRemote>,<PINGPeriod>
OK

AT$SETPING=<PINGRemote>,<PINGPeriod>

<PINGRemote> : PING IP address, in xxx.xxx.xxx.xxx format.

<PINGPeriod> : PING period in minute, from 5 –1440, default is 1441 (more than 24 hour so no
PING, the modem will be reset every 24 hour instead).

AT$SETPING= “192.168.80.40”,60
OK

AT$TCPMODE

Set modem TCP mode. This command is for serial port entry only.

Smart SAM2W User Guide V1.2

17

Ver1.2

AT$TCPMODE=0

Modem does not make TCP connection to remote TCP server after connected to GPRS.

AT$TCPMODE=1

Modem makes TCP connection to remote TCP server after connected to GPRS.

Default is 0.

AT$TCPMODE?

$TCPMODE: 0

OK

AT$GSMMODE

Set modem operating mode. This command is for serial port entry only.

AT$GSMMODE=0

Modem available for both GSM and GPRS. It makes and maintains GPRS connectivity after power on.

AT$GSMMODE=1

Modem works in GSM mode only. This mode prevents modem from resetting if SIM is not setting up for
GPRS connectivity.

Default is 0.

AT$GSMMODE?

$GSMMODE: 0

OK

Smart SAM2W User Guide V1.2

18

Ver1.2

AT$SMSNUMBER

Set phone number to receive alarm SMS when modem looses power (for Super CAP hardware only), this
command is for serial port entry only.

AT$SMSNUMBER=”0418505361”

AT$SMSNUMBER?

$SMSNUMBER: 0418505361

OK

AT$SERIALMODE

Set modem serial mode. This command is for serial port entry only.

AT$SERIALMODE=0

Modem stays in AT Command mode when there is no TCP active connection, modem can response to UDP
data from remote but is not able to initiate an UDP data session to remote server.

AT$SERIALMODE=1

Modem go into online data mode after connected to GPRS, modem can initiate an UDP data session to
remote server.
Use sequence +++ to escape to AT Command mode and ATO to go back to data mode.

Default is 0.

AT$SERIALMODE?

$SERIALMODE: 0

OK

Smart SAM2W User Guide V1.2

19

Ver1.2

AT$PARAMETERS

Remote request and setting of parameters over SMS, TCP GPRS and GSM data call.

AT$PARAMETERS=<tcpport>,<tcptimeouttrigger>,<tcpserver>,<tcpmode>,<udpport>,
<udptimeouttrigger>, <udpserver>,<pingip>,<pinginterval>,<serialmode>,<gsmmode>,
<smsnumber>

AT$PARAMETERS? To request for modem parameters?

AT$PARAMETERS=10000,100,”255.255.255.255”,0,20000,100,”255.255.255.255”,
”192.168.80.40”,60,0,0,”0418505361”

OK

AT$FTPDOWN

Use to send FTP (File Transfer Protocol) parameters to modem and request downloading of new firmware
from FTP server, this command can be sent from serial port, over SMS and TCP GPRS.

AT$FTPDOWN=<server name>,<file name>,<path>,<user name>,<password>

AT$FTPDOWN=”123.209.57.242”,”amr.dwl”,”.”,”username”,”password”

OK

AT$PARAMETERS? To request for modem parameters.

AT$IP

Use to return the allocated IP address of the current GPRS connection, this command can be sent
from serial port, over SMS and GSM data call.

AT$IP

$IP: 123.209.157.9

OK

Smart SAM2W User Guide V1.2

20

Ver1.2

AT$VERSION

This command return the TCP/IP software version, this command can be sent from serial port, over SMS,
TCP GPRS and GSM data call.

AT$VERSION

$VERSION: AMR 1.0 OpenAT6.51 130912 11:40

OK

AT$RESET

Use to remotely reset the modem, normally after sending of new parameters, this command can be sent over
SMS, TCP GPRS and GSM data call.

AT$RESET
OK

AT$UPDATE

Use to remotely update firmware over GSM data call, firmware transfer using 1K XModem protocol.

AT$UPDATE

OK

AT$ONLINE

Use in GSM data call to put modem back into data mode from AT command mode ( modem was put into AT
command using escape sequence <Enter><Enter><Enter>).

AT$ONLINE

OK

Smart SAM2W User Guide V1.2

21

Ver1.2

AT$SHOWALL

Use to show all settings of the modem, this command can only be sent from the serial port.

AT$SHOWALL

$VERSION: AMR 1.0 OpenAT6.51 130912 11:40

$IP: 10.64.24.1

$SETGPRS: "mach2","intercel","mach"

$SETTCP: 10000,100,"255.255.255.255"

$TCPMODE: 0

$SETUDP: 20000,100,"10.64.24.2"

$SETPING: "yahoo.com",60

$SERIALMODE: 0

$GSMMODE: 0

$SMSNUMBER: 0413666039

OK

Smart SAM2W User Guide V1.2

22

Ver1.2

AT$GETLOG

Use to retrieve log message file from modem, there is a maximum of 250 messages, this command can be
sent from serial port, over GSM data call and TCP GPRS.

AT$GETLOG

OK

001 2011.12.02 17:51:52 17935 - Caller ID: 0395612959

002 2011.12.02 17:51:55 07700 - Modem send ATA to answer data call

003 2011.12.02 17:51:55 14043 - Caller ID: 0395612959

004 2011.12.02 17:51:58 03718 - Modem send ATA to answer data call

.....

.....

.....

248 2011.12.05 17:41:43 19028 - Modem CSQ signal = 21

249 2011.12.05 17:41:46 10423 - Modem NITZ - +WIND: 15,4,"11/12/05,06:41:48+44",6,"1"

250 2011.12.05 17:41:46 19394 - Network service available

Smart SAM2W User Guide V1.2

23

Ver1.2

9 Remote Escape Sequence

During GSM data call the modem can be switched into AT command mode remotely by sending the
sequence <Enter><Enter><Enter> ( hex sequence 0x0D 0x0D 0x0D) within one second, a guard or gap time
of one second for the first <Enter> and last <Enter> is required.

Smart SAM2W User Guide V1.2

24

Ver1.2

10 Specific Requirements

-Modem reset when it failed to connected to GPRS, when change setting with AT$SETGPRS it best to leave
the SIM holder open, it give the user 5 minutes to enter new settings before reset.

-It is recommended to remotely reset modem with AT$RESET after sending updated parameters with
AT$PARAMETERS.

-Application that initiate UDP data session from the modem serial port does require setting
AT$SERIALMODE=1 so that the serial port is always in data mode.

- With setting AT$SERIALMODE=1 the modem go into online data mode right after connected to GPRS, to
go into AT Command mode user need to send escape sequence +++ .

-If modem is only need to work in GSM and SIM is not setup for GPRS then AT$GSMMODE should be set to
1 to stop modem from resetting.

Smart SAM2W User Guide V1.2

25

Ver1.2

Notes

Smart SAM2W User Guide V1.2

26

Ver1.2

Contact Information

Australia (Headquarters)

33 Glenvale Crescent
Mulgrave 3170
Victoria, Australia
Ph: [phone]
Fx: [phone]
Email: [email protected]
Internet: www.Intercel.com.au

New Zealand

For New Zealand Customers
Toll Free No: 0800 742 600

United Kingdom

5 Elstree Gate
Elstree Way
Borehamwood
Hertfordshire
WD6 1JD
Email: [email protected]

Hong Kong

Unit 6, 17th Floor
Vanta Industrial Centre
21-33 Tai Lin Pai Road
Kwai Chung, New Territories
HKSAR of the PRC
Ph: [phone]
Fx: [phone]

Shenzhen

Room 1303, 13/F, West Wing

Tian’an High-Tech Plaza Phase II
Tian’an Cyber Park

Futian, Shenzhen
China
Ph: [phone]
Fx: [phone]

The information in this document is believed to be accurate in all respects at the time of publication but is subject to
change without notice. intercelTM assumes no responsibility for errors and omissions, and disclaims responsibility for
any consequences resulting from the use of information included herein. Additionally, intercelTM assumes no
responsibility for the functioning of undescribed features or parameters. intercelTM reserves the right to make changes
without further notice. intercelTM makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does intercelTM assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any and all liability, including without limitation consequential or
incidental damages. intercelTM products are not designed, intended, or authorized for use in applications intended to
support or sustain life, or for any other application in which the failure of the intercelTM product could create a
situation where personal injury or death may occur. Should Buyer purchase or use intercelTM products for any such
unintended or unauthorized application, Buyer shall indemnify and hold intercelTM harmless against all claims and
damages.
