Intercel SAMXT User Manual

Download

Page 1

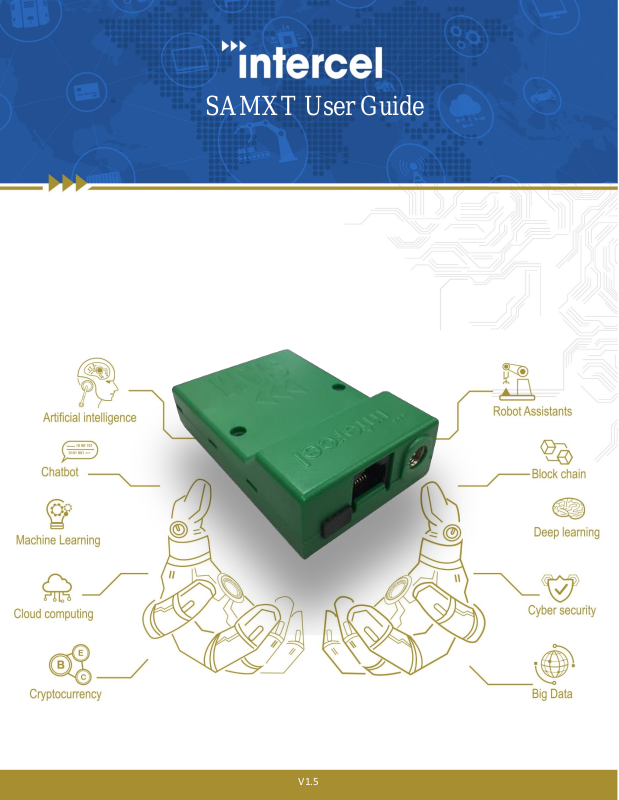

SAMXT User Guide

V1.5

Page 2

Version

Modified By

Date

Description

1.0

29/10/2018

Initial version

1.1

Van Pham

30/11/2018

Minor adjustments and name update

1.2

Sang Vu

19/02/2019

Modem enclosure photo updated

1.3

Moe Chaudhry

02/09/2019

New format

1.4

Moe Chaudhry

12/09/2019

Production label change

1.5

Van Pham

16/09/2019

Updated AT commands & module reference

Revision History

Page 3

SAMXT User Guide V1.5

Contents

1 Introduction ............................................................................................................................................................... 2

Safety Precautions ...................................................................................................................................................... 3

3 Radio Frequency Exposure - SAR ........................................................................................................................ 4

4 WEEE Directive 2002/96/EC, Disposal of old Electronic Equipment............................................................... 5

5 Packing ................................................................................................................................................................ 6

5.1 Content ........................................................................................................................................................... 6

5.2 Packaging Box ................................................................................................................................................. 6

5.3 Production Label .............................................................................................................................................. 7

6 Functionality ............................................................................................................................................................. 8

6.1 General .............................................................................................................................................................. 8

6.2 RJ45 Socket ..................................................................................................................................................... 9

6.3 FME-Male 50Ω Antenna Connectors ............................................................................................................ 9

6.4 SIM Holder ........................................................................................................................................................ 9

6.5 LED Status ...................................................................................................................................................... 10

6.6 Data Cable ...................................................................................................................................................... 12

7 Electrical Characters ............................................................................................................................................. 13

7.1 Power Consumption ...................................................................................................................................... 13

7.2 Receive Sensitivity ......................................................................................................................................... 13

7.3 Conducted Transmit Power .......................................................................................................................... 14

7.4 Antenna Specifications .................................................................................................................................. 14

7.5 Environmental Characteristics ..................................................................................................................... 14

8 The SAMXT TCP/IP Operation ............................................................................................................................ 15

8.1 Communication Sockets ............................................................................................................................... 15

8.2 TCP/IP AT$ Commands .............................................................................................................................. 16

9 Firmware Upgrade ................................................................................................................................................. 27

9.1 The LTE Module Firmware ........................................................................................................................... 27

9.2 The Modem’s Controller Software ............................................................................................................... 27

Note ............................................................................................................................................................................. 28

Page 4

SAMXT User Guide V1.5

1 Introduction

The SAMXT is a compact, light-weight, LTE based modem. It provides CATM1, 3GPP Release 13 compliant with the uplink speed of (up to) 375Kbps and downlink speed of (up to) 300Kbps in Cat M1 Mode.

The SAMXT is designed for both mobile and fixed M2M applications. It has an RJ45 socket for input voltage and the serial RS232 signals, one FME-male for main antenna connection, a SIM holder and an LED indicator.

The SAMXT is controlled by a set of AT commands.

USB port Main Antenna LED Mini-SIM compartment

RJ45 socket for input power and serial RS232

Mobile station engine ME910C1-AU EU approval CE-1909 3GPP Release 13 (CAT M1) RCM tick mark

Page 5

SAMXT User Guide V1.5

2 Safety Precautions

The following safety precautions must be observed whenever the SAMXT modem is in operation or in service. Failure to comply with these precautions violates the safety standards of the design, manufacture and intended use of the product

- Switch off the SAMXT modem:

• In hospitals or places where medical equipment may be in use

• In an aircraft

• Refueling points

• Explosive areas

- Restricted use of the SAMXT modem:

• Near any chemical plant

• Near any fuel depot

• Areas with mobile phone warning signs

Respect national regulations on the use of cellular devices.

The SAMXT modem receives and transmits radio frequency energy while switched on, therefore interference can occur if the SAMXT is near TVs, radios, PCs or any inadequately shielded equipment.

Page 6

SAMXT User Guide V1.5

3 Radio Frequency Exposure - SAR

The SAMXT modem is a low-power transceiver, similar to a typical handheld 3G/LTE mobile phone. When it is turned on, it will emit low-level radio frequency energy.

There are different guidelines and standards around the world that govern the permitted levels of radio frequency exposure for general population. The levels include a safety margin to a human body.

The Specific Absorption rate (SAR) is a measure of the rate at which radio frequency energy is absorbed by the body when exposed to radio frequency electromagnetic field. The SAR value is determined at the highest certified power level in the laboratory conditions, but the actual SAR level of the transceiver while operating can be well below this value. This is because the transceiver is designed to use minimum power to connect to the network.

The SAMXT modem is approved to use in applications where the antenna is placed more

than 21cm from the body.

For other applications, the integrator is responsible for the local SAR requirements.

Page 7

SAMXT User Guide V1.5

4 WEEE Directive 2002/96/EC, Disposal of old Electronic Equipment

This symbol on the product indicates that this product shall not be treated as household waste. It must be placed at an appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring the correct disposal of this equipment, it will help the environment and human health. Recycling will also help to conserve natural resources.

The SAMXT product is RoHS compliant

Page 8

SAMXT User Guide V1.5

5 Packing

5.1 Content

The SAMXT package consists of:

- SAMXT Modem

- Data Cable

The SAMXT User Guide is available at www.intercel.com.au

5.2 Packaging Box

The carton box diameter is 120mm x 95mm x 60mm The data cable is 2m long The label diameter is 50mm x 33mm A suitable power supply is available on request. The SAMXT must be powered using a limited

power source of 12V/1A power supply according to the clause 2.5 of AS/NZS 60950.1. A suitable antenna is also available on request. Please make sure the correct antenna is used

to get optimized performance from the SAMXT.

Page 9

SAMXT User Guide V1.5

5.3 Production Label

The production part number is located at the back of the SAMXT, which includes:

- Product Model

- Software Version

- Hardware Version

- IMEI Number

- Manufacturer

- Part Number

Page 10

SAMXT User Guide V1.5

6 Functionality

6.1 General

The SAMXT modem consists of an RJ45 socket for serial port and input power, a SIM holder and an FME male connector for main antenna. The LED indicator, located next to the SIM holder, indicates the SAMXT operating status.

Main antenna

Telit ME910C1-AU LTE ENGINE

Switching

Power

Supply

RS232

Serial

Data

Interface

SIM Interface

RJ45

Socket

LED

Indicator

ARM

Cortex M3

Serial Data

switches

Page 11

SAMXT User Guide V1.5

6.2 RJ45 Socket

Pin Signals Description

1 VIN Input voltage 5Vdc - 32Vdc 2 DCD Data Carrier Detect 3 DTR/RI Data terminal Ready/Ring Indicator 4 GND Common Ground 5 RXD Serial Data out of the SAMXT 6 TXD Serial Data into the SAMX3 7 CTS Clear to Send 8 RTS Ready to Send

6.3 FME-Male 50Ω Antenna Connectors

The FME male antenna connector is a 50Ω impedance antenna connector. The antenna used

for the SAMXT must have 50Ω impedance.

6.4 SIM Holder

The SIM holder is designed to accommodate a mini-SIM card. The SIM card can either be 3V or 1V8 SIM. To insert the SIM card, remove the door by sliding it back towards the end. Make sure the SIM card faces the right way as indicated on the box. Voltage levels over this SIM interface complies with 3GPP standards.

Page 12

SAMXT User Guide V1.5

6.5 LED Status

The LED indicator has the following status for different SAMMODE:

SAMMODE=0

LED behaviour can be set by AT#SLED=<mode> [,<on_duration>[,<off_duration>]] Default is <mode> = 2 with the following timings:

• Not registered: always on

• registered in idle: blinking 1s on and 2s off

• registered in idle with power saving: blinking time depends on network condition in order to

minimize power consumption

SAMMODE=1

Modem power on until SIM ready: Red LED On Modem initialize on NB1: Red LED 1s On/Off Modem initialize on M1: Red LED 500ms On/Off Remote socket connection on NB1: Orange LED 500ms On/Off Remote socket connection on M1: Green LED 500ms On/Off Modem failed to connect to IP: Red LED 100ms On/Off Modem connected to IP: Green LED flashing on M1, Orange LED flashing on NB1, LED timing

patterns are explained below.

On M1 RSRP Signal Strength

> -90 dBm 4 pulses of Green LED (100ms On 300ms Off) then 3s Off

-90 dBm to -105 dBm 3 pulses of Green LED (100ms On 300ms Off) then 3s Off

-106 dBm to -120 dBm 2 pulses of Green LED (100ms On 300ms Off) then 3s Off < -120 dBm 1 pulse of Green LED (100ms On 300ms Off) then 3s Off

On NB1 RSRP Signal Strength

> -90 dBm 4 pulses of Orange LED (100ms On 300ms Off) then 3s Off

-90 dBm to -105 dBm 3 pulses of Orange LED (100ms On 300ms Off) then 3s Off

Page 13

SAMXT User Guide V1.5

-106 dBm to -120 dBm 2 pulses of Orange LED (100ms On 300ms Off) then 3s Off < -120 dBm 1 pulse of Orange LED (100ms On 300ms Off) then 3s Off

If modem is IP connected in idle state but is searching for network or is of limited service: Red LED flashing, LED timing patterns are explained below.

RSRP Signal Strength

> -90 dBm 4 pulses of Red LED (100ms On 300ms Off) then 3s Off

-90 dBm to -105 dBm 3 pulses of Red LED (100ms On 300ms Off) then 3s Off

-106 dBm to -120 dBm 2 pulses of Red LED (100ms On 300ms Off) then 3s Off < -120 dBm 1 pulse of Red LED (100ms On 300ms Off) then 3s Off

FOTA (M1/NB1 module Firmware Over The Air upgrade) or DOTA (Modem software Download Over the Air upgrade):

Process run on NB1: Orange LED 100ms On/Off

Process run on M1: Green LED 100ms On/Off

Page 14

SAMXT User Guide V1.5

6.6 Data Cable

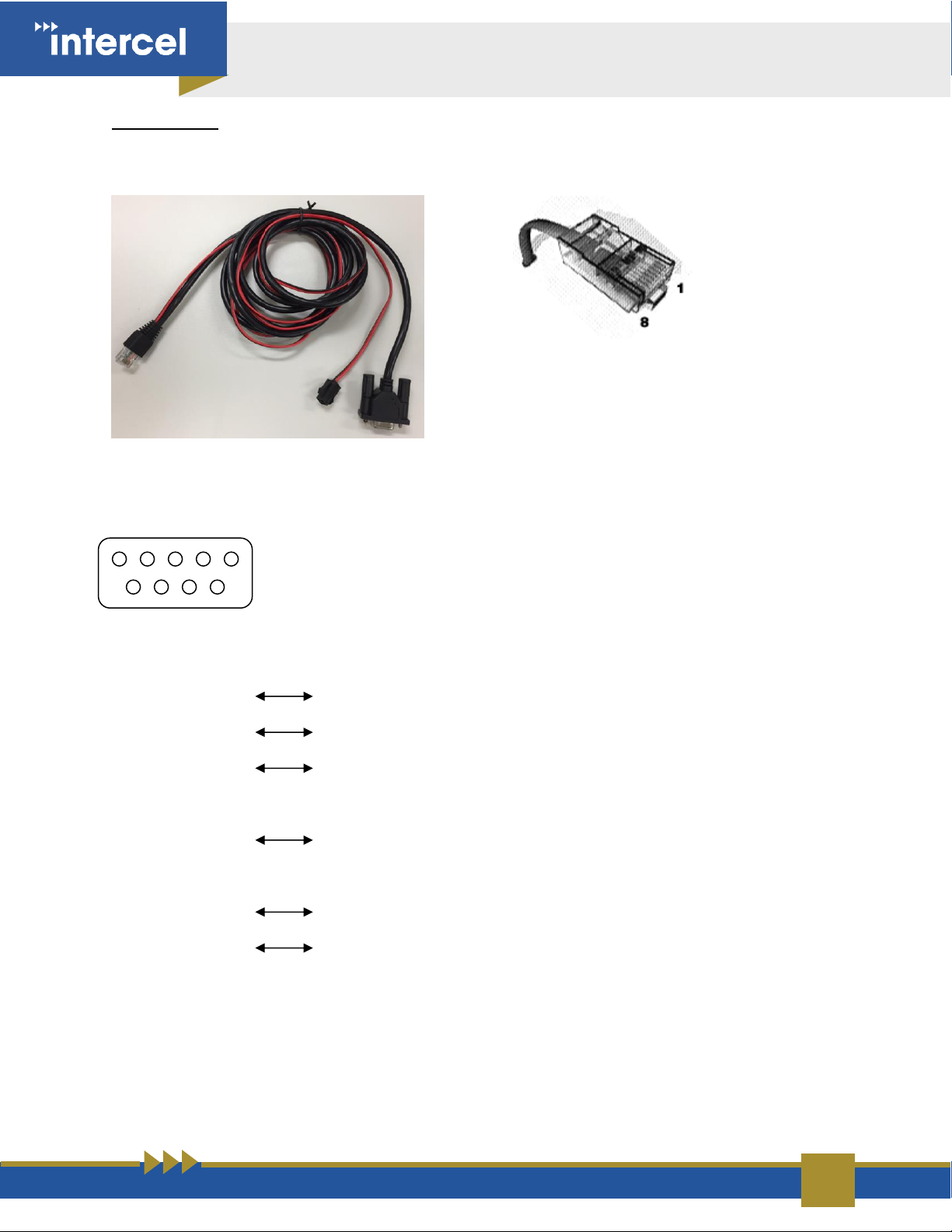

The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 4 pin micro-fit termination.

5 4 3 2 1

9 8 7 6

DB9 Signals RJ45 Description

1 DCD 2 Data Carrier Detect 2 RXD 5 Serial Data out of the SAMXT 3 TXD 6 Serial Data into the SAMXT 4 DTR 3 Not used 5 GND 4 Common Ground 6 DSR 7 RTS 8 Ready to Send 8 CTS 7 Clear to Send 9 RI Not used 1 RED wire : Input voltage from 5Vdc to 32Vdc 4 BLACK wire : Power Ground

Page 15

SAMXT User Guide V1.5

7 Electrical Characters

7.1 Power Consumption

Idle mode 30mA @12V Average in-use mode 80mA@12V Full Tx power 90mA@12V Peak current requirement 0.3A@12V

7.2 Receive Sensitivity

Measurement setup:

(LTE) CAT M1 Throughput >95% According to 3GPP 36.521-1 (LTE) CAT NB1 Throughput >95% According to 3GPP 36.521-1

REF Sensitivity (dBm)

3GPP REFSens (dBm)

MODE/BAND

CAT M1 / Band 3

CAT M1 / Band 5

CAT M1 / Band 8

CAT M1 / Band 28

-108 dBm

-108.8 dBm

-108.4 dBm

-108 dBm

-99.3 dBm

-100.8 dBm

-99.8 dBm

-100.8 dBm

CAT NB1 / Band 3

CAT NB1 / Band 5

CAT NB1 / Band 8

CAT NB1 / Band 28

-115.6 dBm

-114.6 dBm

-113.8 dBm

-115.2 dBm

-107.5 dBm

Page 16

SAMXT User Guide V1.5

7.3 Conducted Transmit Power

7.4 Antenna Specifications

Max cable loss 0.5dBm Impedance 50Ω VSWR recommended 2:1 VSWR absolute maximum 10:1

7.5 Environmental Characteristics

Operating temperature -30°C to +85°C Storage temperature -40°C to +95°C Humidity 90% relative humidity (non-condensing)

Band

Mode

Class

RF power (dBm)

All Bands

(LTE) CAT-M1

23 (±2 dB)

(LTE) CAT-NB1

23 (±2 dB)

Page 17

SAMXT User Guide V1.5

8 The SAMXT TCP/IP Operation

The SAMXT has an MCU (Microcontroller) to control the LTE module ME910C1-AU. The SAMXT can be operating in three different modes, defined by the parameter SAMMODE:

-SAMMODE=0. The modem is in standard mode. When powered on, the MCU turns on the LTE module, checks its baud rate, turns on the LED and releases control of the LTE module to the connecting device. AT commands can be sent from the serial port here after, the MCU will keep monitoring the LTE module Rx pin for AT$ commands and checks time in the RESETPERIOD parameter to reset itself and the LTE module.

-SAMMODE=1. The modem is in PSD (Packet Switch Data) smart mode. The MCU is in total control of the LTE module. When powered on the software reads all parameters from flash and activates a PSD connection, it then creates a UDP and a TCP socket to listen for data transfer connection, opens a UDP and a TCP socket to listen for remote AT commands connection. If programmed as a TCP client it will try to connect to a remote TCP server, the modem then stays in PSD online idle state waiting for SMS, UDP or TCP connection. The software maintains PSD connectivity by means of PING using POLLPERIOD parameter stored in flash.

8.1 Communication Sockets

TCP Data: The socket connection allows transparent data (excluded IP header) to pass

through from the remote host to the modem serial port and vice versa. In TCP server mode, the socket will be disconnected after 5 minutes of no data transfer.

UDP Data: The socket connection allows transparent data to pass through from the remote

host to the modem serial port and vice versa. A block of data received from a remote UDP server will open a 2 minutes window for data to be transferred from the serial port.

TCP AT Command: The socket connection allows a user from the host computer to send AT

commands to the modem and receive its responses. The socket will be disconnected after 5 minutes of no activity. The socket can also be used for remote firmware update.

UDP AT Command: The socket connection allows a user from the host computer to send AT

commands to the modem and receive its responses. The socket can also be used for remote firmware update.

Page 18

SAMXT User Guide V1.5

8.2 TCP/IP AT$ Commands

Communications parameters are stored in Flash using AT$PARAMETERS. Parameters are defined as: APN=Access Point Name USERNAME=Username that may be required with GPRS login PASSWORD=Password that may be required with GPRS login LTCPPORT=Local TCP listening port RTCPIP=Remote TCP server IP RTCPPORT= Remote TCP server port TCPMODE=0 or 1 (0 to disable the modem TCP client, 1 to enable the modem TCP client) LUDPPORT=Local binding UDP port (modem listens for UDP data on this port) RUDPIP=Remote binding UDP IP (modem only accepts data from this IP) RUDPPORT=Remote binding UDP port (modem sends UDP data to this port) PINGIP=If set, the modem will send PING packet to this IP to check for PSD connectivity. POLLPERIOD=Modem uses this time to send TRACE or PING packet to check for PSD

connectivity. RESETPERIOD=Set time to reset modem periodically. SBREAKTIME=Serial port break time, modem will wait for this break in serial port transmission

before it packetizes the data and sends. MBREAKTIME=Modem or GSM module serial break time, use to adjust the way the modem

rebuilds long IP packets from fragments of CMUX frames. BAUDRATE=Serial port baud rate. DATALEN=Serial port data bits 7 or 8 PARITY= NONE or ODD or EVEN SAMMODE=0 for standard modem, 1 for PSD mode. SERIALLOCK= When modem access is safeguarded by username and password, 0=serial port

access is not lock, 1=serial port access is locked

Page 19

SAMXT User Guide V1.5

LOGINTIMEOUT=Timeout (in seconds) after repeated failed login attempts (set at 5 failed attempts).

SESSIONIDLETIME=Set the time interval (in seconds) the login session could stay idle before it is closed

PPPAUTH=PAP or CHAP for PPP authentication, PAP is the default value. All parameters can be programmed all at once. AT$PARAMETERS=APN=telstra.extranet,USERNAME=intercel,PASSWORD=mach,LTCPPOR

T=10000,RTCPIP=203.45.1.236,RTCPPORT=10000,TCPMODE=,LUDPPORT=20000,RUDPIP =203.45.1.236,RUDPPORT=20000,POLLPERIOD=60,SBREAKTIME=100,MBREAKTIME=5,B AUDRATE=115200,DATALEN=8,PARITY=NONE,SAMMODE=0,SERIALLOCK=0,LOGINTIME OUT=300,SESSIONIDLETIME=120,

PPPAUTH=PAP Saved parameters to flash... OK

Or a few parameters or one at a time. AT$PARAMETERS=APN=telstra.extranet,USERNAME=intercel,PASSWORD=mach Saved parameters to flash... OK AT$PARAMETERS=LTCPPORT=10000,RTCPIP=203.45.1.236,RTCPPORT=10000,TCPMOD

E=,LUDPPORT=20000,RUDPIP=203.45.1.236,RUDPPORT=20000 Saved parameters to flash... OK AT$PARAMETERS=POLLPERIOD=60,SBREAKTIME=100,MBREAKTIME=5,BAUDRATE=115

200,DATALEN=8,PARITY=NONE Saved parameters to flash... OK AT$PARAMETERS=SAMMODE=0 Saved parameters to flash... OK

Page 20

SAMXT User Guide V1.5

AT$PARAMETERS? $PARAMETERS: APN: telstra.extranet USERNAME: intercel PASSWORD: mach LTCPPORT: 10000 RTCPIP: 203.45.1.236 RTCPPORT: 10000 TCPMODE: 0 LUDPPORT: 20000 RUDPIP: 203.45.1.236 RUDPPORT: 20000 BAUDRATE: 115200 DATALEN: 8 PARITY: NONE POLLPERIOD: 60 RESETPERIOD: 1440 SBREAKTIME: 100 MBREAKTIME: 5 SERIALLOCK: 0 LOGINTIMEOUT: 300 SESSIONIDLETIME: 120 PPPAUTH: CHAP SAMMODE: 0 OK

Page 21

SAMXT User Guide V1.5

AT$UDPCONNECT

If the modem is already allocated an IP address, this command will put the modem in UDP data mode, the modem DCD pin goes high, data from serial will be packetized into UDP packets and sent to remote UDP server (UDP settings must be set prior), modem will return to AT Command mode if it receives no UDP data in 30 seconds.

AT$TCPCONNECT

If the modem is already allocated an IP address, this command will make a TCP client connection to the remote TCP server, the modem will return to AT Command mode if it receives no TCP ACK in 30 seconds.

AT$DDNS Use to setup parameters required for Dynamic DNS updating. Parameters are defined as: DDNSENABLE= 0 or 1 (0 disable, 1 enable)

DDNSHOST=Host name DDNSUSERNAME=DNNS account name DDNSPASSWORD=DDNS account password DDNSSERVER=DDNS server DDNSSTRING: Only need to change from default in some circumstances with Intercel support DDNSAUTH: Only need to change from default in some circumstances with Intercel support DDNSAGENT: Only need to change from default in some circumstances with Intercel support PDNSIP=Primary DNS, leave blank if not using your own DNS server, not a requirement for

DDNS. SDNSIP=Secondary DNS, leave blank if not using your own DNS server, not a requirement for

DDNS DNSTTL= DNS Time To Live in minutes before updating of DNS entries, not a requirement for

DDNS. AT$DDNS=PDNSIP=8.8.8.8,SDNSIP=8.8.4.4,DNSTTL=240,DDNSENABLE=0,DDNSHOST=int

ercelau.ddns.net,DDNSUSERNAME=intercelau,DDNSPASSWORD=123456789,DDNSSERVE R=dynupdate.noip.com,DDNSSTRING=GET/nic/update?hostname=%s&myip=%sHTTP/1.0,DD

Page 22

SAMXT User Guide V1.5

NSAUTH=Authorization: Basic%s,DDNSAGENT=User-Agent:SAMXT/1.0

[email protected]

Saved parameters to flash... OK AT$DDNS? $DDNS: DDNSENABLE: 0 DDNSHOST: intercelau.ddns.net DDNSUSERNAME: [email protected] DDNSPASSWORD: 123456789 DDNSSERVER: dynupdate.no-ip.com DDNSSTRING: GET /nic/update?hostname=%s&myip=%s HTTP/1.0 DDNSAUTH: Authorization: Basic %s DDNSAGENT: User-Agent: SAMXT/1.0 [email protected] PDNSIP: 8.8.8.8 SDNSIP: 8.8.4.4 DNSTTL: 240 OK AT$DDNSTEST Use to force a manual updating of IP to the DDNS server, all required parameters must be set

beforehand. AT$DDNSTEST

$DDNSTEST: Starting....

$DDNSTEST: Resolving dynupdate.no-ip.com....

Connecting to DDNS dynupdate.no-ip.com ....

Connected to DDNS dynupdate.no-ip.com HTTP/1.1 200 OK

Page 23

SAMXT User Guide V1.5

Date: Mon, 02 Sep 2019 00:33:32 GMT Server: Apache/2 Content-Location: update.php Vary: negotiate TCN: choice Content-Length: 19 Connection: close Content-Type: text/plain; charset=UTF-8 good 123.209.169.62 DDNS host intercelau.ddns.net updated with 123.209.169.62 OK AT$ACCESS Use to setup parameters required for remote access. Parameters are defined as: IPBLOCK=0 or 1 (0 disable, 1 enable remote IP access from REMOTEIP1-REMOTEIP4) REMOTEIP1= nnn.nnn.nnn.nnn REMOTEIP2= nnn.nnn.nnn.nnn REMOTEIP3= nnn.nnn.nnn.nnn REMOTEIP4= nnn.nnn.nnn.nnn SMSBLOCK=0 or 1 (0 disable, 1 enable remote SMS access from REMOTESMS1-

REMOTESMS4) REMOTESMS1= ccnnnnnnnnn cc for country code REMOTESMS2= ccnnnnnnnnn REMOTESMS3= ccnnnnnnnnn REMOTESMS4= ccnnnnnnnnn AT$ACCESS=IPBLOCK=1,REMOTEIP1=10.64.24.2,REMOTEIP2=,REMOTEIP3=,REMOTEIP

4=,SMSBLOCK=1,REMOTESMS1=0413586218,REMOTESMS2=,REMOTESMS3=,REMOTES MS4=

Page 24

SAMXT User Guide V1.5

Saved parameters to flash... OK AT$ACCESS? $ACCESS: IPBLOCK: 1 REMOTEIP1: 10.64.24.2 REMOTEIP2: REMOTEIP3: REMOTEIP4: SMSBLOCK: 1 REMOTESMS1: 0413586218 REMOTESMS2: REMOTESMS3: REMOTESMS4: OK AT$LGSMS Use to program parameters for last gasp SMS. Parameters are defined as: LGSMSMSG=SMS message text, default is "SAMXT low power detected...” LGSMSDELAY= Time delay to make sure supply power is down for this long before sending

last gasp SMS

LGSMSNO=SMS phone number

AT$LGSMS= LGSMSMSG= SAMXT power supply is low....,60,LGSMSNO=+61418505361

Saved parameters to flash... OK AT$LGSMS? $LGSMS:

Page 25

SAMXT User Guide V1.5

LGSMSMSG: SAMXT power supply is low....

LGSMSDELAY: 60 LGSMSNO: +61418505361 OK

AT$LOGIN

Use to setup login details for remote sending of AT commands, parameters and software updating; password is encrypted so remote login required PC software SAMXT Terminal.

AT$LOGOFF

Use to log off remote access instantly. AT$IP Use to return the allocated IP addresses of the current GPRS connection AT$IP $IP: 120.157.107.60 $DNS Primary: 10.4.182.20 $DNS Secondary: 10.4.81.103 OK AT$VERSION This command returns the TCP/IP software version. AT$VERSION SAMXT V1.631 26/07/19 09:25 OK AT$RESET Use to remotely reset the modem, normally after sending of new parameters AT$RESET SAM Reset... OK

Page 26

SAMXT User Guide V1.5

AT$SMSTOSERIALON

This command allows the connecting device to receive SMS notification for 300s: e.g. “+CMTI:

"SM",1”, the connecting device must send AT+CMGR to read SMS and AT+CMGD to delete it,

during this 300s period, the modem will not be able to decode AT$ commands sending to it over SMS.

AT$FOTA

Use to start FOTA (LTE module Firmware Download Over The Air). AT$FOTA=FTP_Server,FTP_Username,FTP_Password,FTP_Path,FTP_Filename FTP_Server: FTP server in dot format nnn.nnn.nnn.nnn FTP_Username: Maximum length 100 FTP_Password: Maximum length 100 FTP_Path: Maximum length 50 FTP_Filename: Maximum length 50 AT$FOTA=120.157.48.51,vp,test,., outUpdPkg_30.00.003_M0B.000003_to_30.00.003-

B999_M0B.000003_ME910C1_AU.bin

AT$DOTA

Use to start DOTA (Modem software Download Over The Air). AT$DOTA=FTP_Server,FTP_Username,FTP_Password,FTP_Path,FTP_Filename FTP_Server: FTP server in dot format nnn.nnn.nnn.nnn FTP_Username: Maximum length 100 FTP_Password: Maximum length 100

FTP_Path: Maximum length 50 FTP_Filename: Maximum length 50 AT$DOTA=120.157.48.51,vp,test,.,SAMXT V1631 260719 0957.bin

Page 27

SAMXT User Guide V1.5

AT$GETLOG

Use to check read logged events from flash.

Read all logged events:

AT$GETLOG

$GETLOG:

1 2019/04/08 13:08:25+40 257 Software start

2 2019/04/08 13:08:30+40 259 ME910_OFF

3 2019/04/08 13:08:36+40 258 ME910_ON

4 2019/04/08 13:08:42+40 288 NW registered…..

249 2019/04/09 10:52:19+40 320 $version.

250 2019/04/09 11:17:10+40 320 $getlog.

Read last 5 events:

AT$GETLOG=5

$GETLOG:

246 2019/04/09 10:26:15+40 288 NW registered

247 2019/04/09 10:26:16+40 262 /04/09,10:26:16

248 2019/04/09 10:52:19+40 320 $version.

249 2019/04/09 11:17:10+40 320 $getlog.

250 2019/04/09 11:21:13+40 320 $getlog=5.

AT$CLEARLOG

Use to clear logged events from flash.

AT$CLEARLOG

Page 28

SAMXT User Guide V1.5

AT$MODEMLOG

Use to enable and disable events logging,

AT$MODEMLOG=1 enable logging

AT$MODEMLOG=0 disable logging

AT$MODEMLOG?

$MODEMLOG: 1

AT$DEFAULT

Use to restore modem’s parameters to default settings.

AT$DEFAULT

Page 29

SAMXT User Guide V1.5

9 Firmware Upgrade

9.1 The LTE Module Firmware

The module firmware can be upgraded via the modem’s USB port, or can be upgraded overthe-air (FOTA) by instructing it to download from a FTP server.

9.2 The Modem’s Controller Software

The modem’s software can be upgraded over the serial port using the SAM-BA software tool from ATMEL.

The modem software and parameters can be upgraded over the serial port, PSD, or SMS (parameters only) using SAM Terminal Program running on PC.

For mass upgrade of modem’s software, the new software can be loaded onto a FTP server and the modem instructed to download the new software from this FTP server.

Page 30

SAMXT User Guide V1.5

Note

-In SAMMODE=0, after power on the MCU turns on the LTE module, checks its baud rate, turns on LED before releasing control of the LTE module to the connecting device. All this takes between 15 to 20 seconds, so the modem is only ready for AT commands here after.

-In SAMMODE=1, the modem takes 30 to 60 seconds to connect to PSD, the modem only responds to AT commands from serial port once it is connected to PSD or after it has failed. If it failed to connect it will reset after 120 seconds.

-In SAMMODE 1 if the SAMXT modem is powered up without a SIM card it will go into AT command mode after 20 seconds.

Page 31

Intercel is an Australian designer and manufacturer of modems and mobile equipment for use with GSM, 3G

and 4G telecommunication networks. Our products provide remote connectivity for Serial and Ethernet

devices in critical industrial applications. We are located in Melbourne, Australia and our head office is in

Mulgrave.

ABOUT INTERCEL
