1 Introduction
The Smart SAM3T is a compact, light-weight, GSM/GPRS/EDGE/UMTS/HSPA+ based modem. It provides
GSM,GPRS,UMTS and HSPA+ connectivity.
The Smart SAM3T is designed for both mobile and fixed M2M applications. It has an RJ45 socket for input
voltage and the serial RS232 signals, an FME-male for antenna connection, a SIM holder and an LED
indicator.
The Smart SAM3T is capable of sending/receiving SMS, Circuit switched data and Packet-switched data.
Mini-USB port FME male for antenna Mini-SIM compartment
RJ45 socket for input power and serial RS232 LED
Mobile station engine HE910-DG
EU approval CE-1909
3GPP Release 6, 7
A-tick
Page 6
Smart SAM3T User Guide V1.52
4
Ver1.52
2 Safety Precautions
The following safety precautions must be observed whenever the Smart SAM3T modem is in operation or in
service. Failure to comply with these precautions violates the safety standards of the design, manufacture
and intended use of the product
- Switch off the Smart SAM3T modem :
In hospitals or places where medical equipments may be in use.
In an aircraft
Refuelling points
Explosive areas
- Restricted use of the Smart SAM3T modem
Near any chemical plant
Near any Fuel depot
Areas with mobile phone warning signs
Respect national regulations on the use of cellular devices. Road safety always comes first
The Smart SAM3T modem receives and transmit radio frequency energy while switched on, therefore
interference can occur if the Smart SAM3T is near TVs, radios, PCs or any inadequately shielded
equipments.
Page 7
Smart SAM3T User Guide V1.52
5
Ver1.52
3 Radio Frequency Exposure - SAR
The Smart SAM3T modem is a low-power transceiver, similar to a typical handheld GSM/GPRS/UMTS
mobile phone. When it is turned on, it will emit low-level radio frequency energy.
There are different guidelines and standards around the world that govern the permitted levels of radio
frequency exposure for general population. The levels include a safety margin to a human body.
The Specific Absorption rate (SAR) is a measure of the rate at which radio frequency energy is absorbed by
the body when exposed to radio frequency electromagnetic field. The SAR value is determined at the highest
certified power level in the laboratory conditions, but the actual SAR level of the transceiver while operating
can be well below this value. This is because the transceiver is designed to use minimum power to connect
to the network.
The Smart SAM3T modem is approved to use in applications where the antenna is placed more than
21cm from the body.
For other applications, the integrator is responsible for the local SAR requirements.
Page 8
Smart SAM3T User Guide V1.52
6
Ver1.52
4 WEEE Directive 2002/96/EC, Disposal of Old Electronic
Equipment
This symbol on the product indicates that this product shall not be treated as household waste .
It must be placed at an appropriate collection point for the recycling of electrical and electronic equipments.
By ensuring the correct disposal of this equipment, it will help the environment and human’s health. The
recycling will help to conserve the natural resources.
The Smart SAM3T product is RoHS compliant
Page 9
Smart SAM3T User Guide V1.52
7
Ver1.52
5 Packaging
5.1 5.1 Contents
The Smart SAM3T package consists of :
- A Smart SAM3T modem
- A data cable
- A Smart SAM3T short specification
- A Smart SAM3T User Guide
5.2 5.2 Packaging Box
The carton box diameter is 120mm x 95mm x 60mm
The Data cable is 2m long
The Label diameter is 50mm x 33mm
The Power supply is available on request. It is recommended that the Smart SAM3T is powered using a
12Vdc/1A power supply.
The antenna is also available on request. Please make sure the correct antenna is used to get optimised
performance from the Smart SAM3T.
Page 10
Smart SAM3T User Guide V1.52
8
Ver1.52
5.3 5.3 Production Label
The production part number is located at the back of the Smart SAM3T, which includes:
- The product model
- The software Version
- The Hardware Version
- The IMEI number
- The manufacturer
- The part number
Product Model: Smart SAM3T
Software : Version 1.C
Hardware : Revision2
IMEI
357164045098731
Made by: Intercel - N592
Page 11
Smart SAM3T User Guide V1.52
9
Ver1.52
6 Functionality
6.1 General
The Smart SAM3T modem consists of an RJ45 socket for serial port and input power, an FME male antenna
connector and a SIM holder. The LED indicator, located next to the SIM holder, indicates the Smart SAM3T
operating status. It also has a USB port to download firmware.
FME connector
GSM/GPRS
UMTS/HSPA+
ENGINE
Switching
Power
Supply
RS232
Serial Data
Interface
SIM Interface
RJ45
Socket
LED Indicator

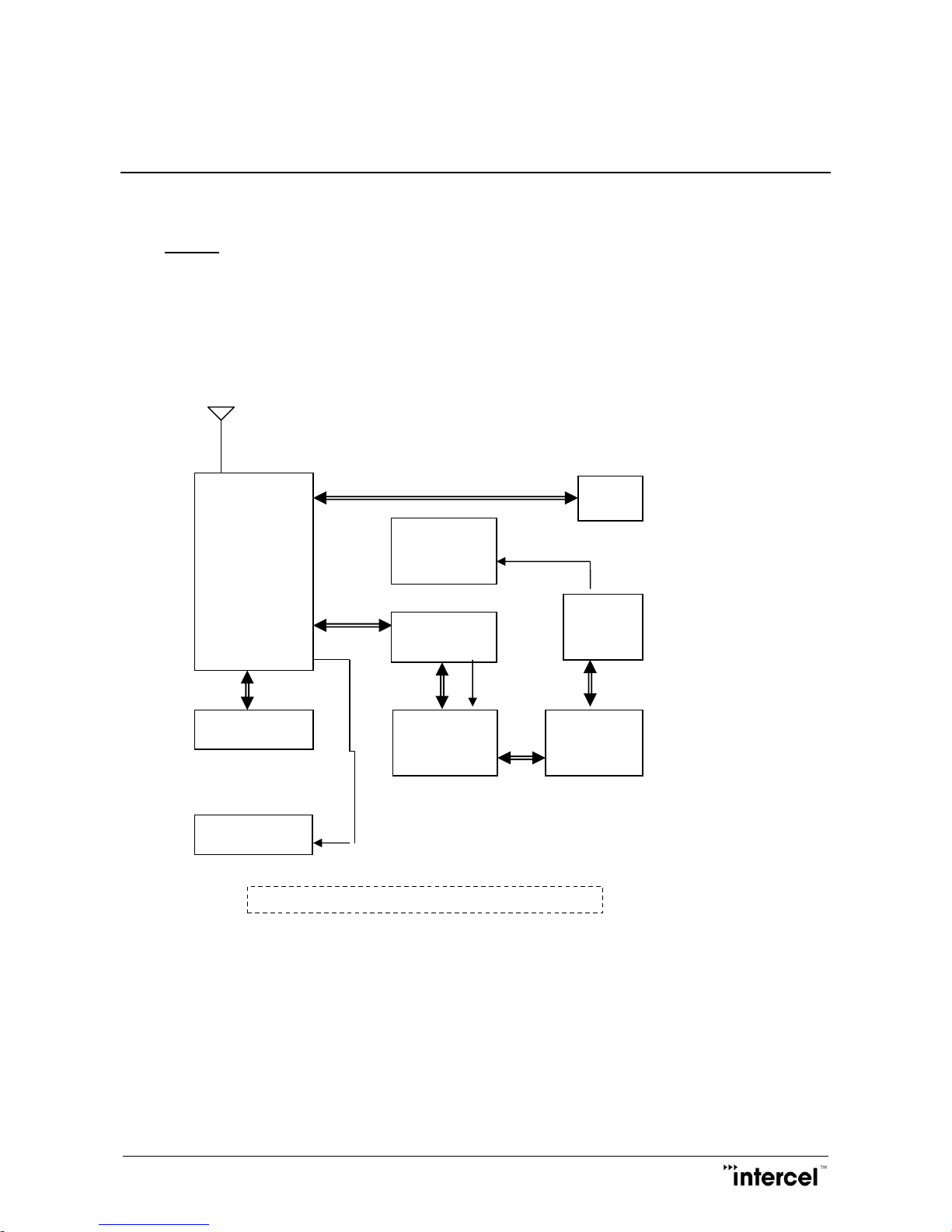

The Smart SAM3T Functional Block Diagram
ARM Cortex
M3
Serial Data
switches
USB
MiniB
Page 12
Smart SAM3T User Guide V1.52
10
Ver1.52

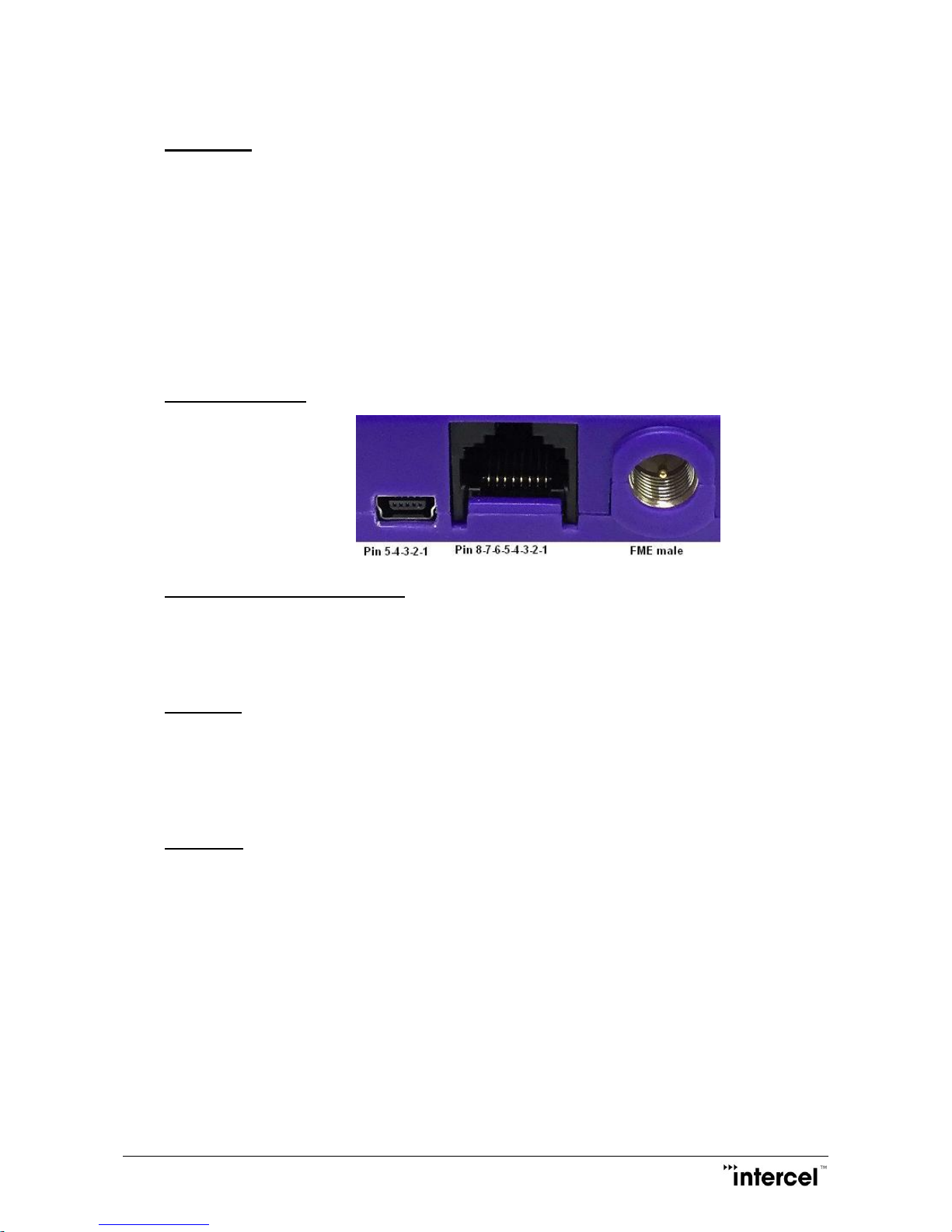

6.2 RJ45 Socket
Pin Signals Description
1 VIN Input voltage 5Vdc - 32Vdc
2 DCD Data Carrier Detect
3 DTR/RI Data terminal Ready/Ring Indicator
4 GND Common Ground
5 RXD Serial Data out of the Smart SAM3T
6 TXD Serial Data into the Smart SAM3
7 CTS Clear to Send
8 RTS Ready to Send
6.3 Mini USB Connector
Pin Signal
1 Vusb
2 D3 D+
4 N/C
5 GND
6.4 FME-Male 50Ω Antenna Connector
The FME male antenna connector is a 50Ω impedance antenna connector. The antenna used for the Smart
SAM3T must have 50Ω impedance.
6.5 SIM Holder
The SIM holder is designed to accommodate a mini-SIM card. The SIM card can either be 3V or 1V8 SIM. To
insert the SIM card, remove the door by sliding it back toward the end. Make sure the SIM card faces the
right way as indicated on the box. Voltage levels over this SIM interface complies with 3GPP standards
6.6 LED Status
The LED indication has the following status for different SAMMODE:
SAMMODE=0
Led is handled by Module Software (factory default) with the following timings:
-Not registered: always on
-Registered in idle: blinking 1s on and 2s off
- Modem in a call: always on
Page 13
Smart SAM3T User Guide V1.52
11
Ver1.52
SAMMODE=1
-Not registered : always on
-Modem initialising: 200ms on 200ms off
-Modem connected to PSD network (IP assigned): 100ms on 3s off
-Modem failed to connected to PSD network, timeout before reset: 100ms on 100ms off
-Modem in data transfer mode (online, serial port no longer accepting AT command): 100ms on 500ms off
SAMMODE=2
-Not registered : always on
-Modem initialising: 200ms on 200ms off
-Modem in CSD idle mode ready to receive incoming CSD call: 100ms on 1.5s off
-Modem in data transfer mode (online, serial port no longer accepting AT command): 100ms on 500ms off
Page 14
Smart SAM3T User Guide V1.52
12
Ver1.52

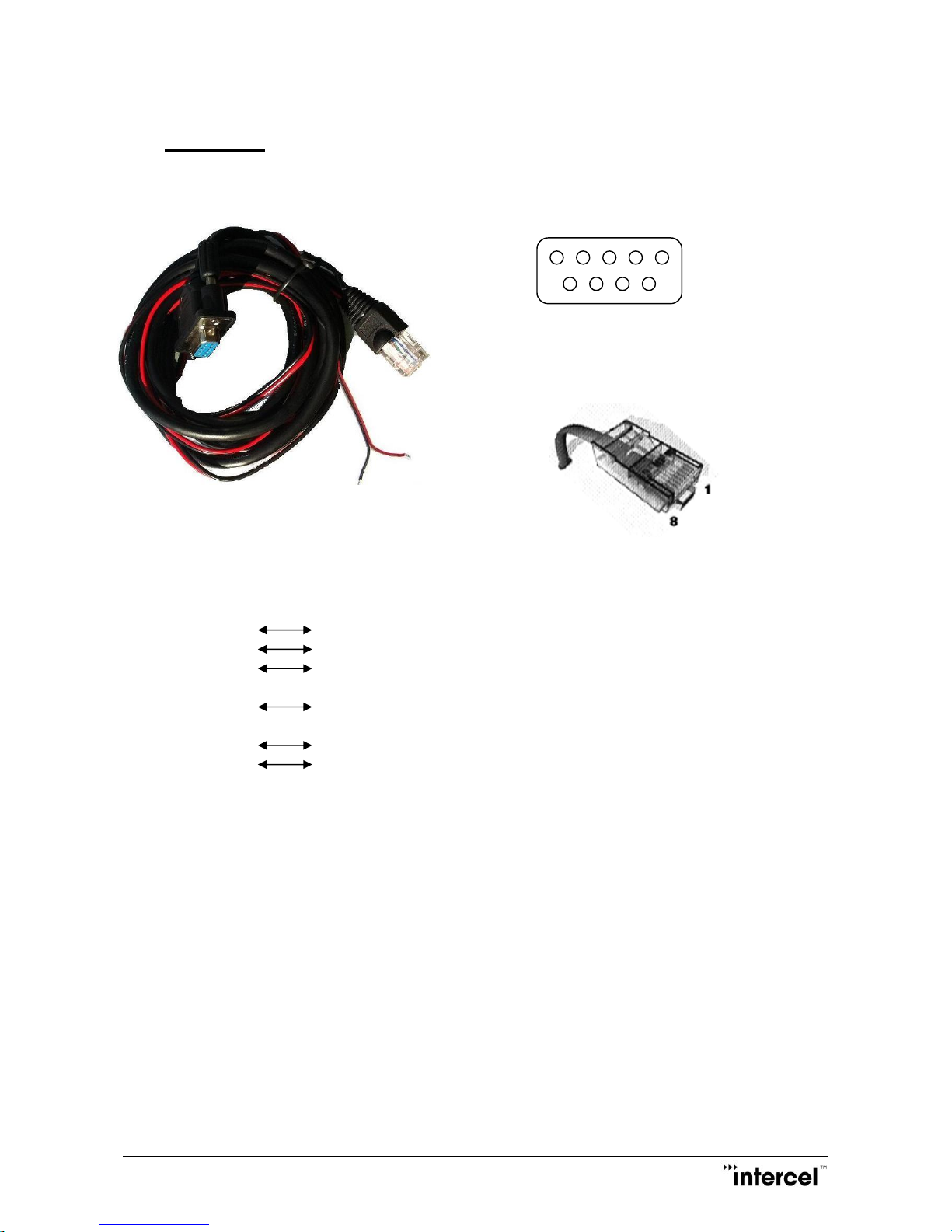

6.7 6.6 Data Cable
The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire input power.
5 4 3 2 1
9 8 7 6
DB9 Signals RJ45 Description
1 DCD 2 Data Carrier Detect
2 RXD 5 Serial Data out of the Smart SAM3T
3 TXD 6 Serial Data into the Smart SAM3T
4 DTR 3 Not used
5 GND 4 Common Ground
6 DSR
7 RTS 8 Ready to Send
8 CTS 7 Clear to Send
9 RI Not used
1 RED wire : Input voltage from 5Vdc to 32Vdc
4 BLACK wire : Power Ground
Page 15
Smart SAM3T User Guide V1.52
13
Ver1.52
7 Electrical Characteristics
7.1 7.1 Power Consumption (TBC)
Idle mode 29mA
GPRS full tx power 595mA
3G full tx power 525mA
Peak current requirement 2A
7.2 7.2 Receive Sensitivity
7.3 7.3 Conducted Transmit Power
Parameter Min Typical Max
GSM900 +31dBm +33dBm +35dBm
DCS1800 +24dBm +26dBm +28dBm
WCDMA 800/850 +21dBm +24dBm +25dBm
WCDMA 900/2100 +21dBm +24dBm +25dBm
Typical (without Diversity)
-109.5 dBm
Note
GSM 900MHZ
BAND
BER class II <2.44%
GSM 850/1900MHZ
-109 dBm
BER class II <2.44%
DCS 1800MHZ
WCDMA 800/850MHZ
WCDMA 900MHZ
WCDMA 2100MHZ
-110 dBm
-111 dBm
-110 dBm
-111 dBm
BER class II <2.44%
BER < 0.1%
BER < 0.1%
BER < 0.1%
Page 16
Smart SAM3T User Guide V1.52
14
Ver1.52
7.4 7.4 Main Antenna Specifications
Max cable loss 0.5dBm
Impedance 50Ω
VSWR recommended 2:1
VSWR absolute maximum 10:1
7.5 7.5 Environmental Characteristics
Operating temperature -30°C to +85°C
Storage temperature -40°C to +95°C
Humidity 90% relative humidity (non-condensing)
Page 17
Smart SAM3T User Guide V1.52
15
Ver1.52
8. The Smart SAM3T TCP/IP Operation
The Smart SAM3T has a MCU (Microcontroller) to control the 3G module HE910, the Smart SAM3T can be
operating in there different modes, defined by parameter SAMMODE:
-SAMMODE=0, modem is in dumb mode, when power on the MCU turn on the 3G module, check its baud
rate, turn on LED and release control of the 3G module to the connecting device, AT commands can be send
from serial port here after, the MCU keep monitor the 3G module Rx pin for AT$ commands and check time
in the POLLPERIOD parameter (to reset itself and the 3G module.
-SAMMODE=1, modem is in GPRS or PSD (Packet Switch Data) smart mode, the MCU is in total control of
the 3G module, on power up the software reads all parameters from flash and activates a GPSR connection,
it then creates an UDP and a TCP socket to listen for data transfer connection, opens an UDP and a TCP
socket to listen for remote AT commands connection, if programmed as TCP client it will tries to connect to
a remote TCP server, the modem then stays in GPRS online idle state waiting for CSD call, SMS, UDP data
or TCP connection, the software maintains GPRS connectivity by the mean of IP TRACE using
POLLPERIOD parameter stored in flash.
-SAMMODE=2, modem is in CSD (Circuit Switch Data) smart mode, this mode is used if SIM card is not
setup for GPRS, MCU is in total control of the 3G module, modem is always in waiting for CSD call or SMS.
The reason for using SAMMODE=1 for PSD and SAMMODE=2 for CSD is because it is not possible to
configure the Smart SAM3T for simultaneous operation of PSD and CSD, when the Smart SAM3T (3G) is
connected to PSD (IP mode), the modem status is busy when one try to make a data call to it, this is the
behaviour the of the 3G network.
7.6 8.1 Communication Sockets
TCP Data: Socket connection allows transparent data to pass through from host computer to the modem
serial port and vice versa, this operation is similar to the CSD data communication, in TCP
server mode the socket will be disconnected after 5 minutes of no data transfer.
UDP Data: Socket connection allows transparent data to pass through from host computer to the modem
serial port and vice versa, this operation is similar to the CSD data communication, a block
of data received from a remote UDP server will open a 2 minutes window for data to be
transfer from the serial port.
TCP AT Command: Socket connection allows a user from the host computer to send AT commands to
the modem and receive its responses, socket will be disconnected after 5 minutes of no
activity, and socket also can be used for remote firmware update.
UDP AT Command: Socket connection allows a user from the host computer to send AT commands to
the modem and receive its responses, and socket also can be used for remote firmware
update.
.
Page 18
Smart SAM3T User Guide V1.52
16
Ver1.52
7.7 8.2 TCP/IP AT$ Commands
Communications parameters are stored in Flash using AT$PARAMETERS.
Parameters are defined as:
APN=Access Point Name
USERNAME=Username that may required with GPRS login
PASSWORD=Password that may required with GPRS login
LTCPPORT=Local TCP listening port
RTCPIP=Remote TCP server IP
RTCPPORT= Remote TCP server port
TCPMODE=0 or 1 (0 disable modem TCP client, 1 enable modem TCP client)
LUDPPORT=Local binding UDP port (modem listen for UDP data on this port)
RUDPIP=Remote binding UDP IP (modem only accept data from this IP)
RUDPPORT=Remote binding UDP port (modem send UDP data to this port)
PINGIP=If set, modem send PING packet to this IP to check for PSD connectivity.
POLLPERIOD=Modem use this time to send TRACE or P ING packet to check for PSD connectivity.
SBREAKTIME=Serial port break time, modem will wait for this break in serial port transmission before
packetize the data and send.
MBREAKTIME=Modem or GSM module serial break time, use to adjust the way the modem rebuild long IP
packet from fragments of CMUX frames.
BAUDRATE=Serial port baud rate.
DATALEN=Serial port data bits 7 or 8
PARITY= NONE or ODD or EVEN
SAMMODE=0 for standard modem, 1 for PSD mode, 2 for CSD mode.
All parameters can be programmed all at once.
AT$PARAMETERS=APN=telstra.extranet,USERNAME=intercel,PASSWORD=mach,LTCPPORT=10000,RT
CPIP=203.45.1.236,RTCPPORT=10000,TCPMODE=,LUDPPORT=20000,RUDPIP=203.45.1.236,RUDPPO
Page 19
Smart SAM3T User Guide V1.52
17
Ver1.52
RT=20000,POLLPERIOD=60,SBREAKTIME=100,MBREAKTIME=5,BAUDRATE=115200,DATALEN=8,PAR
ITY=NONE,SAMMODE=0
Saved parameters to flash...
OK
Or a few parameters or one at a time.
AT$PARAMETERS=APN=telstra.extranet,USERNAME=intercel,PASSWORD=mach
Saved parameters to flash...
OK
AT$PARAMETERS=LTCPPORT=10000,RTCPIP=203.45.1.236,RTCPPORT=10000,TCPMODE=,LUDPPO
RT=20000,RUDPIP=203.45.1.236,RUDPPORT=20000
Saved parameters to flash...
OK
AT$PARAMETERS=POLLPERIOD=60,SBREAKTIME=100,MBREAKTIME=5,BAUDRATE=115200,DATALE
N=8,PARITY=NONE
Saved parameters to flash...
OK
AT$PARAMETERS=SAMMODE=0
Saved parameters to flash...
OK
AT$PARAMETERS?
$PARAMETERS:
APN: telstra.extranet
USERNAME: intercel
PASSWORD: mach
LTCPPORT: 10000
RTCPIP: 203.45.1.236
RTCPPORT: 10000
TCPMODE: 0
LUDPPORT: 20000
RUDPIP: 203.45.1.236
RUDPPORT: 20000
Page 20
Smart SAM3T User Guide V1.52
18
Ver1.52
BAUDRATE: 115200
DATALEN: 8
PARITY: NONE
POLLPERIOD: 60
SBREAKTIME: 100
MBREAKTIME: 5
SAMMODE: 0
OK
AT$UDPCONNECT
If modem is already allocated an IP address, this command will put the modem in UDP data mode,
modem DCD pin go high, data from serial will be packetized into UDP packet and send to remote
UDP server (UDP settings must be set prior), modem will return to AT Command mode if it
receiving no UDP data in 30 seconds.
If modem has no IP address (CSD mode or SAMMODE=2), the modem will connect to PSD and go
into UDP data mode, modem DCD pin go high, data from serial will be packetized into UDP packet
and send to remote UDP server (UDP settings must be set prior), modem will reset and return to
CSD mode if it receiving no UDP data in 30 seconds.
AT$TCPCONNECT
If modem is already allocated an IP address, this command will make a TCP client connection to
the remote TCP server, modem will return to AT Command mode if it receives no TCP ACK in 30
seconds.
If modem has no IP address (CSD mode or SAMMODE=2), the modem will connect to PSD and
make a TCP client connection to the remote TCP server, modem will reset and return to CSD mode
if it receives no TCP ACK in 30 seconds.
AT$DDNS
Use to setup parameters required for Dynamic DNS updating.
Parameters are defined as:
Page 21
Smart SAM3T User Guide V1.52
19
Ver1.52
DDNSENABLE= 0 or 1 (0 disable, 1 enable)
DDNSHOST=Host name
DDNSUSERNAME=DNNS account name
DDNSPASSWORD=DDNS account password
DDNSSERVER=DDNS server
DDNSSTRING: Only need to change from default in some circumstances with Intercel support
DDNSAUTH: Only need to change from default in some circumstances with Intercel support
DDNSAGENT: Only need to change from default in some circumstances with Intercel support
PDNSIP=Primary DNS, leave blank if not using your own DNS server, not a requirement for DDNS.
SDNSIP=Secondary DNS, leave blank if not using your own DNS server, not a requirement for DDNS
DNSTTL= DNS Time To Live in minutes before updating of DNS entries, not a requirement for DDNS.
AT$DDNS=PDNSIP=8.8.8.8,SDNSIP=8.8.4.4,DNSTTL=240,DDNSENABLE=0,DDNSHOST=intercelau.ddns
.net,DDNSUSERNAME=intercelau,DDNSPASSWORD=123456789,DDNSSERVER=dynupdate.noip.com,D
DNSSTRING=GET/nic/update?hostname=%s&myip=%sHTTP/1.0,DDNSAUTH=Authorization:
Basic%s,DDNSAGENT=User-Agent:SAM3T/1.0 [email protected]
Saved parameters to flash...
OK
AT$DDNS?
$DDNS:
DDNSENABLE: 0
DDNSHOST: intercelau.ddns.net
DDNSUSERNAME: [email protected]
DDNSPASSWORD: 123456789
DDNSSERVER: dynupdate.no-ip.com
DDNSSTRING: GET /nic/update?hostname=%s&myip=%s HTTP/1.0
DDNSAUTH: Authorization: Basic %s
DDNSAGENT: User-Agent: SAM3T/1.0 [email protected]
PDNSIP: 8.8.8.8
SDNSIP: 8.8.4.4
DNSTTL: 240
OK
Page 22
Smart SAM3T User Guide V1.52
20
Ver1.52
AT$DDNSTEST
Use to force a manual updating of IP to the DDNS server, all required parameters must be set beforehand.
AT$DDNSTEST
$DDNSTEST: Starting....
$DDNSTEST: Resolving dynupdate.no-ip.com....
Connecting to DDNS dynupdate.no-ip.com ....
Connected to DDNS dynupdate.no-ip.com
HTTP/1.1 200 OK
Date: Tue, 02 Sep 2014 00:33:32 GMT
Server: Apache/2
Content-Location: update.php
Vary: negotiate
TCN: choice
Content-Length: 19
Connection: close
Content-Type: text/plain; charset=UTF-8
good 123.209.169.62
DDNS host intercelau.ddns.net updated with 123.209.169.62
OK
AT$ACCESS
Use to setup parameters required for remote access.
Parameters are defined as:
IPBLOCK=0 or 1 (0 disable, 1 enable remote IP access from REMOTEIP1-REMOTEIP4)
REMOTEIP1= nnn.nnn.nnn.nnn
REMOTEIP2= nnn.nnn.nnn.nnn
REMOTEIP3= nnn.nnn.nnn.nnn
REMOTEIP4= nnn.nnn.nnn.nnn
SMSBLOCK=0 or 1 (0 disable, 1 enable remote SMS access from REMOTESMS1-REMOTESMS4)
REMOTESMS1= ccnnnnnnnnn cc for country code
REMOTESMS2= ccnnnnnnnnn
REMOTESMS3= ccnnnnnnnnn
Page 23
Smart SAM3T User Guide V1.52
21
Ver1.52
REMOTESMS4= ccnnnnnnnnn
DIALBLOCK= 0 or 1 (0 disable, 1 enable remote dialling access from REMOTEDIAL1-REMOTEDIAL4)
REMOTEDIAL1= acnnnnnnnn ac for area code
REMOTEDIAL2= acnnnnnnnn
REMOTEDIAL3= acnnnnnnnn
REMOTEDIAL4= acnnnnnnnn
AT$ACCESS=IPBLOCK=1,REMOTEIP1=10.64.24.2,REMOTEIP2=,REMOTEIP3=,REMOTEIP4=,SMSBLO
CK=1,REMOTESMS1=0413586218,REMOTESMS2=,REMOTESMS3=,REMOTESMS4=,DIALBLOCK=1,R
EMOTEDIAL1=0395612959,REMOTEDIAL2=,REMOTEDIAL3=,REMOTEDIAL4=
Saved parameters to flash...
OK
AT$ACCESS?
$ACCESS:
IPBLOCK: 1
REMOTEIP1: 10.64.24.2
REMOTEIP2:
REMOTEIP3:
REMOTEIP4:
SMSBLOCK: 1
REMOTESMS1: 0413586218
REMOTESMS2:
REMOTESMS3:
REMOTESMS4:
DIALBLOCK: 1
REMOTEDIAL1: 0395612959
REMOTEDIAL2:
REMOTEDIAL3:
REMOTEDIAL4:
OK
AT$LGSMS
Use to program parameters for last gasp SMS.
Parameters are defined as:
Page 24
Smart SAM3T User Guide V1.52
22
Ver1.52
LGSMSMSG=SMS message text, default is "SAM3T low power detected...”
LGSMSNO=SMS phone number
AT$LGSMS= LGSMSMSG= SAM3T power supply is low...., LGSMSNO=+61418505361
Saved parameters to flash...
OK
AT$LGSMS?
$LGSMS:
LGSMSMSG: SAM3T power supply is low....
LGSMSNO: +61418505361
OK
AT$LOGIN
Use to setup login details for remote sending of AT commands, parameters and software updating; password
is encrypted so remote login required PC software Smart SAM3T Terminal.
AT$LOGOFF
Use to log off remote access instantly; modem will lock out remote access that has been idled for 120
seconds.
AT$IP
Use to return the allocated IP address of the current GPRS connection
AT$IP
$IP: 123.209.157.9
OK
AT$VERSION
This command returns the TCP/IP software version.
Page 25
Smart SAM3T User Guide V1.52
23
Ver1.52
AT$VERSION
SAM3T V1.51 06/05/15 10:51
OK
AT$RESET
Use to remotely reset the modem, normally after sending of new parameters
AT$RESET
SAM Reset...
OK
AT$SMSTOSERIALON
This command allows the connecting device to receive SMS notification for 300s: e.g. “+CMTI: "SM",1”,
the connecting device must send AT+CMGR to read SMS and AT+CMGD to delete it, during this
300s period, modem will not able to decode AT$ commands sending to it over SMS.
AT$FOTA
Use to start FOTA (3G module Firmware Download Over The Air).
AT$FOTA=FTP_Server,FTP_Username,FTP_Password,FTP_Path,FTP_Filename
FTP_Server: FTP server in dot format nnn.nnn.nnn.nnn
FTP_Username: Maximum length 100
FTP_Password: Maximum length 100
FTP_Path: Maximum length 50
FTP_Filename: Maximum length 50
Page 26
Smart SAM3T User Guide V1.52
24
Ver1.52
AT$FOTA=120.157.48.51,vanpham,Intercel,/SAM3T/HE910/,Delta.bin.env
OK
AT$DOTA
Use to start DOTA (Modem software Download Over The Air).
AT$DOTA=FTP_Server,FTP_Username,FTP_Password,FTP_Path,FTP_Filename
FTP_Server: FTP server in dot format nnn.nnn.nnn.nnn
FTP_Username: Maximum length 100
FTP_Password: Maximum length 100
FTP_Path: Maximum length 50
FTP_Filename: Maximum length 50
AT$DOTA=120.157.48.51,vanpham,Intercel,/SAM3T/sam3t_v151.bin
OK
AT$GETLOG
Use to check read logged events from flash.
Read all logged events:
AT$GETLOG
$GETLOG:
1 2015/04/08 13:08:25+40 257 Software start
2 2015/04/08 13:08:30+40 259 HE910_OFF
3 2015/04/08 13:08:36+40 258 HE910_ON
4 2015/04/08 13:08:42+40 288 NW registered
…..
249 2015/04/09 10:52:19+40 320 $version.
250 2015/04/09 11:17:10+40 320 $getlog.
OK
Page 27
Smart SAM3T User Guide V1.52
25
Ver1.52
Read last 5 events:
AT$GETLOG=5
$GETLOG:
246 2015/04/09 10:26:15+40 288 NW registered
247 2015/04/09 10:26:16+40 262 /04/09,10:26:16
248 2015/04/09 10:52:19+40 320 $version.
249 2015/04/09 11:17:10+40 320 $getlog.
250 2015/04/09 11:21:13+40 320 $getlog=5.
OK
AT$CLEARLOG
Use to clear logged events from flash.
AT$CLEARLOG
OK
AT$MODEMLOG
Use to enable and disable events logging,
AT$MODEMLOG=1 enable logging
AT$MODEMLOG=0 disable logging
AT$MODEMLOG?
$MODEMLOG: 1
OK
AT$DEFAULT
Use to restore modem’s parameters to default settings.
AT$DEFAULT
OK
Page 28
Smart SAM3T User Guide V1.52
26
Ver1.52
7.8 8.3 CSD Call Escape Sequence
During CSD call to the Smart SAM3T modem, send three consecutive EscEscEsc or hex number
sequence 0x1B 0x1B 0x1B to switch the modem between data mode and remote AT commands mode.
Page 29
Smart SAM3T User Guide V1.52
27
Ver1.52
9. Firmware Upgrade
7.9 9.1 The 3G Module Firmware
The module firmware can be upgraded via the modem’s serial port, or can be upgraded over -the-air (FOTA)
by instructing it to download from a FTP server.
7.10 9.2 The Modem’s Controller Software
The modem’s software can be upgraded over the JTAG port using the SAM-BA software tool
from ATMEL.
The modem software and parameters can be upgraded over the serial port, GPRS, CSD or SMS
(parameters only) using SAM3X Terminal program running on PC.
For mass upgrade of modem’s software, the new software can be loaded onto a FTP server and the modem
is instructed to download the new software from this FTP server.
Page 30
Smart SAM3T User Guide V1.52
28
Ver1.52
Notes
-In SAMMODE=0, after power on the MCU turns on the 3G module, checks its baud rate, turns on LED
before releases control of the 3G module to the connecting device, all this take between 5 to 10 seconds,
so the modem is only ready for AT commands here after.
-In SAMMODE=1, the modem take 30 to 60 seconds to connect to GPRS, modem only response to AT
commands from serial port once it is connected to GPRS or after it has failed , if it failed to connect it
will reset after 120 seconds.
-In SAMMODE=2, the MCU take about 20 seconds to set up the 3G module , the modem only response to
AT commands from serial port after setting up is finished.
-In SAMMODE 1 and 2 if the Smart SAM3T modem is powered up without a SIM card it will go into AT
command mode after 20 seconds.
-The parameter POLLPERIOD which keep the time in minute which when expired will reset the modem if
SAMMODE=0 or SAMMODE=2, if SAMMODE=1 for PSD mode the modem will use this time to send
TRACE IP packet to check for network connectivity.
-In SAMMODE=1 and 2 the modem can be reset remotely by calling the voice number.
Page 31
Smart SAM3T User Guide V1.52
29
Ver1.52
Contact Information
Australia (Headquarters)
33 Glenvale Crescent
Mulgrave 3170
Victoria, Australia
Ph: +61 (0)3 9239 2000
Fx: +61 (0)3 9561 2614
Email: [email protected]
Internet: www.Intercel.com.au
New Zealand
For New Zealand Customers
Toll Free No: 0800 742 600
United Kingdom
5 Elstree Gate
Elstree Way
Borehamwood
Hertfordshire
WD6 1JD
Email: [email protected]
Hong Kong
Unit 6, 17th Floor
Vanta Industrial Centre
21-33 Tai Lin Pai Road
Kwai Chung, New Territories
HKSAR of the PRC
Ph: +852 2362 9018
Fx: +852 2648 8806
Shenzhen
Room 1303, 13/F, West Wing
Tian’an High-Tech Plaza Phase II
Tian’an Cyber Park
Futian, Shenzhen
China
Ph: +86 755 8835 3778
Fx: +86 755 8835 2489
The information in this document is believed to be accurate in all respects at the time of publication but is subject to
change without notice. intercelTM assumes no responsibility for errors and omissions, and disclaims responsibility for
any consequences resulting from the use of information included herein. Additionally, intercelTM assumes no
responsibility for the functioning of undescribed features or parameters. intercelTM reserves the right to make changes
without further notice. intercelTM makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does intercelTM assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any and all liability, including without limitation consequential or
incidental damages. intercelTM products are not designed, intended, or authorized for use in applications intended to
support or sustain life, or for any other application in which the failure of the intercelTM product could create a
situation where personal injury or death may occur. Should Buyer purchase or use intercelTM products for any such
unintended or unauthorized application, Buyer shall indemnify and hold intercelTM harmless against all claims and
damages.
Loading...
