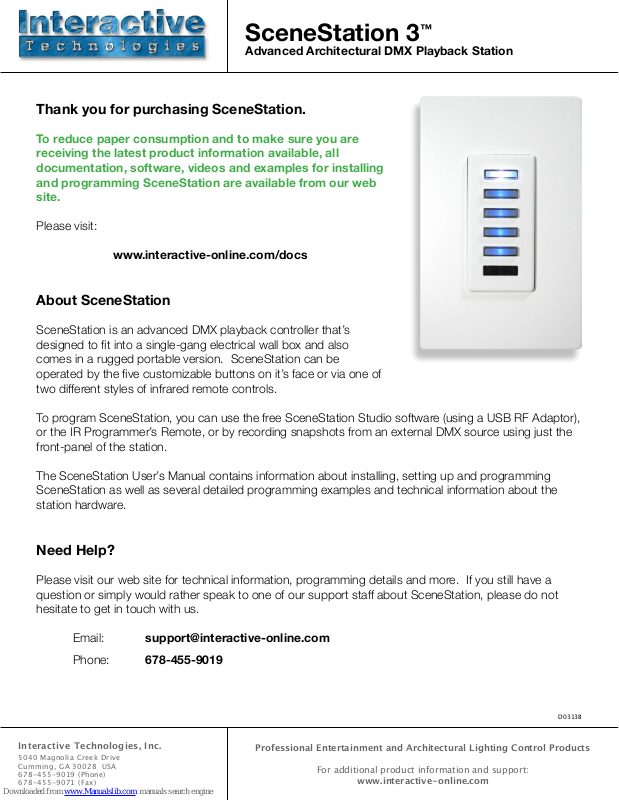

SceneStation 3
Advanced Architectural DMX Playback Station
Thank you for purchasing SceneStation.
To reduce paper consumption and to make sure you are
receiving the latest product information available, all
documentation, software, videos and examples for installing
and programming SceneStation are available from our web
site.
Please visit:
www.interactive-online.com/docs
About SceneStation
™
SceneStation is an advanced DMX playback controller that’s
designed to t into a single-gang electrical wall box and also
comes in a rugged portable version. SceneStation can be
operated by the ve customizable buttons on it’s face or via one of
two different styles of infrared remote controls.
To program SceneStation, you can use the free SceneStation Studio software (using a USB RF Adaptor),
or the IR Programmer’s Remote, or by recording snapshots from an external DMX source using just the
front-panel of the station.
The SceneStation User’s Manual contains information about installing, setting up and programming
SceneStation as well as several detailed programming examples and technical information about the
station hardware.
Need Help?
Please visit our web site for technical information, programming details and more. If you still have a
question or simply would rather speak to one of our support staff about SceneStation, please do not
hesitate to get in touch with us.
Email: support@interactive-online.com
Phone: 678-455-9019
Interactive Technologies, Inc.
5040 Magnolia Creek Drive
Cumming, GA 30028 USA
678-455-9019 (Phone)
678-455-9071 (Fax)
D0313B
Professional Entertainment and Architectural Lighting Control Products
For additional product information and support:
www.interactive-online.com
controller), SceneStation will automatically
D0316: SceneStation Typical Wiring Diagram
Optional input from DMX
console or controller.
external source.
go into "passive" mode, which allows the
upstream controller to be in full control of
the DMX fixtures. SceneStation also uses
this mode to record DMX scenes from the
Input DMX signal is detected, SceneStation
will output a DMX signal. If an Input signal
is detected (from another console or
DMX Input Note:
SceneStation uses a bi-directional DMX
Port for both DMX Input and Output. If no
communication cable may be used.
White/Orange = Unused
Other similar 100-120 ohm twisted-pair
RS-485 compatible computer
B
elden 9842
Recommended DMX-512 Cable Types
CAT5E or CAT6
White/Brown = DMX Ground (Black)
Orange = DMX Data - (Brown)
White/Orange = DMX Data + (Red)
Others = Unused
Drain Wire = DMX Ground (Black)
Blue/White = DMX Data - (Brown)
White/Blue = DMX Data + (Red)
Orange/White = Unused
Optional DMX Input
Electrical Box
Model SS-305
DMX Data - (Brown)
DMX Data + (Red)
DMX Ground (Black)
S
ceneStation
14-28 VAC (5VA minimum)
11-28 VDC (5W minimum)
Class 2 Power Supply
678-455-9019 (Phone) • 678-455-9071 (Fax)
Interactive Technologies, Inc.
www.interactive-online.com
5040 Magnolia Creek Drive
Cumming, GA 30028 USA
Drawn By: Rob Johnston
Date: 11/20/2012
Checked: Rob Johnston
Scale: 1:1
Units: Millimeters [Inches]
recommended
DMX cable types.
* See table for
each unit.
signals then daisy-chain through
DMX Output
Connect to First DMX Fixture,
Dimmer or Power Supply. DMX
DMX-512 Port
2.4GHz wireless link.
Power Input
(Non-Polarized)
One or more remote stations may
connect to a master station via
DMX Output
(optional)
Power
2-Conductor
18-22 AWG
Optional Remote Station
Power Supply
Revision
B
