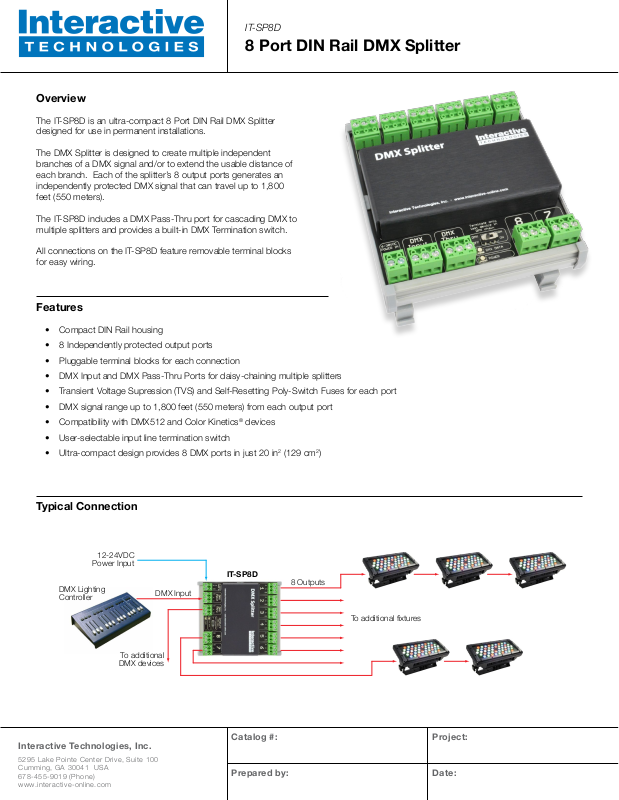

IT-SP8D
8 Port DIN Rail DMX Splitter
Overview
The IT-SP8D is an ultra-compact 8 Port DIN Rail DMX Splitter
designed for use in permanent installations.
The DMX Splitter is designed to create multiple independent
branches of a DMX signal and/or to extend the usable distance of
each branch. Each of the splitter’s 8 output ports generates an
independently protected DMX signal that can travel up to 1,800
feet (550 meters).
The IT-SP8D includes a DMX Pass-Thru port for cascading DMX to
multiple splitters and provides a built-in DMX Termination switch.
All connections on the IT-SP8D feature removable terminal blocks
for easy wiring.
Features
• Compact DIN Rail housing
• 8 Independently protected output ports
• Pluggable terminal blocks for each connection
• DMX Input and DMX Pass-Thru Ports for daisy-chaining multiple splitters
• Transient Voltage Supression (TVS) and Self-Resetting Poly-Switch Fuses for each port
• DMX signal range up to 1,800 feet (550 meters) from each output port
• Compatibility with DMX512 and Color Kinetics® devices
• User-selectable input line termination switch
• Ultra-compact design provides 8 DMX ports in just 20 in2 (129 cm2)
Typical Connection
12-24VDC
Power Input
DMX Lighting
Controller
IT-SP8D
DMX Input
8 Outputs
To additional fixtures
To additional
DMX devices
Interactive Technologies, Inc.
5295 Lake Pointe Center Drive, Suite 100
Cumming, GA 30041 USA
678-455-9019 (Phone)
www.interactive-online.com
Catalog #: Project:
Prepared by: Date:
Conguration
Ordering
The IT-SP8D has a user-selectable conguration switch:
Termination
DMX standards recommend proper termination of the last device in a DMX
chain. The DMX Termination Switch should be “On” if the IT-SP8D is the last DMX
device on the input DMX network.
CAT5 DMX Wiring
The following chart shows the standard DMX512 usage of each conductor on a
CAT5 cable. The Color Kinetics® CAT5 wiring scheme is also listed.
RJ45
Pinout
1 White/Orange Data + Data -
2 Orange Data - Data +
3 White/Green - Data Common
4 Blue - -
5 White/Blue - -
6 Green - -
7 White/Brown Data Common -
8 Brown Data Common -
CAT5
Conductor
DMX Function
(Standard)
Color Kinetics
Function
DMX Splitter
IT-SP8D 8 Port DIN Rail DMX Splitter
(does not include power
supply)
Photos
Specications
Feature Detail Description
Power Input 6-30VDC (2-position removable terminal block)
DMX Ports Input/Thru/Output 10 (3-position removable terminal block)
Input Termination On/O
Physical Width 4.17” (106 mm) without side mounting anges
5.07” (129 mm) with side mounting anges
Length 4.82” (122 mm)
Height 2.00” (51 mm) with DIN Rail brackets
1.22” (31 mm) without DIN Rail brackets
Weight 7.8 oz. (222 g)
Environmental Operating Temperature -40° to 158° F (-40° to 70° C)
Storage Temperature -40° to 176° F (-40° to 80° C)
Humidity 5 to 95%, non-condensing
Altitude 10,000 feet maximum
Top
Prole
The IT-SP8D is proudly
designed, engineered, and
manufactured in the USA.
© 2017 Interactive Technologies, Inc. Interactive reserves the right to modify this document and/or the product(s) it describes without notice. In no event shall Interactive be liable
for incidental or consequential damages, or for the infringement of any patent rights or third party rights, due to the use of its products. Color Kinetics is a registered trademark of
Philips Solid-State Lighting Solutions, Inc. in the United States and/or other countries. All other marks are property of their respective owners. D0911A 10/10/2017
