Introduction
This manual covers the use of INTERACTIVE
INTELLIGENCE 390 and 480e phones with the
INTERACTIVE INTELLIGENCE phone system.
These phones provide an easy-to-use interface through
its large screen and 6 softkeys. By providing this interface, the user no longer has to remember all the phone
feature codes to perform functions such as call handling, or extension management.
This manual should therefore be used in place of the
Telephone User Interface Quick Reference provided
with the telephone. Please continue to refer to The
Analog Telephone Interface Guide for all other
INTERACTIVE INTELLIGENCE features.
Installation and
Setup
Installation
1. Connect the handset cord
Turn the telephone over and locate the handset jack
marked . Insert one end of handset cord into the
jack until it clicks into place. Then route the handset
cord through the groove as shown in the illustration
on the next page. Attach the handset to the other end
of the handset cord.
the bottom the stand. This will allow the stand to sit
flat on a desk surface.
5. Install the phone
If you have installed the stand and are using the phone
on a desk:
Simply turn the telephone over so it rests on the stand.
Connect the phone cord to a phone jack and plug the
power adapter into a power outlet.
6. Install the phone on a wall
1. Connect the cord to the wall jack (A).
2. Coil the phone cord into the space provided on the
back of the phone (B).
3. Align the telephone so the hooks on the wall plate
(C) align with the wall-mount slots on the back of
Interactive Intelligence 390/480e P
hone User Guide
3
Installation and Setup
2. Attach the stand
If you plan to mount the phone on the wall, you do
not need to attach the stand, skip this step. If you plan
to use the phone on a desk, attach the stand by inserting the tabs on the stand (marked with ) into the
slots on the bottom of the telephone. For a higher
viewing angle, use the slots marked . For a lower
viewing angle, use the slots marked . Then rotate
the stand towards the phone until it snaps into place.
3. Connect the cords
If you attached the stand to install the phone on a
desk, route both the phone cord and power adapter
cord through the opening in the stand. Insert the
phone cord into the slot on the back of the telephone
marked until it clicks into place. Insert the power
cord into the power jack marked . Note: You should
connect the power adaptor to a surge protector or power bar.
4. Press the cords into grooves
Press the cords into two of the grooves provided on
Interactive Intelligence 390/480e P
hone User Guide
2
2
Note: You may wish to purchase a short phone cord from a local
supplier for a wall installation.
Screen and Softkey Setup
After phone is plugged in and powered up, lift the
Handset. If softkey‡labels appear on the screen as
shown next, your phone set up is complete. If this is
the case, skip to this chapter.
If softkey labels do not appear on screen:
1. Please dial 1-866-732-8791 (toll free for most States
within North America) or 604-629-4976 to program
your phone
2. At the voice prompt press 2 to download programming. You will see the next screen, please wait. (No
more than ten seconds).
Interactive Intelligence 390/480e P
hone User Guide
5
Installation and Setup
the phone, as shown here.
4. Push the phone onto the pegs, and then slide it
down until it is secure (D).
5. Plug the power adaptor1 into a power outlet (E).
7. Insert number card
Write your telephone number on the number card, and
place it into the card slot on the telephone, located
under the mouthpiece in the handset cradle. Gently
bend the clear plastic lens into the slot, over the number card.
Interactive Intelligence 390/480e P
hone User Guide
4
‡
The softkeys are the 6 buttons on either side of the screen. The
softkey labels are the text that appears beside the buttons
4. Next, the screen should say either Accept
download from ININ Slot 2 or Slot
4, please press Yes again.
5. Last, the screen should say Download
complete and the phone hangs up itself.
If the screen displays Phone ID not found,
please press the Agent softkey to connect with an
agent.
Interactive Intelligence 390/480e P
hone User Guide
7
Installation and Setup
3. When the screen displays the prompt, “Do you
have a passcode?” select the No.
The screen should now say Accept Download
from ININ Slot 1. Please press
Yes.
Caution: DO NOT pres Yes during a beep. If you
do you may hear a noise similar to a dial up modem or
fax machine. If this happens please hang up and try
again.
Interactive Intelligence 390/480e P
hone User Guide
6
Getting CPE ID...
Do you have a
passcode
-Yes
No-
Quit-
VMail – Interaction Mail Menu
Use this softkey to access to your voice mail.
1. Press VMail
2. Enter your extension and press OK
3. Enter your password and press OK
DND - Do not Disturb
Use this softkey to toggle the Do Not Disturb feature
on and off. While activated, all your calls will be forwarded to your voicemail
CallFwd - Call Forwarding
This softkey allows you to transfer a current or selected call to a phone number or extension
1. Press CallFwd
2. Enter your extension and press OK
3. Enter your password and press OK
4. Dial Extension or External phone number followed
by pound key.
5. Press Hangup when done.
Status
Use this softkey when you what to now the current
status of the extension.
More
This softkey connects you to Idle State Screen 2. Idle
State Screen 2 allows you manage your extension.
Interactive Intelligence 390/480e P
hone User Guide
9
Getting Started
The INTERACTIVE INTELLIGENCE phones contain three screens states—Idle, Connected and
Inbound. These screen states have softkeys to help you
make and manage your calls more easily.
Idle State 1
The Idle State‡is the screen you will see most often. It
allows you to make calls, pick up calls, check voicemail
manage your extension and more.
Pickup
Press the Pickup softkey to access the Call Pickup
Menu. From this menu you can pick up parked, held,
or alerting calls.
Interactive Intelligence 390/480e P
hone User Guide
8
‡
Note: When you hang-up the phone, the Idle State screen may
appear to vanish; however, it will instantly reappear whenever the
phone goes off-hook, either by pressing the speaker button or lifting
the handset.
Transferring Calls
Use this softkey to transfer a call to another extension,
while connected to a call:
1. Press Transfr
2. Select a Call Transfer option:
Current—Transfers current call
Select—Places current call on hold and transfers
a selected call based on the Call Number entered
Current transfer
1. At screen prompt enter extension number or
external phone number and press OK.
2. Wait for the third party to answer.
3. Consult with the third party, and then press
Hangup to complete the transfer or Back to go
back to the original call.
Select Transfer
At screen prompt, enter Call Number and press OK
(The Call Number identifies which call to transfer
(e.g. 1, 2, etc.)
Interactive Intelligence 390/480e P
hone User Guide
11
Getting Started
Interactive Intelligence 390/480e P
hone User Guide
10
Idle State 2
Mail
This softkey transports you to the Main Interaction
MailTM Menu to manage your voice messages, faxes,
email, send voicemail and manage personal options,
etc. (extension and passcode required). See Interactive
Intelligence’s Interactive MailTMMenus document for
more information
Phone Log In
Phone-only agents can use this softkey to log in and
take calls (extension and passcode required).
Connected State 1
The connected state screen will appear when you are
connected to a call. This screen is used for all call
handling functions such as Transferring calls,
Conferencing Calls, Placing Calls on Hold and more.
More
This softkey connects you to the Connected State 2
screen.
Connected State 2
The Connected State 2 screen offers additional connected state options, such as disconnect or unhold.
Disconnect a call
The Discnct softkey disconnects a call on your
extension. If you have more than one call, you can
choose which calls you want to disconnect.
UnHold a call
Use this softkey when you want to pick up a call on
hold. If only one call is connected, do not enter a Call
Number.
Tip: For your ease of use, we recommend using
Transfr, Park and Conf softkeys to perform all
Interactive Intelligence 390/480e P
hone User Guide
13
Getting Started
Park
This softkey allows you to park a call at an extension,
work group or station. Note: You can not park a call to a
remote telephones numbers.
To use this feature:
1. Press Park
2. Enter number where the call will be parked
3. Press Hangup when done.
Conference Calls
This softkey allows you to conference calls together:
1. Press Conf. softkey
2. Select a conferencing option:
All (Places current call on hold and
conferences all calls on hold together)—
At screen prompt enter extension number
or external phone number and press OK.
Select (Places current call on hold and
conferences selected call based on Call Numbers
entered)—At screen prompt enter Call
Number(s) and press OK, using a “#” between
Call Numbers when entering more than one.
Note: If only one call is connected, do not enter a
Call Number.
NewCall — New Call (Hold feature)
Use this softkey to put your current call on hold and
place another call:
1. Press NewCall.
2. Enter extension number or external phone number
and press OK.
3. The original call is now on hold. To return to the
original call, press
Flash.
Interactive Intelligence 390/480e P
hone User Guide
12
Interactive
Branding
Interactive Branding allows you to personalize your
phone with two lines of custom text on your phone
Idle State screen via the web. Each line can be up to 20
characters long.
Please go to www.sayson.com. Then click on
Products
and then on Interactive Branding.
In the two fields provided, please type in the information you want to place on your screen. Then press the
submit button.
Please follow the instructions you are given on the
next page.
Interactive Intelligence 390/480e P
hone User Guide
15
your call handling functions instead of the Flash
softkey
Inbound Call State
When someone calls your extension, you will see the
Inbound Call Screen. A single ring indicates an external call while a double ring indicates an internal call.
To answer the call, please do one of the following:
• Press Answer for hands free operation or,
• Press button in the model 390 or /
in the 480e for hands free operation.
• Pickup the handset.
When you answer the call, the screen will change to
the connected state. If you cannot answer the call, it
will go to voicemail and the phone will return to the
idle state screen.
Interactive Intelligence 390/480e P
hone User Guide
14
Customizing Your
Phone—Options
Menu
There are six configuration options in the model 390
and nine in the model 480e, both accessed by pressing
the button.

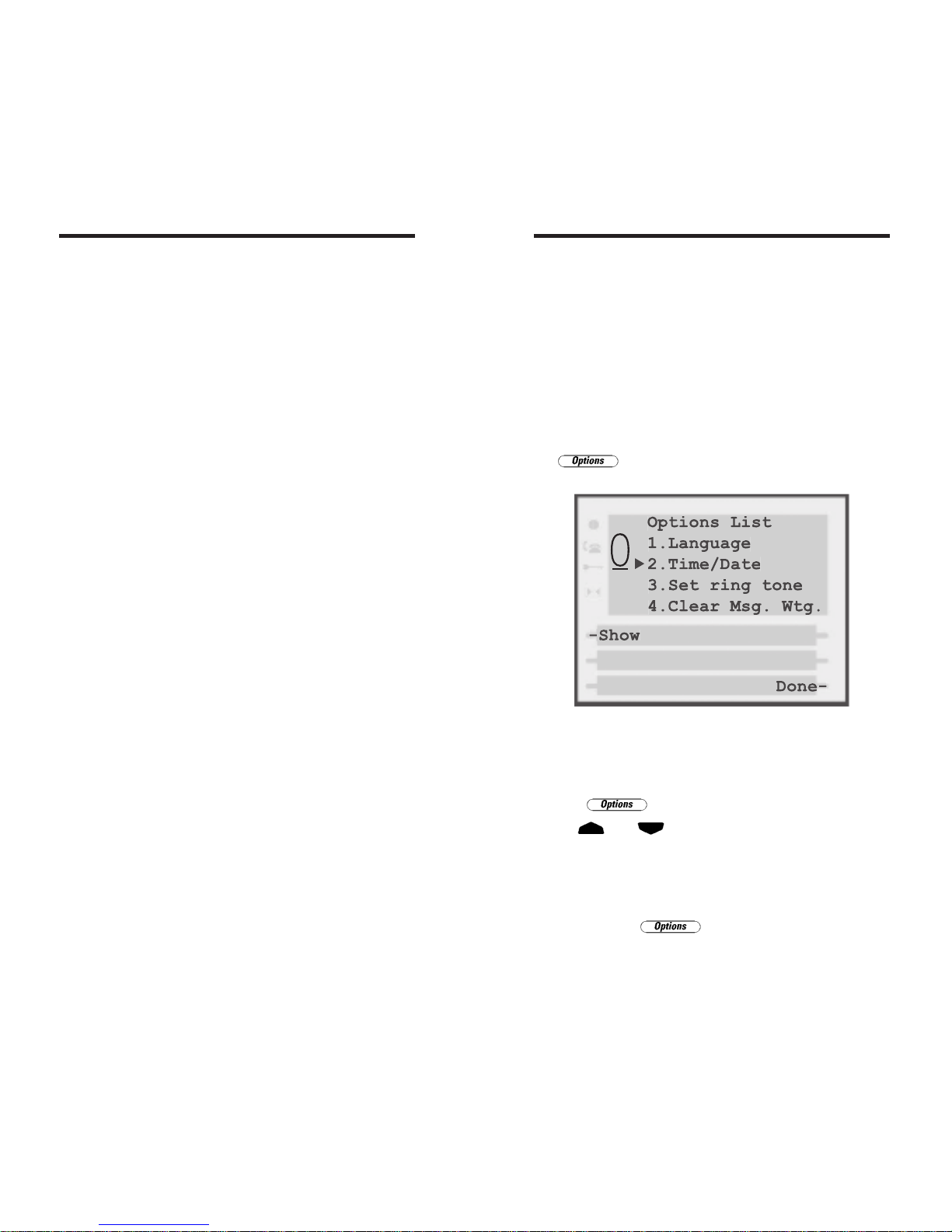

Setting your Options
1. Press to enter the Options List.
2. Use and to scroll through the list of nine
options.
3. Press the Show softkey to configure an option.
4. Use the softkeys to change a selected option.
5. Press the Done softkey at any time to exit the
option, or press to exit the Options list.
Interactive Intelligence 390/480e P
hone User Guide
17
Other Phone
Features
480e special features not found on the 390
• Headset Mode: Activate headset with the touch of a
button without losing the ability to use speakerphone or headset. The headset port works with 2.5
mm jack headsets (RJ22 adapter available, but not
included).
• Security Numbers: This feature prevents selected
numbers from appearing on the display screen when
dialed or redialed.
• Live Dial Pad.
• Data port: Fax/Modem.
• Displays alternatively time and date, along with New
Callers, Message Waiting, and
Extension in Use.
• Multi-functional FSK and Voltage Message Waiting
Indicator (for Incoming Call, Extension-in-Use,
Message Waiting, and Hold).
Interactive Intelligence 390/480e P
hone User Guide
16
7. Security Numbers – This option allows you to
keep selected numbers from appearing on the screen
when dialed. Use this option to protect passwords,
access codes etc. When a security number is used, your
telephone displays the asterisk * symbol for all digits
entered after the security number and the digits do not
appear in the Redial list display. Up to three security
numbers can be created using this option.
8. Live Dialpad – Use this option to turn on or off
the dial pad mode. With live dialpad on, the telephone
automatically dials out and turns on Handsfree as soon
a dial pad key or softkey is pressed. With live dialpad
off, you must dial the number first and then lift the
handset or press the Handsfree button before the
number is dialed.
9. Set Audio – The Model 480e telephone allows you
to use a handset, headset or handsfree to handle
incoming and outgoing calls. This option provides different combinations of these three methods to provide
maximum flexibility in handling calls. There are four
options to choose from:
• Handsfree – this is the default setting. Calls can
be made or received using the handset or handsfree
speakerphone and can be switched between the two
modes.
• Headset – choose this setting if you want to make
or receive all calls using a headset.
• Spkr/Hset – incoming calls will be sent to the
handsfree speakerphone. By pressing the /
button on the phone you can switch between the
handsfree speakerphone and a headset.
• HSet/Spkr – calls will be sent to the headset. By
pressing the / button on the phone you can
Interactive Intelligence 390/480e P
hone User Guide
19
Customizing Your Phone
1. Language – Select a language for the display
prompts (English, French, or Spanish).
2. Time/Date – Use this option to change the time
and date setting on the display. Press the appropriate
softkey to increase that item by 1. For example, press
the Hour softkey to increase the hour from 1 to 2.
Note: The INTERACTIVE INTELLIGENCE
Communications System sets the time and date after the phone
receives a call that displays Caller ID information.
3. Set ring tone – Press the Change softkey to
select one of four ring tones.
4. Clear Message Waiting – Sometimes the
Message Waiting prompt will appear and the light will
flash when there are no messages waiting on your
Voice Mail service. When in this option, select the
Clear softkey to clear the prompt and flashing light.
The light will flash again when there are new messages
waiting.
5. Area Code – In some locations, you cannot dial a
local number using the area code. By default, incoming
calls are recorded with area codes in the Callers List.
This option allows you to enter up to three local area
codes to be removed from incoming calls. Press the
Change softkey to enter an area code.
6. Contrast Level – Use the Change softkey to
cycle through 8 contrast settings, which brighten or
darken the display.
The next options are exclusive to the model
480e:
Interactive Intelligence 390/480e P
hone User Guide
18
Headset Operation
The mode 390 phone is headset compatible and the
480e is equipped with headset mode.
Contact your telephone equipment retailer or distributor to purchase a headset. Customers should read and
observe all safety recommendations contained in headset operating guides when using any headset
Using a headset with your
INTERACTIVE INTELLIGENCE 390
phone
Making calls using a headset
1. Remove the handset from the phone cradle to get
dial tone.
2. Dial the number.
3. To end a call, return the handset to the phone cradle.
Receiving calls using a headset
1. When you receive an incoming call, remove the
handset from the phone cradle
2. To end a call, return the handset to the phone cradle.
Using a headset with your
INTERACTIVE INTELLIGENCE 480e
phone
The Model 480e is equipped to accept headsets with
either a modular RJ22 jack or a 2.5mm standard jack.
Headsets with a modular RJ22 jack can be connected
to the phone by using the jack on the back of the set.
Headsets with a standard 2.5mm jack can be plugged
Interactive Intelligence 390/480e P
hone User Guide
21
switch between the headset and the handsfree speakerphone.
Predialing a Number
Predialing lets you view a number before you dial. Enter
the number using the dial pad and before lifting the
handset. Use the Backspace softkey or to correct
any errors. To dial the number your can either lift the
handset, press the Dial softkey, or press the
in the model 390 or / in the 480e. If
you have the model 480e phone you can turn off this
option using Live Dialpad feature.
Making calls
If you are unable to make calls within certain area codes,
check with your system administrator for any toll restrictions placed on your extension that restricts your access
to long distance area codes and dialing prefixes.
Using the Redial List
The Redial List records the last 10 numbers you dialed.
Redialing a Number
1. Press to view the Redial List.
2. Use the and keys to move the cursor to the
number you want to dial.
3. Lift the handset to dial the number, or press the
Dial softkey or press the in the model
390 or / in the 480e.
Deleting the Redial List
1. Press to view the Redial List.
2. Press the DeleteList softkey.
3. Press the Delete softkey to confirm.
Interactive Intelligence 390/480e P
hone User Guide
20
Making and Receiving calls using a Headset
1. Ensure that you have selected a headset audio mode
by accessing the Options menu.
2. Press the / key to obtain dial tone or answer
an incoming call. Depending on the audio mode
selected from the Options menu, dial tone or an
incoming call will be received on either the headset
or the hands free speakerphone.
3. Press the key to end the call.
Dataport
Operation
The INTERACTIVE INTELLIGENCE 480e phone
is equipped with a dataport6 located on the right hand
side. The data port can be used to connect another
device such as a fax machine or computer modem to
the phone. Plug one end of a line cord to the phone
and the other end to the device to be connected.
Note: The dataport will only operate when the handset is on
hook (in the phone base cradle).
Interactive Intelligence 390/480e P
hone User Guide
23
into the headset jack located on the left hand side of the
telephone.
Interactive Intelligence 390/480e P
hone User Guide
22
take the call off mute.
Telephone Light
• Light flashes and the display shows Call is on hold: a
call is on hold. Press or lift the handset to
take the call off hold.
• Light flashes and the display shows Message Waiting:
you have voicemail.
• Light flashes quickly and the ringer sounds: you have
an incoming call.
• Light is on and the display shows Extension in use:
an extension telephone is using the line. The message also appears when the telephone is not properly
connected to a phone line.
Timing a Call
When you make or answer a call, the Timer shows the
elapsed time of the call.
Additional Phone
Features
Emergency Service Feature
The INTERACTIVE INTELLIGENCE 390/480e
will provide telephone service during a power failure.
However, only the dial pad, ringer and handset will
function. If you are on a handset call during a power
interruption, the 390/480e will keep the call, although
the display will not work while the power is off.
Handsfree calls will not be reestablished during a
power interruption.
Interactive Intelligence 390/480e P
hone User Guide
25
Adjusting the
Volume
Pressing the volume button adjusts the
receiver, speaker, and ringer volume. The default handset and headset volume is always set at medium
• To adjust the ringer volume, leave the handset in
the cradle and press the volume button
while there is no active call. There are 8 settings for
the ringer—the display will temporarily indicate the
current ringer volume setting.
• To adjust the handset/headset volume, press the
volume button while you are on a call. The handset
will return to the default volume after you hang up.
• To adjust the speaker volume, press the volume
button while the speaker is activated (activate the
speaker by pressing in the model 390
or / in the 480e. The speaker will remain at
this volume until it is adjusted again.
Status Lights
Speaker Light
• Speaker light is on: a call is on Handsfree (speaker).
• Speaker light flashes slowly: indicates that the headset/handset is being used.
• Speaker light flashes and the screen displays the
prompt Microphone muted: a call is muted. Press
in the model 390 or in the 480e to
Interactive Intelligence 390/480e P
hone User Guide
24
Entering Letters and Characters
You can enter characters using the telephone’s dial pad.
To enter a letter, press the key with that letter on it. If
the letter is the second one on that key, press the key
twice.
For example, to enter ‘R’ press three times. The
cursor will advance to the next space after a delay of 2
seconds or if you press a different key. To change the
case of a letter, press Changecase, and then enter
the letter. By default the first letter of a word or name
will be capitalized, and the letters following will be
lower case.
Special characters are entered by pressing the and
the keys. Characters will appear in this order:
&
,
()
` .
_
-
1
#
/ \
@
Finding Entries in the Directory
1. Press the Directory button . Once in the
Directory:
2. Press to scroll down and to scroll up one
listing at a time. Hold either key down to scroll continuously.
OR
Press a dial pad key to see listings that start with that
letter. For example, takes you to the first “J” listing, takes you to the first “K” listing.
Changing Entries in the Directory
1. Press the Directory button
2. Find the entry you would like to change.
Interactive Intelligence 390/480e P
hone User Guide
27
Additional Phone Features
Using the Directory
The Directory can store up to 200 names and numbers, which are displayed in alphabetical order.
Tip: Store all your Directory contacts the same way,
either first name first, or last name first. This will make
it easier to find names and numbers.
Adding a Name and Number to the Directory
1. Press the Directory button .
2. Press AddNew softkey.
3. Enter the number using the dial pad. You can enter
up to 24 digits. Hyphens will be automatically added.
• If you need to enter a pause (between your voice
mail number and password, for example), press the
Pause softkey. The pause icon will appear.
• To program a number that uses Flash, press
Flash where it is required in the number. The
Flash icon will appear.
• Press Backspace or to erase a number.
4. Press Save softkey
5. Enter a name using the letters on the dial pad. See
the following instructions “Entering Letters and
Characters” to enter names using the dial pad. The
name can have up to 16 characters, including spaces.
Press NextSpace or to move to the next letter
or add a space. Press Backspace or to erase a
character.
6. Press Save. The new entry now shows on the
display.
Tip: You can also copy an entry from the Callers List
to the Directory using the button, before or
after you have changed it.
Interactive Intelligence 390/480e P
hone User Guide
26
3. Press Delete.
4. Press Delete again to confirm.
Deleting all Entries in the Directory
Once you have deleted the Directory, you cannot get
entries back. You can protect the Directory by locking it.
To permanently delete all entries in the directory:
1. Press the Directory button to open the Directory.
2. Press Deletelist
3. Press Delete to confirm.
Locking the Directory
You can lock the Directory so that entries cannot be
deleted or changed. You cannot add entries to a locked
directory.
1. Press .
2. Press .
3. Press . The display shows Directory locked.
Unlocking the Directory
1. Press .
2. Press .
3. Press . The display shows Directory
unlocked.
Using the Callers List
The Callers List records the last 100 callers, in the
order that they called. The telephone display will indicate when there are new callers.
When the Callers List is full, new callers are added to
the list, and the oldest callers are deleted.
Interactive Intelligence 390/480e P
hone User Guide
29
Additional Phone Features
3. Press the Change softkey.
4. To change the number, use Backspace or to
erase digits. Use the dial pad to add digits. Use Pause
to insert a 2 second pause. The pause icon will
appear.
5. Press Save to move to the name.
6. To change the name, use Backspace or to
erase letters. Use the dial pad and NextSpace to
add letters. Press ChangeCase to switch between
upper and lower case.
7. Press Save to save changes.
Copying from the Callers List, the Redial List,
or the Display to the Directory
1. Open the Callers List, Redial List, or answer a call.
2, When the number is displayed on the screen, press
. If the entry includes a name and num-
ber, the display will show
Saved:Directory.
Note: If the entry is a number only (such as in the Redial
List), you will be prompted to enter a name. Once you’ve pressed
Save to save the name, the display will show Saved:
Directory.
Dialing from the Directory
1. Press the Directory button
.
2. Find the entry you would like to call in the
Directory.
3. Lift the handset to dial the number, or press Dial or
in the model 390 or / in the 480e to
dial the number using Handsfree.
Deleting an Entry from the Directory
1. Press the Directory button
.
2. Find the entry you would like to delete.
Interactive Intelligence 390/480e P
hone User Guide
28
Changing a Number in the Callers List before
Dialing
1. Press the Callers button .
2. Find the caller in the Callers List you wish to dial.
3. To add digits, use the dial pad.
4. To delete digits, press EditNum to begin editing.
Use the dial pad to add digits.
5. Lift the handset to dial the number, or press Dial or
in the model 390 or / in the 480e to
dial the number using Handsfree.
Tip: If you have to frequently remove area codes to
return local calls, you should use the Area Codes
option and add your local area code(s).
Note: The Callers List does not save changes. If you plan to
dial the number again, copy it to the Directory and change it
there.
Deleting an Entry in the Callers List
1. Press the Callers button .
2. Find the entry you would like to delete in the Callers
List.
3. Press Delete.
4. Press Delete again to confirm. The display shows
Item is erased.
Deleting all Entries in the Callers List
1. Press the Callers button .
2. Press DeleteList.
3. Press
Delete to confirm. The display shows
Callers list is empty.
Interactive Intelligence 390/480e P
hone User Guide
31
Additional Phone Features
In the Callers List you will see the message XX New
caller(s), XX Call(s) bumped on the display.
Viewing the Callers List
1. Press the Callers button .
2. Press and to move up and down in the
Callers List. Hold either key down to scroll continuously. You can also press Resume to see the last
caller you viewed the last time you entered the
Callers List. Press the Callers button , Quit,or
at any time to leave the Callers List.
Note: will also hang up a caller if you are on a
call.
Calling an Entry in the Callers List
1. Press the Callers button .
2. Find the entry you would like to call in the Callers
List.
3. Lift the handset to dial the number, or press Dial or
in the model 390 or / in the 480e to
dial the number using Handsfree.
Copying from the Callers List to the Directory
When the number is displayed in the Callers List, press
. The display will show Saved:
Directory.
Note: If the entry in the Callers List does not have a name
(i.e. if the name is listed as Unknown or Private), you will be
prompted to enter a name. You can edit a number in the Callers
List and then copy it to the Directory.
Interactive Intelligence 390/480e P
hone User Guide
30
How do I set the time and date?
Ask your system administrator to make sure your
extension is configured for MDMF Caller ID format.
Then, the first incoming call will update the phone
with the time & date from the clock in the INTERACTIVE INTELLIGENCE system. Otherwise, use the
Time/Date option in the options list to manually set
the time and date.
Can I turn off the light on the screen?
No. You can only adjust the contrast of the display.
Why can’t I hear a caller or be heard?
Increase the receiver or speaker volume. Make sure the
handset cord is inserted securely into the jack. If the
speaker light is flashing, the call is muted; press the
key ( on the 480e) to turn mute off; the
light will be steady and not flashing.
Why don’t I see any caller ID?
Ask your system administrator to make sure your
extension is configured for MDMF caller ID format.
What if I accidentally deleted the services on
my INTERACTIVE INTELLIGENCE phone?
If your phone is not loaded with any other Telco services, you should be able to restore the INTERACTIVE
INTELLIGENCE features.
Press the “services” button on the bottom right of the
phone. Restore should be visible (the top right
softkey on the screen); press Restore and your INTERACTIVE INTELLIGENCE services should be
reloaded. If restore is not visible, follow the instructions in the section titled Screen and Softkey Setup.
Interactive Intelligence 390/480e P
hone User Guide
33
FAQ
Why don’t the “VMail”, “Status”, “CallFwd”
and “DND” soft keys work?
If you have INTERACTIVE INTELLIGENCE’s EIC
or CIC version 2.2 and your phone is plugged into an
Acculab Telephony Card extension, this feature may
become unresponsive. Acculab cards are affected by a
delay that occurs while the system counts up the mail
you have saved for your extension (voicemails, faxes...
etc.). The more the mail, the longer the delay.
Contact your dealer for information on how to change
your phone’s programming to allow longer delays for your
system. By keeping the amount of mail you have on the
phone system for your extension low, this can also help.
Why don’t numbers I return from the callers
list connect?
When returning a call from an outside caller, you must
add the trunk pre-dial string at the front of the number.
This is usually a “9”. You can add a “9” easily by pressing EditNum.
Incoming calls are recorded with the area code
attached, whether they are long distance or local calls.
You must remove the area code from local calls in
order to call from the Callers List, or use the Area Code
option in the options list to have local area codes automatically removed.
Alternatively, you may need to add ‘1’ before long distance numbers in order to dial long distance.
Why is my display blank?
Ensure that the power adaptor is fully plugged into the
electrical outlet, and that the outlet is supplying power.
Interactive Intelligence 390/480e P
hone User Guide
32
in the back of the phone. Also make sure you have the
cables connected to the phone through the base as
described in the section titled Installation and Setup.
Why does the telephone wobble on the desk?
Please make sure the cables routed through the base
are pushed into the grooves provided. Review the section titled Installation and Setup.
Limited Warranty
INTERACTIVE INTELLIGENCE Communications
Inc. warrants this product against defects and malfunctions. Please consult the warranty information included
with the packing slip for your INTERACTIVE INTELLIGENCE Communications System for more details.
Exclusions
INTERACTIVE INTELLIGENCE Communications
Inc. does not warrant its telephone sets to be compatible with the equipment of any particular telephone
company or telephone system other than INTERACTIVE INTELLIGENCE products. The warranty does
not extend to damage to products resulting from
improper installation or operation, alteration, accident,
neglect, abuse, misuse, fire or natural causes such as
storms or floods, after the telephone is in your possession. INTERACTIVE INTELLIGENCE
Communications Inc. shall not be liable for any incidental or consequential damages, including, but not
limited to, loss, damage or expense directly or indirectly arising from the customers use of or inability to use
this telephone, either separately or in combination with
How can I get the Softkeys back when they
disappear after I have hung up the phone?
Pickup the handset or press the speaker button and the
softkeys will reappear. You can also press the “services” key and select the service in the first slot. Please
review the section of the manual titled Idle State.
How come the screen doesn’t show the
Transfer button right away when I am connected to a caller?
Please do not manually dial pickup codes, such as *95,
to connect to a call. Please use the softkeys instead,
such as Pickup instead of dialing *95. By using the
softkey, the phone will present you with the Connected
State screen right away
Why doesn’t the caller hear the on-hold
music when I put them on hold?
Please make sure your administrator has connected a
music source to your INTERACTIVE INTELLIGENCE system. Do not use the button at
the top of the phone, as that will only place the caller
on Hold at the set (similar to mute). Use the Park
softkey to park the call at an Extension, Workgroup, or
Station; or use the NewCall softkey to put your current call on hold so that you can make another call.
You cannot retrieve a Parked call, however you can
retrieve a call on hold by pressing the
Unhold softkey
when connected to another call or by pressing the
Pickup softkey when your phone is idle.
Why does the phone hang up or drop calls
intermittently when I’m on speakerphone calls?
Please make sure the power adapter is secured properly
Interactive Intelligence 390/480e P
hone User Guide
34
Interactive Intelligence 390/480e P
hone User Guide
35
Important Safety
Instructions
The following safety instructions cover the installation
and use of the Product. Read carefully and retain for
future reference.
Installation
WARNING: To avoid electrical shock hazard to personnel or equipment damage, observe the following precautions when installing telephone equipment:
1. Never install telephone wiring during a lightning
storm.
2. Never install telephone jacks in wet locations unless
the jack is specifically designed for wet locations.
3. Never touch uninsulated telephone wires or terminals
unless the telephone line has been disconnected at the
network interface.
4. Use caution when installing or modifying telephone
lines. The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the product.
This symbol on the product is used
to identify the following important
information: Use only with a CSA or
UL certified CLASS 2 level C power
supply, as specified in the user guide.
Use
When using your telephone equipment, basic safety precautions should always be followed to reduce risk of
Interactive Intelligence 390/480e P
hone User Guide
37
other equipment. This paragraph, however, shall not
apply to consequential damages for injury to the person in the case of telephones used or bought for use
primarily for personal, family or household purposes.
This warranty sets forth the entire liability and obligations of INTERACTIVE INTELLIGENCE
Communications Inc. with respect to breach of warranty, and the warranties set forth or limited herein are
the sole warranties and are in lieu of all other warranties, expressed or implied, including warranties or
fitness for particular purpose and merchant-ability.
Warranty Repair Services
Should the set fail during the warranty period, in
North America, please contact your authorized
INTERACTIVE INTELLIGENCE dealer. Or for further information call Sayson Technologies at (604)
730-1842. You may be responsible for shipping
charges, if any. When you return this telephone for
warranty service, you must present proof of purchase.
After Warranty Service
Aastra Telecom offers ongoing repair and support for
this product. This service provides repair or replacement of your Aastra Telecom product, at Aastra
Telecom’s option, for a fixed charge. You are responsible for all shipping charges. For further information
and shipping instructions contact your INTERACTIVE INTELLIGENCE dealer or, call 1-800-5741611 (in North America).
Note: Repairs to this product may be made only by the manufacturer and its authorized agents, or by others who are legally
authorized. This restriction applies during and after the warranty period. Unauthorized repair will void the warranty.
Interactive Intelligence 390/480e P
hone User Guide
36
c) If the product housing has been damaged.
d) If the product exhibits a distinct change in perform-
ance.
12. Avoid using a telephone during an electrical storm.
There may be a remote risk of electric shock from
lightning.
13. Do not use the telephone to report a gas leak in the
vicinity of the leak.
14. CAUTION: To eliminate the possibility of acciden-
tal damage to cords, plugs, jacks, and the telephone,
do not use sharp instruments during the assembly
procedures.
15. WARNING: Do not insert the plug at the free end
of the handset cord directly into a wall or base- board
jack. Such misuse can result in unsafe sound levels or
possible damage to the handset.
16. Save these instructions.
US Regulations—
Please Read
Carefully
Federal Communications
Commission (FCC) Notice
FCC registration number: This telephone equipment
complies with Part 68, Rules and Regulations, of the
FCC for direct connection to the Public Switched
Telephone Network. (The FCC registration number
appears on a sticker affixed to the bottom of the telephone).
Your connection to the telephone line must comply
with these FCC rules:
Interactive Intelligence 390/480e P
hone User Guide
39
fire, electric shock and injury to persons, including the
following:
1. Read and understand all instructions.
2. Follow the instructions marked on the product.
3. Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink or laundry tub, in
a wet basement or near a swimming pool.
5. Do not place this product on an unstable cart, stand
or table. The product may fall, causing serious damage to the product.
6. This product should never be placed near or over a
radiator or heat register. This product should not be
placed in a built-in installation unless proper ventilation is provided.
7. Do not allow anything to rest on the power cord. Do
not locate this product where the cord will be abused
by persons walking on it.
8. Do not overload wall outlets and extension cords as
this can result in the risk of fire or electric shock.
9. Never spill liquid of any kind on the product.
10. To reduce the risk of electric shock do not disassemble this product, but have it sent to a qualified service
person when some service or repair work is required.
11. Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
a) When the power supply cord or plug is damaged or
frayed.
b) If the product has been exposed to rain, water, or liq-
uid has been spilled on the product, disconnect and
allow the product to dry out to see if it still operates;
but do not open up the product.
Interactive Intelligence 390/480e P
hone User Guide
38
numbers. However, you must provide this information to the telephone company if they request it.
The telephone company may make changes in its
facilities, equipment, operation or procedures that
could affect the operation of the equipment. If this
happens the telephone company will provide
advance notice in order for you to make necessary
modification to maintain uninterrupted service.
• Do not attempt to repair this equipment. If you
experience trouble, call 1-800-574-1611 for warranty
and repair information.
Ringer Equivalence Number: The FCC Registration
label (on bottom of phone) includes a Ringer
Equivalence Number (REN), which is used to determine the number of devices you may connect to your
phone line. A high total REN may prevent phones
from ringing in response to an incoming call and may
make placing calls difficult. In most areas, a total REN
of 5 should permit normal phone operation. To determine the total REN allowed on your telephone line,
consult your local telephone company.
Hearing aids: This phone is compatible with hearing
aids equipped with an appropriate teleco options.
Programming Emergency Numbers:
When programming emergency numbers and/or making test calls to emergency numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for calling before hanging up.
2. Perform such activities in the off-peak hours, such
as early mornings or late evenings.
EMI/EMC (FCC Part 15)
Note: This equipment has been tested and found to
Interactive Intelligence 390/480e P
hone User Guide
41
• An FCC compliant telephone cord and modular plug
is provided with this equipment. This equipment is
designed to be connected to the telephone network
premises wiring using a compatible modular jack
which is Part 68 compliant. See installation instructions for details.
• Use only an FCC Part 68-compliant Universal
Service Order Code (USOC) network interface jack,
as specified in the installation instructions, to connect this telephone to the telephone line. (To connect the phone, press the small plastic tab on the
plug at the end of the phone’s line cord. Insert into
a wall or baseboard jack until it clicks. To disconnect,
press the tab and pull out.) See installation instructions for details.
• If the terminal equipment causes harm to the telephone network. The telephone company will notify
you in advance that temporary discontinuance of the
product may be required. But if advance notice isn’t
practical, the telephone company will notify you as
soon as possible. You will also be advised of your
right to file a complaint with the FCC, if you believe
it is necessary.
• If a network interface jack is not already installed in
your location, you can order one from your telephone company. Order the appropriate USOC
Network interface jack, as specified in the installation
instructions, for wall-mounted telephones or for
desk/ table use. In some states, customers are permitted to install their own jacks.
• Your telephone may not be connected to a party line
or coin telephone line. Connection to Party Line
Service is subject to state tariffs. (Contact the state
public utility commission, public service commission
or corporation commission for information.)
• It is no longer necessary to notify the Telephone
Company of your phone’s Registration and REN
Interactive Intelligence 390/480e P
hone User Guide
40
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
Special Note
If you have an Interactive Intelligence EIC or CIC
version 2.2 and your phone is plugged into an
Acculab telephony card extension, you may find
that the Vmail, Status, CallFwd and DND softkeys
become unresponsive. Aculab cards are affected
by a delay that occurs while the system counts up
the mail you have saved for your extension (voicemail, faxes, etc.). The more mail saved, the longer
the delay.
Interactive Intelligence 390/480e P
hone User Guide
42
Loading...
