Stand Alone Type
DVR SYSTEM
QUICK GUIDE
(HDD, CDRW, USB)
Revision Date : 2006. 06. 01.
1. Jumper Setup
->1 ea : MASTER (IDE1) ->2 ea : MASTER,SLAVE (IDE1)
->3 ea : MASTERx2, SLAVEx1 (IDE1, IDE2)
2. Bracket Install
1 Hard Disk & CD-RW Install Guide (PART1)
1. Jumper Setup
->MASTER (IDE2)
2. Bracket Install 3. Attach at Case 4. Install Complete
3. Install Complete
1 Hard Disk & CD-RW Install Guide (PART2)

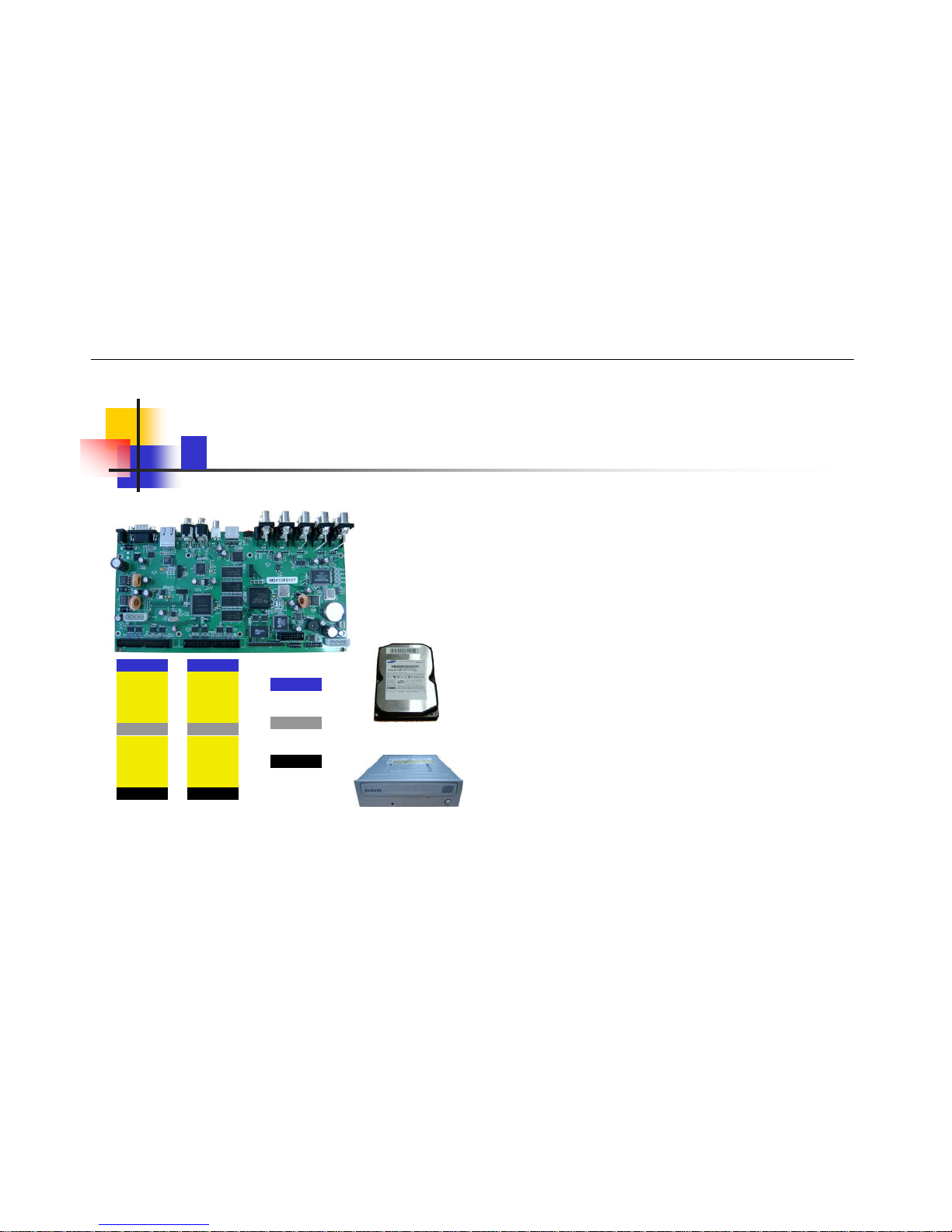

IDE2 IDE1
IDE Cable
MAIN
SLAVE
MASTER
HDD
CD-RW
① HDDx1 : HDD (Jumper MASTER) + IDE1 Cable + MASTER
② HDDx2 : HDD (Jumper MASTER) + IDE1 Cable + MASTER
HDD'(Jumper SLAVE) + IDE1 Cable + SLAVE
③ HDDx3 : HDD (Jumper MASTER) + IDE1 Cable + MASTER
HDD'(Jumper SLAVE) + IDE1 Cable + SLAVE
HDD''(Jumper MASTER) + IDE2 Cable + MASTER
④ HDDX4 : HDD (Jumper MASTER) + IDE1 Cable + MASTER
HDD'(Jumper SLAVE) + IDE1 Cable + SLAVE
HDD''(Jumper MASTER) + IDE2 Cable + MASTER
HDD'''(Jumper SLAVE) + IDE2 Cable + SLAVE
⑥ HDDx1 + CDRW :
HDD (Jumper MASTER) + IDE1 Cable + MASTER
CDRW (Jumper MASTER) + IDE2 cable + MASTER
⑤ HDDx2 + CDRW :
HDD (Jumper MASTER) + IDE1 Cable + MASTER
HDD'(Jumper SLAVE) + IDE1 Cable + SLAVE
CDRW (Jumper MASTER) + IDE2 Cable + MASTER
※ 3 X HDD with standard DC adaptor
4 X HDD with optional SMPS
Selection Cable & Jumper Setup
1
1. Power On 2. New Detected Hard Disk Format
(Select By Play, Reverse Play Key)
3. System Start (Initial View)
※ If do not format newly detected hard disk, it’s the same situation as no hard disk.
If install new hard disk, please do format.
(Only Display Possible, Menu & Search Mode is Impossible)
Hard Disk & CD-RW Install Guide (PART3)
CAMERA
VGA CONNECTION PORT
(COMPUTER MONITOR)
CAMERA WITH
MICROPHONE
(AUDIO INPUT)
ALARM
CONNECTION
RELAY
CONNECTION
BNC
CONNECTOR
(AV MONITOR)
AUDIO OUTPUT
(AV MONITOR)
ETHERNET
CONNECTION
(LAN)
POWER (DC 12V)
RS-485 CONNECTION
(PTZ CAMERA CONTROL)
①
2 Basic Connection
Warning!
Please use Hard Disk Possible to Supply Higher than UDMA66 .
Recommended CD-RW is LG (Model : GCE-8526B,GCE-8527B).
SAMSUNG (Model : SW-252F, TS-H292A, SH-522C).
ASUS (Model : CRW-5232AS), GIGABYTE (Model : GO-R5232B).
HDD & CD-RW installation
- 3 X HDD with standard DC Adaptor
- 4 X HDD with optional SMPS
-2 X HDD + 1 X CD-RW
Recommended USB Memory stick ,USB HDD is
USB Memory Stick: LG(Royal,Mobile,Mirror), IMATION(iflash). MEMORIVE(PRO+)
Freetech I-DISK TINY, Kingmax MaxDrive, Twinmos M1
USB HDD: CUTIE(FHD-254).
