INTRODUCTION

What Is the iStream HD Adapter?

Thank you for purchasing the Intellinet Network Solutions iStream HD™ Wireless Media Adapter. The iStream HD is the ideal solution for connecting your Web TV (IPTV), gaming console or other Ethernet-ready media device to your wireless home network. The iStream HD eliminates the need to locate your gaming system or other entertainment devices near an Internet connection, and because it uses a Cat5e / Cat6 cable to connect to your device, there’s no need to use up one of your valuable USB ports. Setup is incredibly easy, and the iStream HD works with all gaming systems, as well as all IPTVs, DVRs, Blu-ray players and other such devices with an Ethernet port.

The iStream HD allows you to enjoy a completely lag-free online gaming experience from your Xbox 360, PS2, PS3 or Wii system, or watch streaming video in full HD (1080p with 5.1 stereo surround) on such services as Netflix, Hulu or YouTube via your Web-ready HDTV, Blu-ray player or other media device. Even better, the iStream HD is quick and easy to set up.

Package Contents

- iStream HD Wireless Media Adapter

- Ethernet Cat5 RJ45 cable

- Quick installation guide

- Installation CD with user manual (this document)

- 3 -

HARDWARE OVERVIEW

- 4 -

Devic

e

D

o

g

n

g

t

g

E

D

b

t

e

s

o

l

P

s

y

t

e

L

t

(

gh

V

t

s

u

e

s

a

w

e

D

g

h

g

n

o

c

e

m

o

r

t

h

o

b

t

e

r

s

r

t

p

m

s

a

d

p

c

e

l

m

n

o

u

o

e

g

s

y

n

m

t

w

a

o

n

t

a

e

The iStr interfac if the LE because

Signal: This LE connecti

Steady

Flashin The qual downs a represe

Flashin The sign with you intermit

Off: The

WLAN: When th operatin adapter

Power: The Pow reset, th

WPS: If this L network

LAN: This LE of a We

Status

am adap

. See cha

s do not

they hav

indicate

n.

n: Good

slowly: L

ity of the

d lag. If

ts a prob

quickly: al quality r wireles

ent at be

iStream i

is LED fla

normall

is connec

r LED is

e Power

D is lit, i

via WPS

must li

-ready T

LEDs

er allows

pter “Con

light up

been di

the stat

ignal rec

w signal

wireless

you want

em.

oor sign

is too lo

network.

t.

sn’t conn

hes, it m

. The LE

ed to a n

on durin

ED starts

means t

Wi-Fi Pro

t up whe , Blu-ray

disablin

figuratio

here is n

abled.

s of the

ption (b

reception

ignal is s

to strea

l recepti . The iSt

If there i

cted to a

eans tha

will flas twork.

normal

flashing

at the iS

tected Se

n the iStr

player o

the LED

Options”

need to

urrent wi

tter than

.

o low tha

media o

n. eam ada

s any co

ny wirele

the wirel

, regardl

peration.

riefly.

ream ad

tup. Rea

am ada

gaming

complet

for detai

panic; it

reless

50%).

the con

r play onl

ter cann

municati

s networ

ess radio

ess of wh

When yo

pter is c

more on

ter is con

onsole.

ly via th

s. So,

ay be

ection is

ine

ame

t properl

on at all,

k.

of the iSt ether or

perfor

nnected

this belo

nected to

configur

subject t

, then th

commu

it will be

ream ada

ot the iS

a hardw

o a wirel

).

the netw

tion

slow-

is

icate

pter is

ream

re

ss

ork port

- 5 -

RJ45 Network Port

The iStream adapter is equipped with a high-speed network port, which is designed to connect your Internet-ready TV, Blu-ray player or gaming console to the iStream adapter. You can use the included network cable for that purpose. Of course, should you require a longer connection between the iStream adapter and your device, it is no problem to use any standard Ethernet network cable that meets or exceeds the Cat5 specification. If you are not sure about this, don’t worry. Any standard network cable purchased from various retailers or online shops will work just fine.

WPS Push-Button

Wi-Fi Protected Setup (WPS) is a computing standard that attempts to allow easy establishment of secure wireless home-network connections. Created by the Wi-Fi Alliance and introduced in 2007, the goal of the protocol is to allow home users who know little of wireless security and may be intimidated by the available security options to set up the encryption method WPA2, as well as making it easy to add new devices to an existing network without entering long passphrases. So, what does this all mean for you? If your wireless router is a newer device, there is a good chance that it is equipped with a WPS push-button, in which case you are in luck, because adding the iStream adapter to your network will just be a matter of a couple of minutes. If the router is a little bit older and does not support WPS, it will take a little bit longer.

Power On / Off Switch

When it’s not in use, you can power down the iStream adapter to save energy. Since the connection to your wireless network is re-established in less than a minute after startup, there are no downsides to powering down the iStream adapter when it is not used.

Power Outlet Connector

The iStream adapter plugs directly into a power wall outlet. It supports 110V 60 Hz for U.S. and 230V 50 Hz for European power outlets. The plug type will vary, depending on your location. The illustration above depicts the U.S. version of the iStream adapter.

- 6 -

INSTA

L

e

m

l

w

c

O

one

o

h

e

o

N

a

m

a

p

s

o

y

o

t

o

e

k

y

n

t

o

y

P

o

a

n

y

h

u

e

i

e

t

H

n

E

s

h

s

o

t

4

a

r

w

a

o

s

u

T

t

o

W

s

k

x

a

B

w

t

y

e

y

The iStr involves method) and it is manual

LATIO

am Medi

the befor uses a

only a m

ethod,

Adapter

e-mentio

ore tradi

tter of c

rovided

can be in

ed WPS,

ional set

nvenienc our route

stalled in while the p proces

as to w

r support

one of t

second (

. Both w

y you w WPS.

o ways.

e call it

ys lead t

uld use

he first

he manu

the sam

PS over

ay

al

e result,

he

Instal

If your N-conne pushing

Pl

1

M “

C

2

C

3

t Bl d

N

tion U

ireless r

t) then

two butt

ug the iS

ke sure

n” positi

nnect th

twork po

nnect th

e networ

u-ray pla

vice.

te: That

ing W

uter is eq

ou can c

ns.

ream ad

hat the p

n.

patch c

rt on the

other e

port of

er, IPTV

device s

S

uipped w nnect th

pter into

ower swi

ble (red)

iStream

d of the

our gami

or other

ould be t

th a WPS iStream

the wall

ch is set

to the RJ D adapte

etwork c

ng consol

thernet-

urned off.

button ( HD to yo

utlet.

o the

5

r.

ble to

e,

eady

3

ometime

r networ

Ethe

(Xbo

Medi

TV,

referred literally

rnet-read

, Playstati

player, W

lu-ray pla

to as just by

1

2

device on, WII,

b-ready

er, etc.)

- 7 -

nbuofro

rtw

nfo

hrede

dsh

4

u

e

W

h

W

s

W

g

t

e

c

o

n

o

e

t

l

n

p

aing

h

wig

w

c

5

s

u

o

a

d

N

k

e

l

S

e

b

e

i

y

u

t

n

P

o

d

n

gn

h

o

h

k

m

e

W

r

g

t

a

r

v

r

e

5

6

7

O

your ro

tton. Th

the WPS

uter.

P

ess the

o minute

st

ep 4.

O

ce steps

llowing t

• The

• After

will

• Abou

WPS that been

T

e final st

ady devi

vice to b

in

formatio

a

apter sh ould hav

ter, loca

picture i

button o

PS butto

s to com

4 and 5

s will

PS LED

nal LED

PS LED

a few se

out.

10 to 1

LEDs will

he wirele successf

p is to p

e. Allow

ot up an

. The LA

uld be lit

networ

e and pr lustrates

an Intel

on the i

lete step

re compl

appen.

ill flash

will com

ill stay o

onds, bot

seconds

come bac

s connec

lly establ

wer on

few min

obtain i

LED on

now and

or Inter

ss the W

the locati

inet wirel

tream a

5 after fi

te, the

riefly. on.

n.

h the Si

later bot k on, and tion to y

shed.

our Ether

tes for t

s networ he iStrea the devic et access

S

on

ess

apter for ishing

al and

the Sign

stay on,

ur netwo

net-

e

m HD e

.

two seco

PS LEDs

al and

indicatin

k has

Etherne

(Xbox, P

Media pl

TV, Blu-

nds. You

-ready de

laystation,

yer, Webay player,

4

have

5

6

ice WII, eady

tc.)

7

- 8 -

Manua

e

g

y

n

h

d

aInt

uMa

o

t

l

t

e

t

h

o

r

t

p

r

h

b

t

c

e

o

w

p

o

W

a

o

H

t

y

r

s

n

c

e

u

m

e

o

e

a

o

w

r

a

w

p

o

e

W

x

”

n

M

s

o

a

d

a

r

o

n

If you n followin

1. Yo

as

2. If

kn

Hi

w

3. A

th

Pl

1

2

po

N

po

Co ne

l Instal

ed to ins

items b

u need to

the SSID

our wirel

w what

t: It is t

en you c

esktop o t has a s

ernet Ex

the iSt

ke sure t

sition.

te: Your

int.

nnect the

work ca

ation

all the iS

fore you

know th

).

ess netw hat pass

e same

nnect to

laptop c andard

lorer).

eam HD

at the p

computer

iStream

le. Start

ream HD

an begin

name of

rk is pro

ord is.

assword

your wire

mputer

eb brow

dapter i

wer swit

should b

D adapt

he comp

adapter

.

your wir

ected by

ou need

less netw

unning M

er install

to the w

h is set t

shut do

r to you

ter and

anually,

less net

an encry

to enter

rk for th

icrosoft

d (Firefo

ll outlet.

the “On

n at this

compute

llow it to

you will

ork (it is

tion key,

n your la

first tim

indows,

, Safari,

”

r’s LAN u

finish bo

eed to h

also refer

you nee

ptop or t e.

ac OS o

Chrome

ing the i

ting.

ve the

red to

to

blet

Linux, r

cluded

- 9 -

u

t

pas

e

3

otim

o

vanwir

r

1

w

p

h

n

e

n

u

a

e

w

t

w

n

H

g

r

p

t

c

w

u

r

a

e

o

e

s

c

s

k

c

g

u

f

D

d

n

o

e

t

a

c

w

o

e

4

La

nch you

it

o http://i

fai

ls, you ca

ht

p://192.

A

assword

the pass

Yo

u will be

Web bro streamse n also en

68.2.254

window

ord.

resented

ser and

up. In ca

er

.

ill be dis

with the

direct

se this

layed. K

first page

y in user

of the wi

name “a

reless co

min” and

nection

“1234”

izard.

e page s

Th th

network

N

te: If your es. If your

to

low for th

ca

se, you ca ailable. Yo

a

d the iStre

eless rout

ows all w

you wish

etwork do

network o

iStream

try movin

may use

m adapte

r.

ireless ne

to conne

es not sho

ly shows

D adapte the iStre

a longer n

in order t

works cu

t to, and

up in thi

p sporadi

to succes

m HD ada twork cabl

move the

- 10 -

rrently in

then clic

list, try cli

ally, the si

fully pick pter to a di e between

iStream H

range. Y

“Next.”

king Refr

nal streng

p the sign

fferent loc

the Ethern

adapter

u need t

sh a few

h may be

l. In that

tion, if

et device

loser to th

select

yprewir

ethe

g

N

oth

5

w

r

m

w

e

n

s

o

e

w

i

e

C

s

d

u

w

g

m

p

h

s

n

t

m

e

r

o

a

s

w

g

t

s

e

s

Aing

c

o

d

I

s

o

t

e

o

If

our wirel

sented

eless net

ess netw ith the sc

ork her

rk is sec

reen belo

.

red by a

. Enter

encrypti

he pass

on key, y ord (pas

ou will be

phrase) f

r your

6

ote: You n

a

ny comput

p

assword e

c

nnect. Re

e same a

N

xt, you w

setup p

ed to typ

r, tablet P

tered doe

member th

“passwor

ill be sho

ocess.

in the sa

or smart

not matc

at the pas

.”

n the fin

e passwo

hone to y , the iStre word is ca

al confir

d that you

ur wireles m HD ada

e-sensitiv

ation pa

need in or

network.

pter will no

, so “Pas

e. Click “

er to conn

f the

t be able t

word” is n

pply” to

ct

t

finish

Th

e iStrea

Si

7

nal LED

HD will r

ill light,

estart no

ndicatin

with th

an activ

- 11 -

new set

wireless

s. On

connecti

e comple n.

ed, the

mnetrayEth

esta

acon

8

L

r

I

a

r

m

w

o

a

g

e

d

w

m

e

o

d

u

t

P

a

r

v

r

Re

move the

co

puter’s work po player,

ernet-re

N

xt, powe

rt up co

If

ll goes nected t

network

AN port

t of your

nternet-r

dy devic

on that

pletely.

ell, your

the net

cable fro

nd conn

aming c

eady TV

.

evice an

evice wil ork or In

your

ct to the

nsole, Bl

r any oth

allow it

l now be

ternet.

u-

er

o

Etherne

(Xbox,

Media pl

TV, Blu-

-ready de

laystation,

yer, Web-

ay player,

ice WII, eady

etc.)

- 12 -

ADVA

p

g

e

h

c

o

a

s

o

-

h

e

t

a

A

o

C

a

d

u

c

h

o

g

r

n

t

A

s

e

t

G

d

p

n

g

a

m

r

a

t

T

c

m

o

.

a

f

n

p

i

r

9

h

;

u

n

e

m

t

2

r

2

n

w

v

d

S

y

e

w

r

i

n

h

D

p

k

g

m

P

This cha Wireless

NCED

ter expl

Media A

ONFI

ins the a

apter.

URA

vanced

ION M

onfigurat

ENU

on menu

of your i

tream H

Note: T firmwar disable technic

ddition about y settings

Settin

The iStr access t in your instructi address not expl

Window

1. Open

ere is no of your iS

he LEDs.

l difficultie

ally, acces

ur comput

of your ne

Up Yo

am HD o

e advan

omputer

ns that

on the ne

ined in t

7:

the Netw

eed to acc

ream HD

firmware

with the

ing the ad

r system,

work adap

r Com

perates o

ed confi

has to be

ame with twork ad

is user

rk and S

ess these

dapter, ch upgrade is dapter.

vanced co the conce

er.

uter’s

the IP a

uration in

in the sa

your co pter in y anual.

haring Ce

unctions u

ange som

only reco

figuration

t of IP add

Netwo

ddress 1

terface, t

e range

puter for

ur comp

nter.

less you

of the ad

mended if

requires a resses, an

k Adap

2.168.2. e IP add

e.g., 19

informati

ter for a

ish to upg

anced sett

you exper

vanced k

how to c

er

54. For

ress of th

.168.2.5

on on ho

y operati

ade the

ings, or

ence

owledge

ange the I

our com

networ

0. Refer t to chan

ng syste

uter to adapter

o the

e the IP

that is

2. Click

3. Right

n “Chan

click you

e adapte

network

settings

adapter

”

nd select

- 13 -

“Properti

es.”

4. Select “Internet Protocol Version 4” from the list and click “Properties.”

5. Enter the information as shown below, and then click “OK” to save the settings.

Windows XP:

1. Double-click the “Network Connections” icon in the control panel.

2. Right-click the connection (e.g., Local Area Connection) and select “Properties.”

3. Select “Internet Protocol (TCP/IP)” from the list and click “Properties.”

- 14 -

4. Enter the information as shown below, and then click “OK” to save the settings.

Mac OS X:

1. Open the “System Preferences” page.

2. In the Internet & Network section, click the Network icon.

3. Select either Built-in Ethernet or Airport, depending on how you connect to the iStream adapter, then click “Configure… .”

- 15 -

4. Set the value for Configure IPv4 to “Manually” and enter 192.168.2.50 in the IP Address field. Click “Apply Now” (not shown in screen shot) to save the settings.

- 16 -

Accessing the Advanced Configuration Menu

Open a Web browser and go to the page http://istreamsetup. In case this link does not work, try http://192.168.2.254.

A password request window will open up. The default user name is “admin”; the default password is “1234.” It is recommended to change the password in the advanced settings.

MSIE

Firefox

- 17 -

Next, you’ll be looking at the main screen of the iStream HD interface.

This page provides information about the operational status of the device. It shows to which wireless network the iStream HD adapter is currently connected to, which firmware or runtime code is installed and other information.

The page also allows checking to see if a new firmware version is available for your iStream HD adapter. Simply click on the “check for new version” link to do that. Note that your computer must be connected to the Internet for this function to work properly.

- 18 -

Advanced Configuration Menu Options

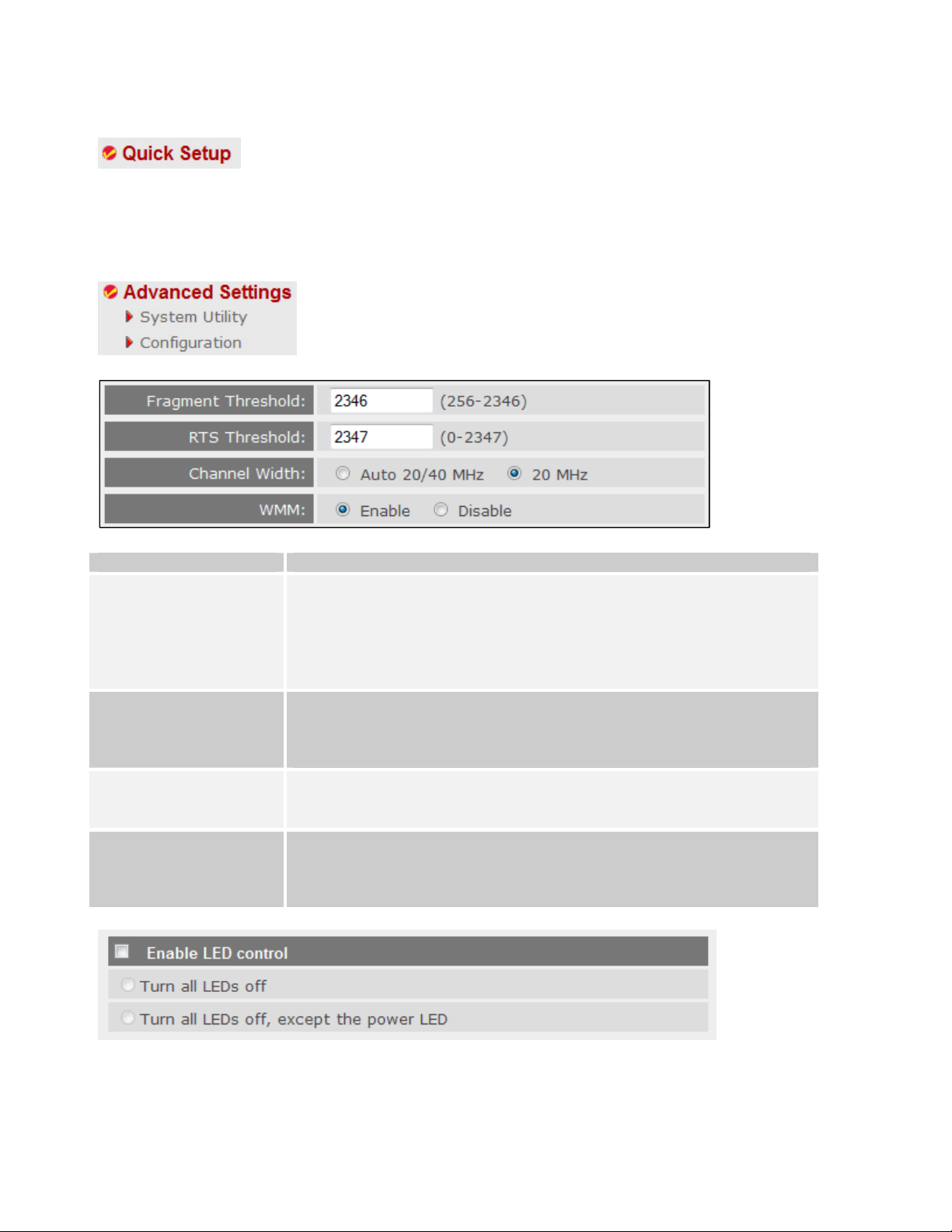

The Quick Setup pages allow connecting the iStream HD to a wireless network. Refer to chapter “Installation -> Manual Installation” for details.

Item Description

Fragment Threshold The fragmentation threshold is used to set the maximum size of

a packet that a client will send. The smaller the maximum sizes, the better the reliability of the wireless connection — but the performance is likely to decrease. Leave this value as 2346 unless you have a very poor wireless signal. Lowering the value can help improve the connection in such cases.

RTS Threshold In case you experience poor wireless performance, you can try

using values between 1200 and 500, and below 500 in severe cases. The default value is 2347, and that should normally not be modified.

Channel Width Select the wireless channel width. 40MHz provides better

network speed for 802.11n wireless clients. “Auto 20/40 MHz” is the recommended value.

WMM Enable or disable Wireless Multi-Media. When enabled, this

device will give priority to multimedia-related network applications so they will have better performance. It is recommended to leave this option enabled.

If you wish to deactivate the LEDs of the iStream HD, you can do so here. You have the choice of either turning off all LEDs or all but the Power LED.

- 19 -

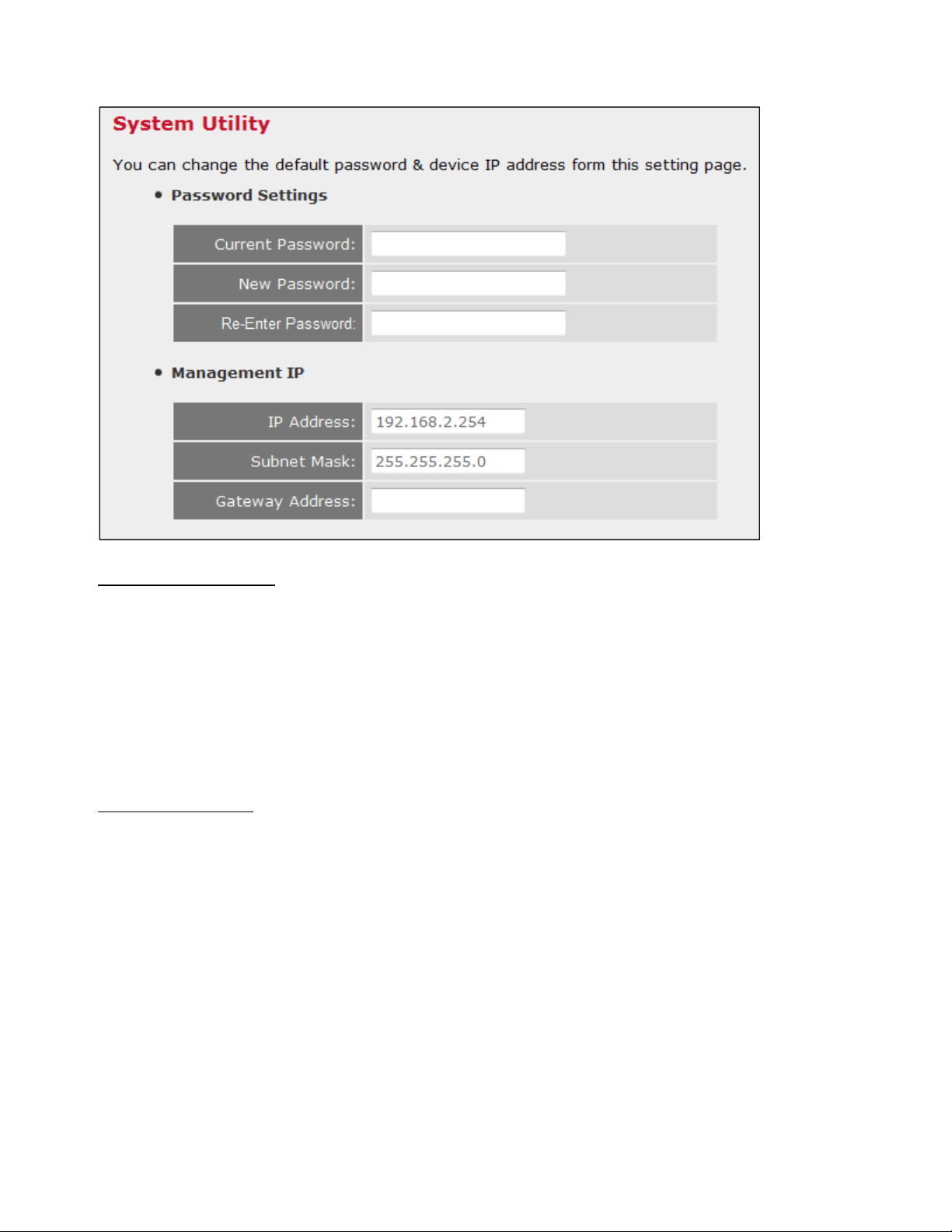

Password settings: By default, accessing the iStream HD advanced configuration does not require a password. To prevent someone from overwriting some settings, you can enter a new password here.

Current Password: Enter the current password (default = 1234) here. New Password: Type in the new password. Re-Enter password: Type in the new password again.

Management IP: The default IP address for the iStream HD is 192.168.2.254.

The IP address of the adapter does not necessarily need to be in range of the wireless network. The IP address range has no impact on the function of the device. However, if you wish to adjust the IP address to make accessing the configuration interface easier — e.g., because your wireless network range is

192.168.0.xxx — then you can make changes to the address here.

Click “Apply” to save the settings.

- 20 -

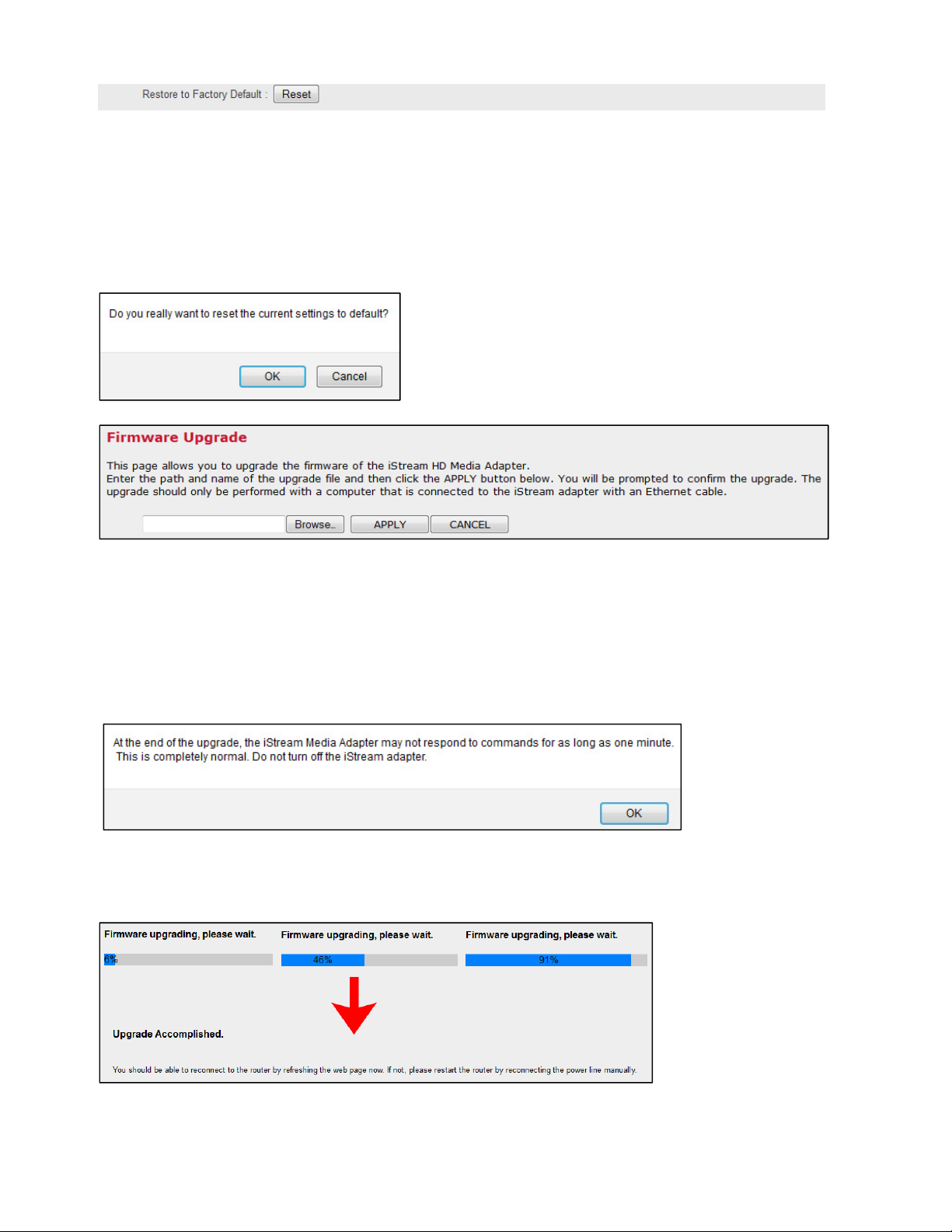

The Restore to Factory Default function should be used if you wish to overwrite the entire configuration with the original factory default values. This is recommended after you upgrade the firmware.

Click the “Reset” button to start the process and confirm your decision by clicking “OK” when you see this dialog:

From time to time there may be new firmware available for the iStream HD. In order to install new firmware, proceed as follows:

1. Click “Browse…” to locate the firmware (.BIN file).

2. Click “Apply.”

3. Confirm the message “Do you wish to begin the firmware upgrade?”

4. Confirm the second message shown below:

5. The upgrade will begin now. During the process the iStream HD will display several messages for you.

- 21 -

After the upgrade you should reset the iStream HD to factory default values (see above).

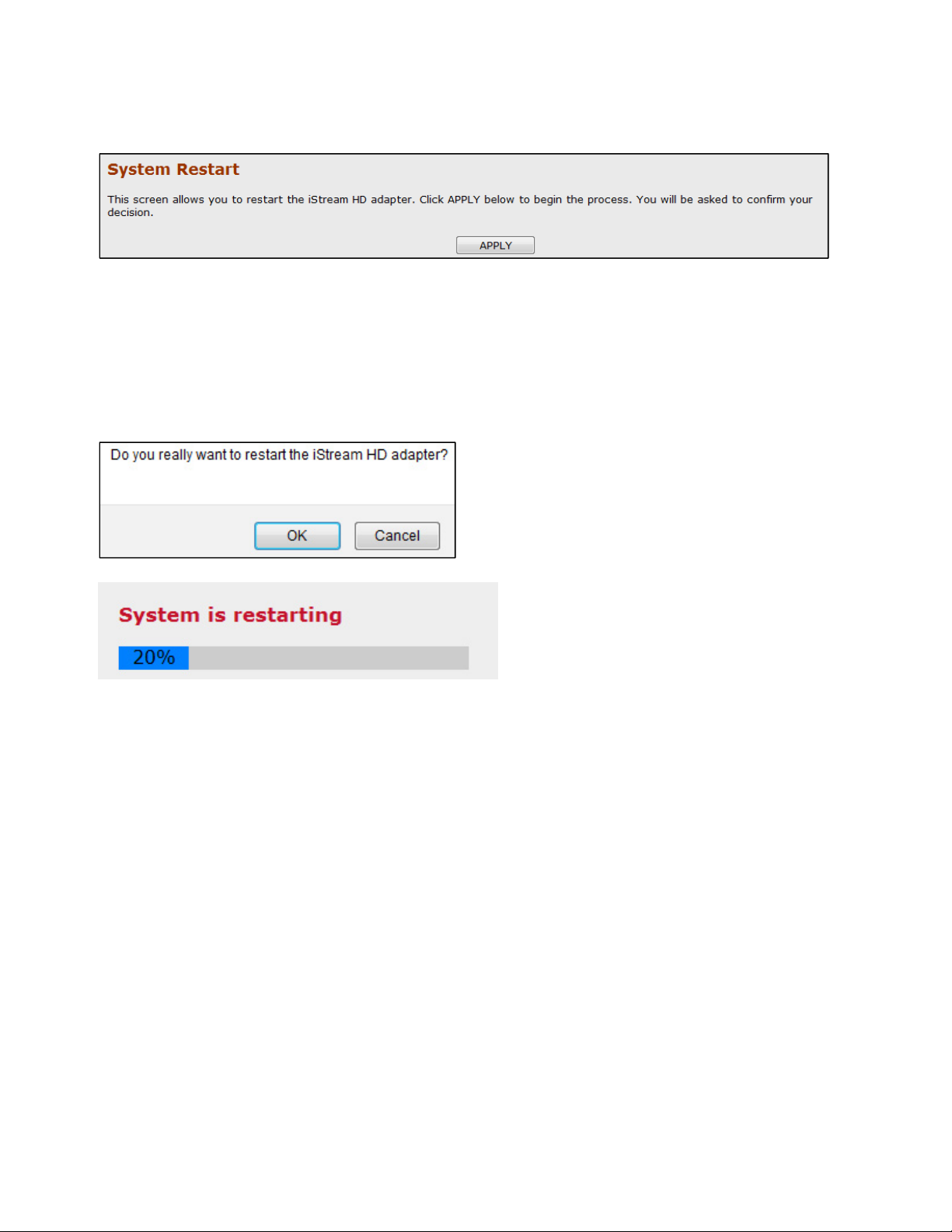

In the event that the iStream HD seems to be performing poorly, a reboot of the adapter may help resolve the problem. The System Restart function is designed to let you do exactly that without physically touching the device. Click “Apply” to restart the iStream media adapter.

Click “OK” to continue.

- 22 -

FACTORY RESET

The iStream HD Wireless Media Adapter can be reset to the original factory default settings two ways.

Option 1: Factory reset via advanced configuration menu. See chapter “Advanced configuration menu options” for details.

Option 2: Hardware reset The iStream HD adapter must be powered on. Push the WPS button for 15 seconds, and then release it. The iStream HD will reboot and will have reverted to the original factory default settings.

Factory default values:

IP address: 192.168.2.254 Administrator user name: admin Administrator password: 1234 Wireless: disconnected

- 23 -

TROUBLESHOOTING

Symptom How to address

The Power LED is not lit. Make sure that the power switch on the iStream HD is set to the

“On” position. In addition, check and make sure that the power outlet provides power.

The LAN LED does not light up.

The WPS LED does not light up.

The WLAN LED is not lit. The WLAN LED should always light, whether a wireless

The Signal LED is off. Whenever the iStream HD is connected to a wireless network,

The hardware reset is not working.

My router has a WPS button, but the WPS setup does not work as described in this manual.

I don’t know the password of my wireless network and cannot connect the iStream HD adapter to my network.

My TV, Blu-ray player or gaming console does not have a network port. How do I connect the iStream HD?

Check the network connection between the iStream HD and the Ethernet port of the device you’re connecting. The network cable must be inserted properly and the Ethernet device must be turned on. Try using a different network cable, if available.

The WPS LED lights only if an existing wireless connection was established by means of WPS. If you created the connection manually, or if no wireless connection has been set up, the WPS LED will stay off.

connection has been established or not. It essentially indicates that the wireless module has started successfully. If the LED is off, yet you have a working wireless connection, the LED may simply have failed. If you cannot connect to any wireless network, the iStream adapter needs to be replaced through your dealer (place of purchase).

or is in the process of connecting, the Signal LED will light. If the Signal LED is off, it means that the iStream HD has not been configured to access any network.

The WPS button needs to be pressed firmly for 15 seconds while the iStream HD is powered on. If it still does not work, it either means that the WPS button is malfunctioning or that you are doing it wrong.

WPS may be disabled in the router settings, or you have not pressed the WPS button on the iStream HD within 120 seconds of pushing the button on the router. Refer to the section “Manual Installation.”

If the wireless network is password-protected, then you can either connect the iStream HD via WPS (should your wireless router support it) or manually by entering the wireless passphrase. If you have forgotten the password, there is no way of connecting the iStream HD to your wireless network. Your only way out is to set up your wireless network with a new password.

You can’t — with one exception: the Nintendo Wii. iStream HD is designed for devices with integrated Ethernet RJ45 network ports. The Nintendo Wii does not have an RJ45 port; therefore, connecting the Wii console to the iStream HD requires the use of the Wii LAN adapter (sold separately). NOTE: Non-Nintendo–manufactured USB LAN adapters will not work with the Wii console system. The Wii LAN adapter plugs into the Wii console's USB port and allows the connection of a device to the Wii console via an Ethernet cable. See the Nintendo website (www.nintendo.com) for details.

- 24 -

Symptom How to address

Can I use the iStream HD as a wireless adapter for my computer?

The signal LED flashes rapidly and there is no wireless connection for my Web-ready TV or gaming console.

The Signal LED flashes slowly and the network connection for my Webready TV or gaming system seems slow.

Netflix movies take a long time to start playing.

The iStream HD adapter is supposed to stream HD video contents, yet I only receive standard-definition contents from Netflix.

My Internet service is fast enough, yet I still experience a lot of buffering and I only receive standarddefinition video when using Netflix or other forms of online video streaming, such as YouTube.

Indeed you can. Simply set up the iStream HD as usual and connect it to the computer’s network port when finished. iStream HD now acts as a wireless adapter for your computer.

The flashing LED means that the signal strength is too weak to create a reliable wireless connection. Try re-locating or repositioning the iStream adapter. As long as the LED keeps flashing at a rapid pace, you won’t be able to use the iStream HD adapter in any reasonable fashion.

The wireless signal strength is not optimal. Depending on the content you are transmitting over the wireless connection, occasional slow-downs can indeed occur. To improve the performance try re-locating or re-positioning the iStream HD adapter.

That is called buffering. Depending on your Internet connection speed (main factor) and the wireless connection speed of the iStream adapter (contributing factor), the buffering can take more than a minute. What happens here is that a good chunk of the movie is pre-loaded before the playback starts, so that the movie will not pause during playback. Rule of thumb: The slower your Internet connection speed, the longer the buffering will take. If you want instant streaming of standard definition content, your Internet download speed must be at least 2 Mbps. If you expect instant-on HD contents, speeds greater than 5 Mbps are recommended.

Netflix analyzes the connection speed between the client (your Xbox, PlayStation, IPTV, etc.) and the Netflix server. Depending on the result of that test you will get video that is optimized for your connection speed. In order to receive Netflix HD 1080p video, your Internet connection needs to be providing a steady, low-latency connection of more than 5 Mbps.

These symptoms clearly show that connection speed between the Netflix client — for example, your Internet-ready TV — and the Netflix online service is not fast enough. There are many possible reasons for this.

1. If you are experiencing these problems mostly in the evenings and on weekends, this points to your Internet connection as the cause for the problem. While your service provider can tell you how much bandwidth is available for your service package, this bandwidth can fluctuate greatly, depending on the time of day and the service provider’s total available bandwidth for all of its clients. There are also websites available online that you can visit that will test and measure the bandwidth that is available on your existing home network. If you perform a test on your computer and are receiving less bandwidth than expected, contact your Internet service provider to troubleshoot the issue. One popular site is speedtest.net.

For example, if you test your connection speed in the evening and you are getting something like this …

- 25 -

I experience more lag when playing online games compared to before, when my gaming console was connected with a network cable.

I am setting up my gaming console for wireless access, but it does not work. I cannot connect to the network.

How can I use the iStream with my Nintendo Wii?

… and when you repeat the test in the morning you’re getting something like this …

.

… it means that the bottleneck is your Internet connection, and not your local wireless network. Contact your Internet service provider to troubleshoot the issue.

2. If the problems occur all the time, and your Internet connection speed is fast for computers and other devices connected directly to the wireless router, the problem can indeed be related to the iStream HD adapter and its connection speed to the wireless network. A good way to test this is to first measure your Internet speed with a computer that is connected to the router. Then connect the computer to the LAN port of the iStream adapter and repeat the test. It would be normal that the results are not quite as high, but if you experience a significant decrease, then the wireless connection between the iStream adapter and your wireless network is not optimal. Try re-locating or re-positioning the iStream HD.

3. Someone may be freeloading. Ensure that your connection is secure. You may be unknowingly sharing your connection with others nearby if using an unsecured wireless network setup.

It is not out of the ordinary for ping times to increase ever so slightly when you switch from a wired to a wireless connection. The effects become more pronounced if the wireless connection is poor. Typically, though, online gaming will not be affected in a negative way. If you require best possible ping times and lowest possible lag without any compromises, then a wireless connection for your gaming console may not be the right choice for you. A 500 Mbps Powerline AV starter kit may serve you better in this case.

You need to set up your gaming console for regular Ethernet cable-based access, not wireless. iStream HD is a wireless device; however, as far as your gaming console is concerned, it is connected with a regular network cable. iStream is “transparent” in the network and your gaming console does not even know it is there.

You need to connect a Wii LAN adapter to your Wii in order to connect the iStream adapter. See Addendum.

- 26 -

ADDENDUM

PlayStation3 Network Setup

1. Connect an Ethernet cable from the iStream network port to the PS3

system.

2. Select (Settings) > (Network Settings).

3. Select [Internet Connection Settings].

Select [Yes] when a confirmation screen is displayed stating that you will be disconnected from the Internet.

4. Select [Custom].

5. Select “Wired Connection” as the connection method.

6. Select “Auto-Detect.”

7. Addition settings you may need to confirm:

- IP address settings: set to “Automatic.”

- DHCP host name: set to “Do Not Set.”

- DNS settings: set to “Automatic.”

- MTU should be set to “Automatic.”

- Proxy server needs to be set to “Do Not Use.”

- UPnP should be enabled.

Xbox 360 Network Setup

1. Press the Guide button on your controller (Xbox button in the center of your

controller).

2. Go to Settings, and then select “System Settings.”

3. Select “Network Settings.”

4. Select “Wired Network” if you are prompted to do so.

- 27 -

5. Select “Test Xbox LIVE Connection.”

Wii Network Setup

1. Install a Wii LAN adapter (for instructions, click here)

2. From the Wii Main Menu, select the Wii icon from the bottom left.

3. Select "Wii Settings" to access the "Wii System Settings" menu.

4. Using the arrow on the right side of the screen, scroll to page 2 and select "Internet."

5. Next, select "Connection Settings."

6. Select "Connection 1: None" NOTE: If you do not have an empty connection slot, you will need to clear one. For instructions, click here.

7. Select "Wired Connection."

8. Select "OK" on the next screen. At this point your Wii will attempt to make a connection with the iStream HD.

If the connection test succeeds, then your Wii is now connected to the Internet. If the connection test fails, and you receive an error code, please click here for help.

If you encounter any other problems while connecting your Wii to the Internet, please contact Nintendo customer service for assistance.

- 28 -

SPECIFICATIONS

• IEEE 802.11b (11 Mbps Wireless LAN)

• IEEE 802.11g (54 Mbps Wireless LAN)

• IEEE 802.11e (QoS Enhancement WMM)

• IEEE 802.11n (300 Mbps Wireless LAN) General

• LAN port: RJ45 10/100 Mbps data port

• LAN port with Auto MDI/MDI-X

• Flash: 2 MB

• Memory: 16 MB SDRAM

• Certifications: FCC Class B, CE, RoHS Wireless

• Wireless frequency range: 2.400 – 2.483 GHz

• Modulation technologies

- 802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK

- 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

- 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

• Data rates

- IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)

- IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps)

- IEEE 802.11n (MCS0-15: up to 300 Mbps)

• Output power

- OFDM: 13 dBm +/- 1.5 dBm (300 Mbps, 20 mW max.)

- OFDM: 14 dBm +/- 1.5 dBm (54 Mbps, 25 mW max.)

- CCK: 17 dBm +/- 1 dBm (11 Mbps, 63 mW max.)

• Receiver sensitivity

- 11n (300 Mbps) MCS0-15: 20 MHz: -67 dBm; 40MHz: -63 dB (+/- 2 dBm)

- 11g (54 Mbps) OFDM: -70 dBm (+/- 2 dBm)

- 11b (11 Mbps) CCK: -85 dBm (+/- 2 dBm)

• Wireless security

- WEP encryption (64/128 bit)

- WPA TKIP

- WPA2 AES

- WPA2 mixed

• Antennas

- 2 internal printed antennas with 3 dBi gain each

- 2T2R MIMO mode (2 transmitters, 2 receivers) Power

• Internal power adapter: 5 V DC, 1.0 A

• Power consumption: 4 Watts max. Environmental

• Dimensions: 46.5 (W) x 73 (H) x 41 (D) mm (1.8 x 2.9 x 1.6 in.)

• Weight: 0.45 kg (1.0 lb.)

• Operating temperature: 0 – 40°C (32 – 104°F)

• Operating humidity: 10 – 90% RH, non-condensing

• Storage temperature: -20 – 60°C (4 – 149°F) Package Contents

• iStream HD Wireless Media Adapter

• Quick install guide

• User manual

• Ethernet Cat5 RJ45 cable: 1.0 m (3 ft.)

- 29 -
