GIGABIT
ETHERNET
RACKMOUNT
SWITCH
USER
MANUAL
MODELS 524148
& 524162
Shown: Mod el 524148, 16-Port
INT-524148/524162-UM-0608-01
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™
Gigabit Ethernet Rackmount Switch, Model 524148 (16-port) or 524162
(24-port).
Designed for medium- to large-size workgroups, this device’s Gigabit
Ethernet ports provide the performance your network needs to handle
the quick transfer speeds that support disk mirroring, data backup,
graphics image le transfers and other bandwidth-intensive applications.
Auto features make it easy to use, too. No conguration is required,
making installation Plug and Play and hassle free. Auto-MDI/MDI-X on
all ports eliminates the need for crossover cables, and each port senses
the link speed of any connected network device automatically, adjusting
to 10, 100 or 1000 Mbps for compatibility and maximum performance.
Simple setup means you’ll soon be enjoying these additional features:
• Supports NWay auto-negotiation
• Store and forward switching
architecture
• Supports 802.3x ow control for
full duplex mode and collision based backpressure for half
duplex mode
• 19” rackmount brackets
• Wire-speed packet ltering and
forwarding rate
• Supports up to 8192 MAC address
entries and jumbo frames up to
9.6 kBytes
• 340 kBytes (16-port) or 500 kBytes
(24-port) buffer memory
• Lifetime Warranty
FCC Warning
This device has been tested and found to comply with limits for a Class B
digital device, pursuant to Parts 2 and 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates and radiates radio frequency energy and, if not
installed and used in accordance with the user’s manual, may cause
interference, in which case the user will be required to correct such
interference at his own expense.
CE Warning
This is a Class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
3

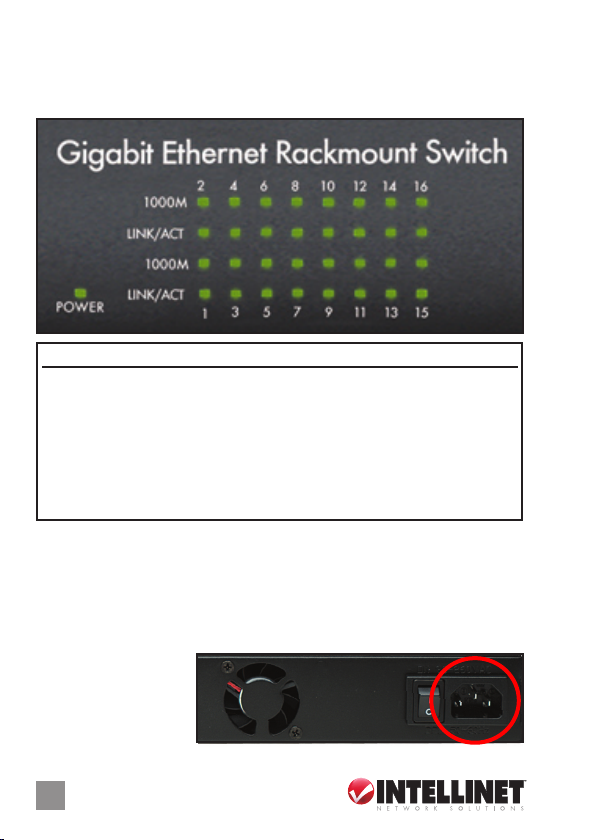

FRONT PANEL
LEDs
LED Status Operation
Power On Unit is receiving power.
Off Unit is not receiving power.
LINK/ACT On Corresponding port is connected.
Off Corresponding port is not connected.
Flashing Corresponding port is transmitting/receiving data.
1000M On Port is transmitting/receiving data at 1000 Mbps.
Off Port is transmitting/receiving data at 10 or 100
Mbps.
Shown: Mod el 524148, 16-Port
REAR PANEL
Power
Power to the Gigabit Ethernet Rackmount Switch is supplied by plugging
the included power
cable into the socket
to the right of the on/
off switch on the rear
panel.
4
Switch/Hub/PC and Other Network Connections
The Gigabit Ethernet Rackmount Switch provides automatic crossover
detection for all ports, so it’s ready for connection to other switches,
hubs, PCs, servers and such without the need for crossover cable.
Ethernet
Switch
5
SPECIFICATIONS
Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair
Gigabit Ethernet)
• IEEE 802.3u (100Base-TX Fast
Ethernet)
• IEEE 802.3x (ow control, for full
duplex mode)
General
• Media support:
- 10Base-T Cat3, 4, 5 UTP/STP
RJ-45
- 100Base-TX Cat5 UTP/STP
RJ-45
- 1000Base-T Cat5e UTP/STP
RJ-45
• Packet lter/forwarding rate:
- 1,488,000 pps (1000 Mbps)
- 148,800 pps (100 Mbps)
- 14,880 pps (10 Mbps)
• Buffer memory:
- 16-Port: 340 kBytes
- 24-Port: 500 kBytes
• MAC address table: 8192 entries
• Backplane speed:
- 16-Port: 32 Gbps
- 24-Port: 48 Gbps
• Switch architecture: store and
forward
• 16/24 RJ-45 Gigabit Ethernet ports
• Certications: FCC Class B, CE
Mark
LEDs
• Power
• Link Speed per port: 1000 Mbps
• Link/Activity per port
Power
• Internal power supply, 100 – 240
V AC, 50/60 Hz
• Power consumption:
- 16-Port: 20 Watts (maximum)
- 24-Port: 25 Watts (maximum)
Environmental
• Metal housing, 19” rackmount, 1 U
• Dimensions: 440 (W) x 220 (L) x
44 (H) mm (17.4 x 8.6 x 1.7 in.)
• Weight:
- 16-Port: 2.9 kg (6.4 lbs.)
- 24-Port: 3.0 kg (6.5 lbs.)
• Operating temperature: 0 – 55°C
(32 – 131°F)
• Operating humidity: 10 – 90% RH,
non-condensing
• Storage temperature: -20 – 90°C
(-4 – 194°F)
Package Contents
• Gigabit Ethernet Rackmount
Switch
• Power cable
• 19” rackmount brackets
• User manual
6
INTELLINET NETWORK SOLUTIONS™ offers a complete line
of active and passive networking products.
Ask your local computer dealer for more information or visit
www.intellinet-network.com.
All products mentioned are trademarks or registered trademarks of their respective owners.
Copyright © INTELLINET NETWORK
SOLUTIONS
