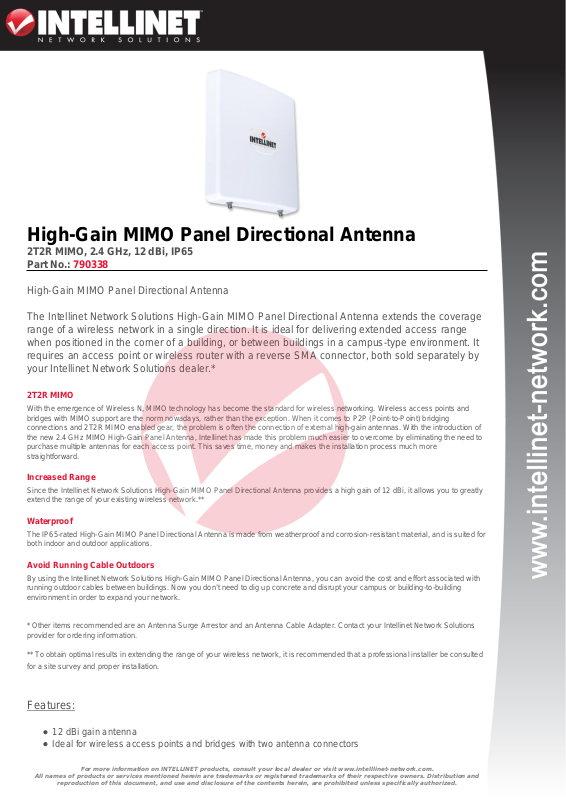

High-Gain MIMO Panel Directional Antenna
2T2R MIMO, 2.4 GHz, 12 dBi, IP65
Part No.: 790338
High-Gain MIMO Panel Directional Antenna
The Intellinet Network Solutions High-Gain MIMO Panel Directional Antenna extends the coverage
range of a wireless network in a single direction. It is ideal for delivering extended access range
when positioned in the corner of a building, or between buildings in a campus-type environment. It
requires an access point or wireless router with a reverse SMA connector, both sold separately by
your Intellinet Network Solutions dealer.*
2T2R MIMO
With the emergence of Wireless N, MIMO technology has become the standard for wireless networking. Wireless access points and
bridges with MIMO support are the norm nowadays, rather than the exception. When it comes to P2P (Point-to-Point) bridging
connections and 2T2R MIMO enabled gear, the problem is often the connection of external high-gain antennas. With the introduction of
the new 2.4 GHz MIMO High-Gain Panel Antenna, Intellinet has made this problem much easier to overcome by eliminating the need to
purchase multiple antennas for each access point. This saves time, money and makes the installation process much more
straightforward.
Increased Range
Since the Intellinet Network Solutions High-Gain MIMO Panel Directional Antenna provides a high gain of 12 dBi, it allows you to greatly
extend the range of your existing wireless network.**
Waterproof
The IP65-rated High-Gain MIMO Panel Directional Antenna is made from weatherproof and corrosion-resistant material, and is suited for
both indoor and outdoor applications.
Avoid Running Cable Outdoors
By using the Intellinet Network Solutions High-Gain MIMO Panel Directional Antenna, you can avoid the cost and effort associated with
running outdoor cables between buildings. Now you don’t need to dig up concrete and disrupt your campus or building-to-building
environment in order to expand your network.
* Other items recommended are an Antenna Surge Arrestor and an Antenna Cable Adapter. Contact your Intellinet Network Solutions
provider for ordering information.
** To obtain optimal results in extending the range of your wireless network, it is recommended that a professional installer be consulted
for a site survey and proper installation.
Features:
12 dBi gain antenna
Ideal for wireless access points and bridges with two antenna connectors
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on INTELLINET products, consult your local dealer or visit www.intelllinet-network.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 2
Ideal for building-to-building wireless connections
Weatherproof and corrosion resistant, IP65
Two SMA female connectors (SMA socket)
22° horizontal and 25° vertical beam width
For wall mounting
Connection to Intellinet Wireless 300N Access Points (524728 and 524735) requires two antenna
cables, model 790406
Not suitable for use with Intellinet Wireless 300N Outdoor PoE Access Point 524711
Three-Year Warranty
Specifications:
Electrical Specifications
» Frequency range: 2.4 – 2.5 GHz
» Gain: 12 dBi
» VSWR: ≤2.0
» Polarization: horizontal, vertical
» HPBW/horizontal: 22°
» HPBW/vertical: 25°
» Power handling: 10 W
» Impedance: 50 Ohms
» Connector: SMA female
Environmental & Mechanical Characteristics
» Operating temperature: -20 – 65°C (-4 – 149°F)
» Storage temperature: -30 – 70°C (-22 – 158°F)
» Cover material: ABS + PC
» Base material: ABS + PC
» Weight: 0.6 kg (1.3 lbs.)
» Dimensions: 180 (L) x 200 (W) (7 x 7.8 x 1.5 in.)
Package Contents
» High-Gain MIMO Panel Directional Antenna
» Quick installation guide
» Mounting hardware
