Intellinet I-ET SX-SCSM User guide

Download

Page 1

Brief introduction

LED

function

status

Describing

PWR

Power LED

Power is ON.

OFF

Power is Fail.

Fiber port signal

detect LED

Laser is receiving.

OFF

No laser input.

FX-LINK/ACT

Fiber port

link/action status

LED

Fiber link is ok.

Blink

Data is been received or

transmitted

OFF

Fiber link is fail.

TX RX

PWR

1000M

Link/ACT

Link/

UTP

FDX/

ACT

COL

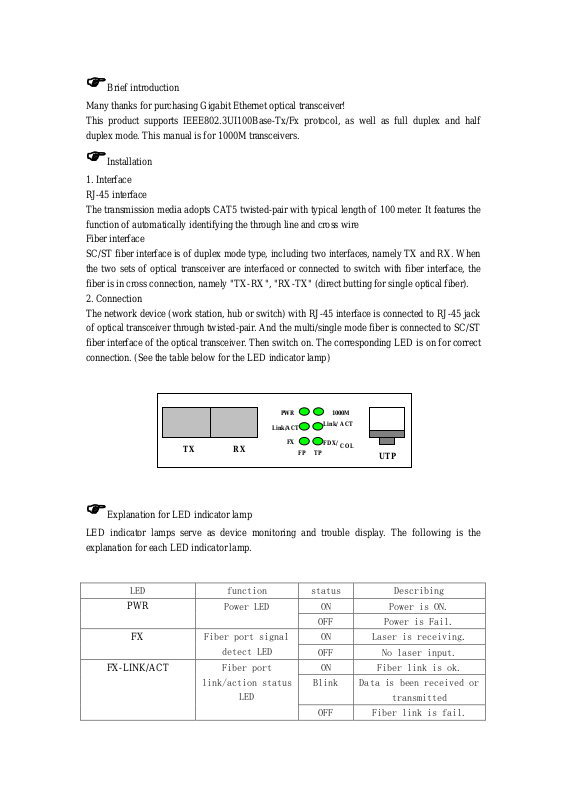

Many thanks for purchasing Gigabit Ethernet optical transceiver! This product supports IEEE802.3UI100Base-Tx/Fx protocol, as well as full duplex and half duplex mode. This manual is for 1000M transceivers.

Installation

1. Interface RJ-45 interface The transmission media adopts CAT5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire Fiber interface SC/ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).

2. Connection The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair. And the multi/single mode fiber is connected to SC/ST fiber interface of the optical transceiver. Then switch on. The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)

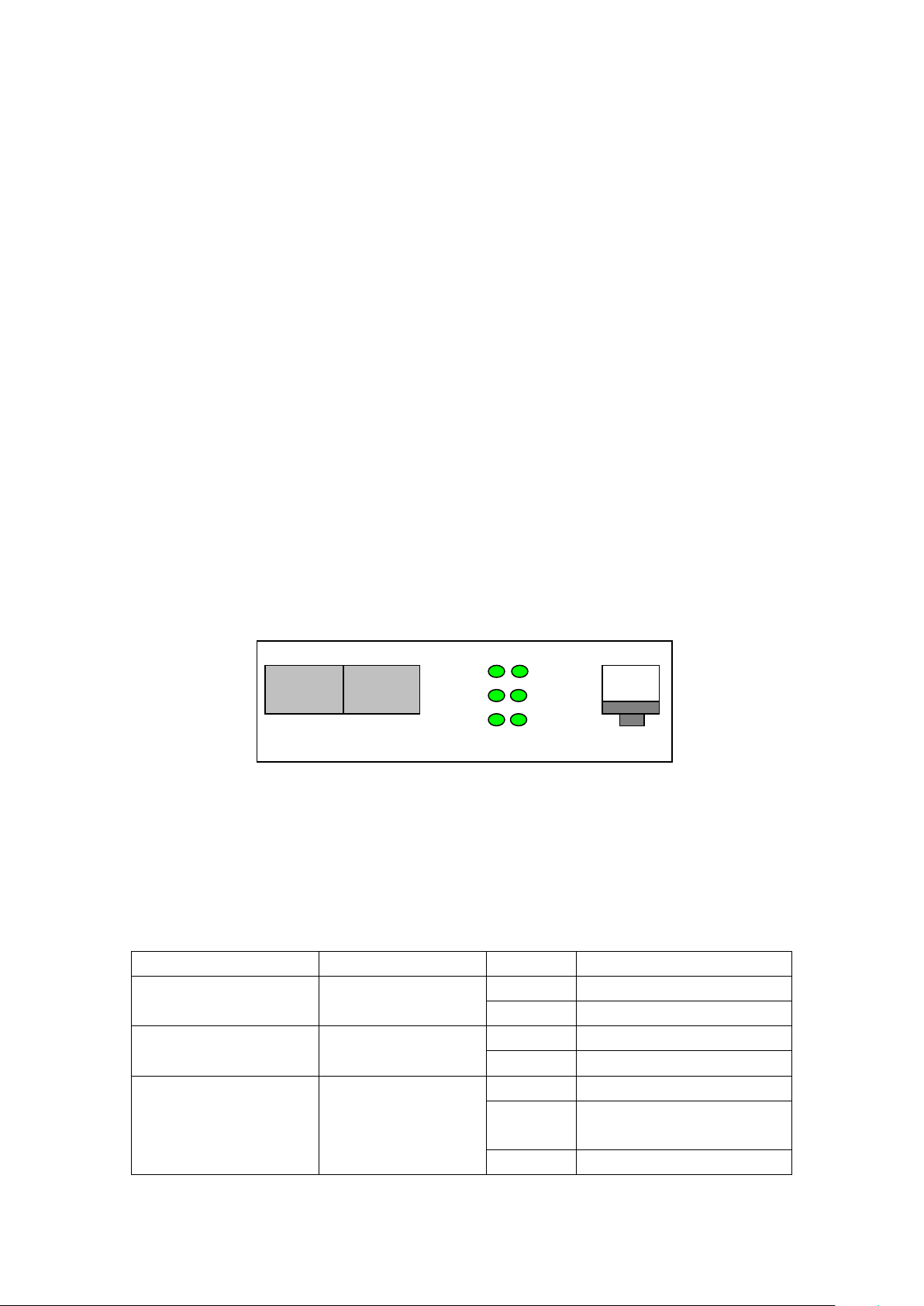

FigureP

Explanation for LED indicator lamp

LED indicator lamps serve as device monitoring and trouble display. The following is the explanation for each LED indicator lamp.

Page 2

1000M

UTP port speed LED

1000M speed

OFF

100M speed

TX-LINK/ACT

UTP port

link/action status

LED

Link is ok.

Blink

Data is been received or

transmitted

OFF

Link is fail.

FDX/COL

UTP port duplex LED

Full duplex

OFF

Half duplex

Main features

1. In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base-TX/FX standard.

2. Max. 2M buffer memory built in chip.

3. Back pressure flow control for full duplex

IEEE802.3 X and half duplex.

4. Automatic identification of MDI/MDI-X cross line.

5. High-performance1.4Gbps memory bandwidth.

6. In conformity to safety code of FCC and 15 CLASS B and CE MARK.

Technical parameters:

1. Standard Protocol: IEEE802.3 10 Base-T standard

IEEE 802.3u 100Base-TX/FX standard

2. Connector: one UTP RJ-45 connector, one SC/ST connector

3. Operation mode: full duplex mode or half duplex mode

4. Power supply parameter: outside: 5V DC 1A

built-in: 110-265V AC 48VDC

5. Environmental temperature: 0℃-60 ℃

6. Relative humidity: 5%-90%

8. TP cable: Cat5 UTP cable

9. Transfer fiber: single mode: 8.3/125, 8.7/125, 9/125 or 10/125μm

10 Dimensions: External power supply: 26mmx 70mm x 95mm Built-in power supply: 30mm x 110mm x 140mm

Cautions:

1. This product is suitable for indoor application.

2. Put on the dust cover of fiber interface when not used.

3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.

4. Single optical fiber transceiver must be used in pair (See the attachment description in delivery).

Trouble shooting:

1. Line loss is excessive during the fiber wiring. Excessive loss in connector plug-in and fiber soldering welding,

and excessive intermediate nodes may cause excessive loss rate or abnormal operation.

Page 3

Description

Fiber mode

Connector

Wavelength

Distance
