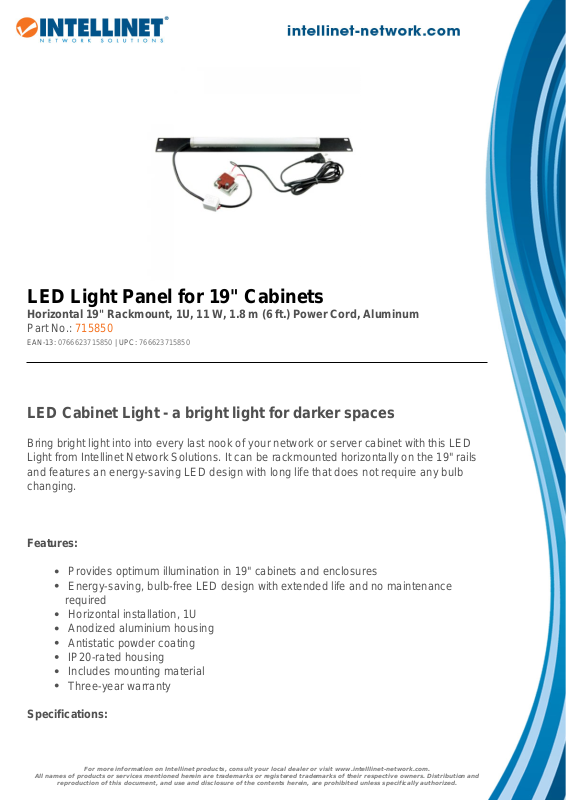

LED Light Panel for 19" Cabinets
Horizontal 19" Rackmount, 1U, 11 W, 1.8 m (6 ft.) Power Cord, Aluminum
Part No.: 715850
EAN-13: 0766623715850 | UPC: 766623715850
LED Cabinet Light - a bright light for darker spaces
Bring bright light into into every last nook of your network or server cabinet with this LED
Light from Intellinet Network Solutions. It can be rackmounted horizontally on the 19" rails
and features an energy-saving LED design with long life that does not require any bulb
changing.
Features:
Provides optimum illumination in 19" cabinets and enclosures
Energy-saving, bulb-free LED design with extended life and no maintenance
required
Horizontal installation, 1U
Anodized aluminium housing
Antistatic powder coating
IP20-rated housing
Includes mounting material
Three-year warranty
Specifications:
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 2
General
• Housing material: aluminum
• Light: LED, not exchangeable
• Luminous flux: 225 lm
• Standards and certifications: CE, RoHS
Electrical
• Power plug: Europlug CEE 7/16, Type C
• Input: 100 - 240 VAC, 50 - 60 Hz
• Operating voltage: 12 VDC
• Power consumption: 11 watts (max.)
Physical
• Dimensions: 43 x 483 x 44.5 mm (1.69 x 19 x 1.75 in.)
• Cable length: 1.8 m (6 ft.)
• Weight: 500 g (17.6 oz.)
Operating Environment
• Operation temperature: -20 - 50°C (-4 - 122°F)
• Storage temperature: -25 - 70°C (-13 - 158°F)
• Humidity (noncondensing): 0 - 95% RH
Package Contents
• LED Light Panel for 19" Cabinets
• Installation material
