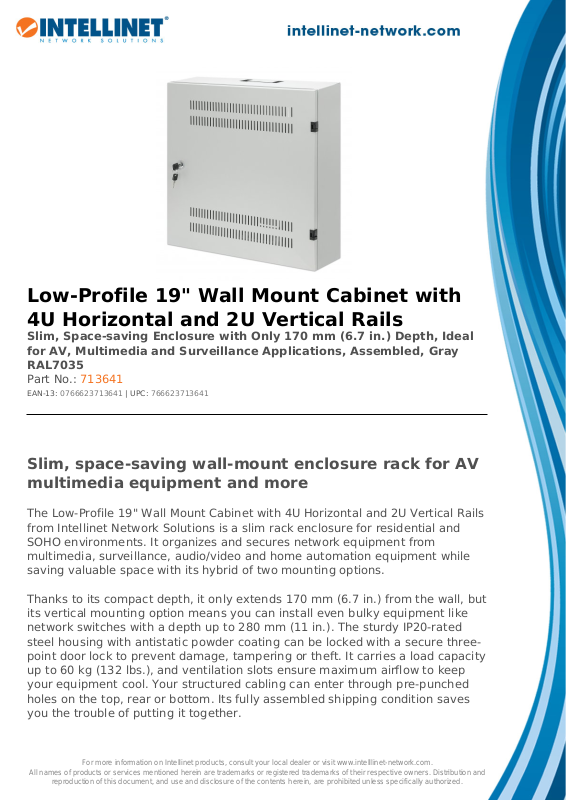

Low-Profile 19" Wall Mount Cabinet with
4U Horizontal and 2U Vertical Rails
Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal
for AV, Multimedia and Surveillance Applications, Assembled, Gray
RAL7035
Part No.: 713641
EAN-13: 0766623713641 | UPC: 766623713641
Slim, space-saving wall-mount enclosure rack for AV
multimedia equipment and more
The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails
from Intellinet Network Solutions is a slim rack enclosure for residential and
SOHO environments. It organizes and secures network equipment from
multimedia, surveillance, audio/video and home automation equipment while
saving valuable space with its hybrid of two mounting options.
Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but
its vertical mounting option means you can install even bulky equipment like
network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated
steel housing with antistatic powder coating can be locked with a secure threepoint door lock to prevent damage, tampering or theft. It carries a load capacity
up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep
your equipment cool. Your structured cabling can enter through pre-punched
holes on the top, rear or bottom. Its fully assembled shipping condition saves
you the trouble of putting it together.
For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Features:
Slim, space-saving design for organized, secure housing of multimedia,
surveillance, audio/video and smart home equipment
Horizontal 4U 19" rackmount option for PDUs, patch panels and other
equipment with a depth up to 170 mm (6.7 in.)
Vertical 2U 19" rackmount option for network switches and other
equipment with a depth up to 280 mm (11 in.)
Maximum load capacity of 60 kg (132 lbs.)
Extends only 170 mm (6.7 in.) from the wall
Sturdy, secure steel housing with antistatic powder coating
Three-point door lock with two included keys
Ventilation slots for maximum airflow to keep your equipment cool and
prevent overheating
IP20-rated protection
Pre-punched cable entry openings on top, rear and bottom
Ships fully assembled for quick installation
Three-year warranty
Specifications:
Standards and Certifications
• RoHS
• IP20 Protection Rating
• ANSI/EIA 310-E
• IEC 60297-2
General
• Dimensions (L x W x H): 540 x 550 x 170 mm (21.26 x 21.65 x 6.69 in.)
• Weight: 8.5 kg (18.74 lbs.)
• Maximum static load: 60 kg (132 lbs.)
• Material: steel
• Color: gray RAL7035
Package Contents
• Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails
• Cage nut set for 19" rackmount equipment (12 x M6 screw, 12 x M6 cage nut,
12 x plastic washer)
• Two keys
