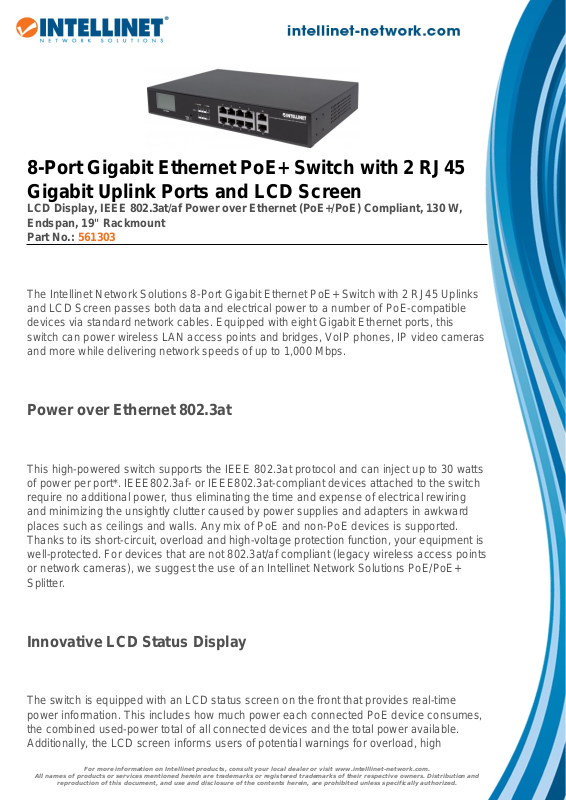

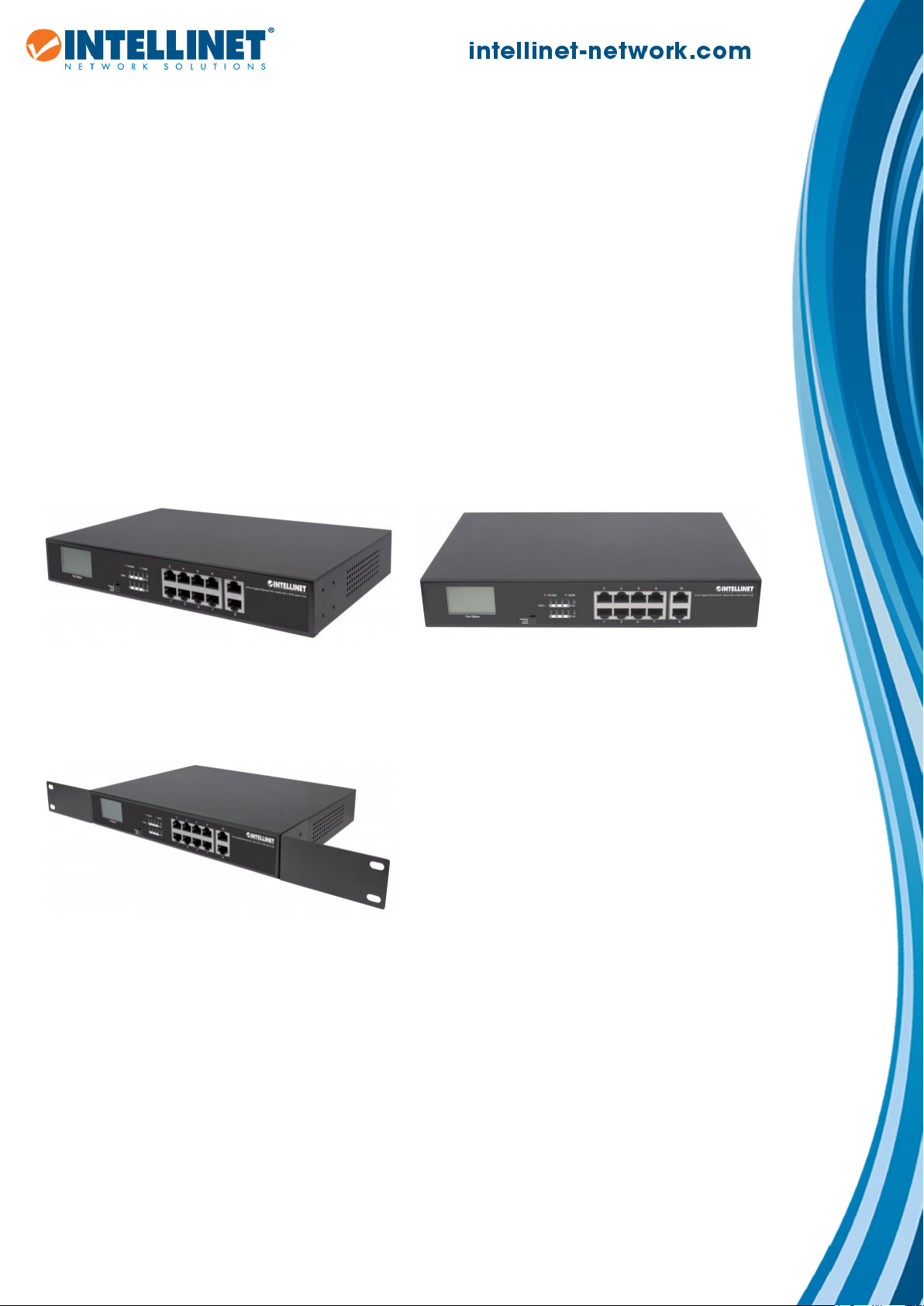

8-Port Gigabit Ethernet PoE+ Switch with 2 RJ45
Gigabit Uplink Ports and LCD Screen

LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 130 W,
Endspan, 19" Rackmount
Part No.: 561303

The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with 2 RJ45 Uplinks
and LCD Screen passes both data and electrical power to a number of PoE-compatible
devices via standard network cables. Equipped with eight Gigabit Ethernet ports, this
switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras
and more while delivering network speeds of up to 1,000 Mbps.

Power over Ethernet 802.3at

This high-powered switch supports the IEEE 802.3at protocol and can inject up to 30 watts
of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch
require no additional power, thus eliminating the time and expense of electrical rewiring
and minimizing the unsightly clutter caused by power supplies and adapters in awkward
places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported.
Thanks to its short-circuit, overload and high-voltage protection function, your equipment is
well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points
or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+
Splitter.

Innovative LCD Status Display

The switch is equipped with an LCD status screen on the front that provides real-time
power information. This includes how much power each connected PoE device consumes,
the combined used-power total of all connected devices and the total power available.
Additionally, the LCD screen informs users of potential warnings for overload, high

All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and

For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.

reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.

temperature, short-circuit protection and others. This feature always keeps you informed
about the status of your PoE switch with a glance at the screen.

Equipped with eight auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports and two
RJ45 uplink ports, this switch offers plenty of performance for your computers, servers and
other networking devices.

* Total PoE budget for this switch is 130 watts. Per-port average power distribution is 16.25
watts; maximum per-port power usage cannot exceed 30 watts.

Features:

Provides power and data connection for up to eight PoE network devices
Saves time and money by delivering data and power via existing network cables
10/100/1000 auto-sensing ports automatically detect optimal network speeds
LCD display for easy access to real-time PoE status monitoring
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Power output up to 30 watts per port*
Manual PoE extend mode (reduces network speed and extends PoE support to 250
m)
Manual VLAN mode (allows ports 1 through 8 to be isolated from each other)
PoE power budget of 130 watts
Two RJ45 Gigabit uplink ports
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless
access points, VoIP phones, IP cameras)
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage
protection
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
Green Ethernet power-saving technology deactivates unused ports and adjusts power
levels based on the cable length
All RJ45 ports with Auto-MDIX (auto uplink) support
Store and forward switching architecture
IEEE 802.3x flow control for full duplex
Supports up to 8192 MAC address entries, Auto-Learning and Auto-Aging
Cooling fan for ventilation
Includes 19" rackmount brackets
Three-year warranty

Specifications:

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
