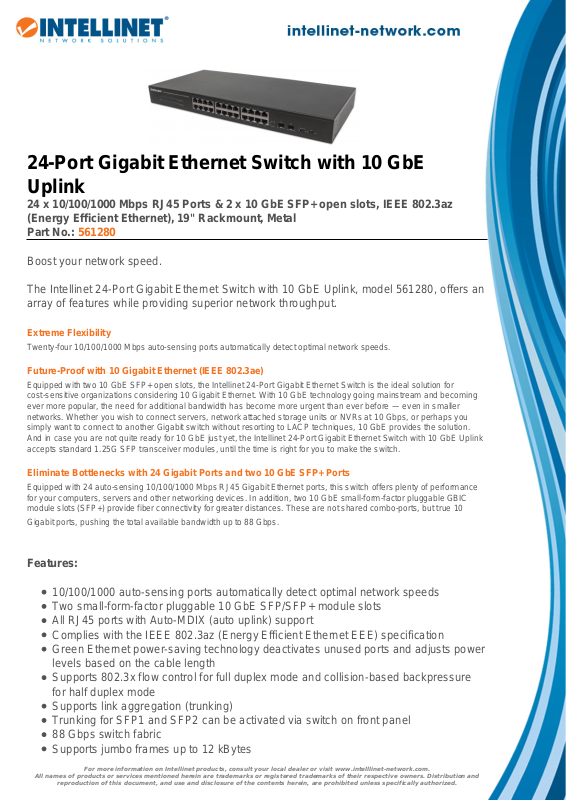

24-Port Gigabit Ethernet Switch with 10 GbE
Uplink
24 x 10/100/1000 Mbps RJ45 Ports & 2 x 10 GbE SFP+ open slots, IEEE 802.3az
(Energy Efficient Ethernet), 19" Rackmount, Metal
Part No.: 561280
Boost your network speed.
The Intellinet 24-Port Gigabit Ethernet Switch with 10 GbE Uplink, model 561280, offers an
array of features while providing superior network throughput.
Extreme Flexibility
Twenty-four 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds.
Future-Proof with 10 Gigabit Ethernet (IEEE 802.3ae)
Equipped with two 10 GbE SFP+ open slots, the Intellinet 24-Port Gigabit Ethernet Switch is the ideal solution for
cost-sensitive organizations considering 10 Gigabit Ethernet. With 10 GbE technology going mainstream and becoming
ever more popular, the need for additional bandwidth has become more urgent than ever before — even in smaller
networks. Whether you wish to connect servers, network attached storage units or NVRs at 10 Gbps, or perhaps you
simply want to connect to another Gigabit switch without resorting to LACP techniques, 10 GbE provides the solution.
And in case you are not quite ready for 10 GbE just yet, the Intellinet 24-Port Gigabit Ethernet Switch with 10 GbE Uplink
accepts standard 1.25G SFP transceiver modules, until the time is right for you to make the switch.
Eliminate Bottlenecks with 24 Gigabit Ports and two 10 GbE SFP+ Ports
Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance
for your computers, servers and other networking devices. In addition, two 10 GbE small-form-factor pluggable GBIC
module slots (SFP+) provide fiber connectivity for greater distances. These are not shared combo-ports, but true 10
Gigabit ports, pushing the total available bandwidth up to 88 Gbps.
Features:
10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small-form-factor pluggable 10 GbE SFP/SFP+ module slots
All RJ45 ports with Auto-MDIX (auto uplink) support
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
Green Ethernet power-saving technology deactivates unused ports and adjusts power
levels based on the cable length
Supports 802.3x flow control for full duplex mode and collision-based backpressure
for half duplex mode
Supports link aggregation (trunking)
Trunking for SFP1 and SFP2 can be activated via switch on front panel
88 Gbps switch fabric
Supports jumbo frames up to 12 kBytes
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 2
1.5 MBytes buffer memory
Supports 16k MAC address entries
Store and forward switching architecture
Supports NWay auto-negotiation
Full/half duplex operation
Flow control can be activated via switch on front panel
Fanless design ideal for silent operation
Supports MAC address auto-learning and auto-aging
Includes 19" rackmount brackets
Three-Year Warranty
Specifications:
Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full duplex mode)
General
• Media support:
- 10Base-T Cat3, 4, 5 UTP/STP RJ45
- 100Base-TX Cat5 UTP/STP RJ45
- 1000Base-T Cat5e UTP/STP RJ45
• Packet filter/forwarding rate: 65.472 Mpps
• Buffer memory: 1.5 MBytes
• MAC address table: 16K entries
• Backplane speed: 88 Gbps
• Switch architecture: store and forward
• 24 RJ45 Gigabit Ethernet ports
• 2 SFP+ (Small Formfactor Pluggable) slots
• Certifications: FCC Class A, CE
LEDs
• Power
• Link/Activity/Speed per port
Power
• Internal power supply, 100 – 240 VAC, 50/60 Hz
• Power consumption: 17.5 watts (maximum)
Environmental
• Metal housing, 19" rackmount, 1 U
• Dimensions: 440 (W) x 207 (L) x 44 (H) [mm] / 17.32 (W) x 8.19 (L) x 1.73 (H) [in.]
• Weight: 3.00 kg (6.6 lbs.)
• Operating temperature: 0 – 45°C (32 – 113°F)
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 3
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temperature: -10 – 70°C (14 – 158°F)

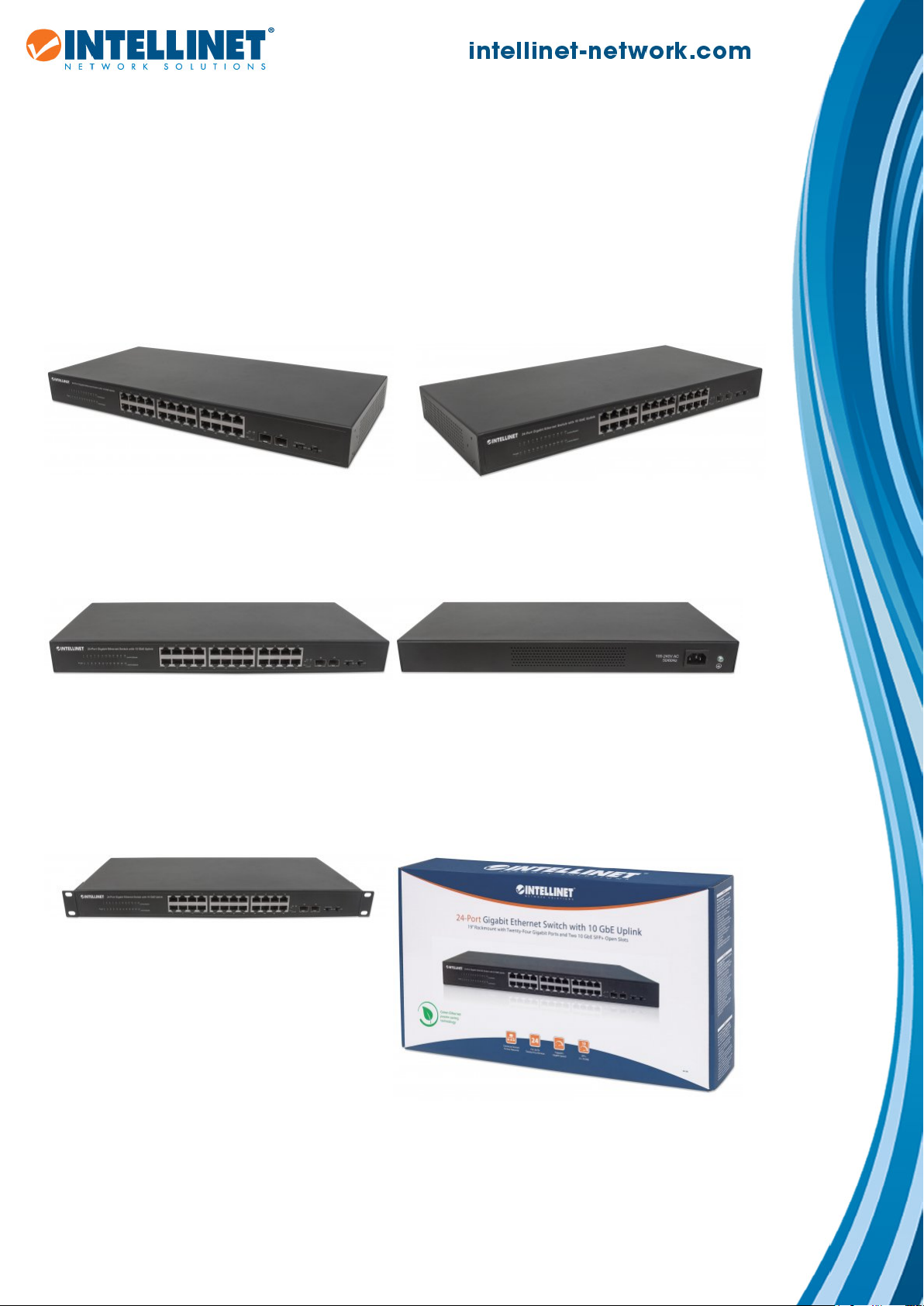

Package Contents
• 24-Port Gigabit Ethernet Switch with 10 GbE Uplink
• Power cable
• 19" rackmount brackets
• User manual
