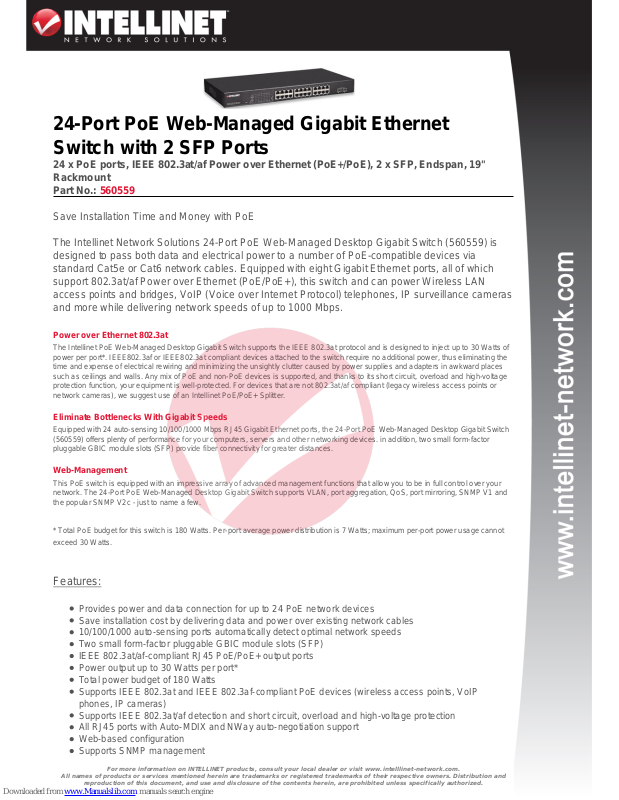

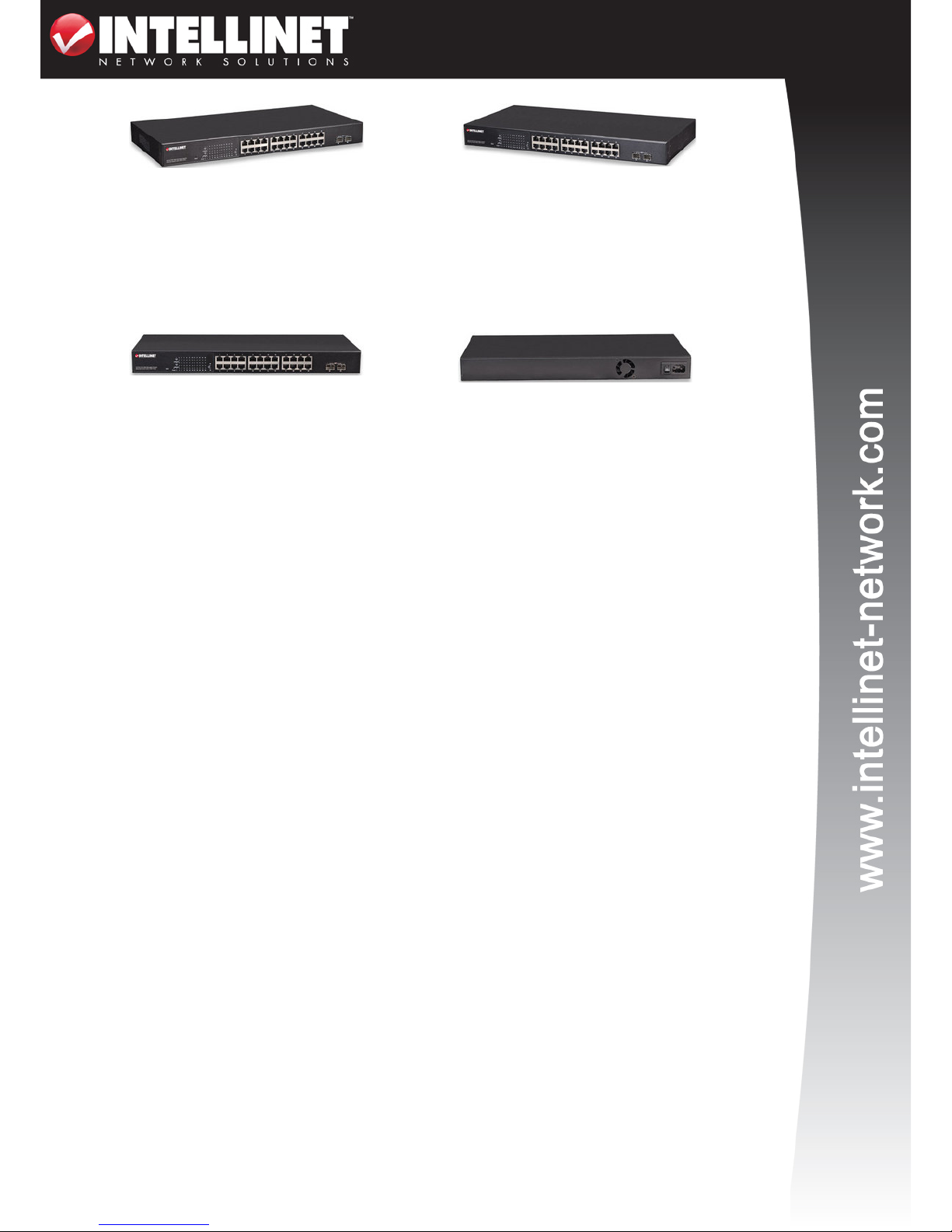

Intellinet 56055, 560559 Specifications

24-Port PoE Web-Managed Gigabit Ethernet
Switch with 2 SFP Ports

24 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan, 19"
Rackmount
Part No.: 560559

Save Installation Time and Money with PoE

The Intellinet Network Solutions 24-Port PoE Web-Managed Desktop Gigabit Switch (560559) is
designed to pass both data and electrical power to a number of PoE-compatible devices via
standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, all of which
support 802.3at/af Power over Ethernet (PoE/PoE+), this switch and can power Wireless LAN
access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras
and more while delivering network speeds of up to 1000 Mbps.

Power over Ethernet 802.3at

The Intellinet PoE Web-Managed Desktop Gigabit Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 Watts of
power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the
time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places
such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage
protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or
network cameras), we suggest use of an Intellinet PoE/PoE+ Splitter.

Eliminate Bottlenecks With Gigabit Speeds

Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 24-Port PoE Web-Managed Desktop Gigabit Switch
(560559) offers plenty of performance for your computers, servers and other networking devices. in addition, two small form-factor
pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances.

Web-Management

This PoE switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your
network. The 24-Port PoE Web-Managed Desktop Gigabit Switch supports VLAN, port aggregation, QoS, port mirroring, SNMP V1 and
the popular SNMP V2c - just to name a few.

* Total PoE budget for this switch is 180 Watts. Per-port average power distribution is 7 Watts; maximum per-port power usage cannot
exceed 30 Watts.

Features:

Provides power and data connection for up to 24 PoE network devices
Save installation cost by delivering data and power over existing network cables
10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small form-factor pluggable GBIC module slots (SFP)
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Power output up to 30 Watts per port*
Total power budget of 180 Watts
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP
phones, IP cameras)
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
Web-based configuration
Supports SNMP management

For more information on INTELLINET products, consult your local dealer or visit www.intelllinet-network.com.

All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and

reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.

Supports VLAN (tag-based and port-based)
Provides IEEE 802.1x port-based security
Supports link aggregation (trunking)
Supports bandwidth control per port
Supports port mirroring
Supports two types of QoS: port-based and DSCP
Broadcast storm control with multicast packet rate settings
Supports jumbo frames up to 9 kBytes
Supports Rapid Spanning Tree/Spanning Tree protocol
Store and forward switching architecture
Full/half duplex operation
IEEE 802.3x flow control for full duplex
Supports 16k MAC address entries
400 kBytes buffer memory
LEDs for power, link/activity and PoE
Includes 19" rackmount brackets
Three-Year Warranty

Specifications:

Standards
» IEEE 802.1d (Spanning Tree Protocol)
» IEEE 802.1p (Traffic Prioritization)
» IEEE 802.1q (VLAN Tagging)
» IEEE 802.1w (Rapid Spanning Tree Protocol)
» IEEE 802.3ad (Link Aggregation)
» IEEE 802.3 (10Base-T Ethernet)
» IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
» IEEE 802.3ad (Link Aggregation Control Protocol LACP)
» IEEE 802.3af (Power over Ethernet 802.3at Type 1)
» IEEE 802.3at (Power over Ethernet 802.3at Type 2)
» IEEE 802.3u (100Base-TX Fast Ethernet)
» IEEE 802.3x (flow control, for full duplex mode)

General
» Media support:

- 10Base-T Cat3, 4, 5 UTP/STP RJ45

- 100Base-TX Cat5 UTP/STP RJ45

- 1000Base-T Cat5e UTP/STP RJ45
» Packet filter/forwarding rate:

- 1,488,000 pps (1000 Mbps)

- 148,800 pps (100 Mbps)

- 14,880 pps (10 Mbps)
» MAC address table: 16k
» Backplane speed: 52 Gbps
» Switch architecture: store and forward
» Configuration Options:

- Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation

- PoE on/off per port

- Flow control on/off per port

- VLAN

- Rate limiting (ingress rate and egress rate)

- Port Mirroring

- Port Aggregation/LACP: 8 groups

- Broadcast Storm configuration with broadcast rate, multicast rate, and flooded unicast rate

- IGMP Snooping

- Quality of Service (QoS): port-based or DSCP

- Integrated VeriPHY cable diagnostics tool

- Integrated ICMP Ping client sends ping requests to other network nodes

- SNMPv1/v2c (Simple Network Management Protocol)

- LAN settings (IP address, Gateway, etc.)
» Certifications: FCC Class A, CE

LEDs
» PoE
» Power
» Link/activity

Power
» Input: 90 – 260 V AC, 50 – 60 Hz
» Power consumption: 180 Watts (maximum)

Environmental
» Metal housing
» Dimensions: 440 (W) x 220 (L) x 44 (H) mm (10.5 x 6.3 x 1.7 in.)
» Weight: 3.1 kg (6.8 lbs.)
» Operating temperature: 0 – 45°C (32 – 113°F)
» Operating humidity: 10 – 90% RH, non-condensing
» Storage temperature: -20 – 90°C (-4 – 194°F)

Package Contents
» 24-Port PoE Web-Managed Gigabit Ethernet Switch with 2 SFP Ports
» Power cable
» User manual

For more information on INTELLINET products, consult your local dealer or visit www.intelllinet-network.com.

All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and

reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
