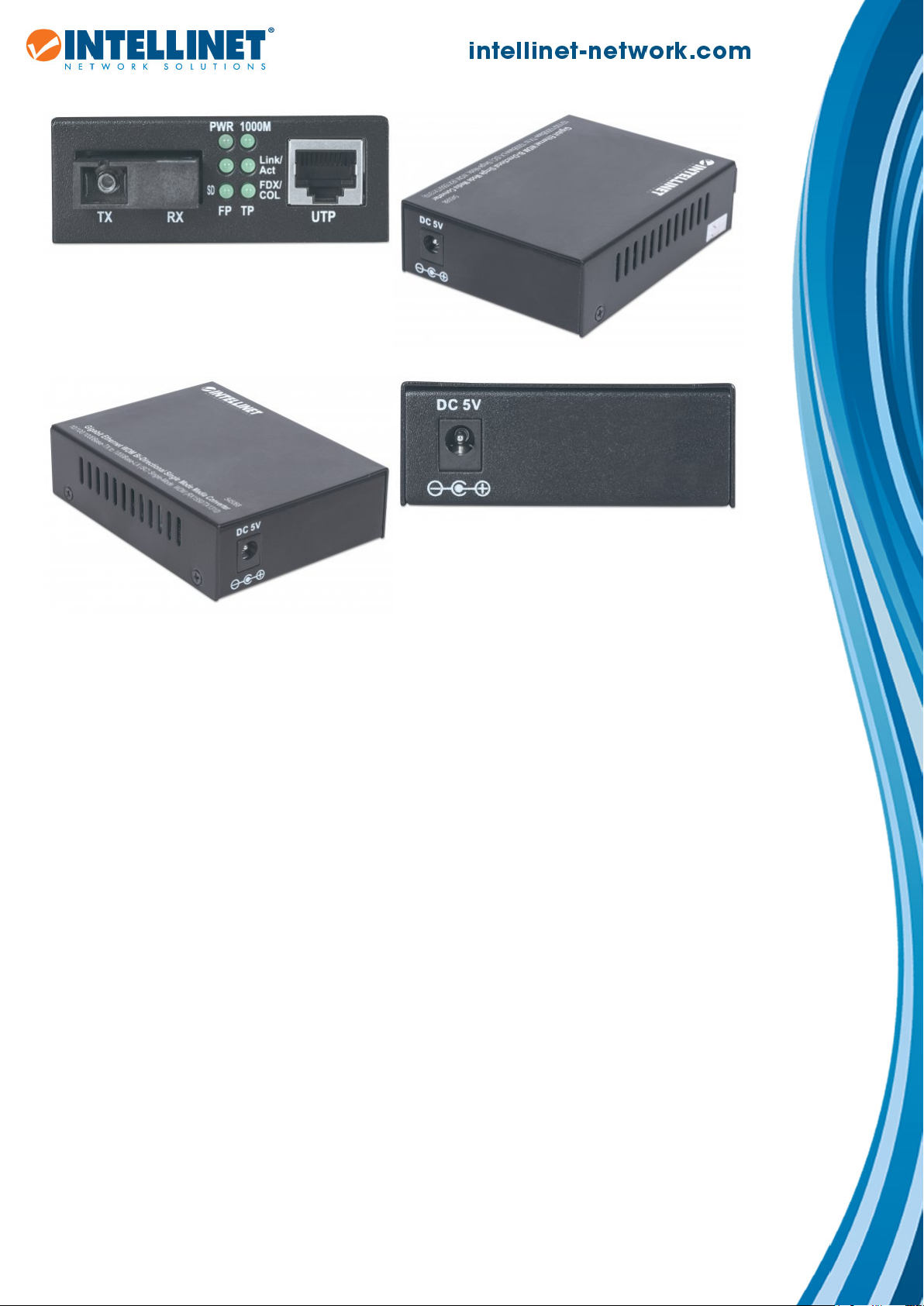

Gigabit Ethernet WDM Bi-Directional Single Mode
Media Converter
10/100/1000Base-TX to 1000Base-LX (SC) Single-Mode, 20 km (12.4 mi.), WDM
(RX1550/TX1310)
Part No.: 545068
The Intellinet Network Solutions Gigabit Ethernet WDM (bi-directional wavelength division
multiplexing) Media Converter utilizes a single strand of fiber to transmit network traffic on
separate receive and transmit wavelengths (1550/1310 nm). This innovative technology
allows you to effectively use the two strands for two independent connections or to double
the capacity without digging in a second fiber cable. The converter is completely
transparent to the network so the network performs exactly the way it did before — only now
it can support both copper and fiber mediums.
Expands the Size of an Existing Network
This converter provides fiber connectivity to Ethernet segments, allowing for even further
networking expansion between extended workgroups. It also provides building-to-building
connectivity without the cost and disruption associated with the installation of additional
routers.
Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between
networking nodes. This can be achieved by direct connection between the converter and a
fiber-based node or networking device.
Cabling Flexibility
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Intellinet products, consult your local dealer or visit www.intelllinet-network.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Network managers can install fiber cabling anywhere within a network without changing the
arrangement of copper-based Ethernet. The compact size of the converter allows it to be
easily deployed in any narrow desktop location or to be used in a wallmount installation.
Several converters can be simultaneously installed into a 19" rack-mountable
chassis.
Features:
Fiber SC-type dual-wavelength single-mode port connects over distances of up to 20
km (12.4 miles)
Must be used with Gigabit Ethernet WDM Bi-Directional Single Mode Media
Converter, model 545075
Data transfer rate: 10/100/1000 Mbps
WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to
transmit data on separate receive and transmit wavelengths
Wavelengths: receive (RX), 1550 nm; transmit (TX), 1310 nm
One 10/100/1000Base-TX RJ45 port, maximum distance 100 m / 300 ft.
RJ45 port with Auto MDI/MDI-X support
Status LEDs for easy monitoring of device status
Functions as a stand alone converter or can be used with the 14-slot Media Converter
Chassis, model 507356
External power adapter, 5 VDC
Three-Year Warranty
Specifications:
Standards
• IEEE 802.3 (Twisted Pair Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet)
• IEEE 802.3z (Fiber Optic Gigabit Ethernet)
General
• Media support:
- 1000Base-T Cat5 or higher UTP/STP RJ45, EIA/TIA 568
- 1000Base-LX single-mode 8.3/125 µm or 8.7/125 µm or 8/125 µm or 10/125 µm
• Connectors:
- RJ45 port, 10/100/1000Base-TX
- Fiber SC port, 1000Base-LX (SC)
• Distances:
- 20 km / 12.4 mi. (fiber cable)
- 100 m / 300 ft. (RJ45 cable)
• Wavelengths:
- Receive (RX): 1550 nm
- Transmit (TX): 1310 nm
