INTELLINET 525831 User guide

Download

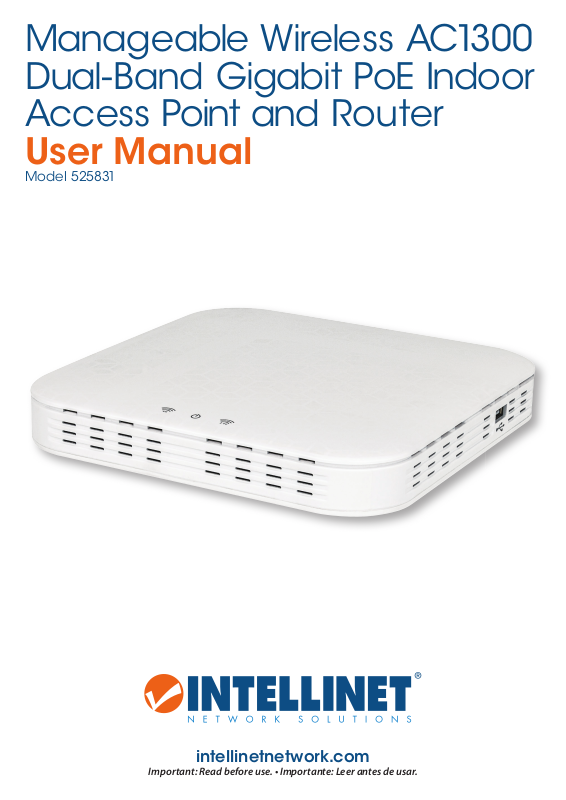

Manageable Wireless AC1300 Dual-Band Gigabit PoE Indoor Access Point and Router
User Manual
Model 525831
intellinetnetwork.com
Important: Read before use. • Importante: Leer antes de usar.
User Manual
CONTENTS
Product Introduction ................................................................................................................3
Product Overview ......................................................................................................................................................3
Features......................................................................................................................................................................3
Package Contents ..................................................................................................................................................... 3
Hardware Connection .............................................................................................................3
Front Panel .................................................................................................................................................................3
Interface panel .......................................................................................................................................................... 4
Installation .................................................................................................................................................................4
Configure Router through PC .................................................................................................................................... 4
Logon Screen ............................................................................................................................................................. 7
Common Interface Buttons and Operations ............................................................................................................................................................... 8
Status ..........................................................................................................................................................................8
Overview ........................................................................................................................................................................................................................ 9
System Log .....................................................................................................................................................................................................................9
Kernel Log ....................................................................................................................................................................................................................10
Processes .....................................................................................................................................................................................................................10
Status>Realtime Graphs>Load ................................................................................................................................................................................... 11
Status>Realtime Graphs>Connections ......................................................................................................................................................................11
System ...................................................................................................................................................................... 12
System .......................................................................................................................................................................................................................... 12
Administration .............................................................................................................................................................................................................14
Backup/Flash Firmware ..............................................................................................................................................................................................14
Action ........................................................................................................................................................................................................................... 14
Configuration............................................................................................................................................................................................................... 15
Reboot ........................................................................................................................................................................................................................ 15
AC Server .....................................................................................................................................................................................................................16
Network .................................................................................................................................................................... 16
Interfaces .....................................................................................................................................................................................................................16
Network>Interfaces>LAN .............................................................................................................................................................................................17
Common Configuration .............................................................................................................................................................................................17
DHCP Server ................................................................................................................................................................................................................. 18
Network>Interfaces>WAN ........................................................................................................................................................................................... 18
Wi-Fi ..............................................................................................................................................................................................................................22
Network>Wifi>wifi0: Master “11n_0007” ....................................................................................................................................................................... 23
Device Configuration .................................................................................................................................................................................................. 24
DHCP and DNS ............................................................................................................................................................................................................ 26
Server Settings .............................................................................................................................................................................................................26
Active DHCP Leases ....................................................................................................................................................................................................28
Firewall .........................................................................................................................................................................................................................29
Network>Firewall>General Settings ............................................................................................................................................................................ 29
Regional “newzone” .................................................................................................................................................................................................... 31
Inter-Zone Forwarding .................................................................................................................................................................................................32
Network>Firewall>Port Forwards .................................................................................................................................................................................32
Network>Firewall>Traffic Rules .....................................................................................................................................................................................33
Network>Firewall>Custom Rules ................................................................................................................................................................................. 35
Logout ...................................................................................................................................................................... 35
Appendix: Technical Specifications ..................................................................................... 36
Notes ......................................................................................................................................37
Additional Information ..........................................................................................................38
2
User Manual
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router

Product Introduction

Thank you for your purchase of the AC1300 Wireless Wave2 High Power Dual Band Gigabit PoE Router. Please read the entire user manual before using the product and save it for future reference.

Product Overview

This Wireless Router is based on the 802.11ac standard, providing up to 1.3 Gbps wireless data transmission rate. If features a built-in high-power wireless signal amplifier, supports Wave 2, provides remote transmission, full coverage and strong signal penetration. The ceiling-type installation design provide wireless up to 1.3 Gbps, three times that of standard wireless Internet. The router’s dual-band concurrency technology helps avoid interference. Both bands have power amplifiers to provide faster download speeds, smoother video playback and a better online gaming experience to end users. It provides an integrated router, Wi-Fi access point, a two-port gigabit switch and fire wall functions in one compact, sturdy design. With convenient and comprehensive network management functions, URL filtering, MAC address filtering and the QoS bandwidth control function, this router effectively allocates the client’s download rate. It supports wireless data encryption and can guarantee the security of data transmission in wireless network.

Features

• Two 10/100/1000 Mbps LAN ports & one 10/100/1000 Mbps WAN port
• IEEE802.3at PoE power supply function
• Ceiling-type installation design
• Dual 2.4 / 5 GHz bands for fast speeds and more client access
• Standard IEEE802.11a/b/g/n/ac, supports Wave 2
• Up to 1.3 Gbps throughput that automatically adjusts its wireless transmission rate
• Built-in omni-directional antenna to effectively improve wireless signal quality
• Automatic best-channel selection to avoid co-channel interference and improve network stability
• A variety of measures to ensure network security, including 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK encryption and security mechanism
• MAC address-based access control to effectively control access rights and support local and remote Web management

Package Contents

Before installing the Router, make sure that the following items are included in your packaging. If any part is lost or damaged, please contact your place of purchase. In addition, make sure that you have the tools to install the Router safely.
• One AC1300 Wireless Wave2 High Power Dual Band Gigabit PoE Router
• One set of installation components
• One power adapter
• One User Manual

Hardware Connection

Front Panel

The front panel of the Router consists of a series of LED indicators as shown: The LED Indicators on the front panel show the status of the Router.
Name Status Indication
Off Power is off
Power
5G Wi-Fi
On Power is on
Off The wireless function is disabled
Flashing The wireless function is enabled
Off The wireless function is disabled
2.4G Wi-Fi
Flashing The wireless function is enabled
3

Interface panel

User Manual
• WAN: 10/100/1000 Mbps RJ45 port to connect the Cable/xDSL Modem or other LAN; LED connection-status indicator is on the upper right corner of the port
• LAN 1 – 2: two LAN ports to connect networked devices, such as PCs, print servers, remote hard drives, and any other
compatible device to put on the network; LED connection-status indicator is on the upper right corner of the port
• USB: the USB port provided for a 3G USB modem card to connect to the Internet or connect a USB storage device
• DC: when PoE cannot be supplied, connect this port to the 12 VDC / 1.5 A power supply adapter
Figure 3: rear panel

Installation

Before installing the Router, make sure the PC is successfully connected to the Internet through broadband service. For any problem, please contact your ISP. Install the Router according to the following steps.
1 Make sure all devices, including your PCs, modem and Router are powered off. 2 Using an Ethernet network cable, connect the LAN or Ethernet network port of the cable or xDSL modem to the Router’s WAN port. 3 Power on the cable or xDSL modem, and power on the PC you wish to use to configure the Router. 4 Connect the power adapter to the Router and to an electrical outlet. 5 Setup via Computer

Configure Router through PC

1 On your computer desktop, right click on Network and select Properties.
2 Click on Local Area Connection.
4
User Manual
3 Click on Properties.
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
4 Select Internet Protocol Version 4 (TCP/IPv4), and then click Properties.
5
5 Choose to obtain an IP address automatically or manually set your IP address using the Use the following IP
address option. Then, choose to automatically assign a DNS server or to set it manually:
User Manual
6 Use the following IP address:
• IP address: 192.168.1.XXX: (XXX is a number from 2 – 254)
• Subnet Mask: 255.255.255.0
• Default Gateway: 192.168.1.1
• DNS Server: input the DNS server address provided by the ISP, or use the router default gateway as the DNS proxy server; click OK to save the configuratio. Click OK to save the setting. If the DNS server address is unknown, it is recommended to choose “Obtain an IP address automatically” and “Obtain DNS server address automatically.”
6
User Manual
Manageable Wireless AC1300 Dual-Band Gigabit

Logon Screen

Log into the Router:
1 Open a browser window and enter http://192.168.1.1 in the address bar.
2 The username is admin. The password is the Serial Number (S/N) found below the barcode
on the device label on the underside of the access point. Click Login.
PoE Indoor Access Point and Router
3 Once logged in, click the menu on the left side of the home page to go to the corresponding sub-page.
7

Common Interface Buttons and Operations

Button Meaning
Save and Apply current configuration information
Save current configuration information
Restore factory settings
Reconnect this interface
Shutdown this interface
Edit this interface
Shutdown this interface
Delete this interface
User Manual
Add
Synchronize local time with browser time
Back up the current system profile
To restore configuration files, upload a previously generated backup archive here
Restore factory settings
Select file
Function Configuration

Status

Click the Status tab to view Overview, System Log, Kernel Log, Processes and Realtime Graphs.
8
User Manual

Overview

Click on the Status>Overview option for the following interface:
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
This interface shows information on the System (Hostname, Model, Firmware Version, Kernel Version, Local Time, Uptime, Load Average), Memory (Total Available, Free, Cached, Buffered), Network (IPv4 WAN Status, IPv6 WAN Status, Active Connections), DHCP Leases, DHCPv6 Leases, Wireless, and Associated Stations.

System Log

Click on the Status>System Log option for the following interface:
This interface offers a log of link establishment failures, packet filter log information, etc. By logging into the log host, the system administrator can analyze and understand log events. Logs can help administrators locate faults, troubleshoot, and also help manage network security.
9

Kernel Log

Click on the Status>Kernel Log option for the following interface:
User Manual
This interface shows the live system log.

Processes

Click on the Status>Processes option for the following interface:
This interface shows system processes and their status. It also includes options to suspend/hang up, terminate and, when terminate is non-responsive, kill operations.
10
User Manual
Realtime Graphs
Click the Status>Realtime Graphs option to see Load, Traffic, Wireless and Connections options.
Status>Realtime Graphs>Load
Click the Status>Realtime Graphs>Load option for the following screen:
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
Status>Realtime Graphs>Connections
Click the Status>Realtime Graphs>Connections option to see Realtime Connections information.
11

System

Click on System to see options for System, Administration, Backup/Flash Firmware, Reboot, and AC Server.

System

Click the System>System option to set options for System Properties and Time Synchronization.
User Manual
System Properties
System Properties are divided into General Settings, Logging and Language and Style options. Click on the General Settings option for the following interface:
12
User Manual
• Local Time: click Sync with browser to synchronize the system time with the time on your computer
• Hostname: provide a router name
• Timezone: select the desired time zone from the drop-down list
Click on the Logging option for the following interface:
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
• System log buffer size: specify the size of the log buffer
• External system log server: configure a remote host to receive log information
• External system log server port: configure a suitable port for the remote log server
• Log output level: select the level of output log to include Debug, Info, Notice, Warning, Error, Critical, Alert or Emergency
• Cron Log Level: select the level of Cron Log to include Debug, Normal and Warning
Click on the Language and Style option for the following interface:
• Language: select the language used by the router management interface; offers three options: auto (based on your computer’s language), English and Chinese.
• Time Synchronization: interface settings, as follows —
13
• Enable NTP client: enables the Local Time of the router to be synchronized with the NTP servers
• Provide NTP server: enables the router to work as an NTP server to provide time parameters to any requesters

Administration

Click on the System>Administration option for the following interface:
User Manual
• Password: Change the administrator password used to access the router; see warnings on password compliance at the end of the field and address requirements till resolved
• Confirmation: verify the new password
Click Save & Apply for settings to take effect.

Backup/Flash Firmware

Click the System>Backup/Flash Firmware option to see Action and Configuration options.
Action
Click System>Backup/Flash Firmware>Action option for the following interface:
• Download backup: to download a TAR archive of the current configuration files — upgrading the firmware of the router or changing its settings may delete the current configuration; save the current configuration files to easily restore the router to the original configuration if necessary
14
User Manual
• Reset to defaults: click the Perform reset button to restart the router and restore its settings to the factory default state (Includes: the default user name: root; default password: empty; default IP address: 192.168.1.1; default netmask: 255.255.255.0)
• Note: back up the configuration before restoring to factory-default settings; if necessary, load the backup configuration file to restore the router to its original state
• Restore backup: click Browse to find the backup file; select the file and click upload archive to complete the recover configuration
• Keep settings: check the box to write new firmware immediately while retaining the original system configuration; if unchecked, new firmware written to the flash memory will erase the original configuration
• Image: click Browse to find the new firmware file; select the new firmware file, then click on the Flash image to flash the new firmware operation.
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
Configuration
Click System>Backup/Flash Firmware>Configuration option for the following interface:
Click Open list for a list of files to be backed up. The configuration file contains the necessary foundation files and user-defined files to be backed up.

Reboot

Click on the System>Reboot option for the following interface:
Click Perform reboot to manually restart the router. Some settings may require a manual reboot of the router to take effect.
Functions that automatically restart the router after settings are changed:
• Immediately writing new router firmware
• Restore the router’s factory settings
• Modify the basic network parameters of the LAN port
Functions that require a manual restart of the router to take effect:
• Set QSS security settings function
• Set DHCP services
• Set a static address assignment DHCP server function
• Set the basic parameters of the wireless network
• Modify the security settings of the wireless network
• Modify advanced settings of the wireless network
• Web modify remote router management port
15

AC Server

Click on the System>AC Server option for the following interface:
• AC Server Mode: Change the management mode for controlling the AP device.

Network

Click Network for options on Interfaces, Wifi, DHCP and DNS, and Firewall.
User Manual

Interfaces

Click the Network>Interfaces option for the following screen:
On this page, select and set WAN or LAN preferences.
16
User Manual
Manageable Wireless AC1300 Dual-Band Gigabit
Network>Interfaces>LAN
Click the Network>Interfaces>LAN option to configure the network interfaces (LAN).
PoE Indoor Access Point and Router
Common Configuration
The Common Configuration screen is as follows:
Set the IP address and netmask. You can then manage the router via this IP address. Or if not needed, keeps the default values.
• Protocol: select the protocol type
• IPv4 address: enter the router’s IP address on the LAN; the IP address of all computers in the LAN must be in the same network segment and the default gateway is this IP address; the factory default IP address is 192.168.1.1; for Class C IP addresses; change it according to network needs
• IPv4 netmask: here, you can set the relevant netmask
• IPv4 gateway: enter this router on the LAN gateway; the default is 192.168.1.1
• Use custom DNS servers: the DNS address provided by your ISP; if not provided, the default is 192.168.1.1
17
DHCP Server
The DHCP Server setting interface is as follows:
• Ignore interface: Check this box to disable this DHCP function for the interface.
Network>Interfaces>WAN
Click the Network>Interfaces>WAN option to enter the WAN port settings interface.
User Manual
Selectable options for the Protocol: Static address, DHCP client, PPPoE, Unmanaged, PPP.
STATIC ADDRESS If the Static address protocol is selected, provide the following information according to the supplier’s (ISP) requirements. Click the Save & Apply button.
18
User Manual
• Ipv4 address: the router’s IP address on the WAN; enter the public IP address provided by your ISP
• Ipv4 netmask: the netmask for the WAN interface; enter the netmask provided by your ISP
• Ipv4 gateway: fill in the gateway provided by the ISP
• Use custom DNS server: fill with information provided by your ISPs
• Override MAC address: the default value is the MAC address of the WAN interface of this router; some ISPs may require MAC address binding, and the ISP will provide a valid MAC address to the user; in this case, input the provided value in the MAC address column; changing the MAC address is not recommended unless the ISP has special requirements
• Override MTU: the default value is 1500
DHCP CLIENT
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
• DHCP client: select DHCP client protocol and enter the MAC address of the computer as the modem MAC address of the router; click the Save & Apply button.
• Hostname to send when requesting DHCP: enter the host name of this feature
• Use broadcast flag: use this option according to ISP
• Use default gateway: if unchecked, no default route is configured
• Use DNS servers advertised by peer: if unchecked, the advertised DNS server address is ignored
• Use gateway metric: for every gateway (e.g., router), the metric is increased by 1
• Client ID to send when requesting DHCP: the identity number of the router that is used while obtaining the WAN IP address from ISP
• Vendor Class to send when requesting DHCP: the vendor class of the router that is used while obtaining the WAN IP address from ISP
• Override MAC address: the default value is the MAC address of the WAN interface of this router; some ISPs may require MAC address binding, and the ISP will provide a valid MAC address to the user; in this case, input the provided value in the MAC address column; changing the MAC address is not recommended unless the ISP has special requirements
• Override MTU: the default value is 1500
19
• Protocol: if Unmanaged is selected, there is no need to set.
PPP
PPP (Point-to-Point Protocol) is a link-layer protocol. This link provides full-duplex operation and transfers data packets in order. It is designed primarily to establish a point-to-point connection in sending data via dial-up or leased line mode, making it a common solution. If PPP Internet mode is chosen, click the Save & Apply button.
User Manual
• PAP/CHAP username, PAP/CHAP password: enter your ISP username and password
• Use Default Gateway: if unchecked, no default route is configured
• Use gateway metric: for every gateway (e.g., router), the metric is increased by 1
• Use DNS server advertised by peer: if unchecked, the advertised DNS server addresses are ignored
• LCP echo failure threshold: Link Control Protocol (LCP) is a subset of the PPP agreement
• LCP echo interval: send LCP echo requests at the given interval in seconds (only effective in conjunction with failure threshold)
• Inactivity Timeout: close an inactive connection after a given number of seconds; use 0 for persistent connections
• Override MTU: the default value is 1500
• PPPoE: If PPPoE protocol is selected, click the Save & Apply button
20
User Manual
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
• PAP/CHAP username, PAP/CHAP password: enter the ISP username and password
• Access Concentrator: input connector center terminal, computer or communications device connection point device; leave empty to autodetect
• Service Name: enter the name of the broadband connection; leave empty to autodetect
• Use default gateway: check to use default gateway
• Use gateway metric: for every gateway (e.g., router), the metric is increased by 1
• Use DNS servers advertised by peer: check to use DNS server’s address(es) advertised by peer
• LCP echo failure threshold: Link Control Protocol (LCP) is a subset of the PPP agreement; after a specified number of LCP response failures assumed link is disconnected, 0 to ignore failure.
• LCP echo interval: time to send LCP response(s), only when combined with effective fault threshold.
• Inactivity timeout: timing of inactive link(s); enter 0 for persistent connections
• Override MTU: the default is 1500
21

Wi-Fi

Click the Network>Wifi option for the following screen. The Router supports 2.4- and 5-GHz wireless signals, but its default is the 2.4 GHz band. Complete settings for the 5 GHz band if required in addition.
User Manual
Click on the Scan button for the following interface. If a wireless router already exists in the environment, choose this function to connect the router to the original one via Wi-Fi.
22
User Manual
For example, to join any of the wireless networks click, Join Network.
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
1 Fill in the WPA passphrase (the AP wireless password; the same of the new network). 2 Select Create/Assign firewall-zone. You can select one or create one. 3 Click the Submit button.
Associated Stations
Once successfully connected, review the parameters of the connection, including the MAC address, IP address, signal, noise, transmission and receive rates and other information.
Network>Wifi>wifi0: Master “11n_0007”
Click the Network>Wifi>wifi0: Master “11n_0007” option, Device Configuration and Interface Configuration can be configured.
23
Device Configuration
Device Configuration is divided into General Setup and Advance Settings. Click on the General Setup subpage for the following interface.
• Channel: select from the range 1 to 13
• Transmit Power: choose the appropriate power to meet network needs.
Click on the Advanced Settings subpage for the following interface.
User Manual
• Mode: select auto, 802.11b, 802.11g or 802.11g+n mode for the router
• HT mode: 20MHz, 40MHz 2nd channel below, 40MHz 2nd channel above, 80MHz modes
• Country Code: select the desired country code from the drop-down list
Interface Configuration
Interface Configuration is divided into General Setup, Wireless Security and MAC-Filter subpages. Click on the General Setup tab for the following interface:
24
User Manual
• ESSID: create a second or subsequent
• Mode: select the desired interface mode via the drop-down list
• Network: choose the network(s) that are desired to be attached to this wireless interface or fill out the create field to define a new network
• Hide ESSID: If checked, Wi-Fi devices can’t search the SSID anymore (to connect the SSID must be input manually)
Click on the Wireless Security tab for the following interface:
• Encryption: the router offers WEP Open System/Shared Key, WPA-PSK/WPA2-PSK, WPA-PSK/WPA2-PSK Mixed Mode and other encryption types
• Cipher: The router offers auto, Force CCMP(AES), Force TKIP, Force TKIP and CCMP(AES) options
• Key: WEP (enter 5 or 10 characters); WPA/WPA2 (enter 8 or more characters; WPA/WPA2 mode is recommended)
Click on the Advanced Settings tab for the following interface:
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
• Separate Clients: prevent client-to-client communication
• Fragmentation Threshold: the default value of 2346 should be left as-is unless you have a specific reason to modify
• RTS/CTS Threshold: Request-To-Send (RTS) and Clear-To-Send (CTS); if the RTS threshold is exceeded once it is established, an RTS
message is sent before data is transmitted to reduce interference; the corresponding CTS will respond after the RTS is received
• WMM Mode: a sub-protocol of wireless transmission protocol; if enabled, only wireless devices
(mobile phones, laptops, etc.) with this function can connect to this router
25

DHCP and DNS

Click Network>DHCP and DNS for the following interface:
User Manual
Server Settings
Dnsmasq for NAT firewall provides an integrated DHCP server and DNS forwarder.
Click on General Settings tab as shown below:
• Domain required: don’t forward DNS-Requests without DNS-Name
• Authoritative: this DHCP is the only one in the local network
• Local server: the local domain rule, never forwarded and processed, only resolved from the local DHCP or Host’s file name data
• Local domain: local domain suffix appended to DHCP names and hosts file entries
• DNS forwardings: enter here any DNS servers to forward requests to
• Rebind protection: discard upstream RFC 1918 responses.
• Allow localhost: allow upstream responses in the 127.0.0.0/8 range (e.g., for RBL services)
• Domain Whitelist: list of domains to allow RFC 1918 responses for
26
User Manual
Click the Resolv and Hosts Files tab for the following interface:
• Use /etc/ethers: enable according to /etc/ethers to configure the DHCP-Server
• Leasefile: file where given DHCP-leases will be stored
• Ignore resolve file: if checked, feature is enabled
• Resolve file: local file where DNS resolutions are stored
• Ignore Hosts files: if checked, feature is enabled
• Additional Hosts files: provide the name of files which will be ignored
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
Click the TFTP Settings tab for the following interface:
If Enable TFTP server is checked, the following interface appears:
• TFTP server root: specify the root directory for files served via TFTP
• Network boot image: filename of the boot image advertised to clients
27
Click on the Advanced Settings tab for the following interface:
User Manual
• Filter private: do not forward reverse lookups for local networks
• Filter useless: do not forward requests that cannot be answered by public name servers
• Localization queries: localize hostname depending on the requesting subnet if multiple IPs are available
• Expand hosts: add local domain suffix to names served from hosts files
• No negative cache: do not cache negative replies (e.g., for not existent domains)
• Strict order: DNS servers will be queried in the order of the resolvfile
• Bogus NX Domain Override: list of hosts that supply bogus NX domain results
• DNS server port: listening port for inbound DNS queries
• DNS query port: fixed-source port for outbound DNS queries
• Max. DHCP lease: maximum allowed number of active DHCP leases
• Max. EDNS.0 packet size: maximum allowed size of EDNS.0 UDP packets
• Max. concurrent queries: maximum allowed number of concurrent DNS queries
Active DHCP Leases
The Active DHCP Leases table lists the information for the connected device, including Host name, the IPv4 address, MAC address and the remaining lease time.
Static Leases
Static leases are used to assign fixed IP addresses and symbolic hostnames to DHCP clients. They are also required for non-dynamic interface configurations where only hosts with a corresponding lease are served. Use the Add Button to add a new lease entry. The MAC-Address identifies the host, the IPv4-Address specifies the fixed address to use and the Hostname is assigned as a symbolic name to the requesting host.
28
User Manual
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router

Firewall

Click on the Network>Firewall option to configure General Settings, Port Forwards, Traffic Rules and Custom Rules.
Network>Firewall>General Settings
Click on the Network>Firewall>General Settings option for the following interface:
General Settings
• Enable SYN-flood protection: SYN Flood is currently the most popular DoS (Denial of Service attack) with one of the DDoS (Distributed Denial of Service attack) approaches, which uses a TCP protocol flaw, sending a large number of forged TCP connection requests, thereby causing the attacker depletion of resources (CPU full load or insufficient memory) way to attack; enabling this option helps defend against some denial of service attacks
• Drop invalid packets: if checked, invalid packets will be discarded
• Input: the target object is data received from a remote device; options included — discarded (discards invalid data and does not respond to any feedback; customers waiting for a timeout will likely be blocked by a firewall); refused (to return [terminate] invalid data packets (TCP FIN or UDP-ICMP-PORT-UNREACHABLE), explicitly rejected the other’s connection action); accept (receive effective inbound data)
• Output: the target object is data transmitted from a local device
• Forward: refers to specific (one or more) data packets between different subnets
29
Regional Click the Add button for the following interface:
User Manual
For example, to add lan => wan, make the following settings:
30
User Manual
Regional “newzone”
General Settings
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
• Name: lan; the zone or an area of your network
• Input/Output: drop, reject, accept
• Forward: refers to specific (one or more) data packets between different subnet
• Masquerading: IP masquerading is a special kind of SNAT rule; when a computer within the network of computers accesses the external network through the router, it replaces the source address of IP packets to a predetermined address (usually the external network card address)
• MSS clamping: MSS value that is the largest data segment for each TCP packet can be transmitted
• Covered networks: select the network belonging to this region
Click the Advanced Settings tab for the following interface:
• Restrict to address family: choose to limit the type of address
• Restrict Masquerading to given source subnets: enter the IP address of your internal network
• Restrict Masquerading to given destination subnets: enter the IP address of the firewall (usually outside the network card address)
• Forced connection tracking: if checked, then the feature is enabled
• Enable logging on this zone: if checked, then the feature is enabled
31
Inter-Zone Forwarding
The figure above shows options for the control area (lan) and forwarding rules for other regions. After the above are set, click the Save & Apply button to successfully add a firewall area.
Network>Firewall>Port Forwards
Click on the Network>Firewall>Port Forwards tab for the following interface:
User Manual
This interface configures port-forwarding rules. Here you can forward an external network port to an internal network port. Example: There are 50 computers in the network that have been configured to an FTP server; its IP address is 192.168.1.102. So that Internet users can also access this server, click the Add button and make the following configuration. After configuration is complete, click the Save & Apply button.
• Name: enter an easy to remember name
• Protocol: protocol provided by the server; if not clear what kind of agreement, choose TCP+UDP protocol; refer to the common ports and services table
• External zone: WAN area
• External port: specify opening ports mapping to the internal server provided ports; if not specified, the external port and internal port will be the same; fill in the range 1 – 65535.
• Internal zone: internal LAN area
• Internal IP address: IP address of the network server
• Internal port: ports using by the network server to provide corresponding service; refer to the Common Ports and Services Table
Common Ports and Services Table
Network Services Agreement Port
FTP TCP 21 SSH TCP 22 telnet TCP 23 SMTP TCP 25 Time TCP 37 DNS UDP 53 WWW TCP 80 POP3 TCP 110 SNMP UDP 161 CS server TCP 27015
32
User Manual
Network>Firewall>Traffic Rules
Click on the Network>Firewall>Traffic Rules tab for the following interface:
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
Communication rules define the traffic transmitted between different regions (e.g., items to reject traffic between certain hosts or items to open WAN ports on the router). For example, to add the name of aa traffic rules, follow these steps to configure:
33
Fill in the information according to the map and click the Add button to enter the following interface configuration:
User Manual
• Name: add a name, such as aa
• Restrict to address family: IPv4 and IPv6, only IPv4, only IPv6, any for you to choose, according to the traffic rules desired to implement
• Protocol: select the protocol based on your intranet server
• Match ICMP type: select the type of ICMP packet; if unsure of the type, choose any
• Source zone: select lan, wan or all areas
• Source MAC address: the source MAC address
• Source address: customize the source IP address
• Source Port: port of services provided by the source server used
• Destination Zone: select lan, wan or all areas
• Destination Address: customize the destination IP address here
• Destination Port: enter the port services provided by the target server used
• Action: choose discard, accept, reject, or no action
• Extra arguments: additional parameters passed to iptables — be careful when using!
34
User Manual
Network>Firewall>Custom Rules
Click on the Network>Firewall>Custom Rules option for the following interface:
Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
In this interface, define some functions not included in the firewall so that the router can provide additional protection.

Logout

Click the Logout button to return to the login screen.
35

Appendix: Technical Specifications

Hardware Specification
CPU Frequency 775 MHz
RAM capacity 128 MB (DDR2)
ROM capacity 16 MB (SPI flash)
Standards and Protocols
Wi-Fi
Interfaces
Button 1 x reset
Antenna
Indicators 5G WLAN LED, Power LED, 2.4G WLAN LED
Power Supply 12 V / 1.5 A adapter or IEEE802.3at standard PoE Dimensions
(W x D x H)
Environment
Wireless
Wired IEEE802.3i, IEEE802.3u, IEEE802.3ab Operating Frequency
Signal Rate
Modulation
Transmit Power
5 GHz: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a
2.4 GHz: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
2.4 GHz & 5 GHz
2.4 GHz: up to 450 Mbps 5 GHz: up to 867 Mbps IEEE 802.11b: CCK, QPSK, BPSK IEEE11g/a: OFDM IEEE11n: QPSK, BPSK, 16-QAM, 64-QAM IEEE11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM
2.4 GHz: ≦ 24 dBm 5 GHz: ≦ 23 dBm 1 x 10/100/1000 Mbps WAN port (RJ45) 2 x 10/100/1000 Mbps LAN ports (RJ45) 1 x USB 2.0 Host port, 1 x power DC jack
3 x 2.4 GHz 3 dBi built-in FPC antennas 2 x 5 GHz 3 dBi built-in FPC antennas
180 X 180 X 25.5 mm
Operating temperature: 0 – 40°C Storage temperature: -40 – 70°C operating Humidity: 10 – 90% non-condensing Storage humidity: 5 – 90% non-condensing
User Manual
Software Specification
Practical function
DDNS Wireless relay Quick Setup
Security Settings
WEB management Remote WEB management SSH access Telnet
Wireless basic function
Wireless enable/disable WDS WPS Mutiple SSID
Network Settings
WAN connection types supported: PPPoE, DHCP, Static IP, PPtP, L2TP MAC Clone Diagnostics Static Router
DHCP Settings
DHCP Server DHCP Client The client list Static IP
Wireless Security
64/128-bit WEP Encryption WPA/ WPA2, WPA-PSK/WPA2-PSKK
System configuration
Software upgrade Save & reload settings System log NTP server Language & Style
Firewall
DMZ Port Forward Port/URL/MAC filter
36
User Manual

Notes

Manageable Wireless AC1300 Dual-Band Gigabit
PoE Indoor Access Point and Router
37

Additional Information

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT
DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT
(Applicable In The European Union And Other European Countries With Separate Collection Systems)
ENGLISH: This symbol on the product or its packaging
means that this product must not be treated as unsorted household waste. In accordance with
EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user’s local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality. DEUTSCH: Dieses auf dem Produkt oder der Verpackung angebrachte Symbol zeigt an, dass dieses Produkt nicht mit dem Hausmüll entsorgtwerden darf. In Übereinstimmung mit der Richtlinie 2012/19/EU des Europäischen Parlaments und des Rates über Elektro­und Elektronik-Altgeräte (WEEE) darf dieses Elektrogerät nicht im normalen Hausmüll oder dem Gelben Sack entsorgt werden. Wenn Sie dieses Produkt entsorgen möchten, bringen Sie es bitte zur Verkaufsstelle zurück oder zum Recycling-Sammelpunkt Ihrer Gemeinde. ESPAÑOL: Este símbolo en el producto o su embalaje indica que el producto no debe tratarse como residuo doméstico. De conformidad con la Directiva 2012/19/EU de la UE sobre residuos de aparatos eléctricos y electrónicos (RAEE), este producto eléctrico no puede desecharse se con el resto de residuos no clasificados. Deshágase de este producto devolviéndolo a su punto de venta o a un punto de recolección municipal para su reciclaje. FRANÇAIS: Ce symbole sur Ie produit ou son emballage signifie que ce produit ne doit pas être
traité comme un déchet ménager. Conformément à la Directive 2012/19/EU sur les déchets d’équipements électriques et électroniques (DEEE), ce produit électrique ne doit en aucun cas être mis au rebut sous forme de déchet municipal non trié. Veuillez vous débarrasser de ce produit en Ie renvoyant à son point de vente ou au point de ramassage local dans votre municipalité, à des fins de recyclage. POLSKI: Jeśli na produkcie lub jego opakowaniu umieszczono ten symbol, wówczas w czasie utylizacji nie wolno wyrzucać tego produktu wraz z odpadami komunalnymi. Zgodnie z Dyrektywą Nr 2012/19/EU w sprawie zużytego sprzętu elektrycznego i elektronicznego (WEEE), niniejszego produktu elektrycznego nie wolno usuwać jako nie posortowanego odpadu komunalnego. Prosimy o usuniecie niniejszego produktu poprzez jego zwrot do punktu zakupu lub oddanie do miejscowego komunalnego punktu zbiórki odpadów przeznaczonych do recyklingu. ITALIANO: Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2012/19/EU sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.
WARRANTY AT: | GARANTIE AUF: | GARANTÍA EN: | GARANTIE À : | GWARANCJA NA: | GARANZIA A:
intellinetnetwork.com
EN MÉXICO: Póliza de Garantía Intellinet Network Solutions— Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.
A Garantizamos los productos de limpieza, aire comprimido y consumibles, por 60
dias a partir de la fecha de entrega, o por el tiempo en que se agote totalmente su contenido por su propia función de uso, lo que suceda primero.
B Garantizamos los productos con partes móviles por 3 años. C Garantizamos los demás productos por 5 años (productos sin partes móviles), bajo las siguientes condiciones:
1 Todos los productos a que se refiere esta garantía, ampara su
cambio físico, sin ningún cargo para el consumidor.
2 El comercializador no tiene talleres de servicio, debido a que los productos que se garantizan
38
no cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico.
3 La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que
hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o
cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor. Para hacer efectiva esta garantía bastará con presentar el producto al distribuidor en el domicilio donde fue adquirido o en el domicilio de IC Intracom México, S.A.P.I. de C.V., junto con los accesorios contenidos en su empaque, acompañado de su póliza debidamente llenada y sellada por la casa vendedora (indispensable el sello y fecha de compra) donde lo adquirió, o bien, la factura o ticket de compra original donde se mencione claramente el modelo, número de serie (cuando aplique) y fecha de adquisición. Esta garantía no es válida en los siguientes casos: Si el producto se hubiese utilizado en condiciones distintas a las normales; si el producto no ha sido operado conforme a los instructivos de uso; o si el producto ha sido alterado o tratado de ser reparado por el consumidor o terceras personas.
REGULATORY STATEMENTS
FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician for help.
CE
ENGLISH: This device complies with the requirements of CE RED 2014/53/EU, 2014/30/EU and/or 2014/35/EU. The Declaration of Conformity for is available at: DEUTSCH: Dieses Gerät enspricht der CE RED 2014/53/EU, 2014/30/EU und / oder 2014/35/EU. Die Konformitätserklärung für dieses Produkt finden Sie unter: ESPAÑOL: Este dispositivo cumple con los requerimientos de CE RED 2014/53/EU, 2014/30/EU y / o 2014/35/EU. La declaración de conformidad esta disponible en: FRANÇAIS: Cet appareil satisfait aux exigences de CE RED 2014/53/EU, 2014/30/EU et / ou 2014/35/EU. La Déclaration de Conformité est disponible à : POLSKI: Urządzenie spełnia wymagania CE RED 2014/53/EU, 2014/30/EU I / lub 2014/35/EU. Deklaracja zgodności dostępna jest na stronie internetowej producenta: ITALIANO: Questo dispositivo è conforme alla CE RED 2014/53/EU, 2014/30/EU e / o 2014/35/EU. La dichiarazione di conformità è disponibile al:
support.intellinetnetwork.com/barcode/525831
North America
IC Intracom America 550 Commerce Blvd.
Oldsmar, FL 34677, USA
All trademarks and trade names are the property of their respective owners.
Alle Marken und Markennamen sind Eigentum Ihrer jeweiligen Inhaber.
Todas las marcas y nombres comerciales son propiedad de sus respectivos dueños.
Toutes les marques et noms commerciaux sont la propriété de leurs propriétaires respectifs.
Wszystkie znaki towarowe i nazwy handlowe należą do ich właścicieli.
Tutti i marchi registrati e le dominazioni commerciali sono di proprietà dei loro rispettivi proprietari.
Xizhi Dist., New Taipei City 221, Taiwan
Asia & Africa
IC Intracom Asia
4-F, No. 77, Sec. 1, Xintai 5th Rd.
Europe
IC Intracom Europe
Löhbacher Str. 7, D-58553
Halver, Germany
39
intellinetnetwork.com
All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights
reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
INT_525831_UM_1020_REV_5.02Printed on recycled paper.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
